Aversix AVG-3110 Series User manual

User Manual
GPU Computer
AVG-3110 Series

2
AVG-3110 Series GPU Computer User’s Manual
Contents
Prefaces…………………………………………………………………………….......….…04
Revision…………………………………………………………………..……………….…………………………04
Copyright and Trademarks Notice……………………………………………..……………….……….04
Disclaimer………………………………….…….………………………………….………………….………….04
Technical Support and Assistance………………………….………………………….…………………04
Safety Instructions…………..………….………………………………..…………………....................04
Package List…………………………………………………………………………………………..………….…05
Ordering Information…………………………..……………………………………………….….…………05
Optional Accessory………...…………………....................................................................05
Chapter 1 Product Introductions……………………………………...…………..…06
1.1 Overview………………….………..………….…………..………………………..………….…………..07
1.2 AVG-3110 Series Specifications………..……………………………....……..….………………08
1.3 Panel I/O………..……………..………………………..……………………………………………………10
1.3.1 Front Panel……......................…………………………………………………….…………10
1.3.2 Top Panel…………………………..………………………………………………..………………12
1.4 Mechanical Dimensions..………………………..……………………………………………………14
Chapter 2 Switches and Connectors…………………………….……………….16
2.1 Switch and Connector Locations…………………………….…………………………………....17
2.1.1 Front View…………………………………………………………………….………..…..………17
2.1.2 Top View……………………………………………………………………………………………..18
2.2 Switches, LEDs and Connectors Definition……………..………………………….………...19
2.3 Switch Definitions………….………………………………………........................................20
2.4 Connector Definitions……………………………………………………................................23
Chapter 3 System Setup…………….………………………………….…………………32
3.1 Removing CPU heat sink cover……………………………………………..……..…………….…33
3.2 Installing CPU……………….…..…….…….…………………………....…………………..……….…34
3.3 Installing SODIMM…………………………………………..………………………..…….……..……39
3.4 Installing Mini-PCIe or mSATA Module….…..…………………....….………….…….……..40
3.5 Installing antenna………………………….…………..………………………………………………...41
3.6 Installing removable SATA HDD bay….…..…………………………………….………...…....44
3.7 Installing internal SATA HDD bay….…………………................................................45
3.8 Installing CFast1/2 or SIM1/2 card….….…………………………….…………..……….…….48
3.9 Installing Internal SIM3/4 card….………….…………………….…................................49
3.10 Changing CMOS battery….……………….………………..….……………………..……..…....50
3.11 Assembly CPU heat sink cover….…………………..………………….……………..…….…..51
3.12 Installing PCIe expansion card….……..….….………………………………………..…..……52
3.13 Connecting expansion module with PC module….…………………………………..….56
3.14 Installing stand / wall mount….…………………………………………………………………..57

3
AVG-3110 Series GPU Computer User’s Manual
Contents
Chapter 4 BIOS Setup….……….………………….….…..….……..…………………..59
4.1 BIOS Introduction…….….……………………………………………………….…….…..….………60
4.2 Main Setup….……….………………………………………………………….…….….…………………61
4.2.1 System Date………………………………..………………………..…..……..…………………61
4.2.2 System Time..………………………………….………………………...……….………………61
4.3 Advanced Setup…………………………………………..…………………..…………………………62
4.3.1 CPU Configuration..…………………….…………………………………………….………..62
4.3.2 PCH-FW Configuration………………………………………………………………………..63
4.3.3 SATA And RST Configuration…………………………………..…………………………..64
4.3.4 Trusted Computing (Optional)…….……………………………….……………………..65
4.3.5 ACPI Settings..………………………………………………………………..…..………………66
4.3.6 Super IO Configuration…………………….………..……………………………….……..67
4.3.7 Serial Port Console Redirection………………………..…..................…..……....71
4.3.8 Hardware Monitor…………………………………….…………………………………..……73
4.3.9 USB Configuration………………………………………………………………………….……73
4.3.10 CSM Configuration…….…………………………………………..………………….………74
4.3.11 NVMe Configuration….…………………………………………………….…..……………76
4.3.12 Network Stack Configuration….…………………………………….……..……………76
4.4 Chipset…………...…………………...…..………………………………………………………..….77
4.4.1 System Agent (SA) Configuration…………………..…………………………………...77
4.4.2 PCH-IO Configuration……………………………...………………………………………….79
4.5 Security……...……….……….…..….…..………………………………..………………………..……82
4.5.1 Administrators Password……………………..………..…………………………………...82
4.5.2 Users Password…….…………………………….………..…………………………………….82
4.6 Boot…………...……….….………….…..…………………………..…………..………………………..83
4.6.1 Setup Prompt Timeout..……………………..……………………………………………….83
4.6.2 Bootup NumLock State……………………………………………..…………………………83
4.6.3 Quiet Boot………………….……………………………..…………………………………..……83
4.6.4 Boot Option Priorities………….…………………………..…………………………………83
4.6.5 Fast Boot…………………….………………..…………………………………………………….83
4.7 Save & Exit…..……….….………….…..……………………..…………..…………………………….84
4.7.1 Setup Prompt Timeout………………………..………….……………………...............84
4.7.2 Bootup NumLock State……………………………………..…………………………………84
4.7.3 Quiet Boot….…………………………………..…………………………………………………..84
4.7.4 Boot Option Priorities……………………………………..…………………………………84
4.7.5 Save Changes and Exit….………………………………….…………………………………84
4.7.6 Discard Changes and Exit…………………………..…………………………………….…84
4.7.6 Discard Changes and Exit…………………………..…………………………………….…84
4.7.7 Restore Defaults…………..……….………………………………………………………….…85
4.7.8 Save as User Defaults………...…………..……………….……………………………….…85
4.7.9 Restore User Defaults………………….…..……………………………………………….…85

4
AVG-3110 Series GPU Computer User’s Manual
Copyright and Trademarks Notice
All rights reserved. No part of this manual may be reproduced, transcribed or transmitted
and stored in any system, or transmitted in any form or language, without the prior written
permission of Aversix Inc.
Disclaimer
This user’s manual is for informational purposes only and is subject to change without prior
notice. It does not represent commitment from Aversix Inc.
This product might include unintentional typographical or technical errors. Aversix will
periodically correct such erroneous files and incorporate these corrections into the new
version of the file.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s
manual, please contact your local distributor. Alternatively, please visit
https://www.aversix.com for further guidance.
Safety Instructions
￭Always read the safety instructions carefully before you install or operate the
system.
￭Never pour any liquid into the opening that could damage or cause electrical
shock.
￭Keep this User’s Manual for future reference.
￭Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
￭Always Unplug the Power Cord before inserting any add-on card or SATA HDD.
￭If the equipment is not used for long time, disconnect it from the power to avoid
transient over-voltage
￭If any of the following situations arises, get the equipment checked by service
personnel:
▶The power adapter, power cord or plug is damaged.
▶Liquid has penetrated into the system.
▶The system has been exposed to moisture.
▶The system does not work well or you can not get it work according to user’s
manual.
▶The system dropped and damaged.
▶The system has obvious sign of breakage.
Revision
Description
Date
1.0
Manual released
2020/03/15
Revision
Preface

5
AVG-3110 Series GPU Computer User’s Manual
Ordering Information
Model No.
Product Description
AVG-3110
Intel® 9th/8th Core-i High Performance GPU Computer with 3x LAN, 6x
USB 3.2, 6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay and 2x
Internal 2.5” SATA HDD Bay
AVG-3110-1N
Intel® 9th/8th Core-i High Performance GPU Computer with 3x LAN, 6x
USB 3.2, 6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay, 2x
Internal 2.5” SATA HDD Bay and 1x M.2 (M-Key, PCIe X4 NVMe, 2280)
AVG-3112
Intel®9th / 8th Core™ i3 / i5 / i7 GPU Computer with 3x GbE, 6x USB 3.2,
6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay, 2x Internal 2.5”
SATA HDD Bay, 1x PCIe X4 Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key,
PCIe X4 NVMe, 2280)
AVG-3112-1N
Intel®9th / 8th Core™ i3 / i5 / i7 GPU Computer with 3x GbE, 6x USB 3.2,
6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay, 2x Internal 2.5”
SATA HDD Bay, 1x PCIe X4 Slot and 1x PCIe X16 Slot and 1x M.2 (M-Key,
PCIe X4 NVMe, 2280)
AVG-3113
Intel®9th / 8th Core™ i3 / i5 / i7 GPU Computer with 3x GbE, 6x USB 3.2,
6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay, 2x Internal 2.5”
SATA HDD Bay, 2x PCIe X4 Slot and 1x PCIe X16 Slot
AVG-3113-1N
Intel®9th / 8th Core™ i3 / i5 / i7 GPU Computer with 3x GbE, 6x USB 3.2,
6x RS232/422/485, 2x Removable 2.5” SATA HDD Bay, 2x Internal 2.5”
SATA HDD Bay, 2x PCIe X4 Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key,
PCIe X4 NVMe, 2280)
Optional Accessories
Model No.
Product Description
RSP-500-24
24V/ 21A 500W with 4x DC Cable
UHP-1000-48
48V/ 21A 1000W with 4x DC Cable
APCNEMA5-15P
AC Power Cord, 3-pin US Type, 180cm
APCCEE7-7
AC Power Cord, 3-pin European Type, 180cm
E6-AVM3X1X0700
Fan (70 x 70 x25 mm) Module Kit for AVM(G) Series System
Item
Description
Q’ty
1
AVG-3110 Series GPU Computer
1
2
Utility DVD Driver
1
3
Wall Mount Kit
1
4
Accessory Kit
1
Package List

Chapter 1
Product Introductions
AVG-3110 Series GPU Computer User’s Manual

7
AVG-3110 Series GPU Computer User’s Manual
1.1 Overview
The AVG-3110 series is a high-spec GPU system equipped with Aversix convertible
expansion module technology (CEM technology). It supports PCIe modular expansion
functions and can be used with nVIDIA RTX-2080 or higher GPU graphics cards or
accelerator cards. Used to reduce CPU loading and increase the speed and ability of image
processing.
Not only that, the AVG-3100 series uses the Intel 9th/8th CFL-R/S platform, which can
support up to octa-core processors. The configuration of 4x SATA and 2x CFast/ mSATA in
the system is more suitable for the storage and backup of large amounts of data, and it is
very suitable for image recognition, security monitoring, unmanned intelligent vehicles,
factory automation, machine vision and other fields.

8
AVG-3110 Series GPU Computer User’s Manual
1.2 AVG-3110 Series Specifications
Processor
Support 9th/ 8th Intel® Core™ i3 / i5 / i7 Desktop
35W/ 65W LGA 1151 Processors
•Intel® Core™ i7-9700TE, Octa Core, 12M Cache,
up to 3.8 GHz, 35W TDP
•Intel® Core™ i7-9700E, Octa Core, 12M Cache,
up to 4.4 GHz, 65W TDP
•Intel® Core™ i5-9500TE, Hexa Core, 12M Cache,
up to 3.6 GHz, 35W TDP
•Intel® Core™ i5-9500E, Hexa Core, 12M Cache,
up to 4.2 GHz, 65W TDP
•Intel® Core™ i3-9100TE, Quad Core, 6M Cache,
3.3 GHz, 35W TDP
•Intel® Core™ i3-9100E, Quad Core, 6M Cache,
3.7 GHz, 65W TDP
•Intel® Core™ i7-8700T, Hexa Core, 12M Cache,
up to 4.0 GHz, 35W TDP
•Intel® Core™ i7-8700, Hexa Core, 12M Cache, up
to 4.6 GHz, 65W TDP
•Intel® Core™ i5-8500T, Hexa Core, 9M Cache, up
to 3.5 GHz, 35W TDP
•Intel® Core™ i5-8500, Hexa Core, 9M Cache, up
to 4.1 GHz, 65W TDP
•Intel® Core™ i3-8100T, Quad Core, 6M Cache,
3.1 GHz, 35W TDP
•Intel® Core™ i3-8100, Quad Core, 6M Cache, up
to 3.6 GHz, 65W TDP
BIOS
•AMI BIOS, 256Mbit SPI Flash ROM on board.
Chipset
•Intel® Q370 Express Chipset
Memory
•2x DDR4-2400/2666MHz 260-Pin SO-DIMM
Socket
•Support up to 64GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® UHD Graphics 630
(Core™ i7/ i5/ i3)
•Integrated Intel® UHD Graphics 610
•(Pentium/ Celeron)
•Supports Triple Independent Display
•1x VGA
•1x DVI-D
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•GbE1: Intel® i219-LM
(Support Wake-on-LAN and PX)
•GbE2~GbE3: Intel® i210-AT GbE
(Support Wake-on-LAN and PXE)
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•3x GbE RJ45
•6x USB 3.1 Port
•2x Internal USB 2.0 Port
•6x RS232/422/485 with Auto Flow Control, DB9
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•8x Isolated DI and 8x Isolated DO Port, 2x9-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x Removable CMOS Battery
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
•2x Universal I/O Bracket

9
AVG-3110 Series GPU Computer User’s Manual
Expansion
•AVG-3110(-1N): N/A
•AVG-3112E(-1N): 1x PCIe X16 and 1x PCIe X4 Slot
•AVG-3113E(-1N): 1x PCIe X16 and 2x PCIe X4 Slot
•2x Full-size Mini-PCIe Socket (mux with mSATA)
•2x Full-size Mini-PCIe Socket
•4x SIM Socket
•8x Antenna Hole
Storage
•2x Removable 2.5" SATA HDD Bay
•2x Internal 2.5" SATA HDD Bay
•2x CFast Socket (Shared by 2x mSATA)
•2x mSATA Socket (Shared by 2x Mini-PCIe and
CFast)
•1x M.2 (M-Key, PCIe X4 NVMe, 2280)
(AVG-3110-1N, AVG-3112-1N, AVG-3113-1N
Only)
Power Requirement
•Support Hardware AT, ATX Power Mode
•2x3-pin Terminal Block Connector with Power
Input 9~48VDC (without GPU Card)
•2x3-pin Terminal Block Connector with Power
Input 24~48VDC (with GPU Card)
•Power Ignition Sensing
•1x Optional AC/DC 24V/21A, 500W Power
Supply
•1x Optional AC/DC 48V/21A, 1008W Power
Supply
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature (Ambient with Air Flow):
-40°C to 70°C (without GPU Card)
-40°C to 60°C (with GPU Card)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•Shock: 30 Grms, Half-sine 11 ms
•Vibration: 3 Grms, 5-500 Hz, 3 Axis
Physical
•AVG-3110(-1N)
Dimension (WxDxH): 92.6 x 356 x 241.5 mm
AVG-3112(-1N)
Dimension (WxDxH): 148 x 356 x 241.5 mm
AVG-3113(-1N)
Dimension (WxDxH): 168 x 356 x 241.5 mm
Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•Stand mounting

10
AVG-3110 Series GPU Computer User’s Manual
1.3 Panel I/O

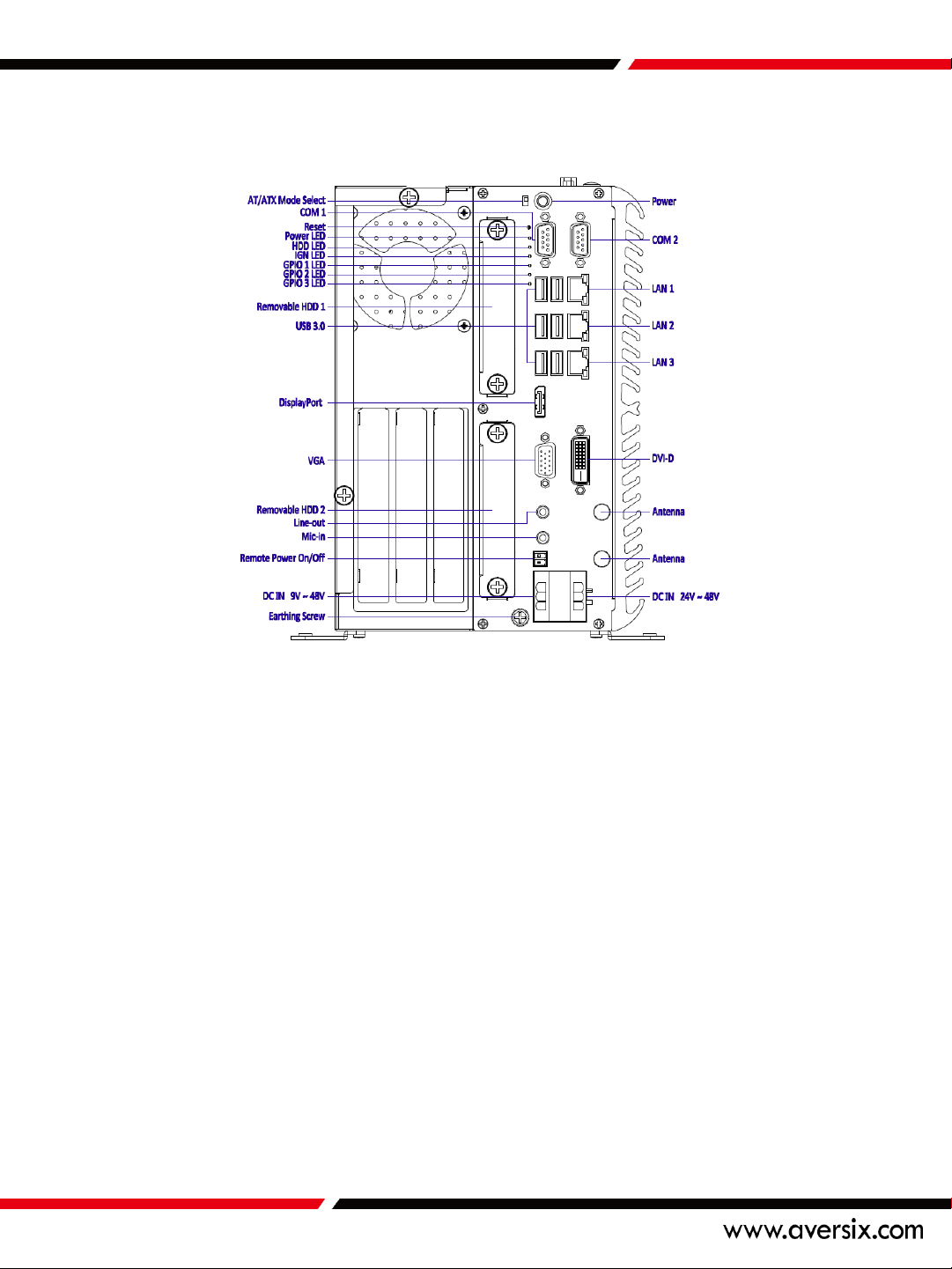

1.3.1 Front Panel
Power on/off button
Press to power-on or power-off the system
AT/ATX mode select switch
Used to select AT or ATX power mode
Reset button
Used to reset the system
COM port
COM1 ~ COM2 support RS232/422/485
serial device
LAN port
Used to connect the system to a local area
network
USB 3.0 port
Used to connect USB 3.0 device
DisplayPort
Used to connect a DisplayPort monitor
DVI-D port
Used to connect a DVI monitor
VGA port
Used to connect a VGA monitor
Line-out
Used to connect a speaker
Mic-in
Used to connect a microphone
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
DC IN
Used to plug a DC power input with terminal
block
Earthing Screw Hole
Used to connect the ground wire
Antenna Hole
Used to connect an antenna for optional
Mini-PCIe WiFi module
Removable HDD port
Removable 2.5" SATA HDD Area
Expansion Slot
Used to plug in a PCI or PCIe card.
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
IGN LED
Indicates the status of the ignition active
GPIO LED
Indicates the status of the customer define

11
AVG-3110 Series GPU Computer User’s Manual
AVG-3110(-1N)
AVG-3112(-1N)

12
AVG-3110 Series GPU Computer User’s Manual
AVG-3113(-1N)
1.4.2 Top Panel
Clear CMOS
Used to clear CMOS
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode system turn off
delay time
CMOS Battery
Used to change CMOS battery
SIM card
Used to insert SIM card
CFast Socket
Used to insert CFast card
COM port
COM1 ~ COM2 support RS232/422/485
serial device
Digital I/O Terminal Block
The Digital I/O terminal block supports 8
digital input and 8 digital output
Antenna hole
Used to connect an antenna for optional
Mini-PCIe WiFi module
Universal I/O Expansion
Used to customized I/O output

13
AVG-3110 Series GPU Computer User’s Manual
AVG-3110(-1N)
AVG-3112(-1N)
AVG-3113(-1N)

14
AVG-3110 Series GPU Computer User’s Manual

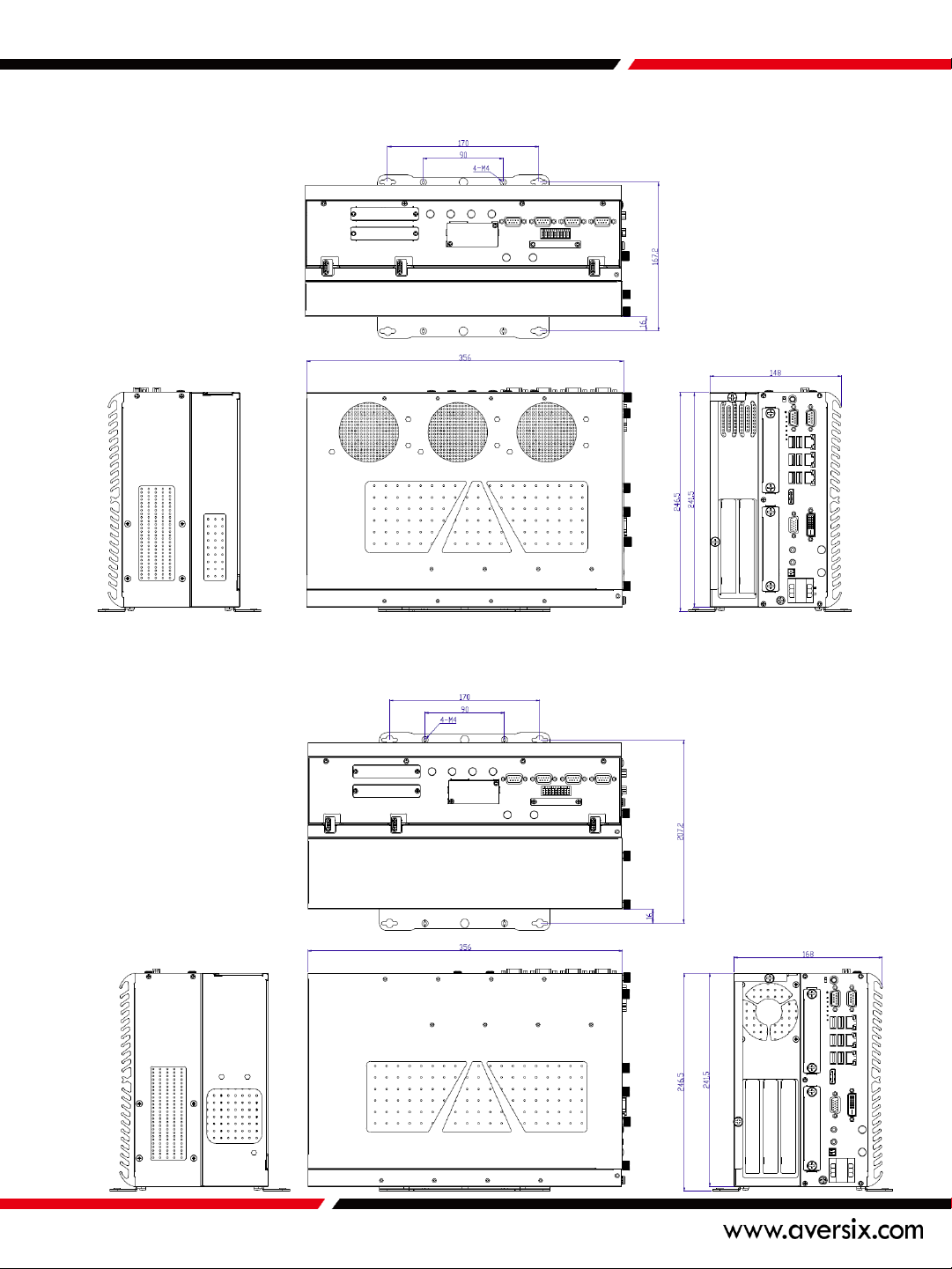

1.4 Mechanical Dimensions
AVG-3110(-1N)

15
AVG-3110 Series GPU Computer User’s Manual
AVG-3112(-1N)
AVG-3113(-1N)

Chapter 2
Switches and Connectors
AVG-3110 Series GPU Computer User’s Manual

17
AVG-3110 Series GPU Computer User’s Manual
2.1 Switche and Connector Locations

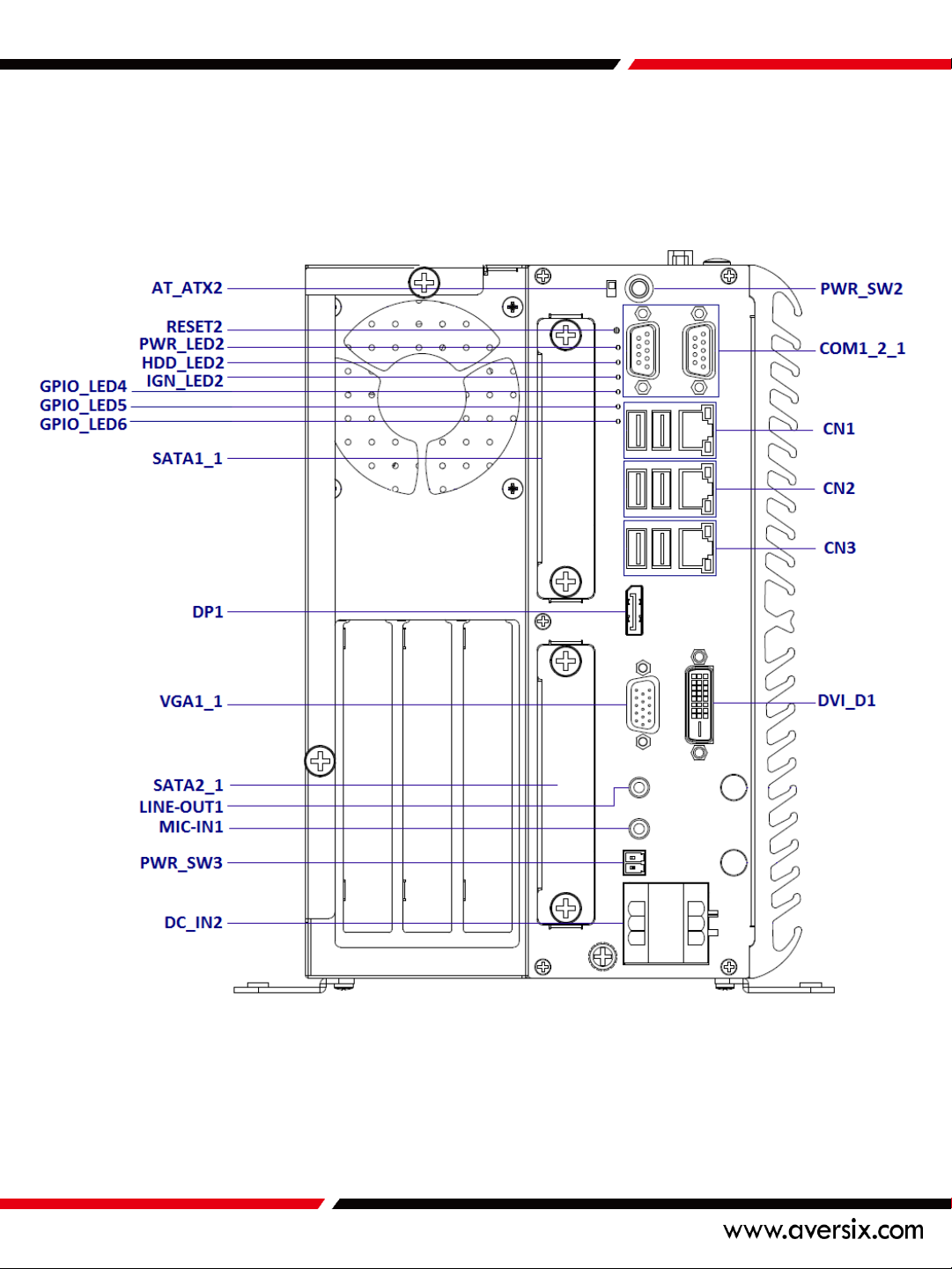

2.1.1 Front View

18
AVG-3110 Series GPU Computer User’s Manual

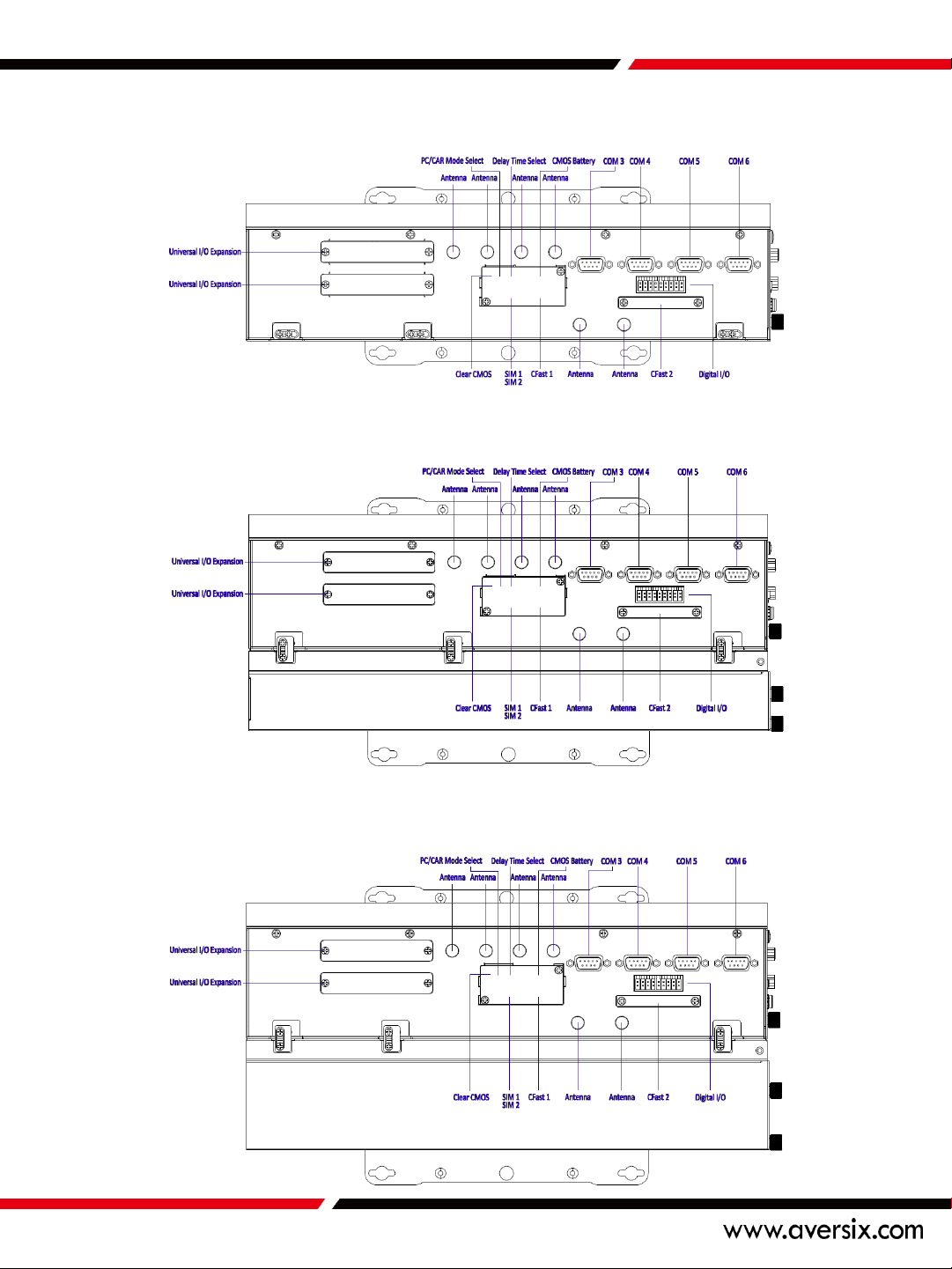

2.1.2 Top View

19
AVG-3110 Series GPU Computer User’s Manual
2.2 Switches, LEDs and Connectors Definition
List of Switches and LEDs
List of Connectors
Location
Definition
PWR_SW2
Power Button
AT_ATX2
AT / ATX Power Mode Switch
RESET2
Reset Button
CLR_CMOS1
Clear BIOS Switch
CAR_PWR1
PC / Car Mode Switch
DELAY_TIME1
Car mode system turn off delay time
PWR_LED2
Power LED Status
HDD_LED2
HDD Access LED Status
IGN_LED2
Power Ignition LED Status
GPIO_LED4, GPIO_LED5, GPIO_LED6
GPIO LED Status
Location
Definition
PWR_SW3
Remote Power On/Off Connector
USB7_1, USB8_1
USB 2.0 Port
COM1_2_1
RS232 / RS422 / RS485 Connector
COM3_1, COM4_1, COM5_1, COM6_1
RS232 / RS422 / RS485 Connector
CFAST1, CFAST2
CFast Socket
DC_IN2
6-pin DC 24~48V Power Input with Power Ignition
Connector
SIM1_1, SIM2_1, SIM3_1, SIM4_1
SIM Card Socket
LINE_OUT1
Line-out Jack
MIC_IN1
Mic-in Jack
POWER1, POWER2
Power Connector
DIO1_1
8DI / 8DO Connector
VGA1_1
VGA Connector
DVI_D1
DVI-D Connector
DP1
DisplayPort Connector
SODIMM1, SODIMM2
DDR3L SODIMM Socket
CN1, CN2 ,CN3
LAN and USB3.0 Port
MINIPCIE1, MINIPCIE2
Mini PCI-Express Socket
CN4, CN5
Dual Mode Mini PCI-Express / mSATA Socket
SATA1_1, SATA2_1, SATA3_1, SATA4_1
22-pin SATA with Power Connector
FAN1
Internal PWM FAN Connector

20
AVG-3110 Series GPU Computer User’s Manual
Switch
Definition
Push
Power On/Off System
2.3 Switch Definitions
PWR_SW2：Power Button
Pin
Definition
1-2 (Right)
ATX Power Mode (Default)
2-3 (Left)
AT Power Mode
AT_ATX2：AT / ATX Power Mode Switch
Switch
Definition
Push
Reset System
RESET2：Reset Button
Pin
Definition
1-2 (Left)
Normal (Default)
2-3 (Right)
Clear CMOS
CLR_CMOS1：CMOS Clear Switch
Pin
Definition
1-2 (Left)
PC Power Mode (Default)
2-3 (Right)
Vehicle Power Ignition Mode
CAR_PWR1：PC / Car Mode Switch
Switch
1 / 2 / 3
Definition
ON / ON / ON
Shutdown Timer by O.S (Default)
ON / ON / OFF
1 min.
ON / OFF / ON
5 min.
ON / OFF / OFF
10 min.
OFF / ON / ON
30 min.
OFF / ON / OFF
1 hour
OFF / OFF / ON
2 hour
OFF / OFF / OFF
Reserved
DELAY_TIME1：Car mode system turn off delay time setup switch
