Aversix AVM-3110 Series User manual

User Manual
Machine Vision Computer
AVM-3110 Series

2
ContentsContents
Prefaces……………………………………………………………………….......04
Revision……………………………………………………….……………………..……………….…………………………04
Copyright and Trademarks Notice………………………………………………………..……………….……….04
Disclaimer………………………………….…….…………………….……………………….………………….………….04
Technical Support and Assistance…………………………………….………………………….…………………04
Safety Instructions…………..………….………………………………….………..…………………....................04
Package List……………………………………………………………………………………………………..………….…05
Ordering Information…………………………..………………………………….……………………….….…………05
Optional Accessory………...…………………................................................................................05
Chapter 1 Product Introductions……………………...…………..…06
1.1 Overview………………….………..………….…………..………….…………………..…..………….…………..07
1.2 AVM-3110 Series Specification………………..…..………..…………………....……..….………………08
1.3 Panel I/O………..……………..………………………..………………………………………………………………10

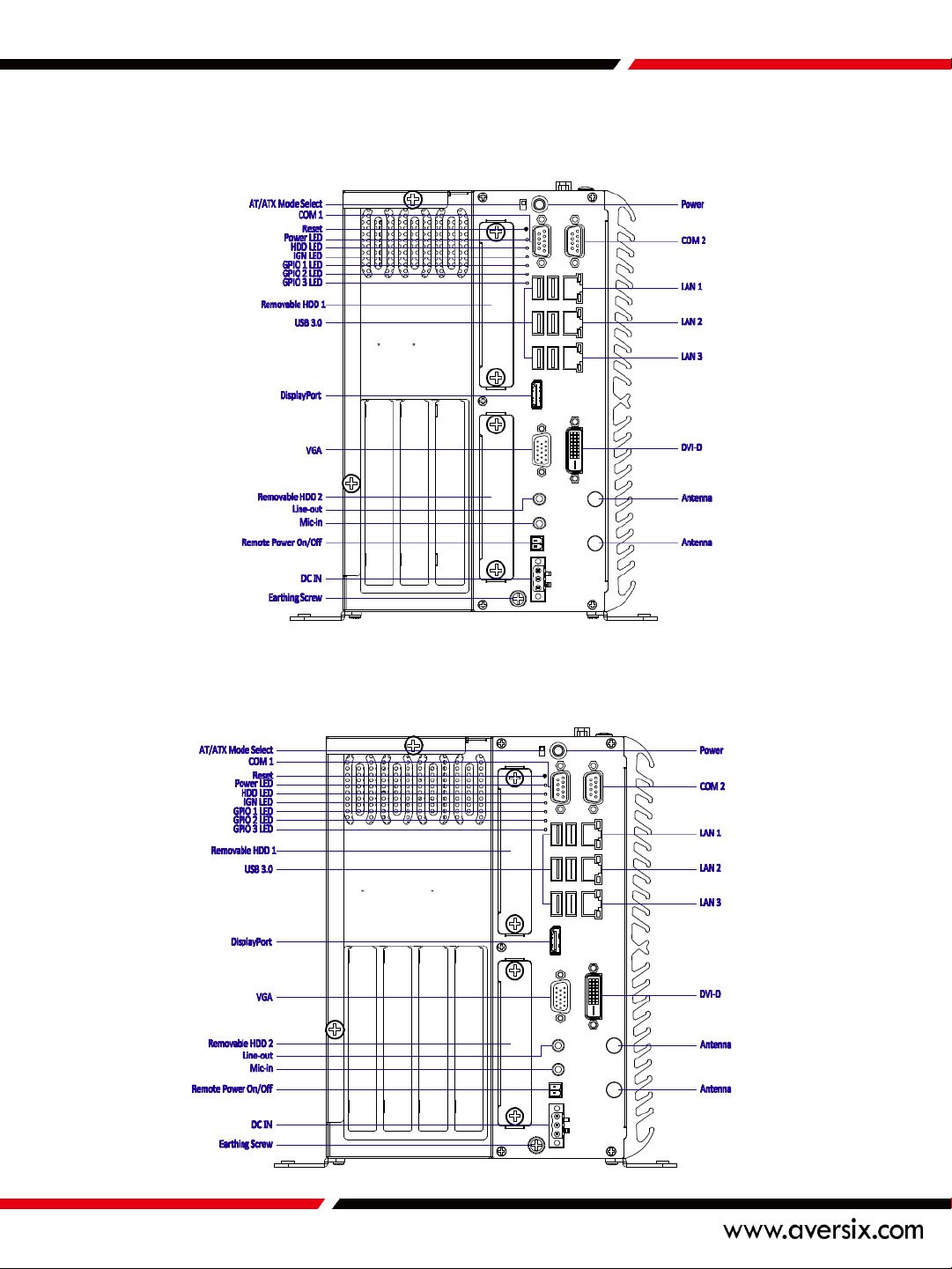

1.3.1 Front Panel……………..........................…………………………………………………….…………10

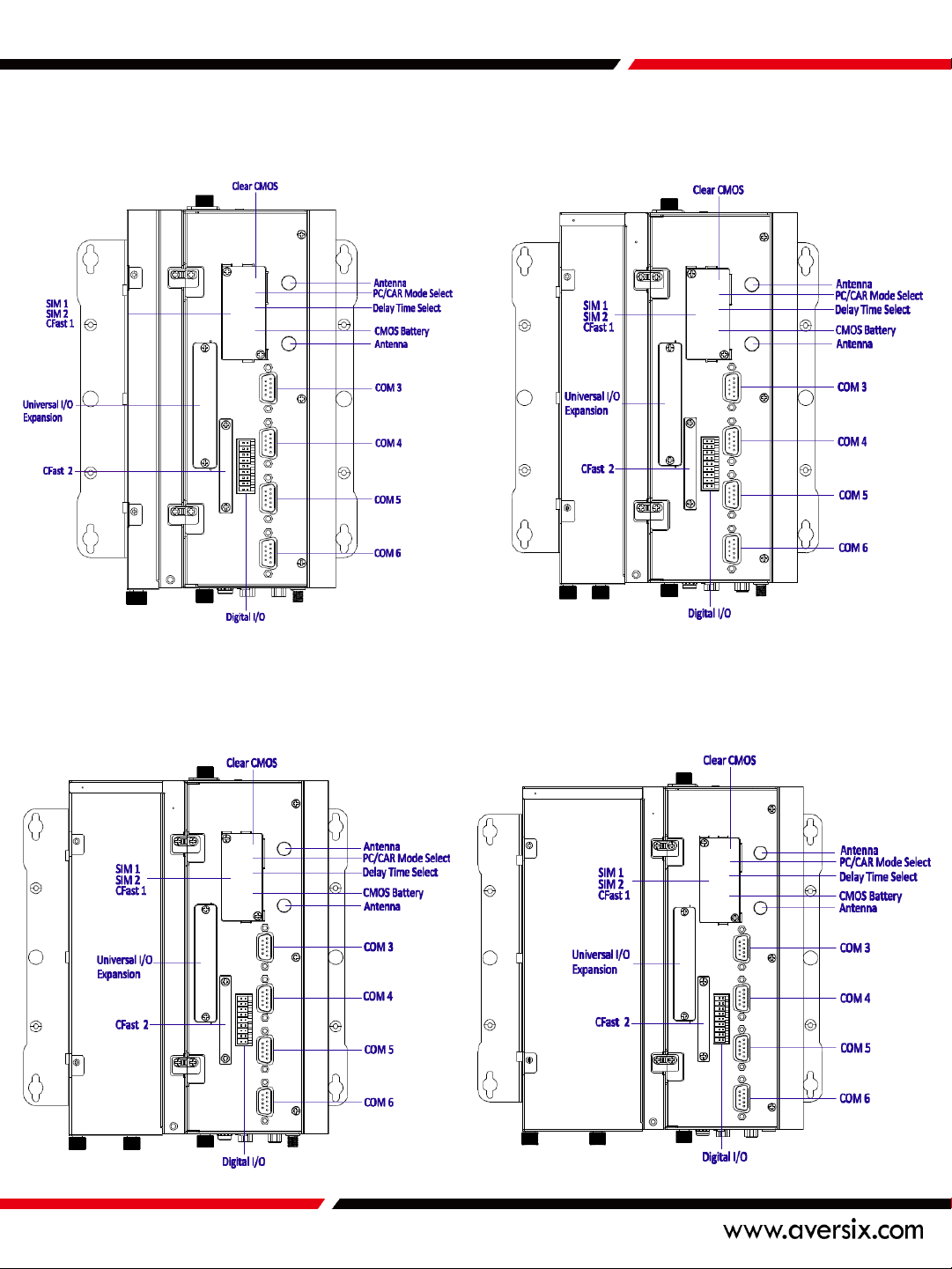

1.3.2 Top Panel……………………………………..………………………………………………..………………13
1.3.3 Rear anel…………………………….………..………………………………………………..………………15
1.4 Mechanical Dimensions…………...………………………..……………………………………………………17
1.4.1 AVM-3110……...................................…………………………………………………….…………17
1.4.2 AVM-3111 Series…………………….......………………………………………………..………………17
1.4.3 AVM-3112 Series……………..……………..……………………………………………..………………18
1.4.4 AVM-3113 Series……………..…………………..………………………………………..………………18
1.4.5 AVM-3114 Series……………..………………………..…………………………………..………………19
Chapter 2 Switches and Connectors………………….……………….20
2.1 Switch and Connector Locations…………………………….………….…………………………………....21
2.1.1 Front View……………………………………………………………………………….………..…..………21
2.1.2 Top View………………………………………………………………………………………………………..22
2.1.3 Rear View……………………………………………………………..………………………………………..22
2.2 Switches, LEDs and Connectors Definition………………………...………………………….………...23
2.3 Switch Definitions………….……………………………………………………......................................24
2.4 Connector Definitions…………………………………………………………….…................................27
Chapter 3 System Setup…..………….………………….…………………36
3.1 Removing CPU heat sink cover………………………………………………………..……..…………….…37
3.2 Installing CPU……………….…..…….…….…………….………………………....…………………..……….…38
3.3 Installing SODIMM………………………………………….…………..………………………..…….……..……43
3.4 Installing Mini-PCIe or mSATA Module…………….…..…………………....….………….…….……..44
3.5 Installing antenna………………………….………………….....………………………………………………...45
3.6 Installing removable SATA HDD bay….…..……………………………………………….………...…....48
3.7 Installing CFast1/2 or SIM1/2 card….….…………………….………………….…………..……….…….49
3.8 Installing Internal SIM3/4 card….………….…………………….………….…................................50
3.9 Changing CMOS battery….……………...…………….………………..….……………………..……..…....51
3.10 Assembly CPU heat sink cover……………..…………………..………………….……………..…….…..52
3.11 Installing PCI/ PCIe expansion card….………………....….….………………………………..…..……53
3.12 Connecting expansion module with PC module….………………….…………………………..….56
3.13 Installing stand / wall mount….……………………………………………….……………………………..57
AVM-3110 Series Machine Vision Computer User Manual

3
Contents
Chapter 4 BIOS Setup….………...……………………..…………………..59
4.1 BIOS Introduction…….….…………………………………………………………………….…….…..….………60
4.2 Main Setup….……….……………………………………….…………………………….…….….…………………61
4.2.1 System Date……………………………………………………………………..…..……..…………………61
4.2.2 System Time..……………………………………………..………………………...……….………………61
4.3 Advanced Setup……………………………………………………....…………………..…………………………62
4.3.1 CPU Configuration..…………………….…………………….………………………………….………..62
4.3.2 PCH-FW Configuration………………………………………….………………………………………..63
4.3.3 SATA And RST Configuration………………………………….…………..…………………………..64
4.3.4 Trusted Computing (Optional)…….………………………….……………….……………………..65
4.3.5 ACPI Settings..………………………………………………………….………………..…..………………66
4.3.6 Super IO Configuration…………………….………..………………..………………………….……..67
4.3.7 Serial Port Console Redirection………………………..………………..................…..……....71
4.3.8 Hardware Monitor…………………………………….……………………….……………………..……73
4.3.9 USB Configuration……………………………………………………………….…………………….……73
4.3.10 CSM Configuration…….…………………………………………..…………………………….………74
4.3.11 NVMe Configuration….……………………………………………………………….…..……………76
4.3.12 Network Stack Configuration….………………………………………………..……..……………76
4.4 Chipset…………...…………………...…..………………………………………………………….……………..….77
4.4.1 System Agent (SA) Configuration…………………..…………………………….………………...77
4.4.2 PCH-IO Configuration……………………………...…………………………………….……………….79
4.5 Security……...……….……….…..….…..………………………………..……………………………………..……82
4.5.1 Administrators Password……………………..………..………………………………….…………...82
4.5.2 Users Password…….…………………………….………..…………………………………….………….82
4.6 Boot…………...……….….………….…..…………………………..…………………..……………………………..83
4.6.1 Setup Prompt Timeout..……………………..…………………………….…………………………….83
4.6.2 Bootup NumLock State…………………………………………………….....…………………………83
4.6.3 Quiet Boot………………….……………………………..……………………………………………..……83
4.6.4 Boot Option Priorities………….…………………………..……………………..………………………83
4.6.5 Fast Boot…………………….………………..………………………………………….…………………….83
4.7 Save & Exit…..……….….………….…..……………………..…………..……………………..………………….84
4.7.1 Setup Prompt Timeout………………………..………….……………………………..…...............84
4.7.2 Bootup NumLock State……………………………………..…………………………….………………84
4.7.3 Quiet Boot….…………………………………..……………………………………………………………..84
4.7.4 Boot Option Priorities……………………………………..…………………………….………………84
4.7.5 Save Changes and Exit….…………………………..………………….…………………………………84
4.7.6 Discard Changes and Exit……………………………..………..…………………………………….…84
4.7.6 Discard Changes and Exit………………………………..……..…………………………………….…85
4.7.7 Restore Defaults…………..……….…………………………………………………………………….…85
4.7.8 Save as User Defaults………...…………..………………….……….……………………………….…85
4.7.9 Restore User Defaults………………….…..………………………………………………………….…85
AVM-3110 Series Machine Vision Computer User Manual

4
Copyright and Trademarks Notice
All rights reserved. No part of this manual may be reproduced, transcribed or transmitted
and stored in any system, or transmitted in any form or language, without the prior written
permission of Aversix Inc.
Disclaimer
This user’s manual is for informational purposes only and is subject to change without prior
notice. It does not represent commitment from Aversix Inc.
This product might include unintentional typographical or technical errors. Aversix will
periodically correct such erroneous files and incorporate these corrections into the new
version of the file.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s
manual, please contact your local distributor. Alternatively, please visit
https://www.aversix.com for further guidance.
Safety Instructions
￭Always read the safety instructions carefully before you install or operate the
system.
￭Never pour any liquid into the opening that could damage or cause electrical
shock.
￭Keep this User’s Manual for future reference.
￭Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
￭Always Unplug the Power Cord before inserting any add-on card or SATA HDD.
￭If the equipment is not used for long time, disconnect it from the power to avoid
transient over-voltage
￭If any of the following situations arises, get the equipment checked by service
personnel:
▶The power adapter, power cord or plug is damaged.
▶Liquid has penetrated into the system.
▶The system has been exposed to moisture.
▶The system does not work well or you can not get it work according to user’s
manual.
▶The system dropped and damaged.
▶The system has obvious sign of breakage.
Revision
Description
Date
1.0
Manual released
2020/04/25
Revision
Preface
AVM-3110 Series Machine Vision Computer User Manual

5
Ordering Information
Model No.
Product Description
AVM-3110
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN and 4x Removable
2.5” SATA HDD Bay
AVM-3110-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3111P
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN and 4x Removable
2.5” SATA HDD Bay and 1x PCI Slot
AVM-3111P-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN and 4x Removable
2.5” SATA HDD Bay, 1x PCI Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3111E
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay and 1x PCIe X16 Slot
AVM-3111E-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 1x PCIe X16 Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3112P
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN and 4x Removable
2.5” SATA HDD Bay and 2x PCI Slot
AVM-3112P-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN and 4x Removable
2.5” SATA HDD Bay, 2x PCI Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3112E
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 1x PCIe X4 Slot and 1x PCIe X16 Slot
AVM-3112E-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 1x PCIe X4 Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3112PE
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 1x PCI Slot and 1x PCIe X16 Slot
AVM-3112PE-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 1x PCI Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3113P
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay and 3x PCI Slot
AVM-3113P-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 3x PCI Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3113E
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 2x PCIe X4 Slot and 1x PCIe X16 Slot
AVM-3113E-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 2x PCIe X4 Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3113PE
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 2x PCI Slot and 1x PCIe X16 Slot
AVM-3113PE-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 2x PCI Slot, 1x PCIe X16 Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
AVM-3114P
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay and 4x PCI Slot
AVM-3114P-1N
Intel® 9th/8th Core-i High Performance Machine Vision System with 3x LAN, 4x Removable 2.5”
SATA HDD Bay, 4x PCI Slot and 1x M.2 (M-Key, PCIe x4 NVMe, 2280)
Optional Accessories
Model No.
Product Description
GST120A24-AV
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
GST220A24
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
APCNEMA5-15P
AC Power Cord, 3-pin US Type, 180cm
APCCEE7-7
AC Power Cord, 3-pin European Type, 180cm
E6-AVM3X1X0700
Internal Fan (70 x 70 x25 mm) Module Kit
Item
Description
Q’ty
1
AVM-3110 Series Machine Vision Computer
1
2
Utility DVD Driver
1
3
Wall Mount Kit
1
4
Accessory Kit
1
Package List
AVM-3110 Series Machine Vision Computer User Manual

Chapter 1
Product Introductions
AVM-3110 Series Machine Vision Computer User Manual

7
1.1 Overview
AVM-3110 series is a high-performance machine vision system with Intel 9th/ 8th Core-i
LGA 1151 Processor. It supports up to 8 core processors and 64GB of DDR4 memory. The
system also integrates rich I/O, such as 1x VGA, 1x DVI-D, 1x DisplayPort, 6x USB3.0, 2x
USB2.0, 2x CFast, 4x Mini PCIe sockets and 3x Intel GbE ports.
Based on Aversix’ innovative CEM (Convertible Expansion Module) Technology, It allows
users to replace PCI/ PCIe expansion slot modules according to different needs.
AVM-3110 series adopts optional PWM fan module, which can automatically adjust
expansion module and system airflow according to temperature level to achieve the best
system temperature and operating efficiency.
The AVM-3110 series system feature a wide range of DC power inputs from 9V to 48V,
wide temperature from -40°C to +70°C, high tolerance to shock 3G/vibration 50G, and
industrial-grade protection (Power Reverse, ESD, OVP, OCP, Surge, etc.).
This design standard ensures that the AVM-3110 series system can operate in harsh and
demanding environments.
AVM-3110 Series Machine Vision Computer User Manual

8
1.2 AVM-3110 Series Specification
Processor
Support 9th/ 8th Intel® Core™ i3 / i5 / i7 Desktop
35W/ 65W LGA 1151 Processors
•Intel® Core™ i7-9700TE
(8-Cores, up to 3.8 GHz, 35W TDP)
•Intel® Core™ i7-9700E
(8-Cores, up to 4.4 GHz, 65W TDP)
•Intel® Core™ i5-9500TE
(6-Cores, up to 3.6 GHz, 35W TDP)
•Intel® Core™ i5-9500E
(6-Cores, up to 4.2 GHz, 65W TDP)
•Intel® Core™ i3-9100TE
(4-Cores, up to 3.2 GHz, 35W TDP)
•Intel® Core™ i3-9100E
(4-Cores, up to 3.7 GHz, 65W TDP)
•Intel® Core™ i7-8700T
(6-Cores ,up to 4.0 GHz, 35W TDP)
•Intel® Core™ i7-8700
(6-Cores, up to 4.6 GHz, 65W TDP)
•Intel® Core™ i5-8500T
(6-Cores, up to 3.5 GHz, 35W TDP)
•Intel® Core™ i5-8500
(6-Cores, up to 4.1 GHz, 65W TDP)
•Intel® Core™ i3-8100T
(4-Cores, up to 3.1 GHz, 35W TDP)
•Intel® Core™ i3-8100
(4-Cores, up to 3.6 GHz, 65W TDP)
BIOS
•AMI BIOS, 256Mbit SPI Flash ROM on board.
Chipset
•Intel® Q370 Express Chipset
Memory
•2x DDR4-2400/2666MHz 260-Pin SO-DIMM
Socket
•Support up to 64GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® UHD Graphics 630
(Core™ i7/ i5/ i3)
•Integrated Intel® UHD Graphics 610
•(Pentium/ Celeron)
•Supports Triple Independent Display
•1x VGA
•1x DVI-D
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•GbE1: Intel® i219-LM
(Support Wake-on-LAN and PX)
•GbE2~GbE3: Intel® i210-AT GbE
(Support Wake-on-LAN and PXE)
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x VGA
•1x DVI-D
•1x DisplayPort
•3x GbE RJ45
•6x USB 3.1 Port
•2x USB 2.0 Port
•6x RS232/422/485 with Auto Flow Control,
DB9
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•8x Isolated DI and 8x Isolated DO Port, 2x9-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x Removable CMOS Battery
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
•4x Universal I/O Bracket
AVM-3110 Series Machine Vision Computer User Manual

9
Expansion
•AVM-3110: N/A
•AVM-3111P: 1x PCI Slot
•AVM-3111E: 1x PCIe X16 Slot
•AVM-3112P: 2x PCI Slot
•AVM-3112E: 1x PCIe X16 and 1x PCIe X4 Slot
•AVM-3112PE: 1x PCI and 1x PCIe X16 Slot
•AVM-3113P: 3x PCI Slot
•AVM-3113E: 1x PCIe X16 and 2x PCIe X4 Slot
•AVM-3113PE: 2x PCI and 1x PCIe X16 Slot
•AVM-3114P: 4x PCI Slot
•2x Full-size Mini-PCIe Socket (mux with mSATA)
•2x Full-size Mini-PCIe Socket
•4x SIM Socket
•4x Antenna Hole
Storage
•4x Removable 2.5" SATA HDD Bay
•2x CFast Socket (Shared by 2x mSATA)
•2x mSATA Socket (Shared by 2x Mini-PCIe and
CFast)
•1x M.2 (M-Key, PCIe x4 NVMe, 2280)
(AVM-3110-1N/ AVM-3111P(E)-1N/ AVM-
3112P(E)(PE)-1N/ AVM-3113P(E)(PE)-1N/
AVM-3114P-1N Only)
Power Requirement
•Support Hardware AT, ATX Power Mode
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 24V/5A, 120W Power
Adapter
•1x Optional AC/DC 24V/9.2A, 220W Power
Adapter
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature (Ambient with Air
Flow):
35W CPU: -40°C to 70°C
65W CPU: -40°C to 60°C
(Optional internal fan kit is required)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
Shock: 50 Grms, Half-sine 11 ms
•Vibration: 5 Grms, 5-500 Hz, 3 Axis
Physical
•AVM-3110 Series
Dimension (WxDxH): 92.6 x 231 x 241.5 mm
Weight: 3.95 kg
•AVM-3111 Series
Dimension (WxDxH): 127 x 231 x 241.5 mm
Weight: 5.2 kg
•AVM-3112 Series
Dimension (WxDxH): 148 x 231 x 241.5 mm
Weight: 5.35 kg
•AVM-3113 Series
Dimension (WxDxH): 168 x 231 x 241.5 mm
Weight: 5.45 kg
•AVM-3114 Series
Dimension (WxDxH): 188 x 231 x 241.5 mm
Weight: 5.55 kg
•Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•Stand mounting
AVM-3110 Series Machine Vision Computer User Manual

10
1.3 Panel I/O
1.3.1 Front Panel
Power on/off button
Press to power-on or power-off the system
AT/ATX mode select switch
Used to select AT or ATX power mode
Reset button
Used to reset the system
COM port
COM1 ~ COM2 support RS232/422/485
serial device
LAN port
Used to connect the system to a local area
network
USB 3.0 port
Used to connect USB 3.0 device
DisplayPort
Used to connect a DisplayPort monitor
DVI-D port
Used to connect a DVI monitor
VGA port
Used to connect a VGA monitor
Line-out
Used to connect a speaker
Mic-in
Used to connect a microphone
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
DC IN
Used to plug a DC power input with terminal
block
Earthing Screw Hole
Used to connect the ground wire
Antenna Hole
Used to connect an antenna for optional
Mini-PCIe WiFi module
Removable HDD port
Removable 2.5" SATA HDD Area
Expansion Slot
Used to plug in a PCI or PCIe card.
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
IGN LED
Indicates the status of the ignition active
GPIO LED
Indicates the status of the customer define
AVM-3110 Series Machine Vision Computer User Manual

11
AVM-3110 Series
AVM-3111 Series AVM-3112 Series
AVM-3110 Series Machine Vision Computer User Manual

12
AVM-3113 Series
AVM-3114 Series
AVM-3110 Series Machine Vision Computer User Manual

13
1.3.2 Top Panel
Clear CMOS
Used to clear CMOS
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode system turn off
delay time
CMOS Battery
Used to change CMOS battery
SIM card
Used to insert SIM card
CFast Socket
Used to insert CFast card
COM port
COM1 ~ COM2 support RS232/422/485
serial device
Digital I/O Terminal Block
The Digital I/O terminal block supports 8
digital input and 8 digital output
Antenna hole
Used to connect an antenna for optional
Mini-PCIe WiFi module
Universal I/O Expansion
Used to customized I/O output
AVM-3110 Series
AVM-3110 Series Machine Vision Computer User Manual

14
AVM-3113 Series AVM-3114 Series
AVM-3111 Series AVM-3112 Series

15
1.3.3 Rear Panel
SIM card
Used to insert SIM card
Removable HDD port
Removable 2.5" SATA HDD Area
USB 2.0 port
Used to connect USB 2.0 device
Universal I/O Expansion
Used to customized I/O output
AVM-3110 Series
AVM-3110 Series Machine Vision Computer User Manual

16
AVM-3111 Series AVM-3112 Series
AVM-3113 Series AVM-3114 Series
AVM-3110 Series Machine Vision Computer User Manual

17
1.4 Mechanical Dimensions
1.4.1 AVM-3110 Series
1.4.2 AVM-3111 Series
AVM-3110 Series Machine Vision Computer User Manual

18
1.4.3 AVM-3112 Series
1.4.4 AVM-3113 Series
AVM-3110 Series Machine Vision Computer User Manual

19
AVM-3114 Series
AVM-3110 Series Machine Vision Computer User Manual

Chapter 2
Switches and Connectors
AVM-3110 Series Machine Vision Computer User Manual
