Aviosys 9070-IRW User manual

- 1-
Ref#90020326K0709
IP Kamera 9070-IRW
User Manual
Release Date: 2010/7/22
Manual Version: V1.00
Firmware Version : V1.2.1.4plus

- 2-
Ref#90020326K0709
Warning:Anychanges made to this equipment without permissionmaycause damages to the
device!
IMPORTANT NOTICE
1. IP Kamera 9070-IRW was designed for outdoor/ indoor.
2. Please use the power adapter provided by the dealer, the manufacturer is not responsibility for
the possible damage from using power adapters.
4. Do not shake the IP Kamera 9070-IRW in any fashion
5. Please contact the dealer If IP Kamera 9070-IRW is not working properly.
Copyright © 2010 All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.

- 3-
Ref#90020326K0709
Table of Content
1.) WELCOME........................................................................................................................................... 5
INTRODUCTION .............................................................................................................................................. 5
MINIMUM SYSTEM REQUIREMENTS ................................................................................................................... 6
2.) PRODUCT OVERVIEW.......................................................................................................................... 6
FEATURES...................................................................................................................................................... 6
SPECIFICATION ............................................................................................................................................... 6
PACKAGE CONTENTS ....................................................................................................................................... 7
3.) INTERFACE DESCRIPTION .................................................................................................................... 8
REAR VIEW &CABLE DESCRIPTION .................................................................................................................... 8
REAR VIEW:................................................................................................................................................... 8
CABLE AND ANTENNA HOLE FOR WIRELESS .......................................................................................................... 8
4.) HARDWARE SETUP.............................................................................................................................. 9
INTERNET ACCESSIBLE SETUP ............................................................................................................................ 9
Router / Firewall Setup ......................................................................................................................... 9
Static IP Setup ..................................................................................................................................... 10
CONNECTING THE DEVICE............................................................................................................................... 10
5.) SOFTWARE SETUP ............................................................................................................................. 11

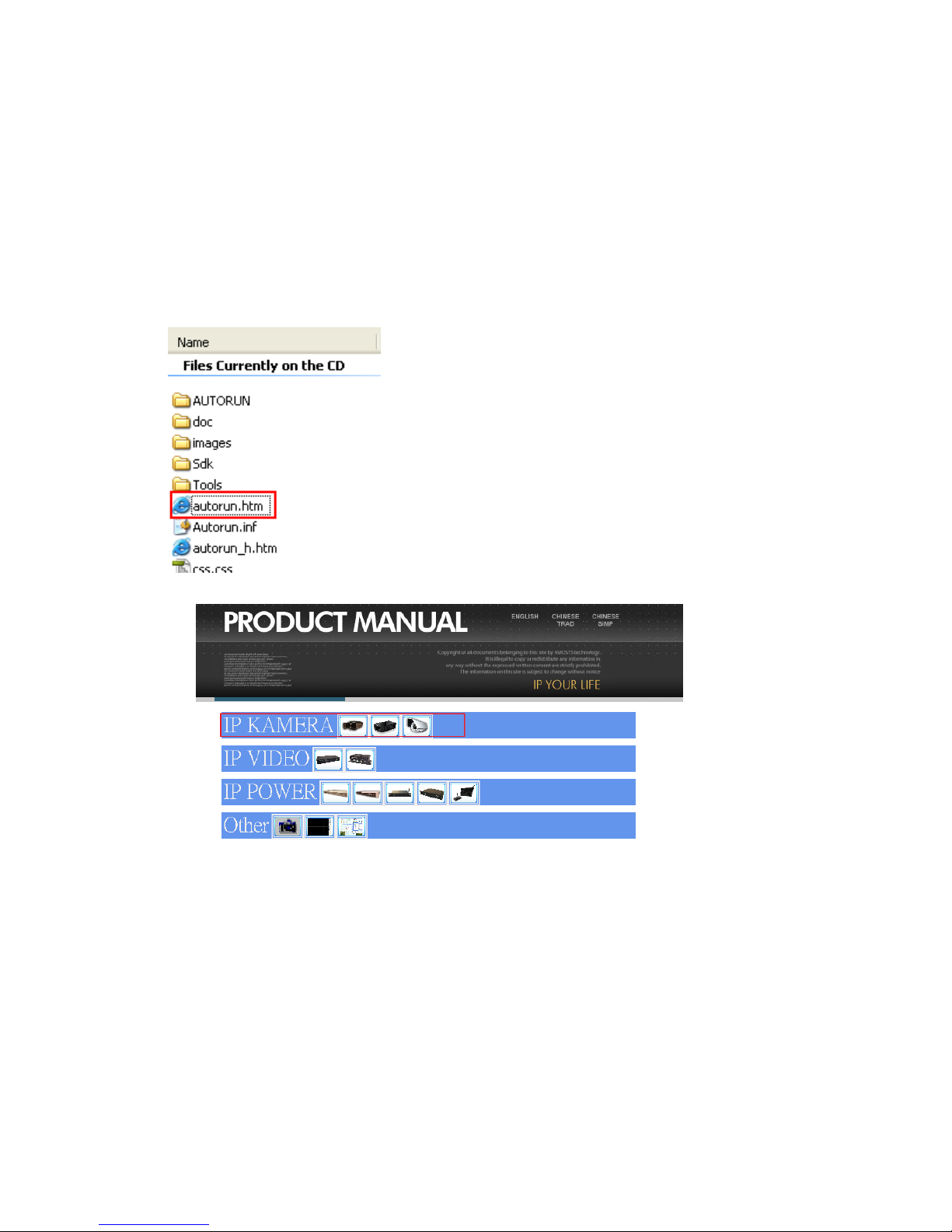

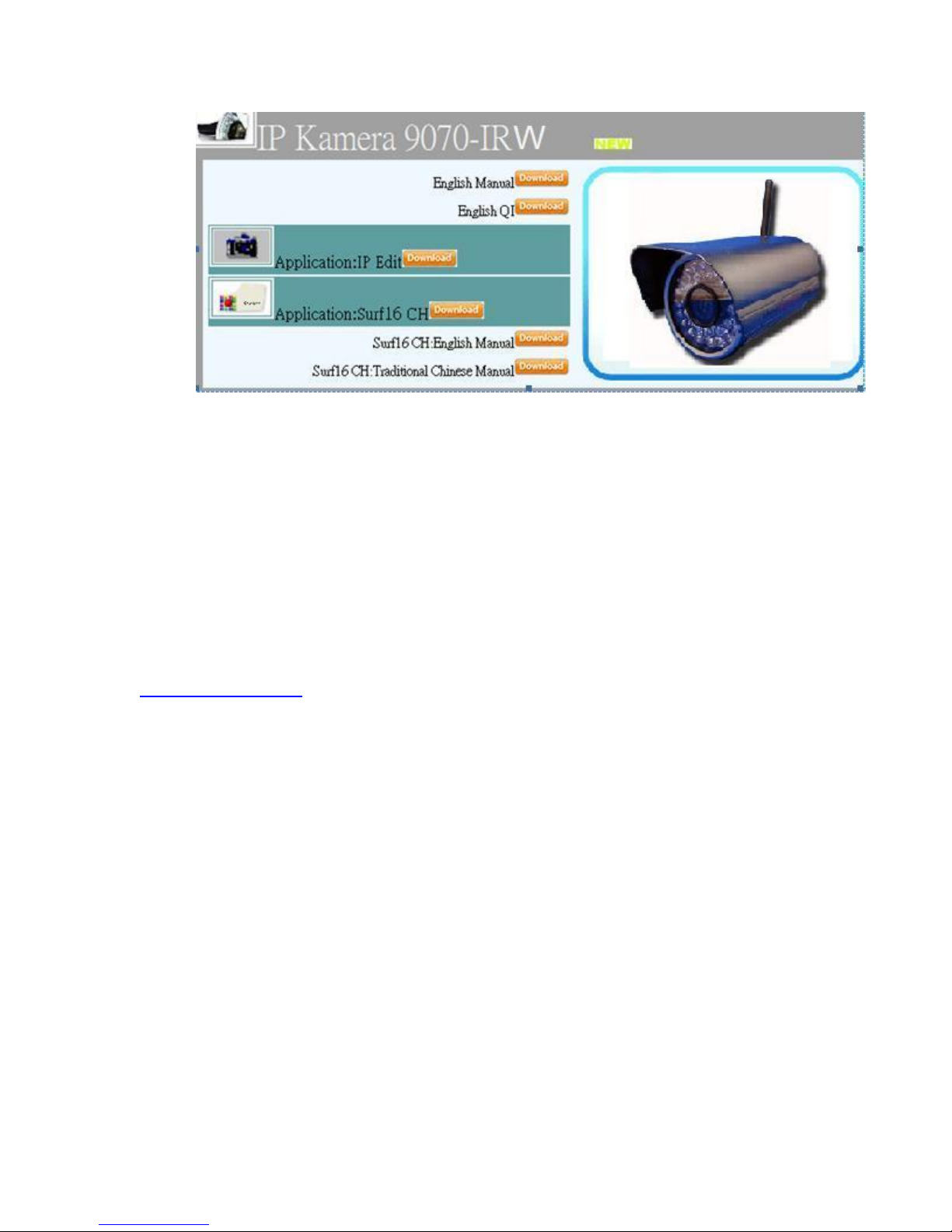

SOFTWARE .................................................................................................................................................. 11
INSTALLING VLC CODEC................................................................................................................................. 12
IP EDIT ....................................................................................................................................................... 13
Quick Easy Setup (Recommend for Beginner Users) ........................................................................... 14
Custom Setup (Advance Users) ........................................................................................................... 15

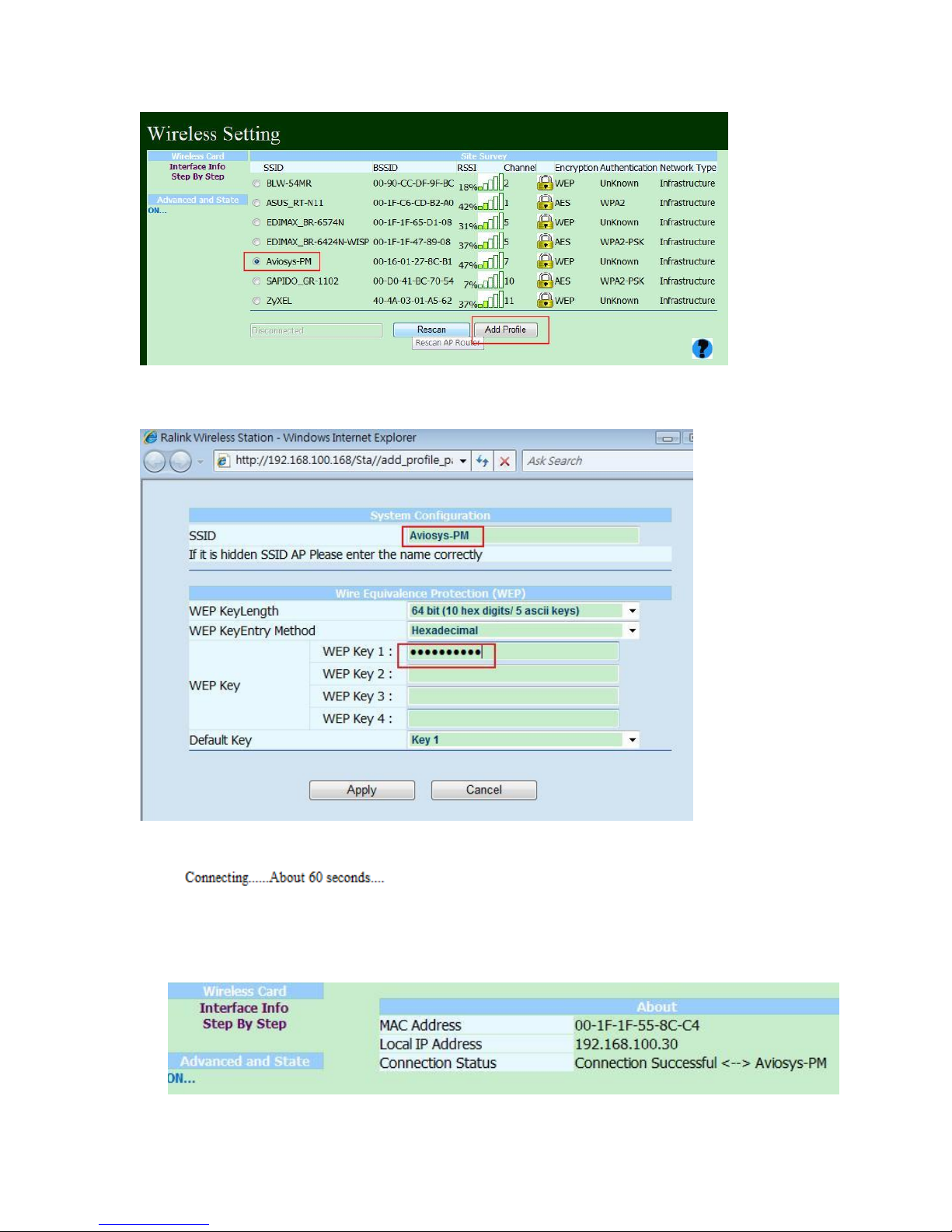

SETTING UP WIRELESS SETTINGS...................................................................................................................... 17
Step by Step: ....................................................................................................................................... 17
Advance Setup: ................................................................................................................................... 19
IP SERVICE .................................................................................................................................................. 22
6.) WEB INTERFACE ................................................................................................................................ 24
CONNECTING TO THE 9070-IRW .................................................................................................................... 24
WEB CONSOLE............................................................................................................................................. 26
LIVE VIDEO.................................................................................................................................................. 27
Type and Zoom.................................................................................................................................... 27
Motion Detection ................................................................................................................................ 28
Mouse EPTZ......................................................................................................................................... 28
Active Record ...................................................................................................................................... 28
Record ................................................................................................................................................. 29
Snapshot ............................................................................................................................................. 29
IMAGE........................................................................................................................................................ 30
Image Settings .................................................................................................................................... 30
Tune Image ......................................................................................................................................... 32
NETWORK ................................................................................................................................................... 33
Network .............................................................................................................................................. 33
Wireless Settings ................................................................................................................................. 35
FTP ...................................................................................................................................................... 35
SMTP (Outgoing E-mail Server)........................................................................................................... 35

- 4-
Ref#90020326K0709
SNTP.................................................................................................................................................... 36
IP Service ............................................................................................................................................. 37
RTSP .................................................................................................................................................... 38
SYSTEM ...................................................................................................................................................... 38
Date and Time..................................................................................................................................... 39
Time Stamp ......................................................................................................................................... 39
User..................................................................................................................................................... 40
Night Vision......................................................................................................................................... 40
Device Tune Up ................................................................................................................................... 41
Language Settings............................................................................................................................... 41
Update ................................................................................................................................................ 42
Event Log............................................................................................................................................. 43
APPLICATION ............................................................................................................................................... 44
Settings ............................................................................................................................................... 44
Schedule Record.................................................................................................................................. 52
Alarm................................................................................................................................................... 54
MEDIA PLAYER............................................................................................................................................. 56
LOGOUT...................................................................................................................................................... 56
7.) CONTROLLING THE DEVICE................................................................................................................ 57
CGI HTTP COMMANDS................................................................................................................................. 57
Snapshot Command:........................................................................................................................... 57
Change Name:..................................................................................................................................... 58
Change IP Address:.............................................................................................................................. 58
Change Port: ....................................................................................................................................... 58
Change Subnet Mask: ......................................................................................................................... 58
Change Gateway:................................................................................................................................ 58
Change DNS: ....................................................................................................................................... 58
MJPEG Streaming................................................................................................................................ 59
8.) USING RTSP WITH VLC ...................................................................................................................... 59
9.) USING CNT WITH SURF16 CH ............................................................................................................ 62
MAC ADDRESS ............................................................................................................................................ 62
ADD DEVICE USING CNT ................................................................................................................................ 62
10.) FREQUENTLY ASKED QUESTIONS (F.A.Q)......................................................................................... 63
11.) CUSTOMER FEEDBACK .................................................................................................................... 64

- 5-
Ref#90020326K0709
1.) Welcome
Introduction
The IP Kamera 9070-IRW provides reliable, high quality solution to IP Kameras. Its distinctive 802.11N ,
720P HD quality picture, Tri-mode video capability, built in SD memory storage, RTSP broadcasting
capability, internal microphone and many more functions makes this small device very powerful and unique.
The built in web server of the IP Kamera 9070-IRW will allow the IP Kamera to be viewed from any remote
locations around the world while bringing ease of mind. Furthermore, with CNT technology the 9070-IR is
easy to setup & use, simply just plug and play.

- 6-
Ref#90020326K0709
Minimum System Requirements
CPU Minimum Requirements
Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent
Operating Systems: WINDOWS Operating Systems (IE5.0+SPI)
512 MB system memory or above
Video Card: 3D hardware accelerator card required –100% DirectX 9.0c compatible
10/100 Ethernet switch/hub
Sound Card: DirectX 9.0c compatible sound card
Ethernet network port/card
Network cable
Internet (For remote access) or Ethernet Network (Internal Network use) with some type of Internet
connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)
Software
VLC media player 0.8.6b or above.
Windows XP Service Pack 2 or above.
Resolution of screen setting: 1280x960 or higher for the display of 720P
2.) Product Overview
Features
1. Tri-Mode Camera (MPG4-1/MPEG4-2/M-Jpeg)
2. Wireless 802.11N
3. Advance Motion detection trigger AVI /Jpeg save on FTP / SD card or Email
4. 3 layers (Admin, Operator, and User) Password protected
5. Resolution from CIF 352x192 up to HD 1280x720P
6. Supports NTP protocol to get correct time schedule.
7. Water resistance Design
8. Supports HTTP CGI command set. Easy for system integration
9. IP Service Search utility, to find the IP Kamera on internet with ease
10. Watchdog / Event log design
11. Adjustable frame-rate, bit-rate, rate-control type, quality factor for best image quality and speed.
12. Supports date and time marking on the captured video, and also inserted streamed data.
13. Supports adjustable backlight, brightness, contrast, saturation & sharpness
14. TV Output capabilities
15. Automatic alarm recording buffer & Automatic Tune up functionality
16. CNT Technology –Just Plug and Play no need to port forward
17. EPTZ –Electronic Pan, Tilt, and Zoom
18. SD Memory Storage –Add convenience and storage
19. Scheduler recording capabilities
20. Email Capabilities & 2GB Embedded SD Memory
21. EZ Blog and My Web Technology
22. Supports: HTTP Web Server (HTTP), SSL, FTP client, SMTP client, NTP client, DHCP client,
UPnP client, RTSP over UDP, RTP
Specification
Casing: Reinforced Aluminum
Case Color: Pearl White
Weight with outer case: 743.0 g
Dimensions (W x L x H): 8.5cm x 13cm x 10cm
Dimensions with outer case (W x L x H): 8.6cm x 17.5cm x11cm
Operating Conditions: 0-80°C
Storage Conditions: Humidity 20 –80% RH
Power: AC Adaptor
Input: 100-250Vac /47-63Hz,
Output: 12Vdc/1A Max: 12W

- 7-
Ref#90020326K0709

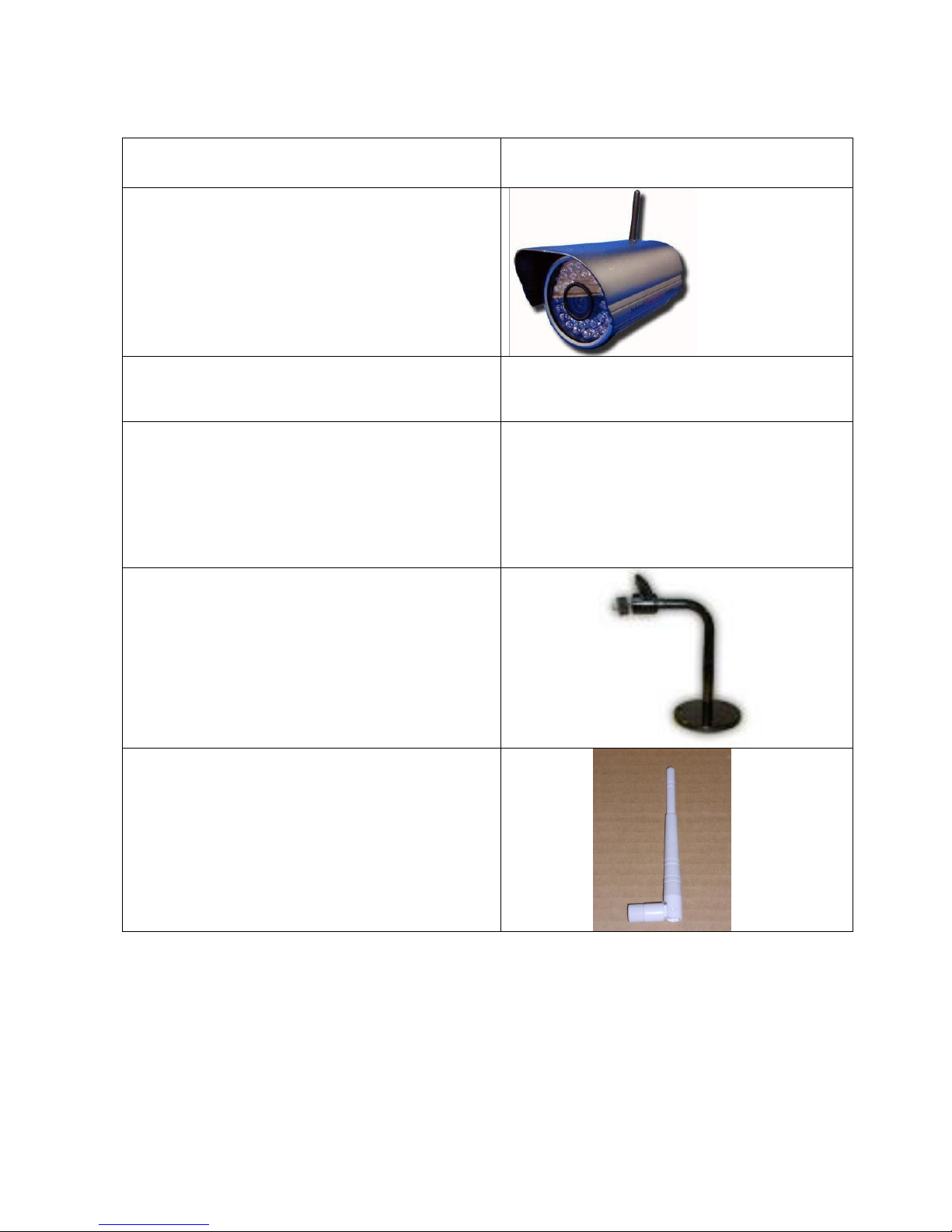

Package Contents
1.) 9070-IRW Unit x 1 with Lid
3.) 9070-IRW Installation CD
4.) AC Adaptor
(AC adaptor will be included and will correspond to
the countries power standards)
Specs:
Input: 100-250Vac /47-63Hz, 1A
Output: 12Vdc/1A Max: 12W
5.) Camera Mounting Bracket
6.) Wireless N Antenna Bar

- 8-
Ref#90020326K0709
3.) Interface Description

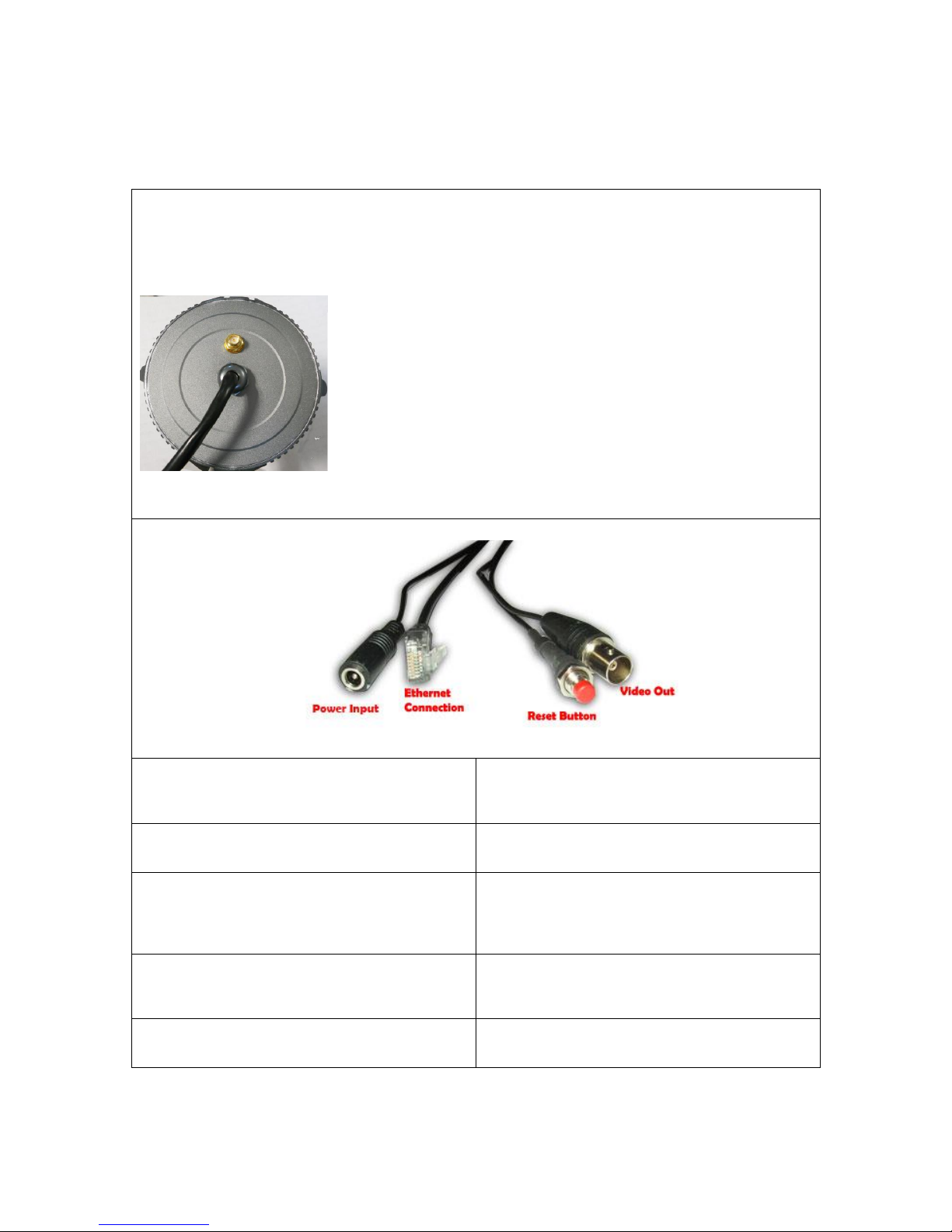

Rear View & Cable Description
Rear View:
Cable and Antenna hole for Wireless
Cables:
DC 12 V Power Input:
Plugs in the Power Adapter to the DC 12V
Card
RJ45 Ethernet:
Plug in the RJ45 Ethernet cable to the Ethernet
Reset Button:
Reset to Manufacturer Default:
Hold Reset button for 5-10 Seconds and the device
will reset to manufacturer default.
Video Out:
The Video out requires a BNC connector to output
video to a different source.
Built In SD Card
Built in 512MB SD Memory Card.

- 9-
Ref#90020326K0709
4.) Hardware Setup
*Before setup the device make sure of the following:
1.) Make sure that all the package contents are all included
if anything is missing please contact the store or your distributor.
2.) Make sure the power adaptor is the correct specification.
3.) Make sure that all the cables are working correctly
Internet Accessible Setup
The internet connection can be setup in two main ways so that the 9070-IRW can be accessed
through the internet
Router / Firewall Setup
Using a Router/Firewall to connect each device to the internet
Note: The device needs to be port forwarded on the router so that it can be accessed by the
internet.
For example
9070-IRW IP Address: 192.168.1.882
9070-IRW Port: 9070
On the router that is being used port forwarded (port triggered) IP Address 192.168.1.882 and
port 9070. For this section you may be required to refer the user manual for the router due to the
fact that each router has a different way of setting up the device.
Note: Please refer to page: 43 on how to use CNT (Cross Network Technology). With CNT no
port forwarding is required to view the camera. But for normal functionality please use the web
browser to view the camera.

- 10-
Ref#90020326K0709
Static IP Setup
Static IP Address provided by the ISP.
In this case, the 9070-IRW is being connected to the internet through a hub, which is different
from a router. The hub does not provide DHCP, and therefore would require that this setup have
a static IP Address that is provided by the ISP.
Contact the ISP to find out the static IP address so that your device can be accessed through the
internet. Once a Static IP has been assigned the device will be able to automatically go onto the
internet.
Connecting the Device
1.) Connect the IP Kamera 9070 to a HUB or Router with a RJ45 network cable.
2.) Connect the HUB or Router to the internet (May through ADSL/XDSL modem).
3.) Connect the power adapter to the DC 5V port of IP Kamera 9070.
