avolta PC20-AMBII User manual

PC20-AMBII
USER MANUAL
PORTABLE AIR-CONDITIONER

1
VERY IMPORTANT
CAUTION
1. " PLEASE MAKE SURE THE PRODUCT
VENTILATES ALL THE TIME "! Please make sure
the inlet and outlet ventilation is not blocked at all
times.
2. Operate this unit on a horizontal surface to avoid
water leakage.
3. Do not operate this unit in an explosive or
corrosive atmosphere.
4. Operate this unit in an ambient of 35 degree
centigrade or less.
5. The heating function of the unit should be operated
in an indoor ambient temperature between 7℃and
23℃
6. Clean air filter periodically to enjoy the most efficient
cooling.
7. When the unit is shut off, please wait at least 3.5
minutes before restarting this is to prevent the
compressor from being damaged.
8. This unit needs at least 7 Amps of electricity to
have its compressor operational. To avoid the
household electricity block out, please do not use
any extension cord for this unit.
Please read this instruction guide before install and using
your portable air conditioner unit.
This instruction manual is the universal-purpose version
for the units that you purchase, it might be slightly
different from the ones described in the manual, but it does
not affect your proper operations and usage.

2
9. This unit is for indoor cooling, heating and
dehumidifying.
10. When turning on the unit, the fan will operate
but the compressor will start up after the cooling
alarm flashes for three minutes
● In heating function, the heating alarm will
flash for 3.5 minutes before the compressor
and fan start up.
11. When the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
hazard.
12. In order to dispose the appliance safely, please
remove the batteries from the unit before scrapping
it.
13. This appliance can be used by children aged from 8
years and above and persons with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
14. The air-conditioner can be connected only to a
supply with system impedance no more than
0.219Ω.In case necessary, please consult your
supply authority for system impedance information.

3

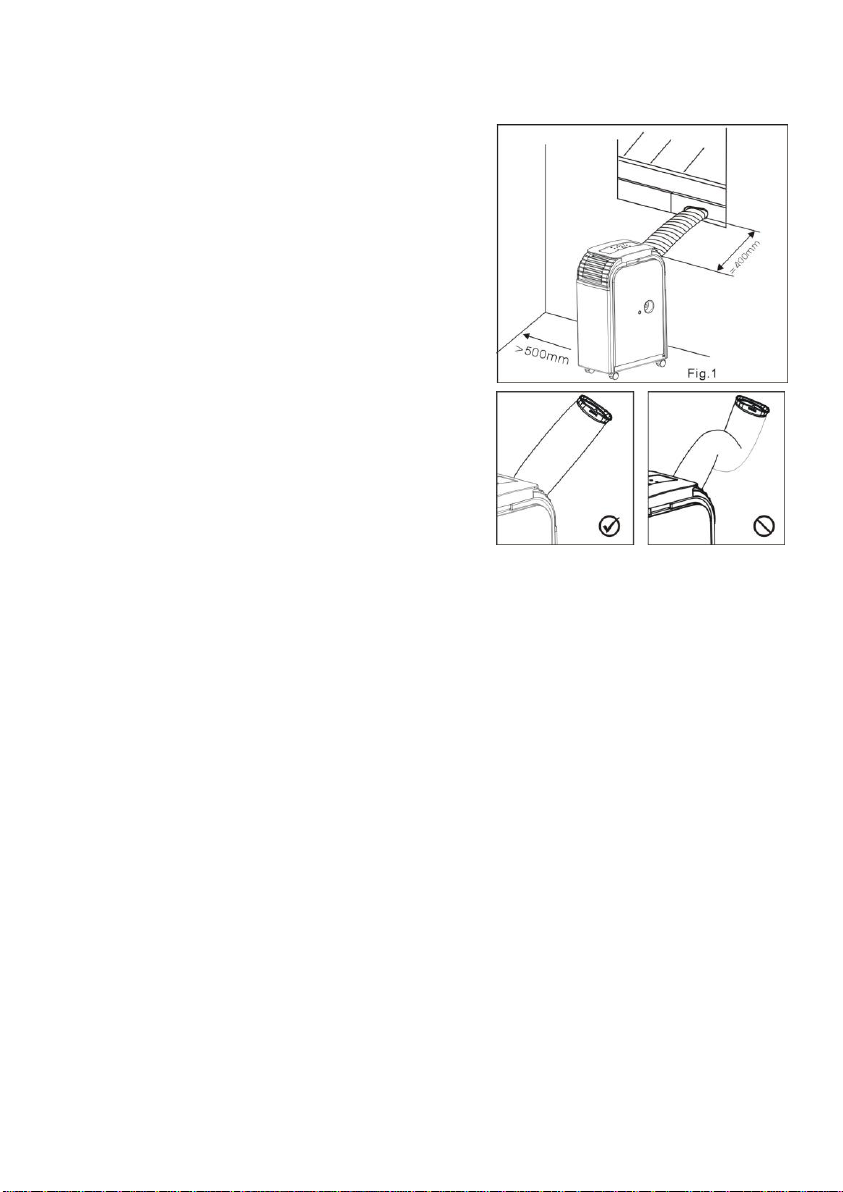

ATTENTION
For effective heating and cooling functions, please
ensure that the following steps are undertaken:
1) Extend the exhaust hose to a length of not
more than 400mm. The exhaust hose must
be kept parallel and must not be bent up or
down.
2) A distance of 500mm minimum must be kept
between the filter side of the unit and wall or
any other obstacles”.
3) When this appliance starts to defrost, the
word “DF” will be displayed on the LED
CONGRATULATIONS ON YOUR
SELECTION OF A QUALITY
PORTABLE AIR CONDITIONER
PORTABLE AIR CONDITIONER
This Air Conditioner has been designed and manufactured to the
highest standards of modern engineering.
Our product not only provides you a remote control to help user
operate all the functions easily and conveniently but also has below
benefits:
- Moves easily from room to room on easy glide castors
- Please follow the picture to install the window kit and attach
the exhaust hose before pluging the unit

4
UNPACKING INSTRUCTIONS
1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton in an upwards motion and it will release from the base.
4. Grip the carry handles located on either sides of the unit and carefully lift until it
slides out of the foam base.
5. Remove the air outlet and take out the exhaust
hose as the picture.
6. Install the exhaust hose on the unit before
operating the unit.
.-Powerful refrigerated air system cools down the ambience
instantly whenever you want.
-Dehumidified and filtered air cycle improve breathing
environments effectively.
- Besides the remote control, your one touch electronic pad
also provides easy-identifying manual operation.
- 24 hour Programmable timer for cooling, heating and
dehumidifying functions.
- Unique sleep control function
- 220~240 Volt 50Hz operation
CONTENTS
1 / Air conditioner unit
2 / Remote control
3 / Batteries
4 / Window Kit A

5
NAME OF THE PARTS
1. Control panel
2. Remote control receiver
3. Adjustable air vent
4. Joint tube
5. Exhaust hose
6. Upside drain hole
7. Cool air inlet
8. Cool air filter
9. Hot air inlet
10. Hot air filter
11. Downside drain hole

6

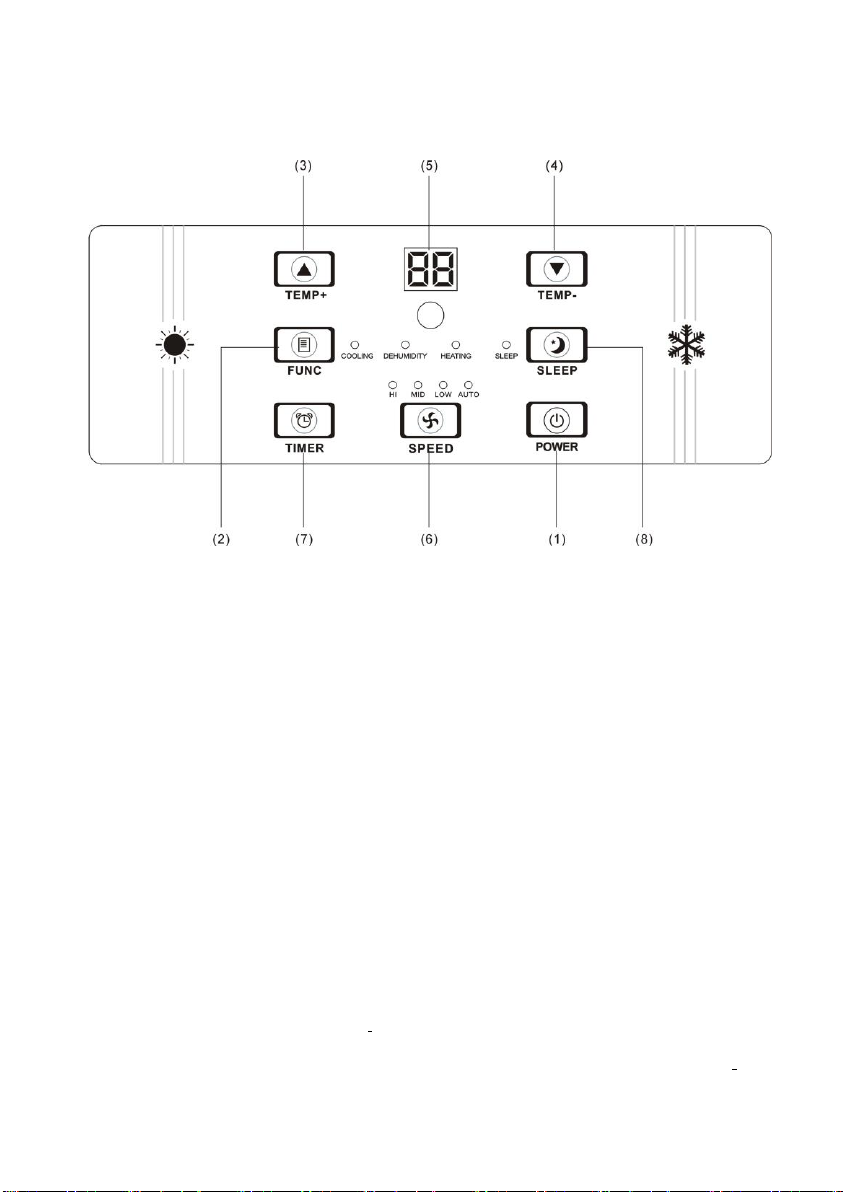

CONTROL PANEL & DESCRIPTION OF FUNCTION
1. POWER KEY
Press to turn unit "ON" or "OFF".
2. FUNCTION
Press this key to select cooling, heating, or dehumidifying.
3. TEMPERATURE REGULATION KEY (UP)
During cooling function：This key raises the preset temperature by 1℃each time it is
pressed and the maximum limit is 30℃.
During heating function：This key raises the preset temperature by 1℃each time it is
pressed and the maximum limit is 25℃.
4. TEMPERATURE REGULATION KEY (DOWN)
During cooling function：This key lowers the preset temperature by 1℃each time it is
pressed and the minimum limit is 17℃.
During heating function：This key lowers the preset temperature by 1℃each time and
the minimum limit is 15℃.

7
5. L.E.D. DISPLAY
The display indicates the current setting temperature or the timer setting. When the set
temperature or the timer is adjusted, the new setting is shown then the display returns the
current set temperature.
※The display is also used to show error codes should a fault occur, see ERROR
CODES.
6. SPEED
Press to select either LOW, MEDIUM, HIGH or AUTO fan speed.
If "AUTO" is selected (During cooling function),”HIGH” or "MEDIUM" or “LOW" will be
selected automatically according to the difference between setting temperature and
ambient temperature.
7. PROGRAMMABLE TIMER
Programmable timer ON/OFF key.
TIMER-ON: The timer-on is used to turn on the unit automatically after the set time is
over.
1. Press the "TIMER" key at stand-by status to set the time you desired.
2. Once the set hour has come to an end, the unit will turn on automatically.
3. Press the "POWER" key before time out, the setting time will be canceled and the
unit will turn on.
4. You can set the function and fan speed while setting the timer.
TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting
time is over.
1. Press the "TIMER" key at operating status to set the time you desired.
2. Once the set hour has come to an end, the unit will turn off automatically.
Note: In heating function and dehumidifying function, this key is invalid because the unit is
defined to be high speed in heating mode and low speed in dehumidifying mode.

8
3. Press the "POWER" key before the time out, the setting time will be canceled and
the unit will turn off.
8. SLEEP CONTROL FUNCTION
1. While in cooling mode, press the SLEEP key to set the temperature. It increases1 ℃
after an hour and at most increases 2 ℃after 2 hours.
2. While in heating mode, press the SLEEP key to set the temperature. It decreases
1 ℃after an hour and at most decreases 2 ℃after 2 hours.
3. Press the SLEEP key again can cancel the setting.
9. ALARM
When the water tank is full,"E4" will be displayed on the display panel. To resume
operation, please remove the rubber cap of the drain hose to drain out the water firstly.
The E4 warning will disappear after draining, and then you can restart the unit by
pressing the POWER key.

9

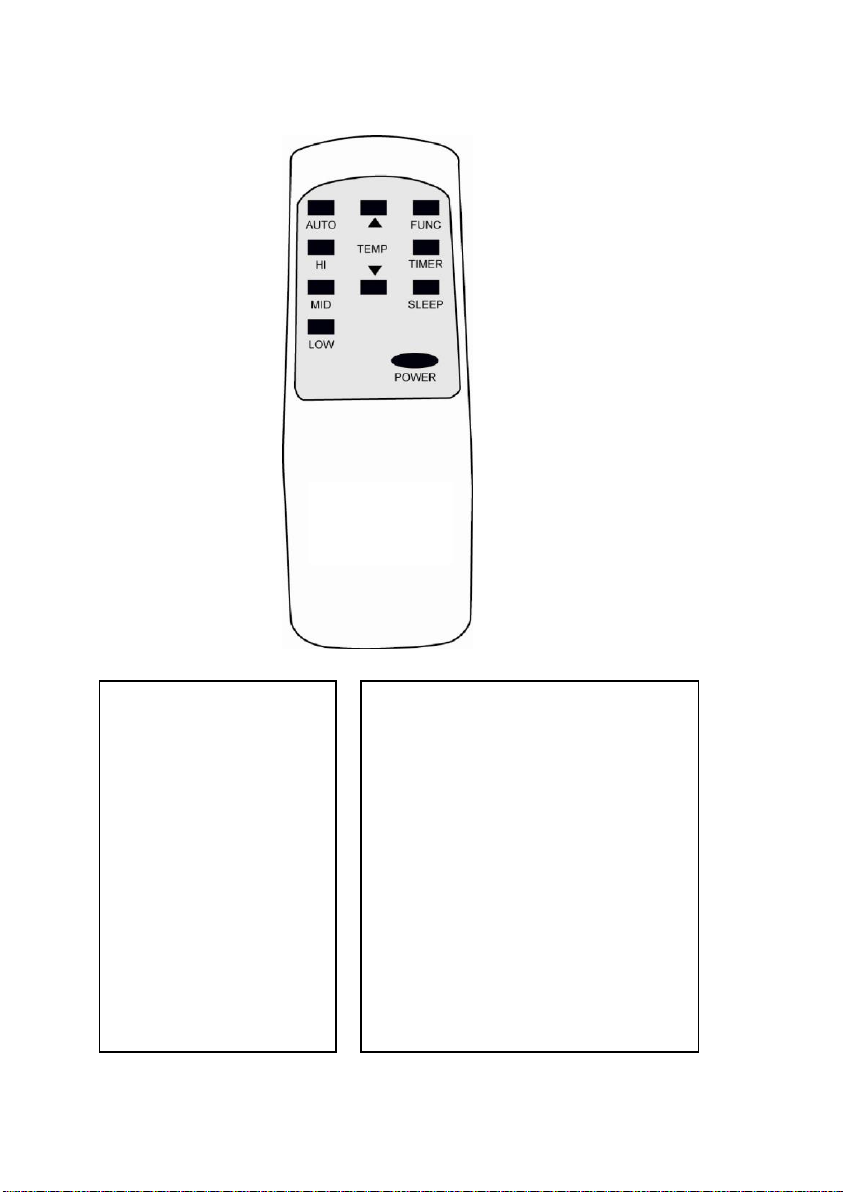

REMOTE CONTROL FUNCTION
1. POWER
2. FUNC
3. TIMER
4. AUTO
5. HI
6. MID
7. LOW
8. SLEEP
9. TEMP.
On/Off switch
Function “MODE” selector
Hourly programming
Automatic fan speed
High fan speed
Medium fan speed
Low fan speed
Night operation selector
Temperature selector

10
NOTICE
This unit can evaporate the condensation and distribute through the exhaust hose
automatically.
1. When the unit is in the cooling function, it does not need the drain pipe installed.
Please make sure that the rubber cap is locked on drain hole, when the unit is
running.
2. When operating the heating function, the “①” rubber cap on drain hole should be
pulled out and install a proper drain pipe in order to improve the heating effect
3. When operating the dehumidifying function the “①” rubber cap on drain hose should
be pulled out and install a proper drain hose.
●Please remove the air exhaust hose, connect a drain hose to the drain hole and
lead the water to the outside in order to intensify dehumidifying capacity.
※When the water tank is full,"E4" will be displayed on the display panel. Please
remove the rubber cap“②” of the drain hole to drain out the water first. After the
drainage is completed, please restart the unit and then the unit can operate
normally.
MAINTENANCE
PLEASE DISCONNECT THE POWER CORD BEFORE CLEANING.
AIR FILTER
The air filter located on the left hand side of the unit can be removed,
simply by pulling the frame out

11
CONDENSER/EVAPORATOR
Use a brush attachment with a vacuum cleaner.
Casing
Wipe with a damp cloth and polish with a soft cloth.
To remove the air filter, please follows the arrow direction and pull the
filter lightly, and then take out the filter for cleaning.

12
POWER SUPPLY
(1) Confirm the correct power.
(2) Insert the plug into the outlet firmly In order to prevent any
dangerous leakage.
(3) Don’t pull power wire by force because it will cause damage to power
wire.
PLACE FOR USE
(1) Because the machine distributes hot air, please don’t place or
operate in a narrow place.
(2) In case of dangerous leak, don’t work the machine in a humid place.
(3) Don’ t place the machine in a sunlit corner otherwise the unit might
shut down due to the overheat and the color of the machine may
soon fade out.
HELPFUL HINTS
The unit is fitted with a special thermal cut off device.
Please ensure the unit is not placed against objects which will
obstruct air intake e.g. furniture or curtains as this will affect it's
performance dramatically.

13

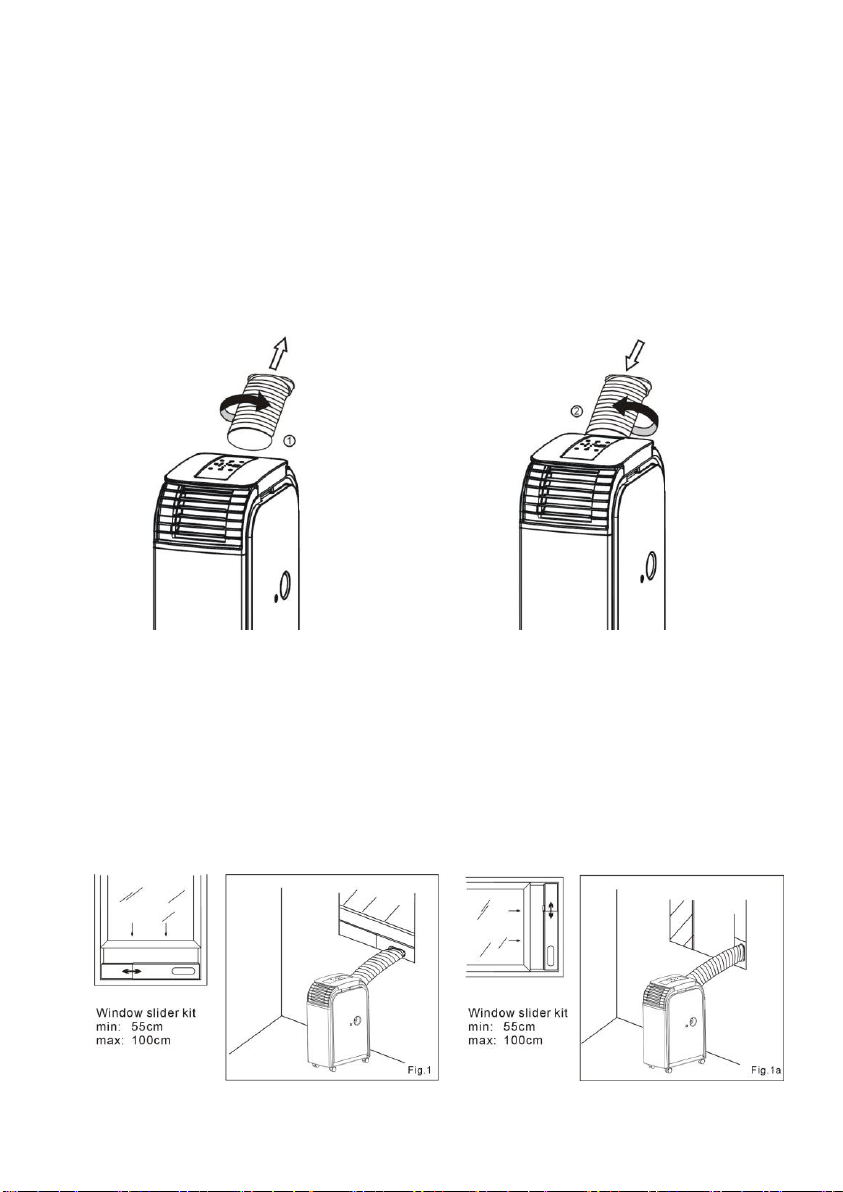

EXHAUSTHOSE INSTALL
1. Circumrotate the exhaust hose according to the direction as the arrowhead ①
indicates and then the exhaust hose can be took out from the unit.
2. Circumrotate the exhaust hose according to the direction as the arrowhead ②
indicates and then make it connect with the unit.
WINDOW KIT INSTALL
Install the Exhaust Hose and the Adjustable Window Slider Kit as
depicted in Fig.1 ＆Fig.1a.

How to enjoy heating function？
When operating heating function：
Disassemble the outlet and the exhaust hose as arrow direction in Fig.01 and then
exchange the two subassemblies to install. The finished illustration is as Fig.03.
TROUBLE SHOOTING
Problem
Cause
Trouble shooting
E1
Electrical short on both
temperature sensor and PCB
Contact an electrician for repair
E2
Electrical short of temperature
sensor copper tube and PCB
wiring
Contact an electrician for repair
E4
Indicates water tank full
User needs to pull out the rubber stopper
which is located at the bottom of the unit,
to drain the water away.
14

SPECIFICATION
Model No.
Power Source
220-240V~50Hz
Rated Power (EN60335)
Cooling
Heating
900W
700W
Cooling Capacity
2000W
Heating Capacity
2000W
Moisture Removed
30liters/day
Refrigerant
R410A
Dimensions (mm)
300Wx480Dx630H
(CE) N 842/2006:
R410A is a kind of fluorinated greenhouse gases covered by
the Kyoto Protocol.
Its total global warming potential (GWP) is 2088.
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
hazards to the environment or human health from uncontrolled waste
disposal, please recycle it to prove the sustainable reuse of material
resources. Please ask return and collection systems or contact the
retailer where the product was purchased to return your used device,
they can recycle products safely.
PC20-AMBII
15
