Avsl qtx GL-100RG User manual

GL-100RG, GL-200RG & GL-100RGB
IP65 GARDEN LASERS
Item refs: 152.771UK, 152.772UK & 152.773UK
User Manual
WARNING This item contains laser radiation, no user serviceable/repairable parts
within. Please refer to licensed electrician to perform any required repair or
maintenance. Please strictly following the laser health and safety guidelines HSG95.
For detailed information regarding HSG95 please see link
http://www.hse.gov.uk/pubns/books/hsg95.htm
Laser Safety Warnings
1. Avoid direct eye contact with the laser light. Never intentionally shine the laser beam in your eyes or the eyes of
any others. It can potentially cause instant injury or blindness.
2. Do not open laser housing under any circumstances.
3. Do not point onto any on-coming pedestrians, vehicles or traffic routes from land, sea or air.
4. Laser should not be projected at or within the flight path of an aircraft. If your intended surface is within 10
nautical miles of an airport, lower the angle so that no lasers point to the sky.
5. Children should be supervised to ensure they do not play with the unit. It is not a toy.
Electric Safety Instructions: When using electrical products, basic precautions should always be
practiced
1. Read and follow all instructions.
2. Only qualified personnel can carry out the electrical installation work in accordance with all applicable codes and
standards including fire rated constructions.
3. For direct plug-in power, do not install or use within 3m (10ft) of a pool. Do not use in a bathroom.
4. Do not use with a damaged plug.
5. Do not disassemble the adaptor, risk of electric shock or fire.
Please read through this manual thoroughly before
use, any damage caused by misuse of the product will
not be covered by the warranty.

IP65 Garden Lasers User Manual
Components
1. Laser Projection Unit
2. AC Power Adaptor
3. Angle adjustment bracket
4. Ground spike
5. Remote control
6. Screws x2

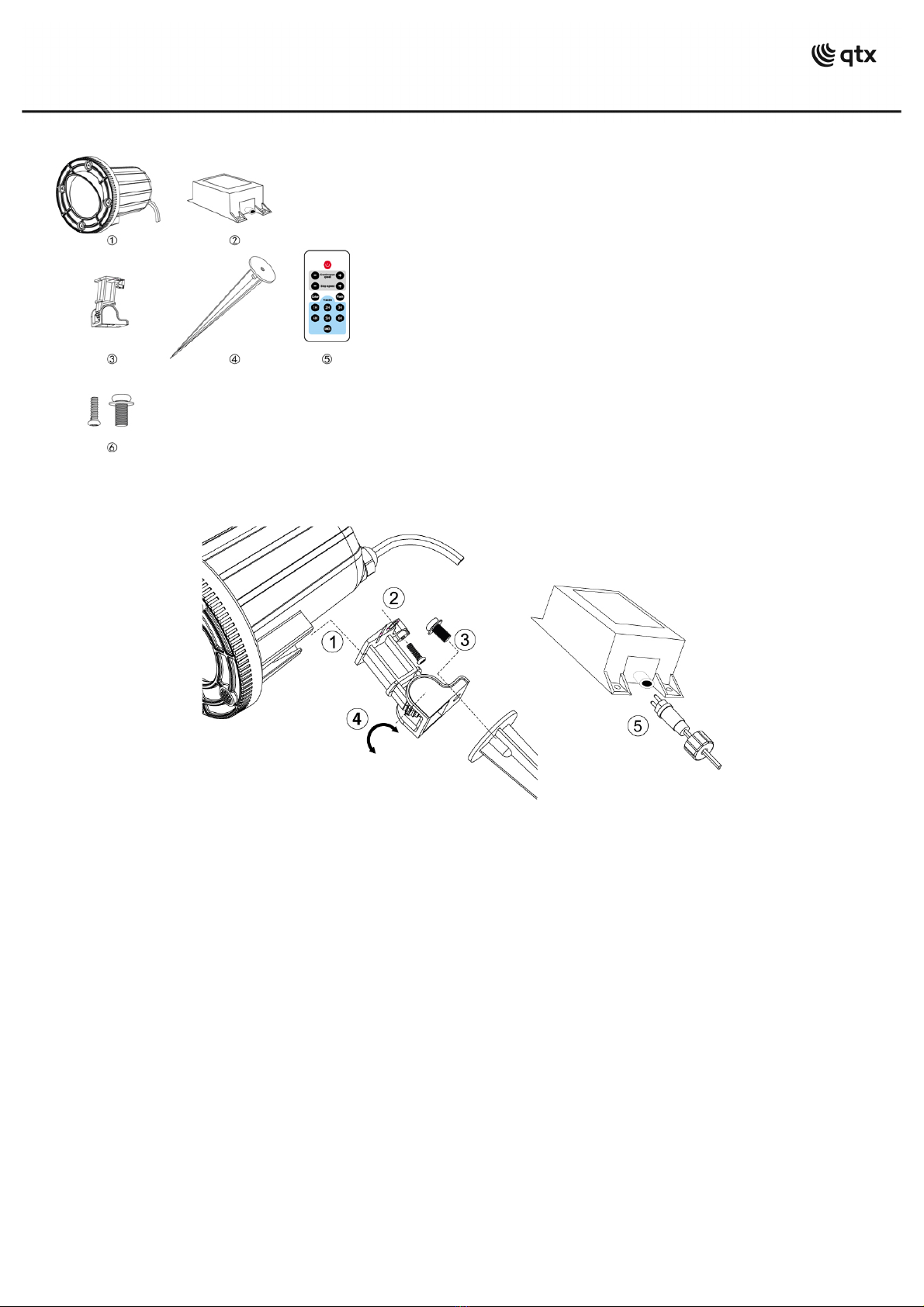

Instructions for Assembly and Use
1. Remove all components from packaging saving the packaging for storing the garden laser when not in use.
2. Choose the intended surface where the laser light will project. Determine the location of the unit for installation
and ensure it is free from any visual obstructions.
3. Push the spike into the ground (depending on the firmness of the ground, you may need to use a mallet to insert
the spike completely. Do not use your foot!)
4. Attach the angle adjustment bracket to the bottom of the laser as shown above (1).
5. Use the correct screw to fix bracket (2).
6. Screw angle adjustment bracket to the ground spike using the correct screw (3).
7. Adjust the angle of the laser head (4).
8. Attach the 2 pin lead to the AC power adaptor. This will only go in one-way, do not force (5). Once the 2 pin lead
has been fully inserted, screw the cap into place to ensure a weatherproof seal.
9. Plug the AC adaptor into the mains to start the laser light.
10. With great care and avoiding looking directly at the laser adjust the angle to the required position. Tighten all
screws if required.

IP65 Garden Lasers User Manual
Remote Control Instructions:
The remote has an effective range of 15 metres (50 feet). This will be reduced if there are obstacles around the unit.
Only the speed settings of the laser unit will be saved if you disconnect the unit from the mains or switch off via the
power button on the remote.
All settings will be saved automatically if you are using the timer settings to switch off the unit. It will start up on the
same program as when the timer which the unit off.
Look after your remote, it’s the only way you have of adjusting your laser unit!
1. Power button – Start or Stop the laser on a temporary basis. If the unit is to be out of use for a long time,
unplug the AC adaptor from the mains.
2. Continuous Speed – 6 different rotational speeds available (including static).
3. Step Speed – 6 different speed/step settings.
4. Colour – Select a single colour or a combination of colours.
5. Flash – 3 settings.
6. Timer – The timer will automatically switch off after the duration selected. The unit will automatically switch on
at the same time the following day. E.G. If you get you set the timer at 5pm for 6 hours, the laser will switch off
at 11pm and switch on again at 5pm the following day.
7. Cancel –You can cancel the timer setting so the laser unit can be switched on/off manually.
Activating the remote – A CR2025 battery is already in your remote control unit. Remove the plastic insulation tab.
This will enable the remote to work. If the remote isn’t going to be used for a long period of time, it is an idea to re-
insert the plastic tab to save battery life.

IP65 Garden Lasers User Manual
Helpful Hints
•Do not use with dimmers.
•For an extended lifetime, let the unit cool down for 30 mins every 6 hours.
•Operating temperature are between -20°C and 35°C. There may be delay if the temperature is below freezing. A
warm up period of up to 5 mins may be required.
•The laser will look brightest in the dark and dimmer when competing with another light source.
Specifications
Power supply
100-240Vac, 50/60Hz
IP rating
IP65
Warm up time
2 -5 minutes
Laser class
3R
Mains lead length
5m
Operating temperature
-20 to 35°C
Dimensions
100 x 100 x 130mm
Weight
1kg
Laser safety standard
BSEN62471:2008
Model
GL-100RG
GL-200RG
GL-100RGB
Item ref
152.771UK
152.772UK
152.773UK
Power output
12Vdc, 500mA
12Vdc, 500mA
12Vdc, 1A
Power consumption
5W
6W
8W
Red laser power
120mW 650nm
120mW 650nm
120mW 650nm
Green laser power
30mW 532nm
30mW 532nm
30mW 532nm
Blue laser power
N/A
N/A
100mW 450nm
This product is classed as Electrical or Electronic equipment and should not be disposed
with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2016. AVSL Group Ltd.
