Axminster Trade AP340PD User manual

Pillar Drills
User manual
AP340PD Code 107704
AP325PD Code 107705
AP700PD Code 107706
AP540PD Code 107707
AP340PD
Code: 107704
AP325PD
Code: 107705
AP700PD
Code: 107706
AP540PD
Code: 107707
AT: 09/06/2021
BOOK VERSION: 5

INDEX OF CONTENTS
2
EU DECLARATION OF CONFORMITY
EU Declaration of Conformity 02
What’s Included 03-04
General Safety Instructions 05
General Safety Instructions for Drilling Machines 06
Specification 07
Assembly 08-09-10-11-12-13
Illustration and Parts Description 14-15-16-17
Changing the Speed 18
Levelling the Table (AP540PD Only) 18
Tilting the Table 19
Removing the Keyless Chuck 19
Maintenance 20
Speed Select Tables 21
Drill Speed Material Table 22
Troubleshooting 23
Exploded Diagram/Parts List 24-25-26-27
Wiring Diagram 28
Notes 29-30-31
Cert No: Drill Press
Axminster Tool Centre Ltd
Axminster Devon
EX13 5PH UK
axminstertools.com
Type Pillar Drill
Model AP340PD,AP325PD
AP700PD,AP540PD conforms to the machinery example for which the EC Type-Examination
Certificate No AE50397160, AE50397166, AM50377776
has been issued by Laizhou Planet Machinery Co.,Ltd.
at:Yutai West Street Laizhou, Shandong 261400 China
and complies with the relevant essential health and safety requirements
2006/42/EC
2014/30/EU
EN 60204-1:2006+A1+AC
EN 12717+A1:2009
06/42/EC - Annex I/05.2006
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN 61000-3-11:2000
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 55014-1:2006+A1+A2
EN 55014-2:1997+A1+A2
Signed
Andrew Parkhouse
Operations Director Date: 03/05/2017
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn HAZARD
Dust mask
should be worn

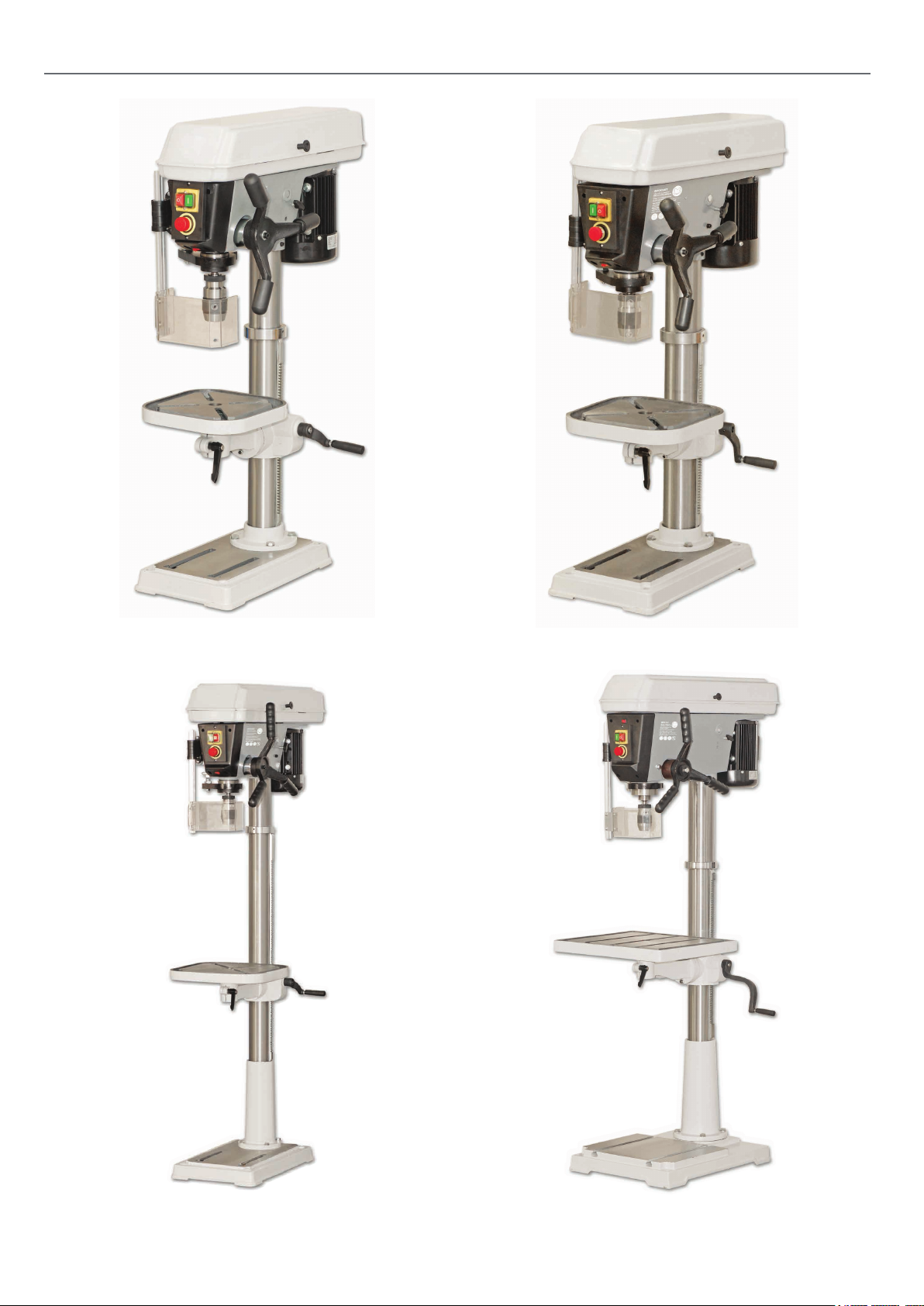

WHAT’S INCLUDED
3
Quantity Item Part
1 No Small Bench Pillar Drill (ZQJ4116K) A
Quantity Item Part
1 No Floor Pillar Drill (ZQJ4125QK) C
Quantity Item Part
1 No Medium Bench Pillar Drill (ZQJ4119K) B
Quantity Item Part
1 No Floor Pillar Drill (ZQJ4132K) D
Model Number AP340PD
Model Number AP700PD
Model Number AP325PD
Model Number AP540PD
A B C D
1 Pillar for drill head complete with mounting
flange, rise and fall rack and retaining ring 1
1 Drill table extension bracket arm 2
1 Pillar drill head 3
1 Drill table square (Small) 4(107704 ONLY)
1 Drill table square (Medium) 4a (107705 ONLY)
1 Drill table square (Large) 4b (107706 ONLY)
1 Base (Small,Medium, Large) 5(107704-107705-107706 ONLY)
1 Chuck guard assembly mounting bracket 6
1 Chuck guard assembly 7
2 Lift and shift handle clamps for the rise and fall mechanism, drill table 8
1 Lever feed handle assembly with M8x50mm cap head screw 9
1 Crank handle for table rise and fall mechanism (small) 10 (107704-107705-107706 ONLY)
1 Crank handle for table rise and fall mechanism (Large) 10 (107707 ONLY)
1 Keyless chuck 3-16mm 11
1 Morse taper arbor for chuck assembly 12
1 Pulley cover knob & Phillips screw 13
1 Morse taper drift 14
3 Hex Keys 3-5-6mm 15
4 M10x25mm + washers 16 (107704-107705-107706 ONLY)
4 M6x11mm Button head Phillips screws 17
2 M5x14mm Button head Phillips screws 18
Box Containing:
THE AP540PD IS EXTREMELY HEAVY & COMES
LARGELY ASSEMBLED FOR SAFETY AND
TRANSPORT!

WHAT’S INCLUDED
4
1
2
5
3
4a
4
4b
6
7
8
9
11
13
12
10
16
17 18
14
15

GENERAL SAFETY INSTRUCTIONS
5
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain
your tools and equipment in good working order.
WARNING!! KEEPTOOLS AND EQUIPMENT
OUT OF REACH OFYOUNG CHILDREN
Mains PoweredTools
• Tools are supplied with an attached 13 Amp plug.
• Inspect the cable and plug to ensuree that neither are
damaged. Repair if necessary by a suitably qualified person.
• Do not use when or where it is liable to get wet.
Workplace
• Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
• Keep machine clean.
• Leave machine unplugged until work is about to commence.
• Always disconnect by pulling on the plug body and not the
cable.
•Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the correct
speed and function set.
•Ensure you are comfortable before you start work,
balanced, not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to prevent it
being caught up in the rotating parts of the machine.
•Consideration should be given to the removal of rings and
wristwatches.
•Consideration should also be given to non-slip footwear etc.
•If another person is to use the machine, ensure they are
suitably qualified to use it.
•Do not use the machine if you are tired or distracted
•Do not use this machine within the designated safety areas
of flammable liquid stores or in areas where there may be
volatile gases.
•Check cutters are correct type and size, are undamaged
and are kept clean and sharp, this will maintain their
operating performance and lessen the loading on the
machine.
•OBSERVE…. make sure you know what is happening
around you and USE YOUR COMMON SENSE.
KEEPWORK AREA AS UNCLUTTERED AS IS
PRACTICAL.UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED INWORK AREAS.

GENERAL SAFETY INSTRUCTIONS FOR DRILLING MACHINES
6
1. DO NOT operate the machine without carrying out
a preliminary inspection.
2. CHECK that the speed is correct for the planned operation,
and the upper drive belt cover is closed and fastened secure.
3. CHECK the drill bit is the correct size and type, is correctly
fitted and tightened in the chuck.
4. Make sure that the drill head, the table bracket arm, the table
tilt and the table swivel clamps are all locked before any drilling
is attempted.
5. DO NOT attempt to carry out any drilling operation on
material that has not been secured to the drill table, either by
vice or clamp.
6. Remove any tools (chuck key, spanners etc), that may have
been used in setting up operations and put them away in their
correct stowage positions.
7.Try to arrange the drilling operation so that the drill tip does
not come in contact with the table.
8. ALWAYS allow the drill to stop before removing drills or
swarf from around the job or the table.
9. NEVER remove ‘flying’swarf strands from the drill whilst it is
turning.
10. It is a good precaution to wear eye protection when drilling,
especially using small drills, or very hard material that produces
small chips.
11. It is not a good idea to wear gloves when operating a drill
press.
12.After the job is completed, remove all tools and accessories
from the machine, check that drill bits are still sharp and re-use
able.
13. Clean the machine down thoroughly, including removing
coolant or cutting compounds from the drill table.
14. Lightly coat all metal surfaces with a light oil coating.
15. Disconnect the machine from the supply. Secure the cable/
plug clear of the floor.

SPECIFICATION
7
Code 107704
Model AP340PD
Rating Professional
Power 650W (230V 1ph)
Speed Range (12) 210-2,580rpm
Throat 165 mm
Taper 2MT
Chuck Cap/Type 1-16mm keyless
Chuck Travel 80 mm
Max Chuck to Table 340 mm
Max Chuck to Base 530 mm
Diameter of Column 70 mm
Table Size 260 x 260 mm
Table Tilt 45˚ - 0 - 45˚
Base Size 420 x 250 mm
Overall Size L x W x H 640 x 370 x 820 mm
Weight 63 kg
Code 107706
Model AP700PD
Rating Professional
Power 750W (230V 1ph)
Speed Range (12) 120-2,580rpm
Throat 216 mm
Taper 3MT/B16
Chuck Cap/Type 1-16mm keyless
Chuck Travel 80 mm
Max Chuck to Table 700 mm
Max Chuck to Base 1,150 mm
Diameter of Column 80 mm
Table Size 345 x 345 mm
Table Tilt 45˚ - 0 - 45˚
Base Size 520 x 320 mm
Overall Size L x W x H 750 x 430 x 1,650 mm
Weight 108 kg
Code 107705
Model AP325PD
Rating Professional
Power 750W (230V 1ph)
Speed Range (12) 120-2,580rpm
Throat 178 mm
Taper 2MT
Chuck Cap/Type 1-16mm keyless
Chuck Travel 80 mm
Max Chuck to Table 325 mm
Max Chuck to Base 500 mm
Diameter of Column 80 mm
Table Size 290 x 290 mm
Table Tilt 45˚ - 0 - 45˚
Base Size 450 x 270 mm
Overall Size L x W x H 670 x 360 x 1,020 mm
Weight 82 kg
Code 107707
Model AP540PD
Rating Professional
Power 1100W (230V 1ph)
Speed Range (12) 150-2,700rpm
Throat 254 mm
Taper 3MT
Chuck Cap/Type 3-16mm keyless
Chuck Travel 120 mm
Max Chuck to Table 540 mm
Max Chuck to Base 1,090 mm
Diameter of Column 92 mm
Table Size 475 x 425 mm
Table Tilt 45˚ - 0 - 45˚
Base Size 580 x 450 mm
Overall Size L x W x H 860 x 610 x 1,710 mm
Weight 143 kg

ASSEMBLY
8
Having unpacked your machine and its accessories, please
check the contents against the equipment list ”What’s Included”,
if there are any discrepancies, please contact Axminster Tool
Centre using the procedures laid down on our website.
PLEASE DISPOSE OFTHE PACKAGING
RESPONSIBLY;MUCH OF THE MATERIAL
IS RECYCLABLE
The machine and its accessories will arrive coated with heavy
corrosion preventative grease and greased wax paper or plastic
wrapping.These will need to be cleaned from the machine, its
components and accessories prior to it being set up and
commissioned. Use water soluble de greaser to remove the
barrier grease. Be warned, it will stain if you splash it on
clothing etc. After cleaning, lightly coat the exposed metal
surfaces of the machine with a thin layer of light machine oil.
N.B If you used water soluble de greaser make sure you apply
this thin film sooner rather than later.
WARNING!WEAR OVERALLS,RUBBER
GLOVES AND EYE PROTECTION!
Please read the Instruction Manual prior to using your new
machine;as well as the installation procedure,there are
daily and periodic maintenance recommendations to help
you keep your machine on top line and prolong its life.
Keep this instruction manual readily accessible for any
others who may also be required to use the machine.
WARNING!THE DRILL HEAD IS A HEAVY
AND SUBSTANTIAL PIECE OF MACHINERY,
YOU ARE ADVISEDTO HAVE HELPTO LIFT
IT CLEAR OFTHE BOX AND FIT ITTO THE
COLUMN.

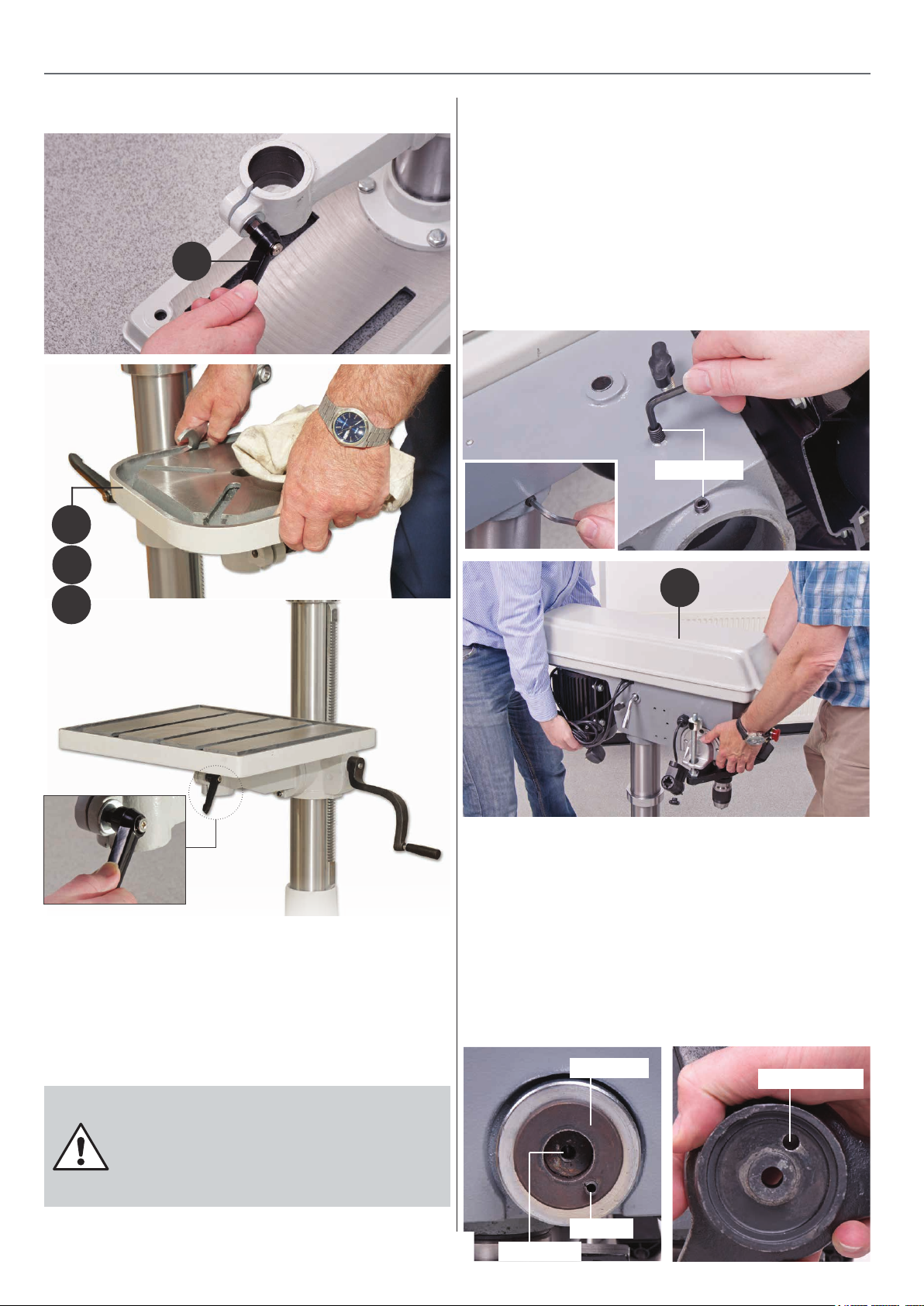

1. Place the base (5) on the bench or floor and place the
mounting flange of the column (1) onto the seating flange of
the base (5), align the holes. Use the four Hex bolts (16) and
secure the column to the base, see fig 01. Loosen the grub
screw holding the chamfered retaining collar on the column
with the supplied Hex key, place it and the rise and fall rack
assembly aside, see fig 02.
Fig 01
Fig 02
2. Locate the drill table mounting bracket arm (2), apply some
greese to the worm and pinion gears then twist the worm drive
shaft with your fingers so that the whole shaft protrudes from
the casting and the worm gear itself is clear of the square recess
in the main body of the casting, see fig 03-04-05.
Fig 03-04-05
Retaining collar
Hex key
Worm gear
Pinion gear
5
1
2

ASSEMBLY
9
3. Pick up the rise and fall gear rack, identify the top and the
bottom, (the rack gearing is cut asymmetrically, with the gear
cut extending closer to the bottom), make sure you have the
rack the right way up, as it will allow you to drive the drill table
up and down over its full range, see fig 06.
Fig 06
4. Fit the rise and fall rack into the square recess in the
mounting bracket arm (2) casting, ensure that it is engaged
with the pinion, see fig 07. Lower the combined mechanism
over the column. Allow it to slide down the column until the
rise and fall rack is located in the cup chamfer in the top of
the mounting flange, see fig 08. Replace the cup chamfered
retaining collar over the column and slide it down onto the top
of the rack. Lock it in place with the grub screw, ensuring that
it has captured the upper end of the rack securely, but not too
tight that the rack cannot be swivelled around the pillar see
fig 09.
Fig 07-08
Fig 09
5. Locate and fit the crank handle (10) to the shaft, ensuring
that you tighten the grub screw onto the machined flat on the
shaft, this will keep the worm gear in position, see fig 10-11.
Fig 10-11
6. Check that the mounting bracket can be driven up and down
the column and can swivel around the pillar. Locate the lift and
shift handle (8) and screw it into the threaded hole to the rear
of the mounting bracket arm and tighten, see fig 12. DO NOT
OVERTIGHTEN as the cast iron arm could break. Check it has
‘pinched’up on the column and the bracket is immobile; both
in its up and down travel and swivel movement. Fig 12
Continues Over....
Top of rack
Rise and fall rack
Cup chamfer
Machined flat
10
8

ASSEMBLY
10
Mounting the Drill Head
WARNING!THE DRILL HEAD IS A HEAVY
AND SUBSTANTIAL PIECE OF MACHINERY,
YOU ARE ADVISEDTO GET HELPTO LIFT
IT CLEAR OFTHE BOX AND ONTOTHE
COLUMN.
1.CHECK the drill head, ensure that the two hex socket grub
screws that lock the head in place on the column are withdrawn
and will not foul on the column when the head is fitted, see
fig 17. Place the assembly you have just been working on in
the designated position, make sure it is stable and lift the
drill head over the column and let it drop into place, see fig 18.
Set the drill head approximately fore and aft and lock in
position using the two cap head grub screws mentioned earlier,
see fig 19. Check that the drill head is immobile. Everything on
the drilling machine is now secured.
Fig 17-18-19
2. Locate the lever feed handle and its securing cap head
bolt/washer (9), note the raised boss and spigot on feed
mechanism. Mount the handle over the boss and ensure
the spigot slots into the pre-driiled hole in the feed handle
assembly. Secure with the supplied cap head bolt through the
hole in the centre of the handle, through into the tapped hole
in the mounting boss, see fig 20-21-22-23.
Fig 20-21-22-23
Fig 13-14-15
7. Screw in the remaining lift and shift handle (8) into the threaded
hole to the end of the mounting arm. DO NOT OVERTIGHTEN
as the cast iron arm could break.Lower the drill table (4,4a,4b)
spigot into the machined hole to the front of the mounting arm and
tighten the handle until it has‘pinched’ up on the drill table’s spigot
and the table is immobile,see fig 13-14-15.
Lever Feed Handle
8
Grub screws
3
Raised boss
Spigot
Pre-drilled hole
tapped hole
4
4a
4b

ASSEMBLY
11
3. Locate the pulley cover knob (13), remove the Phillips screw,
insert the screw through the pre-drilled hole in the pulley cover
and secure the knob in place, see fig 27. Fig 27
Pulley Cover Knob
9
13
Chuck guard
4. Locate the chuck guard assembly (7), chuck guard mounting
bracket (6) and the four M6 button head Phillips screws (17).
Offer up the four pre-drilled holes in the mounting bracket (6)
with threaded holes to the side of the drill head assembly (3).
Secure in position with the four M6 screws (17), see fig 28-29
NOTE:Make sure the cutout slot in the mounting bracket (6)
is to the top. Fig 28-29
5. Insert the micro switch cable into the machined cutout slot
in the mounting bracket (6). Press the switch assembly into the
rear of the micro switch housing as shown, see fig 30.
Continues Over....
Threaded holes
6
17
Lever Feed Handle (AP540PD ONLY)
Locate the lever feed handle (9), remove the centre bolt and
unscrew the centre cap from the raised boss drive shaft,
place safely aside, see fig 24. Remove the square key from
the machined slot on the drive shaft. Mount the handle over
the drive shaft so the square cut out on the handle lines up
with machined slot in the shaft. Replace the square key,
screw on the centre cap and secure the handle in place with
the centre bolt, see fig 25-26.
Fig 24-25-26
Centre cap Centre bolt
9
Key slot cut out
Square key

ASSEMBLY
12
Fig 31
Fig30
18
Micro switch unit
7. Undo the clamping knob to the side of the micro switch
sufficiently to allow the guard rail to slide up through the
centre of switch.
8. Locate the chuck guard and rail assembly (7).Turn the guard
over and slot the rail into the guard’s mounting channel, insert
the two square clamps into the rail’s ‘T’ slot and secure by
nipping up the Phillips screws.DO NOT OVERTIGHTEN to
avoid the plastic guard from cracking, see fig 32-33-34.
Fig 35
7
Morse taper arbor and chuck

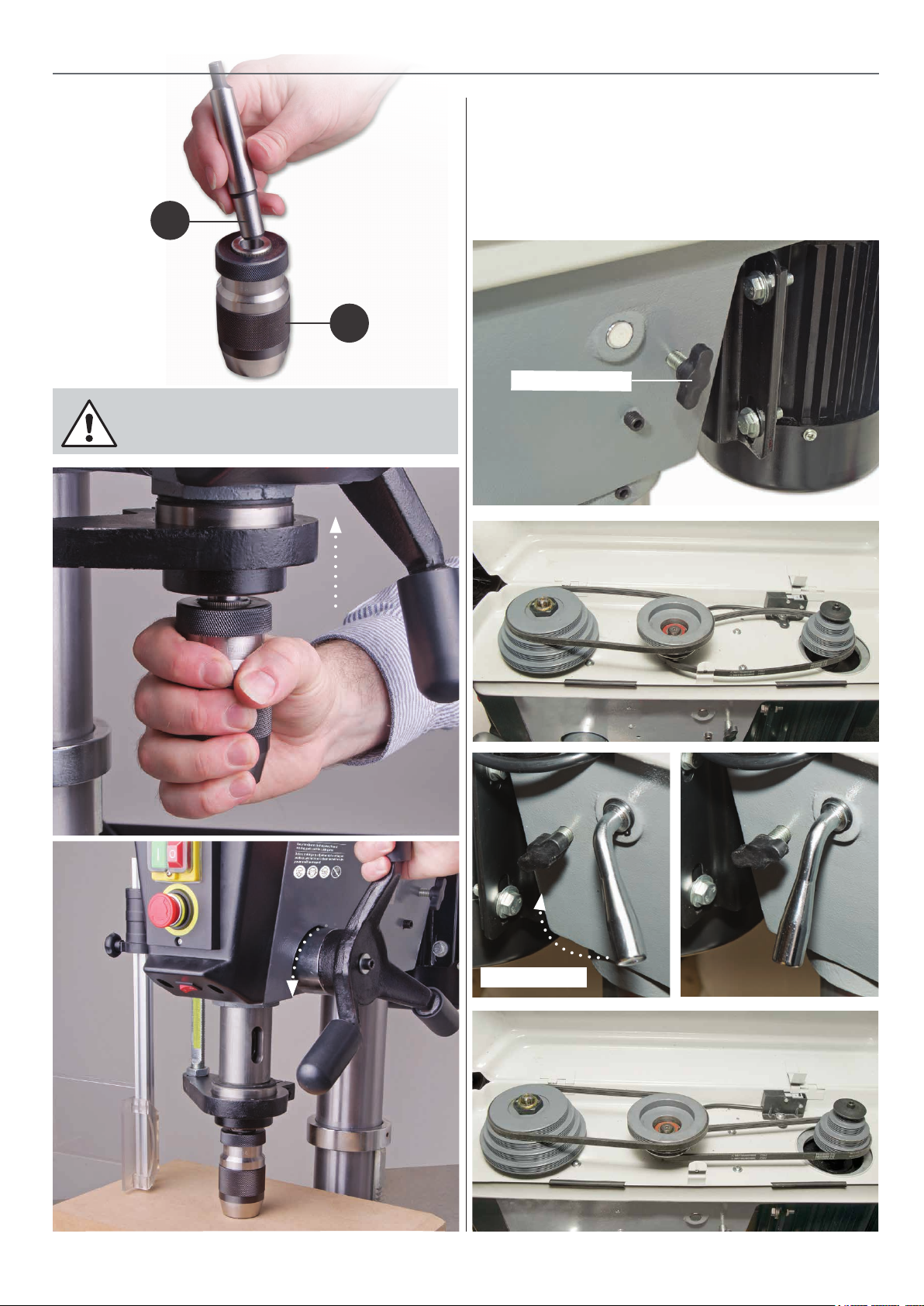

10. Locate the keyless chuck (11) and Morse taper arbor (12).
Insert the Morse taper arbor into the keyless chuck then slot
the assembly up into the quill until it’s firmly home. Place a
piece of timber on the table, turn the lever feed handle (9)
down until the chuck is up against the timber and press
firmly down. The Morse taper (12) should now be locked
tight inside the quill, stopping the assembly from dropping
out, see fig 36-37-38.
9. Introduce the chuck guard rail (7) up through the centre of
the micro switch and nip up the clamping knob to lock the
chuck guard in place, see fig 35.
NOTE:You can re-adjust the guard’s height for different
drilling operations.
Fig 32-33-34
Square clamp
Clamping screws
7
6. Line up the two holes in the micro switch unit with the
threaded holes to the end of the angled bracket (6). Make
sure to introduce the micro switch cable into the cutout slot
in the mounting bracket (6).Secure the micro switch with two
M5 Phillips screws (18), see fig 31.
Rail
Cutout slot
Micro switch
Housing

13
11. Open the pulley cover and check to see if the belt has been
tensioned. If not, loosen the two motor yoke locks on either
side of the drill head and move the tensioning lever back then
re-tighten the motor yoke locks to lock the motor in place, see
fig 39-40-41-42.
Fig 39-40-41-42
Motor yoke clamp
Tension the belt
11
12
Fig 36-37-38
NOTE:MAKE SURE ALL MATING SURFACES
ARE CREASE FREE BEFORE ASSEMBLY!
ASSEMBLY

ILLUSTRATION AND PARTS DESCRIPTION
14
107704 AP340PD
107706 AP700PD
107705 AP325PD
107707 AP540PD

ILLUSTRATION AND PARTS DESCRIPTION
15
Motor
Pulley cover hand knob
Motor yoke butterfly locking
Crank handle
Rise and fall rack
Mounting flange
Base casting
Retaining collar
Lever feed handle
Keyless chuck
Drill table
Chuck guard
LED Light switch
Chuck guard micro switch
On/Off switch
Emergency stop Button
Drill column
Lift and shift clamping handle
Extension bracket arm
Pulley drive belt cover
Quill pulley Motor pulley
Micro switch
Jockey Pulley
(Drive belt tensioning)

ILLUSTRATION AND PARTS DESCRIPTION
16
Drive belt tensioning lever lock Chuck guard micro switch
LED light (A) below the drill head pivots to
direct light down onto the work table
Depth stop assembly (A), Depth stop scale (B)and Depth stop collar (C), press
the sprung loaded button to repostion the collar on the depth stop scale
A
B
C
A
Opening the chuck guard
whilst in operation will stop
the drill insently.
Move the tensioning lever to release
or tension the drive belts

ILLUSTRATION AND PARTS DESCRIPTION
17
On/Off switch (A)
Emergency stop button (B)
LED light switch (C)
AP540PD pillar drill control panel
NOTE:The LED light switch is above
the On/Off switch assembly
Motor yoke butterfly lock (A)
Drive belt tensioning lever lock (B)
Lift and shift handle (A) for securing the table mounting arm
Clamping handle (B) for securing the table
Table tilt clamping bolt (A), 90˚ degrees locking pin (B) AP540PD Pillar drill table tilt assembly
Table tilt clamping bolt (A)
90˚ degree locking pin (B)
Table levelling adjusting nut (C)
Table tilt pointer (A)
Table tilt scale (B)
A
B
C B
A
A
BB
A
AA
C
BB

CHANGING THE SPEED
18
1. Open the pulley cover and loosen the motor yoke locks (A).
Turn the drive belt tensioning lever (B) anti-clockwise, to move
the motor assembly “in”. This will release the tension from the
drive belts, see fig 43.
Fig 43
2. Refer to the speed select table and ascertain the belt
positions for the speed you require. Move the belts to these
positions.
WARNING! DISCONNECTTHE PILLAR
DRILL FROMTHE MAINS SUPPLY BEFORE
CONTINUING!
WARNING!TAKE CARE NOTTOTRAPYOUR
FINGERSWHEN REPOSITIONINGTHE BELT
ONTHE PULLEYS!
3.Turn the pulley train,see fig 44, to check the belts move
freely.Tension the whole belt train by turning the drive belt
tensioning lever (B) anti-clockwise, to move the motor
assembly“out”. Tighten the motor yoke butterfly knobs (A)
to lock the motor assembly in position.
Fig 44
LEVELLING THE TABLE AP540PD ONLY
The ‘AP540PD pillar drill’ come with a large heavy cast iron
table and there is more chance that the table will need to
be adjusted so it’s perpendicular with the motion of the quill.
To do this there is an adjusting nut on the supporting arm
below the 90˚ locking pin, see fig 45.
Fig 45
90˚ locking pin
Tilt clamping bolt
Adjusting nut
1. Position the centre of the table directly beneath the pillar
drill’s chuck and lock the table in place.The table should be
about 200mm beneath the bottom of the chuck, find a
perfectly cylindrical steel rod about 12.5mm in diameter
and insert it into the chucks jaws and tighten.
2. Position a 90˚ square on the table and line it against the
steel rod. If you notice any unevenness between the table
and the rod, loosen the tilt clamping bolt and turn the
adjusting nut until the table is square with the drill chuck.
Tighten the clamping bolt to lock the table in place, see 46-47.
A
B
Fig 46-47
Cylindrical steel rod
Square

TILTING THE TABLE
19
1. The cust iron table can be tilted 45˚ degrees in both plains,
to tilt the table you will need to first remove the tables 90˚
locking pin. To remove the locking pin use a 10mm spanner,
turn the nut clockwise to draw the pin out. Remove the pin and
place safely aside, see fig 48-49. Loosen the tilt clamping bolt
and tilt the table to the desired angle then retighten the bolt.
Fig 48
Fig 49
2.To set the table back to 90˚ degrees, loosen the clamping
bolt, position the table back in the horizontal plain and insert
the locking pin into the machined hole in the support arm.
Adjust the nut so it protects the end of the threaded pin and
using a high faced mallet tap the locking pin into place.
REMOVING THE KEYLESS CHUCK
1. Lower the quill to its maximum depth by turning the
feed lever handle.While holding the handle adjust the lower
depth stop nut (A) to lock the quill in position, see fig 50.
2. Place a piece of timber on the drill table to prevent the
chuck from being damaged, turn the chuck to line up the
Morse taper arbor in the quill’s machined slot. Insert the Morse
taper drift (14) in the quill’s slot, thus pushing the Morse taper
down and releasing the chuck assembly, see fig 51-52.
Fig 50
Fig 51-52
A
Morse taper arbor
Morse taper drift
Quill slot
14
90˚ Locking pin

MAINTENANCE
20
WARNING! DISCONNECTTHE MACHINE
FROMTHE MAINS SUPPLY BEFORE
CONTINUING!
Cleaning
Excessive dust in the motor can cause excessive heat to
develop. Every effort should be made to prevent foreign
material from entering the motor.
When operated under conditions likely to permit accumula-
tions of dust, dirt or waste, a visual inspection should be made
at frequent intervals. Accumulations of dry dust can usually be
blown out successfully.
Caution:To avoid eye injury or adverse reaction to dust,
high pressure hoses should not be used especially in poorly
ventilated areas.The operator performing this cleaning
function should wear safety goggles and dust filter mask.
After cleaning, apply a light coat of machine oil on the quill
and chuck.
If the machine is going to stand idle for any length of time, a
light coat of spray or machine oil over the column and table
will prevent rusting.Then place a dust sheet over the pillar drill.
Electric
WARNING! DO NOT USETHE MACHINE
IFTHE POWER CABLE HAS BECOME
DAMAGED.
If any servicing (other than the above cleaning) becomes
necessary, the unit should be returned to Axminster Tool Centre
to be repaired by one of our qualified electricians. Contact our
customer sales department for further assisance on 03332
406406 or email as @ csaxminstertools.com
Call:03332 406406
Email:[e-mail]
WARNING! DO NOT ATTEMPTTO REPAIR
ITYOURSELF CONTACT OURTECHNICAL
SALESTEAM FOR ASSISTANCE.
The speed of the motor cannot be regulated or changed - no
adjustment is necessary.
Motor speed
Oil Points
