B. Braun Perfusor fm User manual

1
Perfusor®fm
0123
Software PFAE
Instructions for Use

2
Patient safety
Read Instructions for Use prior to Use.
Application only under regularly supervision by
specially trained staff.
Operation
Make sure unit is firmly in position. This
applies in particular to use with infusion
stands or wall rails. Never place more than 3
Perfusor fm units on top of one another.
Prior to use:
Always check audible and visual alarms. This
likewise applies where appropriate to the staff
call.
Patient connection should only be made
when device is switched on.
Interrupt connection when changing syringe
to avoid danger of incorrect dosage.
Make sure syringe is correctly positioned.
Whenever inputs are made, value displayed
is to be compared to value entered. Do not use
unit unless values coincide.
Appropriate cannulas/catheters are to be
used for the administration set/med. applica-
tion.
Make sure there are no kinks in tubing;
ensure unimpeded flow.
Make exclusive use of disposables. Replace
after 24 hours.
Use only compatible combinations of
equipment, accessories, working parts and
disposables.
The use of not recommended resp.
incompatible disposables may influence the
technical specifications.
Operational reliability is only guaranteed if
use is made of accessories which have been
tested/authorised and thus recommended by
the manufacturer, B. Braun.
Installation in medically used rooms must
comply with the appropriate regulations (e.g.
VDE 0100, VDE 0107 or IEC-publications).
Observe national specifications and deviations.
The infusion lines should be placed in such a
way that the syringe cannot be pulled out of its
fixation because of uncontrolled drawing.
Possible explosion hazard if used in presence
of flammable anaesthetics.
Other components
These must conform to the same
requirements as the administration set.
Where several infusion lines are connected
on one singular vascular access the possibility
of their exerting a mutual influence vice-versa
cannot be excluded.
Operation in the occlusion pressure range
may affect accuracy.
Safety Standards
Perfusor® fm satisfies all safety standards for
medical electrical devices in compliance with
IEC/EN 60601-1 and IEC/EN 60601-2-24.
The EMC-requirements (electro-magnetic
compatibility) according to IEC/EN 60601-1-2
and IEC/EN 60601-2-24 are fulfilled. If the
equipment is operated in the vicinity of other
equipment which may cause high levels of
interence (e.g. HF surgical equipment, nuclear
spin tomography units, mobile telephones etc.)
maintain the recommended protective
distances for these devices. Under certain
conditions malfunctions may occur which lead
to a device alarm with permanent alarm tone
(see also alarm conditions, page 12).
Interferences may occur e.g. at electro-
magnetic fields > 10 V/m resp. electro-
magnetic discharges > 8 kV.
Attention: Consult accompanying documents !

3
Contents
Perfusor fm®
Overview page 4
Operation page 6
Special Functions page 8
Reasons for Alarm page 12
Cleaning / Battery page 13
Start-up graphs and trumpet curves page 14
Technical data page 16
Warranty page 18
Order Data page 19
The Perfusor fm is a transportable infusion
syringe pump in accordancewith IEC/EN
60601-2-24 that is suitable for dispensing
liquids in nutritional and infusion therapy. The
medical specialist must decide on suitability
for application on the basis of the warranted
properties and the technical data.
For further details please refer to these
Instructions for Use.
The Perfusor fm is used primarily for the highly
precise, reproducible infusion of medication in
large and small quantities. The device permits
extremely exacting delivery rate settings, and
thus optimal adaptation to any given
requirements.
The drive system ensures reliable gripping of
the syringe on pressing the appropriate key,
which in turn makes for optimal start-up and
considerably facilitates handling when
inserting the syringe.
9-stage pressure limitation provides extra
safety. Pressure values and trends are
displayed during infusion. In the event of a
pressure alarm, the bolus volume built up by
the Perfusor fm is automatically reduced. In
addition, operation of the unit can be made
even more reliable if required with double
entry of the rate.
Special functions broaden the scope of
applications. Additional memory cards can
provide yet more functions, for example
conversion to patient-controlled analgesia
(PCA).

4
Overview

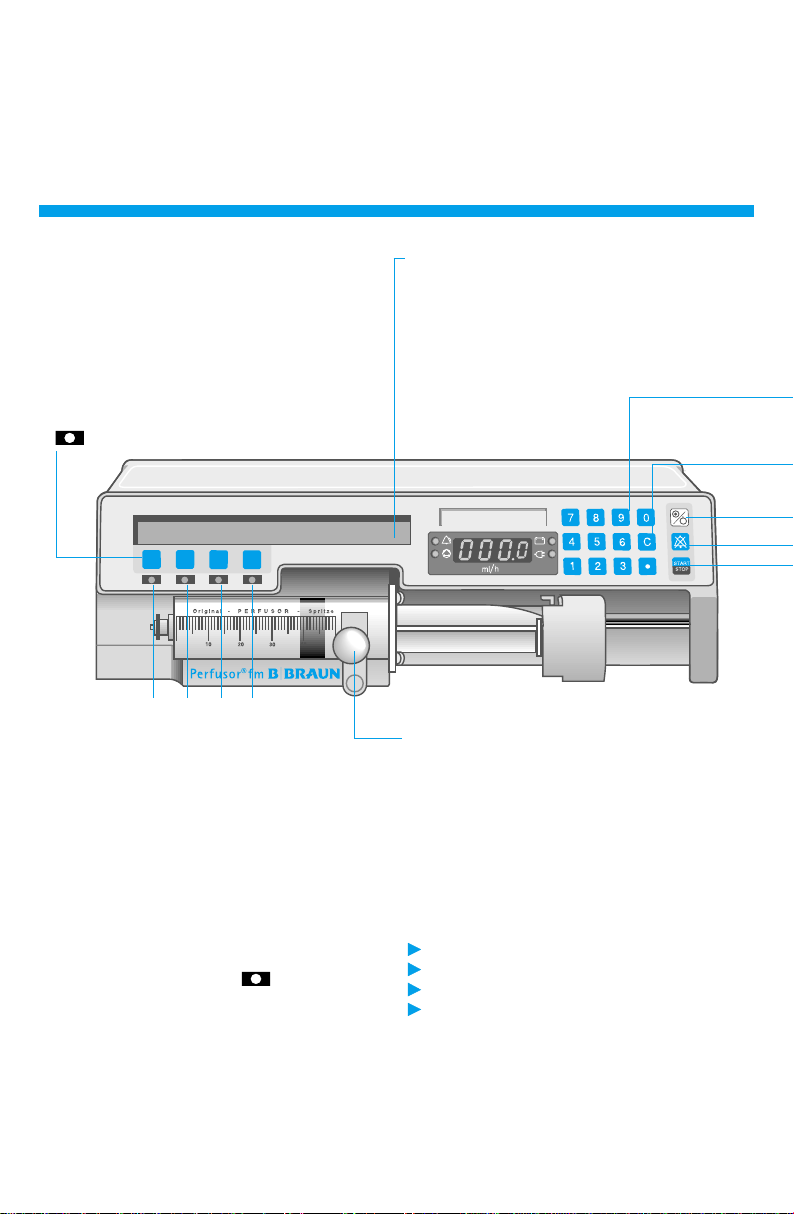

Function keys
The function of the 4 keys is governed by the
respective situation. This is indicated in the
display above. Thus, for example:
SF Call up special functions
+ / -Increase /Decrease
END Exit from this selection and return to
normal display
-- Key has no function
If lights: Press key again to confirm entry.
Display and user prompting
All important data are given in plain language
or can be called up.
Display with unobtrusive green light for
optimum legibility. (Mains only. With battery
only during unit operation.)
VOL TIME RATE SF
Syringe holder
Holds syringe in position. To remove syringe:
Pull and move to the left.
SF Special functions
If released, successive call-up of: Dosage
Calculation/Bolus function /Standby function/
Drug selection /Occlusion pressure/ Battery
capacity / Data lock/ Contrast / Date, Time.
Settings (Service only)
Ward code (displayed when unit switched off)
Range of syringes
Range of drugs
Deactivation of individual special functions
VOL Infusion Volume
Press key beneath VOL.
Enter volume (between 1 and 999.9 ml) and
confirm entry.
TIME Infusion time
Press key beneath TIME.
Enter time (e.g.: 50 min. as 5 0 or 2 h 30 min
as 2 3 0) and confirm entry.
RATE Delivery rate
Press key beneath RATE to confirm calculated
rate from volume and time input.
Press key beneath RATE* (if lights).
* Only displayed with rate calculation.

5

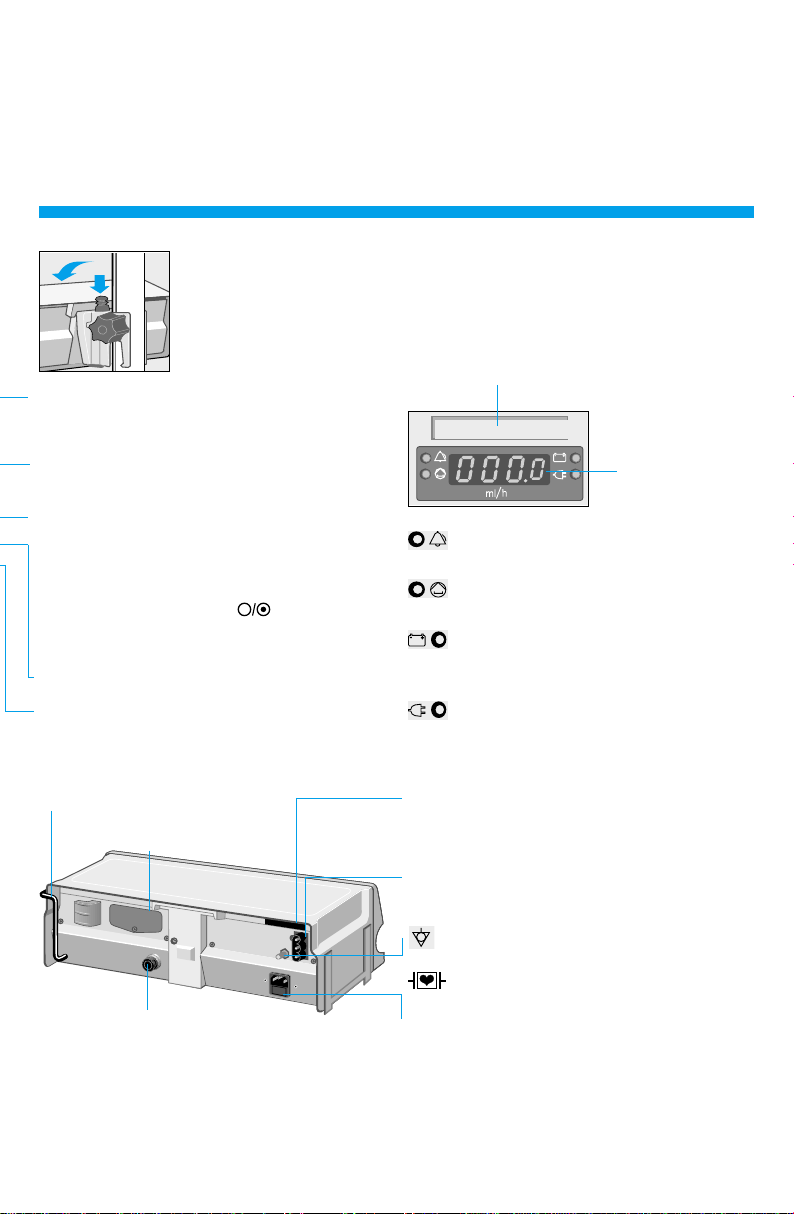

Potential equalisation
Connect with CF-mode.
CF-application (cardiac floating),
defibrillator-proof
Pole clamp, back
Attach to infusion stand. Fit
Perfusor fm from above and
engage. To release, press
black button.
Delivery rate
Keypad for input
Correction/CLEAR key
Resets display to 000.0
Main switch ON/OFF
Press for 2 seconds to switch off.
Remaining battery capacity
With device switched off and power lead
disconnected: Briefly press .
Battery capacity (and ward if envisaged)
is indicated after 3 seconds.
Suppress alarm tone for 2 min
START/STOP
Start/interruption of infusion, e.g. for altering
delivery rate.
Aluminium casing
Easy upkeep, drip-proof and resistant to
disinfectant.
Memory-card window
Scope of functions can be extended for
exemple by way of a PCA memory card (please
ask for information).
Handle for easy transport
Multi-function-connector (MFC)*
Connecting for staff call, ambulances (12 V DC)
and interface for fm anaesthesia/intensive. Mains connection
Connection for power lead.Automatic
switching to battery in the event of power
failure. Mains fuses directly above mains
connection.
Power supply
For operation with fluid manager system.
Infrared interface
For operation with fluid manager system.
Slide-in memory card unit
Alarm Indicator
Lights in alarm situation.
Operating Indicator
Indicates delivery.
Battery Check
Lights when using battery. Flashes with battery
pre-alarm.
Mains Check
Lights during mains operation. Battery is
charged.
* As of unit no. 20001. Previously separate connections
for staff call and 12 V supply.

6
Operation
Start of infusion Syringe change
Ensure reliable installation
Connect up staff call if appropriate.
Switch on unit with . A short self-test is
performed. Drive moves into position.

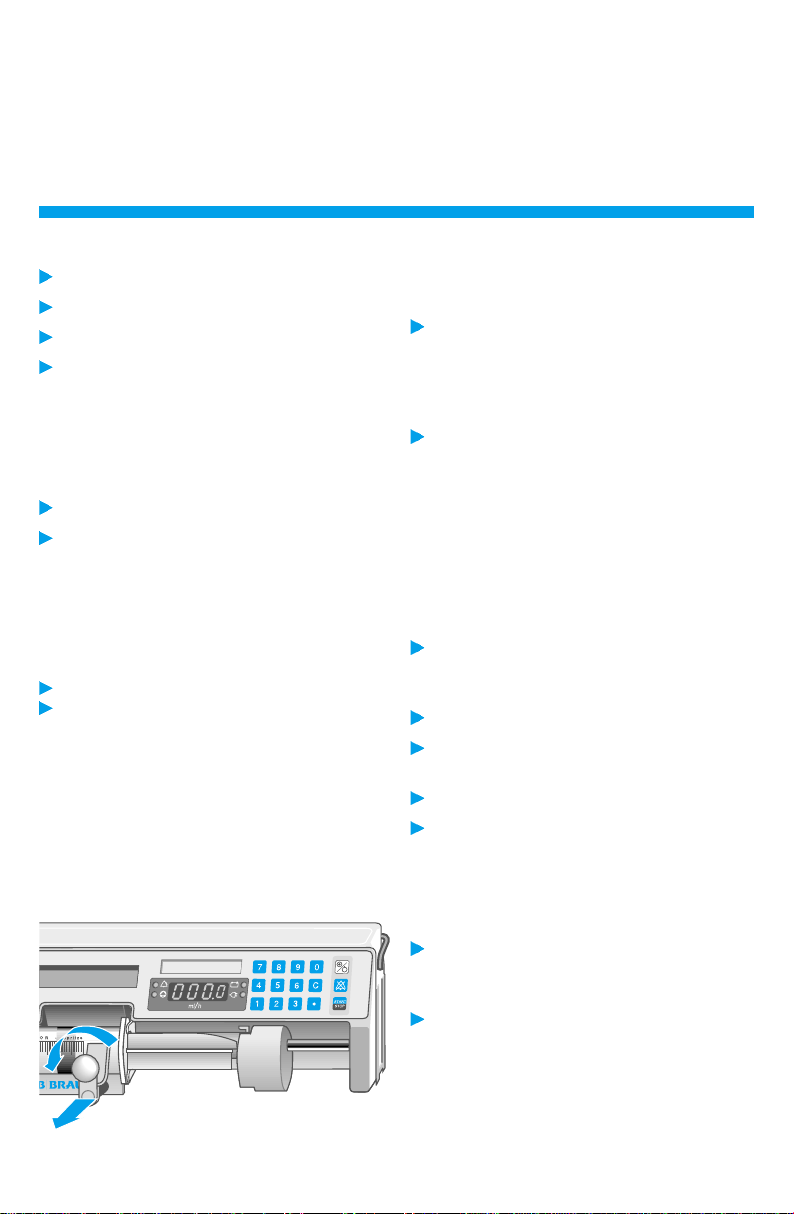

Open syringe holder
Insert syringe
Grip plates of syringe must be vertical and held
securely by locator (see diagram). Close syringe
holder.
Grip syringe
Keep key beneath << pressed. Drive advances
and grips pressure plate of syringe, then release
key. Type of syringe indicated must coincide
with syringe inserted.
Prime
Press key beneath ON until infusion set has
been primed (pressing key once = 1 ml). Then
press key beneath END.
Connect up to patient
Set delivery rate
Values between 0.1 and 200 ml/h. Check
display! Correction: Press C, enter rate again.
Choose additional settings as described below.
For automatic rate calculation: Do not enter
rate!
Press START
Infusion is implemented. Running symbol
appears on display and green operating
indicator lights.
End of Infusion
Press STOP
Green operating indicator goes out.
Close patient access.
Remove syringe
Open syringe holder. Press key beneath >>,
drive moves backwards.
Switch off
Press for 2 seconds.
To avoide incorrect dosing, always interrupt
patient connection when changing syringe.
Press STOP
Green operating indicator goes out. Close
patient access.
Remove empty syringe
Open syringe holder. Press key beneath >>,
drive moves backwards.
Insert new syringe
Grasp plunger, vent and connect up to
patient as described.
Press START

7
Additional settings
To Change the Delivery Rate
Press STOP.
Press C. Display is reset to 000.0.
Enter new delivery rate.
Press START. Infusion is implemented.
(Alarm is given if there is no restart
within 2 minutes)
To Change the Rate Without Interrupting the
infusion (Function can be deactivated by our
Service staff)
Enter new rate.
Press key beneath RATE. Rate is transferred
to red display. Unit operates at new rate. (If
new rate is not confirmed within 10 s, infusion
continues at old rate)
Target Volume (Volume Pre-selection)
The target volume will be administered inde-
pendent on the infused volume.
Press key below VOL.
Enter target volume via keypad and confirm
with VOL (values between 0.1 and 999.9 ml).
After confirming the display shows the residual
volume instead of the target volume.
Note: When target-/residual volume has been
administered, the pump stops and goes into
alarm. Acknowledge alarm and press VOL. Clear
displayed residual volume with C (in display
appears ----,- ml). Confirm this with VOL or
enter new target volume. To continue infusion,
the target volume has to be displayed as ---,-
ml or a new target volume has to be set.
Target Time (Time Pre-selection)
Press key beneath TIME.
Enter target time via keypad and confirm with
TIME (50 min. = 5 0; 2 h/30 min. = 2 3 0). After
confirming instead of the target time the resi-
dual time is displayed.
Correction: Press C. Display --h --m.
New entry.
Note: When time has been expired, the pump
stops and goes into alarm. Acknowledge alarm
and press TIME. Clear displayed residual time
with C (in display appears --h -- m). Confirm
this with TIME or enter new target time.
Rate calculation
Displayed delivery rate must be 000.0.
Enter volume and time. The delivery rate
is calculated automatically and displayed
(rounded to one decimal place).
Confirm RATE.
Press START. Infusion is implemented.
Clear Time/Volume
Press STOP, then key beneath VOL or TIME.
Press C to clear.
1x: Target Vol/Time = ----.-ml / --h--m
2x: Infused Volume/Real Time = 0.0ml /00h00m
Status Request
Only when infusion is running.
Press 1 x resp. 2 x key below INFO for
actual values. The display disappears after 10
sec or after all information has been requested.
Press x times key below INFO for displaying
syringe type, battery capacity in h and min as
well as hours of operation.
Set rate is automatically reduced if required
for type of syringe being used.Make sure syringe is properly inserted

8
Special functions
To stop bolus:
Press key below STOP.
Bolus without volume pre-selection
Press and hold BOL until a second BOL is
displayed.
Hold both BOL-keys. Bolus is administered
as long as both keys are pressed. Per ml bolus
administered a short audible signal sounds.
Interval bolus
Automatic bolus in set time interval. In case of
manual bolus administration the interval bolus
is skipped.
Select bolus function under SF.
Press key below VOL, TIME or RATE. Enter
values and confirm. After value below TIME
has been confirmed, interval time runs auto-
matically. Exit function with END, set basic
rate and start. Remaining interval time
is displayed in h:min:sec. A bolus on demand
is possible at any time during infusion at the
basal rate.
Bolus and dosage calculation
Operation as in volumetric mode. Depending
on the settings in ml (volume), quantity of
active agent (e.g. mg) or in quantity of active
agent per kg weight (mg/kg) the bolus may be
administered. During bolus administration all
three values are displayed.
Standby/Pause
In case of extended interruptions set values are
maintained.
Press STOP.
Press key beneath SF until "Standby" is
displayed.
Press key beneath ON.
Select special functions SF
Depending on the version, several functions
may be deactivated. Contact service.
To set special functions, press key below SF
repeatedly until desired special function is
displayed. –Then follow Instructions for Use as
described.
Activate Bolus Function
For additional boli.
Pressing key below ON activates the
function (values are maintained after switching
on again).
To change bolus rate:
Press key below RATE. Enter new value
and confirm RATE. –Correction: Press C and
re-enter.
Note: Keep bolus rate low to ensure required
dosing accuracy. Example: At a rate of
1,800 ml/h, 0.5 ml of bolus volume are
administered per second.
Exit bolus function:
Press key below END.
Bolus application during infusion:
Bolus with volume pre-selection.
Press key below BOL and release.
Display: BOLUS RELEASE?
Enter bolus. Values between 0.1 and 50.0 ml
(if no entry is made within 10 sec., function is
automatically exited).
Press key below YES. Bolus is administered.
After the bolus application the infusion
continues at basic rate.

9
Continued on next page
Enter length/duration of interruption
interval or confirm time displayed.
Correction: Press C. Display 00h 00m.
New entry.
Confirm TIME. Timer for interruption
on display is running. Alarm at the end of
interruption interval.
Check Battery Capacity
Remaining battery life time is displayed, e.g.:
Time = 02h 30 min
In addition the operating hours are displayed.
To switch off display again:
Press key beneath END.
With unit switched off and power lead
detached: Briefly press . Short display of
remaining battery life time after 3 sec.
Device switched off and power lead
connected: Permanent display of remaining
battery life time.
Battery replacement is recommended if a
remaining life time of less than 2 hours is
displayed after 16 hours charging time.
Drug Display
9 selectable drug names can be stored (input
via service program only).
Select with key beneath (+). Drug is
displayed also during infusion.
Key beneath CLR deletes drug name from
display.
Exit selection: Press key beneath END.
Occlusion Pressure
For shorter alarm triggering times, occlusion
pressure limit can be adjusted in 9 stages.
Optimum setting:
Max. 2 - 3 bars can be seen in the course of
infusion.
Set value between 1 and 9 with key
beneath (+) or (-).
Exit selection: Press key beneath END.
Data / Clock
Interlocks keys to prevent unauthorised use.
Press key beneath ON. Keys are interlocked.
Key release: Press decimal point key, then
key beneath OFF.
Exit data lock: Press key beneath END.
Set Date/Clock
Set date. Press key below DAT, enter date
and confirm with DAT.
Set time. Press key below TIME, enter time
and confirm with TIME.
Exit selection: Press key below END.

10
Special functions
Dosage Calculation (Overview)
The dosage calculation automatically calculates
the delivery rate in ml/h. Setting parameters:
1. Syringe concentration
- per ml or
- quantity per syringe filling volume
Entry: mcg, mg, IU or mmol, each from 0.001
to 99999. (5-digit, decimal point counts as one
digit. Exception is syringe volume: there only
2-digit.)
2. Selection for weight and time-related or
only time-related dosage. Entry of body
weight: from 0.01 kg to 200 kg.
3. Entry of dosage:
a) Weight and time-related in mcg/kg, mg/kg,
IU/kg, mmol/kg, each per /min, /h or /24 h.
b) Time-related only in mcg, mg, IU or mmol,
each per /min, /h or /24 h.
Dosage Calculation (Operation)
Press key below SF repeatedly until DOSAGE
CALC. OFF appears.
Press key below ON.
Concentration: At first select quantity unit.
Select with key below µg?.
Note: After numerical entry change of quantity
unit is not possible anymore. (Remedy: delete
numbers).
Enter syringe concentration by moving
flashing star to desired entry position with
arrow keys. Confirm all numbers with OK.
Entry of syringe concentration per 1 ml or per
syringe filling.
For dosage by body weight enter body
weight and confirm. Otherwise confirm 0 kg.
(With OFF complete termination of all dosage
settings.)
After confirming value weight with OK select
dosage requested (quantity- and time unit).
Enter values (at flashing star as described)
and confirm with OK. Automatically calculated
values (rate or dosage) are displayed.
Check first rate displayed for plausibility,
then confirm RATE. Rate appears in red display.
Start infusion.
Note: Dosage (e.g. 5 mg/kg/h) is displayed (down
on the right).
As the automatically calculated value of the rate
is rounded, the dosage value may change
insignificantly.
Info Request
Press key below INFO.
1x: Infused Volume, Run Time
2x: Infused Volume, Actual Dose
3x: Selected Syringe Type
4x: Battery Capacity, Operating Hours
Change Rate / Dosage
Press stop.
Enter new dosage value and confirm with
RATE.
Start infusion again.
Change Rate or Dosage
without Interruption of Infusion
During infusion a star is flashing down on the
right.
Enter new value and confirm with RATE.
Pump operates with new rate / dosage.
Note: Alternatively the star can be moved with
the arrow key to change the rate in ml/h.

11
Change Syringe Concentration
with Dosage Calculation Activated
Note: Always out of basic menu.
If necessary, press END until display basic menu
is VOL TIME -- SF.
Press key below SF repeatedly until DOSAGE
CALC. ON appears and confirm
with OK.
Clear syringe concentration with C.
Enter new value and confirm.
Change Dosage from Basic Menu
Press key below SF repeatedly until DOSAGE
CALC. ON appears and confirm
with OK.
Confirm concentration with OK.
If active, confirm weight with OK.
Change values (move flashing star as
described) and confirm entries with OK.
Check entered or calculated rate for
plausibility and confirm with key below RATE.
Rate appears in red display.
Start Infusion.
Switch off dosage calculation
The dosage calculation remains activated
until it is switched off in Special Functions. If
the Perfusor fm is switched off in the mean-
time all previous values except the body weight
are maintained.
Switch off from Basic Menu
Press key below SF repeatedly until display
DOSISCALC.ON.
Press DOSISCAL.OFF.
Dosage calculation is deactivated.
With key below END back to basic menu.
Interface
Interface Operation:
Connection to interface input via MFC-plug.
Interface descriptions available from B. Braun.
Remote Control
Via fm controller possible. When using a
commercially available external computer this
must satisfy the requirements acc. to IEC/EN
60601-1 as well as the single-fault fail-safe
condition acc. to IEC/EN 60513.
Send Proposal
The delivery rate and a drug can be entered in
the Perfusor fm as "proposal" via an external
computer. Both items of data must be checked
on the Perfusor fm and acknowledged.
Documentation
All operating data of the Perfusor fm can be
requested and logged via external computer.

12
Reasons for alarm
When display indicates "device alarm" an
audible alarm sounds permanently.
Press ON/OFF-key repeatedly until display
indication "do not press any key until display is
off". Pump switches off automatically after a
few seconds.
Switch on device again. In case of repeated
device alarm inform service.
Remedy failure and restart infusion
Pressure alarm
Occlusion? - Check the free flow and insert
infusion line free of kinks. Bolus is automatically
reduced.
Press START for renewed infusion.
Battery alarm
+ -
Battery pre-alarm 3 min. before battery is
discharged.
Then battery alarm:
- Yellow battery indicator flashes.
- Red alarm indicator is on.
- Audible alarm every 4 s.
- Operating indicator off.
- Staff call.
Switch off unit. Connect to mains.
Syringe alarm
Fault on syringe replacement? Manipulation of
syringe holder during infusion?
Pull syringe holder.
Syringe pre-alarm
3* min before syringe empty:
- Display: Syringe pre-alarm.
- Audible alarm every 9 s.
* Time can be set by our Service staff to between 3 and 30 min.
If syringe empty:
- Display: Syringe empty.
- Operating indicator off.
- Audible alarm every 4 s.
- Staff call.
Standby alarm
Alarm after pre-selected pause?
To terminate pause: Press key beneath END.
To extend pause: Press key beneath ON.
Further alarms/displays
Display: No rate? Set rate.
Operating alarms Device Alarms

13
Cleaning / Battery
Regular checking, cleaning,
disinfection
Check regularly
Self-check, audible alarm, process- and
alarm control. Use only according to
Instructions for Use.
Cleanliness, completeness, damage.
Function of staff call (if connected).
Cleaning
With standard household cleaners, soap and
water solution.
Wet disinfection
Only use surface disinfection agents. Do not
use spray disinfectant at mains connection.
Before operation the device allows to vent for
at least 1 min. B. Braun recommends
Meliseptol.
Service
Servicing must be carried out exclusively by
personnel instructed by B. Braun.
Carry out safety check every 24 months.
Use only original spare parts and
accessories.
12 V mains operation or
battery
Check mains voltage as per type plate.
Plug in power lead at rear (screw in 12 V
lead in ambulance car).
In case of power failure or if 12 V DC/230
V AC is not connected the unit automatically
will be switched to integrated rechargeable
battery.
Charge Battery
Charge battery in case of
- first use,
- battery alarm,
- non-use for more than 2 months.
Battery is charged - even during infusion -
if 12 V or 230 V AC are connected.
Charging time
Approx. 16 hours. Longer charging is not
detrimental.
Capacity
A fully charged battery is sufficient for more
than 3.5 hours with delivery rates < 25 ml/h.
Rechargeable batteries ageing
After 2 years, the original capacity is only
approx. 50 %.
The life time of the battery can be exten-
ded by completely discharging from time to
time and recharging afterwards.
Inspection on Delivery
Despite careful packaging, the risk of
transport damage cannot be entirely
prevented. Upon delivery, please check that
nothing is missing. Do not use a damaged
device. Contact the service department.
Items included
Perfusor fm, mains lead, Pole clamp,
Instructions for Use.

14
Start-up graphs and trumpet curves
Max. bolus volume Start-up graphs /trumpet curves
10 ml Omnifix 20 ml OPS 50 mlOPS
The graphs on page 7 are designed to show the accuracy/
uniformity of flow versus time.
Note: The delivery behaviour/delivery accuracy is essentially
influenced by the types of syringe used (disposables).
Significant deviations may be encountered if use is made of
syringes (disposables) other than those stated in the order
data.
10 ml Omnifix
Delivery rate = 1 ml/h
10 ml Omnifix
5 ml/h
flow
Pressure
flow
flow
deviation
20 ml OPS
1 ml/h
deviation
Max. bolus volume according to
pressure stage and syringe type
10 ml Omnifix
Delivery rate = 5 ml/h
20 ml OPS
Delivery rate = 1 ml/h
deviation 10 ml Omnifix
1 ml/h
Trumpet curves
Measured values for second and last hour in each case.
Measurement intervall ∆t = 0.5 min
Observation interval p ·∆t [min]
Start-up graphs
Measurement interval ∆t = 0.5 min
Measurement duration T = 120 min
Flow Qi (ml/h)

15

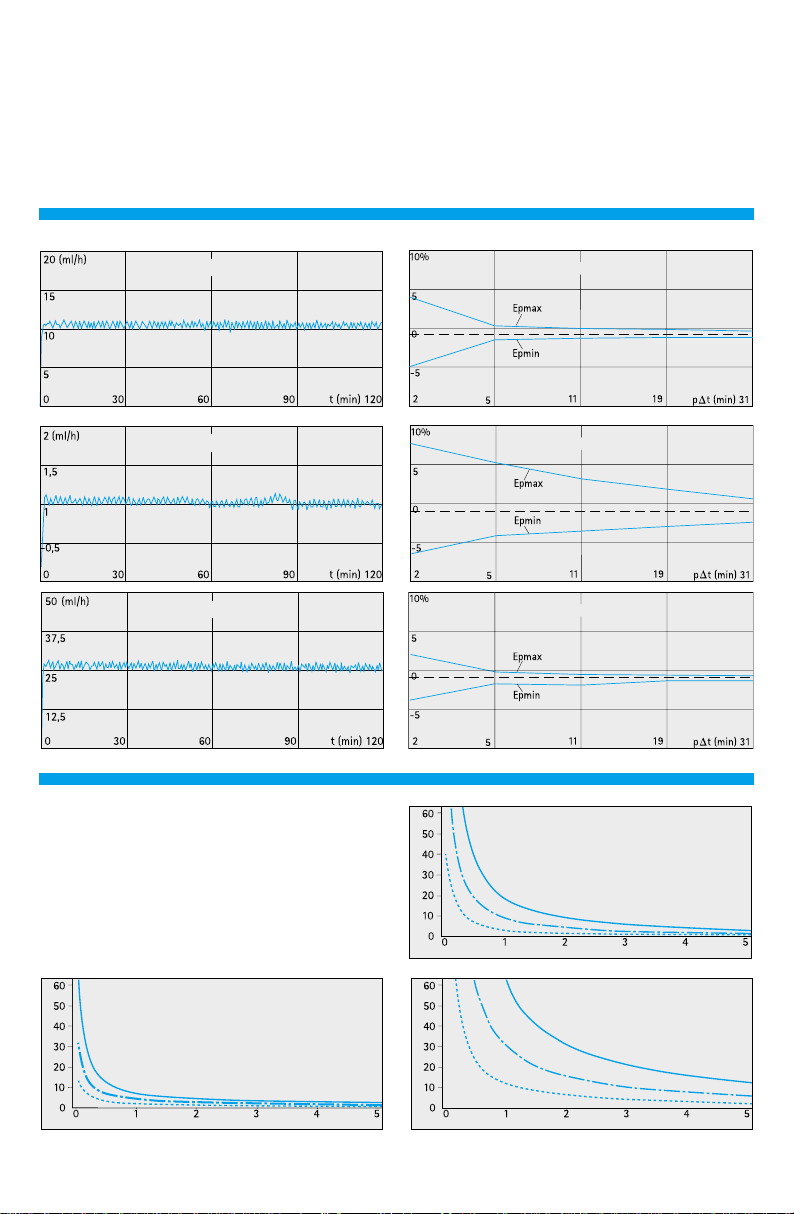

50 ml OPS10 ml Omnifix
Alarm signalling times 20 ml OPS
The graphs show the alarm signalling times
in dependence on pressure stage and type of
syringe.
20 ml OPS
Delivery rate = 10 ml/h
flow
50 ml OPS
Delivery = 1 ml/h
flow
50 ml OPS
Delivery rate = 25 ml/h
flow
20 ml OPS
10 ml/h
deviation
50 ml OPS
1 ml/h
deviation
50 ml OPS
25 ml/h
deviation
Delivery rate (ml/h)
Delivery rate (ml/h)
Delivery rate (ml/h)
Time (min)
Time (min)
Stage 1 Stage 5 Stage 9
. . . . . . . . . _ .__ .__ ._ ________
Time (min)

16
Technical data
Type of unit Syringe Pump
Classification (acc. to IEC/EN 60601-1) defibrillator-proof; Type CF
Protection Class I
Class (acc. to Directive 93/42 EEC) II b
Moisture Protection IP 22 (drip protected for horizontal use)
Rated voltage/current 230 VAC (0.07 A), 50/60 Hz
Fuse 0.2 A slow-blow (IEC 127)
200/230/240 VAC switch-selectable
(0.07 A) 50/60 Hz
Fuse 0.2 A slow-blow (IEC 127)
100/110/120 VAC switch-selectable
(0.15 A) 50/60 Hz
Fuse 0.4 A slow-blow (IEC 127)
External extra-low voltage 12 V
Staff call Max. 24 V/1 A/24 VA
Arbitrary connection polarity (VDE 0834)
Interference suppression EMC EN 55011 (CISPR 11),
EN 60601-1-2 (IEC 601-1-2)
Time of operation 100 % (continuous operation)
Operating conditions
- Relative humidity 30 % ... 90 % (without condensation)
- Temperature + 5 °C ... + 40 °C
- Atmospheric pressure 500 mbar ... 1060 mbar
Storage conditions
- Relative humidity 10 % ... 90 %
- Temperature - 25°C ... + 55°C
- Atmospheric pressure 500 mbar ... 1060 mbar
Type of battery NiCd (rechargeable) 6 x 1.2 V; 1.2 Ah
Operating time of rech. battery > 16 h
Recharging time > 16 h
Weight/dimensions (WxHxD) approx. 3.5 kg / 360x110x170 mm

17
Accuracy of set delivery rate ± 2 %, measuring time > 1 h, min. 2 ml
(including disposables approved by
manufacturer)
Delivery range 0.1 - 200.0 ml/h
Delivery pre-selection 1 - 999.9 ml (in 1 ml increments)
Occlusion alarm pressure 9-stage (approx. 0.2 bar...1.0 bar ± 0.2 bar)
Settings for bolus function Rate 1 ml/h to 1800 ml/h
Volume 0.1 ml to 50.0 ml
Interval time 1 min. to 99 h 59 min.
Alarm in case of incorrect delivery In case of incorrect delivery < 0.01 ml due to
apparatus malfunction the pump switches off
automatically.
Syringe table
Manufacturer Display / Type Syringe size / Reference article number
10/12 ml 20 ml 50/60 ml
B. Braun Perfusor 8728615 8728810
Proinjekt 8728917
Omnifix 4617100 4617207 4617509
Euroject 4630505
Becton B-D Plpak 300912 309661 300865
Dickinson 300912 300913 300869
300134 309663
300629
Terumo Terumo EU SS*10L SS*20L BS50LG
SS*60L
TYCO (in the past Monoject EU 1100-6121173 1100-620036 1100-650030
Kendall/Sherwood) Monoject US 8881-512878 8881-520657 8881-560125
* (Plastipak)
For pre-selection of syringes at the Perfusor
use reference list of article numbers. If syringes
from manufacturers are used with different
article numbers (similar) constructed than
mentioned in the above table, please contact
the original manufacturer directly.

18
Warranty
B. Braun provides 24 months' warranty as of
the date of delivery for every Perfusor fm. This
includes the repair or replacement of damaged
parts as a result of design/manufacturing
errors or material defects. Modifications or
repairs to the unit by the owner or third
parties invalidate the warranty.
The warranty does not cover the elimination of
faults attributable to incorrect/inexpert
handling or normal wear and tear as well as
rechargeable batteries.
Service
The Perfusor fm is sturdy and hard-wearing. It
nevertheless requires a safety check and the
appropriate entries in the equipment log book
every 2 years.
2-yearly maintenance is recommended. This is
best achieved by calling in Service. Individual
consultation enables allowance to be made for
the specific conditions in a given hospital.
A complete service manual can be provided if
required, however only in conjunction with
technical instruction.
Manufacturerresponsibility
The CE mark confirms compliance with the
"Council Directive on Medical Products 93/42/
EEC" dated 14th June 1993.
B.Braun Melsungen AG
Warranty
Manufacturer, assembly and installation
personnel or instructors can only be held
responsible for any effects on device safety,
reliability and performance if
- Installation, expansion work, readjustments,
modifications or repairs are carried out by
personnel authorised by the above and
- The electrical wiring in the room concerned
satisfies the requirements of VDE 0100, 0107
and/or IEC publications and
- The device is operated in line with the
instructions for use.

19
Order Data
Art. No.
Original Perfusor syringe:
50 ml with draw-off cannula 872 8810F
50 ml without draw-off cannula 872 8844F
50 ml with draw-off cannula and particle filter 872 8852F
50 ml with draw-off cannula and particle filter, with light protection 872 8828F
20 ml with draw-off cannula 872 8623F
20 ml without draw-off cannula 872 8615F
20 ml with draw-off cannula and particle filter 872 8631F
20 ml Omnifix 461 7207V
Omnifix syringe 10 ml 461 7100V
Adapter for 10 ml syringe 870 0117
Original Perfusor tubing:
N,PVC, with Luer lock connectors,pressure-resistant, 150 cm 872 2960
L,PVC, with Luer lock connectors,pressure-resistant, 200 cm 872 2862
MR,PVC, with Luer lock connectors,pressure-resistant, 75 cm 872 2870
M,PVC, with loose lock nut on patient end, pressure-resistant, 150 cm 872 2994
PE,PE, with Luer lock connectors,pressure-resistant, 150 cm 872 2935
S,PVC, light-protected, with Luer lock connectors,pressure-resistant, 150 cm 872 2919
PES, PE, light-protected, with Luer lock connectors,pressure-resistant, 150 cm 872 3010
MK,PVC, with cannula, with Luer lock connectors, pressure-resistant, 75 cm 872 2889
PVC, with sterile filter 0.22 µ, with Luer lock connectors, pressure-resistant, 200 cm 872 3001
Perfusor fm 871 3820
Recommended accessories for Perfusor fm
MFC-Connecting lead for staff call 871 1682
Connecting lead for potential equalisation 870 1628
MFC-Connecting lead for ambulance car (12 V) 871 1674
MFC-RS 232 interface cable with electrical isolation 871 1661
Y-cable for central power supply for 2 Perfusors 870 0109

20
Drawing no. M 637 010 014 F04d Raw material no. 3891009/8
05/01 Printed on pulp bleached 100% chlorine-free
B. Braun Melsungen AG
Postfach 1120
D-34209 Melsungen
Tel [phone]
Fax [phone]
H O SPITAL CARE
