B SCIENCE Premium Series User manual

BIOMEDICAL FREEZER
Premium Line
Dear User
To have efficient use of our product, which has been under quality control, please read the
whole user manual carefully before taking the unit into use. Save and keep the manual
until the abolition of the device.

BMF FREEZER – USER MANUAL
1
Copyright © 2017 B Science Global ApS. All rights reserved.
The information contained in this manual and the accompanying products are copyrighted, and all rights
reserved by B Science Global ApS.
B Science Global ApS reserves the right to make periodic design changes without obligation to notify any
person or entity of such change.

BMF FREEZER – USER MANUAL
2
Tabel of Content
Chapter 1: Introduction ......................................................................................................... 4
1.1 Intended use ....................................................................................................................................................... 4
Chapter 2: Precondition ........................................................................................................ 5
Storage. ....................................................................................................................................................................... 5
Environmental protection and disposal................................................................................................................... 5
Safety instructions...................................................................................................................................................... 6
Chapter 3: Getting Started .................................................................................................... 7
Connection to the mains. .......................................................................................................................................... 7
Before use. .................................................................................................................................................................. 7
Setting up the Freezer............................................................................................................................................... 7
Electrical supply.......................................................................................................................................................... 7
Chapter 4: Performance Features and Safety Precautions................................................ 8
Refrigerant................................................................................................................................................................... 8
Field of application:................................................................................................................................................... 8
1. HAZARDS IDENTIFICATION:............................................................................................................................... 8
2. FIRST AID MEASURES ........................................................................................................................................ 8
3. ACCIDENTAL RELEASE MEASURES..................................................................................................................... 9
4. DISPOSAL CONSIDERATIONS:............................................................................................................................ 9
Chapter 5: Using the BMF Freezer ......................................................................................10
Starting Up. ...............................................................................................................................................................10
Operating the Freezer .............................................................................................................................................10
Temperature control Freezers................................................................................................................................ 10
External voltage and temperature alarm. .............................................................................................................10
Controller ................................................................................................................................................................... 10
1. Main Menu.......................................................................................................................................................... 10
1. Temp. (Temperature graph)............................................................................................................................ 12
2. Status............................................................................................................................................................... 13
3. Download data from controller ......................................................................................................................14
4. Menu ............................................................................................................................................................... 15
2. Service Menu...............................................................................................................................................16
1. Test Mode for troubleshooting in OFF mode .............................................................................................18
2. Hysteresis ....................................................................................................................................................21
3. Manual Defrost ...........................................................................................................................................22

BMF FREEZER – USER MANUAL
3
4. Change Pin for SERVICE MENU ................................................................................................................... 23
3. User Menu...................................................................................................................................................24
1. Test Mode in ON mode ............................................................................................................................... 26
3. Update software / firmware and parameter .............................................................................................. 27
4. Change Pin USER MENU..............................................................................................................................31
5. Set Time & Date ..........................................................................................................................................31
6. Set Temperature .........................................................................................................................................32
4. Temp. Unit................................................................................................................................................... 40
5. Display......................................................................................................................................................... 41
Chapter 6: Maintaining the Freezer .....................................................................................42
Cleaning.....................................................................................................................................................................42
Automatic Defrosting. ..............................................................................................................................................42
Wire diagram. .............................................................................................................................................................44

BMF FREEZER – USER MANUAL
4
NOTICE: Only use this product for its intended purpose.
Chapter 1: Introduction
Congratulations on the purchase of a B Science Freezer, Premium Line. We trust that this unit will serve
you for many years to come. To gain optimal benefit from your Freezer, please read the following
instructions thoroughly and act accordingly.
The Freezer Premium Line offers many unique features to enhance safety, performance and ergonomic. To
take full advantage of the features, please read this manual firmly and keep it safe for future reference. If
you are unfamiliar with how Freezers operate, please review Chapter 4: Performance Features and Safety
Precautions before you start working with the Freezer. Even if you are an experienced user of Freezers,
please review Chapter 5: Using the Freezer; it describes the Freezers features so that you can use it
efficiently.
1.1 Intended use
Do not locate or store your Freezer outdoors. This model was designed for indoor use only and violation of
this will void the terms of your warranty. The Freezers described in this manual are designed for
professional use. These products are intended for use as cold storage of scientific materials for research
purposes and as a general-purpose laboratory Freezer, storing samples or inventory at operating
temperatures between -10°C and -30°C. It is not considered a medical device and has therefore not been
registered with a medical device regulatory body: that is, it has not been evaluated for the storage of
samples for diagnostic use or for samples to be re-introduced into the body. This unit is not intended for
use in classified hazardous locations, nor to be used for the storage of flammable or corrosive inventory.
This Manual and other technical information is available in PDF format through email:
[email protected]
or
[email protected]

BMF FREEZER – USER MANUAL
5
Chapter 2: Precondition
Before you install the Freezer, you need to prepare the site for installation. Examine the location where you
intend to install the Freezer. You must be certain that the area is level and of solid construction. In addition,
a dedicated source of electrical power must be located near the installation site.
Carefully read this chapter to learn:
•Storage requirements.
•Location requirements.
•Electrical power requirements.
•Space requirements.
•Service utility requirements.
•Environment Requirement.
Storage.
If the Freezer is stored for a period without power, the lid should be kept open for free circulation of air
inside the cabinet to avoid corrosion of the inner liner.
Environmental protection and disposal.
The packaging is designed to protect the appliance and its components during transportation, and it is
made of recyclable materials.
•Please return the packaging to an official collection point for recycling.
•Old appliances contain reusable materials and should not be disposed off together with household
refuse.
•Remove the spring-action hinges from the appliance, to prevent children from being entrapped in
the appliance.
•Ensure that no part of the refrigeration tubing is damaged as the refrigerant in the appliance risks
escaping to the environment.
•Information about refrigerant type and amount will be found on the Rating plate on the rear of the
appliance (Fig. 1).
Figure: 1

BMF FREEZER – USER MANUAL
6
Safety instructions.
•To prevent injuries and or damage to the appliance, it should be unpacked and set up by minimum
two people.
•If upon unpacking the appliance is found damaged, do not connect to the mains, but contact the
supplier.
•Interference with or repair to the appliance should only be carried out by authorized personnel, to
avoid any injuries. (contact the supplier for further information)
•Never use open flames or other ignition sources inside the appliance.
•Never touch the Freezers interior or products in the Freezer when the Freezer is operating. Use
gloves or alike to avoid injuries (frostbite).
•Keep the key to the doors away from the appliance, and out of the reach of children.
IMPORTANT NOTE! The type of refrigerant in the Freezers, R290 is flammable. These Freezers are
designed and tested according to the EN 378 standard under clause A3 room and L3 refrigerants,
this means that the volume of the room where the Freezers is placed must have a volume of
minimum 40m3 corresponding to approx. 4m2 in a room with a normal floor height.

BMF FREEZER – USER MANUAL
7
Chapter 3: Getting Started
Connection to the mains.
•For safety reasons, the appliance must be earthed. If you are in any doubt, please contact an
authorized electrician.
•The appliance should be left for 1 hour before it is connected to the mains. If the appliance is
connected before that, there is a risk of damaging the compressor.
•If for any reason the appliance is disconnected from the mains, please wait 10 minutes before re-
connecting. The electronic starting device needs this time to cool down before a safe re-start can be
made.
Before use.
•Before use, the interior of the appliance should be cleaned with a mild soap solution and wiped off
with a dry clean cloth.
NOTE! Never use any kind of solvent or other chemicals.
Setting up the Freezer.
The Freezer should not be placed where it might be splashed with water, in extreme high humidity or in
direct sunlight. Any of these factors may lead to a reduction in performance and shorten the life span of the
components. The Freezer should be placed on a horizontal level and should not be placed close to a
heating appliance or heating tubes. Allow a minimum of 50 mm (2”) clearance on the sides. The back of the
Freezer should have a clearance of at least 100 mm (4”) to allow the heat from the compressor motor to
dissipate. Underneath the appliance there should be a gap of 15 mm approx. (1⁄2”). On a soft surface, e.g.
carpet, it may be necessary to ensure the correct distance by means of spacers.
Electrical supply.
The electrical supply should always be in accordance with the rating plate on the back of the Freezer.
The supply must always be in accordance with the law and regulations regarding electrical safety, if any
doubts contact your supplier.

BMF FREEZER – USER MANUAL
8
Chapter 4: Performance Features and Safety Precautions
Refrigerant
In the BMF Freezer there are used one type of refrigerants. Carefully read the below description of the
refrigerants: R290.
Demand for information: Personnel working with these refrigerants mentioned above and below
must be educated to know about these safety sheets.
Field of application:
R290: The refrigerant is used as refrigerant for R290, is refrigerant grade propane, a natural, or "not in
kind", refrigerant suitable for use in a range of refrigeration and air conditioning applications. The use of
R290 is increasing due to its low environmental impact and excellent thermodynamic performance. It is
non-toxic with zero ODP (Ozone Depletion Potential) and very low GWP (Global Warming Potential). It is a
flammable refrigerant and therefore not suitable for retrofitting existing fluorocarbon refrigerant systems.
1. HAZARDS IDENTIFICATION:
EMERGENCY OVERVIEW: WARNING! Flammable gas. Contents under pressure. Causes damage to
the following organs: Nervous System. Vapor may cause flash fire. Keep away from heat, sparks
and flame. Do not puncture or incinerate container. Keep container closed. Use only with adequate
ventilation. Contact with rapidly expanding gases can cause frostbite.
POTENTIAL ACUTE HEALTH EFFECTS:
SKIN: No known significant effects or critical hazards.
EYES: No known significant effects or critical hazards.
INHALATION: Acts as simple asphyxiant.
INGESTION: Ingestion is not a normal route of exposure for gases.
MEDICAL CONDITIONS AGGRAVATED BY OVEREXPOSURE: Acute or chronic respiratory conditions
may be aggravated by overexposure to this gas.
2. FIRST AID MEASURES
No action shall be taken involving any personal risk or without suitable training. If fume is still suspected to
be present, the rescuer should wear appropriate mask or self-contained breathing apparatus. It may be
dangerous to the person providing aid to give mouth-to-mouth resuscitation.
SKIN: In case of contact, immediately flush skin with plenty of water.
Remove contaminated clothing and shoes. Wash clothing before reuse.
Thoroughly clean shoes before reuse. Get medical attention.
EYES: Immediately flush eyes with plenty of warm water for at least 15 minutes.

BMF FREEZER – USER MANUAL
9
Get medical attention.
INHALATION:Immediately remove to fresh air. If breathing has stopped, give artificial respiration. If
breathing is difficult, qualified personal may give oxygen. Get medical attention immediately.
INGESTION: Do NOT induce vomiting unless direct to do so by medical personnel.
Never give anything by mouth to an unconscious person.
Get medical attention if symptoms appear.
FROSTBITE: Try to warm up the frozen tissue and seek medical attention.
3. ACCIDENTAL RELEASE MEASURES
PERSONAL PRECAUTIONS: Immediately contact emergency personnel. Keep unnecessary
personnel away. Use suitable protective equipment (section 5). Shut
off gas supply if this can be done safely. Isolate area until gas has
dispersed.
ENVIRONMENTAL PRECAUTIONS: Avoid dispersal of spilled material and runoff and contact with
soil, waterways, drains and sewers.
4. DISPOSAL CONSIDERATIONS:
Product removed from the cylinder must be disposed of in accordance with appropriate Federal, State and
local regulations. Return cylinders with residual product to Airgas. Do not dispose of locally.

BMF FREEZER – USER MANUAL
10
Chapter 5: Using the BMF Freezer
Starting Up.
In case the compressor does not start when the Freezer has been plugged in, the electrical supply may not
be in order. Check if there is an electricity supply to the plug or if the fuse is blown.
Operating the Freezer
The empty Freezer should be switched on for at least 5-6 hours prior to loading of the Freezer. The Freezer
should not be loaded above the inside walls which is also the load line limit.
Please note: After the door has been opened, there will be a vacuum created inside the Freezer due to the
low temperatures. Wait a few moments before trying to reopen the door otherwise the handle could be
damaged.
Temperature control Freezers.
The temperature inside the Freezer is controlled by the electronic controller in the top panel. The controller
has a digital readout of the temperature inside the cabinet and the option of changing the temperature
inside the cabinet.
External voltage and temperature alarm.
Optionally the Freezer can be equipped with a battery-operated alarm box with connections for external
alarm for voltage failure and temperature alarm. The battery should be exchanged every two years.
Controller
1. Main Menu

BMF FREEZER – USER MANUAL
11
13
Main Menu
DISPLAY SHOWS
1. Date
2. Time
3. Temperature inside the cabinet
4. Room Temperature
5. Shows if compressor is running
6. Defrosting cycle activated
7. USB stick is connected
8. Battery status
DISPLAY GIVES ACCESS
TO
9. Temperature graph
10. Status
11. Download
12. Menu
13. ON/OFF

BMF FREEZER – USER MANUAL
12

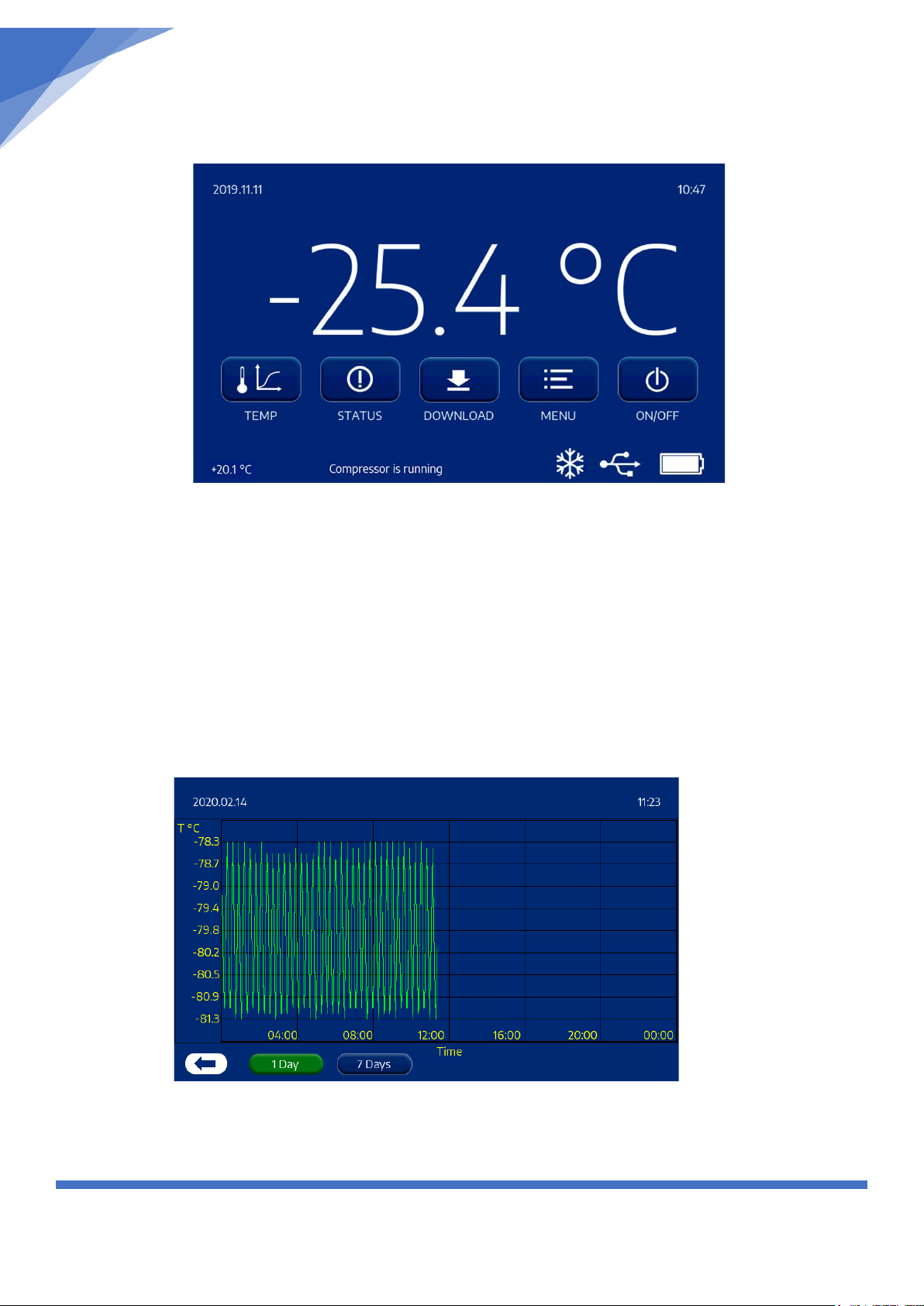

Main Menu
In the main menu you get access to
1. Temperature graph
2. Status
3. Download
4. Menu
5. ON/OFF
1. Temp. (Temperature graph)
Temperature graph for 1 day

BMF FREEZER – USER MANUAL
13
Temperature graph for 7 days
You can select a Temperature Map for either 1 or 7 days
2. Status
1. It shows the working hours of the compressor and the fan.
2. It shows the last alarms that have been activated.

BMF FREEZER – USER MANUAL
14
3. Download data from controller
Click on select period button (No. 2)
Select a period that you want to download and press ok.
1. Use arrow up or down to change the value.
2. To save the changed data click on the OK button.
Then return to download menu and push the Download button (No. 1)
Every time you download data, you will receive 2 csv files,
a file with temperature data and a file with the parameter list.
In the USB key, you will find the 2 files under folder “History”

BMF FREEZER – USER MANUAL
15
4. Menu
From menu you can gain access to.
1. Admin menu (Only access to authorized personal approved by B Science)
2. Service menu
3. User menu
4. Temp unit
5. Display
6. Language (this option is under development)

BMF FREEZER – USER MANUAL
16
2. Service Menu
For access to service menu enter pin code.
1. Put in Pin code and click on the OK button.
2. Service Menu
Service menu gives access to
1. Test Mode
2. Hysteresis
3. Manual defrosting
4. Change pin
5. Sound sel. (under development)

BMF FREEZER – USER MANUAL
17
2. Test Mode in ON mode
When the unit is Switched ON and running, you can see: Which relays are ON or OFF, the
temperature of each sensor, and position of Door contact.
In this example:
The Compressor 1 and Fan 2 is running.
The Frame heater 1, Light 1 are ON, and Door 1 is open.

BMF FREEZER – USER MANUAL
18
1. Test Mode for troubleshooting in OFF mode
When the unit is OFF, you can simulate each relay by pushing the square field, for testing each
kind of device. (Compressor, Light, Fan motor etc.) Very good feature for service and
maintenance use.

BMF FREEZER – USER MANUAL
19
This feature is for service and maintenance use.
By this Test mode, you can check all relays and
door contacts and check the temperature sensors.
Switch OFF the unit by the display ON/OFF button.
Type in the pin code for one of the pin codes levels,
and push the OK button.
The display will now be in OFF mode.
Click on the MENU button.
Click on the SERVICE button
