About this manual
This manual provides additional information not described in the Instruction and Reference Guide. Be sure to read
this information before using the machine.
The screen illustrations in this Instruction and Reference Guide Addendum may differ from actual ones shown on
the machine.
CONTENTS
About this manual................................................................................................................. 1
More About Included Presser Feet ............................................................................................. 2
Blind stitch foot (with guide) ................................................................................................. 2
Narrow hemmer foot............................................................................................................. 3
Cording foot (3 cord guide) ................................................................................................... 5
Using the Embroidery Foot “W2” with LED Pointer ................................................................... 6
Checking the Needle Drop Point With the Embroidery Foot “W2” with LED Pointer............. 6
Adjusting the LED Pointer ..................................................................................................... 6
Adjusting the Brightness of the LED Pointer........................................................................... 7
Using the Multi-Function Foot Controller .................................................................................. 8
Included Items ...................................................................................................................... 8
Functions That Can Be Specified........................................................................................... 8
Assembling the Controller..................................................................................................... 8
Specifying the Functions ....................................................................................................... 9
Adjusting the Pedal Positions ................................................................................................ 9
Selecting Additional Embroidery Patterns ................................................................................ 10

2
ENGLISH
THE
More About Included Presser Feet

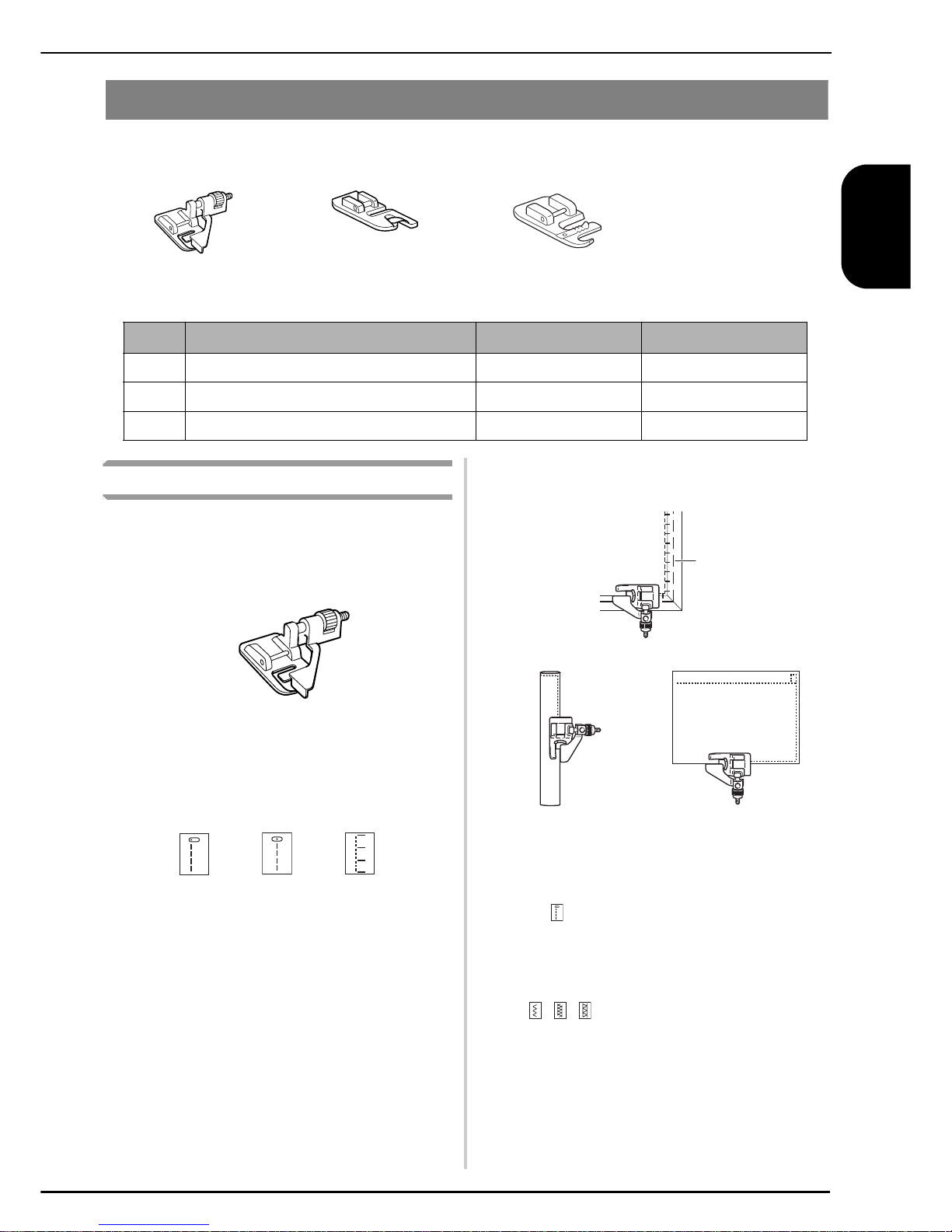

Blind stitch foot (with guide)
■Use
This foot comes in handy not only for blindstitching,
but also for sewing fabric edges and seams.
Remove presser foot and attach snap-on blind stitch
foot.
Blind stitch foot (with guide)
■Sewing
• When Edge Stitching
Position needle the distance you wish it to be from
the edge of the fabric and lower needle in that
position.
Turn foot guide screw and carefully adjust to guide
fabric.
aBasting
• When Sewing Seams
Select “ ”. Align position of foot guide to needle
position and sew the desired width seam allowance.
• When Joining
aSelect desired top stitch. Examples
( , , etc.)
bPlace cloth under foot so that foot guide is
lined up between both edges of fabric.
1. 2. 3.
No. Part Name Part Code Reference Page
1 Blind stitch foot (with guide) XA0059-001 page 2
2 Narrow hemmer foot 184600-001 page 3
3 Cording foot (3 cord guide) XA6871-001 page 5
1

3
cLower foot and sew.
• When Blindstitching
When using regular weight fabrics
When using heavyweight fabric
aBasting
bSewing position
cTurn screw to adjust guide to folded hem.
dGuide
eTurn to front side
*1 Front side
*2 Reverse side

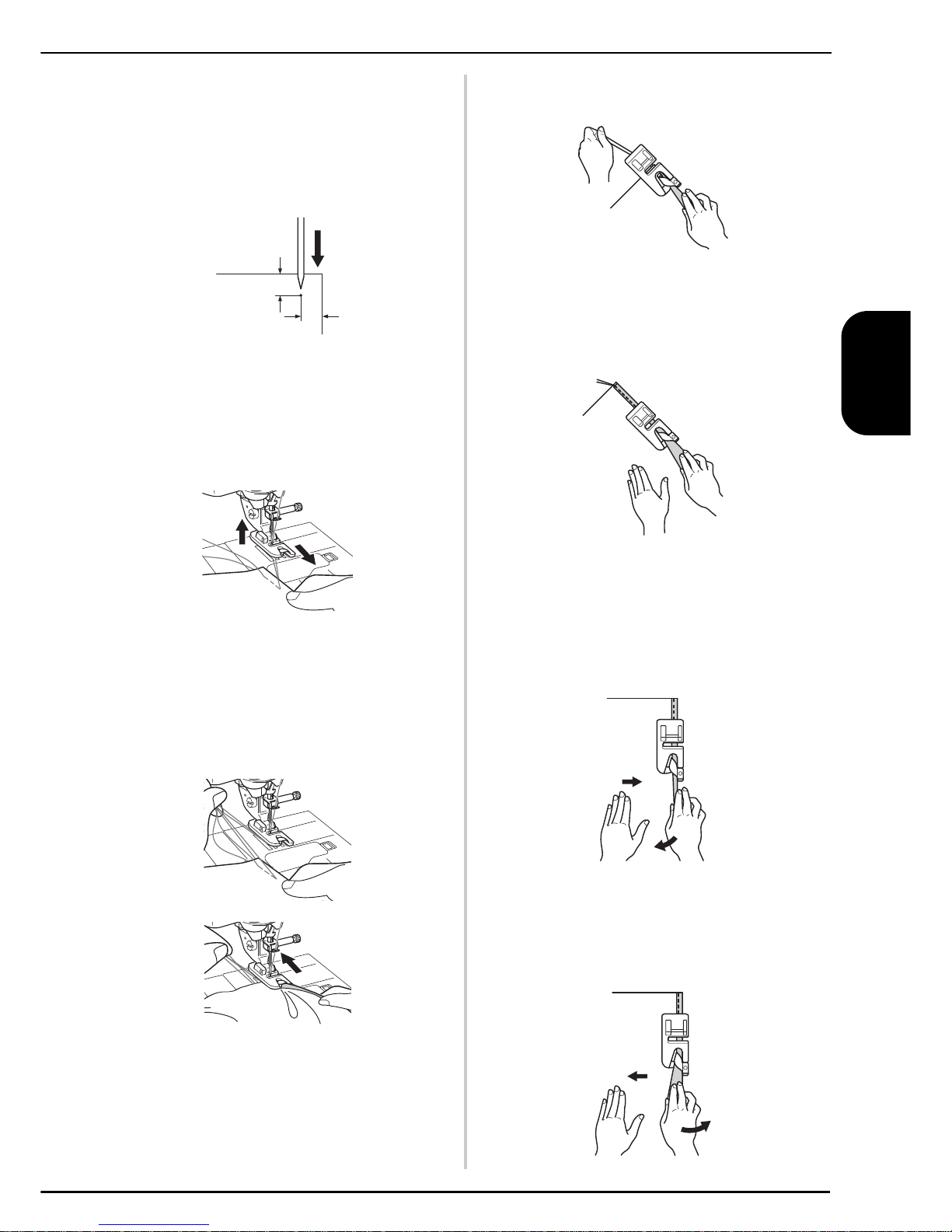

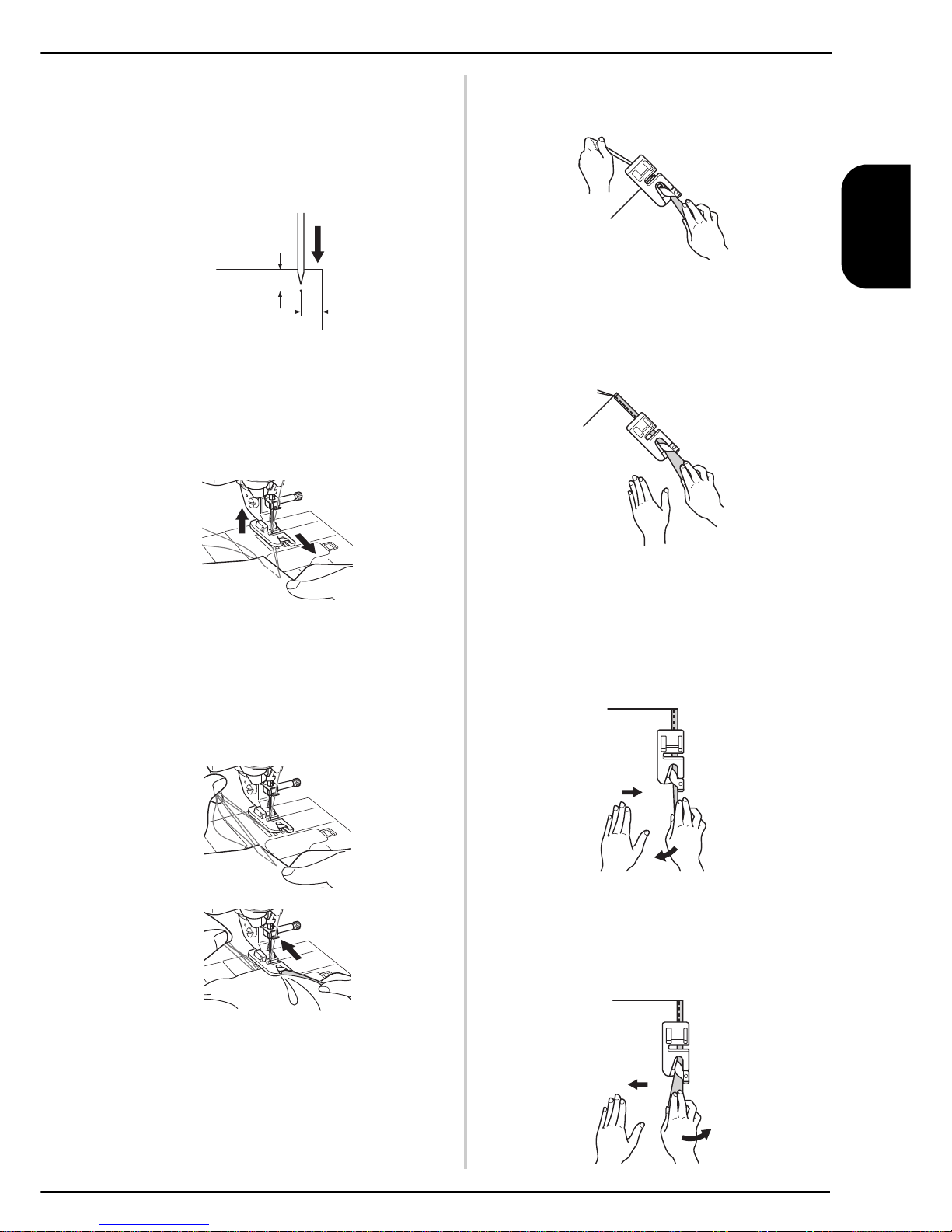

Narrow hemmer foot
This foot is designed to curl under a 3 mm (approx. 1/8
inch) double hem while sewing a straight stitch.
Narrow hemmer foot
■Preparing to sew
aRemove presser foot and attach snap-on
narrow hemmer foot.
bSelect the straight stitch (center needle
position).
cConnect the foot controller so that both
hands are free to guide the fabric.
1
*2
*2 *1
*1
10 mm (3/8 inch)
5 mm (3/16 inch)
5
2
4
3
*2 *2 *1
10 mm (3/8 inch) 5 mm (3/16 inch)
1 2
Reverse sideFront side

4
ENGLISH
■Sewing
aPosition the fabric (reverse side facing up)
under the presser foot. Lower the needle
3 mm (approx. 1/8 inch) from the edges of the
fabric, lower the presser foot, then sew 2 or 3
stitches.
a3 mm (approx. 1/8 inch)
bRaise the needle and the presser foot, then
hold the ends of the upper thread and lower
thread to prevent them from being pulled out
of the fabric and pull the fabric out from the
front of the presser foot.
cHolding both threads, pass them through the
curled part of the presser foot and pull them
toward the back of the presser foot. Wrap the
fabric around the curled part of the presser
foot in the same way. Position the edge of the
fabric just behind the needle and lower the
presser foot.
dWithout allowing the fabric to stick out from
the right side of the presser foot, lightly pull
on the thread while slowly sewing.
eAfter sewing 2 to 3 cm (approx. 1 to 1-3/16
inches) of the fabric, release the thread and
guide the fabric from the front of the presser
foot with your left hand. Keep a uniform
amount of fabric wrapped around the presser
foot curl until the seam is completed.
■Hints
• If too little fabric is wrapped around the curl
and a threefold seam is not being sewn:
Pull the fabric held in your right hand to the left in
order to increase the amount of fabric wrapped in
the presser foot curl. At the same time, carefully
guide the fabric to the right with your left hand.
• If too much fabric is wrapped around the curl
and a wide threefold seam is being sewn:
Pull the fabric held in your right hand to the right in
order to decrease the amount of fabric wrapped in
the presser foot curl. At the same time, carefully
guide the extra fabric to the left with your left hand.
1
1

5
Cording foot (3 cord guide)
■Use
Embellish clothing and household linens with
decorative threads.
Cording foot (3 cord guide)
■Preparing to sew
Remove presser foot and attach snap-on cording
foot.
• Suggested Stitches
• Zigzag stitch width
• Stitch Length
Select desired stitch length. Remember that the
results will vary based on the stitch length you have
selected.
• Foot control
Using your foot controller will help you to have both
hands free for easier fabric handling.
■Sewing
Zigzag Stretch Zigzag Decorative Satin Stitch
Triple Cording stretch
Select dotted zigzag stitch and sew
at a maximum stitch width of 5 mm
(approx. 3/16 inch).
Single Cording
The zigzag stitch may be positioned
in the center or right guide. Verify
position of stitch and determine the
appropriate guide to be followed. Set
stitch width slightly greater than
width of cording.
Feed cords, one by one, from
the right side of the cording
foot spring into their
respective guides.
Draw cording under foot and
extend the cord 4-5 mm
(approx. 3/16 inch) behind
foot. When using 2 or 3
cords, be careful to make
sure that cords are not
trampled under the front of
foot.
Place cloth under foot.
Lower foot and sew.

6
ENGLISH
Using the Embroidery Foot “W2” with LED Pointer
Included Embroidery foot with LED pointer indicates the needle position with a red LED point.
The LED pointer shows you the location of the needle penetration so that it is easier to adjust the embroidery
position.
Before beginning to embroider when using the embroidery foot “W2” with LED pointer, carefully read “Attaching
Embroidery foot W2” instructions, described in the “Embroidery” chapter of the Instruction and Reference Guide
included with your machine.
Checking the Needle Drop Point With
the Embroidery Foot “W2” with LED
Pointer
The presser foot code “W2” appears on the upper left
side of the screen while the embroidery foot “W2” with
LED pointer is attached to your machine.
aAfter the embroidery frame is attached, press
in the embroidery screen.
→The LED pointer indicates the needle drop point.
* The LED pointer turns off automatically by lowering the
presser foot or returning to the previous page.
Adjusting the LED Pointer
Adjust the LED pointer if it indicates a point different
than the actual needle drop point.
Before adjusting the LED pointer, mark the actual
needle drop point on the fabric to be embroidered, and
then hoop the fabric and attach the embroidery frame.
aPress .
→The settings screen appears.
bPress .
→The Embroidery settings screen appears.
cDisplay page 8 of the Embroidery settings
screen.
Memo
• When the LED pointer is turned on, the presser foot
height is automatically adjusted according to the
fabric thickness.
• If is pressed again, the fabric thickness is
remeasured and the presser foot is set to the
optimum height.
• If the embroidery foot “W2” is not attached,
appears in gray.
Note
• With thick elastic fabric, the position will be
misaligned only at raised parts in the fabric. In this
case, manually adjust the position according to the
thickness of the fabric.
• With fabric that has a very uneven surface such as
quilting, the position is not correctly aligned. In this
case, the pointer indication should be used only as a
reference.
Memo
• When using the “Embroidery” or “Embroidery Edit”,
touch to directly access the Embroidery
settings screen.

7
dPress .
→The Embroidery Foot “W2” with LED Pointer
Adjustment screen appears.

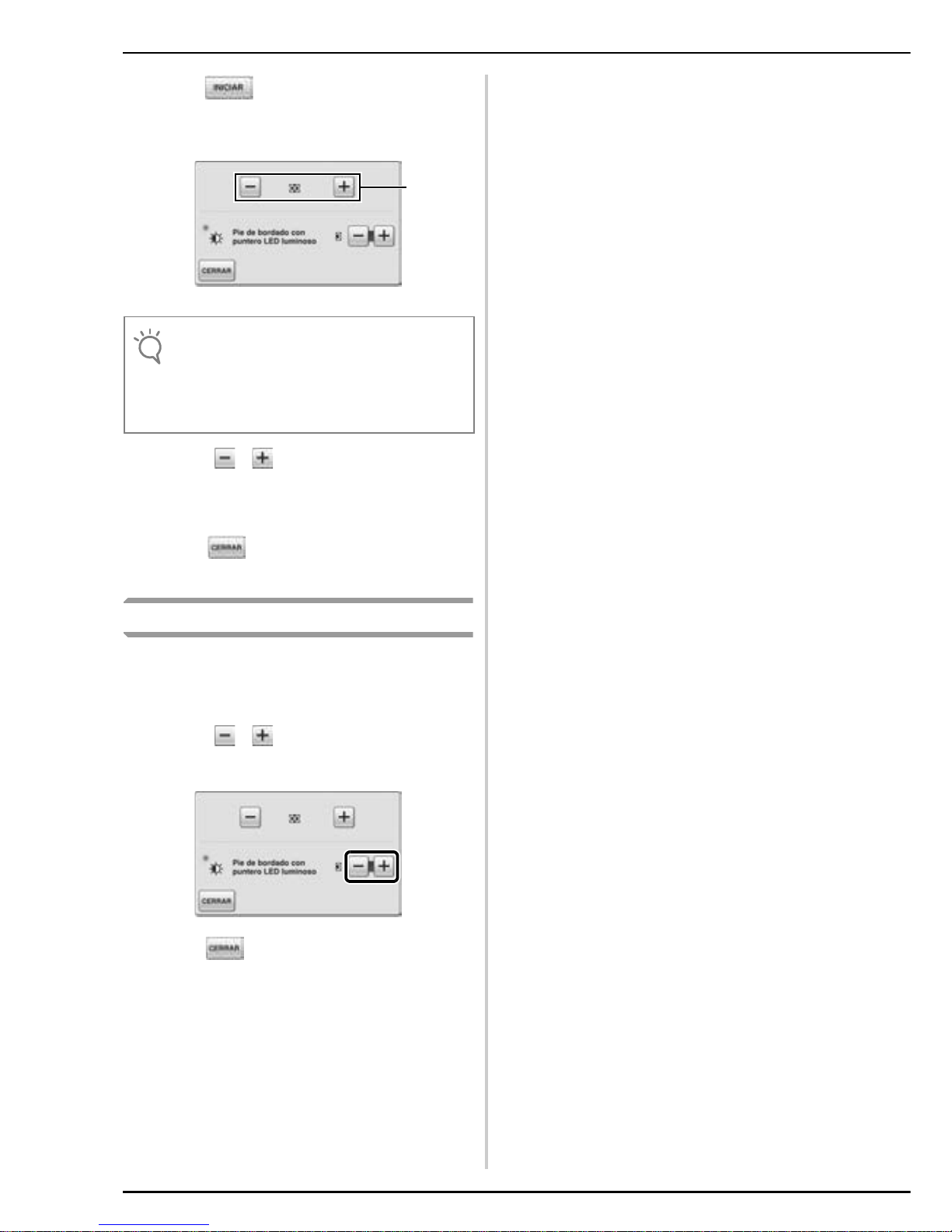

aLED pointer adjustment
eUse or to adjust the LED pointer so
that it indicates the actual needle drop point.
fPress twice to return to the original
screen.
Adjusting the Brightness of the LED
Pointer
aFollow the steps from ato dto display the
embroidery foot with LED pointer adjust
screen.
bUse or to adjust the brightness of the
LED pointer.
cPress twice to return to the original
screen.
Note
• The specified setting is saved in the machine’s
memory. This is useful for positioning during
continuous embroidering.
• For normal use, return the setting to “00”.
a

8
ENGLISH
Using the Multi-Function Foot Controller
With the multi-function foot controller, various sewing machine operations in addition to starting/stopping sewing,
such as thread cutting and reverse stitching, can be specified to be performed. In addition, the small pedal can be
installed on either the left or right side of the large pedal to suit your preference.
Included Items
Functions That Can Be Specified
* If you set the “Reverse Stitch” function on the heel switch,
machine operates the same as pressing the “Reverse/
Reinforcement Stitch” button on the machine.
For the details, please refer to the Instruction and
Reference Guide.
Assembling the Controller
aAlign the wide side of the mounting plate with
the notch in the bottom of the main foot
controller, and then secure them together
with a screw.
b
Align the other side of the mounting plate with
the notch on the bottom of the side pedal, and
then secure them together with a screw.
cInsert the plug for the side pedal into the jack
at the back of the main foot controller.
dInsert the round-shaped plug for the main
foot controller into the foot controller jack on
the right side of the machine.
eOpen the cover of the external port (1) next
to the foot controller jack, and then insert the
square-shaped plug for the main foot
controller into the external port (2).
No. Part name Part code
1 Main foot controller XF6626-001
2 Side pedal XF3217-001
3 Mounting plate XF3222-001
4 Mounting screw × 2 XF3223-001
Controller Functions that
can be specified
aMain foot controller Start/Stop
bHeel switch Select any of the
following:
• Thread Cutting
• Needle Position
UP/DOWN
• Single Stitch
• Reverse Stitch*
(Reinforcement
Stitch)
cSide pedal
Memo
• If you set “Reverse Stitch” on the side pedal, you
can easily sew darning, using zigzag stitches. With
both feet, keep pressing the main foot controller,
and repeat pressing and releasing the side pedal to
sew forward and reverse in turn. Machine will
reverse at the speed you press the main foot
controller.

9
Specifying the Functions
The functions performed by the multi-function foot
controller can be specified in the machine settings
screen.
aPress , and then press or to
select the functions to be performed by the
multi-function foot controller.
Adjusting the Pedal Positions
The pedal spacing can be adjusted depending on the
screw holes used in the mounting plate. The pedal
spacing is the widest when the pedals are attached
using the outermost screw holes a; the pedal spacing is
the narrowest when they are attached using the
innermost screw holes b.
Note
• After the multi-function foot controller is connected
to the sewing machine and the functions are
specified, the machine's “Start/Stop” button cannot
be used. All buttons other than the “Start/Stop”
button can continue to be used.
Note
• The side pedal may be attached on the right or left
side of the main foot controller.
• For greater distance you always have the option of
not connecting the side pedal and main foot
controller using the mounting plate, making sure that
both pedals are connected using the jack from the
side pedal to the main foot controller.
