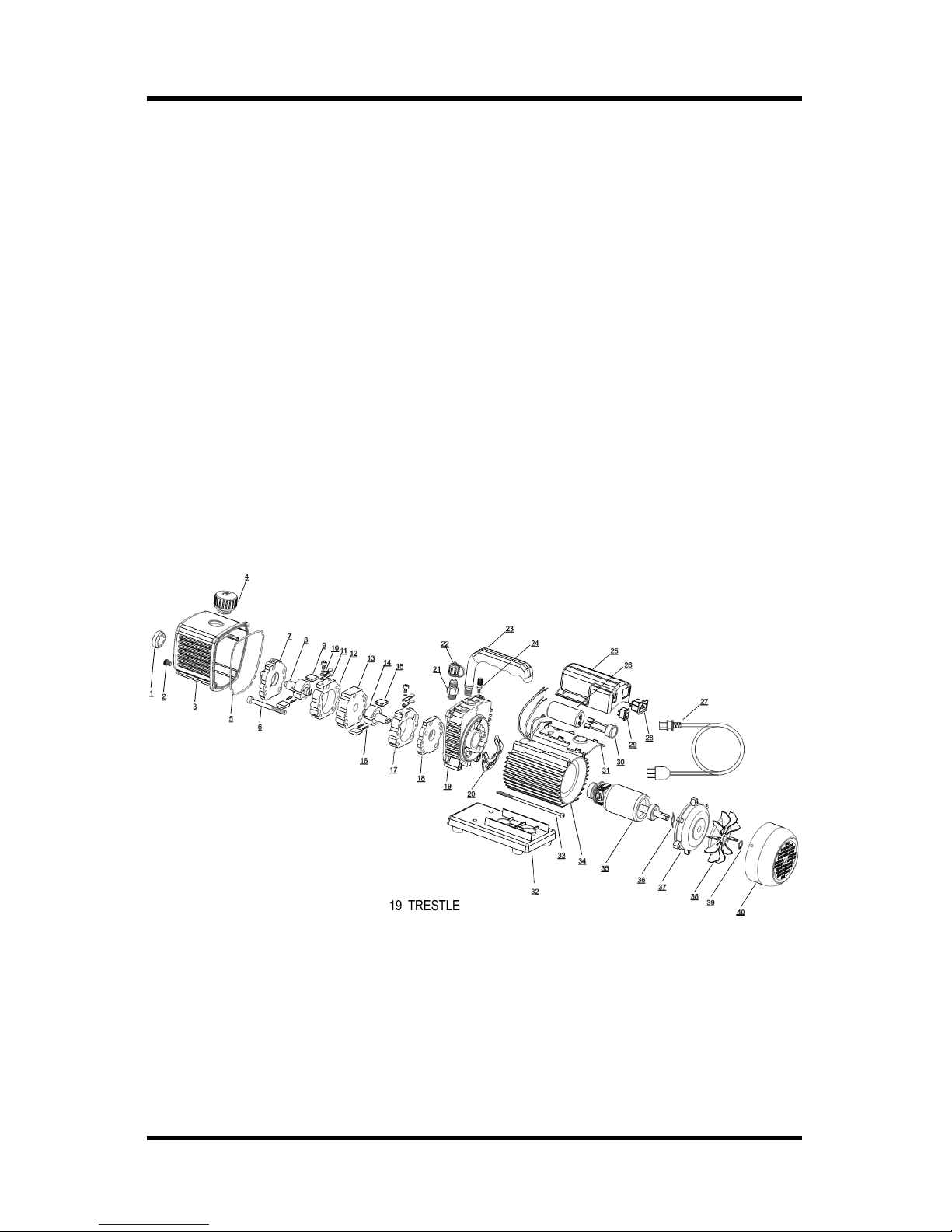

Exploded Drawing ..................................................................................... 7

Vacuum Pump Models QV2 & QV5
iv P/N: 2002-0010 Rev 6

Vacuum Pump Models QV2 & QV5
P/N: 2002-0010 Rev 6 1
Introduction
Thank you for selecting Bacharach products for your refrigeration
equipment needs. To ensure your safety, and for the safe operation of
this equipment, please read, understand, and follow the information
contained in this instruction manual.
The model QV2 and QV5 are two-stage, rotary vane vacuum pumps
designed to evacuate moisture and air from refrigeration systems (e.g.,
R-12, R-22, R-134a).
Features
Anti-oil-return – A check valve prevents pump-oil from
entering the evacuated system after the pump stops.
Environment protection – A built-in filter eliminates oil
mist, and an oil-gas separator removes oil contamination
from the exhaust.
Aluminum alloy motor casing – The motor casing is an
aluminum alloy that has a high rate of heat dissipation,
which provides for continuous pump operation.
Two stage design – The second stage of the two-stage
design starts pumping at a lower pressure to pull a deeper
ultimate vacuum.
High starting torque – Designed for low-temperature and
low-voltage operation, the pump will start in temperatures
≥40° F (≥5° C), at its rated input voltage of 110 VAC ±10%.
Oil circulation design – Offset rotary vanes work in
conjunction with the vacuum pump oil to create high
compression within the pumping chamber.
Oil Pre-Fill Notice
CAUTION: Your Bacharach vacuum pump is shipped empty and must
be filled with the oil supplied prior to its first use. The following are the
instructions to fill the unit with oil.
1. Unscrew exhaust cap/oil fill access cap. (Refer to page 2.)
2. Fill the unit through the access port being carful not to over fill. Use
the pump’s sight glass to monitor the oil level.
3. Replace the exhaust cap/oil fill access cap hand tight.
The unit is now ready for use.

Vacuum Pump Models QV2 & QV5
Technical Characteristics
2P/N: 2002-0010 Rev 6
QV2 QV5Model
Part No. 2002-0001 2002-0005
Voltage 110V 60 Hz 110V 60 Hz
Free Air
Displacement 1.7 CFM 5.3 CFM
25 microns
(0.03 mbar)
25 microns
(0.03 mbar)
Ultimate Vacuum
Motor 1/4 HP 1/2 HP
Intake Fitting 1/4″, 3/8″, 1/2″Flare 1/4″, 3/8″, 1/2″Flare
Motor Speed 1,720 rpm 3,450 rpm
Oil Capacity 11.8 fl oz (350 ml) 14.2 fl oz (420 ml)
13.0 5.3 10.0 in
(330 135 255 mm)
13.8 5.6 10.4 in
(350 143 265 mm)
Dimensions
Weight 19.4 lb (8.8 Kg) 24.7 lb (11.2 Kg)

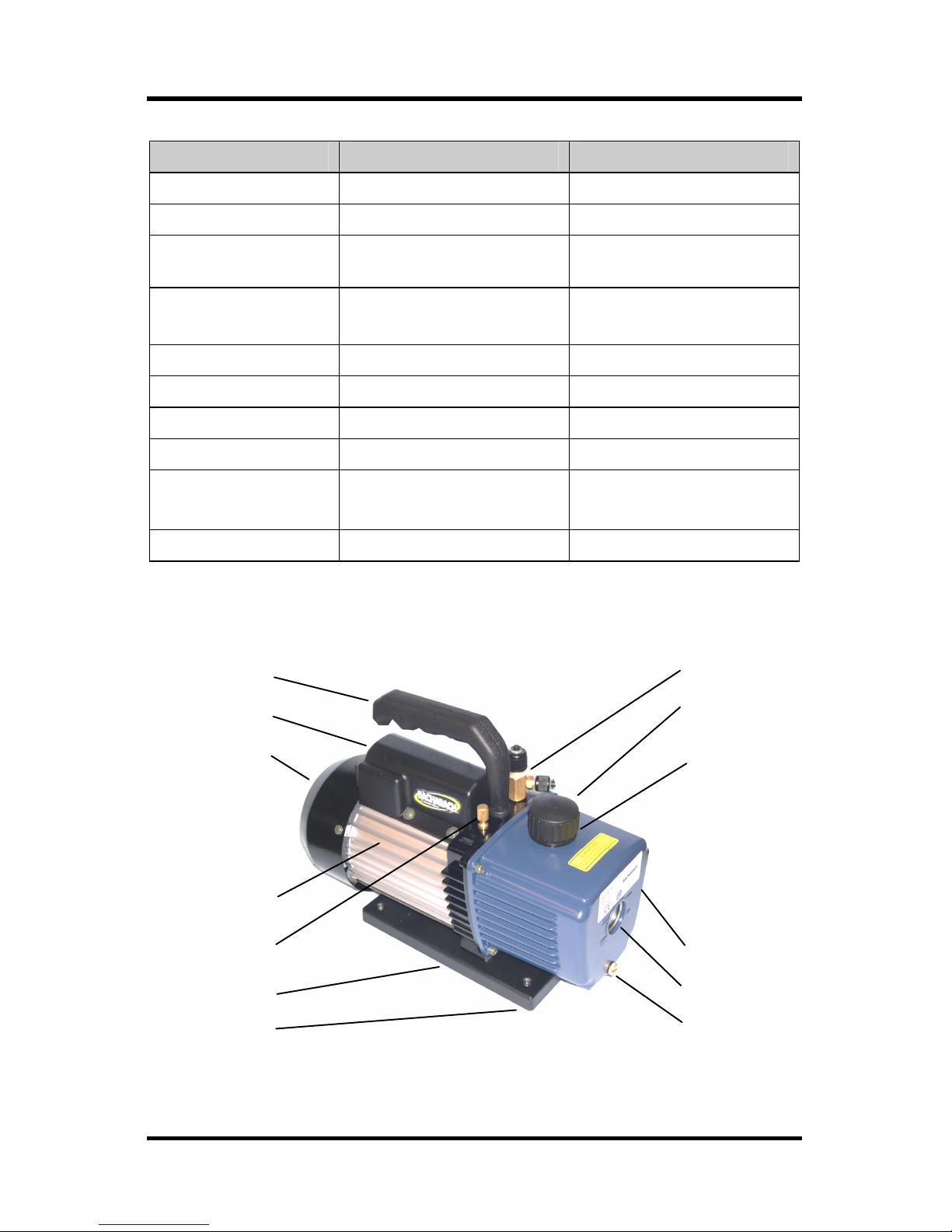

Pump Components
Intake Fittings
Exhaust Cap
Oil Fill Access
(Fitting
Removed)
Oil Tank
Sight Glass
Oil Drain
Handle
Power Switch
Fan Cover
Motor
Gas Ballast
Valve
Base
Rubber Foot

Vacuum Pump Models QV2 & QV5
P/N: 2002-0010 Rev 6 3
Operation
Check the pump’s oil level as viewed through the sight glass before each
use. Add oil as necessary through the oil fill access. Use only high grade
vacuum pump oil with the following specifications.
Kinematic viscosity (104F) 46
Viscosity index 100.0
Flash point 437
Remove the intake fitting cap and connect the pump to the system being
evacuated using a hose with appropriate fittings. Keep the connection as
short as possible and ensure that all connections are sealed and not
leaking. If desired, use a vacuum gauge manifold set to monitor the
vacuum level.
Remove the exhaust fitting cap. Plug the pump into an appropriate AC
outlet. Then turn ON the pump to begin the evacuation process.
After pumping is complete:
turn OFF pump
disconnect the power plug
remove the connecting hose
reinstall intake and exhaust caps.

Vacuum Pump Models QV2 & QV5
4P/N: 2002-0010 Rev 6
Gas Ballast Operation
The vacuum pump utilizes a feature allowing for the partial removal of
condensing gases in the vacuum pump. The gas ballast valve can be
operated in the following manner.
CAUTION: If there is a possibility that there is condensation or high
amounts of water in the system, install a vapor
condenser in the line.
Before you begin to draw a vacuum, the pump must be operational
with the intake port closed and the gas ballast valve open until the
instrument has reached its operating temperature. This is done to
ensure that vapor does not condense inside of the pump.
NOTE: The gas ballast should be closed and the intake valve
should be open during typical operation.
Running the pump with the gas ballast valve open typically causes a
slight noise increase as well as an increase in the amount of oil
vapor at the exhaust cap/oil-filler plug vent.
When drawing condensing vapor for an extended period of time,
observe the oil level often and change it frequently as needed.
After the evacuation has been completed, we recommend that you
allow the pump to run for a few minutes with the gas ballast valve
open and the intake closed. This allows any vapor condensed in the
oil to be removed.

Vacuum Pump Models QV2 & QV5
P/N: 2002-0010 Rev 6 5
Warnings
Do not evacuate combustible, explosive, or poisonous gases.
Do not operate the vacuum pump in the rain.
Do not remove or insert power plug, or turn ON the pump in an
explosive atmosphere.
If using the pump in a confined area, connect a hose to the pump’s
exhaust fitting and route the hose to the outside.
Power the pump from a grounded AC outlet. Consult a professional
electrician to ensure proper grounding.
Do not use a defective AC power plug or outlet.
Cautions
Do not evacuate gases that corrode metal or react chemically with
the pump oil.
If the air being evacuated contains dust or is above 175° F (80° C),
then a filter or cooling device should be installed at the pump’s
intake.
Do not operate the pump for more than 3 minutes with the intake
open to the atmosphere.
For proper cooling and air ventilation, keep the sides of the pump at
least 1" (2 cm) away from walls, and allow 2" (5 cm) of clearance at
the front and rear of the pump.
Do not lay heavy objects on the power cord or allow the power cord
to become pinched.
Operate the vacuum pump in a dry, well-ventilated area.
Do not operate the pump below an ambient temperature of 40° F
(5° C).
Do not use as a compression pump or transfer pump.
Do not operate without clean vacuum pump oil.
Do not block the exhaust fitting when the pump is operating.
When removing the power plug, grip the plug rather than the cord.

Vacuum Pump Models QV2 & QV5
6P/N: 2002-0010 Rev 6
Troubleshooting
Problem Probable Cause Remedy
Oil level is low Add oil until level is correct as viewed through
sight glass.
Oil is emulsified or dirty Replace dirty oil with fresh, high-grade
vacuum pump oil.
Oil inlet or oil flow is
blocked
Clean oil inlet and filtering screen.
System leak Check system being evacuated for
leakage and repair.
Pump is too small Check the size of system being
evacuated and choose proper pump size.
Pump does not
produce desired
vacuum
Pump is worn Rebuild or replace the pump.
Oil seal is damaged Install new oil seal.Oil leakage
Oil tank connection is
loose or damaged
Tighten oil tank screws or replace gasket.
Too much oil is in tank Drain oil until level is correct as viewed
through sight glass.
Oil injection
Pump is too small Check the size of the system being
evacuated and choose proper pump size.
Oil temperature is too low Open intake to atmosphere and
intermittently start motor to heat pump oil.
Foreign matter is in pump Clean the pump by replacing pump-oil.
Difficult starting
Motor is defective Replace the motor.
Maintenance and Service
If the vacuum pump motor stops because of an overload condition, first
turn OFF the pump and open its intake to the atmosphere. Wait
5 minutes (press the RESET button if present) and try restarting the
pump. If the overload condition persists, refer to the “Difficult starting”
problem under Troubleshooting.
Keep the pump clean and avoid foreign matter from entering the pump.
Keep the vacuum pump oil at the correct level during normal operation
as viewed through the sight glass. Do not run the pump without oil.

Vacuum Pump Models QV2 & QV5
Using clean, fresh, vacuum pump oil is a critical part of achieving the
desired vacuum. Replace the pump oil if it becomes dirty and looks
turbid, or contains water or volatile matter. When replacing the oil, first
thin down the oil by running the pump for 30 minutes with the intake
closed. Stop the pump, remove the exhaust fitting and remove the oil
drain plug, allowing the oil to drain. Run pump for 1–2 minutes with
intake open while adding a small amount of clean pump-oil through the
intake to flush out any residual oil in the pumping chamber. Repeat this
process several times until the pump is clean. Replace the oil drain plug,
and then fill the oil tank through the oil fill access with fresh vacuum
pump oil to the desired level as viewed through the sight glass.
When storing the pump, install the intake and exhaust caps and place
the pump in a dry location.
Only qualified technicians should attempt to disassemble and repair the
vacuum pump. Service performed by unauthorized personnel during the
warranty period will void the pump's warranty. For warranty repair and
replacement parts, please call Bacharach Service at 724-334-5000.
Exploded Drawing
1 SIGHT GLASS
2 OIL DRAIN
3 OIL TANK
4 OIL FILLER AND EXHAUST CAP
5 O RING
6 BOLT
7 BACK PUMP COVER 19
TRESTLE
8 BACK PUMP ROTOR 20
CENTRIFUGAL SWITCH BOARD
9 BACK ROTARY VANE 21
INTAKE FITTING 31
CAPACITOR BOX SEAT
10 VALVE SLICE ASSY 22
INTAKE PORT CAP 32
BASE PLATE
11 EXHUAST VALVE 23
HANDLE 33
SCREW
12 BACK PUMP STATOR 24
GAS BALLAST 34
MOTOR STATOR
13 MIDDLE FENCE 25
CAPACITOR BOX 35
MOTOR ROTOR
14 FRONT PUMP ROTOR 26
CAPACITOR 36
UNDER WASHER
15 FRONT ROTARY VANE 27
POWER SUPPLY 37
MOTOR BACK COVER
16 ROTARY VANE SPRING 28
POWER SOCKET 38
FAN
17 FRONT PUMP STATOR 29
SWITCH 39
SPRING REED
18 FRONT PUMP COVER 30
PROTECTOR 40
FAN COVER
P/N: 2002-0010 Rev 6 7

Vacuum Pump Models QV2 & QV5
Headquarters:
621 Hunt Valley Circle, New Kensington, PA 15068
Ph: 724-334-5000 • Fax: [phone] • Toll Free: 800-736-4666
Website: www.mybacharach.com • E-mail: [email protected]
Printed in U.S.A.
8P/N: 2002-0010 Rev 6
