CONVERSION INSTRUCTIONS
This Natural Gas
Conversion Kit can be
used ONLY with
approved grills.
Installation should be done by a qualified service
person.
Use only Blue Rhino Global Sourcing, Inc. factory-authorized
parts. The use of any part that is not factory-authorized can
be dangerous and will void your warranty.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury or death.
4. This instruction manual contains important
information necessary for the proper
assembly and safe use of the appliance.
5. Read and follow all warnings and
instructions before assembling and using
the appliance.
6. Follow all warnings and instructions when
using the appliance.
7. Keep this manual for future reference.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Never operate this appliance unattended.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.

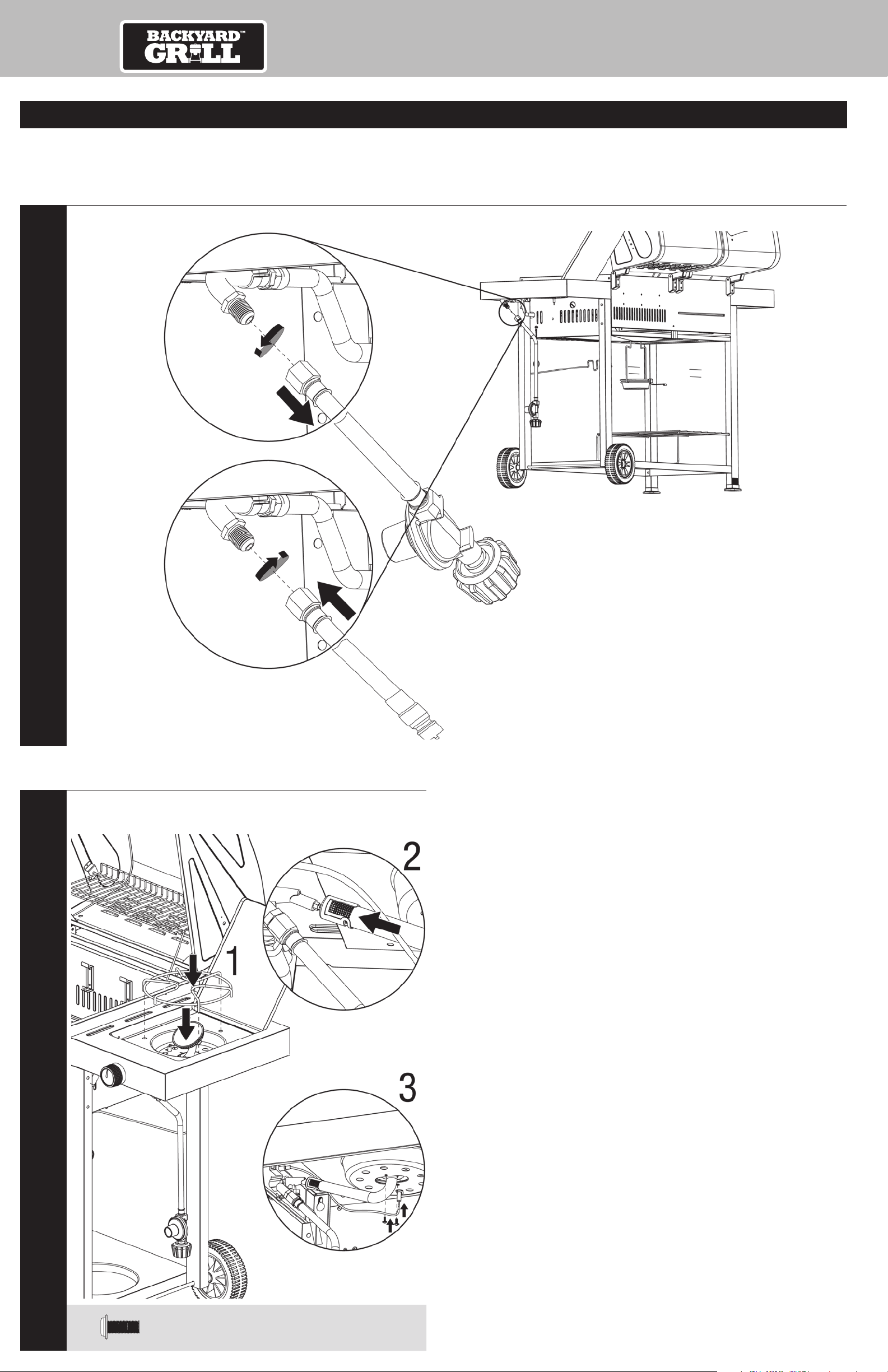

Natural Gas Conversion Instructions – VFK1000W-C, VFK1001W1-C
Model No. GBC1490W-C / STOCKTON
2
1
DO NOT RETURN TO PLACE OF PURCHASE.
For assistance, call 1.800.762.1142 toll-free. Please have
your Owner’s Manual and grill model number available for
reference.
Note: The grill model number is printed on a label which can be found
on the inside door, back or side of the cart assembly.
Assembly Tips:
1. Select an area where you will assemble this product. To
protect components, choose a smooth surface that’s free of
cracks or openings.
2. Spread out all parts.
3. Tighten all hardware connections by hand first. Then, before
completing each step, go back and fully tighten all hardware.
Be careful not to over-tighten. That could damage surfaces or
strip threads.
4. For best results, complete each step in the order presented.
To complete assembly you will need:
• (1) Leak detection solution (instructions on how to make the
solution are included in the “Operating Instructions” section of
this manual).
Typical conversion is approximately one hour.
2

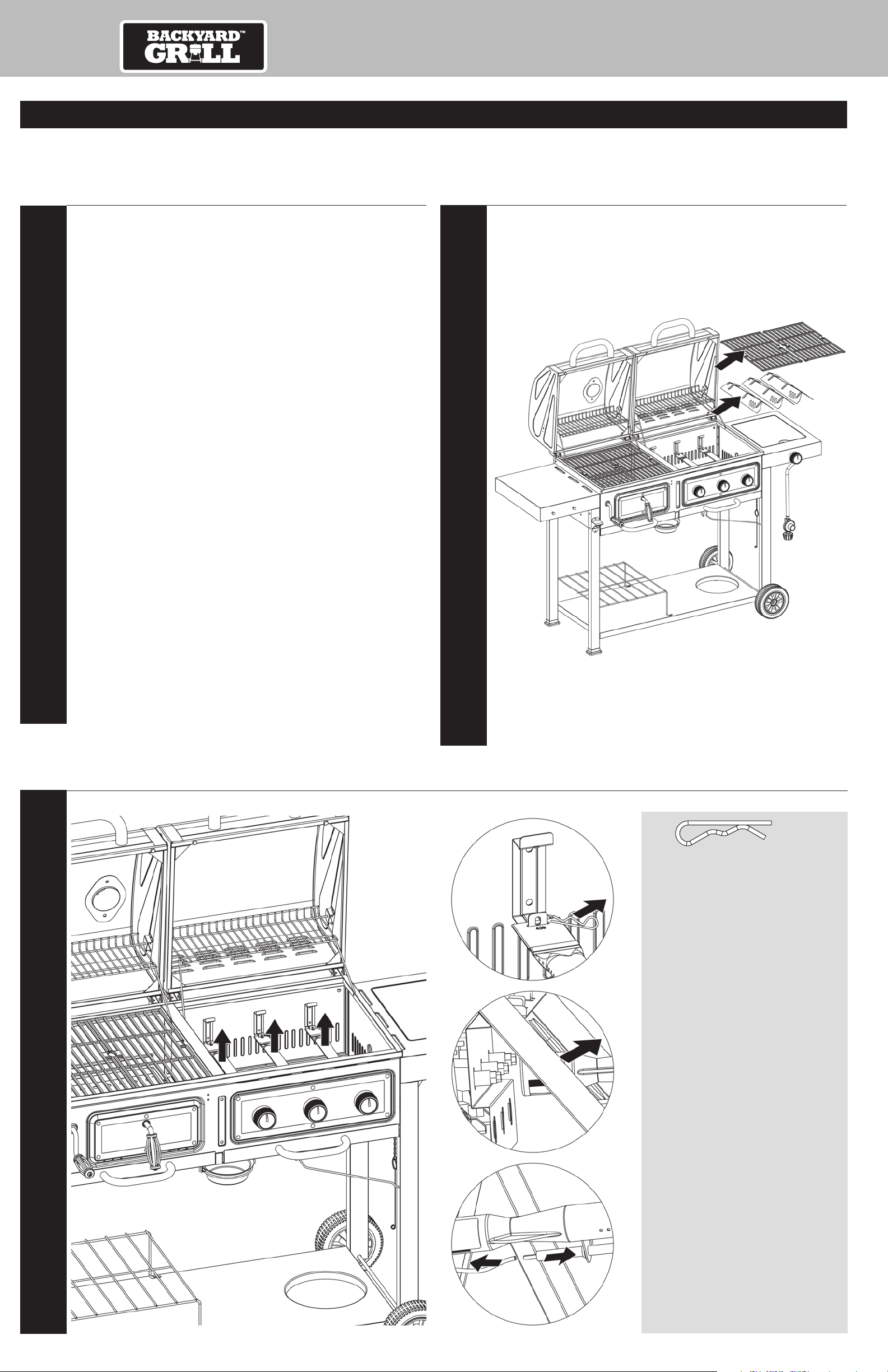

Remove Gas Cooking Grids and Heat Plates
3
Remove Burners
x 3
Conversion Instructions

Need help? 1.800.762.1142
Do not return to place of purchase.
Recipes
BlueRhino.com/recipes
Replacement Parts
parts.BlueRhino.com /
1.800.762.1142 3
4

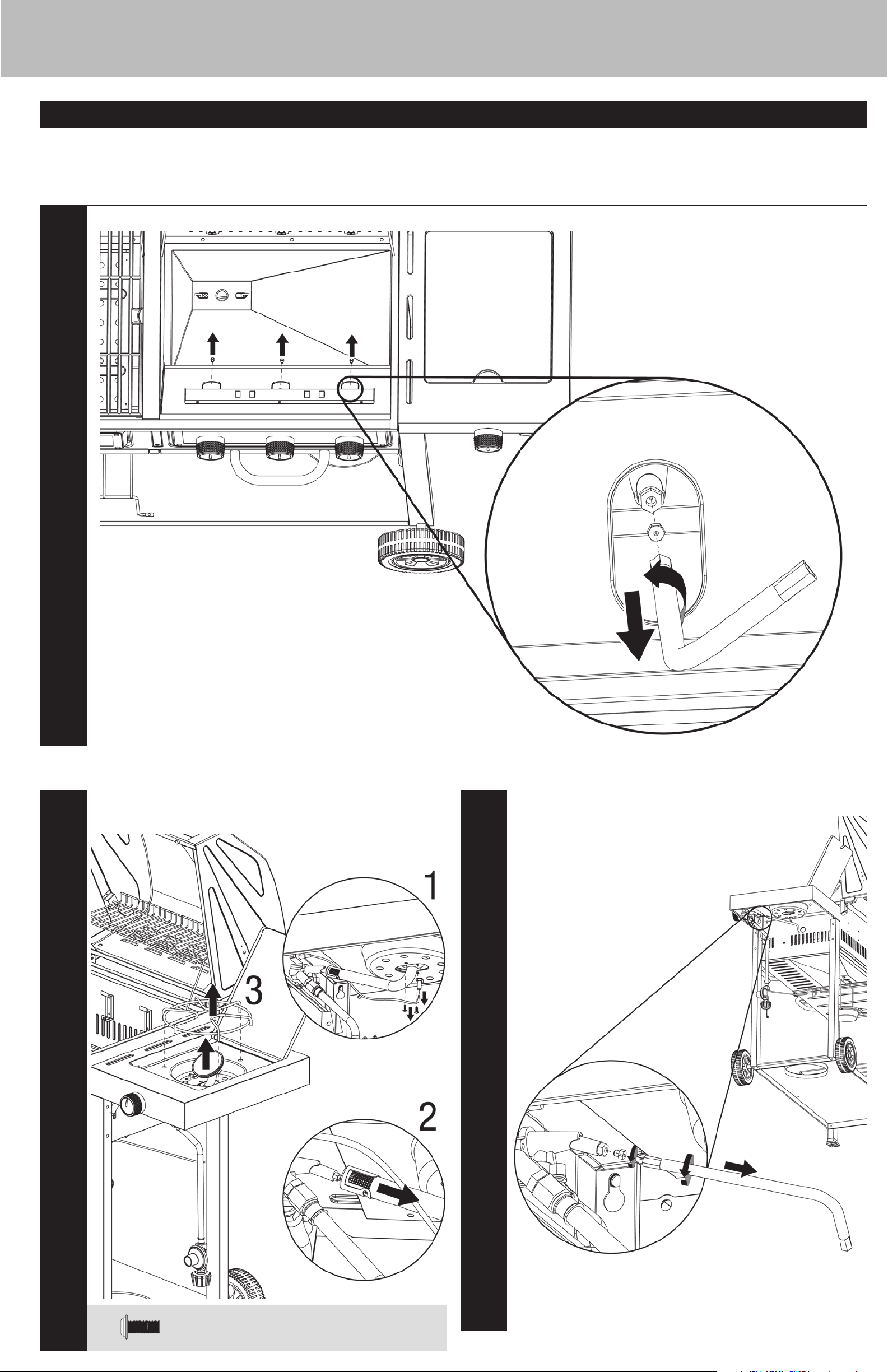

Remove Main Burner Orifices
5
Remove Side Burner Grid, Igniter Wire and Side Burner
x 2
6
Remove Side Burner Orifice
Conversion Instructions (continued)

Natural Gas Conversion Instructions – VFK1000W-C, VFK1001W1-C
Model No. GBC1490W-C / STOCKTON
4
7
Remove LP Gas Regulator/Hose Assembly and Attach Natural Gas Hose Assembly
Conversion Instructions
8
Attach Side Burner Grid, Igniter Wire and Side Burner
x 2

Need help? 1.800.762.1142
Do not return to place of purchase.
Recipes
BlueRhino.com/recipes
Replacement Parts
parts.BlueRhino.com /
1.800.762.1142 5

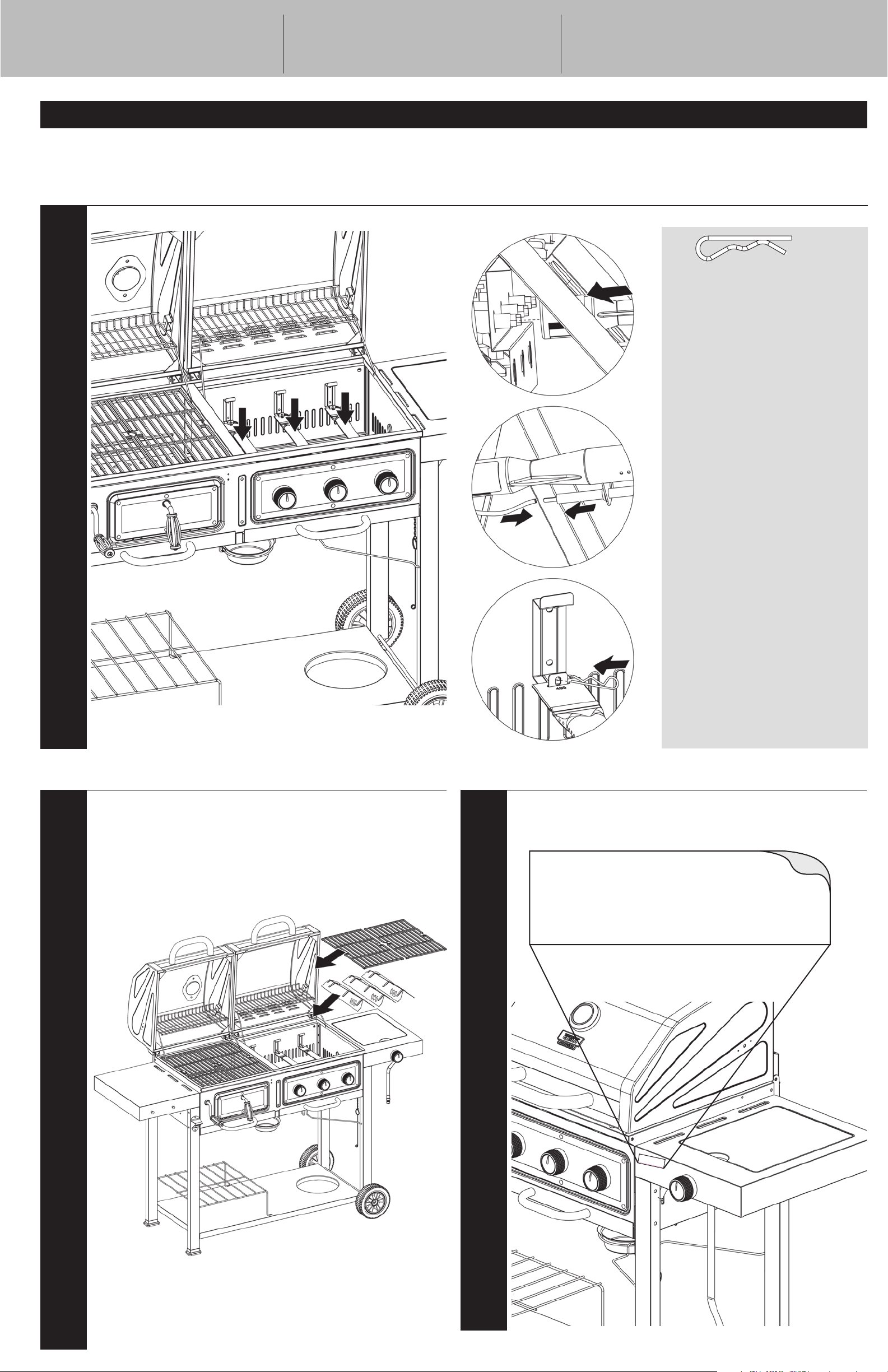

Conversion Instructions (continued)
9
Attach Burners
x 3
10
Insert Heat Plates, Cooking Grids and Warming Rack
11
Attach Natural Gas Label
95 mm
30 mm
