Baileigh Industrial VMD-15 User manual

OPERATOR’S MANUAL
MILL/DRILL MACHINE
MODEL: VMD-15 & VMD-18
Baileigh Industrial Holdings LLC
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: [phone]
Fax: [phone]
[e-mail]
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL
HOLDINGS LLC IS PROHIBITED. Baileigh Industrial Holdings LLC, Inc. does not assume and hereby disclaims any
liability for any damage or loss caused by an omission or error in this Operator’s Manual, resulting from accident,
negligence, or other occurrence.
© 2022 Baileigh Industrial Holdings, LLC
Edition 1 06/2022
VMD-18 shown with
optional BS-18 stand.

2
1.0 Table of Contents
Section Page
1.0 Table of Contents ............................................................................................................................... 2
2.0 Important Safety Instructions .............................................................................................................. 3
3.0 Specifications ..................................................................................................................................... 4
4.0 Contents of Shipping Container ......................................................................................................... 5
5.0 Unpacking and Clean-up .................................................................................................................... 5
6.0 Assembly ............................................................................................................................................ 6
7.0 Installation .......................................................................................................................................... 6
8.0 Lubrication .......................................................................................................................................... 7
9.0 Electrical Connections ........................................................................................................................ 7
10.0 Controls .............................................................................................................................................. 8
11.0 Adjustments ........................................................................................................................................ 9
11.1 Changing Spindle Speeds ............................................................................................................. 9
11.2 Arbor Replacement ..................................................................................................................... 10
11.3 Gib Adjustment ............................................................................................................................ 11
11.4 Adjusting Spindle Return Springs ................................................................................................ 11
12.0 Replacement Parts ........................................................................................................................... 12
12.1.1 VDM-15 Head Assembly - Exploded View ............................................................................... 12
12.1.2 VDM-15 Head Assembly - Parts List ........................................................................................ 13
12.2.1 VDM-15 Table, Base, and Column Assembly - Exploded View ............................................... 16
12.2.2 VDM-15 Table, Base, and Column Assembly - Parts List ........................................................ 17
12.3.1 VDM-18 Head Assembly - Exploded View ............................................................................... 18
12.3.2 VDM-18 Head Assembly - Parts List ........................................................................................ 19
12.4.1 VDM-18 Table, Base, and Column Assembly - Exploded View ............................................... 23
12.4.2 VDM-18 Table, Base, and Column Assembly - Parts List ........................................................ 24
13.0 Electrical Connections ...................................................................................................................... 26
13.1 Wiring Diagrams: VDM-15 ........................................................................................................... 26
13.2 Wiring Diagrams: VDM-18 ........................................................................................................... 26
14.0 Warranty and Service ....................................................................................................................... 27

3
2.0 IMPORTANT SAFETY
INSTRUCTIONS
Read and understand the entire contents of
this manual before attempting set-up or
operation of this mill/drill.
This machine is designed and intended for use
by properly trained and experienced personnel
only. If you are not familiar with the proper safe
use of mill/drills, do not use this machine until
proper training and knowledge has been obtained.
Keep guards in place. Safety guards must be
kept in place and in working order.
Remove adjusting keys and wrenches. Before
turning on machine, check to see that any
adjusting wrenches are removed from the tool.
Reduce the risk of unintentional starting. Make
sure switch is in the OFF position before plugging
in the tool.
Do not force tools. Always use a tool at the rate
for which it was designed.
Use the right tool. Do not force a tool or
attachment to do a job for which it was not
designed.
Maintain tools with care. Keep tools sharp and
clean for best and safest performance. Follow
instructions for lubrication and changing
accessories.
Always disconnect the tool from the power
source before adjusting or servicing.
Check for damaged parts. Check for alignment
of moving parts, breakage of parts, mounting, and
any other condition that may affect the tools
operation. A guard or any part that is damaged
should be repaired or replaced.
Turn power off. Never leave a tool unattended.
Do not leave a tool until it comes to a complete
stop.
Keep work area clean. Cluttered areas and
benches invite accidents.
Do not use in a dangerous environment. Do not
use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
Keep children and visitors away. All visitors
should be kept a safe distance from the work area.
Make the workshop child proof. Use padlocks,
master switches, and remove starter keys.
Wear proper apparel. Loose clothing, gloves,
neckties, rings, bracelets, or other jewelry may get
caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering to
contain long hair. Do not wear any type of glove.
Always use safety glasses. Every day glasses
only have impact resistant lenses; they are not
safety glasses.
Do not overreach. Keep proper footing and
balance at all times.
Do not place hands near the cutterhead while
the machine is operating.
Do not perform any set-up work while machine
is operating.
Read and understand all warnings posted on
the machine.
This manual is intended to familiarize you with
the technical aspects of this mill/drill. It is not,
nor was it intended to be, a training manual.
Failure to comply with all of these warnings
may result in serious injury.
WARNING: This product can expose you to
chemicals including lead which is known to the
State of California to cause cancer and birth
defects or other reproductive harm, and
ethylbenzene which is known to the State of
California to cause cancer. For more information
go to http://www.p65warnings.ca.gov.
WARNING: Some dust, fumes and gases
created by power sanding, sawing, grinding,
drilling, welding and other construction activities
contain chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Some examples of
these chemicals are:
• lead from lead based paint
• crystalline silica from bricks, cement and
other masonry products
• arsenic and chromium from chemically
treated lumber
Your risk of exposure varies, depending on how
often you do this type of work. To reduce your
exposure to these chemicals, work in a well-
ventilated area and work with approved safety
equipment, such as dust masks that are
specifically designed to filter out microscopic
particles. For more information go to
http://www.p65warnings.ca.gov/ and http://www.
p65warnings. ca.gov/wood.

4
3.0 Specifications
VMD-15
VMD-18
Stock No.
1231787
1231788
Drilling Capacity
1”
1-1/4”
Face Mill Capacity
2-1/2”
3”
End Mill Capacity
1/2”
3/4”
Swing
14-1/2”
15-7/8”
Maximum Distance Spindle to
Table
15”
17-1/2”
Spindle Taper
R-8
R-8
Spindle Travel
3-1/2”
5”
Quill Diameter
2-1/2”
3”
Head Swivel
360°
360°
Column Diameter
3-5/8”
4-1/2”
Number of Power Downfeeds
----
----
Range of Power Downfeeds
----
----
Number of Spindle Speeds
12
12
Range of Spindle Speeds
110-2,580 RPM
150-3,000 RPM
Maximum Table Travel
14”
20-1/2”
Cross Travel
6”
7”
Working Surface of Table
7-1/2” x 23”
9-1/2” x 31-3/4”
Number of T-Slots
4
4
T-Slot Size
9/16”
5/8”
T-Slot Centers
1-1/2”
2-1/8”
Overall Dimensions
36-1/2”L x 37-1/2”W x
35-1/2”H
42-1/2”L x 39-3/4”W x
43-1/2”H
Base Dimensions
12-1/2” x 19-3/4”
15-3/4” x 23-3/4”
Motor (UL listed)
1HP, 1PH, 115/230V
(prewired 115V), 60Hz
2HP, 1PH, 115/230V,
(prewired 115V), 60Hz
Net Weight (approx.)
440 lbs.
660 lbs.
Shipping Weight (approx.)
540 lbs.
760 lbs.
The specifications in this manual are given as general information and are not binding. BAILEIGH
reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings,
and accessory equipment deemed necessary for any reason whatsoever.

5
4.0 Contents of Shipping
Container
1 Mill/Drill Machine
Accessory Package:
1 1/2” Drill Chuck w/ Chuck Key
1 Adjustable Carbide Facemill
1 Facemill Arbor
1 Bolts, Nuts, and Washers to
Attach Vise to Table
1 2-1/2” Angle Vise (VMD-15)
1 3” Angle Vise (VMD-18)
3 Handle Rods (VMD-15/18)
3 Rubber Knobs (VMD-15/18)
1 3/8”x1” Hex Socket Cap Screw
1 3/8” Washer
1 Crank Body (Installed)
1 Crank Handle
1 Spindle Guard Assembly
1 3mm Hex Wrench
1 4mm Hex Wrench
1 5mm Hex Wrench
1 23mm Wrench (VMD-18)
3 Hand Wheels w/ Handles
1 Can Touch-Up Paint
1 Owner’s Manual
1 Warranty Card
1 Lifting Hook (Installed)
5.0 Unpacking and Clean-up
1. Finish removing the crate from the mill/drill.
Unbolt the machine from the crate bottom.
Report shipping damage, if any, to your
distributor.
2. Clean all rust protected surfaces using a
mild commercial solvent, kerosene or diesel
fuel. Do not use paint thinner, gasoline, or
lacquer thinner. These will damage painted
surfaces. Cover all cleaned surfaces with a
light film of Mobil DTEÒ Oil Heavy Medium.
3. Open the belt cover and thread the lifting
hook into the head.
4. Carefully lift the mill/drill with properly rated
equipment to a sturdy stand or work bench.
5. Remove the lifting hook.
Tools Needed for Assembly
8” Adjustable Wrench or 1/4” to 1-1/4”
Combination Wrench Set
(VMD-18 shown with optional BS-18 stand)

6
6.0 Assembly
1. Screw rubber handles (A, Fig. 1) onto
handle rod (B, Fig. 1). Screw handle rod
into downfeed hub (C, Fig. 1) and tighten.
Flat spot on rod accommodates a
combination or adjustable wrench. Note:
Handle shafts are already installed into hub
on VMD-18.
2. Repeat for other two rod assemblies.
3. Slide crank (D, Fig. 2) onto shaft and tighten
set screw (E, Fig. 2). Be sure set screw
seats on flat part of shaft.
4. Thread handle (F, Fig. 2) into crank and
tighten.
5. Slide handwheel (G, Fig. 3) onto table
handwheel shaft and tighten set screw.
Insert handle (H, Fig. 3) into handwheel and
tighten.
6. Repeat for two remaining table hand wheels.
7. Install spindle guard assembly (Figure 3a).
7.0 Installation
Machine is heavy! Use an
appropriate lifting device and use extreme
caution when moving the machine to its final
location. Failure to comply may cause
serious injury.
1. The location for the mill/drill should be well
lit, dry, and have room enough to allow the
head to rotate 360°.
2. Before bolting the mill/drill to a bench or
stand, the unit must be level in both
directions. Place a level on the table in both
directions.
3. If the table is not level, shim under the low
corner(s) until level. Tighten the fastening
bolts. Check for level again. Adjust as
necessary until the mill/drill is level after the
fastening hardware has been tightened.

7
8.0 Lubrication
Lubricate ball oilers (A, Fig. 4) by the X/Y-axis
hand wheels, the oiler at the raising/lowering
crank handle, and the oiler on front of the bed
once daily with Mobil DTEÒ Oil Heavy Medium.
Lubricate the ways (B, Fig. 4) once daily with
Mobil DTEÒ Oil Heavy Medium.
If the head does not rise or lower smoothly,
apply Mobilith AW2 to the rack, and Mobil DTEÒ
Oil Heavy Medium to the column.
If the feed handles do not turn smoothly, apply
Mobilith AW2 to the cross and longitudinal lead
screws (C, Fig. 4). Access the cross lead screw
by moving the table forward and removing the
way cover.
The spindle bearings are permanently sealed
and require no lubrication.
9.0 Electrical Connections
A qualified electrician must
make all electrical connections. Make sure
the Mill/Drill is properly grounded. Failure to
comply may cause serious injury.
Before making any electrical connections, make
sure the power source available is compatible
with the machine. Also, turn the machine OFF
using the buttons or switch at the front of the
machine before connecting to the power source.
The VMD Mill/Drills are rated at 115/230V and
come from the factory prewired at 115V. The
VMD-15 comes with a plug designed for use on
a circuit with an outlet that looks like the one in
Fig. 5, and has a grounding prong as illustrated
in Fig. 5. The VMD-18 is not provided with a
plug.
To switch the Mill/Drill to 230V operation:
1. Disconnect machine from power source.
2. Remove junction box cover on the motor.
3. Change the wires according to the diagram
on the inside of the junction box cover, and
reinstall junction box cover.
4. Replace thermal relay with one rated for
230V operation (see parts list).
5. Change power plug to one rated for 230V
and the appropriate amperage for your
machine, or hard wire the power cord to the
service panel (make sure a disconnect is
available for the operator).

8
10.0 Controls
Longitudinal Hand Wheels: (X-axis) (A, Fig. 6)
Located on either side of the table. Moves table
side to side.
Cross Feed Hand Wheel: (Y-axis) (B, Fig. 6)
Located on the front of the base. Moves table
toward, or away from the column.
Adjustable Table Stops: (C, Fig. 6)
Located on table front. Adjust to stop table at
any setting along the longitudinal axis.
Table Locks: (D & E, Fig. 6)
Longitudinal table locks are located on front of
the table. Cross-feed table locks are located on
the right side under the table. Turn clockwise to
lock.
Depth Stop:
VMD-15: (K, Fig. 8) located on the left side. Set
nuts for desired depth stop.
VMD-18: (F, Fig. 7) located in the front. Push in
the button on the front of the quick adjust stop
and move to desired position.
Downfeed Handles: (G, Fig. 7)
Located on the right side of the head casting.
Counter-clockwise movement advances the quill
toward the table. Return spring retracts the
handles. Note: the knob (I, Fig. 7) must be
loose for the downfeed handles to work.
Fine Feed Hand Wheel: (H, Fig. 7)
Located on the front of the head casting. To
activate, tighten the knob (I Fig. 7) and turn the
power feed speed range dial (J, Fig. 7) to zero.

9

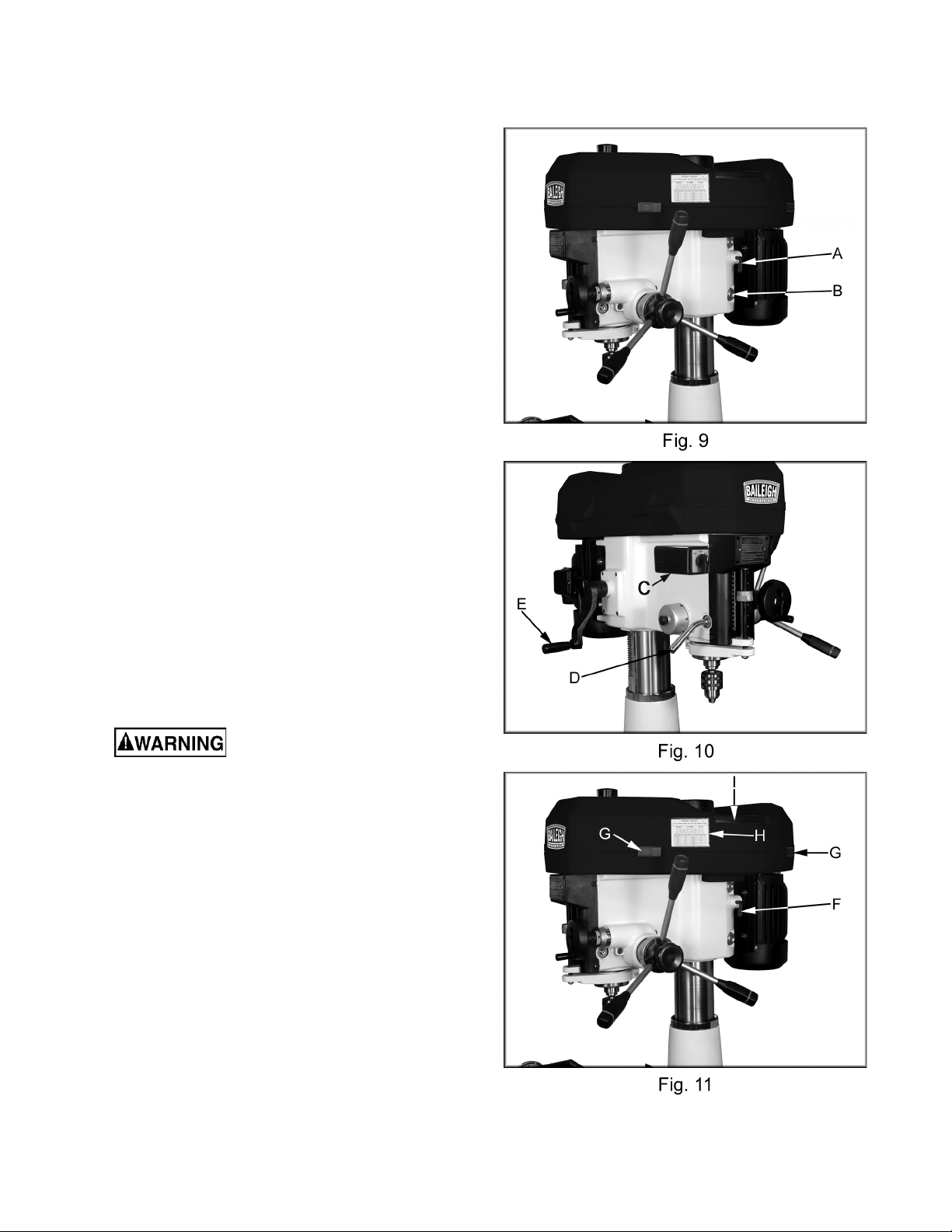

Motor Mount Lock Lever: (A, Fig. 9)
Located on the right side of the head casting.
Locks and unlocks the motor mounting plate
enabling the user to tension v-belts.
Head Pivot Lock: (B, Fig. 9)
Located on the right rear of the head casting.
Loosen two hex nuts to rotate the head 360°.
Tighten two hex nuts to lock the head in
position.
On-Off Switch: (C, Fig. 10)
Turns spindle on and off, and changes spindle
direction. Allow the spindle to come to a stop
before reversing rotation.
Quill Lock Handle: (D, Fig. 10)
Located on the front left of the head casting.
Turn clockwise to lock the quill in the desired
position. Turn counter-clockwise to release.
Head Elevating Crank Handle: (E, Fig. 10)
Located at left rear of head casting. Loosen
head pivot lock nuts (B, Fig. 9) and turn handle
clockwise to raise head on the column and
counter-clockwise to lower head.
This machine is designed
and intended for use by properly trained and
experienced personnel only. If you are not
familiar with the proper and safe use of
mill/drills, do not use this machine until
proper training and knowledge have been
obtained. Failure to comply may cause
serious injury.
11.0 Adjustments
11.1 Changing Spindle Speeds
1. Disconnect the machine from the power
source, unplug.
2. Loosen the motor mount lock lever (F, Fig,
11) and pull the motor toward the head
casting to release tension on the v-belts.
3. Release two latches (G, Fig. 11) on belt
cover and slide pulley guard open (I, Fig.
11).

10

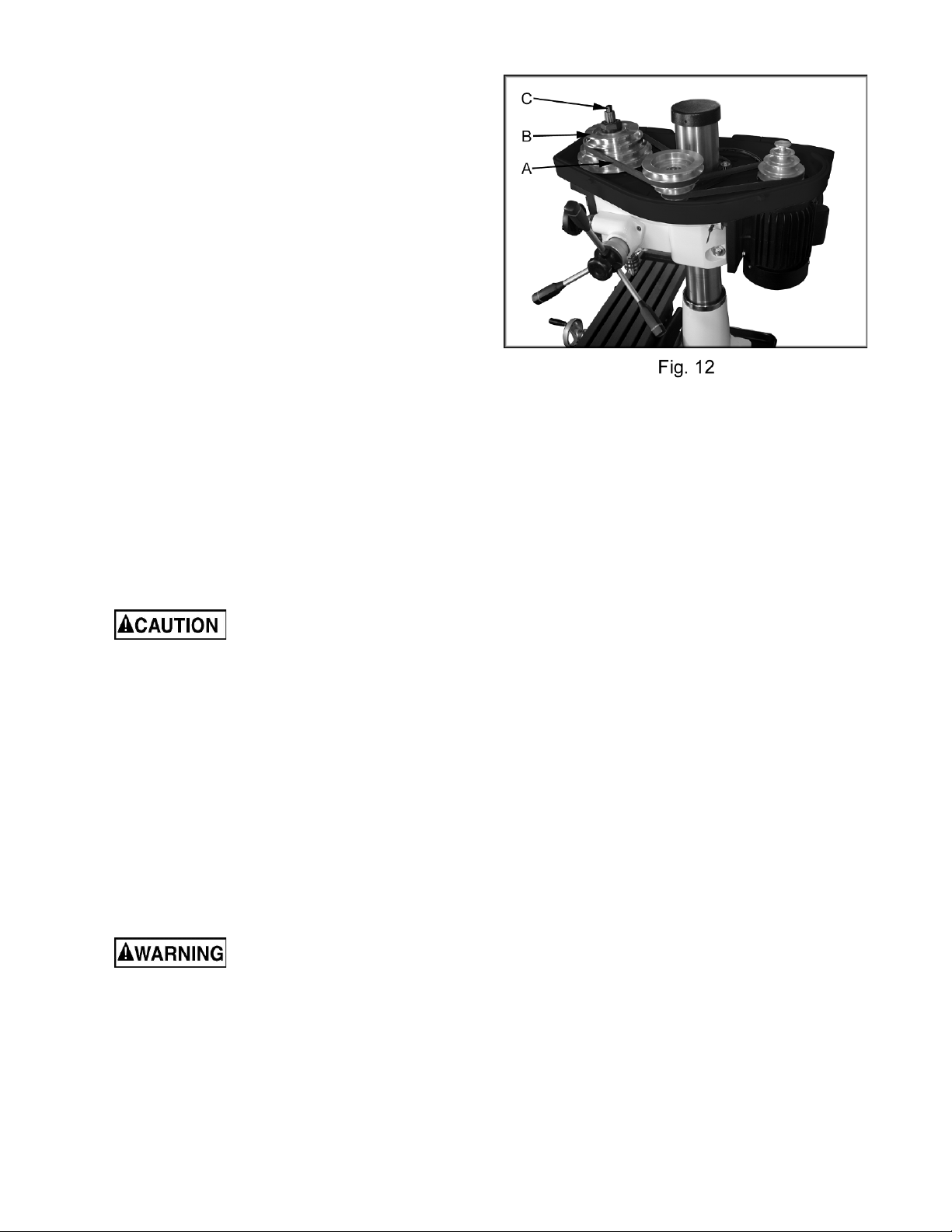

4. Arrange the v-belts (A, Fig. 12) on the
pulleys (B, Fig. 12) for the desired speed
according to the speed chart (H, Fig. 11) on
the belt cover.
5. Tension the v-belts by pushing the motor
away from the head casting and locking the
motor mount lock lever (F, Fig. 11). Note:
Proper tension is achieved when the slack in
the belt is taken up and the belt does not slip
during operation of the mill/drill.
11.2 Arbor Replacement
1. Disconnect machine from the power
source, unplug.
2. Release two latches (G, Fig. 11) on the belt
cover and slide the pulley guard open (I, Fig.
11).
3. Hold the spindle pulley (B, Fig. 12) to keep
the pulley from moving while loosening the
drawbar (C, Fig. 12) with a wrench.
4. Loosen the drawbar approximately three to
four full turns.
5. Tap the drawbar head with a rubber mallet
to dislodge the arbor.
Do not loosen the drawbar
more than three or four turns before hitting
with a rubber mallet. Damage to the drawbar
threads may occur.
6. Grasp the arbor with one hand while
loosening the drawbar with the other.
Continue to loosen the drawbar until the
arbor can be withdrawn from the spindle.
Wipe out the spindle with a clean dry rag.
7. Wipe down the new arbor with a clean dry
rag and place the arbor into the spindle.
Thread the drawbar into the arbor. Tighten
the drawbar with a wrench while holding on
to the spindle pulley.
Use caution when tightening
drawbar. Do not allow hand to get pinched
between pulley and belt. Failure to comply
may cause serious injury.
Note: For best results, all milling operations
should be done with the quill/spindle as close to
the head assembly as possible. Lock spindle
and table in place before starting milling
operations.

11
11.3 Gib Adjustment
After a period of time, movement of the table
over the ways will cause normal wear. To adjust
the gibs for this wear:

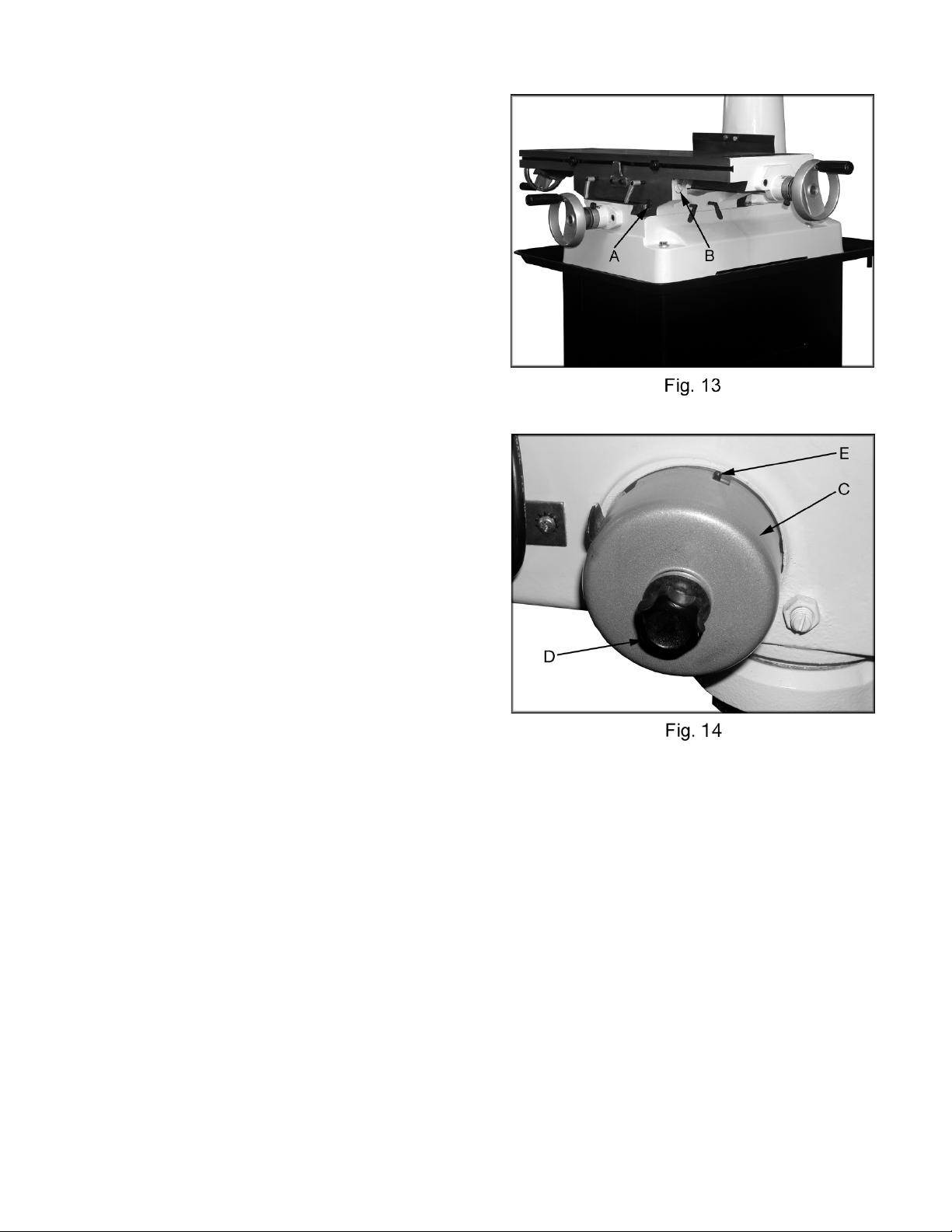

1. The horizontal gib adjustment screw (A, Fig.
13) is found to the right on the table face.
The traverse gib adjustment screw (B, Fig.
13) is found on the right side of the saddle
under the table.
2. Turn each screw slightly clockwise to
tighten. Turn the table hand wheels and
check the tension.
3. Re-adjust as required.
11.4 Adjusting Spindle Return Spring
The spindle return comes pre-set from the
factory and should not need any adjustment.
1. You do not want to remove the spring cap
(C, Fig. 14).
2. Loosen knob (D, Fig. 14) just enough to
rotate spring cap past the notch (E, Fig. 14).
3. Rotate the spring cap clockwise to decrease
spring tension. Rotate the spring cap
counter-clockwise to increase spring
tension.

12
12.0 Replacement Parts
12.1.1 VMD-15 Head Assembly – Exploded View

13
12.1.2 VMD-15 Head Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... JMD15-001 .............. Drawbar ................................................................ ................................... 1
2 ............... JMD15-002A ............ Spindle Lock Nut .................................................. ................................... 1
3 ............... JMD15-003 .............. Spindle Pulley ...................................................... ................................... 1
5 ............... JMD15-005 .............. Outer Bearing Plate .............................................. ................................... 1
6 ............... VMD15-006 .............. Spindle Taper Sleeve ........................................... (2-Slot) ........................ 1
7 ............... BB-6007ZZ ............... Ball Bearing .......................................................... 6007ZZ ....................... 2
8 ............... JMD15-008 .............. Bearing Spacer .................................................... ................................... 1
9 ............... JMD15-009 .............. C-Ring .................................................................. ................................... 1
10 ............. JMD18-010 .............. C-Ring .................................................................. ................................... 1
11 ............. VMD15-011B ........... Head ..................................................................... ................................... 1
12 ............. JMD15-012 .............. Rubber Flange ..................................................... ................................... 1
13 ............. VMD15-013B ........... Feed Base ............................................................ ................................... 1
14 ............. VMD15-014 .............. Lock Nut ............................................................... M25x1.5LT (Left) ........ 2
15 ............. BB-30205 ................. Taper Roller Bearing ............................................ 30205 ......................... 1
16 ............. JMD15-016 .............. Rack Sleeve ......................................................... ................................... 1
17 ............. VMD15-017 .............. Spindle Shaft ........................................................ (2-Slot) ........................ 1
18 ............. BB-30206 ................. Taper Roller Bearing ............................................ 30206 ......................... 1
19 ............. JMD15-019 .............. Bearing Cap ......................................................... ................................... 1
20 ............. JMD15-020 .............. Cutting Arbor ........................................................ ................................... 1
21 ............. JMD15-021 .............. Chuck Arbor ......................................................... R8 x JT6 ..................... 1
22 ............. JMD18-022 .............. Handle .................................................................. ................................... 1
23 ............. JMD15-023 .............. Retainer Ring ....................................................... ................................... 1
24 ............. JMD15-024N ............ Lock Handle ........................................................ ................................... 1
25 ............. JMD15-025 .............. Fixed Collar .......................................................... ................................... 1
26 ............. JMD15-026 .............. Fixed Collar Thread .............................................. ................................... 1
27 ............. JMD15-027 .............. Screw Key ............................................................ 3/8” ............................. 1
35 ............. JMD18-035 .............. Bearing Spacer .................................................... ................................... 1
38 ............. JMD18-038 .............. Lock Bolt w/ Knob ................................................ ................................... 1
39 ............. JMD18-039N ............ Handle Rod .......................................................... ................................... 3
42 ............. JMD18-042 .............. Feed Handle Wheel ............................................. ................................... 1
44 ............. JMD18-044 .............. Micro Adjusting Indicator ...................................... ................................... 1
45 ............. JMD18-045 .............. Worm Cover ......................................................... ................................... 1
46 ............. BB-6202Z ................. Ball Bearing .......................................................... 6202Z ......................... 2
47 ............. JMD18-047 .............. Worm Shaft .......................................................... ................................... 1
51 ............. JMD18-051 .............. Leaf Screw ........................................................... ................................... 1
52 ............. JMD15-052 .............. Head Lock Bolt ..................................................... 1/2"x7” ........................ 2
54 ............. JMD15-054 .............. Graduated Rod and Dial Assembly ...................... ................................... 1
55 ............. JMD15-054 .............. Depth Scale .......................................................... ................................... 1
57 ............ VMD15-057 .............. Name Plate ......................................................... ................................... 1
58 ............. JMD15-058 .............. Head Handle ........................................................ ................................... 1
59 ............. JMD15-059 .............. Worm Shaft .......................................................... ................................... 1
60 ............. JMD15-060 .............. Worm Gear ........................................................... ................................... 1
61 ............. JMD15-061 .............. Shaft ..................................................................... ................................... 1
62 ............. JMD18-062 .............. Compression Spring ............................................. ................................... 1
63 ............. JMD15-063 .............. Pin ........................................................................ ................................... 1
66 ............. JMD15-066 .............. Motor Mount ......................................................... ................................... 1
67 ............. JMD15-067N ............ Motor (115/230V, 60Hz) ....................................... 1HP, 1Ph .................... 1
68 ............. JMD15-067A ............ Capacitor (not shown) .......................................... 150MF, 250VAC ......... 1
69 ............. JMD15-069P ............ Belt Cover ............................................................ ................................... 1
69-1 .......... JMD15-069P1 .......... Upper Belt Cover Cap .......................................... ................................... 1
69-2 .......... JMD15-069P2 .......... Upper Belt Cover Plate ........................................ ................................... 1
70 ............. JMD15-070N ............ Motor Pulley ........................................................ ................................... 1

14
Index No. Part No. Description Size Qty
71 ............. VB-A30 ..................... V-Belt ................................................................... A30 ............................. 1
72 ............. BB-6204Z ................. Ball Bearing .......................................................... 6204Z ......................... 2
73 ............. JMD15-073 .............. Inter Pulley ........................................................... ................................... 1
74 ............. VB-A38 ..................... V-Belt ................................................................... A38 ............................. 1
75 ............. JMD15-075P ............ Inter Pulley Shaft .................................................. ................................... 1
76 ............. JMD15-076P ............ Speed Change Inter Pulley Base ......................... ................................... 1
79 ............. JMD18-079 .............. Rubber Collar ....................................................... ................................... 1
81 ............. JMD18-122 .............. Switch Box ........................................................... ................................... 1
82 ............. JMD18-123 .............. Cross Round Head Screw .................................... 3/16”x3/8 .................... 2
83 ............. JMD18-124 .............. Cable setting nut .................................................. PG13.5 ....................... 2
84 ............. JMD18-121-1 ........... F/R Switch ............................................................ ................................... 1
85 ............. JMD18-085 .............. Screw w/ Plumb Knob .......................................... ................................... 1
86 ............. JMD15-086 .............. Cutter ................................................................... ................................... 1
................. JMD15-086A ............ Cutter Insert (not shown) ...................................... ................................... 4
87 ............. JMD15-087 .............. Drill Chuck ............................................................ ................................... 1
87A ........... JMD15-087A ............ Chuck Key ............................................................ ................................... 1
90 ............. JMD15-090 .............. Self Tapping Screw .............................................. ................................... 2
91-A ......... JMD18-116 ............... Lamp Assembly (includes 91~94) ........................ ................................... 1
91 ............. JMD18-116-1 ........... Lamp .................................................................... ................................... 1
92 ............. JMD15-092 ............... Cross Round Head Screw .................................... M4x35L ....................... 2
93 ............. JMD15-093. .............. Working Lamp Base ............................................. ................................... 1
94 ............. JMD15-094 ............... Hex. Socket Head Screw ..................................... M6x12L ....................... 2
103 ........... JMD18-103 .............. Spring Cover ........................................................ ................................... 1
104 ........... JMD18-104 .............. Spring ................................................................... ................................... 1
105 ........... JMD18-105 .............. Spring Base .......................................................... ................................... 1
106 ........... JMD15-106 .............. Pinion Shaft .......................................................... ................................... 1
107 ........... JMD18-107 .............. Worm Gear ........................................................... ................................... 1
108 ........... VMD18-108B ........... Gear Housing ....................................................... ................................... 1
110 ........... JMD18-110 .............. Hub ....................................................................... ................................... 1
115 ........... JMD18-115 .............. Spring ................................................................... ................................... 1
122 ........... JMD18-077 .............. Clip Plate .............................................................. ................................... 1
131 ........... TS-0813032 ............. Pan Head Screw .................................................. 1/4"x1/2” ..................... 4
132 ........... TS-0680021 ............. Washer ................................................................. 1/4" ............................. 4
133 ........... JMD18-133 .............. Round Head Screw .............................................. 1/4"x3/8” ..................... 3
134 ........... TS-0050091 ............. Hex Head Bolt ...................................................... 1/4"x2” ........................ 1
135 ........... TS-0561011 ............. Hex Nut ................................................................ 1/4" ............................. 1
136 ........... TS-0561051 ............. Hex Nut ................................................................ 1/2" ............................. 2
138 ........... JMD15-138 .............. Rivet ..................................................................... ................................... 2
139 ........... JMD18-139 .............. Round Head Screw .............................................. 3/16”x3/4” ................... 3
140 ........... JMD18-140 .............. Spring Pin ............................................................. 3x12" .......................... 2
141 ........... TS-0561031 ............. Hex Nut ................................................................ 3/8 .............................. 3
142 ........... JMD18-142 .............. Key ....................................................................... 7x7x20 mm ................. 1
143 ........... TS-0208041 ............. Hex Socket Cap Screw ........................................ 5/16”x3/4” ................... 2
144 ........... TS-0680021 ............. Washer ................................................................. 1/4" ............................. 1
145 ........... TS-0270021 ............. Set Screw ............................................................. 5/16”x5/16” ................. 3
146 ........... TS-0267031 ............. Set Screw ............................................................. 1/4"x5/16” ................... 1
147 ........... JMD18-147 .............. Round Head Screw .............................................. 3/16”x1/2” ................... 2
148 ........... JMD18-148 .............. C-Retainer Ring ................................................... ................................... 1
150 ........... TS-0561051 ............. Hex Nut ................................................................ 1/2" ............................. 2
151 ........... TS-0680061 ............. Washer ................................................................. 1/2" ............................. 2
152 ........... JMD15-152 .............. Round Head Screw .............................................. M6x1.25 ...................... 6
153 ........... TS-0271061 ............. Set Screw ............................................................. 3/8”x5/8” ..................... 1
154 ........... TS-0561071 ............. Hex Nut ................................................................ 5/8” ............................. 2
155 ........... TS-0680031 ............. Washer ................................................................. 5/16” ........................... 8
156 ........... TS-0051051 ............. Hex Head Bolt ...................................................... 5/16”x1” ...................... 4
157 ........... TS-0060051 ............. Hex Head Bolt ...................................................... 3/8”x1/2” ..................... 2
158 ........... TS-0561021 ............. Hex Nut ................................................................ 5/16” ........................... 4

15
Index No. Part No. Description Size Qty
159 ........... JMD18-159N ............ Key ...................................................................... 7x7x40 mm ................. 1
160 ........... TS-0051071 ............. Hex Head Bolt ...................................................... 5/16”x1-1/2” ................ 1
161 ........... TS-0680031 ............. Washer ................................................................. 5/16” ........................... 2
187 ........... TS-0680021 ............. Washer ................................................................. 1/4" ............................. 2
188 ........... JMD18-188 .............. Pan Head Screw .................................................. 3/16”x3/8” ................... 1
208 ........... TS-0561031 ............. Hex Nut ................................................................ 3/8” ............................. 1
209 ........... JMD18-119 .............. Lifting Hook .......................................................... 5/16”x50mm ............... 1
210 ........... TS-0570021 ............. Hex Nut ................................................................ 5/16”-18 ...................... 1
211-A ....... JMD15-211A ............ Chuck Guard Assembly ....................................... ................................... 1
211-1 ........ JMD15-211-1... ........ Chuck Guard & Support Rod ............................... ................................... 1
211-3 ........ TS-2361051 ............. Spring Washer ..................................................... M5 .............................. 4
211-4 ........ TS-1502021 ............. Socket Head Cap Screw ...................................... M5x10 ......................... 2
211-6 ........ JMD18-125-5 ........... Rotary Supporting Base ....................................... .................................. 1
211-7 ........ JMD18-125-6 ........... Hex. Socket Head Screw ..................................... M5x15L ....................... 2
211-10 ...... JMD18-125-7 ........... Hex. Socket Headless Screw ............................... M5x10L ....................... 1
................. JMD15-SC ............... Speed Chart Label (not shown) ........................... ................................... 1
................. VMD15-BL ............... Baileigh Label (not shown) ................................... ................................... 1
................. VMD15-ID ................ I.D. Label (not shown) .......................................... ................................... 1
................. JMD15-AP ................ Accessory Package (not shown) * ....................... ................................... 1
................. JMD15-303 .............. Thermal Relay (not shown) .................................. 18A,115V .................... 1
* Contents of the Accessory Package (VMD15-AP):
................. JMD15-020 ............... Cutter Arbor .......................................................... ................................... 1
................. JMD15-039 .............. Handle Rod .......................................................... ................................... 3
................. JMD15-040 .............. Knob ..................................................................... ................................... 3
................. JMD15-087 .............. Drill Chuck ............................................................ ................................... 1
................. JMD15-087A ............ Chuck Key ............................................................ ................................... 1
................. JMD15-086 .............. Cutter ................................................................... ................................... 1
................. 365534 ..................... Angle Vise ............................................................ ................................... 1
................. JMD15-022 .............. Handle .................................................................. ................................... 4
................. JMD15-201 .............. Wheel ................................................................... ................................... 3
................. JMD15-058 .............. Handle Crank ....................................................... ................................... 1
................. TS-152704 ............... Hex Wrench ......................................................... 3mm ........................... 1
................. TS-152705 ............... Hex Wrench ......................................................... 4mm ........................... 1
................. TS-152706 ............... Hex Wrench ......................................................... 5mm ........................... 1
................. JMD15-381 .............. Washer ................................................................. ................................... 1
................. JMD15-380 .............. Hex Bolt ................................................................ ................................... 1
................. JMD15-377 .............. Hex Bolt ................................................................ ................................... 2
................. JMD15-378 .............. Hex Nut ................................................................ ................................... 2
................. JMD15-379 .............. Washer ................................................................. ................................... 2
................. MP-007 .................... Touch Up Paint (Black) ........................................ ................................... 1

16
12.2.1 VMD-15 Table, Base, and Column Assembly – Exploded View

17
12.2.2 VMD-15 Table, Base, and Column Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... JMD18-201 .............. Table Hand Wheel ............................................... ................................... 3
1-1 ............ JMD18-201-1 ........... Bolt ....................................................................... ................................... 3
1-2 ............ JMD18-201-2 ........... Handle .................................................................. ................................... 3
1-3 ............ JMD18-201-3 ........... Nut ........................................................................ ................................... 3
2 ............... JMD18-202 .............. Dial Clutch ............................................................ ................................... 2
2-1 ............ JMD18-202-1 ........... Graduated Dial ..................................................... ................................... 2
3 ............... BB-51103 ................. Thrust Bearing ...................................................... 51103 ......................... 4
4 ............... VMD15-4G ............... Square Flange ...................................................... ................................... 1
4-2 ............ JMD18-204-2 ........... Rivet ..................................................................... ................................... 4
5 ............... JMD15-205N ............ Table Screw ......................................................... ................................... 1
6 ............... VMD15-6G ............... Base ..................................................................... ................................... 1
7 ............... JMD15-207 .............. Gib Strip ............................................................... ................................... 1
8 ............... JMD15-208GN ......... Column ................................................................. ................................... 1
8-1 ............ VMD15-8-1G ............ Base ..................................................................... ................................... 1
9 ............... JMD15-209 .............. Column Flange Ring ............................................ ................................... 1
10 ............. JMD15-210 .............. Rack ..................................................................... ................................... 1
................. JMD15-210N ............ Rack (serial no: 20114600 and higher)……………. ................................. 1
11 ............. JMD15-211 .............. Column Cap ......................................................... ................................... 1
12 ............. JMD15-212 .............. Adjustment Screw ................................................ ................................... 2
13 ............. JMD18-213 .............. Leaf Screw ........................................................... ................................... 2
13-1 .......... JMD18-213 .............. Locking Handle .................................................... ................................... 2
14 ............. JMD18-214 .............. Block .................................................................... ................................... 1
15 ............. JMD18-215 .............. Table Base Nut .................................................... ................................... 1
16 ............. JMD15-216G ............ Center Base ......................................................... ................................... 1
17 ............. JMD15-217 .............. Way Cover ........................................................... ................................... 1
19 ............. JMD18-219 .............. Bracket Plate ........................................................ ................................... 1
20 ............. JMD18-220 .............. Table Clutch ......................................................... ................................... 1
22 ............. VMD15-22G ............. Left Flange ........................................................... ................................... 1
23 ............. JMD18-223 .............. Table Nut .............................................................. ................................... 1
24 ............. JMD15-224 .............. Table Screw ......................................................... ................................... 1
26 ............. VMD15-26G ............. Right Flange ......................................................... ................................... 1
27 ............. JMD15-227 .............. Gib Strip ............................................................... ................................... 1
28 ............. JMD15-228G ............ Table .................................................................... ................................... 1
28A ........... JMD15-228A ............ Table Assembly (includes #7,16,27,28) ............... ................................... 1
29 ............. JMD18-229 .............. Block .................................................................... ................................... 2
30 ............. JMD18-230 .............. Ring ...................................................................... ................................... 2
121 ........... JMD15-121 .............. Indicator Plate ...................................................... ................................... 2
143 ........... TS-0207021 ............. Hex Socket Cap Screw ........................................ 1/4"x1/2” ..................... 2
145 ........... TS-0270021 ............. Set Screw ............................................................. 5/16”x5/16” ................. 1
166 ........... JMD18-366 .............. Spring Pin ............................................................. ................................... 3
167 ........... JMD18-367 .............. Zero Indicator w/ Screw ....................................... 1/4"x3/8” ..................... 2
168 ........... JMD18-368 .............. Oil Ball .................................................................. ................................... 5
169 ........... TS-0209031 ............. Hex Socket Cap Screw ........................................ 3/8”x3/4” ..................... 8
175 ........... TS-0061071 ............. Hex Head Bolt ...................................................... 7/16”x2” ...................... 4
176 ........... JMD15-176 .............. Special screw ....................................................... M12 x 50L ................... 6
176-1 ........ JMD15-176-1 ........... Gasket .................................................................. M12 ............................ 6
178 ........... TS-0208111 ............. Hex Cap Bolt ........................................................ 5/16”x2-1/4” ................ 1
179 ........... 5217641 ................... Hex Cap Bolt ........................................................ M8x15L ....................... 6
180 ........... TS-1502041 ............. Hex Socket Cap Screw ........................................ M5x16 ......................... 2
189 ........... TS-0267041 ............. Set Screw ............................................................. 1/4"x3/8” ..................... 3

18
12.3.1 VMD-18 Head Assembly – Exploded View

19
12.3.2 VMD-18 Head Assembly – Parts List
Index No. Part No. Description Size Qty
1 ............... VMD18N-001B ......... Head Body ........................................................... ................................... 1
2 ............... JMD18-001 .............. Drawbar ................................................................ R8 ............................... 1
3 ............... JMD18-002A ............ Spindle Lock Nut .................................................. ................................... 1
4 ............... JMD18-003A ............ Spindle Pulley ...................................................... ................................... 1
5 ............... JMD18-005 .............. Outer Bearing Plate .............................................. 105x66 mm ................. 1
6 ............... JMD18-133 .............. Round Head Screw .............................................. 1/4”x3/8” ..................... 3
7A ............. JMD18-006AN ......... Spindle Taper Sleeve Assembly .......................... ................................... 1
7-1 ............ JMD18-006N ............ Spindle Taper Sleeve ........................................... ................................... 1
7-2 ............ BB-6009ZZ ............... Ball Bearing .......................................................... 6009ZZ ....................... 2
7-3 ............ JMD18-008 .............. Spacer .................................................................. 74x68 mm ................... 1
7-4 ............ JMD18-023 .............. Fixed Ring ............................................................ 2x4 .............................. 1
8 ............... JMD18-009 .............. C-Retaining Ring .................................................. 3x80 mm ..................... 1
9 ............... JMD18-012 .............. Rubber Flange ..................................................... ................................... 1
10 ............. VMD18N-010B ......... Feed Base ............................................................ ................................... 1
11A ........... JMD18-014A ............ Rack Sleeve Set ................................................... ................................... 1
11-1 .......... JMD18-014 .............. Lock Nut ............................................................... ................................... 2
11-2 .......... JMD18-137 .............. Lock Washer ........................................................ 30206 ......................... 1
11-3 .......... BB-30206 ................. Taper Roller Bearing ............................................ ................................... 1
11-4 .......... JMD18-016 .............. Rack Sleeve ......................................................... R8 ............................... 1
11-5 .......... BB-30207 ................. Taper Roller Bearing ............................................ 30207 ......................... 1
11-6 .......... JMD18-017N ............ Spindle Shaft ........................................................ R8 ............................... 1
11-7 .......... JMD18-019 .............. Bearing Cap ......................................................... R8 ............................... 1
13 ............. JMD18-021 .............. Chuck Arbor ......................................................... R8 7/16” ...................... 1
14 ............. JMD18-020 .............. Cutter Arbor .......................................................... 25.4 7/16” ................... 1
15A ........... JMD18N-015A ......... Graduated Rod Assembly .................................... ................................... 1
15-1 .......... JMD18N-15-1 ........... Depth Scale Stud ................................................. ................................... 1
15-2 .......... JMD18N-15-2 ........... Adjustable Stop .................................................... ................................... 1
15-3 .......... JMD18N-15-3 ........... Spring ................................................................... ................................... 1
15-4 .......... JMD18N-15-4 ........... Push Button .......................................................... ................................... 1
15-5 .......... JMD18N-15-5 ........... Hex Socket Cap Screw ........................................ M5x10 ......................... 1
15-6 .......... JMD18N-15-6 ........... Washer ................................................................. 3/8” ............................. 1
15-7 .......... JMD18N-15-7 ........... Hex Nut ................................................................ 3/8” ............................. 1
17 ............. TS-0050091 ............. Hex Head Screw .................................................. 1/4”x2” ........................ 1
18 ............. TS-0561011 ............. Hex Nut ................................................................ 1/4” ............................. 1
20 ............. JMD18-106 .............. Pinion Shaft .......................................................... ................................... 1
21 ............. JMD18-188 .............. Flat Cross Head Screw ........................................ 3/16”x3/8” ................... 1
22 ............. JMD18-142 .............. Key ....................................................................... 7x7x20 mm ................. 1
23A ........... VMD18N-023AB ...... Gear Housing Assembly ...................................... ................................... 1
23-1 .......... VMD18N-023-1B ...... Gear Housing ....................................................... ................................... 1
23-2 .......... JMD18-047 .............. Worm Shaft .......................................................... ................................... 1
23-3 .......... BB-6202Z ................. Ball Bearing .......................................................... 6202ZZ ....................... 2
23-4 .......... JMD18-148 .............. C-ring ................................................................... 15 mm ........................ 1
23-5 .......... JMD18-035 .............. Bearing Spacer .................................................... 34x27.5 mm ................ 1
24 ............. TS-0208021 ............. Hex Socket Cap Screw ........................................ 5/16”x1/2” ................... 2
25 ............. JMD18-107 .............. Worm Gear ........................................................... ................................... 1
26 ............. JMD18-115 .............. Spring ................................................................... ................................... 1
27 ............. JMD18-110 .............. Hub ....................................................................... ................................... 1
28 ............. JMD18-038 .............. Knob ..................................................................... ................................... 1
29 ............. JMD18-039N ............ Handle Rod .......................................................... ................................... 3
31 ............. JMD18-045 .............. Flange .................................................................. ................................... 1

20
Index No. Part No. Description Size Qty
32 ............. JMD18-047 .............. Round Head Screw .............................................. 3/16”x3/8” ................... 2
33 ............. JMD18N-033 ............ Micro Adjusting Indicator ...................................... ................................... 1
33-1 .......... TS-0267021 ............. Set Screw ............................................................. 1/4”x1/4” ..................... 1
35 ............. JMD18N-035A ......... Feed Handle Wheel Assembly ............................. ................................... 1
35-1 .......... JMD18N-035-1 ......... Set Screw ............................................................. M8x10 ......................... 1
37 ............. JMD18-105 .............. Spring Base .......................................................... ................................... 1
37-1 .......... JMD18-140 .............. Spring Pin ............................................................. ................................... 2
39 ............. JMD18-139 .............. Round Head Screw .............................................. 3/16”x3/4” ................... 3
40A ........... JMD18-103A ............ Spring Cover Assembly ........................................ ................................... 1
40-1 .......... JMD18-103 .............. Spring Cover ........................................................ ................................... 1
40-2 .......... JMD18-104 .............. Spring ................................................................... ................................... 1
41 ............. JMD18-187 .............. Washer ................................................................ 1/4”x1” ........................ 1
42 ............. TS-0680021 ............. Washer ................................................................. 1/4” ............................. 1
43 ............. JMD18-187 .............. Lock Washer ........................................................ 1/4”x1” ........................ 1
44 ............. JMD18-085 .............. Knob ..................................................................... ................................... 1
45 ............. JMD18-059 .............. Worm Shaft .......................................................... ................................... 1
46 ............. JMD18-114 .............. Bushing ................................................................ ................................... 1
47A ........... VMD18-47AB ........... Head Raise Bracket Assembly ............................. ................................... 1
47-1 .......... VMD18-47-1B .......... Head Raise Bracket ............................................. ................................... 1
47-2 .......... JMD18-060 .............. Worm Gear ........................................................... ................................... 1
47-3 .......... JMD18-061 .............. Shaft ..................................................................... 9/16” ........................... 1
47-4 .......... JMD18-154 .............. C-ring ................................................................... S14 ............................. 2
48 ............. TS-0207061 ............. Hex Socket Cap Screw ........................................ 1/4”x1” ........................ 4
49 ............. JMD18-058 .............. Head Handle ....................................................... ................................... 1
49-1 .......... TS-0271061 ............. Set Screw ............................................................. 3/8”x5/8” ..................... 1
51 ............. JMD18-022 .............. Handle .................................................................. ................................... 1
51-1 .......... TS-0561031 ............. Hex Nut ................................................................ 3/8” ............................. 1
52 ............. JMD18-026 .............. Fixed Collar (Thread) ........................................... ................................... 1
53 ............. JMD18-025 .............. Fixed Collar .......................................................... ................................... 1
54 ............. JMD18N-054 ............ Washer ................................................................. 1/2”x7/8” ..................... 1
55 ............. JMD18-024 .............. Handle Rod .......................................................... ................................... 1
56 ............. JMD18-027 .............. Screw Key ............................................................ 3/8” ............................. 1
57 ............. TS-0561031 ............. Hex Nut ................................................................ 3/8” ............................. 1
58 ............. JMD18-062 .............. Spring ................................................................... ................................... 1
59 ............. JMD18-063 .............. Pin ........................................................................ ................................... 1
60 ............. JMD18-079 .............. Rubber Collar ....................................................... ................................... 1
61 ............. JMD18-052 .............. Bolt ....................................................................... 5/8”x6” ........................ 2
62 ............. TS-0680081 ............. Washer ................................................................. 5/8” ............................. 2
63 ............. TS-0561071 ............. Hex Nut ................................................................ 5/8” ............................. 2
64 ............. JMD18-050 .............. Lock Handle ......................................................... ................................... 1
65 ............. JMD18N-065 ............ Knob ..................................................................... ................................... 1
66A ........... JMD18N-066B ......... Front Cover Plate Assembly ............................... ................................... 1
66-1 .......... JMD18N-066-1 ......... Front Cover Plate ................................................. ................................... 1
66-4 .......... JMD18N-066-4 ......... Front Cover Plate ................................................. ................................... 1
66-5 .......... TS-1533032 ............. Phillips Pan Head Machine Screw ....................... M5x10 ......................... 4
67 ............. JMD18N-067 ............ Round Head Screw .............................................. M6x12 ......................... 4
71 ............. JMD18-069 .............. Poly Belt Cover .................................................... ................................... 1
72 ............. JMD18-069A ............ Pulley Cover ......................................................... ................................... 1
74 ............. JMD18-069-1 ........... Spindle Cover ....................................................... ................................... 1
75 ............. JMD18-069-3 ........... Screw ................................................................... 3mm ........................... 2
76 ............. TS-0680032 ............. Flat Washer .......................................................... 5/16” ........................... 4
77 ............. TS-0051011 ............. Hex Head Bolt ...................................................... 5/16”x1/2” ................... 4
79 ............. JMD18-SC ............... Spindle Speed Chart ............................................ ................................... 1
80 ............. JMD18N-080 ............ Pulley Base .......................................................... ................................... 1
81 ............. TS-0561071 ............. Hex Nut ................................................................ 5/8” ............................. 1
82 ............. TS-0680031 ............. Washer ................................................................. 5/16” ........................... 2
83 ............. TS-0051071 ............. Hex Head Bolt ...................................................... 5/16”x1-1/2” ................ 1
