Bajaj QUTE User manual

IMPORTANT NOTES
Ø Please read this Owner’s Manual carefully before driving the vehicle. We recommend you to keep the
Owner’s Manual in the vehicle for ready reference.
Ø The recommended routine maintenance servicing should be entrusted to Distributor Workshop to
ensure that only latest methods and genuine BAL parts are used for the continued reliability, safety and
performance of the vehicle.
ØAll information, illustrations and specifications given in this manual are valid as on the date of
publication.
ØAll rights reserved. The material in this manual shall not be reproduced or copied, in whole or in part.
Ø** Images shown in the manual may depict accessories which may not be part of standard fitment.
A prerequisite for perfect operation and prevention of premature wear is that the service, care, and tuning
work on the engine and chassis is properly carried out as described in the Owner's Manual. Incorrect
adjustment and tuning of the engine and chassis can lead to damage and breakage of components.
Use of the vehicle under difficult conditions, such in rain, high heat or with a heavy load, can lead to
considerably more rapid wear of components such as the drive train, brake system, or suspension
components. For this reason, it may be necessary to inspect or replace parts before the next scheduled
service.
It is imperative that you adhere to the stipulated run-in times and service intervals. If you observe these
exactly, you will ensure a much longer service life for your Qute.

IMPORTANT NOTES
Ø Bajaj Qute is designed and constructed to meet the normal demands of regular road operation but not
for use on race courses or offroad.
Ø The vehicle must only be used as intended.
ØDangers can arise for people, property and the environment through use not as intended.
ØAny use of the vehicle beyond the intended and defined use constitutes misuse.
ØMisuse also includes the use of auxiliary fluids which do not meet the required specification for the
respective use.
Danger:
Indicates a danger that will immediately and invariably lead to fatal or serious permanent injury if the
appropriate measures are not taken.
Warning:
Indicates a danger that is likely to lead to fatal or serious injury if the appropriate measures are not
taken.
Caution:
Indicates a danger that may lead to minor injuries if the appropriate measures are not taken.
Note:
Indicates a danger that will lead to considerable machine and material damage if the appropriate measures
are not taken.
Warning:
Indicates a danger that will lead to environmental damage if the appropriate measures are not taken.

1. Introduction.......................................................1
2. Part locations..................................................10
3. Driving controls...............................................28
4. Operational.....................................................49
5. Maintenance...................................................58
CONTENTS
1
1. INTRODUCTION
1-A. Foreword...............................................................2
1-B. To protect environment..........................................3
1-C Identification Data................................................. 4
1-D Technical Specifications....................................... 5

2
Dear Customer,
We thank you for choosing the ‘QUTE’ which would give you ‘Value for Money, for Years’. We are sure that you
will be happy with its performance.
Small, Stylish, comfortable last mile transportation, very fuel efficient, very low tail pipe emissions, low cost of
running.These are some of the unique features of the vehicle.
Kindly read this Owner's Manual before driving to familiarize yourself with the mechanism and controls of the
vehicle.
To ensure a long, trouble free life of your vehicle, give it proper care and maintenance described in this manual.
Entrust the maintenance and repairs to , who are well equipped with necessary facilities Bajaj Distributor/Dealers
and are specially trained on ‘QUTE’.
If, for some reasons you take the vehicle to a local garage, please demand genuine Bajaj spares to be fitted to ensure
safety, optimum performance and longer life of the vehicle.
Should you require any additional information, please approach Bajaj distributor / dealer. If necessary, you may also
write to selling Distributor /Dealer, with relevant details like Registration no. Chassis no., Engine no., Date of purchase,
Kms. run, name of selling Distributor Dealer and your contact numbers.
Wishing You Happy Driving for Years.
International Business
BAJAJ AUTO LIMITED
Akurdi Pune - 411 035 India
1A. FOREWORD

3
1B. TO PROTECT ENVIRONMENT
BAL is committed to produce Bajaj Qute using environmentally sustainable technology. Many features have
been incorporated in this vehicle which have been designed to ensure environmental compatibility
throughout the life cycle of the vehicle. We would like to inform you that this vehicle meets emission norms
and this is being regularly validated at the manufacturing stages.
As a user you too can protect the environment by operating your vehicle in a proactive manner. A lot
depends on driving style and the way of maintenance of Vehicle. We have given few tips for your guidance
on Driving & Maintenance of vehicle in this manual.
To protect environment.....
ØGet vehicle checked for emission periodically.
ØSwitch off the engine during long stops at traffic jams or signals.
ØMonitor & maintain the fuel consumption regularly.
ØAvoid frequent and violent accelerations and braking.
ØAvoid using devices requiring high power consumption in slow city traffic condition.
ØShift to higher gears as soon as possible without overloading.
ØEnsure that recommended maintenance is carried out regularly.
ØAs soon as you see any leakages of oil, fuel or coolant, stop the vehicle & get the leakage checked &
rectified.
ØDo not pour used oils or coolants into the sewage drains, garden soil or open streams.

4
The Chassis and Engine serial numbers are used to register the vehicle. They are the only
means of identifying your particular vehicle from other vehicles of the same model and type.
1C. IDENTIFICATION DATA
Chassis Number Location -
On B pillar on Front RH door
Example: MD2A46CZ0EWH00000
Underlined digits are fixed
Engine Number Location
On Crankcase between head
& silencer
Example: BFZWHM00058
Underlined digits are fixed
MD2A46CZ0EWH00000
BFZWHM00058
*Accessories shown may not be a part of standard fitment.

Sr.No. Description NON EU EU
ENGINE
Bore/Stroke
Capacity
Compression Ratio
Engine Oil Capacity
Spark Plug
Central
Side
Idling Speed
Max. Engine Output
Max. Torque
Clutch
Transmission
Fuel Tank
Performance
Max. Speed
Max. Gradability
Four stroke, Twin spark-ignition, Single cylinder engine, liquid cooled
63.5 mm x 68.4 mm.
216.6 cm3
11:01
2.2 Litre (Green Engine)
CHAMPION RER6YCA
CHAMPION RG4HC
1400 ± 100 r/pm
9.9 Kw at 5500
19.6 Nm at 4000
Wet Multi-Disc Clutch
Constant Mesh Manual, 5 forward & 1 reverse
8 liters (nominal) Petrol
70 km/h, 5th Gear
20% (11.30 degree) in first gear
1.65 Litre (Without Oil Filter/1,000Kms Service)
1.8 Litre (With Oil Filter/Every 5,000Kms Service)
9.5 Kw at 5500
19.55 Nm at 4000
1
2
3
4
5
5
1D. TECHNICAL SPECIFICATIONS
BS IV
9.7 Kw at 5500
19.15 Nm at 4000

6
1D. TECHNICAL SPECIFICATIONS
Sr.No. Description NON EU EU
6
10
7
8
9
Suspension
Front
Rear
Steering
Brakes
Parking Brakes
Wheels and tyres
Front
Rear
Spare
Tyre pressure
Independent Suspension with Twin leading arm, coil over shock absorber & anti roll bar
Independent suspension with Semi trailing arm and coil over shock absorber
Manual ( Rack & Pinion)
Hydraulic with H-split.
135/70R12 (Radial Tubeless)
2.1 kg/cm2 (30psi)
Unladen -2.1 kg/cm2 (30psi),Laden-2.4 kg/cm2 (34psi)
2.4 kg/cm2 (34psi)
All Drum, Dia 180 mm.
Right Foot operated control
Front
Rear
Spare
Mechanical (cable operated)
Hand operated, Rear wheel
135/70R12 (Radial Tubeless)
135/70R12 (Radial Tubeless)
BS IV

7
1D. TECHNICAL SPECIFICATIONS
Sr.No. Description NON EU EU
12
13
14
Body
Weights (kg)
Unladen Mass
Gross vehicle weight
Seating capacity
System voltage
Horn
Wiper motor
Engine management
Head lamp
Tail/Stop lamp
749 Kgs
300 Kgs
12Volts, Single speed
16W each
5W Both side
3W
4, including driver
12VDC_DIA 82
Front /Rear Indicator lamp
Side indicator
Front position lamp
12 Volts DC -ve earth
12V, 26AH
ECU , Fuel injected
60 X 55W Hs1
Payload
Electrical systems
Battery
Cabin light
449 Kgs
Steel monocoque body made in high strength steel
446 Kgs
746 Kgs
5/21W
10W (Passenger & Engine cabin's)
11
BS IV
464 Kgs
764 Kgs

Sr.No. Description CNG LPG
Compression Ratio
Kerb weight*
(without Tanks and Fuel for
Gaseous Fuel Vehicles)
Max. Engine Output
Max. Torque
Max. Gradability
10.7:1
35 Lit. (Water Capicity)
8.08 Kw at 5500 rpm
16.1 Nm at 4000 rpm
17.8%(10.1 degree) in 1st gear
8.72 Kw at 5500 rpm
17.1 Nm at 4000 rpm
15
1D. TECHNICAL SPECIFICATIONS
8
12:1
Fuel Tank (water capacity) 20.6 Lit. (Water Capicity)
Gross vehicle weight* 807.5 kgs 783.6 kgs
458.5 kgs 457.6 kgs
20%(11.30 degree) in 1st gear
*Specification mentioned may vary based on country requirement.

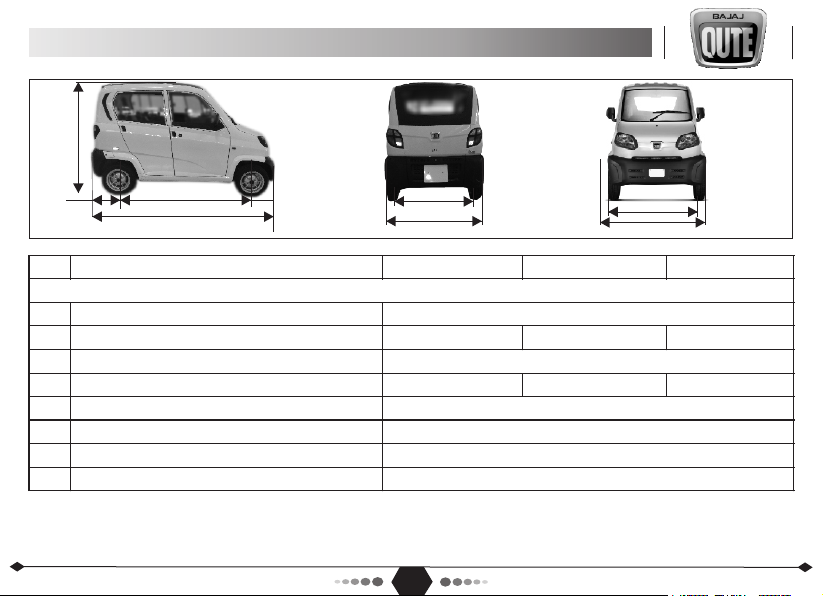

Discription
S.No.
Main chassis dimensions (In mm)
Overall height (Unladen)
Overall length
Wheel Base
Rear overhang
Overall Width
Wheel track
Lowest Hard Point from flat surface
Turning circle radius
a
b
c
d
e
f
g
h
Non EU
2752
440
9
1D. TECHNICAL SPECIFICATIONS
a
b
dc
e
ff
e
*Accessories shown may not be a part of standard fitment.
2752
440
BS IVEU
1652
1925
1312
1143
180 mm - Unladen
3.5 meters
2796
469

10
2A. Doors Operation
2A-1. Main doors......................................................11
2A-2. Engine bay cover & Fuel filling flap.................12
2B. Storage space
2B-1. Luggage storage space...................................13
2B-2. Utility storage space........................................14
2C. Weather protection.....................................................15
2D. Mirrors.......................................................................16
2E. Seats:
2E-1. Front seats......................................................17
2E-2. Rear seats (Foldable 60:40)............................18
2E-3. Seat belts........................................................20
2F. Siding Glass Windows..............................................22
2G. Engine Cabin parts.....................................................23
2H. Cylinder & Refueling (LPG)........................................24
2I. Cylinder & Refueling (CNG).........................................26
2. PART LOCATIONS

11
MANUAL DOOR & LOCKS
• All 4 doors can be opened from inside/outside by pulling the door latch as shown in Figure: a.
• All the doors can also be locked or unlocked independently from inside by rotating the knob in
anticlockwise and clockwise as shown in Figure: c and d.
• To lock/unlock driver side door, insert the key and rotate it clockwise or anticlockwise respectively for LHD
vehicles.
• To lock/unlock driver side door, insert the key and rotate it anticlockwise or clockwise respectively for
RHD vehicles.
Warning:
- Ensure rotary knobs are in position during vehicle running.
- During vehicle movement, Passengers(especially children) can accidently open the doors which can
be dangerous. hence it is suggested that all passengers wear seat belts properly & also ensure door is
locked while vehicle is driven.
abcc d
2A-1. MAIN DOORS:
*Accessories shown may not be a part of standard fitment.

12

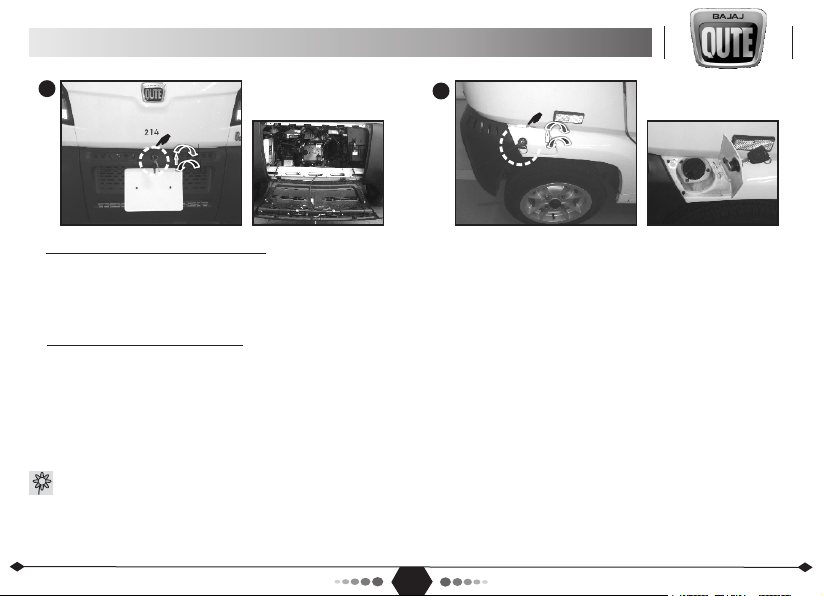

2A-2. ENGINE BAY COVER & FUEL FILLING FLAP
a. Engine bay cover with lock :
Engine is mounted in engine bay at the rear of the vehicle underneath rear passenger seat. An engine bay
cover with locking provision is provided to cover the engine.
To access engine, open engine bay cover. To unlock or lock the bay cover, insert key & rotate it clockwise
or anticlockwise respectively
b. Fuel filling flap with lock:
Fuel Tank is mounted on rear RH side inside the engine cabin, A provision is made for fuel filling at rear RH
side of vehicle. It is covered by flap with lock. For filling fuel in tank, unlock & open the flap.
To unlock or lock the flap, insert key & rotate it clockwise or anticlockwise respectively.
Remove the fuel cap by rotating it in anti- clockwise direction.
After filling the fuel in tank fit the fuel cap by rotating it in clockwise direction.
Warning:
- Ensure that fuel cap is fitted properly.
- Do not allow fuel to enter ground water, the soil or the sewage system.
ab
*Accessories shown may not be a part of standard fitment.

13
2B-1. LUGGAGE STORAGE SPACE:
a. Luggage carrier:
It is located on the roof of the vehicle. The load carrying capacity is 30 kg max.
Danger:
Never carry objects longer or wider than your roof carrier.
b. Front luggage box:
The front luggage box is located underneath the front hood. The load carrying capacity is 20 kg max.
Use key to unlock the front bonnet. To Unlock or lock the front bonnet, insert key and rotate it
clockwise or anticlockwise respectively.
c. Utility pockets (Accessory):
Utility pockets are provided on all the doors which can be used to keep magazines, books, etc.
abc
*Accessories shown may not be a part of standard fitment.

14
2B-2. UTILITY STORAGE SPACE:
bc
a. Utility storage:
A small storage area is below front seat (fig.a) & more storage area behind rear seat (fig.b). Additional
storage space can created by folding rear seat (60:40) as per requirement
b. Glove box LH:
It is located on LH side of dashboard.
c. Glove box RH:
It is located on RH side of dashboard.
Danger :
- Do not place over size or large objects in glove box as it can interfere with the steering wheel
movement.
- Do not carry / store inflammable liquids in any of the utility / luggage storage spaces.
ad
*Accessories shown may not be a part of standard fitment.

15
2C. WEATHER PROTECTION
a. Rear Windshield:
Rear Windshield is at rear end of vehicle. It is having a fixed toughened transparent glass for
clear visibility, safety of the Occupants and weather protection.
b. Front Windshield:
Large Windshield is provided at front of vehicle. It is laminated for safety and good visibility.
Warning:
Do not use cleaning solvents like Gasoline, Kerosene, Paint Thinners or Silicone-based
chemicals on front windshield or rear wind shield as it can result in impaired visibility.
ab
*Accessories shown may not be a part of standard fitment.

16
Mirrors:
a. IRVM-
Inner rear view mirror is provided inside the cabin and fitted to windshield.
It can be manually adjusted to suit Driver’s convenience.
Warning:
Angling the IRVM to reduce rear vehicle headlamp glare will hamper rear visibility.
b. ORVM-
Outside rear view mirror is fitted onto the doors. These can be adjusted manually to suit Driver’s
convenience.
Note:
Objects in the mirror are closer than they appear.
Warning:
IRVM should be adjusted only when the vehicle is stationary and before commencement of drive.
ab
2D. MIRRORS
*Accessories shown may not be a part of standard fitment.

17
a. Front seats:
Two front seats are provided, Driver Seat & Co- driver seat. Driver seat is adjustable in forward
& backward directions.
b. Moving the Driver seat forward & backward:
To adjust the driver seat position, lift the track lever (1) under the front driver seat cushion, then
slide the seat (forward/backward) to the desired position. Once the desired position is achieved
release the track lever to lock the seat. Make sure the seat is locked in its position by further
trying to move the seat. If the seat does not move, it indicates seat is locked.
Danger:
Driver seat should be adjusted only when the vehicle is stationary and before
commencement of drive.
(1)
ab
2E-1. FRONT SEATS
*Accessories shown may not be a part of standard fitment.
