Foreword
Welcome to the growing group of value–conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Customer Assistance Center Toll–free:1–800–331–4331
CANADIAN OWNERS: Toyota Canada Customer Interaction Centre Toll–free:1–888–TOYOTA–8 (1–888–869–6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

02MY MR2 SMT(U) L/O 0108
vii 2002 MR2 (OM17493U)
Important information about your Toyota
Newvehiclewarranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner’s Manual
Supplement”.
Yourresponsibilityformaintenance
It is the owner’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Scheduled
Maintenance Guide” or “Owner’s Manual Supplement”.
Accessories,sparepartsand
modificationofyourToyota
A wide variety of non- genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non- genuine
Toyota products. Modification with non- genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

02MY MR2 SMT(U) L/O 0108
viii 2002 MR2 (OM17493U)
Installationofamobile
two- wayradiosystem
As the installation of a mobile two-way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti- lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
ScrappingofyourToyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.

02MY MR2 SMT(U) L/O 0108
ix 2002 MR2 (OM17493U)
Sequentialmanualtransmission
drivingtips
(ModelsequippedwithSequentialManual
Transmissiononly)
The sequential manual transmission is a 5- speed forward/
reverse transmission. With the basics of the traditional
manual transmission, the clutch operation and transmission
shifting is controlled electronically. Unlike automatic trans-
missions, this system does not upshift automatically at the
time of acceleration.
To understand the unique system and operation method of
the sequential manual transmission, read Section 1- 6 on
page 77 thoroughly before driving. For starting procedures,
see “How to start the engine— ” on page 140 in Section 3.
Please refer to the “Important Information For Your
Sequential Manual Transmission” equipped in your vehicle
as well.

02MY MR2 SMT(U) L/O 0108
x2002 MR2 (OM17493U)

02MY MR2 SMT(U) L/O 0108
ii 2002 MR2 (OM17493U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not”; “Do
not do this”; or “Do not let this
happen”.

02MY MR2 SMT(U) L/O 0108
2002 MR2 (OM17493U)
Publication No. OM17493U
Part No. 01999-17493
Printed in Japan 01–0108–00 C
MR2( U)
Quick index
If a service reminder indicator or warning buzzer comes on 70. . . . . . . . . . .
If your vehicle will not start 148. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 151. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 153. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 161. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break–in period 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 140. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 177. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index NO TAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type:
1ZZ–FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
See page 125 for detailed information.
Fuel tank capacity:
48 L (12.7 gal., 10.6 lmp. gal.)
Engine oil:
API grade SJ “Energy–Conserving”, SL “Energy–Conserving” or ILSAC
multigrade engine oil is recommended.
See page 190 for detailed information.
Tire information: See pages 194 through 199.
Tire pressure: See page 220.
U−4

02 MY MR2 SMT(U) L/O 0108
1
01 03 28
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 1

02 MY MR2 SMT(U) L/O 0108
2
01 03 28

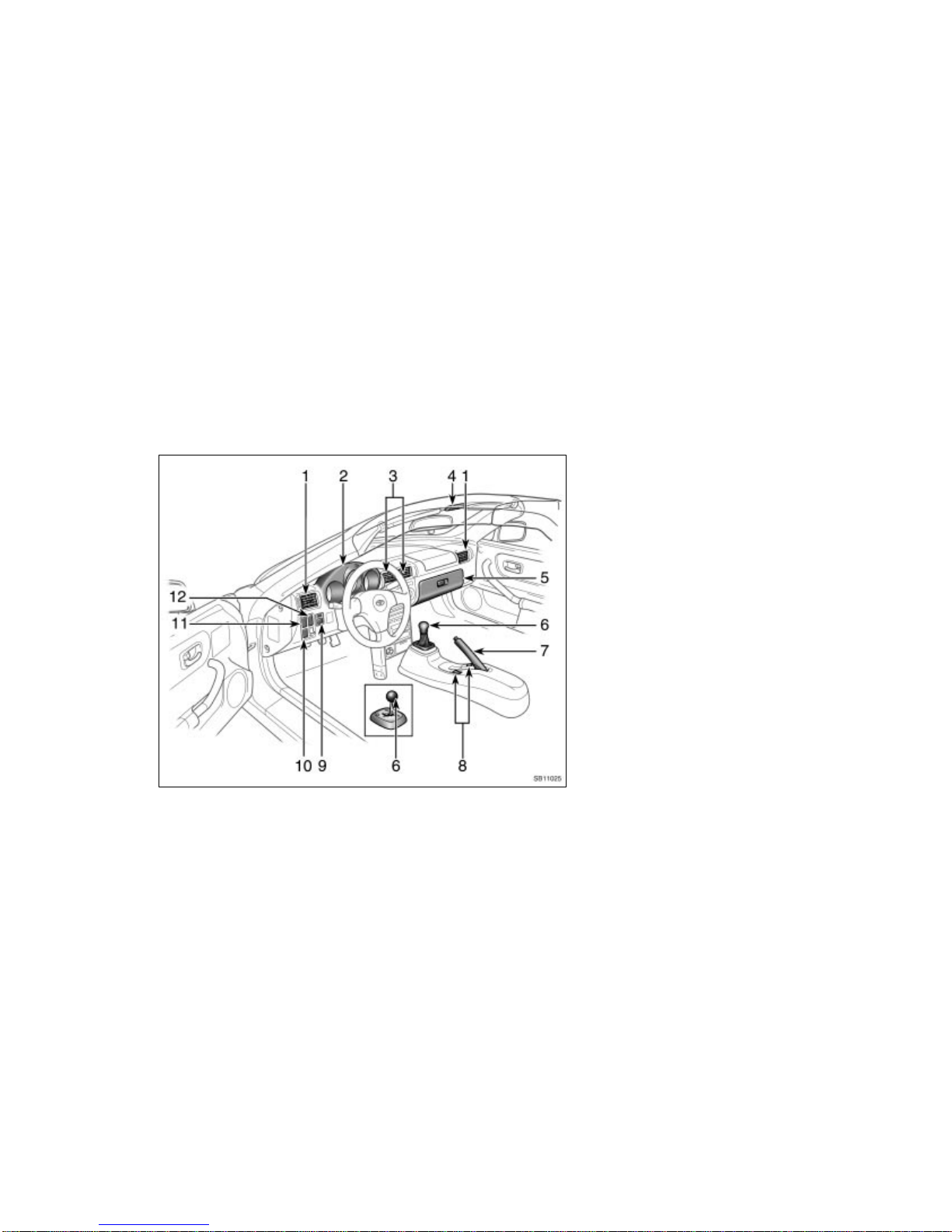

Instrument panel overview 1. Side vents
2. Instrument cluster
3. Center vents
4. Interior light
5. Glove box
6. Manual transmission gear shift lever or
sequential manual transmission selector
lever
7. Parking brake lever
8. Power window switches
9. Power rear view mirror control switches
10. Instrument panel light control switch
11. Power door lock switch
12. Power window lock switch
SB11025

02 MY MR2 SMT(U) L/O 0108
3
01 03 28
1. Headlight and turn signal switch
2. Transmission shift switches
(with sequential manual transmission,
on some models)
3. Wiper and washer switches
4. Clock
5. Rear window defogger switch
6. Emergency flasher switch
7. Auxiliary box
8. Engine immobiliser system indicator
light
9. Air conditioning controls
10. Car audio
11. Cup holders
12. Ashtray
13. Cigarette lighter
14. Cruise control switch
(sequential manual transmission)
15. Ignition switch
16. Tilt steering lock release lever
SB11022

02 MY MR2 SMT(U) L/O 0108
4
01 03 28

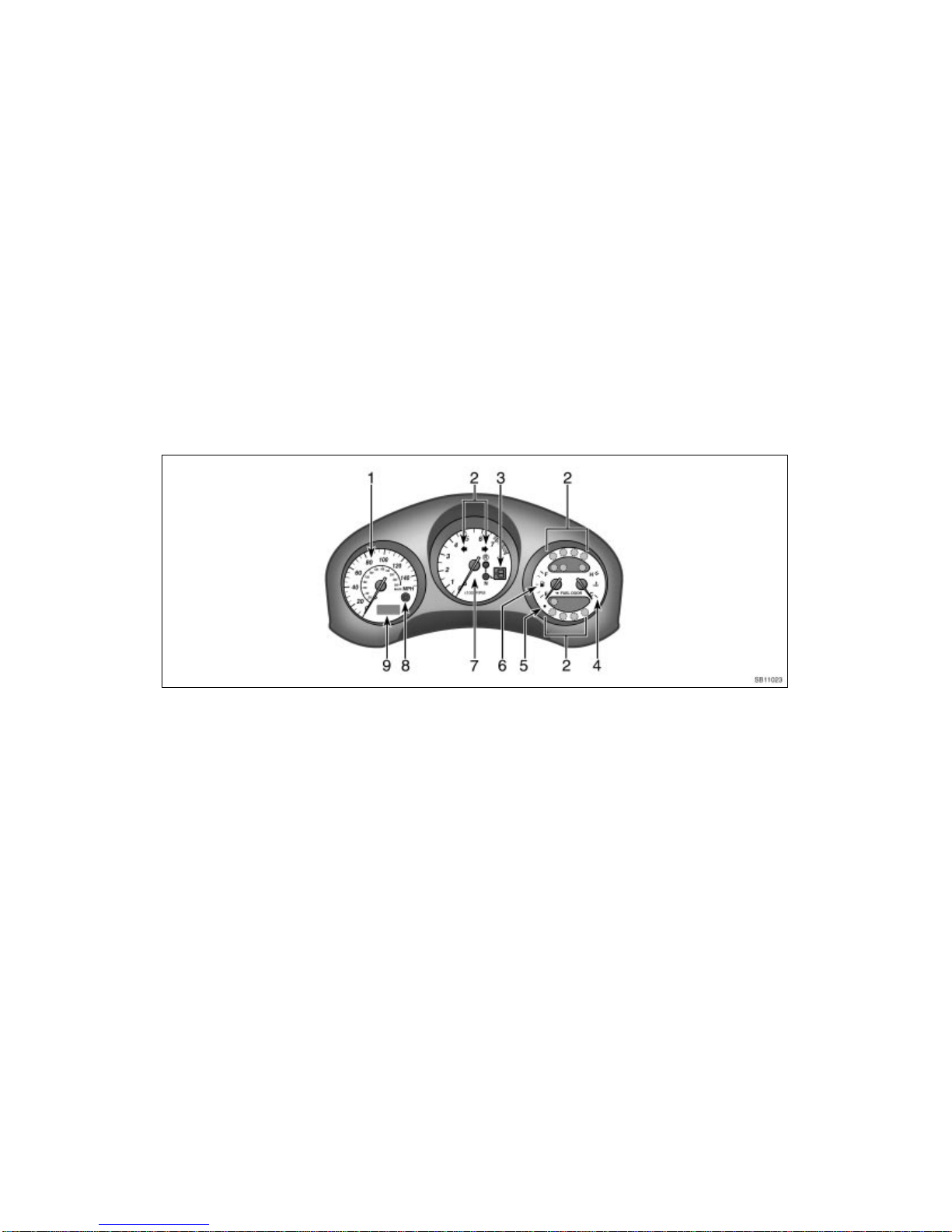

Instrument cluster overview
SB11023
1. Speedometer
2. Service reminder indicators and indica-
tor lights
3. Gear position indicators
(sequential manual transmission)
4. Engine coolant temperature gauge
5. Low fuel level warning light
6. Fuel gauge
7. Tachometer
8. Trip meter reset knob
9. Odometer and two trip meters

02 MY MR2 SMT(U) L/O 0108
5
01 03 28

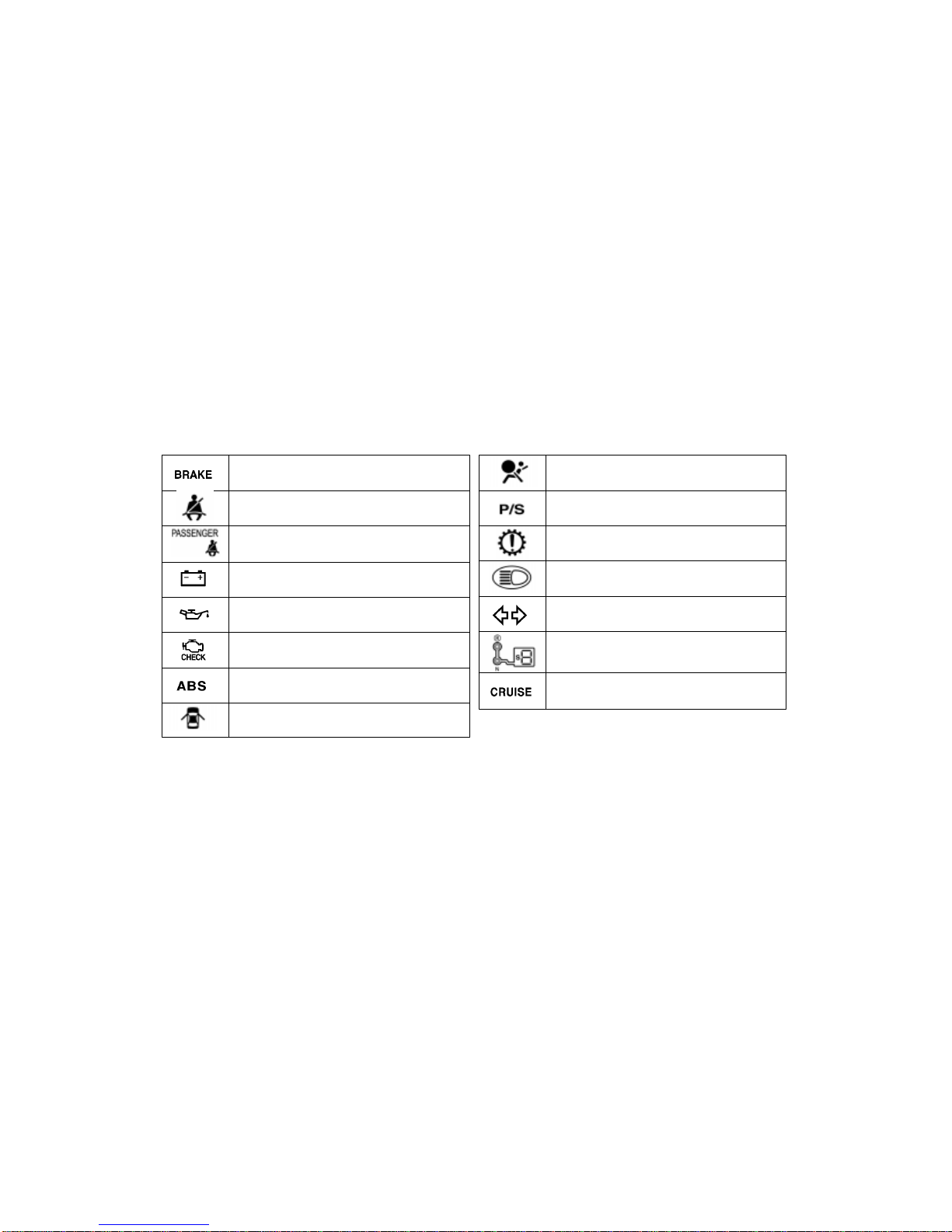

Indicator symbols on the instrument panel
SRS warning light∗1 Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Anti–lock brake system warning light∗1
Driver’s seat belt reminder light∗1
Headlight high beam indicator light
Turn signal indicator lights
Power steering system warning light∗1
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 70 in Section 1–5.
∗2: If this light flashes, see “Sequential manual transmission” on
page 77 in Section 1–6.
∗3: If this light flashes, see “Cruise control” on page 90 in Sec-
tion 1–6.
Passenger’s seat belt reminder light∗1Sequential manual transmission warning light∗1
Cruise control indicator light∗3
Open door warning light∗1
Gear position indicator light∗2

02 MY MR2 SMT(U) L/O 0108
6
01 03 28

02 MY MR2 SMT(U) L/O 0108
7
01 03 29
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine hood 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft top 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 2

02 MY MR2 SMT(U) L/O 0108
8
01 03 29
Keys
SB12039

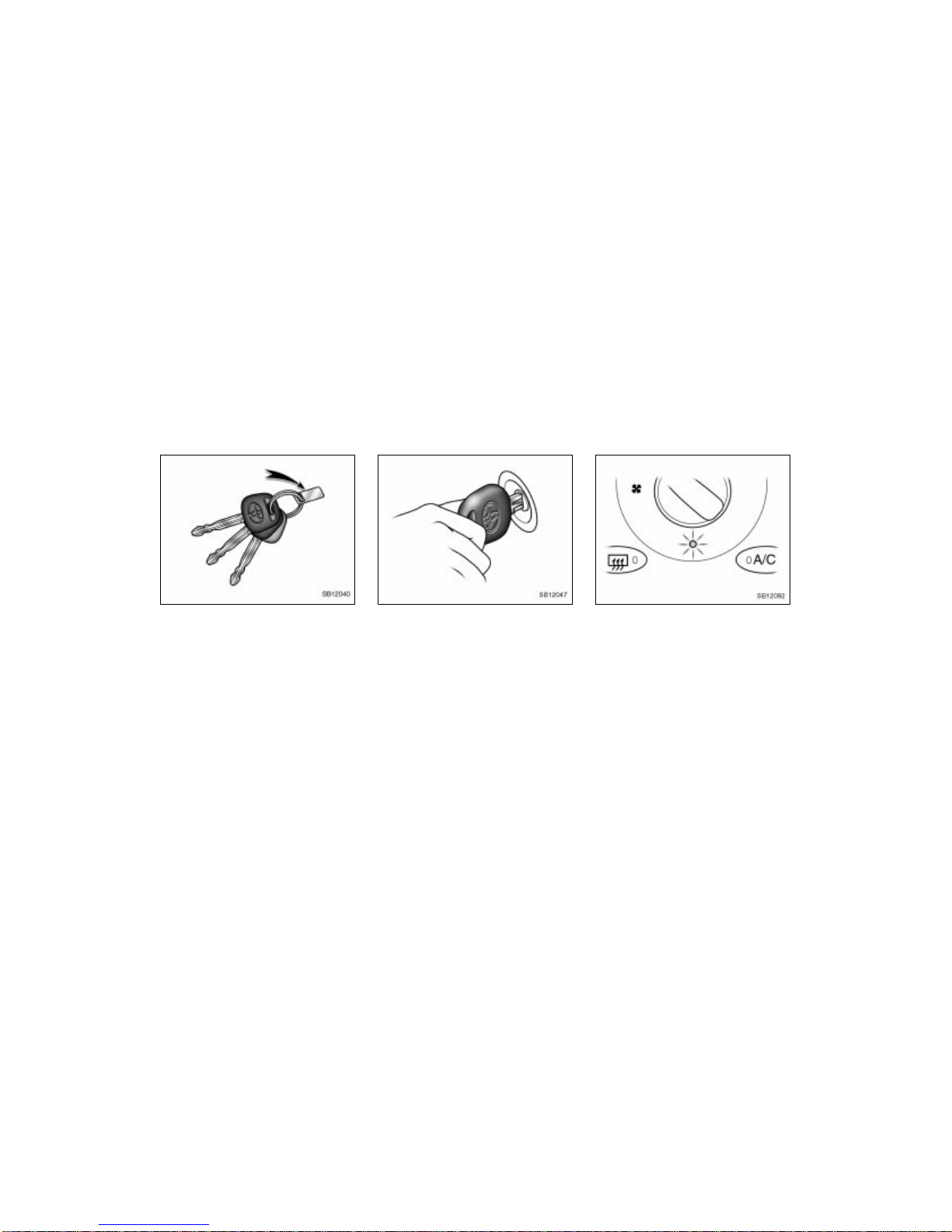

Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built–in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box and luggage space.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
or luggage space when you have your
vehicle parked, leave the sub key with the
attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
SY12001
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

02 MY MR2 SMT(U) L/O 0108
9
01 03 29
SY12002a
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
SY12003
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.

02 MY MR2 SMT(U) L/O 0108
10
01 03 29
SB12040
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend to write down the key
number and keep it in safe place.
Engine immobiliser system
SB12047
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
SB12092
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.

02 MY MR2 SMT(U) L/O 0108
11
01 03 29
For your Toyota dealer to make you a
new key with built–in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
For vehicles sold in U.S.A.
FCC ID: MOZ RI–8FTY
MADE IN. JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Side doors
SB12041
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Both the doors lock and unlock simulta-
neously with either side door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock both the doors simulta-
neously.

02 MY MR2 SMT(U) L/O 0108
12
01 03 29
SB12035
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The doors cannot be locked if you leave
the key in the ignition switch.
SB12080
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the “LOCK”
side.
To unlock: Push the switch on the
“UNLOCK” side.
Both the doors lock or unlock simulta-
neously.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

02 MY MR2 SMT(U) L/O 0108
13
01 03 29
Power windows
SB12049
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
SB12050
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
SB12090
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
