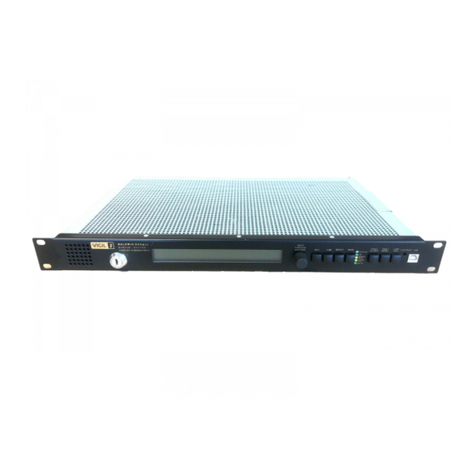

Baldwin Boxall VIGIL2 BVRD2M Installation and user guide

HTG Ref: 025
Product Range: VIGIL2
Product Code (if applicable): BVRD2M
Description of activity: View DVA message file name on a router
Description of likely fault(s): Not related to a fault condition
Author: Oliver Smith
Approved by: Tom Holder
Date: 30/11/17
HOW TO:
View DVA message file name on a BVRD2M EVAS router
Description of rectification works:
Important Notes:
To carry out this activity, the existing fault log data will need to be deleted.
Entering the passcode 5555 initiates the system config edit section of the software. Changes made will likely
effect system operation. It is not recommended for end users to change configuration.
If at any point you wish to return to the beginning of the process and start again simply turn the key to the left
to exit to the home screen.
1. To view a DVA message file name on a BVRD2M router go to the front of the router.
2. Turn key to the right.
3. Press the Encoder in once to access the 0000 passcode section.
4. Enter passcode 5555 by rotating the Encoder (press the encoder to enter each number).
5. Go to EVENT LOG using left and right arrows and press select.
6. Go to DEL FAULT LOG using left and right arrows and press select.
7. On FAULT/SERVICE press select.
8. The display will show ENTRY 001 LOADED on the top line and the file name underneath (this is the message file name
detail).
9. Scroll through using left/right buttons for additional message details.
10. Once finished turn key to the left to come out of configuration mode.
IMPORTANT - this product forms part of a life-safety system
Please Note: Periodic inspection and servicing needs to be carried out by a competent person with specialist knowledge of
VASs, relevant current training and experience, and with adequate access to spares and sufficient information regarding
the system. (BS5839-8).

Baldwin Boxall Communications Ltd
Wealden Industrial Estate, Farningham Road,
Crowborough, East Sussex, TN6 2JR, United Kingdom
T: [phone] F: [phone]
E: [email protected]
W: www.baldwinboxall.co.uk
WE RESERVE THE RIGHT TO CHANGE THE TECHNICAL SPECIFICATION WITHOUT PRIOR NOTICE. DOC NO: HTG 025 09/19
