D-Link DIR-506L User manual

Quick Installation Guide
DIR-506L
Pocket Cloud Router
Version 1.20 | August 23, 2012
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
Petunjuk Pemasangan Cepat

DIR-506L
2
ENGLISH
Package Contents

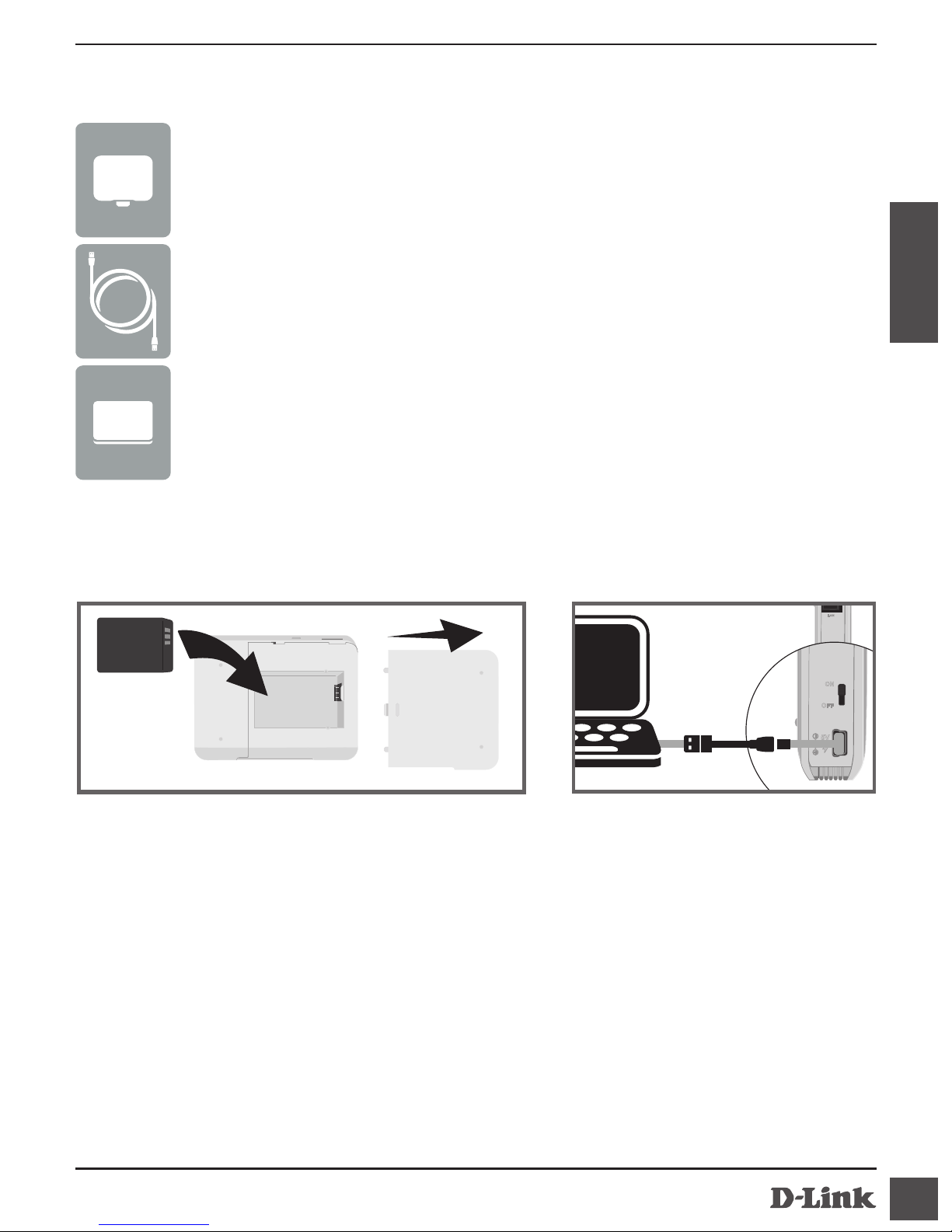

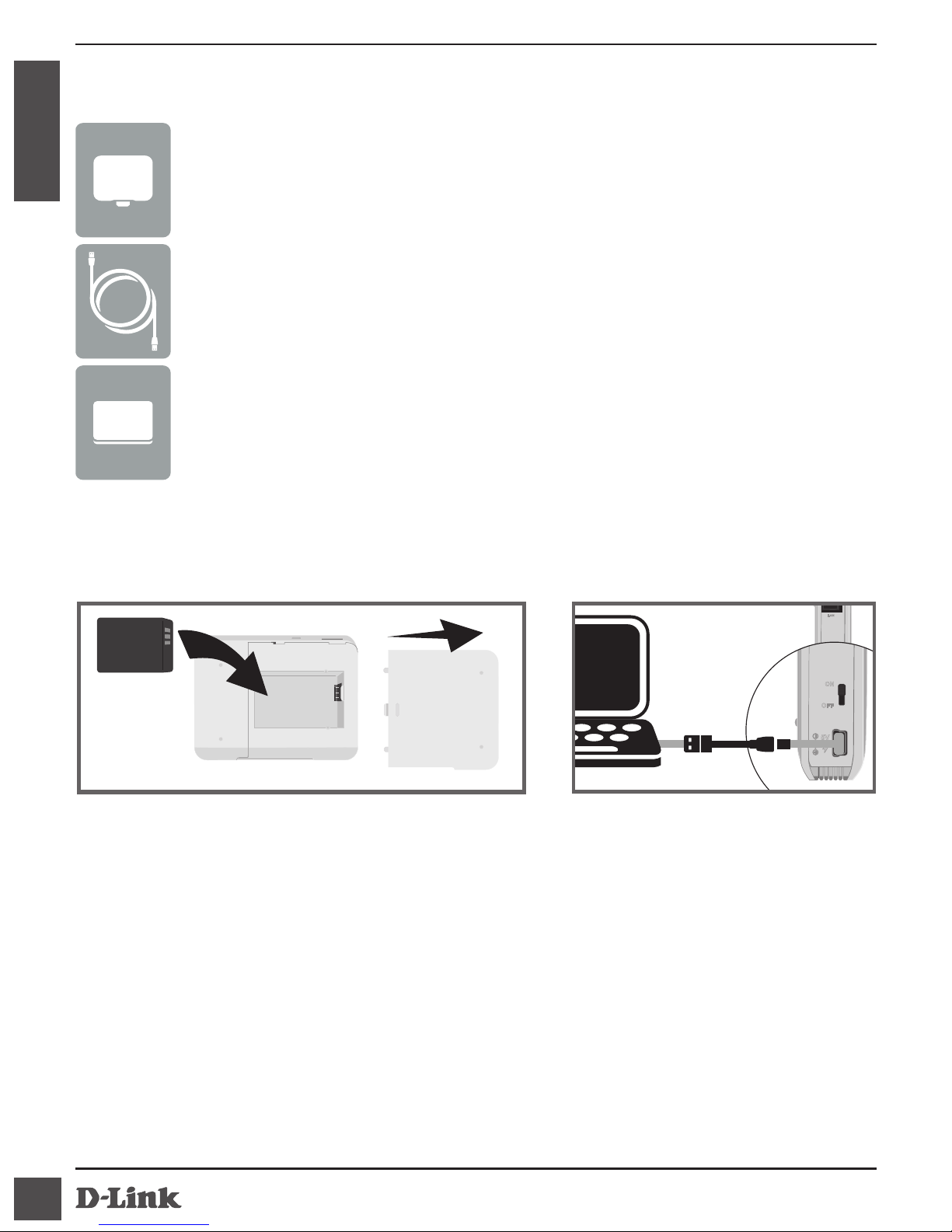

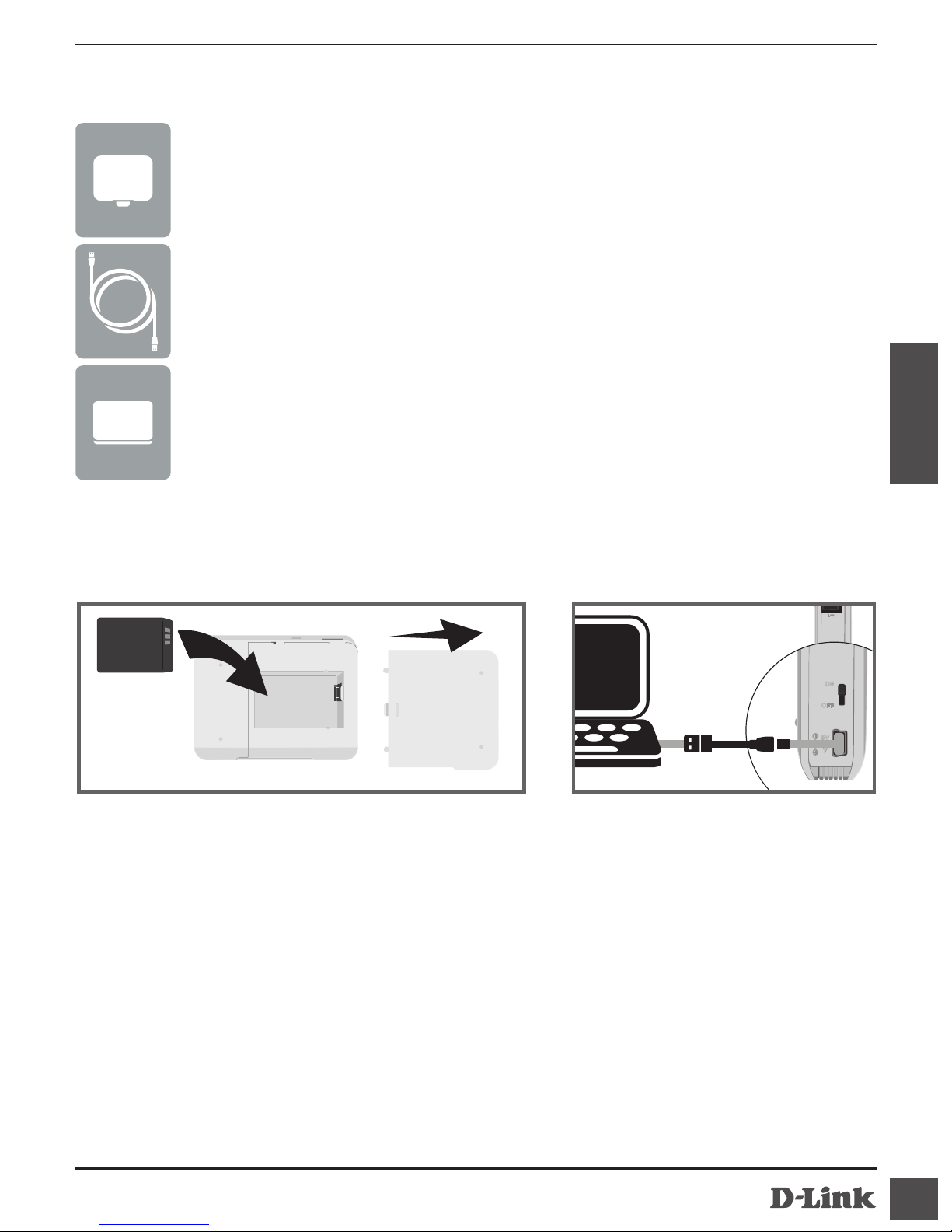

1. The battery must be installed for the device to operate. Slide o
the cover and insert the battery. Make sure the gold contacts
align with the gold terminals. Slide the cover back on.
2. Connect the USB cable to the DIR-506L and then connect to a
USB port on your computer.
Note: Charge the device using the USB cable for at least 4 hours or
until it is fully charged before usage.
LAN
ON
OFF
5V
LAN
ON
OFF
5V
+
-
Insert and Charge the Battery
USB Cable (for power and charging battery only)
Rechargeable Battery
Pocket Cloud Router

3
DIR-506L
ENGLISH
SharePort Mobile - Sharing Made Easy
Stream movies, music, photos, and documents from a USB drive
plugged into the DIR-506L right to your iPhone, iPad, or Android
device, or to a PC; you don’t even need to be connected to the
Internet!
SharePort Mobile transforms any USB drive into your own personal
shared le space that you can access with all your devices.
Supported File Formats for iOS and Android:
• Video: .mp4, .mov
• Music: .mp3, .wav
• Image: .bmp, .gif, .jpg, .png
•
Document: .doc, .xls, .ppt, .pdf, .pages, .numbers, .key, .txt, .html, .ref
Download the SharePort Mobile App
Use a barcode scanner app such as Bakodo or RedLaser on your iOS
or Android device to scan the corresponding code for your device
below. If you do not have a scanning app, just search for SharePort
Mobile in the App Store or Google Play. Please make sure you have a
working Internet connection before downloading the app.

DIR-506L
4
ENGLISH

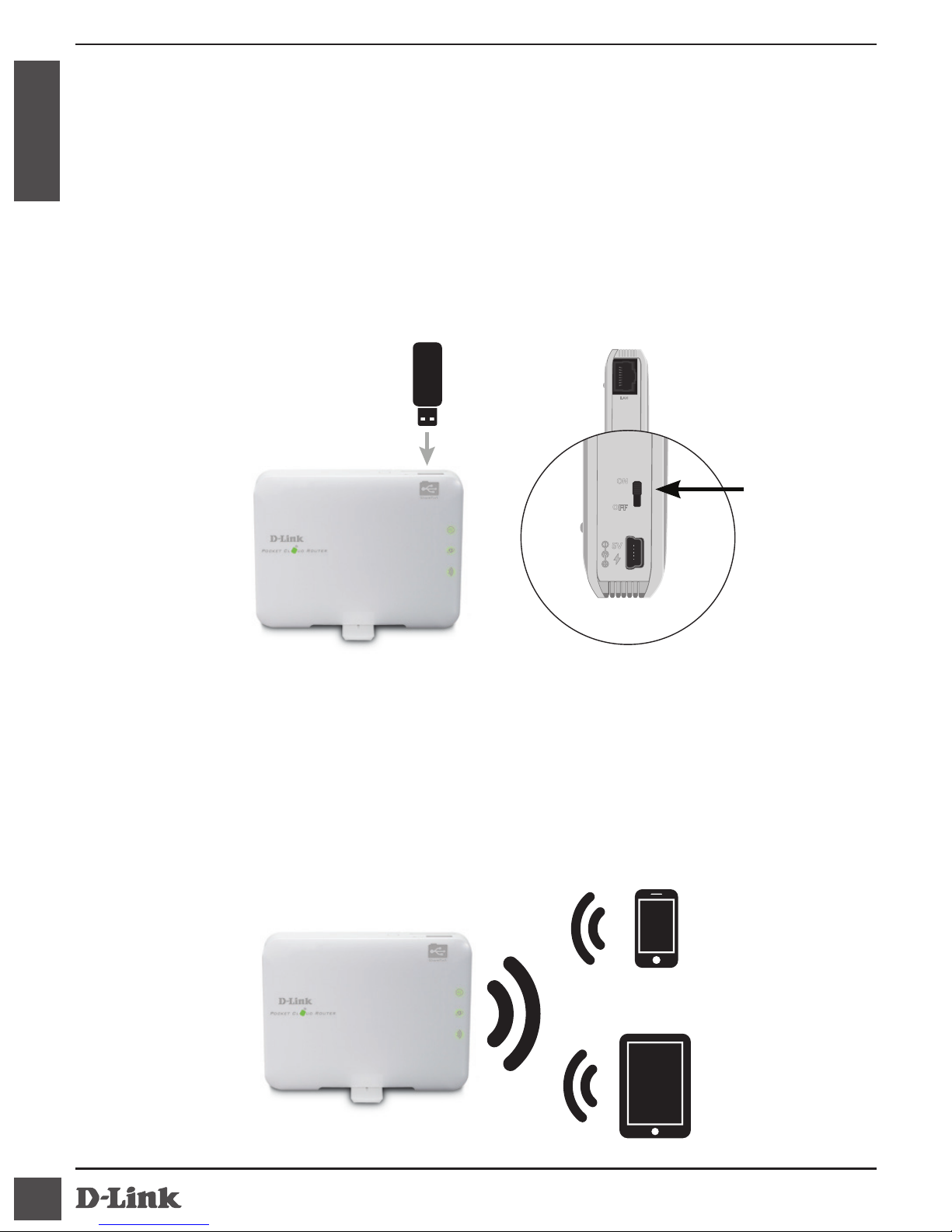

Plug In a USB Flash Drive and Turn On
the DIR-506L

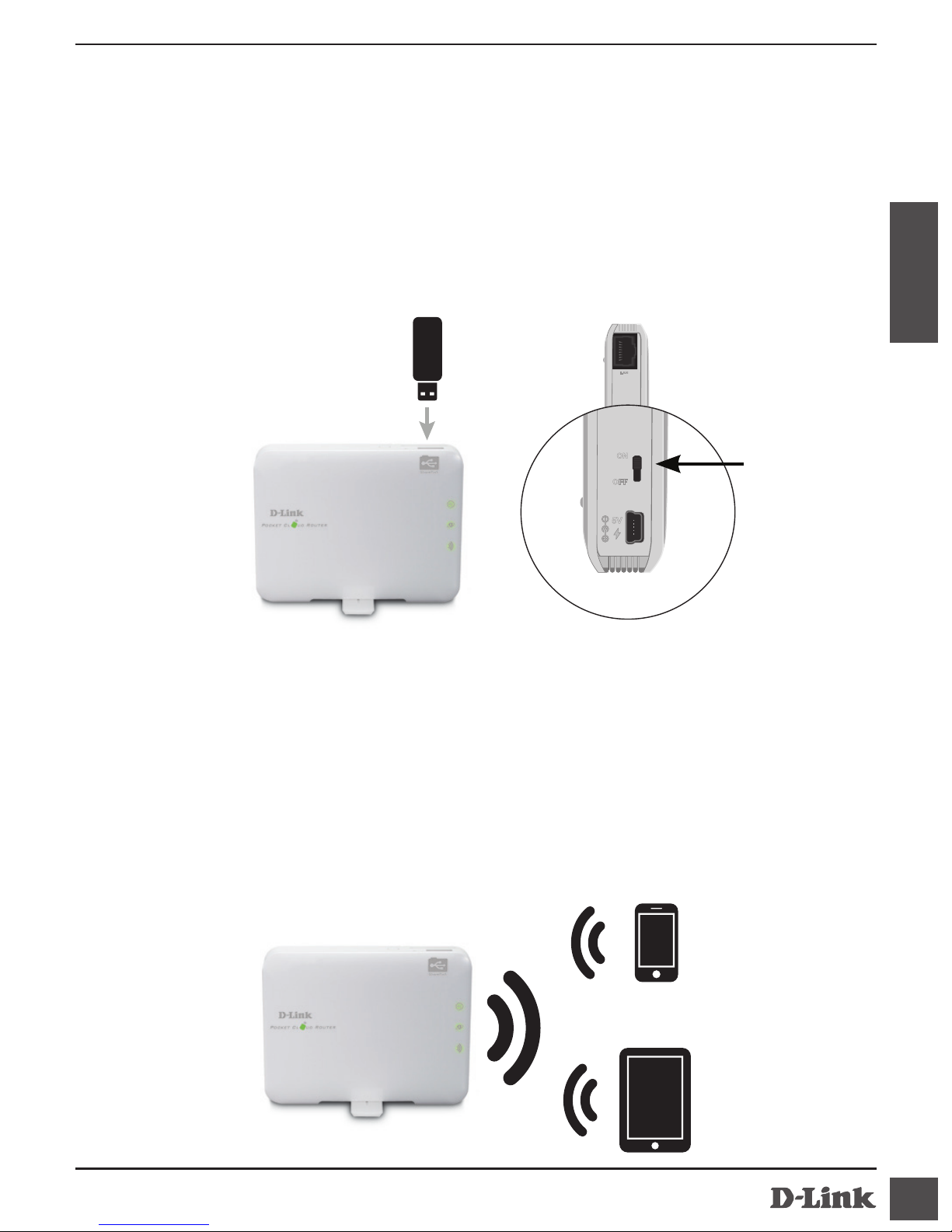

Insert your USB drive into the USB port on the DIR-506L. Slide the
power switch to the ON position and wait until the power, USB, and
wireless LEDs turn green. Please allow 3-4 minutes for the boot-up
process to complete.
Connect to the DIR-506L Wirelessly
Use the following information to connect to your DIR-506L wirelessly:
• Default WiFi SSID: dlink_DIR-506L
• Default Password: (leave this blank)
LAN
ON
OFF
5V
ON
OFF
5V

5
DIR-506L
ENGLISH

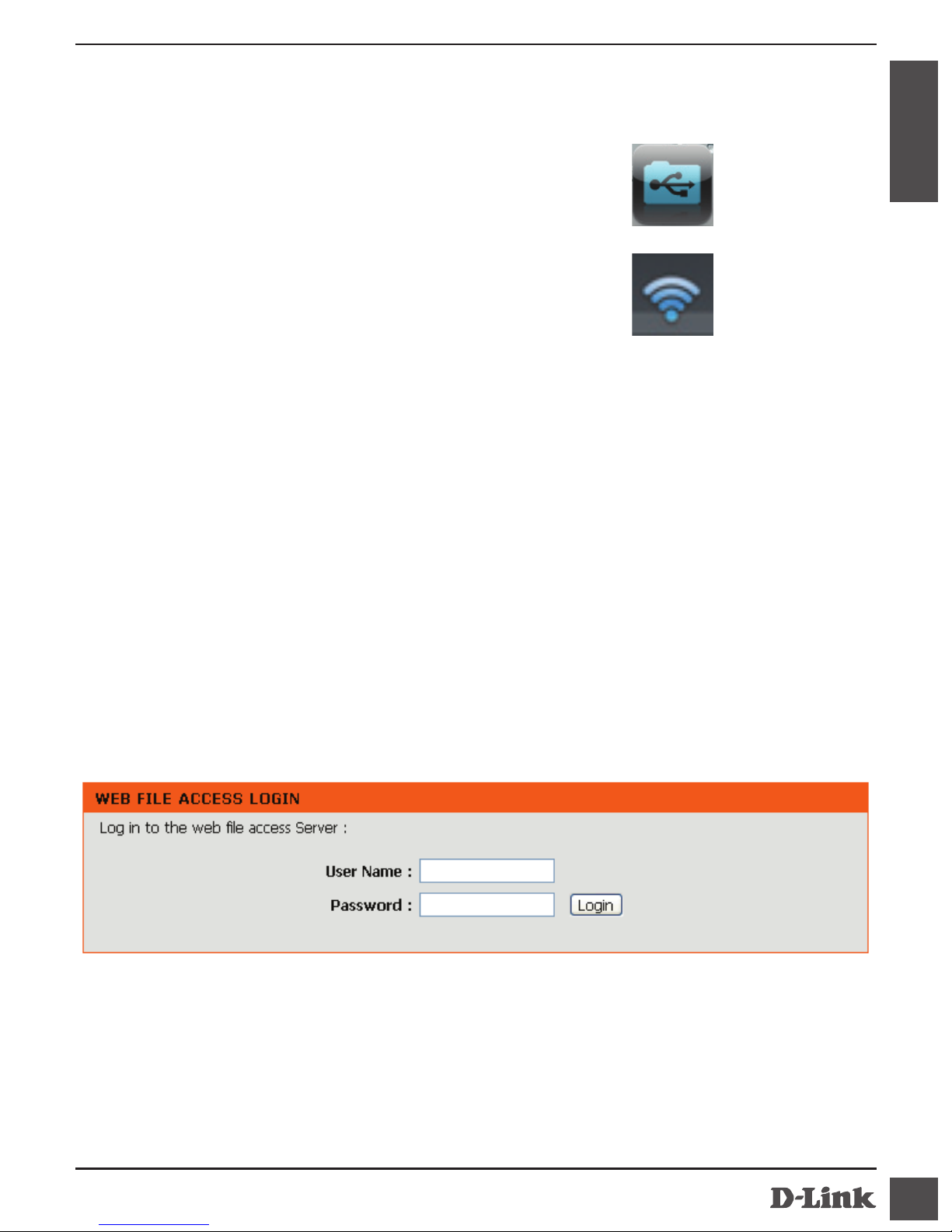

Using The SharePort Mobile App
1. Open the SharePort Mobile app.
2. Make sure the Wireless icon at the
bottom of the screen is blue, then
you’re ready to use SharePort Mobile!
If you set the device password for the DIR-506L, or if you want to use
a specic user account, tap on the gear icon in the top right corner of
the screen to open the settings page, then tap Edit to enter your User
Name and Password. By default, the User Name is admin, and the
Password should be left blank. When you’re nished, tap Done.

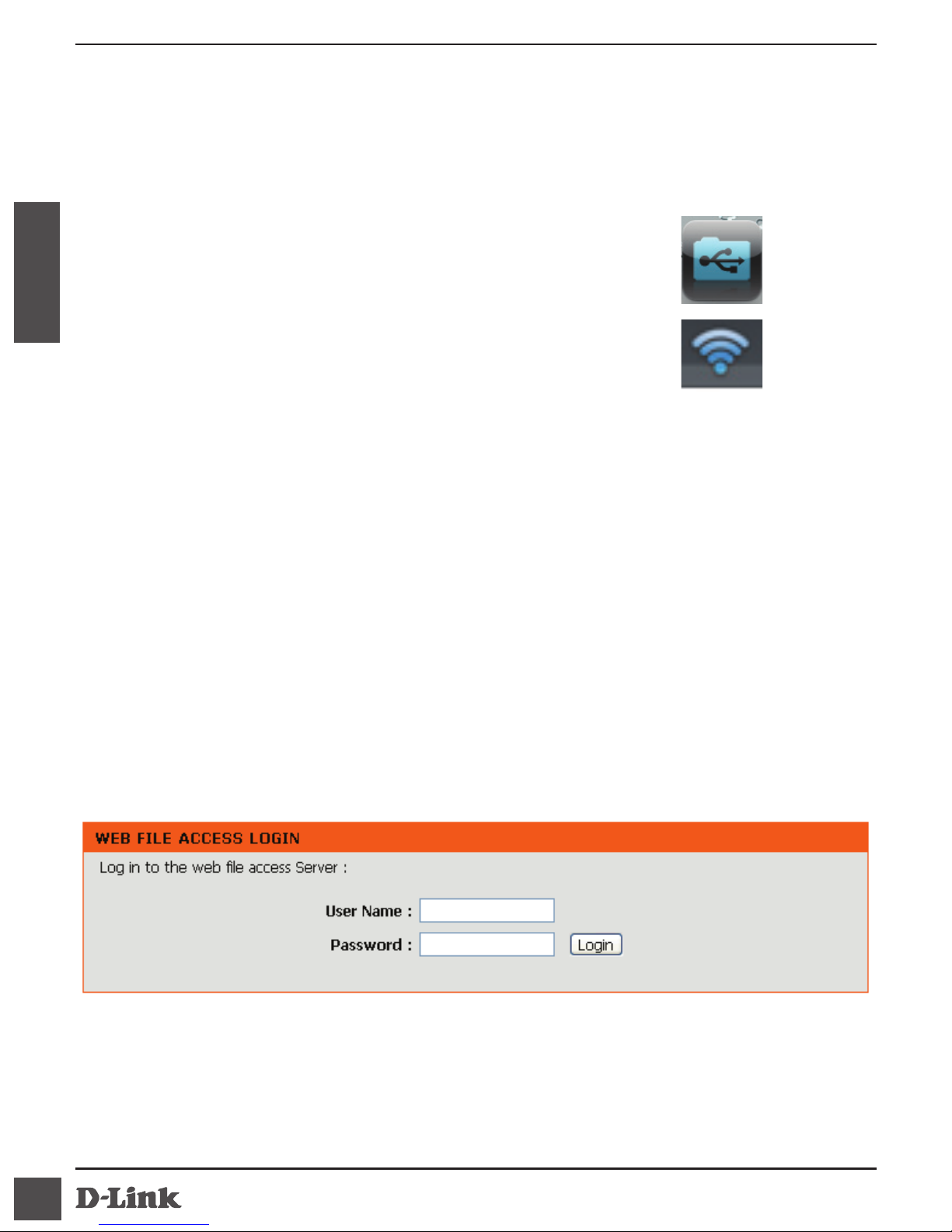

Using a PC with SharePort Mobile
You can use a PC to access les on a USB drive plugged into the DIR-506L
by opening a web browser and going to http://dlinkrouter.local:8181
By default, the User Name is admin, and the Password should be left
blank. When you’re nished, tap Done.
If you want to use a specic user account, enter your User Name and
Password for that account.

DIR-506L
6
ENGLISH
Getting Connected to the Internet

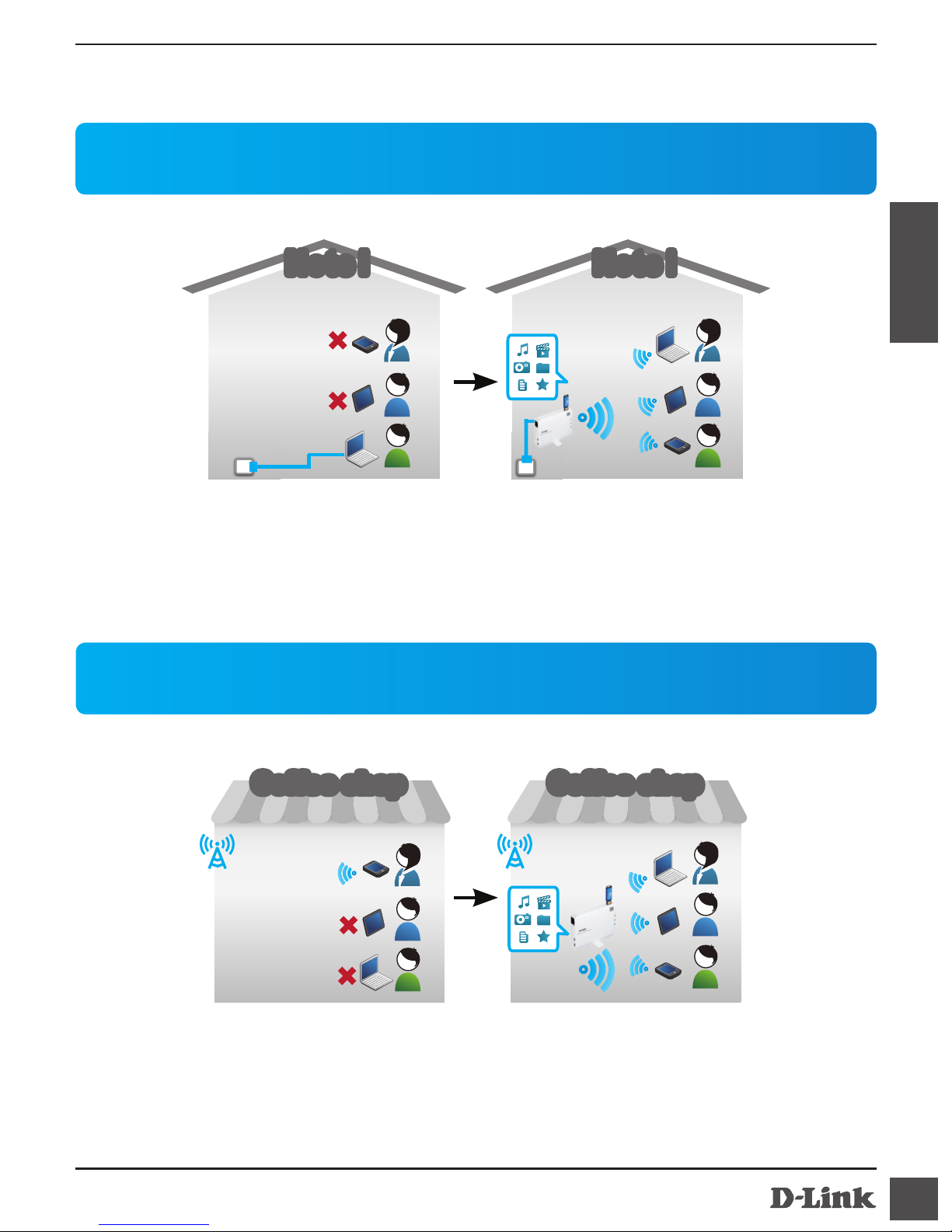

Whether you’re at home or at a hotel, the Pocket Cloud Router makes
it easy to share your Internet connection with all your devices. Just
plug your modem or Internet connection cable into the Ethernet port
on the Pocket Cloud Router to share your connection wirelessly.
Wireless Router Mode
Share a wired Internet connection
At a café or at the airport, you can share access to a wireless hotspot
with all your friends and devices with the Pocket Cloud Router’s WiFi
Hotspot Mode. The Pocket Cloud Router connects to the hotspot, then
shares access through a private wireless network you control.
WiFi Hotspot Mode
Share a hotspot connection with friends
Hote lHote l
Hote lHote l
Coffee shopCoffee shop Coffee shopCoffee shop
WIFLY
Hinet
WIFLY
Hinet
TPE-Free TPE-Free

7
DIR-506L
ENGLISH
Connection Setup with QRS Mobile
If you wish to use Wireless Router Mode, you can congure your
DIR-506L with the handy QRS Mobile app for iOS and Android mobile
devices.
Use a barcode scanner app such as Bakodo or RedLaser on your iOS
or Android device to scan the corresponding code for your device
below. If you do not have a scanning app, just search for QRS Mobile
in the App Store or Google Play. Please make sure you have a working
Internet connection before downloading the app.
After downloading the app, connect to the DIR-506L wirelessly
using the following information:
• Default WiFi SSID: dlink_DIR-506L
• Default Password: (leave this blank)
You can now open the QRS Mobile app and follow the on-screen
instructions to congure your DIR-506L.

DIR-506L
8
ENGLISH
Connection Setup Through a Browser
You can use a web browser on your PC or mobile device to
congure your DIR-506L for Wireless Router and WiFi Hotspot mode,
as well as all of the other modes and settings.
1. Connect to the DIR-506L wirelessly using the following
information:
• Default WiFi SSID: dlink_DIR-506L
• Default Password: (leave this blank)

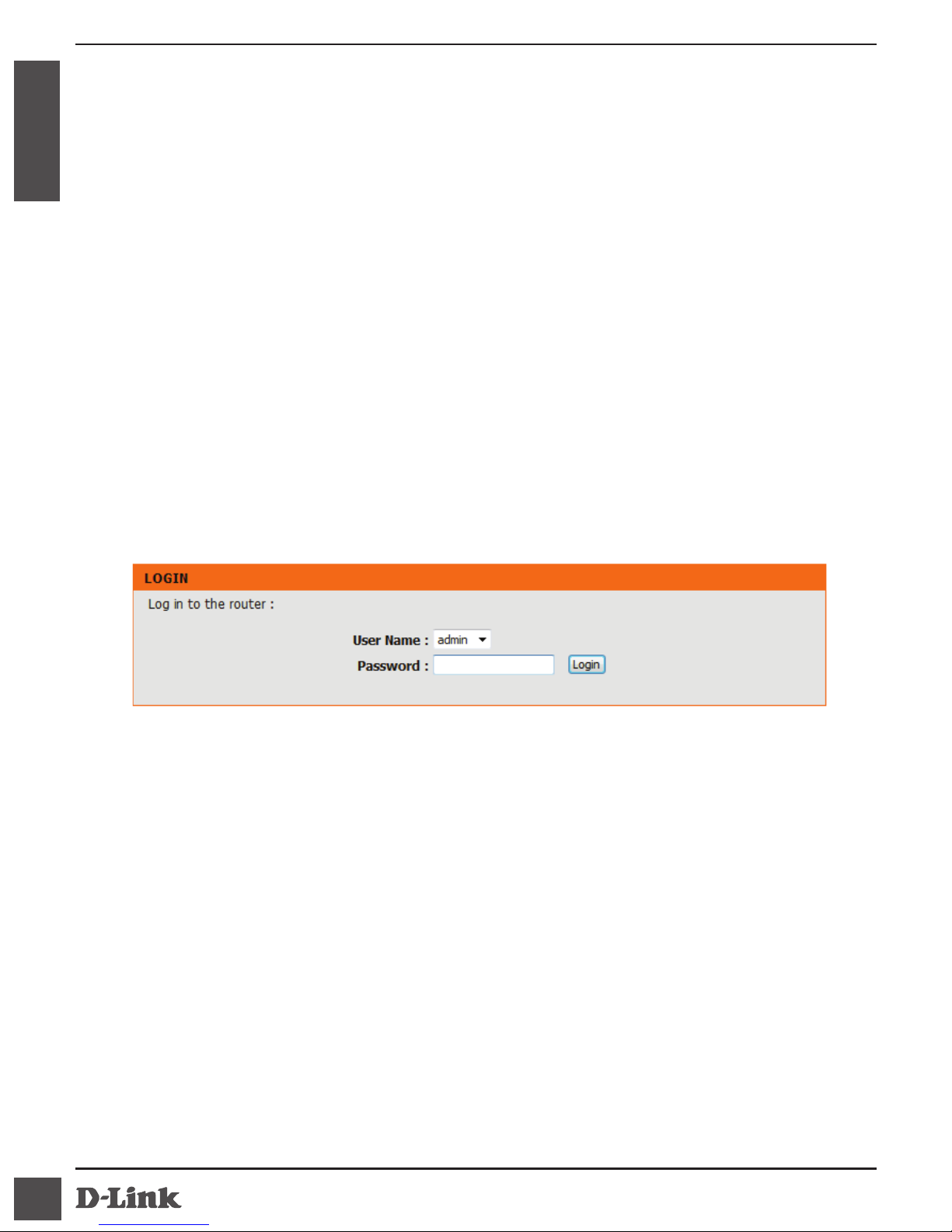

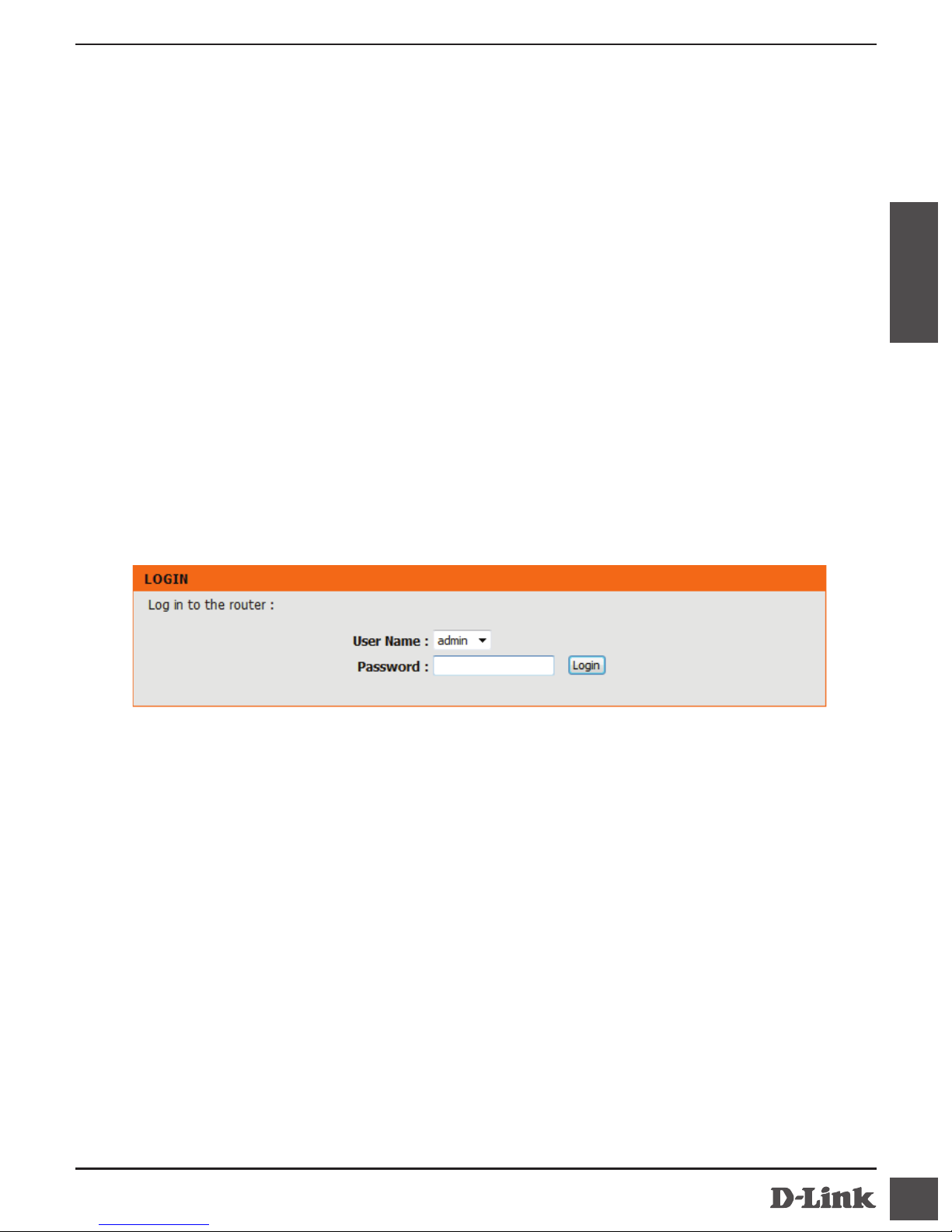

2. Open a web browser, and go to http://dlinkrouter.local. By
default, the User Name is admin, and the Password should be
left blank.
3. After logging in, click on Setup at the top, then click on Internet
Connection Setup Wizard and follow the on-screen instructions.
Further Information
For further information on how to use, congure, and enjoy your
DIR-506L, you can refer to the User Manual, which is available on the
D-Link website.
For the D-Link website for your region, refer to the following
Technical Support pages.

9
DIR-506L
ENGLISH
