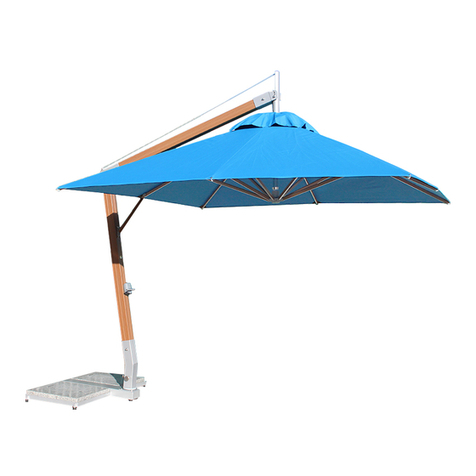

Bambrella LEVANTE SIDE WIND User manual

Screw the plastic feet (S)
to the underside of the
base frame (P).
Put the base frame in the
desired (final) position,and
adjust the feet until the
frame is flat and level,
before placing the base
weights
1.
2.
The next step will require 2
people, because of the weight
of the bases.
Place the base weights (O) in
the base frame (P).
The cutout handles must go
from front to back.
Back
Front
3.
Fix rotation mechanism (A)
to to the base using the
M10 bolts (C).
4.
Place the metal sleeve (E)
over the rotation mechanism (A)
with the square (open) end
upwards.
Line up the corners of the sleeve
with the locators on the round
plastic base plate.
The four dome nipples must sit
inside each corner.
5.
Fix the cleat (H) to the back of the
upright pole (L) using 2 screws (Q).
The looped part goes to the angled
end of the post (top).
6.
Steps 6. and 7. require
a PH-2 screwdriver.
(Not supplied)
Instructions for
attaching the winch
are on page 2.
7.
9.
Attach the end hook (G) to the
end of the cross-pole (M) with
bolt(R) and plastic step washers.
Note the direction of the hook.
8.
Bolt the metal elbow (F)
to the top of post (L)
Make sure the pulley
points upwards.
Using a suitable ladder,
insert the angled end
of cross pole (M) into
the metal elbow (F)
and secure with
bolt (R) and plastic step
washers.
The cut-out faces up.
10.
Place the top bolt (J)
through the hole in the
metal tube on the parasol
canopy (N).
(This may already be
done.)
Using 2 people and a step
ladder, hook the canopy
bolt into the cutout in
bracket (G).
Then put the larger (grey)
plastic step washers and
M10 self locking nut on
either side.
Make sure the stepped washer
sits in the circular part of the
cut-out.
See diagram.
Then tighten the nuts using the
spanners provided.
11.
Carefully place it into the
metal sleeve (E).
Make sure it is fully down.
Secure the post with
bolt (R), and the clear
plastic stepped-washers.
LEVANTE SIDE WIND INSTUCTIONS.

UP
L
THE POST (L) HAS BEEN
PRE-DRILLED
PLACE THE BOTTOM HALF OF
THE OUTER SHELL, OVER
THE SCREW HOLES AND
SECURE USING THE LONG
SCREWS.
THE CUTOUT IS TO THE TOP.
INSERT THE WIRE GUIDE
INTO THE CUTOUT. (HOLE
TO THE RIGHT).
NEXT, INSERT THE WINCH
MECHANISM,
AND SECURE USING THE 4 SCREWS.
PLACE THE TOP COVER ONTO
THE WINCH,
AND SECURE USING THE 2
SMALL SCREWS.
YOUR WINCH SHOULD LOOK
LIKE THIS.
WINCH INSTRUCTIONS

Rope and wire assembly
Top rope. (beige)
Thread the top rope (from the top of the
tube), over the pulley at A.
Run the rope through the looped
part of the cleat at B.
Thread the rope through the hole
in the Bamboo pull-handle (K).
Tie a simple knot on the end of
the rope and pull the handle down.
The knot should sit in the end recess.
1.
2.
3.
4.
A
B
K.
Winch wire
The wire should be loosely coiled in a bag.
Y
to parasol
to pulley Y
carabiner
end cap
Unscrew the end cap (without wire) from the protector tube.
Remove loose contents.
Thread the wire from pulley (Y) through the end cap.
Form a loop in the end of the wire and securely attach both
of the 'Horseshoe' clamps (from inside the tube) onto the
wire loop. (See diagram).
The loose end MUST be held securely by BOTH clamps
Take the end of the wire, and feed it up
through the lower pulley (Y)
Link both the loops together with the locking 'Carabiner'.
This MUST be secured together using the locking nut,
or damge/injury may occur.
Feed the clamps and carabiner into the tube and secure the end cap.
5.
6.
7.
8.
9.

Please remove the winch handle when
not in use, for safety, and also this part
is not weather resistant.
PLEASE NOTE;
Although our umbrellas have been tested to
withstand use in very windy (test) conditions,
we recommend collapsing your umbrella
when the wind picks up above 25mph/40kph.
Damage caused by stronger winds,
is not covered by our warranty.

IMPORTANT SAFETY NOTICE
PLEASE NOTE; NEVER HAVE THE CANOPY
HANGING OVER THE BASES, (IMAGE ON LEFT),
IF THE WIND SPEED IS ABOVE 10mph/15kph.
ALWAYS USE THE LOCKING ARM WHEN
THE WIND GOES ABOVE 10mph/15kph
AND DO NOT HAVE THE CANOPY TILTED
IF THE WIND IS ABOVE 10mph/15kph.
