Barco BARON 908 User manual

BARON
908
R9040060
R9040069
INSTALLATION MANUAL

BARCO PROJECTION SYSTEMS
Art. No. :
R5976418
Date :
04122001
INSTALLATION MANUAL
Rev. :
00
BARON
908
R9040060
R9040069

Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, December 2001.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO n.v. / Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Visite Barco at the web : http://www.barco.com
Printed in Belgium

Table of contents
0 - 1
5976418 BARON 908 04122001
0
SAFETY INSTRUCTIONS ................................................................................................. 1-1
Safety instructions ...................................................................................................................................... 1-1
Notice on safety ............................................................................................................................................................................... 1-1
Installation instructions ..................................................................................................................................................................... 1-1
Owner's record ................................................................................................................................................................................ 1-1
Safety indication on the product ...................................................................................................................................................... 1-1
Safety warning................................................................................................................................................................................. 1-2
Federal communication commission (FCC Statement) ..................................................................................................................... 1-2
On safety .......................................................................................................................................................................................... 1-2
Caution on fire hazard ...................................................................................................................................................................... 1-3
On installation ................................................................................................................................................................................... 1-3
On servicing ..................................................................................................................................................................................... 1-3
On cleaning ....................................................................................................................................................................................... 1-3
On repacking .................................................................................................................................................................................... 1-4
On illumination ................................................................................................................................................................................... 1-4
PACKING AND DIMENSIONS ........................................................................................... 2-1
Unpacking ................................................................................................................................................... 2-1
Unpacking ......................................................................................................................................................................................... 2-1
Repacking ......................................................................................................................................................................................... 2-1
Contents of the shipping carton ....................................................................................................................................................... 2-1
Baron dimensions in mm (inch) ........................................................................................................................................................ 2-2
INSTALLATION GUIDELINES .......................................................................................... 3-1
Installation guidelines .................................................................................................................................. 3-1
Ambient temperature conditions ...................................................................................................................................................... 3-1
Humidity conditions ........................................................................................................................................................................... 3-1
Environment ...................................................................................................................................................................................... 3-1
Environment condition check ........................................................................................................................................................... 3-1
Ambient light ..................................................................................................................................................................................... 3-1
Battery installation in the RCU .................................................................................................................... 3-2
How are the batteries delivered ? ................................................................................................................................................... 3-2
How to install ? ................................................................................................................................................................................. 3-2
INSTALLATION SETUP .................................................................................................... 4-1
Mounting the projector................................................................................................................................. 4-1
Hanging the projector into the mirror cabinet ................................................................................................................................... 4-1
Attaching the projector with the rotation pins ................................................................................................................................. 4-1
Securing the correct position of the projector................................................................................................................................. 4-2
Mounting the screen ................................................................................................................................... 4-2
Putting the screen on the mirror cabinet .......................................................................................................................................... 4-2
Attaching the screen to the mirror cabinet. ..................................................................................................................................... 4-3
Mounting the projector cover ....................................................................................................................... 4-3
Disassembling the baron ............................................................................................................................. 4-3
Screen protection ........................................................................................................................................ 4-3
Mounting 3D emitters .................................................................................................................................. 4-4
AC POWER CONNECTIONS ............................................................................................ 5-1
TABLE OF CONTENTS

Table of contents
0 - 2 5976418 BARON 908 04122001
AC Power cords .......................................................................................................................................... 5-1
AC Power cord connections ........................................................................................................................................................... 5-1
Preparing the power cord ................................................................................................................................................................ 5-1
Switching on the projector ........................................................................................................................... 5-2
Switching on ..................................................................................................................................................................................... 5-2
Switching off .................................................................................................................................................................................... 5-2
AC Power .................................................................................................................................................... 5-2
The power voltage .............................................................................................................................................................................5-2
Fuses ................................................................................................................................................................................................ 5-2
Start up in operational mode ............................................................................................................................................................. 5-3
Start up in stand by mode ................................................................................................................................................................. 5-3
Stationary image warning ................................................................................................................................................................. 5-3
SOURCE CONNECTIONS ................................................................................................ 6-1
Input locations............................................................................................................................................. 6-1
Input facilities .................................................................................................................................................................................... 6-1
Which source to which input ........................................................................................................................................................... 6-1
Composite video source to port 1 ................................................................................................................ 6-2
When is the video input available ? .................................................................................................................................................. 6-2
Which signals to the video input ? ................................................................................................................................................... 6-2
Video input selection ........................................................................................................................................................................ 6-2
Note on loop-through ........................................................................................................................................................................ 6-2
75 W Termination switch for video .................................................................................................................................................. 6-2
S-Video or Video source to port 2 ............................................................................................................... 6-2
When is the S-Video input available ? ............................................................................................................................................. 6-2
Which Signals to port 2 ? ................................................................................................................................................................. 6-2
Pin configuration 4 pin connector .................................................................................................................................................... 6-3
Input selection port 2 ........................................................................................................................................................................ 6-3
Input priority setting .......................................................................................................................................................................... 6-3
Note on loop-through ........................................................................................................................................................................ 6-3
75 W Termination switch for port 2 .................................................................................................................................................. 6-3
RGB Analog source to port 3 ....................................................................................................................... 6-4
Which signal to port 3 ? .................................................................................................................................................................... 6-4
Pin configuration D9 connector of the Analog input. ....................................................................................................................... 6-4
Input selection port 3 ........................................................................................................................................................................ 6-4
Settings on module level ................................................................................................................................................................... 6-4
RGB Analog source with composite sync to port 4/5 ................................................................................... 6-6
Which signal to port 4/5 ? ................................................................................................................................................................. 6-6
RGBS or RGsB Input selection ......................................................................................................................................................... 6-6
Component video source to port 4/5 ............................................................................................................ 6-6
Which signal to port 4/5 ? ................................................................................................................................................................. 6-6
Component video input selection ..................................................................................................................................................... 6-6
RGB Analog source with tri level sync to port 4/5 (option) ........................................................................... 6-6
Which signal to port 4/5 ? ................................................................................................................................................................. 6-6
RGB3S or RG3sB input selection ..................................................................................................................................................... 6-6
Component video source with tri level sync to port 4/5 (option) .................................................................... 6-6
Which signal to port 4/5 ? ................................................................................................................................................................. 6-6
(R-Y)Y(B-Y)3S or (R-Y)Y3s(B-Y) input selection ......................................................................................................................... 6-6
RS232 Connection ...................................................................................................................................... 6-7
RS232 input and RS232 output of the projector .............................................................................................................................. 6-7
Communication port for communication with peripherals ............................................................................. 6-7
Connecting a RCVDS 05 switcher to the projector ......................................................................................................................... 6-7
TILTING THE PROJECTION TABLE ................................................................................ 7-1
Tilting connections ...................................................................................................................................... 7-1
Connecting the tilting sensors ......................................................................................................................................................... 7-1
Connecting the local controller ......................................................................................................................................................... 7-2
Tilting the projection table ........................................................................................................................... 7-2
Safety zones ................................................................................................................................................................................... 7-2
Tilting the projection table ................................................................................................................................................................. 7-3
Calibrating the Baron ........................................................................................................................................................................ 7-3
MESSAGES, WARNINGS AND FAILURES ...................................................................... 8-1

Table of contents
0 - 3
5976418 BARON 908 04122001
GAMMA CORRECTIONS .................................................................................................. A-1
Gamma corrections ..................................................................................................................................... A-1
Gamma warning ............................................................................................................................................................................... A-1
Procedure for gamma corrections ................................................................................................................................................... A-1
MOVING THE BARON THROUGH A DOORWAY ............................................................ B-1
Tilting the mirror cabinet in its vertical position ............................................................................................ B-2
Removing the mirror frame ........................................................................................................................... B-2
Removing the control box ............................................................................................................................ B-2
INDEX .................................................................................................................................. I-1

Table of contents
0 - 4 5976418 BARON 908 04122001

Safety instructions
1 - 1
5976418 BARON 908 04122001
1SAFETY INSTRUCTIONS
Safety instructions
Notice on safety
This equipment is built in accordance with the requirements of the international safety standards EN60950, UL 1950 and CSA C22.2
No.950, which are the safety standards of information technology equipment including electrical business equipment.
These safety standards impose important requirements on the use of safety critical components, materials and isolation, in order
to protect the user or operator against risk of electric shock and energy hazard, and having access to live parts.
Safety standards also impose limits to the internal and external temperature rises, radiation levels, mechanical stability and strength,
enclosure construction and protection against the risk of fire.
Simulated single fault condition testing ensures the safety of the equipment to the user even when the equipment's normal operation
fails.
Installation instructions
Before operating this equipment please read this manual thoroughly, and retain it for future reference.
Installation and preliminary adjustments should be performed by qualified BARCO personnel or by authorized BARCO service dealers.
Owner's record
The part number and serial number are located at the back side of the projector. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your BARCO dealer regarding this product.
PART NUMBER :
SER. NUMBER :
DEALER :
Safety indication on the product

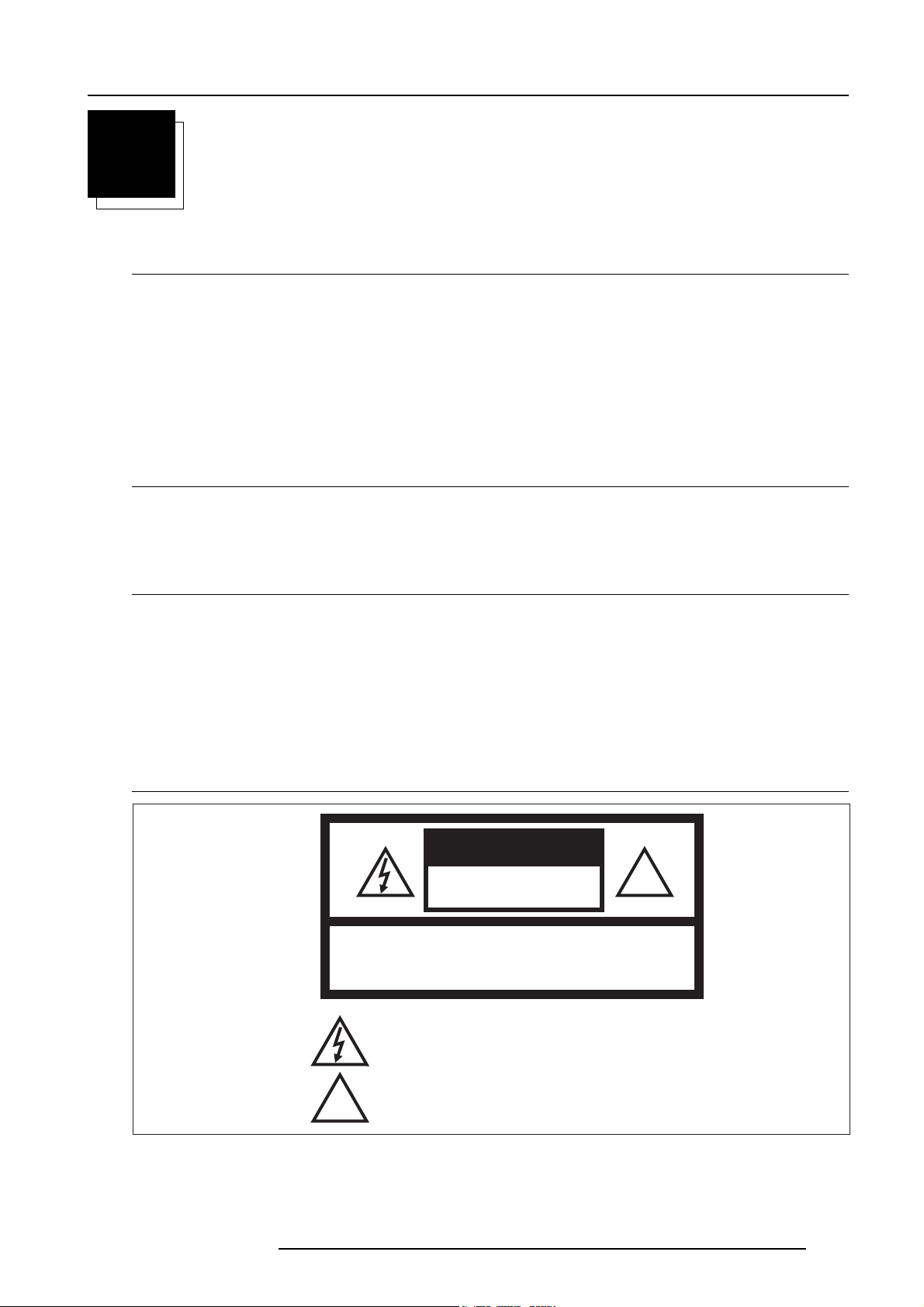

image 1.1
Safety indication
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION/ TO REDUCETHE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lightning flash with an arrowhead within a triangle
is intended to tell the user that parts inside this product
may cause risk of electrical shock to persons.
The exclamation point within a triangle is intended to tell
the user that important operating and/or servicing instructions
are included in the technical documentation for this equipment.
CAUTION
!
!

Safety instructions
1 - 2 5976418 BARON 908 04122001
Safety warning
TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE !
Federal communication commission (FCC Statement)
This equipment has been tested and found to comply with the limits of a class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
Note :
The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.
* All the safety and operating instructions should be read before using this unit.
* The safety and operating instructions manual should be retained for future reference.
* All warnings on the equipment and in the documentation manuals should be adhered to.
* All instructions for operating and use of this equipment must be followed precisely.
On safety
1. This product should be operated from an AC power source.
Power input is autoranging from 90 V to 230V.
2. All equipment in the system is equipped with a 3-wire grounding plug, a plug having a third (grounding) pin. This plug will only
fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE GROUNDED (EARTHED) via the supplied 3 conductor AC power
cable.
If the supplied power cable is not the correct one, consult your dealer.
The wires of the mains lead are colored in accordance with the following code.
3. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
4. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the
extension cord does not exceed the extension cord ampere rating.
5. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out
parts that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid object fall into the cabinet, unplug the set and have it checked
by qualified service personnel before resuming operations.
6. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage to the projector due to lightning and AC power-line surges.

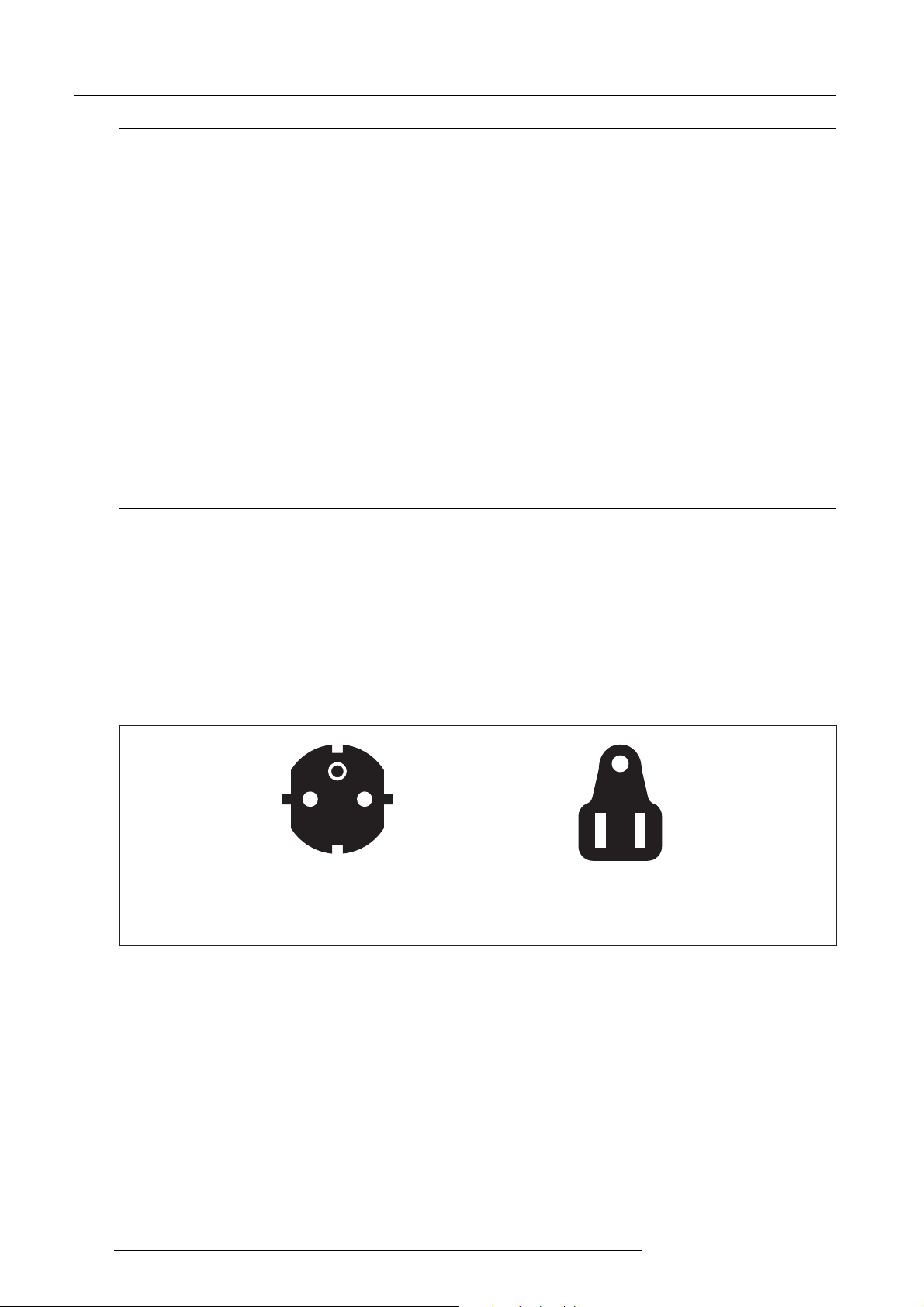

image 1.2
Power cord plugs
CEE 7 Plug
Green and yellow : Ground
Blue : Neutral
Brown : Line
ANSI 73.11 Plug
Green and yellow : Ground
White : Neutral
Black : Line

Safety instructions
1 - 3
5976418 BARON 908 04122001
Caution on fire hazard
DO NOT PLACE FLAMMABLE OR COMBUSTIBLE MATERIALS NEAR PROJECTOR !
BARCO large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector
radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
Explosing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that
material, resulting in a fire. For this reason, it is absolutely necessary to leave an "exclusion zone" around all external surfaces of
the projector whereby no flammable or combustible materials are present. The exclusion zone must be not less that 10 cm (4") for
Barco Retro Projectors. Do not cover the projector with any material while the projector is in operation.
Keep flammable and combustible materials away from the projector at all times. Mount the projector is a well ventilated area away
from sources of ignition and out of direct sun light. Never expose the projector to rain or excessive moisture. In the event of fire,
use sand, CO2, or dry powder fire extinguishers; never use water on an electrical fire.
Always have service performed on this projector by authorized BARCO service personnel. Always insist on genuine BARCO
replacement parts. Never use non-BARCO replacement parts as they may degrade the safety of this projector.
On installation
1. Do not place this equipment on an unstable cart, stand, or table. The product may fall, causing serious damage to it.
2. Do not use this equipment near water.
3. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator
or heat register.
The projector should not be placed in a built-in installation or enclosure unless proper ventilation is provided.
4. Do not block the projector cooling fans or free air movement under and around the projector. Loose papers or other objects may
not be nearer to the projector than 4" on any side.
On servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage potentials and
risk of electric shock!
Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the equipment.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed.
Note : Adjust only those controls that are covered by the operating instructions since improper adjustment of the other controls
may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance, indicating a need for service.
Replacement parts - When replacement parts are required, be sure the service technician has used original BARCO replacement
parts or authorized replacement parts which have the same characteristics as the BARCO original part. Unauthorized substitutions
may result in degraded performance and reliability, fire, electric shock or other hazards. Unauthorized substitutions may void
warranty.
Safety check - Upon completion of any service or repairs to this projector, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
On cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
-To keep the cabinet looking brand-new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly
dampened with mild detergent solution. Never use strong solvents, such as thinner or benzine, or abrasive cleaners, since these
will damage the cabinet.
- To ensure the highest optical performance and resolution, the projection lenses are specially treated with an anti-reflective coating,
therefore, avoid touching the lens. To remove dust on the lens, use a soft dry cloth. Do not use a damp cloth, detergent solution,
or thinner.

Safety instructions
1 - 4 5976418 BARON 908 04122001
On repacking
Save the original shipping carton and packing material; they will come in handy if you ever have to ship your equipment. For maximum
protection, repack your set as it was originally packed at the factory.
On illumination
In order to obtain the best quality for the projected image, it is essential that the ambient light which is allowed to fall on the screen
be kept to an absolute minimum.
When installing the projector and screen, care must be taken to avoid exposure to ambient light directly on the screen. Avoid adverse
illumination on the screen from direct sunlight or fluorescent lighting fixtures.
The use of controlled ambient lighting, such as incandescent spot light or a dimmer, is recommended for proper room illumination.
Where possible, care should also be taken to ensure that the floors and walls of the room in which the projector is to be installed
are non-reflecting, dark surfaces. Brighter surfaces will tend to reflect and diffuse the ambient light and hence reduce the contrast
of the projected image on the screen.

Packing and dimensions
2 - 1
5976418 BARON 908 04122001
2PACKING AND DIMENSIONS
Unpacking
Unpacking
To open the banding around the carton, pull out the clip as shown below.
Take the mirror cabinet, projector, projector cover and screen assembly the out of its shipping carton.
The projector is fixed on a wooden plate with 4 M6 screws. The projector is fixed on a wooden plate with 4 M6 screws.
Be aware of the weight of the projector: 60 kg (128 lbs).
To carry the contents, 2 persons are needed.
Repacking
Save the original shipping carton and packing material, which will come in handy if you ever have to ship your projector. For maximum
protection, repack your projector as it was originally packed at the factory, use a pair of thongs to tighten the banding.
Contents of the shipping carton
1 RETRO BLOCK REALITY 908 projector + power cord
1 Mirror cabinet + rotation pins
1 Screen assembly + fixation hand blots
1 Projector cover + bolts
1 Local controller
1 Remote control unit + 2 batteries (1.5V)
1 Owner's manual
1 Installation manual
PULL
TO OPEN
image 2.1
Unpacking
PULL
TO CLOSE
12345
image 2.2
Repacking

Packing and dimensions
2 - 2 5976418 BARON 908 04122001

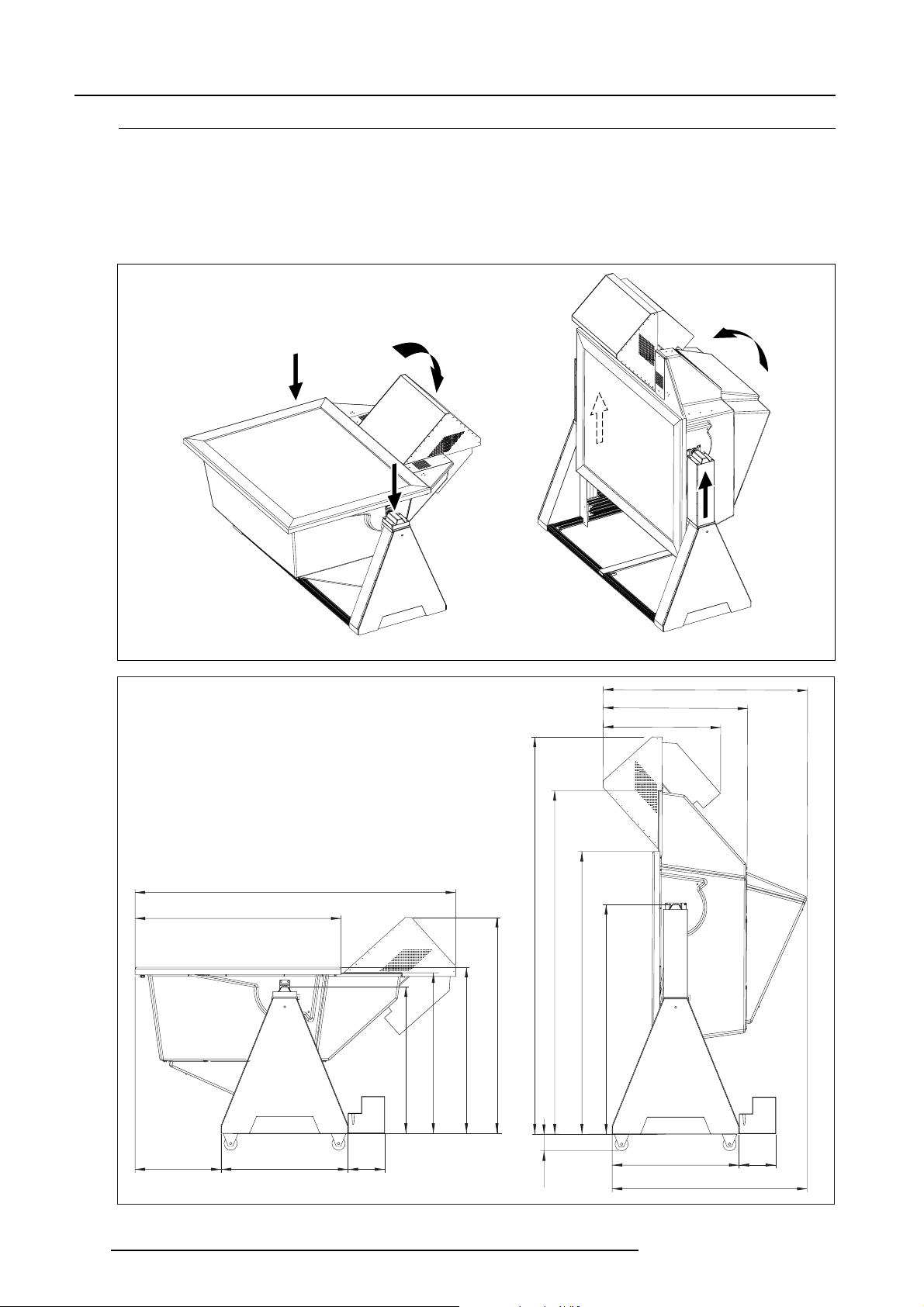

Baron dimensions in mm (inch)
Remarks:
1 The dimensions are related to the position of the projection table, this table is motorized and fully tiltable between 0° en
90° (image 2.3).
2 A disassembled Baron can be moved through a doorway (Appendix B), tilting the mirror cabinet in the vertical position
and removing the control box minimizes the width to 764 mm (30.08 inch).
image 2.3
Projection table positions
883 mm
(34.76 inch)
1301,4 mm
(51.24 inch)
1001,2 mm
(39.42 inch)
967,6 mm
(38.09 inch)
1240 mm
(48.82 inch)
519 mm
(20.43 inch) 764 mm (30.08 inch) 220 mm
(8.35 inch)
220 mm
(8.35 inch)
1931 mm
(76.02 inch)
2392 mm
(94.17 inch)
1383 mm
(54.45 inch)
1701,8 mm
(67 inch)
2069 mm
(81.46 inch)
707,61 mm
(27.86 inch)
869,45 mm
(34.23 inch)
1230,39 mm
(48.44 inch)
764 mm
(30.08 inch)
1173 mm
(46.18 inch)
105 mm
(4.13 inch)
image 2.4
Right dimensions

Packing and dimensions
2 - 3
5976418 BARON 908 04122001
1888 mm
(74.33 inch) 1888 mm
(74.33 inch)
679,2 mm
(26.74 inch)
1580,2 mm
(62.21) inch
image 2.5
Front dimensions

Packing and dimensions
2 - 4 5976418 BARON 908 04122001

Installation guidelines
3 - 1
5976418 BARON 908 04122001
3INSTALLATION GUIDELINES
Installation guidelines
Ambient temperature conditions
Careful consideration of things such as image size, ambient light level, projector placement and type of screen to use are critical to
the optimum use of the projection system.
Operation temperature :
Max. ambient temperature : 40 °C (104°F)
Min. ambient temperature : 0 °C (32°F).
The projector will not operate if ambient air temperature falls outside this range (0°C- 40°C) (32°F-104°F).
Storage temperature : -35 °C to + 65 °C (-25.6°F to 149°F)
Humidity conditions
Storage : 0 - 98% RH Non-condensing
Operation : 0 - 95% RH Non-condensing
Environment
Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight,
excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not
excessive.
Environment condition check
Warning: Harmful Environmental Contamination Precaution
A projector must always be mounted in a manner which ensures the free flow of clean air into the projectors ventilation inlets. For
installations in environments where the projector is subject to airborne contaminants such as that produced by smoke machines or
similar (these deposit a thin layer of greasy residue upon the projectors internal optics and imaging electronic surfaces, degrading
performance), then it is highly advisable and desirable to have this contamination removed prior to it reaching the projectors clean
air supply. Devices or structures to extract or shield contaminated air well away from the projector are a prerequisite, if this is not
a feasible solution then measures to relocate the projector to a clean air environment should be considered.
Only ever use the manufactures recommended cleaning kit which has been specifically designed for cleaning optical parts, never
use industrial strength cleaners on a projectors optics as these will degrade optical coatings and damage sensitive optoelectronic
components. Failure to take suitable precautions to protect the projector from the effects of persistent and prolonged air contaminants
will culminate in extensive and irreversible ingrained optical damage. At this stage cleaning of the internal optical units will be
noneffective and impracticable. Damage of this nature is under no circumstances covered under the manufactures warranty and
may deem the warranty null and void. In such a case the client shall be held solely responsible for all costs incurred during any repair.
It is the clients responsibility to ensure at all times that the projector is protected from the harmful effects of hostile airborne particles
in the environment of the projector. The manufacture reserves the right to refuse repair if a projector has been subject to wilful neglect,
abandon or improper use.
Ambient light
The ambient light level of any room is made up of direct or indirect sunlight and the light fixtures in the room. The amount of ambient
light will determine how bright the image will appear. So, avoid direct light on the screen as much as possible.
Windows that face the screen should be covered by opaque drapery while the set is being viewed. It is desirable to install the projecting
system in a room whose walls and floor are of non-reflecting material. The use of recessed ceiling lights and a method of dimming
those lights to an acceptable level is also important. Too much ambient light results in a wash out of the projected image. This appears
as less contrast between the darkest and lightest parts of the image. With bigger screens, the wash out becomes more important.
As a general rule, darken the room to the point where there is just sufficient light to read or write comfortably. Spot lighting is desirable
for illuminating small areas so that interference with the screen is minimal.

Installation guidelines
3 - 2 5976418 BARON 908 04122001

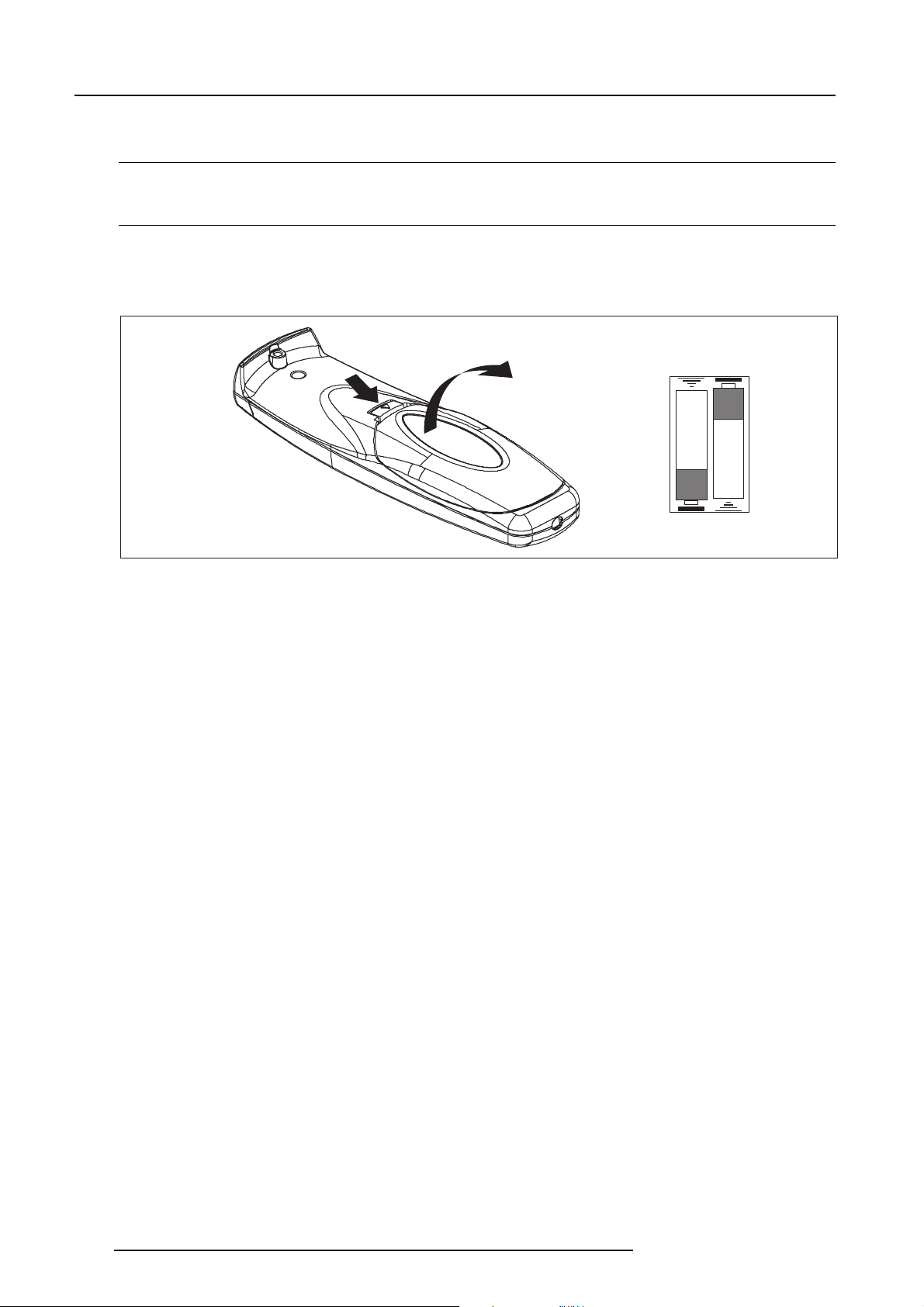

Battery installation in the RCU
How are the batteries delivered ?
Two batteries are packed together with the power cord. Before using your RCU, install first these batteries.
How to install ?
1 Remove the battery cover on the backside by pushing the handle a little towards the bottom of the RCU (image 3.1).
2 Lift up the top side of the cover at the same time (image 3.1).
3 Insert the batteries as indicated in the RCU (image 3.1).
4 Put the battery cover on its place.
+
+
image 3.1
RCU Battery installation
RCU Top

Installation setup
4 - 1
5976418 BARON 908 04122001
4INSTALLATION SETUP
Remark:
Be sure that the mirror cabinet is tilted in its initial horizontal position before proceeding with the following procedures.

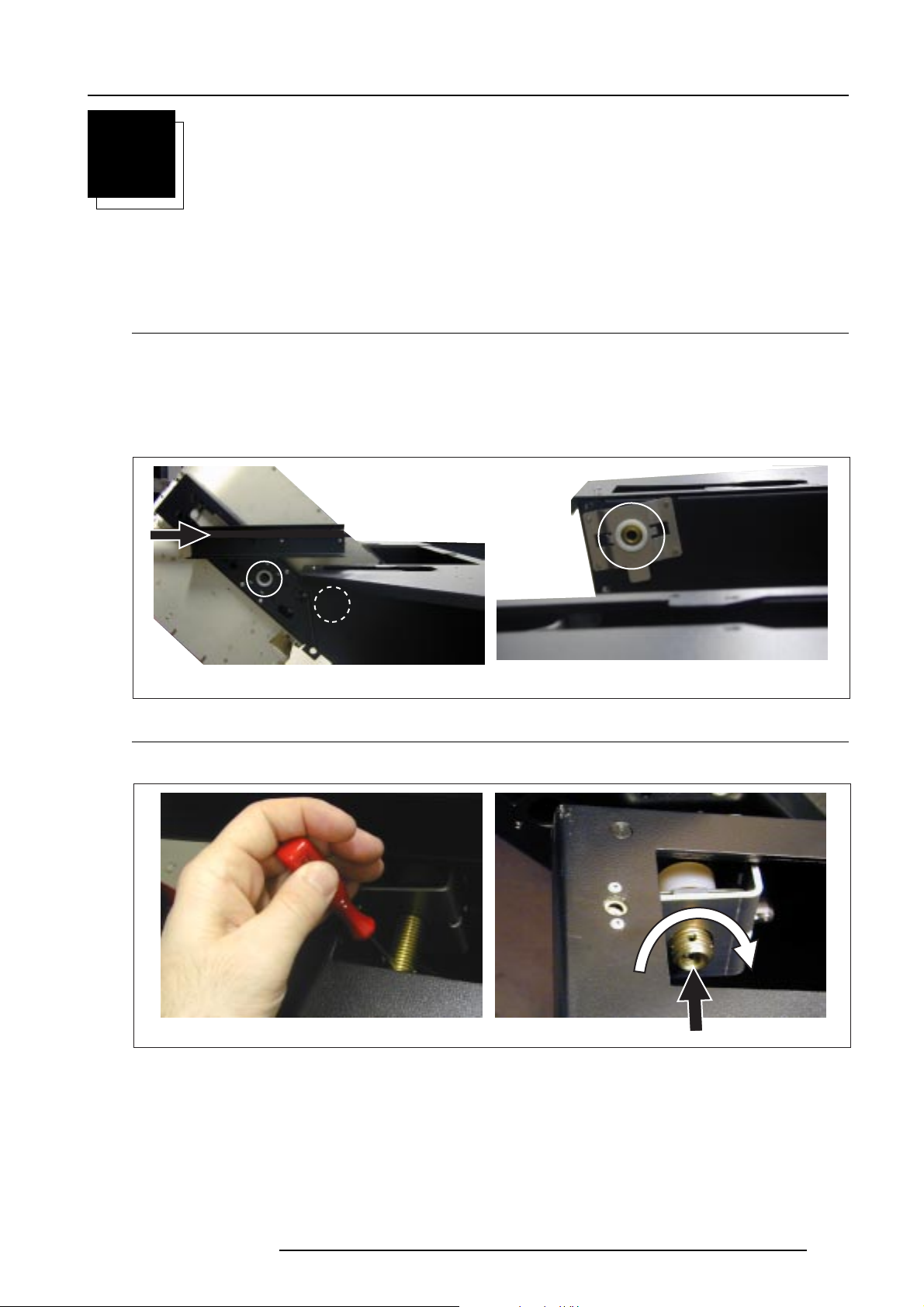

Mounting the projector
Hanging the projector into the mirror cabinet
Remark: Be aware of the weight of the projector 60 kg (132 lbs), to carry the projector 2 people are needed.
1 The U-shaped supports (image 4.1) on each side of the projector will be holding up the projector when hanging it into the mirror
cabinet.
2 Hang the projector upside down (with the lenses towards the cabinet and the RCU facing downwards) into the mirror cabinet.
3 Make sure that the rotation pin holes coincide (image 4.1).
image 4.1
Hanging the projector into the mirror cabinet
Attaching the projector with the rotation pins
1 Attach the projector by turning the rotation pins (image 4.2).
image 4.2
Attaching the projector with the rotation pins

Installation setup
4 - 2 5976418 BARON 908 04122001
Securing the correct position of the projector
1 Loosen the 2 bolts (these can be damaged while removing due to the weight of the projector) and remove the supports (image
4.3).
2 Secure the correct projector position by rotating the projector a little to the front and to the back until the locks jump in their position
(image 4.3).
3 Remove the 3 lens covers.
image 4.3
Securing the correct position of the projector
Mounting the screen
Putting the screen on the mirror cabinet
1 On the backside of the screen is a hose, this will be connected to the hose inside the mirror cabinet (image 4.4).
2 Put the screen assembly (With the Barco logo pointing away from the projector) on the mirror cabinet in a way you still can connect
the hose (image 4.4).
3 When this is done, put the screen in the correct position, covering the mirror cabinet.
image 4.4
Putting the screen on the mirror cabinet
