BARSKOREA SUF-200NW-CK Instruction Manual

SUPER SNOW
USER'S GUIDE & INSTALLATION INSTRUCTIONS
SUF-200NW-CK
Safety Information
This product is SINGLE PHASE ONLY.
Do NOT modify to three phase.
Before using your new BARSKOREA SUPER SNOW
Machine, please read this manual thoroughly to
ensure that you know how to operate the features
and functions that your new appliance offers safety
and efficiently.
This product is qualify for international uses.
If you have any question, contact us
at 82-32-581-3466 or email us at
barskor[email protected]

Experience The Real Snow
With BarsKorea
ATTENTION! Before install
'Super Snow Machine'
※ This product is SINGLE PHASE ONLY.
Do NOT modify to three phase.
TECHNICAL SPECS
Model SUF-200NW-CK
Ice type Snow shaved/flavored snow ice
Cooling Type Air Cooling
Hydraulic Pressure 0.05~78 Mpa (0.5~8 Kgf/cm2)
Weight 65Kg
Capacity/Day 125kg/day
Bin Capacity 6.0kg (41bw/200g) - 80min
Dimension 392 x 610 x 811 mm
100-120V
Power Specifications
100-120V/60Hz, Single phase
0.9kw/9Amps
220V
Power Specifications
220V/60Hz, Single phase
0.65kw/4.5Amps
230-240V
Power Specifications
230-240V/60Hz, Single phase
0.65kw/4.5Amps
①
②
③

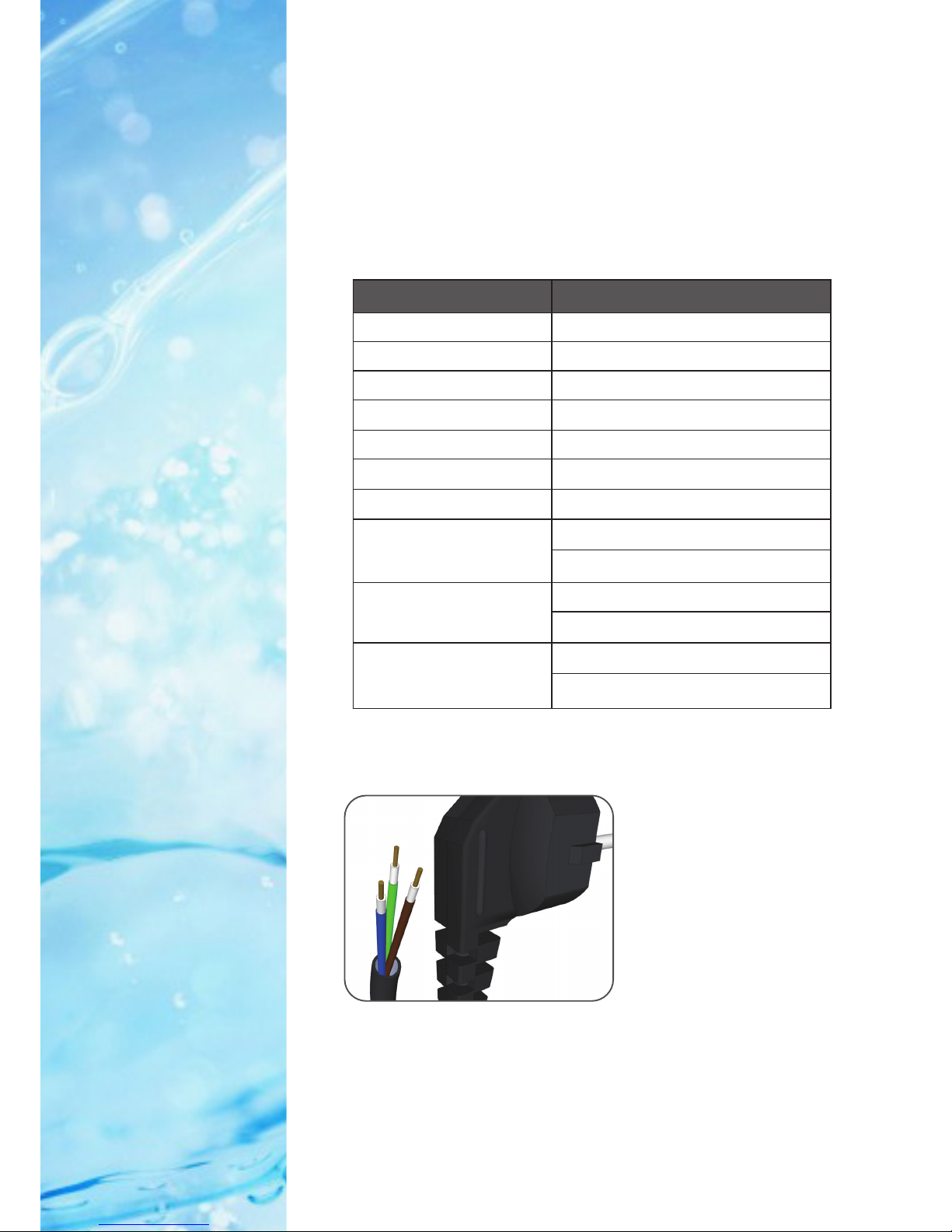

The power code is form in three different wires. The wires represent:
1) Green colored wire: GROUND
2) Blue colored wire: (A)
3) Brown colored wire: (N)
- To replace into different code, make sure ground wire connect
to the ground part.
[To modify to different code]

Experience The Real Snow
With BarsKorea
CONTENTS
GENERAL INFO
The List of part 4-5
about SUPER SNOW 6
Warning and Safety 7-15
Warning & Safety 7
Power Related Precaution 8
Precaution 9-13
Cleaning Precaution 14
Other Precaution 15
INSTALLATION METHOD
Installation 16-23
Grounding in horizontal installaion 17-18
Connecting the water supply hose 19-21
How to connect/disconnect the 22-23
Stainless vat
OPERATING SUPER SNOW
Using related method 24-25
Basic function of button 26-27
How to produce snow flakes 28-29
Cleaning method 30-34
OTHER INFO
Troubleshooting 35-37
Disposal method 38
Specification 39
TABLE OF CONTENTS 3

4 NAME OF PARTS
Control Panel
Side Cover
(Left, Right)
Display Unit
Inner Ice Bin
Air-breather
Panel
Front Clear Door
Handle
Drain Hose
SIDE VIEW
Temperature
Display
Alarm Speaker
Liquid
Entrance
(top of the
machine)
THE LIST OF PART
Use this page to become more familiar with the parts and
features of the Super Snow Machine.

NAME OF PARTS 5
PCB Cover
Water Filter Hose
BACK VIEW
Cleaning Cover
Power Switch
Air-cooling
Discharhger
Power Code
Accessories
Stainless Vat Silicone Hose Fuse
Pan Cover User Manual

ABOUT SUPER SNOW...
* It produces the snowflake by rotation of the cooling drum.
* It produces the any liquid or beverages to produce the fine texture of the snowflake.
*Able to see the freezing of the drum during the operation; easy to clean after use.
CLEANING PRECAUTIONS...
* If using the machine in high humidity area for long period, it causes the bacteria
grows inside of the machine and result of serious health problem.
* After using the machine, please clean thoroughly and spray with sanitizer to
prevent the bacteria and mold.
* Service applies for 1yr warranty from the date of purchase. However, additional
cost might apply. Please read the ‘Warranty of the product’ carefully before use.
SAFETY
CHECK
POINT
SAFETY CHECK REQUIRE
Stop use the Super Snow Machine with above circumstances
• Unplug your Super Snow before making any repairs
• Call for service. Service should be performed by a qualified technician.
※ Please do not attemp to repair the machine.
Does your Super Snow Machine have these conditions?
• Power cord and/or plug are extremely hot
or damaged.
• Electric shock when touching the machine.
• Burning smell or smoke emitting from the
machine during operation.
• Random machine does not work, even
power is on
• Water continuously leaks from the machine.
• The drum does not rotate.
• Machine keep wobbling even on flat surfaces.
• Machine shut down when water supply is on.
6 About SUF-200NW-CK

SAFETY INFORMATION 7
IMPORTANT SAFETY SYMBOLS and PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions carefully.
Do NOT attempt.
Make sure the appliance is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
Please use a
220V/60Hz,
30A or higher
rated power
supply for
the machine.
Do
not over
extend the
power cord.
▶ Using a power strip with other devices
may cause electric shock and/or fire.
▶ Using an electrical transformer may cause
electric shock and/or fire if not properly
installed.
▶ Using a different voltage/frequency may
cause electric shock and/or fire.
Do not install
the machine
close to:
heat sources,
moist, oily,
dusty areas,
direct sunlight,
water, or
leaking gas
areas.
▶ Could cause of electrical shock, fire,
mechanical problem, and personal injury
Please ask a
technician to install
the Super Snow
Machine.
▶ Improper
installation may cause
electric shock,
mechanical problem,
explosion, injury,
and/or fire.
Please use a
grounded outlet.
▶ Machine should
be connected
to earth
wired (ground
wire) socket
directly or to another
area to prevent electrical shock from the
machine.
For your safety,
be sure to use a
ground wire.
Please do not
ground wire with
gas pipe, plastic
water pipe, and
telephone line.
▶ Causes electrical
shock, fire, mechanical problem, and explosion.

With a dry cloth
frequently clean off
any accumulating
dust, water, etc.
▶ Improper
maintanence may
cause
electrical shock
and/or fire.
The power cord
should fit into the
outlet securely. Do
not use the power
cord if damaged
or loosened.
▶ Improper
maintanence may cause
electrical shock and/or fire.
Do not glad a
power cord during
the switch off
▶ Please glad a
power plug head
during the switch
off. Otherwise
could cause the electrical shock and/or fire.
If the power cord
is damaged, please
contact customer
service for repair.
Unplug the power
cord from the outlet
when not using the
machine for
prolonged periods
of time.
▶ Improper
surge protection may causes electrical
shock and/or fire.
Insert the power
cord with the cord
flowing in a
downward direction.
▶ Improper
installation may
causes electrical shock.
Do not forcefully
bend, pull, twist or
sinch the cable.
Do not place any
metal or heavy
objects on top of
the machine.
Do not place the
machine close to
other objects.
▶ Improper installation may causes electrical
shock.
POWER RELATED PRECAUTION
8 POWER RELATED PRECAUTION

Do not insert metal
objects underneath
the machine.
▶ May cause
personal injury.
Discard or properly
store the plastic
cover from the
machine.
▶May cause
suffocation.
For the safety
reasons, make
sure children or
inexperienced
persons do
not operate
the machine.
▶Electrical shock, burn, and/or personal injuries
may occur.
Do not pull the
power plug during
operation.
▶Spark or electrical
shock may occur.

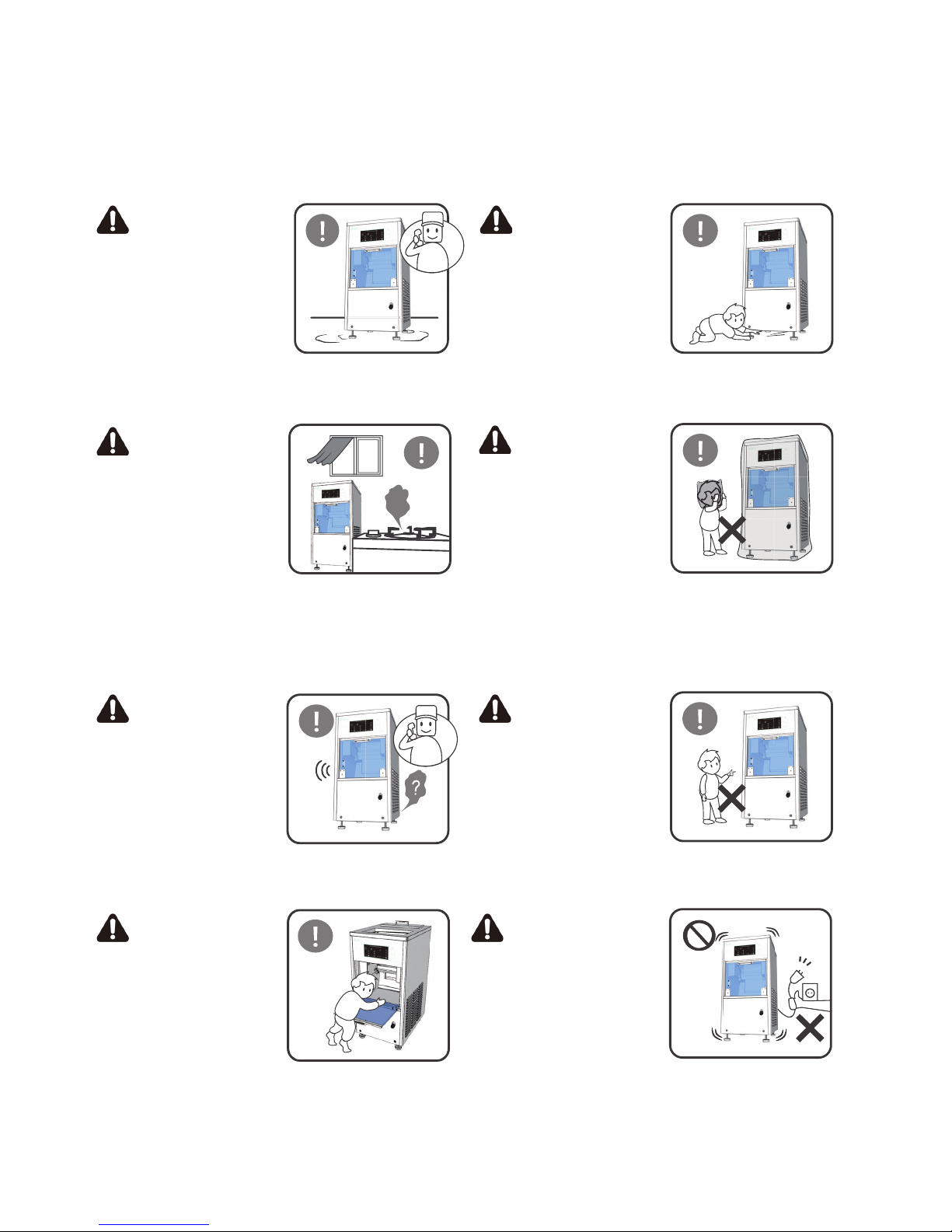

Call service center,
for water flooded
Super Snow
▶ Fully dry the
machine before use,
to prevent electrical
shock and/or fire.
If leaking gas has
been detected
around the
machine, properly
circulate and vent
the air outside
before directly
touching
the power plug or machine.
▶ Sparks may ignite a fire and/or explosion.
If any foreign
noise, odor,
or smoke
is detected from
the machine,
immediately
power off the
machine
and call the service center.
Keep children
away from the
machine, and
properly power
down
after operation.
▶ May cause
electrical shock, serious injury, and/or
death could occur
PRECAUTION
PRECAUTION 9

ACIDIC

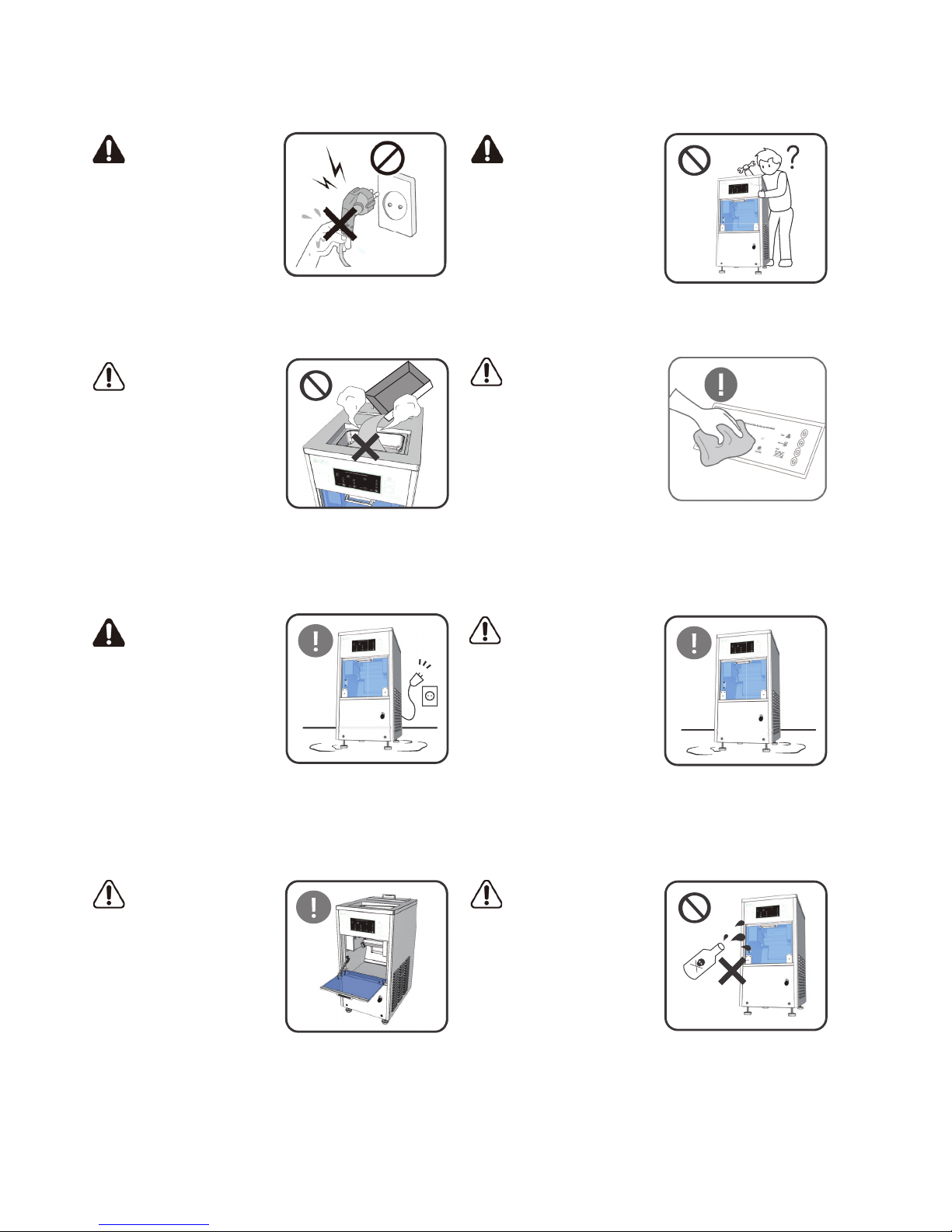

Do not touch the
power plug with
wet hands.
▶ May cause
electrical shock.
Do not pour hot
water into the
drum, during
operation
▶ May cause
mechanical
problems and/or
personal injury.
Do NOT use
corrosive products:
acidic substances,
toxic substances,
liquid, or foreign
objects in the
machine
▶ May damage
the machine and cause fire
and/or serious injury.
▶Please contact the service center if
the machine is damaged.
Close the
front acrylic door
during operation
to prevent
personal injury.
Do not disassemble,
repair, or modify.
▶ Do not repair
anything except
the fuse. Please
contact the service
center for repair.
If control panel
becomes dirty (soil,
food waste, etc),
turn off the machine
and use a soft cloth
with non-toxic
sanitizer or soapy
water to clean.
▶ Toxic sanitizers may cause discoloration,
deformation, damage and/or rust.
If water leaks
during operation,
please ensure
the water line
connections
are secure.
▶ Water leakage may
cause of electrical
shock and/ or fire.
If the machine is
in contact with
water or foreign
substances, please
pull the power plug
and contact the
service center.
▶ Electrical
shock and/or fire may occur.
10 PRECAUTION

When reinstalling,
examine the water
hose connection for
foreign objects or
damage before
connecting.
▶ Damage to the
machine may occur.
▶ Water leak may cause electrical shock
and/or serious injury.
Insert the silicone
hose carefully
▶ When other
substance clog the
liquid entrance,
can cause of
damage of ice,
machine damage, and water leak
During operation,
the coolant may
be hot. Do
not touch with
unprotected
hands.
▶ May cause skin
burn
▶ Harmful to health, electrical shock, fire,
and/or mechanical problems.
Do not use:
pesticides,
flammable products,
sprays, or
temperature
sensitive products,
etc.
▶ May be harmful
for your body, or cause electrical shock,
fire, and/or mechanical difficulty.
If the water supply
hose becomes
disconnected from
the faucet and
becomes flooded
with water, please
disconnect the
power plug
▶ Electrical shock and/or personal injury
may occur.
Do not use magnetic
products around
the machine.
▶ May cause
mechanical
difficulties.
Use edible liquids
only in the machine.
Do not use harmful
or poisonous
liquids.
▶ Damage of the
product and/or
injury may occur.
Do not use sharp
object on the
control panel.
▶ May cause
electrical shock
and/or injury.
PRECAUTION 11

12 PRECAUTION
OVER
2H

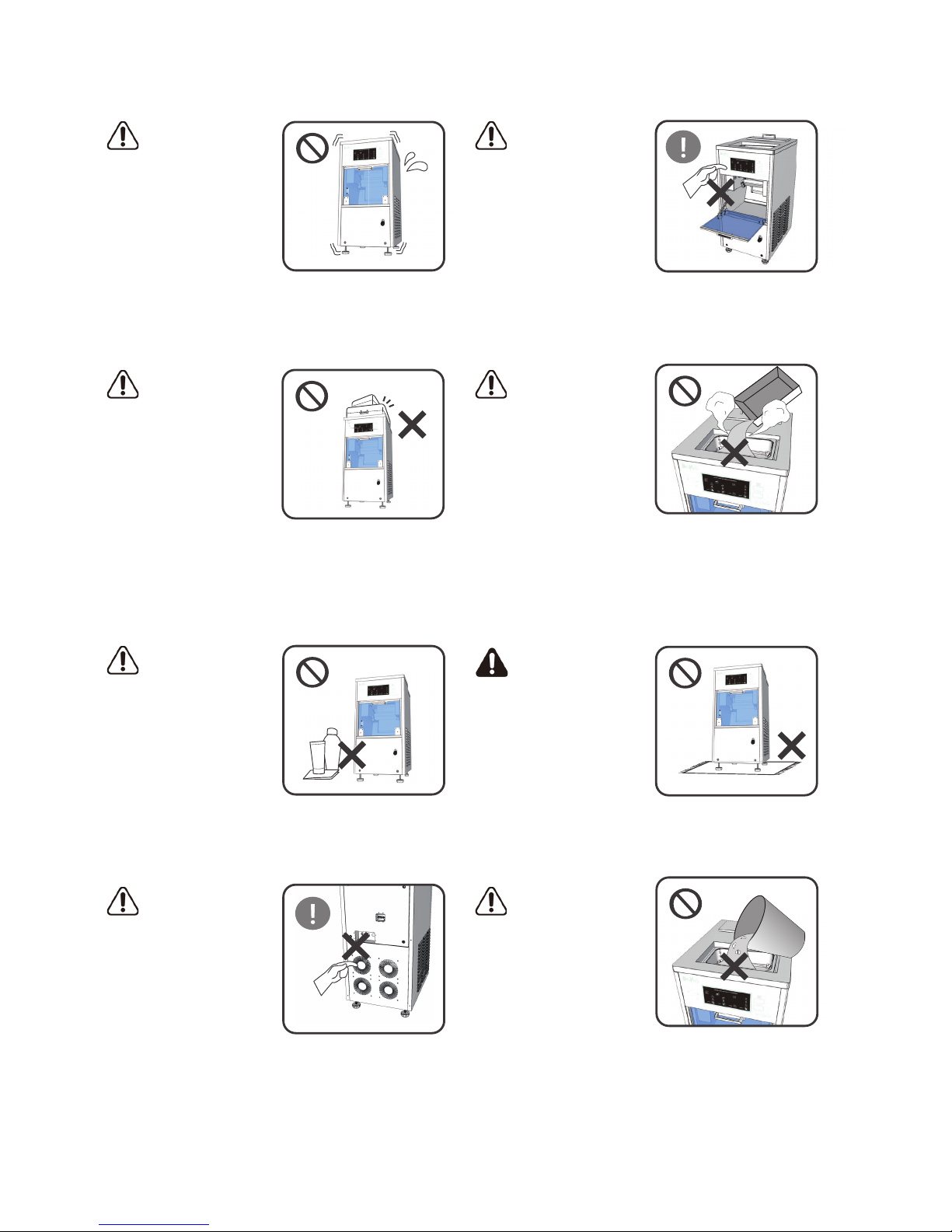

Do NOT overwork
the machine.
▶More than 2
hours of
continuous
operation may
cause mechanical
damage to the machine. Vibrations
may happen due to the overwork.
Do NOT step
on or
heavy objects,
and/or flammable
materials on
top of
the machine.
▶ Electrical shock, fire, and/or
mechanical problem
may occur.
Do NOT use skin
product such as
oils, creams
or lotions on
the machine.
Do NOT touch the
compressor while
in operation.
▶ This may cause
skin burn due
to the high
temperature
of the compressor.
Do NOT operate
the machine with
opened water
bin inside the
machine.
▶ May cause
electrical
shock and/or injury.
Do NOT use
hot water.
▶ May cause
mechanical
problems.
Do NOT clog
the ventilation
opening
with carpet,
mats, etc.
Do NOT use
semi-solid liquid.
▶Solidifing inside
the machine may
cause leakage.

PRECAUTION 13
Do NOT operate
the machine with
wet hands.
▶Electrical shock
and/or injury may
occur.
Do NOT use
a hair dryer
or scented
candles inside the
bin to dry out or
remove the odors.
▶ Electrical
shock and/or fire may occur.
Do NOT touch the
inside of the
machine with bare
hands or metal
objects.
▶Electrical shock
and/ or injury may
occur.
Allow at least
39in (100cm) in
front of the Super
Snow machine to
open the door
▶ Door section
below is lower
in the position that could possibility
of the injury
▶ Do not give pressure on the door
- occur the injure do to the broken part

14 CLEANING PRECAUTION
ACIDIC
Do NOT spray with
water directly.
Do NOT wipe
off with benzene,
thinner,
or alcohol.
▶ May cause
color changes, transform, damage to the
machine; electrical shock or fire may occur.
Disconnect the
power plug during
a short circuit.
▶ Electrical shock
and/or fire may
occur.
Do NOT
use strong acidic
cleaners
▶ May cause
corrosion to the
machine and
mechanical damage.
CLEANING PRECAUTION

OTHER PRECAUTION 15
OTHER PRECAUTIONS
▶ Please maintained the structure attached to Super Snow machine
▶ We do not recommended to use the mechanism not recommended by the technician
or over work with the speed defrost system (the system to remove the frost).
Could affect or performance of the machine.
▶ Recycle the packing materials in eco-friendly way
▶ Please manage the machine to ensure the safe use. This product is not intended to be
used for: physical, sensory, mental ability, or lack of experience and knowledge
to insufficient supervision or oversight, can use the machine safely without no
indication (children)
▶ This product is available as a commercial and similar purposes as follow:
- Shops, offices, and other working environment
- Farms and hotels, motels and other users of residential environment
- Accommodation in an environment that provides breakfast
- Food service and similar non-retail applications
[Notes on the Refrigerant]
▶ This product used R-404a, non-flammable gas for the refrigerant. Please do not damage the
refrigerant when you move the product
▶ The refrigerant to reduce the air pollution potential expected to leak, the Super Snow
machine in accordance with the amount of refrigerant used. Require of space
(R-404a 8 in 1m^3 space required per g) need for this product need to be install.
The used amount of refrigerant is marked on the label
[Disposal considerations]
▶ This product is consisting of: non-flammable refrigerant gas, R-404a and insulation with
cyclopentane. Please contact with district office or community center for safety disposal
▶ Do not damage the pipe
This product is for housewares use only.
Please contact service center for qualified technician for the service

16 INSTALLATION METHOD
TRANSPORT AND INSTALLATION
Remove all food and liquid from the Super snow machine.
Tap secure the clear door in the closed position.
Transport upright over long distances. Transport the machine
with two people. (figure reference).
Please move the product in a straight direction (front and rear)
during installation, repair, and cleaning.
Moving in zigzag pattern may result in internal damage.
Install in a secure place with easy access to the power cord.
Avoid places where possible electric shock and fire may occur.
Install the machine on a sturdy and level floor close to
a water drain.
Uneven floors may cause vibrations and noise.
Install and maintain the proper spacing around the machine.
Install 15cm away from the back wall. Inadequate spacing
may cause a lack of ventilation, which may result in
condensation and will shorten the life of the machine.
(O) (X)

INSTALLATION METHOD 17
Please avoid installation in places of direct sunlight and extreme cold.
Install within temperatures of 5ºC and high in 25ºC
If the temperature is too high or low this may result in an
overworked machine.
INSTALLATION - GROUNDING METHOD
If a grounded terminal outlet is missing, ground the machine using
copper wire to the water faucet.
Please coil up about 2~3 times with copper wire on faucet.
Please ground electical to prevent a short circuit or electric shock.
Insure all electical outlets are grounded properly.
• Do not ground on gas pipes,
plastic pipes or telephone lines.
• Ground wires are available from
the BK Korea service center
(S-cubism) and connect to the
back of the machine.

18 INSTALLATION METHOD
INSTALLATION METHOD

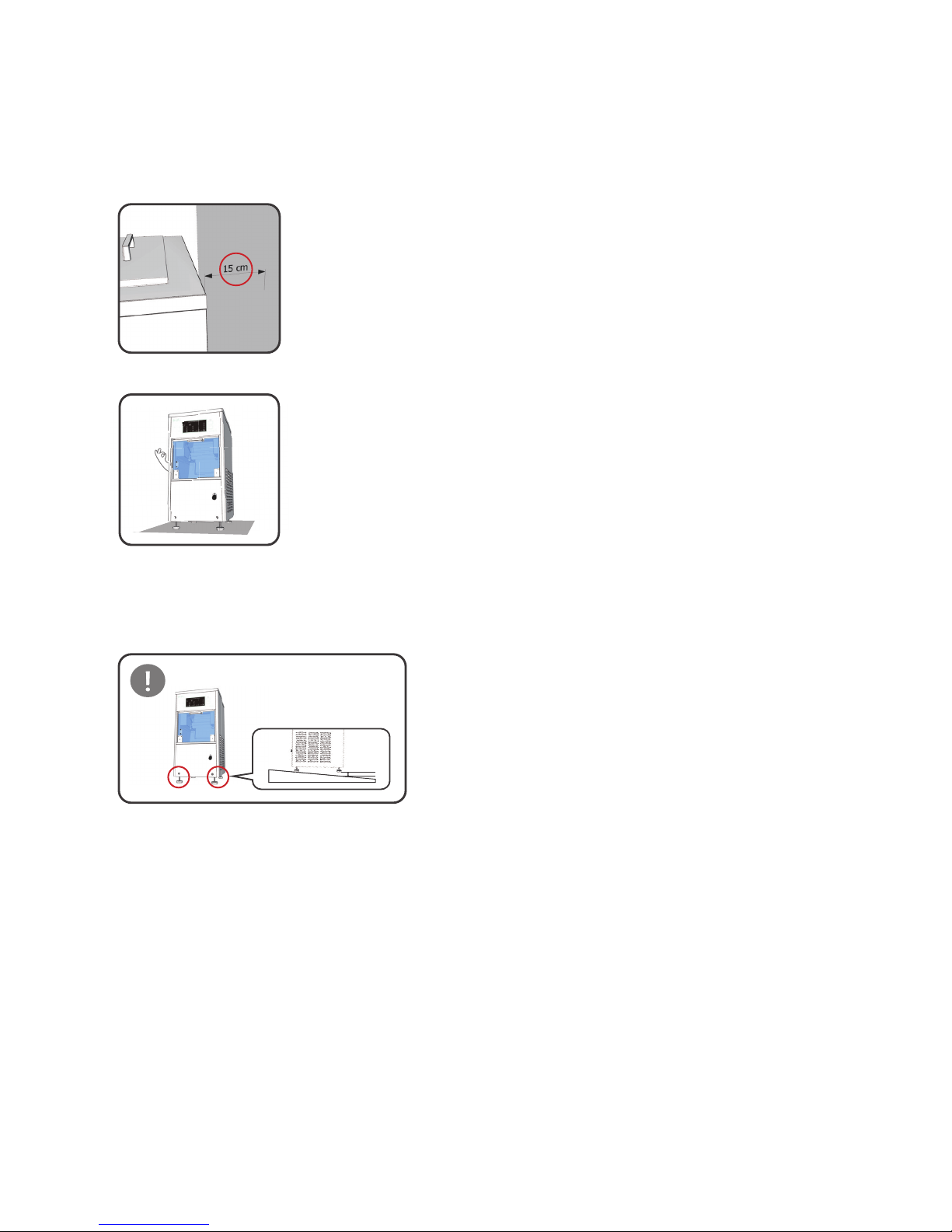

1. Select the place where you like to install
Leave space between 15cm from machine to wall
2. Make the bottom level of the place you want to install and adjust
the height
Please adjust the plank that can adjust the height. Press the
left and right corners during the operation, to check
machine is moving
The floor surface is horizontal when machine is not shaken
[Installation on a uneven surface]
Lightly hold the machine, adjust the
machine horizontal by put shingles on
the low side.

INSTALLATION METHOD 19
CONNECTING THE WATER SUPPLY HOSE
1) Connect the water filter as shown on the picture on the left.
Do not connect with hot water, cause the mechanical damage
Do not use the old water hose. Please connect with the new one that
came with this machine
2) Make sure the machine maintains level.
3) Connect the power cord.
4) Turn on the power switch 'On' and check the LED light is on inside of
the ice bin and control panel.
When LED light in on inside of ice bin, the 'STATUS' icon will flash
with white color light.
The power switch is located either backside or right side below.
on/off
ModelA
ModelB

20 INSTALLATION METHOD

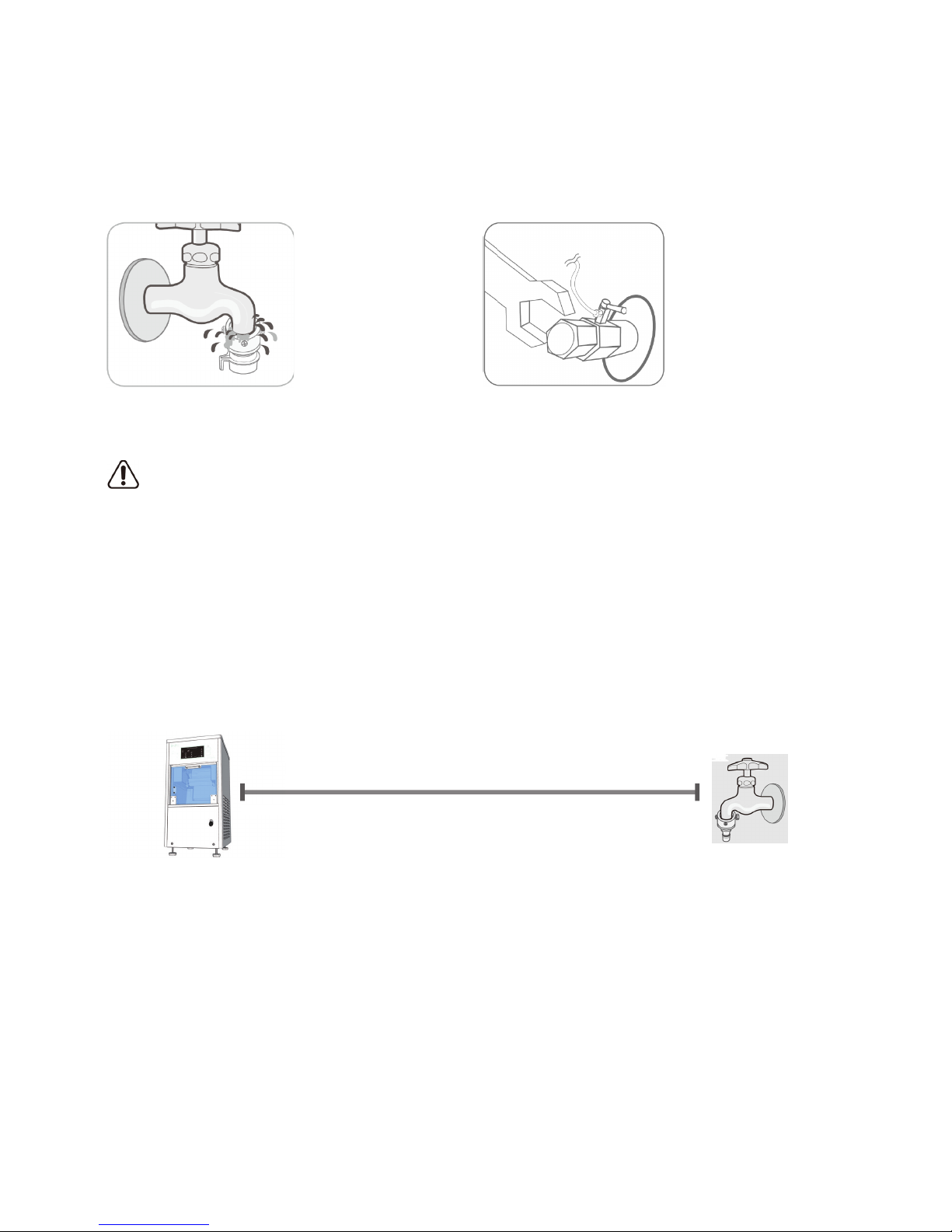

[Water supply hose connection]
If water leaks after connection
▶ Disassemble
the water supply
hose.
▶Properly check the
valve for any damage
or debris. Apply
teflon tape and thread
tightly. If water still
leaking, please call
BarsKorea service
center for the repair.
• If the water faucet and the water supply hose are different in sizes, please purchase
the correct water faucet adapter to fit the supply hose.
• Lock the water faucet when not in use for a prolonged period of time.
• Water cooling type can cause damage and overheating.
• Feed house and hose connector can be purchase separately in Bars Korea service center.
[Using the water hose extension]
1. Purchase the water hose and connect
• Purchase the extended water hose from Bars Korea service center
• Contact a qualified technician or service representative
2. Connect using the spare hose.
• Use the cold water connection only
• Purchase from the Bars Korea service center for supply hoses and hose
connectors.
Try this method if product is fall away from the water faucet
