Bass Habit Play P2300D1 User manual

P2300D1
P2300D2
Play 2 300mm Subwoofer User Manual

Thank you for purchasing this Bass Habit subwoofer. Please read this manual in order
to fully understand how to get the best result from this product and ensure that the
advices on how to look after the product and the safety precautions are followed.
We hope you enjoy using the product as much as we enjoyed creating it.
THANK YOU!
Before mounting and installing your new subwoofer, please read through the whole
user manual. If you have any questions concerning your subwoofer or any other Bass
Habit products, contact your nearest Bass Habit distributor.

TABLE OF CONTENT
• SAFETY & WARRANTY
Caution
Warranty
What is not covered
Warning
International technical enquiries
• INSTRUCTIONS
Installation experience
Choosing subwoofer mounting locations
Preparing for installation
Installation precautions
Installing the subwoofer
Recommended subwoofer enclosure size
• WIRING EXAMPLES
Dual 1 ohm VC in parallel
Dual 2 ohm VC in parallel
Dual 1 ohm VC in series
Dual 2 ohm VC in series
• SPECIFICATIONS
P2300D1
P2300D2

SAFETY & WARRANTY
DO NOT EXPOSE THIS PRODUCT TO EXCESSIVE DAMP OR MOISTURE
- Doing so may result in shock or damage to the product.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL
- Failure to do so may result in electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS
- Failure to make the correct connections may result in permanent damage to the product.
DO NOT USE ANY FUNCTIONS THAT MAY TAKE YOUR CONCENTRATION AWAY FROM DRIVING YOUR VEHICLE
- Do not setup your amplifier whilst driving. Doing so may result in an accident. For prolonged interaction
with the product, make sure that your vehicle is stationary and parked in a safe location.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE
- Failure to do this may result in an accident. Bass Habit equipment is capable of producing sound levels
that can permanently damage your hearing. Bass Habit recommends caution when listening at a high
volume. For safety and enjoyable listening, the sound should be clear without distortion.
CAUTION
Never connect any speaker lead to the car chassi. This can cause severe damage to your car audio setup.
Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
Use caution when working near the fuel/hydraulic lines and electrical wiring.
Observe the correct polarity when wiring. Improper phasing may cause a loss of bass response.
Ensure that no moving parts get caught on the subwoofer or grill.
WARRANTY
All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The
warranty is valid from the date of the original receipt as proof of purchase (warranty period differs depending
on local warranty laws and policies). Contact your international Bass Habit dealer or distributor concerning
specific procedure for your country’s warranty policies.
WHAT IS NOT COVERED
• Damage to product due to improper installation.
• Subsequent damage to other components.
• Damage caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation.
• Damage through negligence, missuse, accident or abuse. Repeated returns for the same fault may be
considered as abuse.
• Any cost or expense related to the removal and/or abuse. Repeated returns for the same fault may be
considered as abuse.
• Damage caused by amplifier clipping or distortion.
• Items repaired or modified by any unauthorised repair facility.
• Return shipping on non-defective items.
• Products returned without a return authorisation number.
• Damage to product due to use of sealant.
WARNING
Bass Habit equipment is capable of sound pressure levels that can cause permanent damage to your hearing
and those around you. Please use common sense when listening to your audio system and practice safe
sound.
INTERNATIONAL TECHNICAL ENQUIRIES
For international technical support please contact the distribution agent for your country.

INSTRUCTIONS
INSTALLATION EXPERIENCE
Installation of Bass Habit subwoofer may require experience with a variety of mechanical procedures including
enclosure construction. This manual only provides general installation and operation instructions. If you have
any reservations about your installation skills, please contact your local authorized Bass Habit dealer for help.
CHOOSING SUBWOOFER MOUNTING LOCATIONS
Choosing the correct subwoofer mounting location will have the greatest effect of the sound quality of the
system. There are many different considerations needed when choosing the location(s) that best meet your
needs. The location(s) must be large enough for the subwoofer to fit. Care is needed to ensure that the desired
location will not affect either the mechanical or electrical operation of the vehicle.
WARNING! Applying silicone rubber to seal soft parts in the subwoofer will void the warranty. If any sealing is
needed in addition to the subwoofer’s gasket, use caulking cord or vinyl weather strip.
PREPARING FOR INSTALLATION
NOTE! The tools listed below may be required for basic installation:
• An electric drill with bits.
• Saber and jig saw.
• Phillips-head and standard screwdrivers.
• Wire strippers.
• Crimping tool and needle-nose pliers.
• Closed cell weather-stripping (for the subwoofer), Silicone sealant (for enclosure).
INSTALLATION PRECAUTIONS
NOTE! Proceed only if you are a qualified installer, otherwise let your dealer do it.
• Always wear protective eyewear when using tools.
• Turn off all stereo and other electrical devices before you begin.
• Disconnect the (-) negative lead from your vehicle’s battery.
• Keep the subwoofer in the package until final installation, and always rest it with the cone facing up.
• Never use force when installing a subwoofer.
• Locate all fuel lines, brake lines, oil lines and electrical cables when planning your installation.
The mounting surface must be flat

INSTRUCTIONS
INSTALLING THE SUBWOOFER
1) Determine where the subwoofer will be mounted. Make sure there is a flat area large enough for the
subwoofer to fit properly. An uneven mounting surface can damage the driver.
2) Check to make sure the space you have selected for the subwoofer will not interfere with vehicle operation.
3) If a template is included in the packaging, use the template and mark the hole with a pen.
4) Cut the hole for the subwoofer. A hole can be cut either with a pair of metal tin snips, a saber or jig saw.
5) Run speaker wire (not included) to the subwoofer. Make sure to keep wires away from sharp metal or other
rough edges. When passing through metal, use a insulating grommet to protect the wires from damage.
6) Pre drill the mounting holes using a 1/8” (3mm) drill bit.
7) Pull the wire through the subwoofer opening and connect the subwoofer. Be sure to observe proper polarity.
8) Mount the subwoofer using good quality screws.

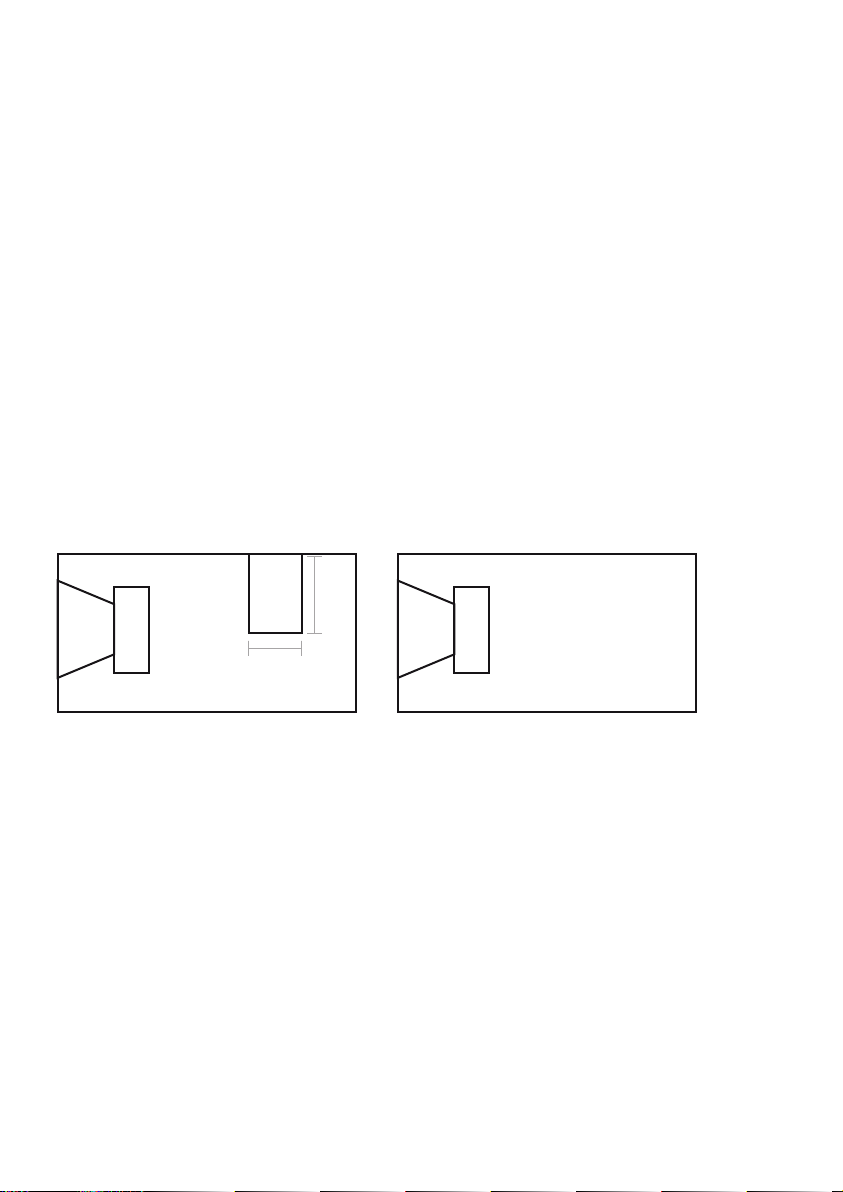

RECOMMENDED SUBWOOFER ENCLOSURE SIZE
Bass Habit subwoofers need an enclosure to perform at it´s very best. Follow the suggested enclosures values
below for a good over all bass experience.
VENTED ENCLOSURE:
E300D1/E300D2
Volume: 47L
Ft: 36Hz
Port diameter: 104mm / 4 inch
Port length: 412mm / 16,22 inch
NOTE! All enclosure recommendations includes driver and port displacements.
SEALED ENCLOSURE:
E300D1/E300D2
Volume: 28L
Ft: 48Hz
D
L

Dual 1 ohm VC
in parallel
WIRING EXAMPLES
Your Bass Habit Elite subwoofer uses double 1 ohm or 2 ohm voice coils depending on the model. It is important
to know the limits of your amplifier to optimize its performance. You can vary the impedance by altering the
wiring configurations between series or parallel. Choose the wiring diagram below that corresponds to the
impedance stability of your amplifier.
1 ohm
1 ohm
0,5 ohm
Dual 2 ohm VC
in parallel
2 ohm
2 ohm
1 ohm
Dual 1 ohm VC
in series
1 ohm
1 ohm
2 ohm
Dual 2 ohm VC
in series
2 ohm
2 ohm
4 ohm

Component
Size
RMS Power
MAX Power
PEAK Power
Subwoofer
300mm (12")
500W
1000W
1500W
SPECIFICATIONS
Fs 29,5
Qes 0,48
Qts
Qms
0,44
5,08
BL 13,5
Vas 40,7
Weight (pc) 6,4 kg
Subwoofer
300mm (12")
500W
1000W
1500W
31,1
0,71
0,63
5,63
16,1
37,8
6,4 kg
Nominal Impedance
Sensitivity
1+1 Ohm
86,5dB
Basket material Heavy-duty metal
Cone material
Surround material
Magnet
Non-Pressed Paper
Foam
Ferrite 90 Oz (2x45)
Coil former Aluminum
Voice Coil Diameter 61,1mm (2,5”)
2+2 Ohm
86,5dB
Heavy-duty metal
Non-Pressed Paper
Foam
Ferrite 90 Oz (2x45)
Aluminum
61,1mm (2,5”)
P2300D1 P2300D2

The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to
separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste:
dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste
authority.
Winn Scandinavia reserves for possible typos, factual or numeric errors that may have been printed on any
products, package designs, user manuals and/or other included accessories.
Products marked with the RoHS symbol complies with the relevant provisions of the RoHS Directive for the
European Union. In common with all Electrical and Electronic Equipment (EEE) the product should not be
disposed of as household waste. Alsternative arrangements may apply in other jurisdictions.
The product with the CE mark indicates that it has passed the correspondning conformity assessment procedure
and the manufacturer’s declaration of conformity, and it complies with the relevant EU directives, and is used as
a pass for the product to be allowed to enter the European Community market. Relevant directives require
industrial products to be affixed with the CE mark. Those that do not have the CE mark shall not be marketed.
