Bauhn HTE-400 User manual

After Sales Support
Telephone: [phone]
Email: [email protected]
INSTRUCTION MANUAL
Model Number: HTE-400
5.1 Home Theatre System

i
After Sales Support
Telephone: [phone]
Email: [email protected]
1 Standby
2 Optical signal input
3 HDMI signal input
4 Multi CH signal input
5 USB signal input
6 FM/AM signal input
7 ARC mode
8 Channel mode
9 Main menu
10 MIC Menu+ (Volume/Delay/Echo)
11 MIC Menu- (Volume/Delay/Echo)
12 Folder previous
13 Stop
14 Previous
15 Play/pause
16 Repeat single
17 Channel +/-
18 Frequency tuning
19 Number keys
20 Mute
21 Coaxial signal input
22 CD/DVD signal input
23 Reset
24 DSP feature
25 Loud on/off
26 Main Menu+/Volume+
27 Main Menu-/Volume -
28 MIC Menu
29 Folder next
30 Next
31 Repeat all
32 Auto
33 Radio memory
Remote Control
ALL
STANDBYMUTE
HDMI
OPTICAL
COAXIAL
USB
CD/DVD
FM/AM
DISP
RESET
CH.MODE
DSPLOUD
MENU
FOLDER
AUTO
MEM
TUNECH
+
_
01
2345
6789
10+
MENU
MIC
+
_
ARC
120
2
4
321
522
623
724
825
9
10 26
11 27
28
12 29
13
30
31
14
32
16
15
33
17
18
19

ii After Sales Support
Telephone: [phone]
Email: [email protected]
Contents
Remote Control i
Warranty Details 1
Welcome 2
General Safety Instructions 3
Product Overview 5
Getting Started 7
Instructions 15
FAQs 20
Other Useful Information 21
Repair and Refurbished Goods or Parts Notice 22

1
After Sales Support
Telephone: [phone]
Email: [email protected]
5.1 Home Theatre System
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 12 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition to all
rights and remedies in respect of the product that the consumer has under
the Competition and Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and to compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.

2After Sales Support
Telephone: [phone]
Email: [email protected]
Congratulations on choosing to buy a BAUHN®product.
All products brought to you by BAUHN®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 1 Year
Warranty. We hope you will enjoy using your purchase for many years to
come.
Welcome

3
After Sales Support
Telephone: [phone]
Email: [email protected]
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for
future reference, along with the warranty card, purchase receipt and carton.
The safety precautions enclosed herein reduce the risk of fire, electric shock
and injury when correctly adhered to. Follow all instructions and take notice
of all warnings to reduce the risk of fire or electric shock.
Danger! Caution! This symbol alerts you that
there is dangerous voltage inside. To prevent
electric shock, do not open the enclosure.
Important! This symbol alerts you to read and
observe important warnings and instructions on
the unit or in this manual.
Electrical safety and cord handling
• Protect from moisture: Do not expose this equipment, the power supply
cord and plug to rain or moisture; do not use it anywhere near water or where
water splashes or drips; do not touch the power plug with wet hands.
• Do not open: To prevent contact with high voltage components inside, do
not attempt to open the equipment. Do not repair the unit yourself; there are
no user-serviceable parts inside. Only have it serviced by qualified personnel.
• Plug replacement: When replacing the unit’s power plug or cord, the
replacement must be exactly the same or one recommended by the
manufacturer. Do not replace the plug or cord yourself.
• Voltage: Before installing this equipment, make sure your outlet voltage
corresponds to the voltage stated on the appliance rating label.
• Cord and plug: Only use this equipment with the cord and plug supplied.
Align the plug properly and insert it fully. Do not overload the power outlet.
• Damaged cord: When the power cord is damaged, it must be replaced by
the manufacturer or similarly qualified personnel in order to avoid a hazard.
• Protect the power cord: Do not let the cord hang over the edge of a table or
counter, or touch any hot surface. Do not allow anything to rest on or roll over
the power cord. Run any cords so no one steps on or trips over them. Do not
run the cord near heat-producing appliances such as radiators or stoves.
• Disconnect: Unplug the unit when it is not going to be used for a while.
Grasp the plug, not the cord, when disconnecting.
This symbol for Class II (Double Insulation) indicates that the equipment
has been designed with double insulation surrounding live parts. It does
not require a safety connection to electrical earth.

4After Sales Support
Telephone: [phone]
Email: [email protected]
Installation
• Location: When installing the unit, make sure to place it:
• In a well ventilated area. Do not build it into a frame.
• Away from heat sources, radiators or other products that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
• Away from open windows and any place where water or metal objects may
get into the unit and damage it.
• Power connection: This equipment can only be disconnected from the
power supply by unplugging it from the mains socket. Make sure the mains
socket is readily accessible at all times.
Usage conditions and restrictions
• Instructions: Follow the instructions in this manual when installing and
adjusting this equipment. Only adjust those controls that are covered in this
instruction manual, as improper adjustment of other controls may result
in damage. If this happens, unplug the equipment and have it serviced by
appropriately qualified personnel.
• Usage restriction: The equipment is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for
their safety.
• Children: Young children should be supervised to ensure they do not
play with the equipment. Close supervision is always necessary when an
appliance is used by or near children.
• Ventilation: Openings on the cabinet are provided for ventilation and to
protect the unit from overheating. To ensure proper operation, do not cover
them with things such as newspapers, tablecloths, curtains etc.
• Protect the equipment: Prevent metal objects falling into the equipment. Do
not place heavy objects on top of the equipment or step on it. Do not place
objects filled with water, or naked flame sources, on top of the unit.
• Cleaning: Unplug the unit from the power outlet before cleaning. Clean the
unit only with a dry, clean cloth. Do not use liquid or aerosol cleaners or
volatile solvents. Do not use insecticides near the equipment.
• Service/Repair: If the unit has been damaged, have it serviced or repaired by
qualified personnel only, contact the after sales support line for advice.
• Liability: We accept no liability for any damage or lost data caused by non-
compliance with these instructions or mishandling of the equipment.
General Safety Instructions (Cont.)

5
After Sales Support
Telephone: [phone]
Email: [email protected]
Product Overview
Front panel
1 Power on/off switch
2 USB port
3 Digital input: Press to select a digital input source (USB, Coaxial, Optical,
HDMI 1/2/3/4)
4 Analog input: Press to select an analog input source (CD/DVD, Multi CH,
Tuner)
5 PREV/CH-: In USB mode, press to select the previous song; in FM/AM
mode, press to select the previous station.
6 PLAY/PAUSE (USB)
7 NEXT/CH+: In USB mode, press to select the next song; in FM/AM
mode, press to select the next station.
8 MIC MENU: With a microphone connected, press this button and rotate the
VOLUME knob to adjust the microphone volume, delay and echo.
9 MENU: Press this button and rotate the VOLUME knob to adjust the
main channel balance, treble and bass, the surround channel volume and
Center volume, and the subwoofer channel volume.
10 VOLUME: Rotate this knob to adjust the main channel volume.
11 MIC1, MIC2: Microphone input jacks
12 VFD display
1
2
34 5 6 7
89
10
11 12

6After Sales Support
Telephone: [phone]
Email: [email protected]
Rear panel
Product Overview (Cont.)
1 CD/DVD signal input terminal
2 Multi CH FR/FL signal input terminal
3 Multi CH SR/SL signal input terminal
4 Multi CH CEN/SW signal input terminal
5 Subwoofer pre-out terminal
6 Subwoofer speaker-out terminal
7 Center speaker-out terminal
8 Right surround speaker-out terminal
9 Left surround speaker-out terminal
10 Right front speaker-out terminal
11 Left front speaker-out terminal
12 Power cable
13 FM radio antenna terminal
14 AM radio antenna terminal
15 Optical signal input terminal
16 Coaxial signal input terminal
17 HDMI 1-4 signal input terminal
18 HDMI signal output terminal
13
1 2 3 4 5 6 7 8 9 10 11 12
14 15 16
17 18
06/2014

7
After Sales Support
Telephone: [phone]
Email: [email protected]
Getting Started

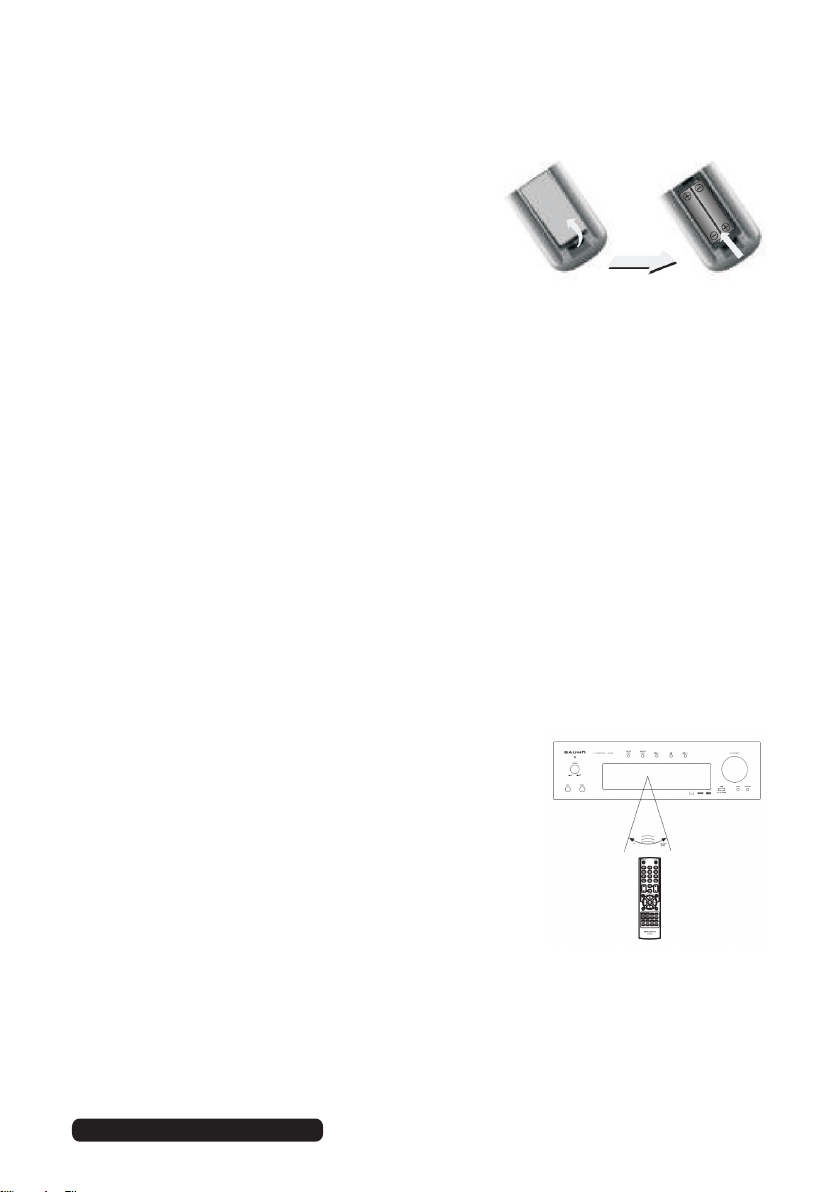

Loading batteries
Open the cover at the back of the remote
control unit, as pictured on the right. Insert two
AAA size batteries following the polarity (+ / -)
markings. Slide the cover back into position.
Precautions when using batteries
• CAUTION: Danger of explosion! Ensure to insert batteries according to the
polarity markings inside the battery compartment.
• Replace all batteries at the same time with fresh batteries of the same size
and type. Clean the battery and device contacts prior to installation.
• Do not mix old and new batteries, different types of battery (alkaline,
carbon-zinc or rechargeable), or rechargeable batteries of different
capacities. Mixing different types of battery could cause leakage or rupture.
• Note that there are chargeable and nonchargeable batteries. Do not
attempt to charge nonchargeable batteries.
• Remove the batteries when the unit is not in use for a long time to avoid
leakage. Batteries can leak chemicals that can damage electronic parts.
• Dispose of batteries promptly and properly, observing any local hazardous
waste regulations. Do not burn or bury them.
• Keep batteries away from children. If you suspect a battery may have been
swallowed, seek immediate medical assistance.
Using the remote control
• When using the remote control, aim it within
a 30º window at the remote control sensor, as
illustrated on the right. Make sure there are no
large obstacles between the remote control and
the unit.
• Do not drop the remote control unit; do not
subject it to physical shocks.
• The remote control may display erratic operation
or interference when it is exposed to bright
sunlight, lightning or fluorescent lighting. In such a case, move the unit
away from the cause of the interference.
• Keep the remote control dry. Wetting it may cause malfunction.
• Replace the batteries when remote control operation deteriorates.
• Do not use other remote equipment when operating this remote control.

8
Connecting the speakers
• Each speaker connection on the HTE-400 comprises a positive (+) and
negative (-) terminal. Make sure to match these up with the terminals on
the speakers themselves.
• Each speaker cable has two wires, and one of these will have a marking
to differentiate it from the other. Make sure to match the marking on the
wire with the positive (+) or negative (-) terminal on the HTE-400 and the
speakers.
1. Twist the exposed wire strands together.
2. Loosen the terminal at the back of the HTE-400 and insert the exposed wire.
3. Tighten the terminal.
4. Loosen the terminal at the back of the speakers by pressing down on the
clip and insert the exposed wire.
Getting Started (Cont.)
Preparations
• All parts of the home theatre system must be placed on a stable, flat
surface that is strong enough to support the weight.
• Follow the illustration on the following pages when installing the parts of the
home theatre system.
After Sales Support
Telephone: [phone]
Email: [email protected]

9
After Sales Support
Telephone: [phone]
Email: [email protected]
Getting Started (Cont.)
Connecting the powered sub-woofer (optional)
1. Connect one end of the RCA sub-woofer cable (not included) to the "PRE
OUT" socket of the HTE-400.
2. Connect the other end to the left (white) Low Level In (or LFE in) socket on
your sub-woofer.
3. Plug in the power cable of the powered sub-woofer to a power outlet.
Connecting your TV and playback devices
Connecting to an HDTV
NOTE:
• The HDMI connection transfers uncompressed digital video as well as
almost every kind of digital audio.
• Most HDTVs are able to receive multichannel audio through an HDMI
connection. However, if you want to listen to the sound of the TV over the
A/V Receiver, you need to make a separate audio connection.
• The Audio Return Channel (ARC) feature in HDMI 1.4 specification enables
a TV, via a single HDMI cable, to send audio to an A/V Receiver thus
eliminating the need for any separate audio connection.
• In order to utilise the ARC feature, your TV must support ARC. Typically,
ARC compatible HDMI ports are labelled as ‘HDMI (ARC)’.

10 After Sales Support
Telephone: [phone]
Email: [email protected]
Connecting to an HDTV without ARC
Getting Started (Cont.)
1. Connect an HDMI cable to the HDMI OUT port on the back of the HTE-400
and to the HDMI IN port on the TV. This connection carries both video and
audio from the HTE-400 to your TV.
2. To listen to the sound of the TV over the HTE-400, connect the HTE-400
and the TV with either a digital optical, digital coaxial or an analog L/R RCA
audio cable.
3. Select the audio input source using the remote to match the type of audio
connection you have made:
a. Press the button on the remote or press the button on the front panel
repeatedly and select OPTICAL.
b. Press the button on the remote or press the button on the front panel
repeatedly and select COAXIAL.
c. Press the button on the remote or press the button on the front panel
repeatedly and select CD/DVD.
NOTE:
• Some TV channels may be louder than the others, which is caused by the
TV signal transmitted by the broadcaster.
• If you cannot hear any sound coming from the centre speaker, switch to
2.0CH (Stereo) sound mode by pressing the CH MODE button on the
remote.
• While the input source is HDMI, Optical or Coaxial and the input signal
is stereo, press the CH MODE button on the remote repeatedly to select
between the 2.0CH, 2.1CH, 3.1CH and 5.1CH sound output modes.

11
After Sales Support
Telephone: [phone]
Email: [email protected]
Getting Started (Cont.)
• While the input source is CD/DVD, USB or FM/AM, press the CH MODE
button on the remote repeatedly to select between the 2.0CH, 2.1CH,
3.1CH and 5.1CH sound output modes.
• If you press the CH MODE button on the remote, while the input source is
set to Multi CH, HDMI, Optical or Coaxial and the input signal is 5.1CH, the
display will show "ERROR" message.

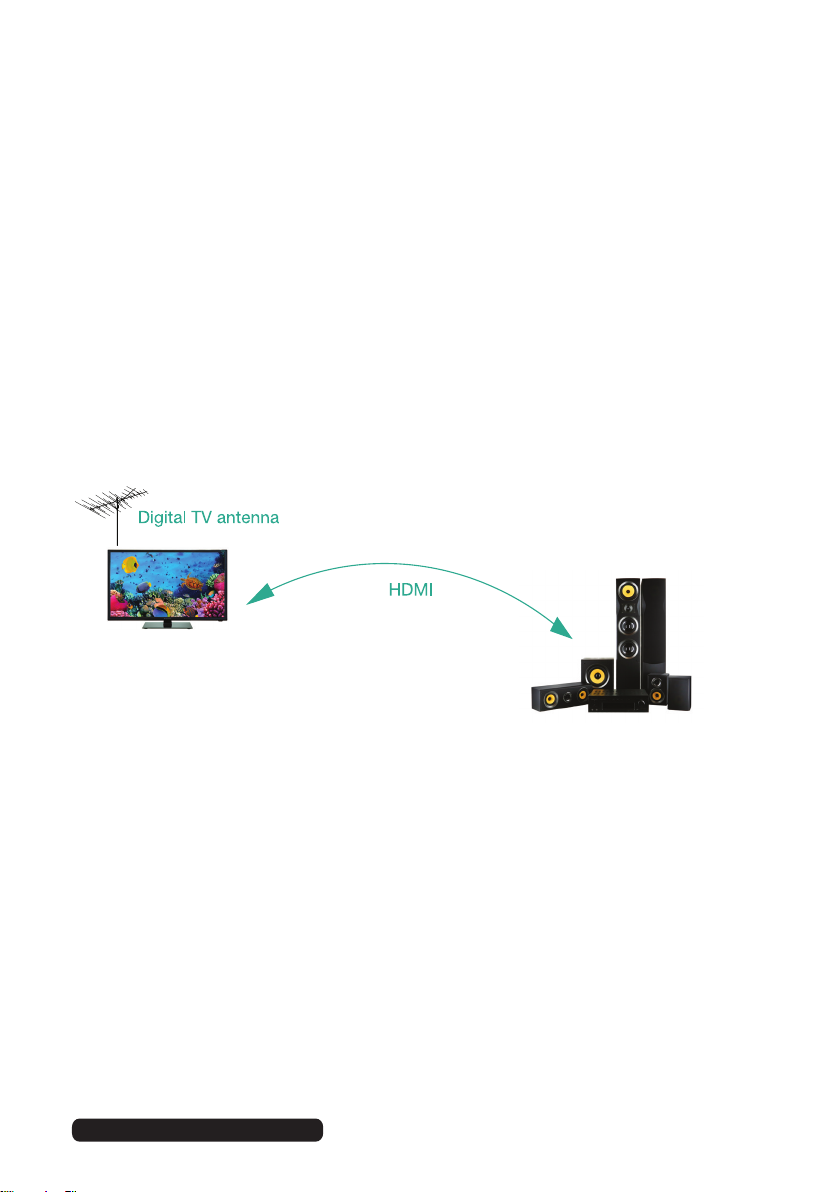

Connecting to an HDTV with ARC
1. Connect an HDMI cable to the HDMI OUT port on the back of the HTE-
400 and to the HDMI (ARC) IN port on the TV. This connection carries both
video and audio from the HTE-400 to your TV as well as enables you to
listen to the sound of the TV over the HTE-400.
2. Turn on the TV. The sound will come from the TV speakers.
3. Turn on the HTE-400. Using the HTE-400 remote, press HDMI button to
switch to HDMI mode. Then turn the ARC feature ON by pressing the ARC
button on the remote.
4. On your TV, turn the ARC feature on by going through its MENU options
(please refer to your TV Instruction Manual for information on how to turn
on the ARC feature). The TV sound will switch to the HTE-400 speakers
after few seconds.

12 After Sales Support
Telephone: [phone]
Email: [email protected]

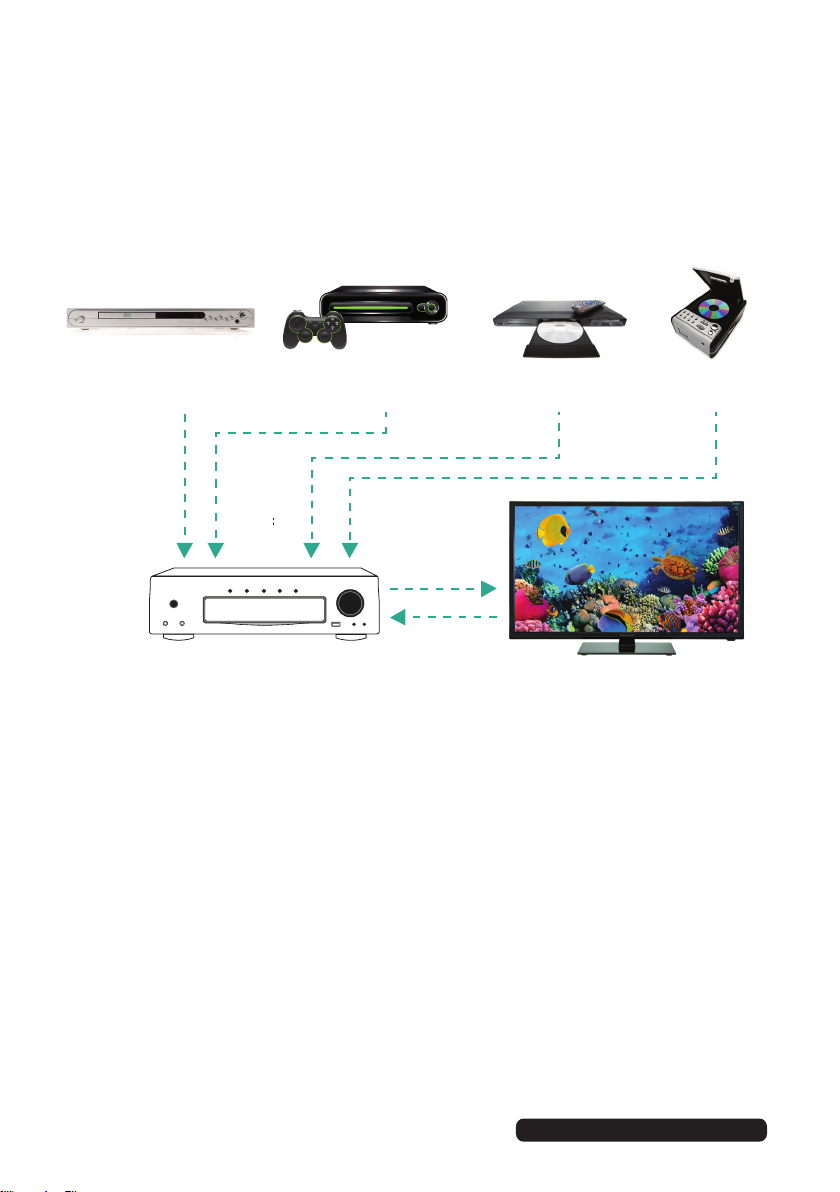

Connecting playback devices using HDMI
If you have an HDMI supported playback device (DVD Player, Blu-ray player,
gaming console, etc.), you can connect it to the HDMI IN 1/2/3/4 ports on the
back of the HTE-400 using an HDMI cable.
Getting Started (Cont.)
To watch the image from the playback device, press the HDMI button on the
remote repeatedly to select the correct HDMI input source.
NOTE:
• If sound is not coming from the centre speaker, switch to 2.0CH (Stereo)
sound mode by pressing the CH MODE button on the remote.
• While the input source is HDMI, Optical or Coaxial and the input signal
is stereo, press the CH MODE button on the remote repeatedly to select
between the 2.0CH, 2.1CH, 3.1CH and 5.1CH sound output modes.
• If you press the CH MODE button on the remote while the input source is
set to Multi CH, HDMI, Optical or Coaxial and the input signal is 5.1CH, the
display will show "ERROR" message.
• When you are using either the optical or coaxial connection option from
your playback device to the HTE-400, make sure your "Digital Audio Out"
in your playback device’s setup menu is set to "Bitstream" or “Auto” and
not "PCM".
Blu-Ray Player
Amplifier TV
Gaming Console DVD Player CD Player
Digital or
Analog Audio
Cable
HDMI 1 HDMI 2
HDMI
HDMI 3 HDMI 4

13
After Sales Support
Telephone: [phone]
Email: [email protected]
Connecting other audio playback devices
The HTE-400 has the following digital and analog inputs allowing you to
connect audio components for playback:
• 1x Optical digital input
• 1x Coaxial digital input
• 1x 2-Channel analog input
• 1x 5.1-Channel analog input
Getting Started (Cont.)
08/2014

14 After Sales Support
Telephone: [phone]
Email: [email protected]
Getting Started (Cont.)
To listen to the audio through these connections, select the audio input
source using the remote to match the type of audio connection you have
made.
1. Optical audio connection: Press the OPTICAL button on the remote or
press the DIGITAL INPUT button on the front panel repeatedly and select
OPTICAL.
2. Coaxial audio connection: Press the COAXIAL button on the remote or
press the DIGITAL INPUT button on the front panel repeatedly and select
COAXIAL.
3. L/R RCA audio connection: Press the CD/DVD button on the remote or
press the ANALOG INPUT button on the front panel repeatedly and select
CD/DVD.
4. Multichannel audio connection: Press the MULTI CH button on the
remote or press the ANALOG INPUT button on the front panel repeatedly
and select MULTI CH.
NOTE:
• If you press the CH MODE button on the remote while the input source is
set to Multi CH, HDMI, Optical or Coaxial and the input signal is 5.1CH, the
display will show "ERROR" message.
• While the input source is HDMI, Optical or Coaxial and the input signal
is stereo, press the CH MODE button on the remote repeatedly to select
between the 2.0CH, 2.1CH, 3.1CH and 5.1CH sound output modes.
• While the input source is CD/DVD, USB or FM/AM, press the CH MODE
button on the remote repeatedly to select between the 2.0CH, 2.1CH,
3.1CH and 5.1CH sound output modes.

15
After Sales Support
Telephone: [phone]
Email: [email protected]
Instructions
Power connection
• Make sure to connect the system to a 240V~50Hz AC power supply.
• Turn on the audio source unit.
• Press the POWER switch.
• Press the appropriate Input Select button on the remote control (or on the
main unit) to select the input audio source.
Main volume adjustment
• Rotate the VOLUME knob on the main unit, or press the MENU+/- button
on the remote control, to adjust the volume.
NOTE: The volume level will be
reset to the factory default
value after restarting the
system. If a short circuit
occurs on the front outputs,
the machine will enter a
protect mode automatically.
If this occurs, please turn
the power off to check and
repair.
Mute
• Press the MUTE button to mute
the sound temporarily, the display
indicates "MUTE"; press the
MUTE button again to restore the
volume.
NOTE: In MUTE mode, all
operations on the main unit
and remote control have
no effect except the MUTE
button.
ALL
STANDBYMUTE
HDMI
OPTICAL
COAXIAL
USB
CD/DVD
FM/AM
DISP
RESET
CH.MODE
DSPLOUD
MENU
FOLDER
AUTO
MEM
TUNECH
+
_
01
2345
6789
10+
MENU
MIC
+
_
MUTE
INPUT SELECT
MAIN VOLUME
INPUT SELECT ARC

16 After Sales Support
Telephone: [phone]
Email: [email protected]
Instructions (Cont.)
Tone adjustment
The treble and bass values of the front channel can be adjusted in increments
of 2 (up to ±10dB) using the main unit or the remote control.
• Press the MENU button until the display
indicates "TREB xx" or "BASS xx".
• Rotate the VOLUME knob on the main
unit, or press the MENU+/- button on the
remote control, for tone adjustment.
Left/Right balance adjustment
The L/R balance values can be adjusted using the
main unit or the remote control.
• Press the MENU button until the
display indicates "L-- II --R".
• Rotate the VOLUME knob on the main unit, or
press the MENU+/- button on the remote control,
for balance adjustment.
SW/CEN/SL/SR volume adjustment
The SW/CEN/SL/SR volume can be adjusted using
the main unit or the remote control.
• Press the MENU button until the display indicates
"SW xx", "CEN xx", "SL xx" or "SR xx".
• Rotate the VOLUME knob on the main unit, or
press the MENU+/- button on the remote control,
to adjust the subwoofer, Centre, left surround and
right surround volume individually.
ALL
STANDBYMUTE
HDMI
OPTICAL
COAXIAL
USB
CD/DVD
FM/AM
DISP
RESET
CH.MODE
DSPLOUD
MENU
FOLDER
AUTO
MEM
TUNECH
+
_
01
2345
6789
10+
MENU
MIC
+
_
ARC
TONE / BALANCE /
VOLUME ADJUSTMENT

17
After Sales Support
Telephone: [phone]
Email: [email protected]
Instructions (Cont.)
DSP Mode
The system has 7 types of DSP effect.
• Press the DSP button on the remote control and select
one of the effects: LIVE, HALL, DISCO, CHURCH,
ROCK, JAZZ, CLASS, or DSP OFF.
Loud
• Press the LOUD button on the remote
control repeatedly to select "LOUD ON" or
"LOUD OFF", as indicated on the display.
Auto-searching stations
• Press the FM/AM button on the main unit
to select TUNER input signal.
• Press the AUTO button on the main unit
for automatic scanning of all available
radio stations and store them in memory
presets.
Manually Storing radio stations
in memory
Operating by remote control:
• In AM/FM mode, press the CH -/+ or
numerical keys on the remote control to
select the preset memory number.
• Press the TUNE +/- button on the remote
control to select a radio station.
• Press the MEM button on the remote
control to save the radio station to the
memory preset.
Selecting preset stations
• Press the FM/AM button to select TUNER input signal.
• Press the CH-/+or numerical keys to select a preset station.
ALL
STANDBYMUTE
HDMI
OPTICAL
COAXIAL
USB
CD/DVD
FM/AM
DISP
RESET
CH.MODE
DSPLOUD
MENU
FOLDER
AUTO
MEM
TUNECH
+
_
01
2345
6789
10+
MENU
MIC
+
_
ARC
DSP MODE
LOUD
STORING RADIO
STATIONS IN
MEMORY
