BAUKER PCT162 User guide

ORIGINAL INSTRUCTION MANUAL
PCT162
50W STAPLER GUN

EN-2
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
SAFETY INFORMATION
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases
or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an

EN-3
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the switch
or energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection
can reduce dust-related hazards.

EN-4
4) Power tool use and care
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools . Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.

EN-5
TACKER SAFETY WARNINGS
1. Always assume that the tool contains fasteners.
Careless handling of the tacker can result in unexpected ring
of fasteners and personal injury.
2. Do not point the tool towards yourself or anyone
nearby. Unexpected triggering will discharge the fastener
causing an injury.
3. Do not actuate the tool unless the tool is placed
rmly against the workpiece. If the tool is not in contact
with the workpiece, the fastener may be deected away from
your target.
4. Disconnect the tool from the power source when
the fastener jams in the tool. While removing a jammed
fastener, the tacker may be accidentally activated if it is plugged
in.
5. Use caution while removing a jammed fastener.
The mechanism may be under compression and the fastener
may be forcefully discharged while attempting to free a jammed
condition.
6. When fastening electrical cables, make sure the
cables are not energized. Hold the tacker only by
insulated gripping surfaces. Use only fasteners designed for
electrical cable installations. Inspect that the fastener has not
damaged the insulation of the electrical cables. A fastener that
damages the insulation of electric cables can lead to electric
shock and re hazards.
7. Do not use this tacker for fastening electrical
cables. It is not designed for electric cable installation and
may damage the insulation of electric cables thereby causing
electric shock or re hazards.

EN-6
45
1 2 3
6
7
8

EN-7
A1 A2
A3 A4
A5 B
C D

EN-8
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Wear eye protection
Wear ear protection
Wear dust mask
Warning
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice.

EN-9
TECHNICAL DATA
Rated voltage 220-240~ 50Hz
Impact rate 30 /min
Standard staple size range 15-25 mm
Brad nail size range 15,20,25,30,32mm
Max Nail/staple Capacity 50 pcs
Protection class /II
Weight 1.36 kg
ACCESSORIES
Standard staples (20 mm) 100
Brad nails (20 mm) 100

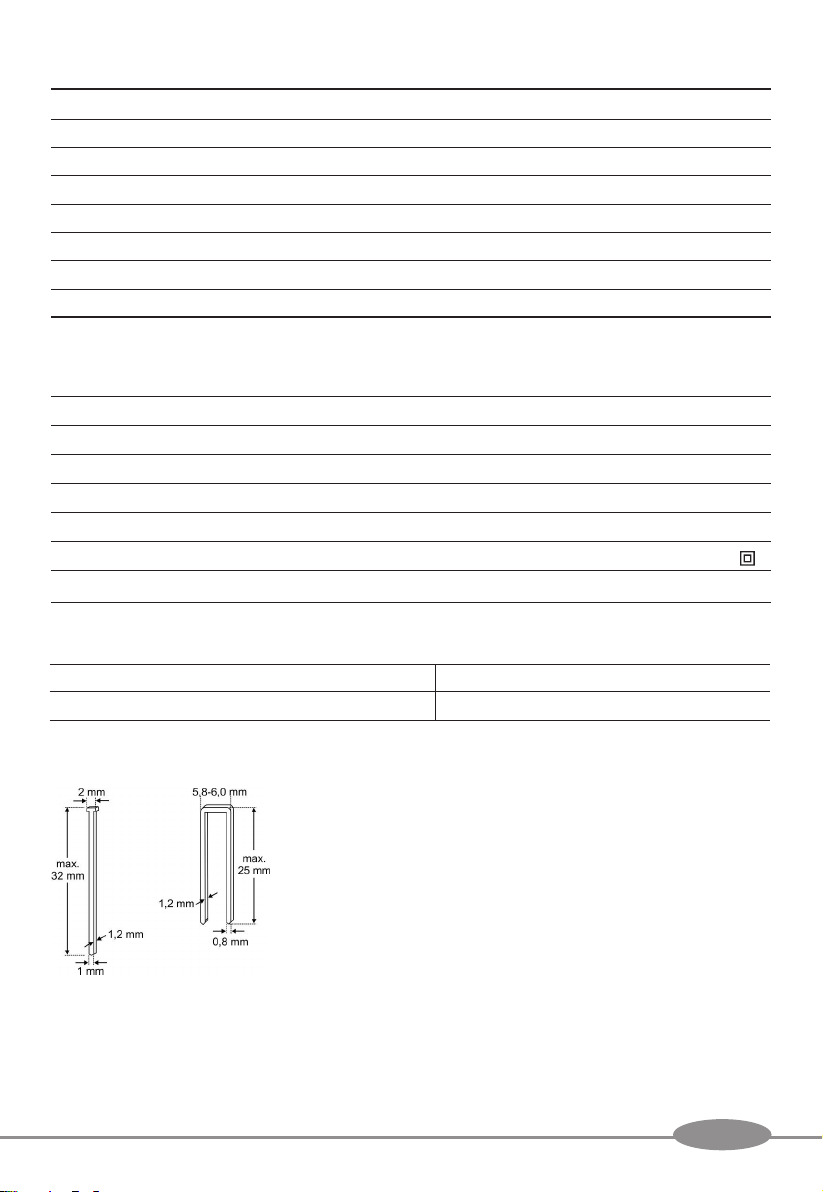

You can use staples or nails with the size described in below gure with this electric staple gun.
COMPONENT LIST
1. TRIGGER
2. MAIN HANDLE
3. POWER CABLE
4. STAPLE MAGAZINE
5. CONTACT SWITCH
6. KNOB FOR HAMMER FORCE PRESELECTION
7. ON/OFF SWITCH
8. MAGAZINE LOCKING LEVER

EN-10
NOISE / VIBRATION INFORMATION
A weighted sound pressure LpA = 80,48dB(A)
KpA= 3.0dB(A)
A weighted sound power LwA = 91,48dB(A)
KwA: 3.0dB(A)
Wear ear protection when sound pressure is over: 80dB(A)
Vibration Information
Vibration total values (triax vector sum) determined according to EN60745:
Hand arm vibration
Vibration emission value ah,HD = 2.13 m/s2
Uncertainty K= 1.5 m/s2
The declared vibration total value may be used for comparing one tool with another, and may also be
used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ from
the declared value depending on the ways in which the tool is used dependant on the following
examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is
switched off and when it is running idle but not actually doing the job. This may signicantly reduce the
exposure level over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.

EN-11
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The power tool is intended for tacking fabrics, leather, card board, foils, insulation material and other
materials to soft structural surfaces, such as wood or wood-like materials. The power tool is not suitable
for fastening wall or ceiling panelling.
1. LOADING STAPLES/ NAILS (SEE FIG A1- A5)
Unplug the staple gun from mains supply.
Depress the Magazine locking lever (8) and pull the magazine out. (See Fig A1 and Fig A2)
Place the staple strip (See Fig A3) or nail strip (See Fig. A4) into the magazine.
Slide magazine back to the original position and secure the magazine by hitching the locking lever (8)
behind. (See Fig A5).
WARNING: Note that the nail strip should be placed close to the bottom of
the magazine. The nails may get stuck if the nail strip are placed in wrong
position. (See below gures for reference)
If the nails may get stuck, please unscrew the three nuts in the opening of the
staple gun using a spanner(not supplied) and remove the nail.

EN-12
2. HAMMER FORCE PRESELECTION (SEE FIG B)
With the knob for hammer-force preselection, it is possible to preselect the required hammer force.
The required hammer force depends on the length of the staples or nails, and on the strength of the
material. The optimal hammer force setting is best determined through practical testing. Turn the knob
clockwise to increase the hammer force and turn it counter-clockwise to reduce the hammer force.
3. ON/OFF SWITCH (SEE FIG. C)
To start the machine, set the On/Off switch(6) to I rst.
To switch off the machine, set the On/Off switch(6) to 0.
Warning: Switch off the machine immediately when not in use.
4. TO OPERATE THE STAPLE GUN (SEE FIG D)
Plug mains lead into suitable mains supply.
Place the contact switch (5) of the staple gun rmly onto the material and depress the trigger (1).
Additional pressure applied to the front of the tool will prevent recoil and increase the force applied to
the nails or staples. This is especially important for ensuring that the nail or staple is driven the whole
way into a hard surface.
Note:
● Remove all nails/staples from the magazine after each use.
● The machine is designed only for intermittent operation and will warm up with
continues use. The tacking force is reduced as a result of heating up. Therefore,
allow the machine to cool off after 15 minutes (max) continuous operation.
● There is a contact switch (5) in your staple gun. The contact switch enables the
staple gun only to be started on contact with the material surface.
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the
motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks
through the ventilation slots. This is normal and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.

EN-13
TROUBLESHOOTING
Problem Possible cause solution
1. product does not start 1.1 not connected to power supply
1.2 product no switch on
1.3 power cord or plug is defective
1.4 other electrical defect to the
product
1.1 connect to power supply
1.2 switch ON
1.3 check by a specialist
electrician
1.4 check by a specialist
electrician
2. product does not reach
full power
2.1 extension cord not suitable for
operation with the product
2.2 power source has too low
voltage
2.1 use a proper extension cord
2.2 connect to another power
source
3. fasteners jam in tool 3.1 wrong size fasteners
3.2 driver channel worn
3.3 bent fasteners
3.4 loose magazine/nose screws
3.5 broken/chipped driver
3.1 use only recommended
fasteners
3.2 replace nail / staple
3.3 discontinue using these
fasteners
3.4 tighten all screws
3.5 replace nail / staple
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.

EN-14
PLUG REPLACEMENT (ONLY FOR REWIRABLE
PLUG OF UK & IRELAND)
If you need to replace the tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
BLUE – NEUTRAL
BROWN – LIVE
As the colors of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue
must be connected to the terminal which is marked with N. The wire which is coloured brown must be
connected to the terminal which is marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only t an approved
BS1363/A plug and the correct rated fuse.
NOTE: If a moulded plug is tted and has to be removed take great care in disposing of the plug and
severed cable, it must be destroyed to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362

EN-15
DECLARATION OF CONFORMITY
We,
Positec Power Tools (Europe) Ltd,
PO Box 6242, Newbury, RG14 9LT, UK
Declare that the product
Description: Stapler Gun
Type PCT162 (CT-designation of machinery, representative of staple gun)
Function tacking fabrics, leather, card board, foils and so on
Complies with the following Directives:
2006/42/EC, 2014/30/EU, 2011/65/EU
Standards conform to:
EN 60745-1, EN 60745-2-16, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
The person authorized to compile the technical le:
Name Jim Kirkwood
Address Positec Power Tools (Europe) Ltd,
PO Box 6242, Newbury, RG14 9LT, UK
2018/01/26
Allen Ding
Deputy Chief Engineer, Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
