Assembly and Operating Instructions
Discovery i-1000R

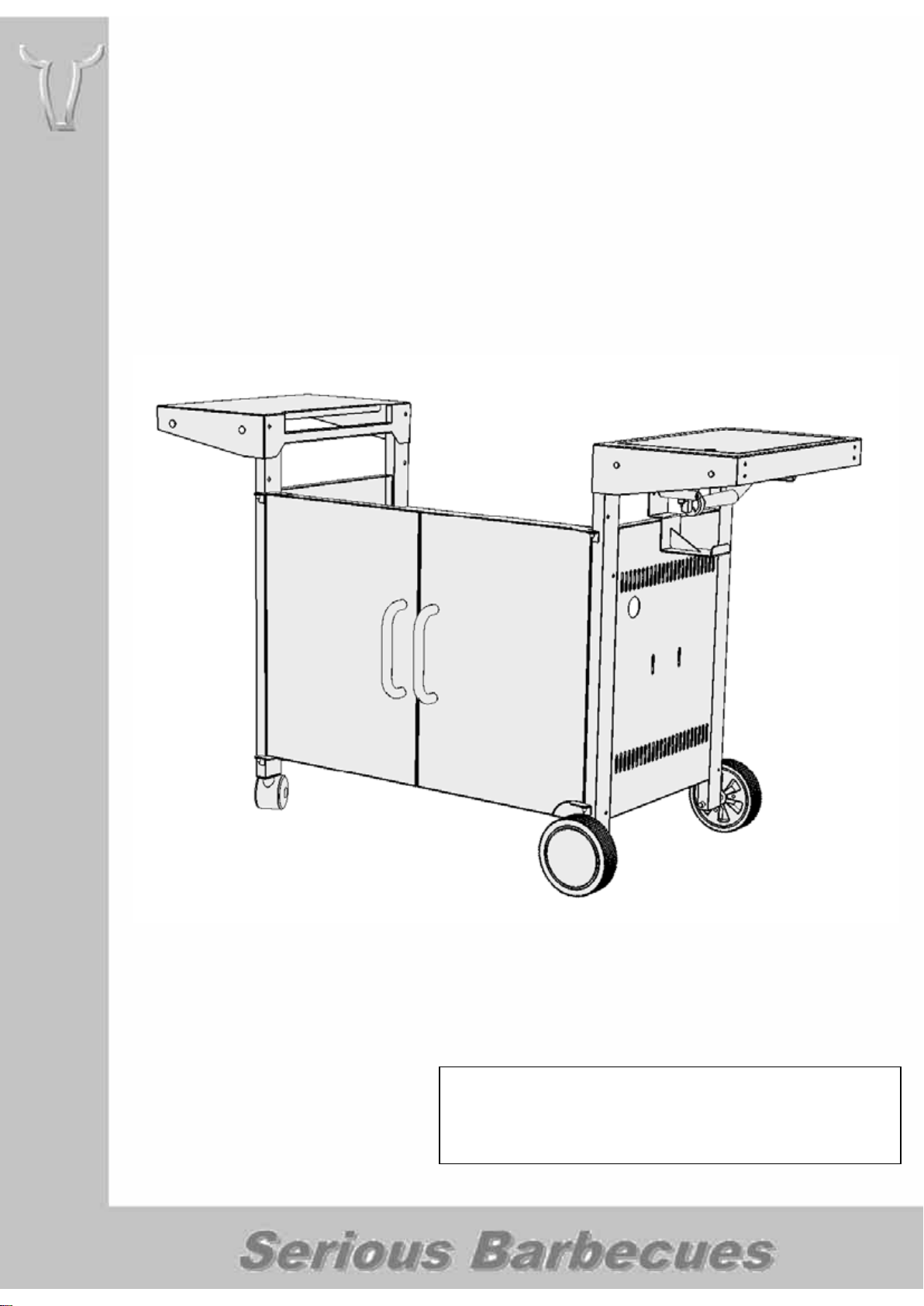

Discovery Series Cabinet Trolley
For outdoor use only

2
Content:
Bolt Pack:
Index Part Quantity
1 Top Panel 1
2 Shelf 1
3 Side Burner 1
4
RHS Panel and legs
1
5 LHS Panel and legs 1
6 Rear Panel 1
7 Base Panel 1
8
RHS Door
1
9 LHS Door 1
10 Cylinder Hook 1
11 Castors 2
12
Wheels
2
13 Wheel Spacers 2
Mrk Qty description
A 16 M6 x 40mm Screw
B
24
M6 washer
C 6 M6 Fiber Washer
D
6
M6 x 12mm screw
E 2 ‘R’ Clips
F
2
M6 x 25mm Screw
G 2 M6 Nut
H
1
M4 x 12mm screw
I 1 M4 Washer
J
2
Rubber Grommet
K 1 Cylinder Strap

3
Assembly Procedure
Step 1
Remove all loose parts from inside the BBQ, close the hood, and turn it upside-down on a padded
surface (BBQ packaging can be used for this purpose).

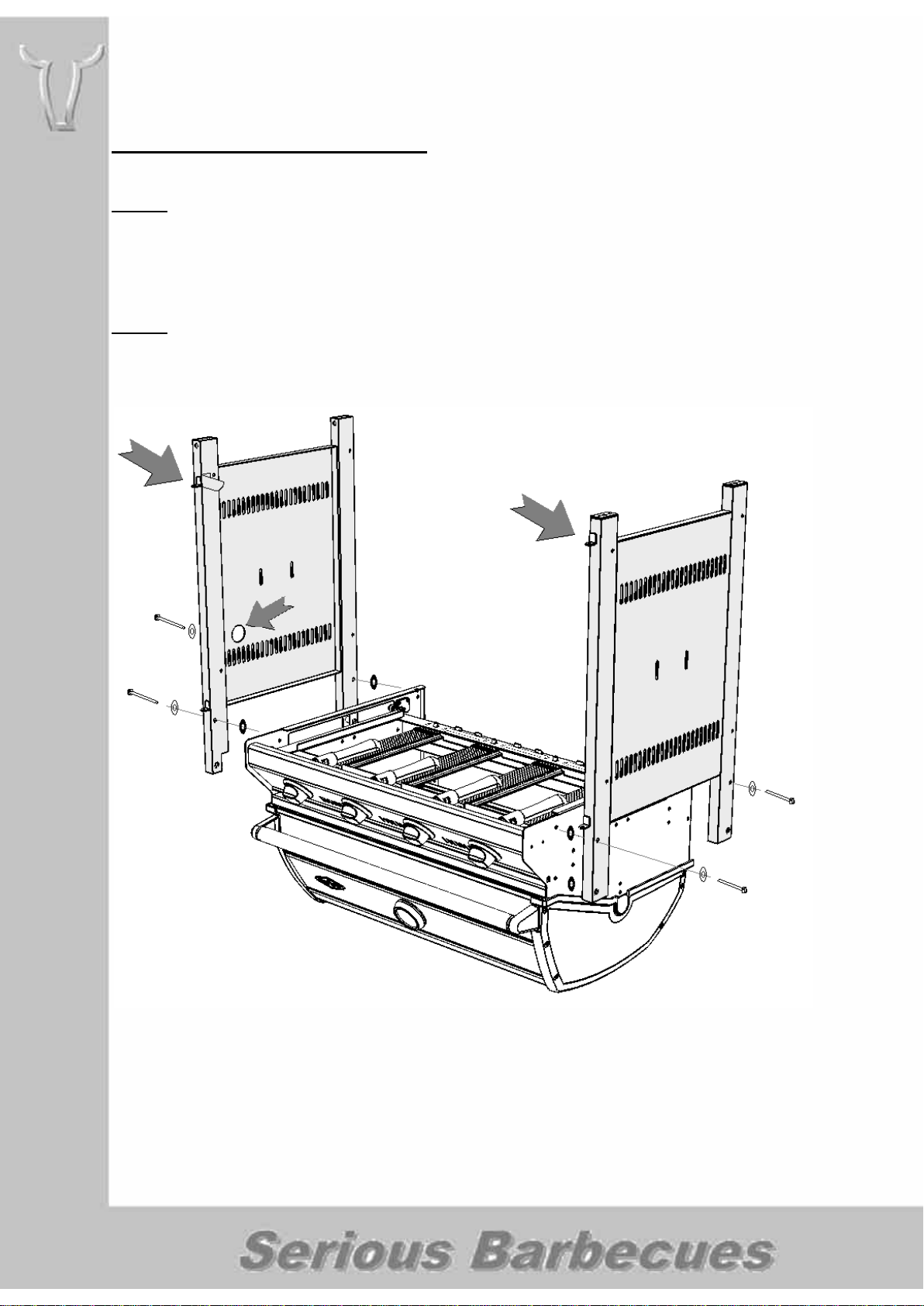

Step 2
Use: 4 x ‘A’, 4 x ‘B’, 4 x ‘C’
Attach the Sides of the trolley (Parts 4, 5) to the BBQ body. Note the direction, position and
orientation:
Note: Only put in the 4lowerscrews!Turn the screws all the way in, but do NOT tighten them. Other
4 screws and final tightening will only be done after installing the shelf and side-burner at a later
stage.

4

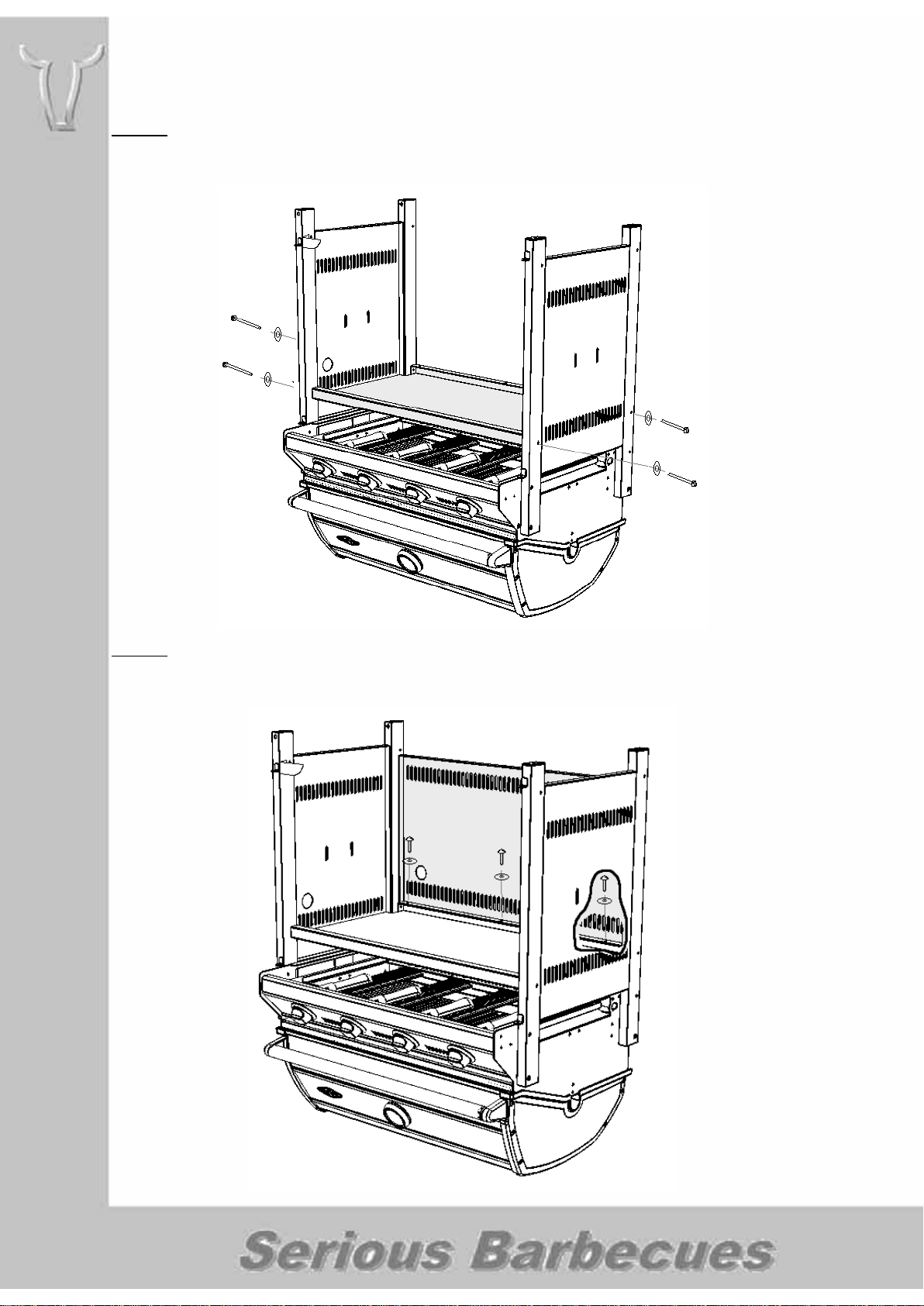

Step 3
Use: 4 x ‘A’, 4 x ‘B’
Attach the Top panel (Part 1) to the sides:
Step 4
Use: 3 x ‘D’, 3 x ‘B’
Attach the Back panel (Part 6) to the Top panel:

5
Step 5
Use: 4 x ‘A’, 7 x ‘B’, 3 x ‘D’, 1 x ‘H’, 1 x ‘I’
Attach the Base of the trolley (Part 7) to the Sides and Back panel:
Step 6
Use: 2 x ‘E’
Fit the Wheels (parts 12, 13) and the castors (parts 11):
Step 7
Carefully turn the trolley and Barbecue upright

6

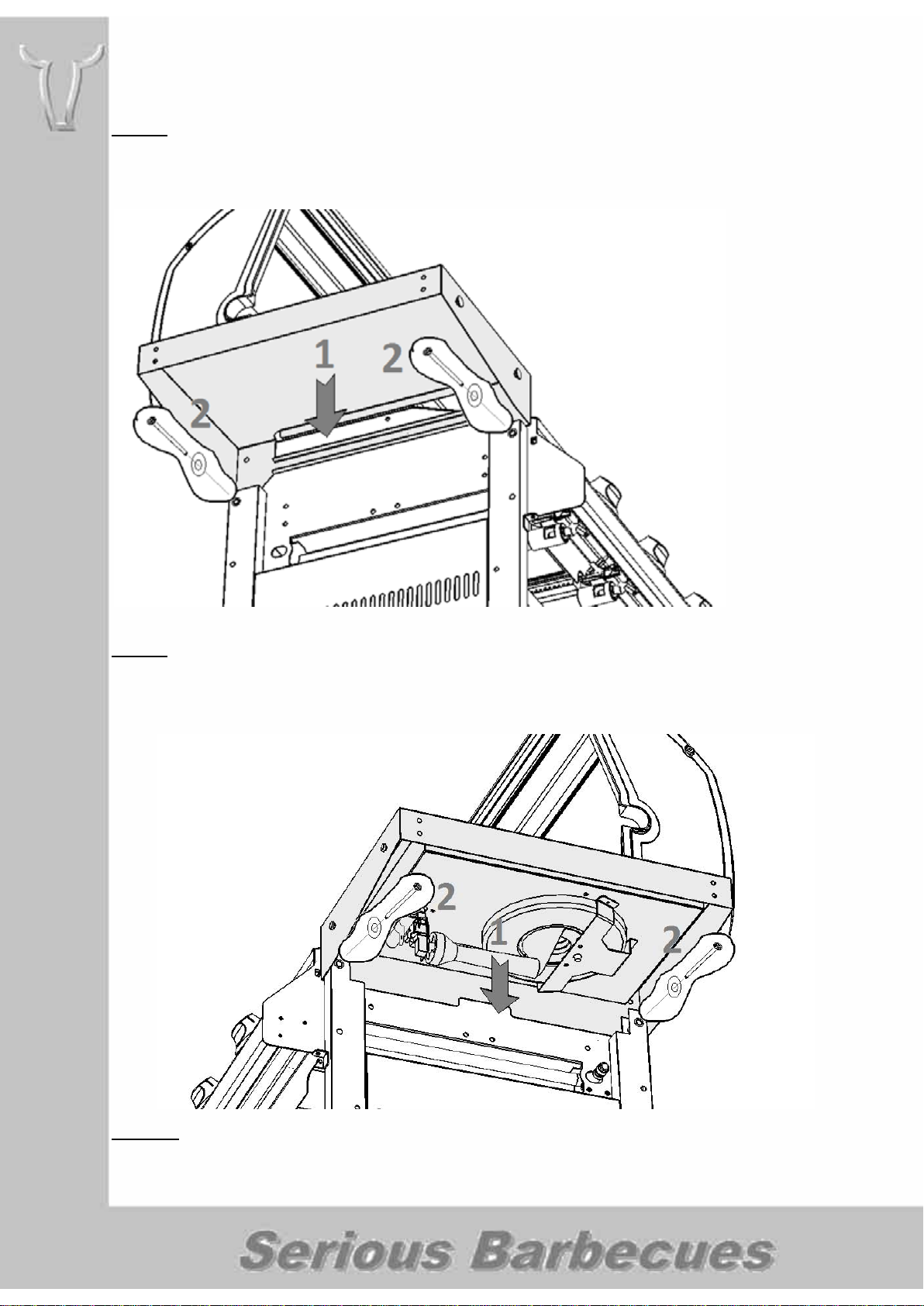

Step 8
Use: 2 x ‘A’, 2 x ‘B’
To the Left Hand Side, install the shelf (Part 2). Insertover the two legsand between the barbecue
body and the leg,and secure with the screws.
Step 9
Use: 2 x ‘A’, 2 x ‘B’
To the Right Hand Side, install the Side-Burner (Part 3) . Insert over the two legs and between the
barbecue body and the leg, and secure with the screws.
Step 10
Ensure all screws are now tightened (but do not over-tighten)

7
Step 11
Assemble both doors(Parts 8, 9) over the hinge brackets:
Note: ensure that in each door, both hinge pins are inserted into the brackets simultaneously.
It may be required to assemble the handles onto the doors.
Step 12
Use: 2 x ‘F’, 2 x ‘G’, 2 x ‘B’, 2 x ‘C’
Assemble Cylinder Hook(Part 10), if required:

8
Step 13
Make Gas connections and perform a leak test (as described in the Barbecue instruction book, P.11).
Warranty
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Warranty terms and condition in BBQ Instructions book P. 17 apply to this trolley as well.
All parts and workmanship of this trolley are covered for a period of 1 year from date of
purchase.
Technical Information
Note: Do not modify this appliance or any of its parts. Any deviation from
factory settings could result in a safety hazard.
Side Burner manifold inlet threads are 3/8 SAE male flare fitting.
Nozzle sizes: LPG – 1.05mm, NG – 1.70mm
Australia Input Energy: 15Mj.
North America Input Energy: 14,220BTU.

9
Distances to Combustible materials(min):
For your records:
Model Number: ________________________________________________________________________
Date of Purchase: ________________________________________________________________________
Place where purchased:
________________________________________________________________________
Serial Number:
_________________________________________________________________________

10

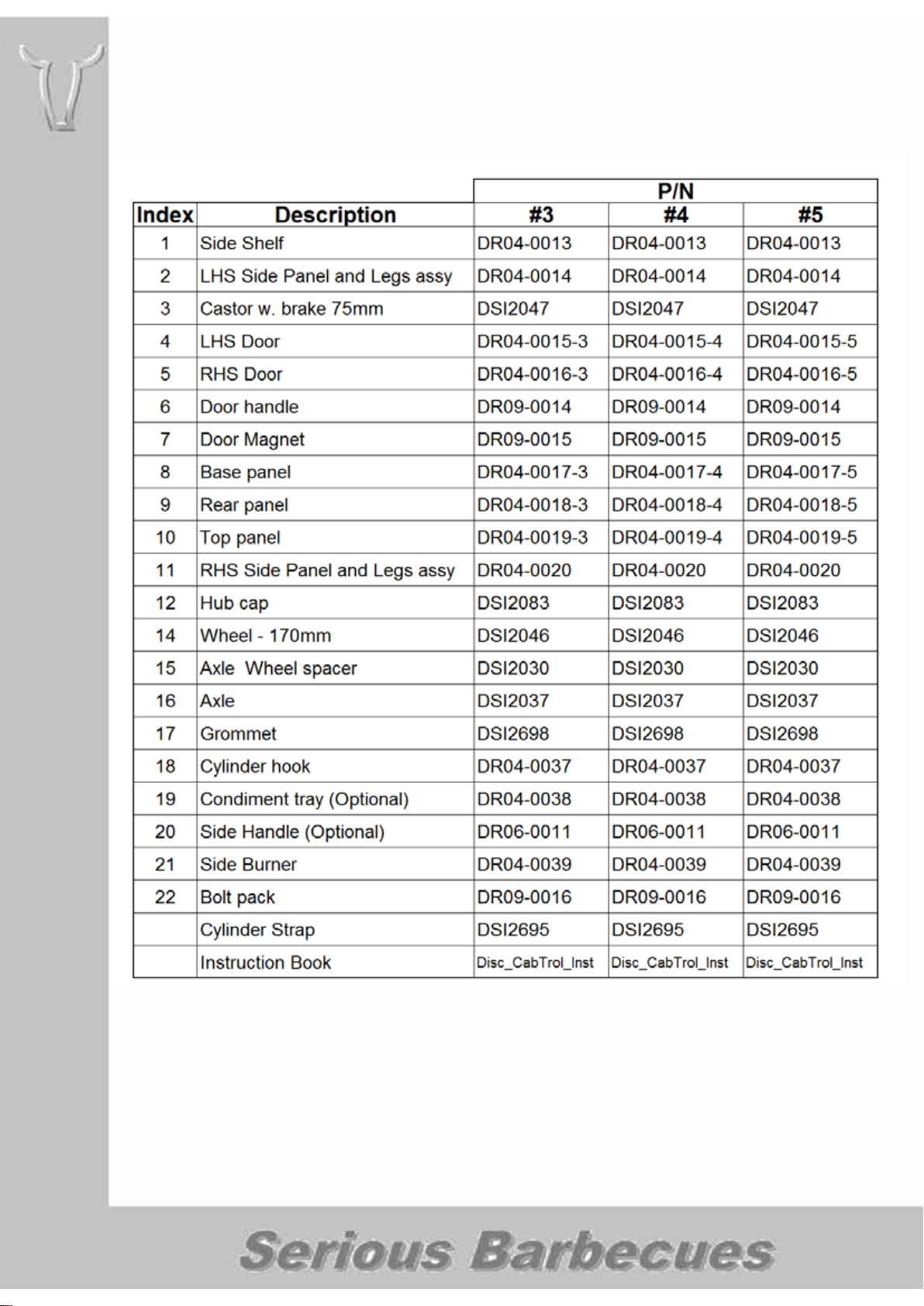

Spare Parts:
Images in this manual are for illustrative purposes only.
Due to constant improvement, BeefEater advises that
changes to the design, material, specifications and product
configuration may occur at any time without notice.
