BeingHD HDBT-HDMI-70TR-LITE User manual

1
LITE HDBaseT/HDMI via Single CAT5e/6 Extenders with IR,RS232,HDCP2.2, 4K
Version: V2017.001
User Manual

2
Contents
1. Production ............................................................................................................ 3
2. Features .................................................................................................................3
3. Specification ........................................................................................................ 3
4. Packing ..................................................................................................................4
5. Front Panel ........................................................................................................... 4
6. Operation .............................................................................................................. 5
6.1 Connection Diagram ................................................................................................5
6.2 POC ........................................................................................................................... 5
6.3 Bi-directional IR ........................................................................................................6
6.4 RS232 control ...........................................................................................................6
6.5 Indicators ...................................................................................................................7
6.6 RJ-45 Cable connector............................................................................................. 7
6.7 RJ-45 cable using requests........................................................................................7
7. Common Problem Shooting ............................................................................ 8
7.1 Common problem .................................................................................................... 8
7.2 Notice .........................................................................................................................8
8. After Sales .............................................................................................................9
8.1 Warranty Information.................................................................................................9
8.2 Warranty limitation and excptation ........................................................................9
9. Version Information ............................................................................................9

3
1. Introduction
HDBT-HDMI-70TR-LITE is an HDBaseT technology extender, it supports no compression,
no losses, no latency HDMI signal transmission. It can can work with other HDBaseT
equipment, such as Sony HDBaseT projector. All the signals are transmitted by one single
CAT5E/ CAT6/ CAT7 cable, for 1080P it can transmit to a distance of 70m(230ft), for
4K30Hz, it can up to 35m(115ft). Compatible with all the HDTV resolutions, HDCP2.2
protocol. It also supports bi-directional RS232 and IR transmission and realize the long
distance control. Supports power over cable, users only need to power one side; It can be
popularly used in media conferencing room, school, government, cinema and so on
applications.
2. Features
√Transmit highest quality audio and video, for 1080p can up to 220/ 330 feet and 4K
can up to 110/ 165 feet with Cat6/6a/7 cable
√Supports FULL HD, UHD, 3D, 4K2K
√HDCP2.2, HDMI2.0
√Bidirectional IR/Serial control signal transmission
√Power over Cable (POC) locally powered over Cat5e/6 cable at either end
√Supports 7.1 DTS Master HD, Dolby True HD,
√LED indicators
3. Specification
Model
HDBT-HDMI-70T
HDBT-HDMI-70R
Input
1*HDMI, 1*RS232, 1*IR-TX,
1*IR-RX
1*HDBaseT
Output
1*HDBaseT
1*HDMI, 1*RS232, 1*IR-TX,
1*IR-RX
Protocol
Support HDMI2.0 and compatible with HDCP2.2
Resolution
1920x1200, 1680x1050, 1360x768, 1280x800, 1920x1080, 1600x900, 1366x768,
1280x720, 1024x576, 1920x1200, 1680x1050, 1360x768, 1280x800,
4096x2160@30Hz, 3840x2160@30Hz

4
Color Space
1080p: 36Bit Deep Color 4K: 24Bit True Color, 4:2:2
Bandwidth
10.2Gbps
Transmissio
n Distance
CAT5e/6 cable: 70m(1080p60Hz)
35m(4K30Hz)
Dimension
115×84×16（mm）
Weight
120g
Power
AC: 100-240V 50/60Hz 1.5A Max DC: 12V 1500mA
Consumptio
n
≤11W
Working
Humidity
10%-90%
Working
Temperature
0℃-50℃
Storage
Temperature
-20℃-75℃
4. Packing
HDBT-HDMI-70R-AE(Receiver)
1
pcs
HDBT-HDMI-70T-AE(Transmitter)
1
pcs
Power adapter(DC 12V)
1
pcs
Rack ears
2
pair
5. Panels

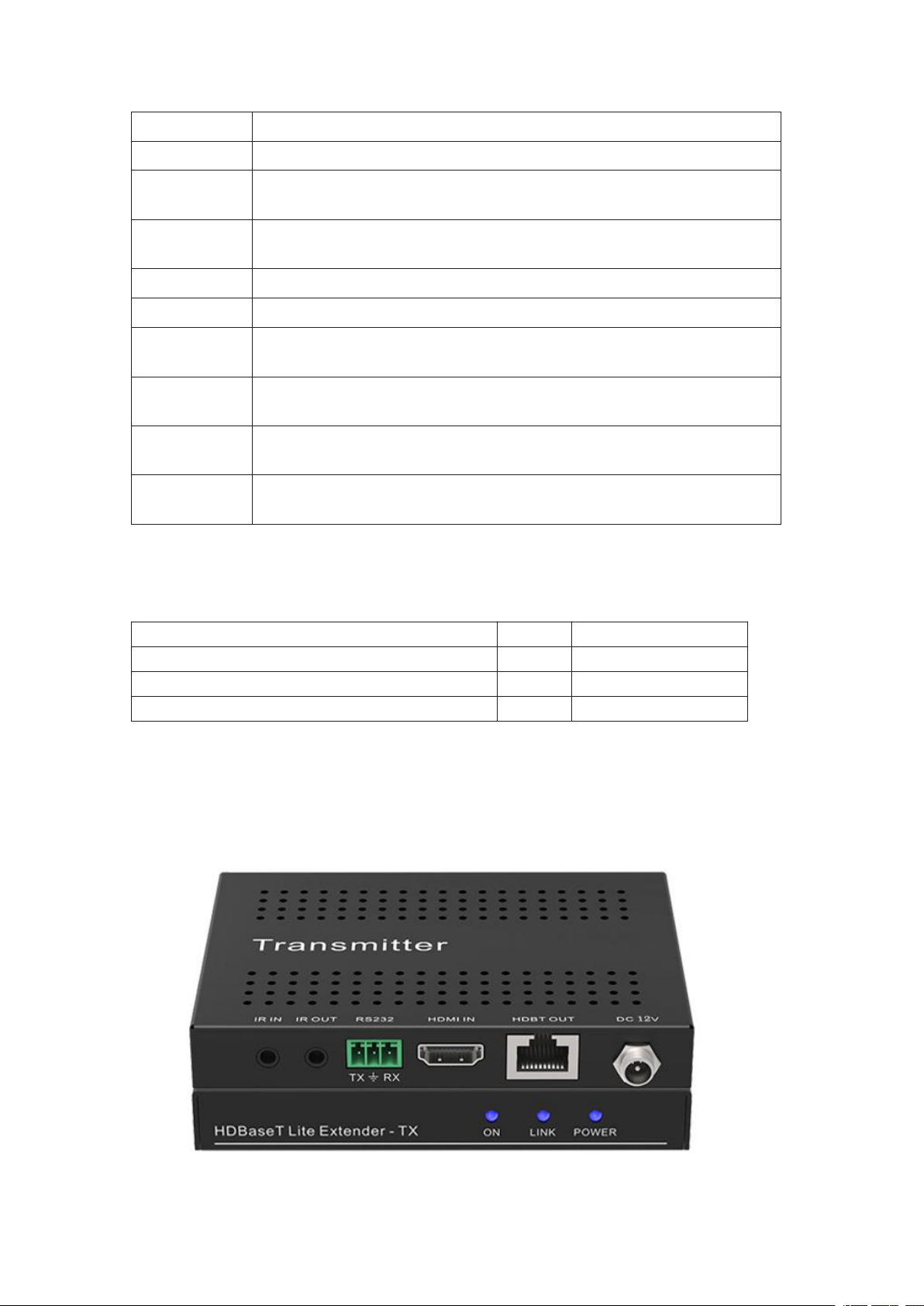

Transmitter

5
A: IR transmitter port
B: IR receiver port
C: 3-pin RS232 port
D: HDMI in
E: RJ45 output port
F: DC 12V input port

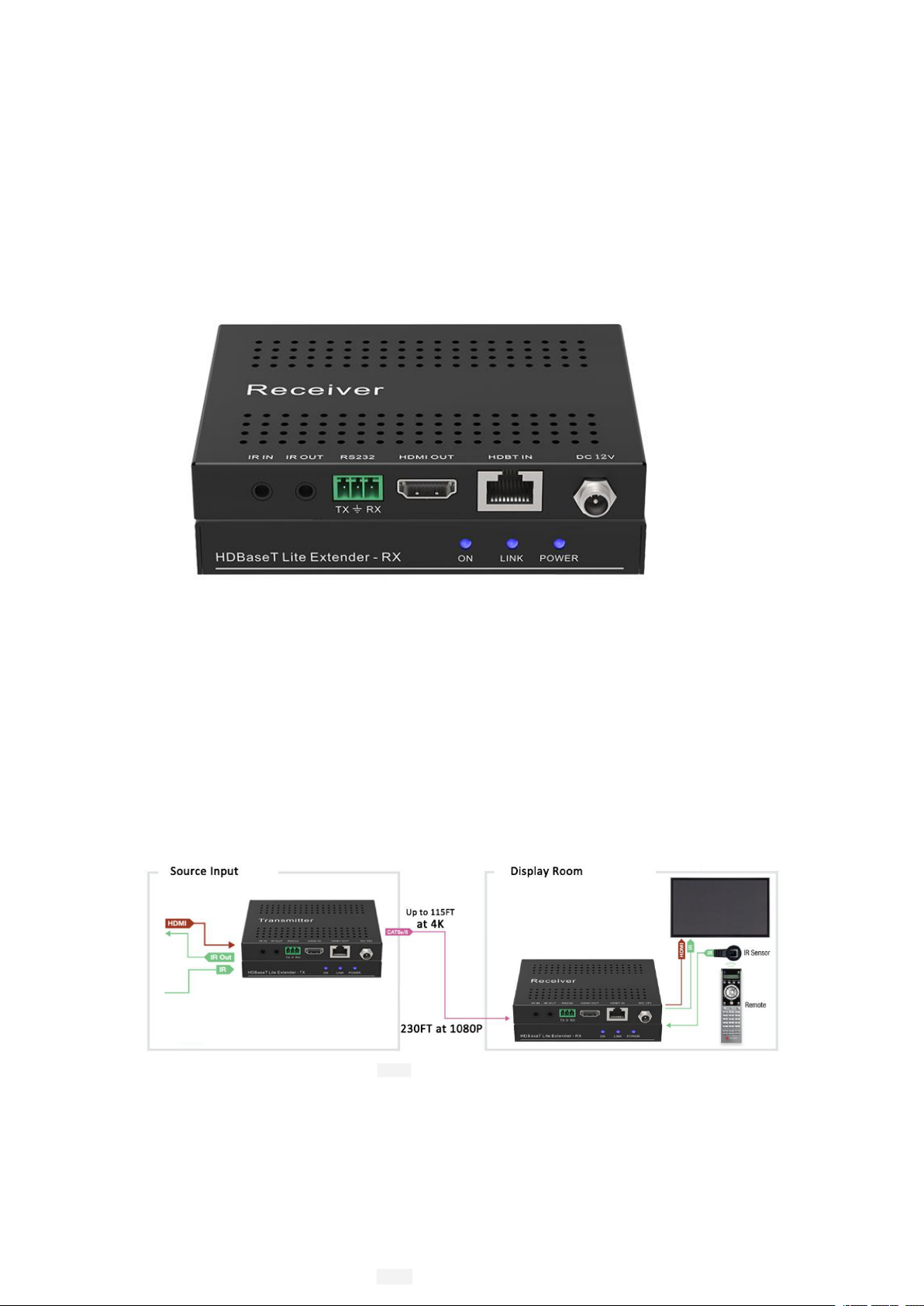

Receiver
A: IR transmitter port
B: IR receiver port
C: 3-pin RS232 port
D: HDMI output port
E: RJ45 input port
F: DC 12V input port
6. Operation
6.1 Connection Diagram

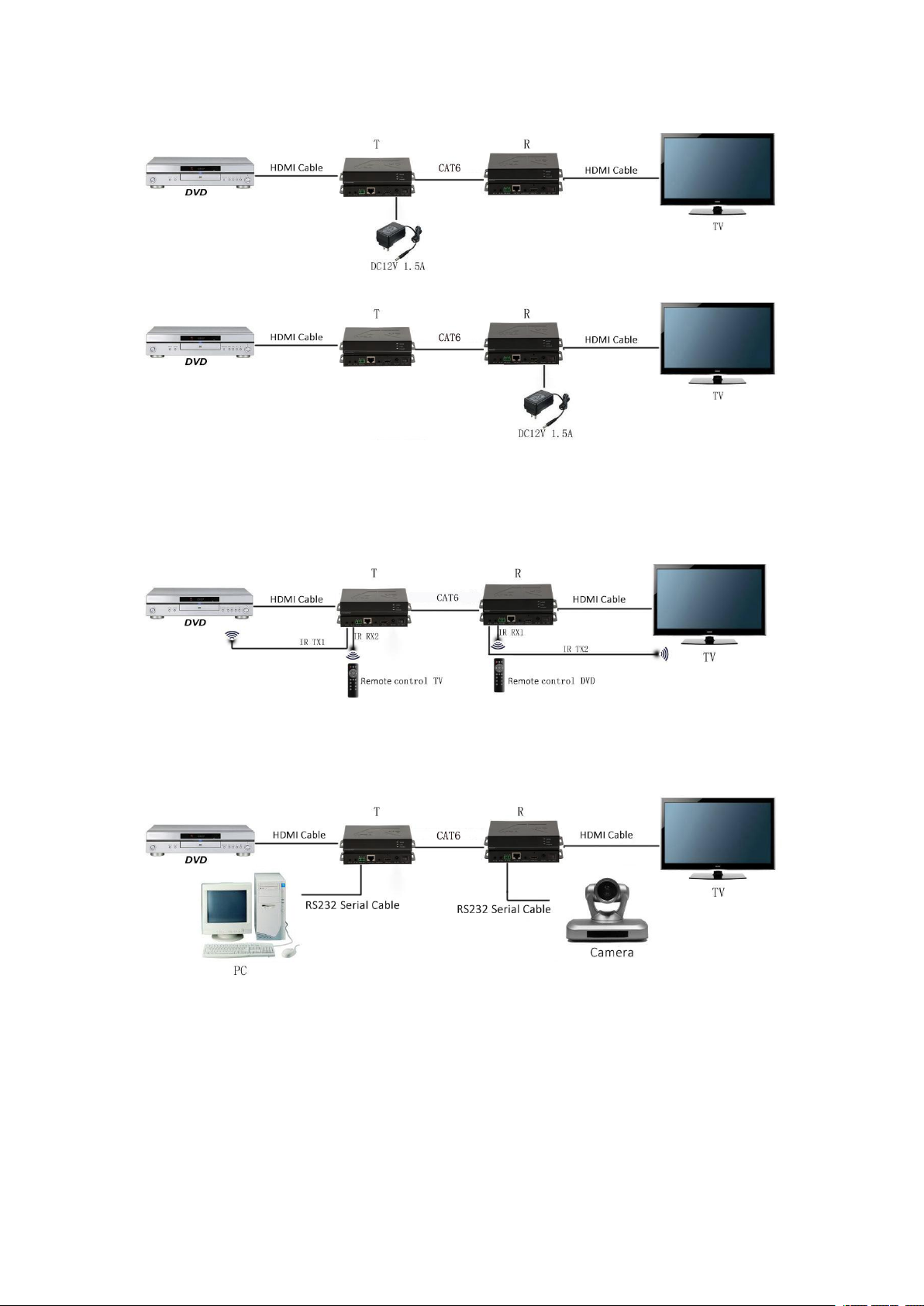

6.2 POC(Power over cable), only need to power on one end.

6
6.3 Bi-directional IR signal transmission
6.4 RS232signal transmission

7
6.5 Indicators
POWER: The indicator will light up when power on
LINK: It will light up when the transmitter and receiver connected successfully, flecking
means
connection is not stable, off means the connection is failed.
ON: It will flick once per second if the system runs good, on the contrary, it will be off
or light up.
6.6 RJ-45 connector
Suggest to use twisted shield pair 24AWG cable, the bandwidth at least 400MHz, and
crystal connector.
6.7 RJ-45 cable using requests

8
The gap between cables should above25mm, don’t circle it knot
RJ-45 cable should away from high voltage cable, at least above 300mm; Also should be
away from line tube at least 25mm
7. Common problem and notice
7.1 Common problem shooting
Please check below parts when the display showing no signal, audio, flicking, blue or
black screen:
(1) Check the connection of the RJ-45 cable, HDMI cable
(2) Check the crystal connector and the RJ-45 cable is CAT5E/CAT6/CAT7
(3) Check the source input are correct
(4) Be aware of the status of the indicators and find out the problems
7.2 Notice
(1) All the RJ-45 cable, power cord should have the protection cover when
assembling, better cover the cable to avoid out pressure to damage the cables
(2) Please don’t hang up stuff over the cables, don’t step on the cables to avoid
short circuit and damage.
(3) Please pay attention to using the properly plugging in ways to avoid cable and
port damage.
(4) Please avoid the liquid getting into the equipment to damage the product and
short circuit.
8. After-Sales
8.1 Warranty Information
The Company warrants that the process and materials of the product are not
defective under normal use and service for 3 (3) years following the date of purchase

9
from the Company or its authorized distributors.
If the product does not work within the guaranteed warranty period, the company will
choose and pay for the repair of the defective product or component, the delivery of
the equivalent product or component to the user for replacement of the defective item,
or refund the payment which users have made.
The replaced product will become the property of the Company.
The replacement product could be new or repaired.
Whichever is longer, any replacement or repaired of the product or component is for a
period of ninety (90) days or the remaining period of the initial warranty. The
Company shall not be responsible for any software, firmware, information, or memory
data contained in, stored in, or integrated with the product repaired by the customer's
return, whether or not during the warranty period.
8.2 Warranty limitations and exceptions
Except above limited warranty, if the product is damaged by over usage, incorrectly
use, ignore, accident, unusual physical pressure or voltage, unauthorized
modification, alteration or services rendered by someone other than the Company or
its authorized agent, the company will not have to bear additional obligations. Except
using the product properly in the proper application or normal usage
9. Version Information
Description of version（Document number：HDBT-HDMI-70TR-LITE）
Date
Version number
Description
MAY 2017
V1.01.01
First version
