D-Link DCH-M225 User manual

iD-Link DCH-M225 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation
or its subsidiaries. All other third party marks mentioned herein may be trademarks of their respective owners.This publication
may not be reproduced, in whole or in part, without prior express written permission from D-Link Systems, Inc.
Revision Date Description
1.0 June 11, 2014 • Initial release for Revision A1
Preface

iiD-Link DCH-M225 User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Minimum Requirements............................................................ 2
Introduction ................................................................................... 3
What is a Wi-Fi Extender?........................................................... 4
Features............................................................................................ 5
Hardware Overview..................................................................... 6
Front/LED Indicator.............................................................. 6
Side and Bottom/WPS and Reset.................................... 7
Product Setup .................................................................... 8
Wireless Installation Considerations...................................... 9
Recommended Placement..............................................10
Connect Your DCH-M225 to Your Router Using WPS.....11
QRS Mobile App Setup.............................................................13
Web-based Conguration Utility..........................................17
Setup Wizard ........................................................................19
Manual Conguration.......................................................22
Home.......................................................................................23
Wi-Fi Settings .......................................................................24
Extended Wi-Fi Settings ...................................................25
Audio Renderer ...................................................................26
Network Settings ................................................................27
Advanced Settings ........................................................27
Maintenance ................................................................................30
Admin .....................................................................................30
System ....................................................................................31
Upgrade Firmware..............................................................32
Statistics .................................................................................33
Conguring WPA/WPA2 Personal.........................................34
Connecting to a Wireless Network .................................36
Connecting to Wireless Clients Using WPS .......................36
Windows® 8...................................................................................37
Windows® 7...................................................................................39
Windows Vista®............................................................................42
Troubleshooting ..............................................................45
Wireless Basics .................................................................47
What is Wireless?.........................................................................48
Tips...................................................................................................50
Networking Basics...........................................................51
Statically Assign an IP Address ..............................................52
Wireless Security Options ...............................................54
Security Protocols.......................................................................54
Encryption.....................................................................................55
Authentication.....................................................................55
Technical Specications ..................................................56
Table of Contents

iiiD-Link DCH-M225 User Manual
Table of Contents
Contacting Technical Support ........................................57
Warranty...........................................................................58
Registration .....................................................................65

1D-Link DCH-M225 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
DCH-M225 Wi-Fi Audio Extender
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DCH-M225 User Manual
Section 1 - Product Overview
Network Requirements • IEEE 802.11n or 802.11g wireless clients/devices
• A wireless router with an active Internet connection
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, Android or Linux-based operating
system
• Wireless adapter or Wi-Fi functionality
Browser Requirements:
• Internet Explorer® 7 or higher
• Safari® 4 or higher
• Firefox® 12 or higher
• Chrome™ 20 or higher
Windows Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
Minimum Requirements

3D-Link DCH-M225 User Manual
Section 1 - Product Overview
Introduction
* Maximum wireless signal rate derived from IEEE Standard , 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
The Wi-Fi Audio Extender (DCH-M225) is a portable plug-in repeater that lets you extend your existing wireless network. It
also expands your audio capabilities by allowing you to stream your music library to anywhere within your extended wireless
network.
Just place the extender within equal distance of your wireless router and your wireless client devices. This will extend your
wireless coverage to hard-to-reach places like basements, home oces or upstairs bedrooms that are distant from your wireless
router. The Wi-Fi Audio Extender is also ideal for mobile device connections. Tiny yet powerful, it supports Wireless N speeds
up to 300 Mbps.

4D-Link DCH-M225 User Manual
Section 1 - Product Overview
What is a Wi-Fi Extender?
The DCH-M225 extends the range of an existing wireless network to provide a better signal for parts of your home or oce that
may have poor or no reception.Your existing wireless signal will be rebroadcast by the extender, allowing you to reach the farthest
corners of your home or oce . The extended network can simply use the same network credentials as the existing network, or
you can specify a dierent network name and password, giving you the exibility to control network access.
Note: The DCH-M225 is intended to provide a constant network connection. Needless to say, it does not have a standby mode. To power
down this unit, simply unplug it from the power outlet.
Mobile Device
Computer
Wireless Router
Internet
DCH-M225

5D-Link DCH-M225 User Manual
Section 1 - Product Overview
• Conveniently Stream Audio - The DCH-M225 will expand your audio capabilities. You can simply plug in
your DLNA Certied® speakers and you’ll be able to stream audio to anywhere within your extended wireless
network. The Wi-Fi WMM QoS (Quality of service) protocol ensures that you’ll have no issues with bandwidth
when streaming audio and performing other tasks, such as surng the Internet or checking your e-mail.
• Extend Your Existing Network - The DCH-M225 lets you extend your existing wireless network. It also allows
you to extend your internet access throughout your home with devices such as laptops, smartphones, and
tablets.
• Compact, Convenient Design - The DCH-M225’s compact design is ideal for use at home or at a small oce,
since it does not take up much space. It can easily be plugged into a power outlet without blocking other outlets.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
Features

6D-Link DCH-M225 User Manual
Section 1 - Product Overview
Hardware Overview
Front/LED Indicator
LED Indicator Color Status Description
Power/Status
Green
Solid Green The device is successfully connected to a wireless router or AP.
Blinking Green The device is processing a connection after the WPS button has
been pushed.
Red Solid Red The device is booting up.
Blinking Red The device is in recovery mode or it has malfunctioned.
Amber Blinking Amber The device cannot connect to a wireless router or access point.
None O The device is not receiving power. Try a dierent power outlet.
1

7D-Link DCH-M225 User Manual
Section 1 - Product Overview
Hardware Overview
Side and Bottom/WPS and Reset
1WPS Button Press the WPS (Wi-Fi Protected Setup) button for a minimum of one second to automatically connect with Wi-Fi clients. The LED on the
front of the device turns solid green, when the DCH-M225 has successfully connected.
2Audio Line Out Connect an external speaker to the audio line out jack*.
3Reset Button Press and hold the reset button for six seconds to reset the DCS-M225 to the factory default settings.
1
Input: 100-240VAC, 50-60Hz, 0.3A
FCC ID:KA2CHM225A1
IC: 4216A-CHM225A1
Model: DCH-M225A1
CAN ICES-3 (B)/NMB-3(B)
P/N: BCHM225LNA...A1
S/N:RZEP1YMXXXXXX
H/W Ver.: A1 F/W Ver.:1.00
DCH-M225
+Wi-Fi Name(SSID):dlink-XXXX
Wi-Fi Password:XXXXXXXXXX
3
2
For Apple Airplay:
a. Open iTunes (or the Airplay music app* on your iOS device)
b. Click the Airplay icon.
c. Select the DCH-M225 from the destination list.
d. Click Play and the music will stream to the extender.
*You may use an Airplay®, iTunes, or any DLNA-enabled device that is connected to your extended network to play music to the speakers you connect to the DCH-M225.
For DLNA:
a. Download and install a DLNA music app.
b. Verify that DLNA is enabled on your device. Refer to“Audio Renderer”on page 26.
c. Within the app, select the DCH-M225 from the Play to or the destination list.
d. Click Play and the music will stream to the extender.

8D-Link DCH-M225 User Manual
Section 2 - Product Setup
Product Setup
There are several dierent ways you can set up your DCH-M225:
• WPS - Use Wi-Fi Protected Setup to connect to your router and wireless clients. Refer to “Connect Your DCH-M225 to Your
Router Using WPS”on page 11.
• QRS Mobile app - Use your smartphone or tablet to congure your audio extender. Refer to “QRS Mobile App Setup” on
page 13.
• D-Link Setup Wizard - Log into the web-based conguration utility and launch the Setup Wizard. Refer to “Setup Wizard”
on page 19.
• Manual Setup - Congure your DCH-M225 using a web browser. Refer to “Manual Conguration” on page 22.

9D-Link DCH-M225 User Manual
Section 2 - Product Setup
Wireless Installation Considerations
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum.
Each wall or ceiling can reduce your extender’s range by up to 90 feet (more than 27 meters). Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. At a 45-degree angle, a wall that is 1.5 feet thick (0.5
meters), appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it can appear to be over 45 feet (almost
14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete can degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

10D-Link DCH-M225 User Manual
Section 2 - Product Setup
Recommended Placement
Poor
location
Ideal
location
!
!!
Poor
location
Ideal
location
!
!!
A range extender only works as well as the signal it is extending.
Therefore, proper placement of your DCH-M225 is important in
achieving desired results.
Ideal Placement
Wireless
Router
Wireless
Router
Wi-Fi
Dead Zone
For best performance, place your DCH-M225 in between your
router and your dead zone, making sure it’s placed in a location
where the signal is still strong.

11D-Link DCH-M225 User Manual
Section 2 - Product Setup
Connect Your DCH-M225 to Your Router Using WPS
Step 2 - Press the WPS button on your wireless router.
The easiest and most secure way to connect your DCH-M225 to your the router or access point is with WPS (Wi-Fi Protected
Setup). Refer to your user manual for your router or access point to make sure you understand how to enable WPS. Once you
know, follow the steps below:
Step 1 - Find an available outlet near your wireless router. Plug in the DCH-M225,
and wait until the LED starts blinking amber.
Step 3 - Within one minute, press and hold the WPS button on the DCH-M225
until the LED starts blinking green and then release. Allow up to two
minutes for the WPS process to complete. WPS Button
Note: Usually the WPS LED will blink once it is pressed. Check your router’s
user manual for more information.
WPS Button

12D-Link DCH-M225 User Manual
Section 2 - Product Setup
Step 6 - Next you can connect the DCH-M225 to your wireless clients.
Use your wireless device to go to the wireless utility to scan
for available wireless networks.
• Select the SSID for the DCH-M225. It will automatically be:
(Your router’s SSID)-EXT
• Enter the Wi-Fi Password for the DCH-M225. It will be:
The same as the Wi-Fi password for your router
Step 4 - When the LED turns solid green, this indicates the DCH-M225
is securely connected to your wireless router or access point.
Note: If you want to change your Wi-Fi Network Name (SSID) and Wi-Fi Password refer to “Extended Wi-Fi Settings” on page 25.
Step 5 - Once connected to your router, you can unplug and move the
DCH-M225 to a location between your wireless router and the
area that you need to extend wireless coverage to.
Extended Network
Original Network
If you would like to connect additional devices, repeat step 6.
You also have the option to use WPS (Wi-Fi Protected Setup)
to connect wireless devices. Refer to“Connecting to Wireless
Clients Using WPS”on page 36.
Note: If your devices are not connected, try moving the DCH-M225
closer to your wireless router or access point, and repeat steps 2
and 3 to connect.

13D-Link DCH-M225 User Manual
Section 2 - Product Setup
QRS Mobile App Setup
Search for QRS Mobile in the App Store or Google Play, or use your
mobile device to scan the QR codes on the right to download the
QRS Mobile app from the App Store (left) for your iOS device, or
from Google Play (right) for your Android device.
For iOS For Android
Connect to the Wi-Fi Network that is displayed on the Wi-Fi
Conguration Card included in your package (ex: dlink-2c19). Then,
enter the Wi-Fi Password also printed on the Wi-Fi Conguration
Card (ex: gccnu80856).
The DCH-M225 can be set up from your iOS or Android smartphone or tablet using the QRS Mobile app.
Wi-Fi Name(SSID):
dlink-2c19
Wi-Fi Password:
gccnu80856
Web browser link:
http://dlinkap2c19.local.
Once your mobile device is connected, tap on the QRS Mobile icon.

14D-Link DCH-M225 User Manual
Section 2 - Product Setup

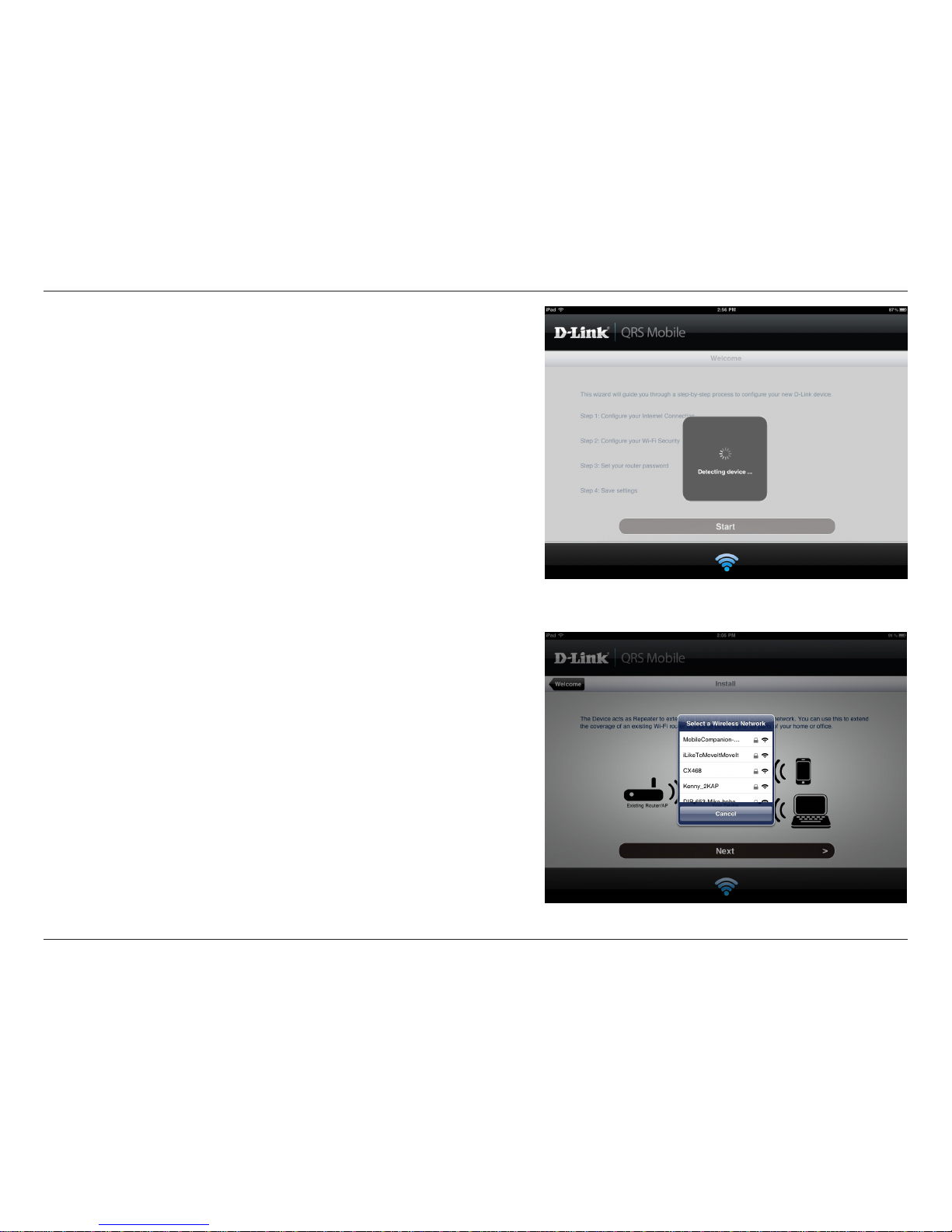

Tap Start to continue.
QRS Mobile will rst detect your DCH-M225, then scan for available
Wi-Fi networks. Select the Wireless Network you wish to extend
and enter the Password if required.

15D-Link DCH-M225 User Manual
Section 2 - Product Setup

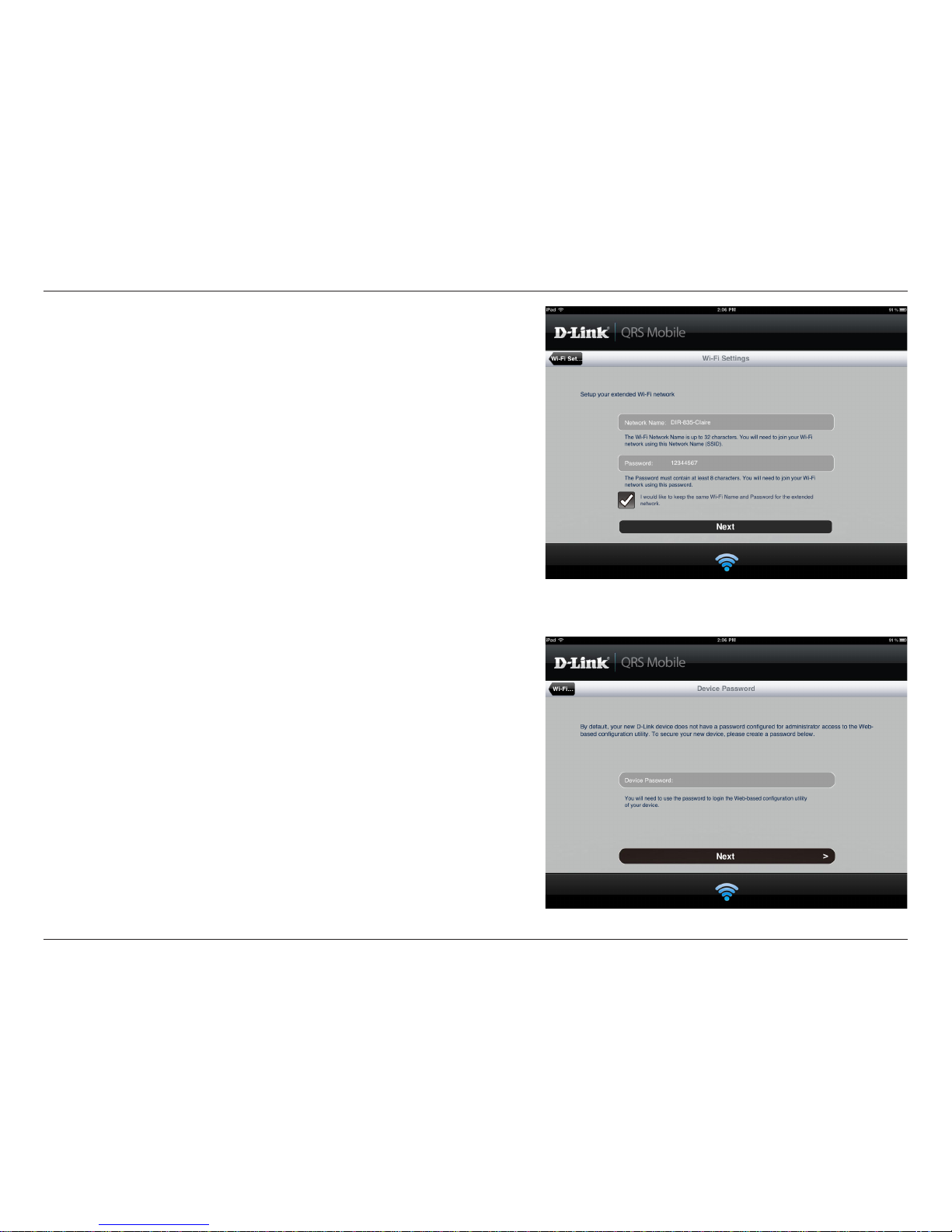

Setup your extended Wi-Fi network. You may enter a Network
Name and Password. Or, tap to check the box if you would like to
keep the existing SSID and password for the extended network.
Tap Next to continue.
By default, your DCH-M225 does not have an admin password for
theWeb-based conguration utility.To secure your device, you can
enter a Password. Tap Next to continue.

16D-Link DCH-M225 User Manual
Section 2 - Product Setup

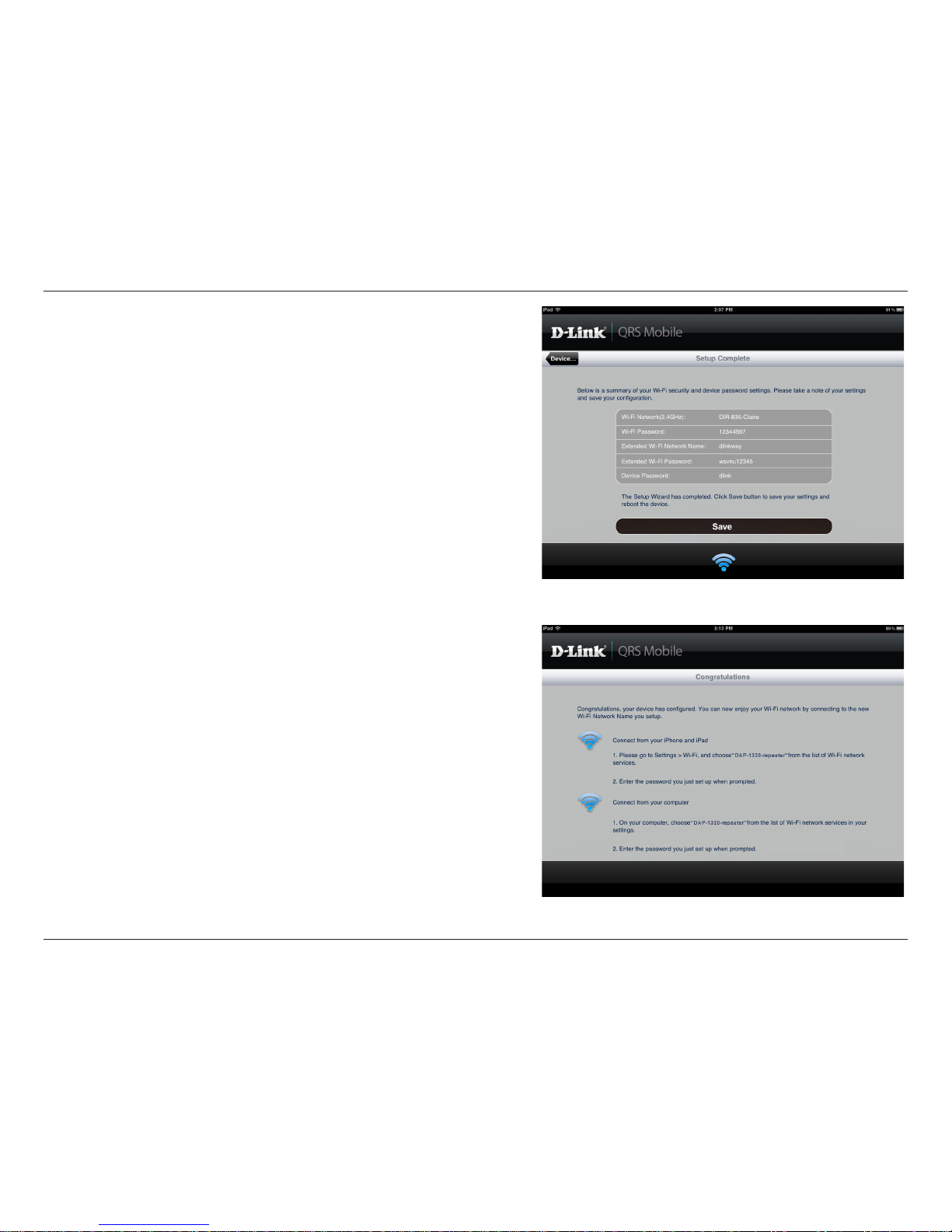

A summary of your settings will be displayed. To complete the
setup, tap Save to save your settings and reboot the device.
After conguration is complete, the following screen will appear.
You can follow the on-screen instructions to change your mobile
device and laptop Wi-Fi settings to the wireless Network Name
and Password you just created.
