Beko B5RFNE314W User manual

58 6458 0000/AC
B5RFNE314W - B3RFNE314W - B5RFNE314XB
EN / DE / FR / RO
Freezer
User manual
Kühlschrank/Gefrierschrank
Bedienungsanleitung
Congélateur
Manuel d'utilisation
Frigider
Manual de instrucţiuni

A
A
A
C
SUPPLIER’S NAME MODEL IDENTIFIER (*)
INFORMATION
C
The model information as stored in the product data base
can be reached by entering following website and searching
for your model identifier (*) found on energy label.
https://eprel.ec.europa.eu/
Dear Customer,
Please read this manual before using the product.
Thank you for choosing this product. We would like you to achieve the optimal
efficiency from this high quality product which has been manufactured with
state of the art technology. To do this, carefully read this manual and any other
documentation provided before using the product and keep it as a reference.
Heed all information and warnings in the user manual. This way, you will protect
yourself and your product against the dangers that may occur.
Keep the user manual. Include this guide with the unit if you hand it over to
someone else.
The following symbols are used in the user guide:
Hazard that may result in death or injury.
NOTICE A hazard that may cause material damage to the product or its
surroundings
Important information or useful tips on operation.
Read the user manual.

3 / 30 EN
Freezer/User Manual
1 Safety Instructions 4
1.1 Purpose of usage............................ 4
1.2 Safety of children, vulnerable
persons and pets.......................................... 4
1.3 Electrical safety...............................5
1.4 Handling Safety ..............................5
1.5 Installation Safety..........................5
1.6 Operational safety ...............6
1.7 Maintenance and cleaning
safety ................................................................ 8
1.8HomeWhiz......................................... 8
1.9 Lighting ............................................. 8
2 Environmental Instructions 9
3 Your Freezer 10
4 Installation 11
4.1.Right place for installation...............11
4.2.Adjusting the feet .............................. 12
4.3.Electrical connection......................... 12
4.4.Changing door opening direction 12
5 Preparation 13

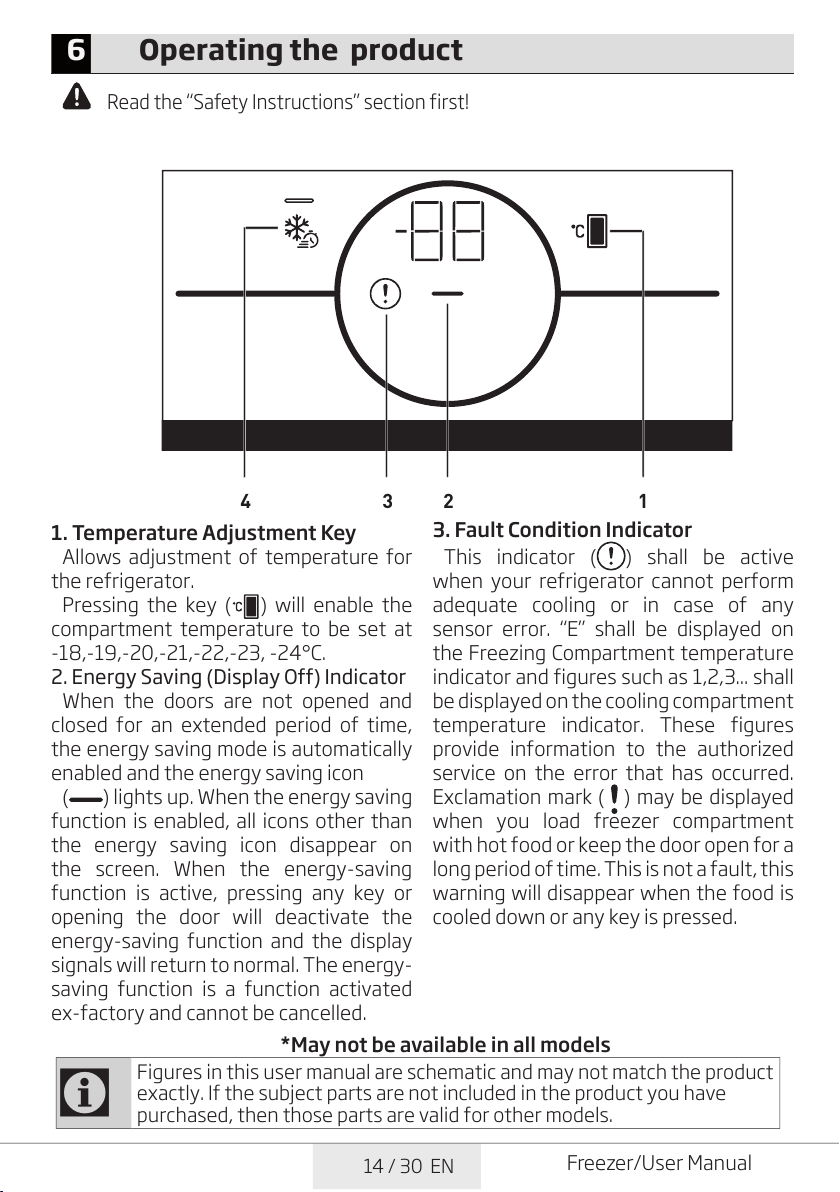

6 Operating the product 14
6.1.Changing the illumination lamp ...15
6.2.Changing the door opening
direction ......................................................... 15
6.3.Open door warning............................ 15
6.4 How to Freeze Fresh Foods .........16
6.5 Recommendations for Preservation
of Frozen Foods........................................... 17
6.6 Defrosting.............................................. 17
6.7 Deep Freezer Information ............... 17
6.8 Defrosting the frozen foods .......... 17
6.9 Recommended Temperature
Settings..........................................................18
7 Maintenance and cleaning 21
8 Troubleshooting 22

4 / 30 EN Freezer/User Manual
1Safety Instructions
• This section includes the safety
instructions necessary to prevent
the risk of personal injury or material
damage.
• Our company shall not be held
responsible for damages that may
occur if these instructions are not
observed.
Installation and repair operations
shall always be performed by Authorized
Service.
Always use genuine spare parts and
accessories.
Original spare parts will be provided
for 10 years, following the product
purchasing date.
Do not repair or replace any part of
the product unless specified expressly in
the user manual.
Donotperform anymodifications
on the product.
1.1 Purpose of usage
• This product is not intended for
commercial use and it shall not be
used out of its intended purpose.
This product is intended for operating
interiors, such as households or similar.
For example;
- In the staff kitchens of the stores,
offices and other working environments,
- In farm houses,
- In the units of hotels, motels or other
resting facilities that are used by the
customers,
- In hostels, or similar environments,
- In catering services and similar non-
retail applications.
This product shall not be used in open or
enclosed external environments such as
vessels, balconies or terraces. Exposing
the product to rain, snow, sunlight and
wind may cause risk of fire.
1.2 Safety of children,
vulnerable persons and pets
• This product may be used by children
aged 8 years and older and persons
with underdeveloped physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a the product safe way
and the hazards involved.
• Children between 3 and 8 years are
allowed to put and take out food to/
from the cooler product.
• Electrical products are dangerous for
children and pets. Children and pets
must not play with, climb on, or enter
the product.
• Cleaning and user maintenance
should not be performed by children
unless there is someone overseeing
them.
• Keep the packaging materials away
from children. Risk of injury and
suffocation.
• Before disposing of old products that
shall not be used any more:
1. Unplug the power cord from the mains
socket.
2. Cut the power cord and remove it from
the appliance together with the plug.
3. Do not remove the racks and drawers
from the product to prevent children
from getting inside the appliance.
4. Remove the doors.
5. Store the product so that it shall not be
tipped over.
6. Do not allow children to play with the
scrapped product.
• Do not dispose of the product by
throwing it into fire. Risk of explosion.

5 / 30 EN
Freezer/User Manual
Safety instructions
• If there is a lock available in the
product’s door, keep the key out of
children's reach.
1.3 Electrical safety
• The product shall not be plugged
into the outlet during installation,
maintenance, cleaning, repair, and
transportation operations.
• If the power the cord is damaged,
it shall be replaced by authorized
service only to avoid any risk that
may occur.
• Do not tuck the power cord under the
product or to the rear of the product.
Do not put heavy items on the power
cord. The power cord should not be
bent, crushed, and come into contact
with any heat source.
• Do not use an extension cord, multi-
plug or adaptor to operate your
product.
• Portable multisockets or portable
power supplies may overheat and
cause fire. Thus, do not have a multi-
plug behind or in the vicinity of the
product.
• The plug shall be easily accessible.
If this is not possible, a mechanism
that meets the electrical legislation
and that disconnects all terminals
from the mains (fuse, switch, main
switch, etc.) shall be available on the
electrical installation.
• Do not touch the plug with wet
hands.
• When unplugging the appliance, don't
hold the power cord, but the plug.
1.4 Handling Safety
• This product is heavy, do not handle it
by yourself.
• Do not hold the product from its door
while handling the product.
• Be careful not to damage the cooling
system and the pipes while handling
the product. Do not operate the
product if the pipes are damaged, and
contact an authorized service.
1.5 Installation Safety
• Contact the Authorized Service
for the product's installation. To
prepare the product for installation,
see the information in the user
guide and make sure the electric
and water utilities are as required.
If the installation is not suitable, call
a qualified electrician and plumber
to have them make the necessary
arrangements. Otherwise, electric
shock, fire, issues with the product or
injuries may occur.
• Check for any damage on the product
before installing it. Do not have the
product installed if it is damaged.
• Place the product on a level and
hard surface and balance with the
adjustable legs. Otherwise, the
refrigerator may tip over and cause
injuries.
• The product shall be installed in a
dry and ventilated environment.
Do not keep carpets, rugs or similar
floor covers under the product. This
may cause risk of fire as a result of
inadequate ventilation!
• Do not block or cover ventilation
holes. Otherwise, power consumption
may be increased and damage to your
product may occur.

6 / 30 EN Freezer/User Manual
Safety instructions
• Do not connect the product to supply
systems such as solar power supplies.
Otherwise, damage to your product
may occur as a result of the abrupt
voltage fluctuations!
• The more refrigerant a refrigerator
contains, the bigger its installation
room shall be. In very small rooms,
a flammable gas-air mixture may
occur in case of a gas leak in the
cooling system. At least 1 m3of
volume is required for each 8 grams
of refrigerant. The amount of the
refrigerant available in your product
is specified in the Type Label.
• The installation place of the product
shall not be exposed to direct
sunlight and it shall not be in the
vicinity of a heat source such as
stoves, radiators, etc.
If you cannot prevent installation of the
product in the vicinity of a heat source,
you shall use a suitable insulation plate
and the minimum distance to the heat
source shall be as specified below.
- At least 30 cm away from heat so-
urces such as stoves, heating units and
heaters, etc.,
- And at least 5 cm away from electric
ovens.
• Your product has the protection
class of I. Plug the product in a
grounded socket that conforms with
the Voltage, Current and Frequency
values specified in the type label. The
socket outlet shall be equipped with a
fuse with a rating of 10 A – 16 A. Our
company shall not be responsible for
the damages that shall be incurred
as a result of operating the product
without ensuring ground and
electrical connections made as per
local or national regulations.
• The product's power cable must
be unplugged during installation.
Otherwise, risk of electric shock and
injury may occur!
• Do not plug the product to loose, bro-
ken, dirty, greasy sockets or sockets
that has come out their seats or soc-
kets with a risk of water contact.
• Place the power cord and hoses (if
available) of the product so that they
shall not cause a risk of tripping over.
• Penetration of humidity to live parts
or to the power cord may cause short
circuit. Thus, do not use the product
in humid environments or in areas
where water may splash (e.g. garage,
laundry room, etc.) If the refrigerator
is wet by water, unplug it and contact
an authorized service.
• Do not connect your refrigerator to
power saving devices. These systems
are harmful for the product.
1.6 Operational safety
• Do not use chemical solvents on the
product. These materials contain an
explosion risk.
• In case of a failure of the product,
unplug it and do not operate until it
is repaired by the authorized service.
There is a risk of electric shock!
• Do not place a source of flame (e.g.
candles, cigarettes, etc.) on the pro-
duct or in the vicinity of it.
• Do not get on the product. Risk of fal-
ling and injury!
• Do not cause damage to the pipes of
the cooling system using sharp and
piercing tools. The refrigerant that
sprays out in case of puncturing the
gas pipes, pipe extensions or upper
surface coatings may cause irritation
of skin and injuries of the eyes.
• Do not place and operate electric app-
liances inside the refrigerators/deep
freezer unless it is advised by the ma-
nufacturer.

7 / 30 EN
Freezer/User Manual
Safety instructions
• Do not jam any parts of your hands or
your body to the moving parts inside
the product. Be careful to prevent
jamming of your fingers between the
refrigerator and its door. Be careful
while opening or closing the door if
there are children around.
• Do not put ice cream, ice cubes or
frozen food to your mouth as soon as
you take them out of the freezer. Risk
of frostbite!
• Do not touch the inner walls, metal
parts of the freezer or food kept
inside the refrigerator with wet
hands. Risk of frostbite!
• Do not place soda cans or cans
and bottles that contain fluids
that may be frozen to the freezer
compartment. Cans or bottles may
explode. Risk of injury and material
damage!
• Do not use or place materials
sensitive against temperature
such as flammable sprays,
flammable objects, dry ice or other
chemical agents in the vicinity of
the refrigerator. Risk of fire and
explosion!
• Do not store explosive materials
such as aerosol cans with flammable
materials inside the product.
• Do not place cans containing fluids
over the product. Splashing of water
on an electrical part may cause the
risk of an electric shock or a fire.
• This product is not intended for
storage and cooling of medicines,
blood plasma, laboratory preparations
or similar materials and products that
are subject to the Medical Products
Directive.
• If the product is used against its
intended purpose, it may cause
damage to or deterioration of the
products kept inside.
• If your refrigerator is equipped with
blue light, do not look at this light
with optical devices. Do not stare
directly at UV LED light for a long
time. Ultraviolet rays may cause eye
strain.
• Do not fill the product with more food
than its capacity. Injuries or damages
may occur if the contents of the
refrigerator falls when the door is
opened. Similar problems may occur
when an object is placed over the
product.
• Ensure that you have removed any
ice or water that may have fallen to
the floor to prevent injuries.
• Change the locations of the racks/
bottle racks on the door of your
refrigerator while the racks are
empty only. Danger of physical injury!
• Do not place objects that may fall/
tipped over on the product. These
objects may fall while opening or
closing the door and cause injuries
and/or material damages.
• Do not hit or exert excessive pressure
on glass surfaces. Broken glass
may cause injuries and/or material
damages.
• The cooling system in your product
contains R600a refrigerant. The
refrigerant type used in the product
is specified in the the type label.
This gas is flammable. Therefore, be
careful not to damage the cooling
system and the pipes while operating
the product. In case of damage to the
pipes;
- Do not touch the product or the
power cord,
- Keep the product away from poten-
tial sources of fire that may cause the
product to catch fire.

8 / 30 EN Freezer/User Manual
Safety instructions
- Ventilation the area where the pro-
duct is placed. Do not use a fan.
- Contact authorized service.
• If the product is damaged and you
observe gas leak, please stay away
from the gas. Gas may cause frostbite
if it contacts your skin.
1.7 Maintenance
and cleaning safety
• Do not pull by the door handle if you
shall move the product for cleaning
purposes. Handle may cause injuries
if it is pulled too hard.
• Do not clean the product by spraying
or pouring water on the product and
inside the product. Risk of electric
shock and fire.
• Do not use sharp or abrasive tools
to clean the product. Do not use
materials such as household cleaning
agents, detergents, gas, gasoline,
alcohol, wax, etc.
• Use cleaning and maintenance
agents that are not harmful for food
only inside the product.
• Do not use steam or steamed
cleaning materials for cleaning the
product and thawing the ice inside it.
Steam contacts the live areas in your
refrigerator and causes short circuit
or electric shock!
• Take care to keep water away from
the electronic circuits or lighting of
the product.
• Use a clean, dry cloth to wipe the dust
or foreign material on the tips of the
plugs. Do not use a wet or damp piece
of cloth to clean the plug. Otherwise,
risk of fire or electric shock may occur.
1.8HomeWhiz
(May not be applicable for all models)
• Follow the safety warnings even if
you are away from the product while
operating the product via HomeWhiz
app. Also, pay attention to the
warnings in the app.
1.9 Lighting
(May not be applicable for all models)
• Contact an authorized service when
you shall replace the LED / bulb using
for lighting.

9 / 30 EN
Freezer/User Manual
2.1 Compliance with the WEEE
Directive and Disposing of the Waste
Product:
This product complies with EU WEEE
Directive (2012/19/EU). This product
bears a classification symbol for waste
electrical and electronic equipment
(WEEE).
This symbol indicates that this
product shall not be disposed
with other household wastes
at the end of its service life.
Used device must be returned
to offical collection point for recycling of
electrical and electronic devices. To find
these collection systems please contact
to your local authorities or retailer where
the product was puchased. Each
household performs important role in
recovering and recycling of old appliance.
Appropriate disposal of used appliance
helps prevent potential negative
consequences for the environment and
human health.
2Environmental Instructions
2.2 Compliance with RoHS Directive
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU).It does notcontain harmful
and prohibited materials specified in the
Directive.
2.3 Package information
Packaging materials of the
product are manufactured from
recyclable materials in
accordance with our National
Environment Regulations. Do not dispose
of the packaging materials together with
the domestic or other wastes. Take them
to the packaging material collection
pointsdesignatedbythelocalauthorities.

10 / 30 EN Freezer/User Manual
3Your Freezer
C
Figures that take place in this instruction manual are schematic and
may not correspond exactly with your product. If the subject parts are
not included in the product you have purchased, then it is valid for other
models.
*May not be available in all models
1
2
3
4
5
6
1. Control Panel
2. Door shelf
3. Adjustable front feet
4. Drawers
5. Glass shelves
6. Illumination lamp

11 / 30 EN
Freezer/User Manual
Read the “Safety Instructions” section
first!
4Installation
4.1.Right place for
installation
Call the Authorized Service Provider
for installation of the product. To make
the product ready for use, be careful
that the electrical wiring and plumbing
are appropriate by referring to the
information in the user manual. If not, call
a qualified electrician and plumber and
have the necessary arrangements made.
B
WARNING: The manufacturer
is not liable for damages
caused by operations by
unauthorized persons.
B
WARNING: During the
installation, the power plug
of the product should not be
plugged in. Otherwise, there
is a danger of death or serious
injury!
A
WARNING: : If the doorway of
the room to where the product
will be placed is so narrow
that the product cannot pass
through, pass the product by
turning it to side; otherwise,
call an authorized service.
• To avoid shaking, place the product
on a flat surface.
• Install the product at least 30 cm
away from heat sources such as
cooker, radiators, stove and at least 5
cm away from electrical oven.
• Do not expose the product to direct
sunlight and do not store it in humid
place.
• Your product requires adequate air
circulation to function efficiently.
If the product will be placed in an
alcove, remember to leave at least 5
cm clearance between the product
and the ceiling, rear wall and the side
walls.
• If the product will be placed in an
alcove, remember to leave at least 5
cm clearance between the product
and the ceiling, rear wall and the
side walls. Check if the rear wall
clearance protection component is
present at its location (if provided
with the product). If the component
is not available, or if it is lost or fallen,
position the product so that at least
5 cm clearance shall be left between
the rear surface of the product and
the wall of the room. The clearance
at the rear is important for efficient
operation of the product.
• Do not install the product where the
temperature drops below 10 °C.
• Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended to
keep the distance which will ensure
the air circulation between your
refrigerator and the wall. (The picture
is drawn up as a representation and it
is not identical with your product.)

12 / 30 EN Freezer/User Manual
Installation
• Condenser of your refrigerator is on
the rear side. In order to increase
the energy efficiency by minimizing
the power consumption, the upper
part of the condenser on the rear
side of the product must be pulled
backwards and locked as shown in
the figure. When the condenser is
pulled back, the right and left upper
holders are locked and the position of
the condenser is fixed.
4.2.Adjusting the feet
If the product is unstable on the place
where it is placed, adjust it by turning
the front adjustment feet to the right or
left.
4.3.Electrical connection
A
WARNING: Do not make
connections to the extension
cords or multiple sockets.
B
WARNING: Damaged power
cable must be replaced by an
Authorized Service.
C
If two refrigerators are placed
side by side, there should be
at least 4 cm space between
them.
• Our company will not be liable for
any damages that occur when the
product is used without grounding
and electrical connections that are
according to national regulations.
• The power cord plug must be easily
accessible after installation.
• Connect your refrigerator to an outlet
with a ground line with 220-240V/50
Hz voltage. Plugs should have a 10-16
A fuse.
• Do not use multi-group socket with or
without extension cable in between
your refrigerator and the wall outlet.
4.4.Changing door
opening direction
Based on where you use, your
refrigerator’s door opening direction can
be changed. When you need this, please
contact your nearest Authorized Service
Point.

13 / 30 EN
Freezer/User Manual
5Preparation
• For a freestanding appliance; ‘this
refrigerating appliance is not intended
to be used as a built-in appliance.
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not be
located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be +5°C. Operating your
refrigerator under cooler conditions is
not recommended with regard to its
efficiency.
• Please make sure that the interior of
your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least 2
cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without any
food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• The baskets/drawers that are
provided with the chill compartment
must always be in use for low energy
consumption and for better storage
conditions.
• Food contact with the temperature
sensor in the freezer compartment may
increase energy consumption of the
appliance. Thus any contact with the
sensor(s) must be avoided.
• In some models, the instrument panel
automatically turns off 1 minutes
after the door has closed. It will be
reactivated when the door has opened
or pressed on any key.
• Due to temperature change as a result
of opening/closing the product door
during operation, condensation on
the door/body shelves and the glass
containers is normal.
• Since hot and humid air will not
directly penetrate into your product
when the doors are not opened,
your product will optimize itself in
conditions sufficient to protect your
food. Functions and components
such as compressor, fan, heater,
defrost, lighting, display and so on
will operate according to the needs
to consume minimum energy under
these circumstances.
• In case of multiple options are
present glass shelves must be placed
so that the air outlets at the backwall
are not blocked, prefably air outlets
are remaining below the glass shelf.
This combination may help impoving
air distribution and energy efficiency.
Read the “Safety Instructions” section
first!

14 / 30 EN Freezer/User Manual
CFigures in this user manual are schematic and may not match the product
exactly. If the subject parts are not included in the product you have
purchased, then those parts are valid for other models.
*May not be available in all models
6Operating the product
Read the “Safety Instructions” section first!
1
234
1. Temperature Adjustment Key
Allows adjustment of temperature for
the refrigerator.
Pressing the key ( ) will enable the
compartment temperature to be set at
-18,-19,-20,-21,-22,-23, -24°C.
2. Energy Saving (Display Off) Indicator
When the doors are not opened and
closed for an extended period of time,
the energy saving mode is automatically
enabled and the energy saving icon
( ) lights up. When the energy saving
function is enabled, all icons other than
the energy saving icon disappear on
the screen. When the energy-saving
function is active, pressing any key or
opening the door will deactivate the
energy-saving function and the display
signals will return to normal. The energy-
saving function is a function activated
ex-factory and cannot be cancelled.
3. Fault Condition Indicator
This indicator ( ) shall be active
when your refrigerator cannot perform
adequate cooling or in case of any
sensor error. “E” shall be displayed on
the Freezing Compartment temperature
indicator and figures such as 1,2,3... shall
be displayed on the cooling compartment
temperature indicator. These figures
provide information to the authorized
service on the error that has occurred.
Exclamation mark ( ) may be displayed
when you load freezer compartment
with hot food or keep the door open for a
long period of time. This is not a fault, this
warning will disappear when the food is
cooled down or any key is pressed.

15 / 30 EN
Freezer/User Manual
Operating the product
6.1.Changing the
illumination lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance is not
suitable for household room illumination.
The intended purpose of this lamp is to
assist the user to place foodstuffs in
the refrigerator/freezer in a safe and
comfortable way.
The lamps used in this appliance have to
withstand extreme physical conditions
such as temperatures below -20 °C.
(only chest and upright freezer)
6.2.Changing the door
opening direction
Door opening direction of your
refrigerator can be changed according
to the place you are using it. If this is
necessary, please call your nearest
Authorized Service.
6.3.Open door warning
An audio warning will be given when the
fridge or freezer compartment door of
your product is left open for a certain
period of time. This audio warning
signal will mute when any button on the
indicator is pressed or when the door is
closed.
4. Quick Freezing Key
When the quick freeze key
( ) is pressed, the LED on the key is
illuminated and the quick freeze function
will be activated. The temperature of the
freezer compartment is set to -27 °C.
Press the key again to cancel function.
The quick freezing function will be
automatically disabled after 50 hours.
To freeze a large amount of fresh food,
press the quick freeze key before placing
the food in the freezer compartment.

16 / 30 EN Freezer/User Manual
Operating the product
6.4 How to Freeze
Fresh Foods
• Foods to be frozen must be divided
into portions according to a size to
be consumed, and frozen in separate
packages. In this way, all the food
should be prevented from being re-
frozen by thawing.
• In order to protect the nutritional value,
the aroma and the color of the foods as
much as possible, vegetables should be
boiled for a short period of time before
freezing. (Boiling is not necessary
for foods such as cucumber, parsley.)
Cooking time of the vegetables frozen
in this way is shortened by 1/3 than
that of the fresh vegetables.
• To extend the storage times of frozen
foods, boiled vegetables must first be
filtered and then hermetically packaged
as in the all types of foods.
• Foods should not be placed in the
freezer compartment without package.
• The packaging material of the food
to be stored should be air-tight, thick
and durable and should not deform
with cold and humidity. Otherwise,
the food that is hardened by freezing
might pierce the package. Sealing the
package well is also important in terms
of securely storing the food.
The following packaging types are
suitable for use to freeze the food:
Polyethylene bag, aluminum foil, plastic
foil, vacuum bags and cold-resistant
storage containers with caps.
The use of the following types of
packaging is not recommended to freeze
the food;
Packaging paper, parchment paper,
cellophane (gelatin paper), garbage bag,
used bags and shopping bags.
• Hot foods should not be placed in the
freezer compartment without cooling.
• When placing unfrozen fresh foods in
the freezer compartment, please note
that it does not contact with frozen
foods. Cool-pack (PCM) can be placed to
the rack immediately below the quick
freezer rack for preventing them from
being getting warm.
• During the freezing time (24 hours) do
not place other food to the freezer.
• Place your foods to the freezing shelves
or racks by spreading them so that they
will not be cramped (it is recommended
that the packaging does not come into
contact with each other).
• Frozen foods must be immediately
consumed in a short period of time
after defrosting and must never be
frozen again.
• Do not block the ventilation holes by
putting your frozen foods in front of the
ventilation holes located on the back
surface.
• We recommend you to attach a label
onto the package and write the name
of the foods in the package and the
freezing time.
Foods suitable for freezing:
Fish and seafood, red and white meat,
poultry, vegetables, fruit, herbaceous
spices, dairy products (such as cheese,
butter and strained yoghurt), pastries,
ready or cooked meals, potato dishes,
souffle and desserts.

17 / 30 EN
Freezer/User Manual
Operating the product
Foods not suitable for freezing:
Yoghurt, sour milk, cream, mayonnaise,
leaved salad, red radish, grapes, all fruits
(such as apple, pears and peaches).
• For foods to be frozen quickly and
thoroughly, the following specified
amounts per package should not be
exceeded.
-Fruits and vegetables, 0.5-1 kg
-Meat, 1-1.5 kg
• A small amount of foods (maximum 2
kg) can also be frozen without the use
of the quick freezing function.
To obtain the best result, apply the
following instructions:
1. Activate the quick freezing
function 24 hours before placing your
fresh foods.
2. After 24 hours after pressing the
button,the loads can be placed to the
top and bottom drawers for even and
efficient freezing.
3. The quick freezing function will be
automatically inactivated after 52 hours.
4. Do not try to freeze a large
quantity of food at a time. Within 24
hours, this product can freeze the
maximum food quantity specified as
«Freezing Capacity … kg/24 hours»
on its type label. It is not convenient to
put more unfrozen/fresh foods to the
freezer compartment than the quantity
specified on the label.
• You can review the Meat and Fish,
Vegetables and Fruits, Dairy Products
tables for placing and storing your
foods in the deep-freezer.
6.5 Recommendations for
Preservation of Frozen Foods
• While purchasing your frozen foods,
make sure that they are frozen at
appropriate temperatures and their
packages are not broken.
• Put the packages on the freezer
compartment as soon as possible after
purchasing them.
• Make sure that the expiration date
indicated on the packaging is not
expired before consuming the
packaged ready meals that you remove
from the freezer compartment.
6.6 Defrosting
The ice in the freezer compartments is
automatically thawed.
6.7 Deep Freezer Information
The EN 62552 standard requires
(according to specific measurement
conditions) that at least 4.5 kg of food for
each 100 liter of freezer compartment
volume can be frozen at a room
temperature of 25°C in 24 hours.
6.8 Defrosting the
frozen foods
Depending on the food diversity and
the purpose of use, a selection can be
made between the following options for
defrosting:
• At room temperature (it is not very
suitable to defrost the food by leaving it
at room temperature for a long time in
terms of maintaining the food quality)
• In the refrigerator
• In the electrical oven (in models with or
without fan)
• In the microwave oven

18 / 30 EN Freezer/User Manual
Operating the product
CAUTION:
• Never put acidic beverages in glass
bottles and cans into your freezer due
to the risk of explosion.
• If there is moisture and abnormal
swelling in the packaging of frozen
foods, it is likely that they were
previously stored in an improper
storage condition and their contents
deteriorated. Do not consume these
foods without checking.
• Since some spices in cooked meals
may change their taste when exposed
to long-term storage conditions, your
frozen foods should be less seasoned
or the desired spices should be added
to the foods after the thawing process.
6.9 Recommended Temperature Settings
Freezer compartment
setting
Remarks
-20 °C This is the default recommended
temperature setting.
-21,-22,-23 or -24 oC These settings are recommended when
the ambient temperature is higher than
30°C or when you think the refrigerator is
not cool enough due to frequent opening
and closing of the door.
Quick Freezing Use when you want to freeze your food in
a short time.
It is recommended to be applied to preserve
the quality of your fresh food. You do not
need to use the quick freezing function
when putting your frozen food.
You do not need to use the quick freezing
function to freeze a small amount of fresh
food, up to 2 kg per day.

19 / 30 EN
Freezer/User Manual
Operating the product
Meat and Fish Preparation
Longest
storage
time
(month)
M e a t
products
Veal
Steak By cutting them 2 cm thick and placing foil between them or
wrapping tightly with stretch
6 – 8
Roast By packing the pieces of meat in a refrigerator bag or wrapping them
tightly with stretch
6 – 8
Cubes In small pieces 6 – 8
Schnitzel,
chops
By placing foil between cut slices or wrapping individually with
stretch
6 – 8
Mutton
Chops By placing foil between meat pieces or wrapping individually with
stretch
4 - 8
Roast By packing the pieces of meat in a refrigerator bag or wrapping them
tightly with stretch
4 - 8
Cubes By packing the shredded meats in a refrigerator bag or wrapping
them tightly with stretch
4 - 8
Beef
Roast By packing the pieces of meat in a refrigerator bag or wrapping them
tightly with stretch
8 - 12
Steak By cutting them 2 cm thick and placing foil between them or
wrapping tightly with stretch
8 - 12
Cubes In small pieces 8 - 12
Boiled
meat
By packaging in small pieces in a refrigerator bag 8 - 12
Mince Without seasoning, in flat bags 1 - 3
Offal (piece) In pieces 1 - 3
Fermented sausage -
Salami
It should be packaged even if it has casing. 1 - 2
Jambon By placing foil between cut slices 2 - 3
Poultry
a n d
hunting
animals
Chicken and Turkey By wrapping in foil 4 – 6
Goose By wrapping in foil (portions should not exceed 2.5 kg) 4 – 6
Duck By wrapping in foil (portions should not exceed 2.5 kg) 4 – 6
Deer, Rabbit, Roe Deer By wrapping in foil (portions should not exceed 2.5 kg, and their
bones should be separated)
6 – 8
F i s h
a n d
seafood
Freshwater fish (Trout,
Carp, Crane, Catfish)
After thoroughly cleaning the inside and scales, it should be washed
and dried, and the tail and head parts should be cut when necessary.
2
Lean fish (Sea bass,
Turbot, Sole)
4-6
Fatty fish (Bonito,
Mackerel, Bluefish, Red
Mullet, Anchovy)
2 - 4
Shellfish Cleaned and in bags 4 - 6
Caviar In its packaging, in an aluminum or plastic container 2 - 3

20 / 30 EN Freezer/User Manual
Operating the product
Fruits and
Vegetables Preparation
Longest
storage
time
(month)
String bean and
Pole bean
By shock boiling for 3 minutes after washing and cutting into small pieces 10 - 13
Green pea By shock boiling for 2 minutes after shelling and washing 10 - 12
Cabbage By shock boiling for 1-2 minute(s) after cleaning 6 - 8
Carrot By shock boiling for 3-4 minutes after cleaning and cutting into slices 12
Pepper By boiling for 2-3 minutes after cutting the stem, dividing into two and
separating the seeds
8 - 10
Spinach By shock boiling for 2 minutes after washing and cleaning 6 - 9
Leek By shock boiling for 5 minutes after chopping 6 - 8
Cauliflower By shock boiling in a little lemon water for 3-5 minutes after separating the
leaves, cutting the core into pieces
10 – 12
Eggplant By shock boiling for 4 minutes after washing and cutting into 2cm pieces 10 – 12
Squash By shock boiling for 2- 3 minutes after washing and cutting into 2cm pieces 8 - 10
Mushroom By lightly sauteing in oil and squeezing lemon on it 2 - 3
Corn By cleaning and packing in cob or granular 12
Apple and Pear By shock boiling for 2-3 minutes after peeling and slicing 8 - 10
Apricot and Peach Divide in half and extract the seeds 4 - 6
Strawberry and
Raspberry
By washing and shelling 8 - 12
Baked fruit By adding 10% sugar in the container 12
Plum, Cherry, Sour
Cherry
By washing and shelling the stalks 8 - 12
Dairy Products Preparation Longest Storage Time
((Month
Storage
Conditions
Cheese (except feta
cheese)
By placing foil
therebetween, in slices
6 - 8 It can be left
in its original
packaging for short
term storage. For
long-term storage
it should also
be wrapped in
aluminum or plastic
foil.
Butter, margarine In its own packaging 6 In its own
packaging or in
plastic containers
