Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product bears the selective sorting symbol for waste electrical and
electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling
Downloaded from Fridge-Manual.com Manuals

EN
3
CONTENTS
1 Your freezer 4
2 Important Safety
Warnings 5
Intended use .....................................5
General safety ...................................5
Child safety........................................7
HCA Warning ....................................7
Technical specifications of your
freezer ...............................................8
Things to be done for energy saving ..8
3 Installation 9
Points to be considered when re-
transporting your freezer....................9
Before operating your freezer.............9
Disposing of the packaging .............10
Disposing of your old freezer ...........10
Placing and Installation ....................10
Placing the freezer under the counter
and adjusting the legs......................11
Reversing the doors ........................12
4 Preparation 13
5 Using your freezer 14
Setting the operating temperature ...14
Freezing...........................................14
Defrost ............................................15
LED indicators and control panel .....16
6 Maintenance and
cleaning 17
Protection of plastic surfaces ..........17
7 Recommended solutions
for the problems 18
Downloaded from Fridge-Manual.com Manuals

EN
4
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1
5
3
3
2
4
1Your freezer
1- Control panel
2- Fast freeze compartment
3- Frozen food storage compartment
4- Ventilation lid
5- Adjustable legs
Downloaded from Fridge-Manual.com Manuals

EN
5
2Important Safety Warnings
Please review the following
information. If these are not followed,
personal injury or material damage
may occur. Otherwise, all warranty and
reliability commitments will become
invalid.
The usage life of the unit you
purchased is 10 years. This is the period
for keeping the spare parts required for
the unit to operate as described.
Intended use
• This product is designed for domestic
use.
• It should not be used outdoors. It is
not appropriate to use it outdoor even
if the place is covered with a roof.
General safety
• When you want to dispose/scrap
the product, we recommend you to
consult the authorized service in order
to learn the required information and
authorized bodies.
• Consult your authorized service for all
your questions and problems related
to the freezer. Do not intervene or
let someone intervene to the freezer
without notifying the authorized
services.
• Do not eat cone ice cream and ice
cubes immediately after you take
them out of the freezer compartment!
(This may cause frostbite in your
mouth.)
• Do not put bottled and canned
liquid beverages in the freezer
compartment. Otherwise, these may
burst.
• Do not touch frozen food by hand;
they may stick to your hand.
• Vapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes
of your freezer. In such cases, the
vapor might get in contact with the
electrical parts and cause short circuit
or electric shock.
• Never use the parts on your freezer
such as the door as a means of
support or step.
• Do not use electrical devices inside
the freezer.
• Do not damage the cooling circuit,
where the refrigerant is circulating,
with drilling or cutting tools. The
refrigerant that might blow out when
the gas channels of the evaporator,
pipe extensions or surface coatings
are punctured may cause skin
irritations and eye injuries.
• Do not cover or block the ventilation
holes on your freezer with any
material.
• Repairs of the electrical appliances
must only be made by qualified
persons. Repairs performed by
incompetent persons may create a
risk for the user.
• In case of any failure or during
a maintenance or repair work,
disconnect your freezer’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
• Do not pull by the cable when pulling
off the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
Downloaded from Fridge-Manual.com Manuals

EN
6
• Flammable items or products that
contain flammable gases (e.g. spray)
as well as the explosive materials
should never be kept in the appliance.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, others than those
recommended by the manufacturer.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Do not operate a damaged freezer.
Consult your service if you have any
doubts.
• Electrical safety of your freezer shall be
guaranteed only if the earth system in
your house complies with standards.
• Exposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
• Contact the authorized service when
there is a power cable damage and
etc. so that it will not create a danger
for you.
• Never plug the freezer into the wall
outlet during installation. Otherwise,
risk of death or serious injury may
arise.
• This freezer is designed solely for
storing food. It should not be used for
any other purposes.

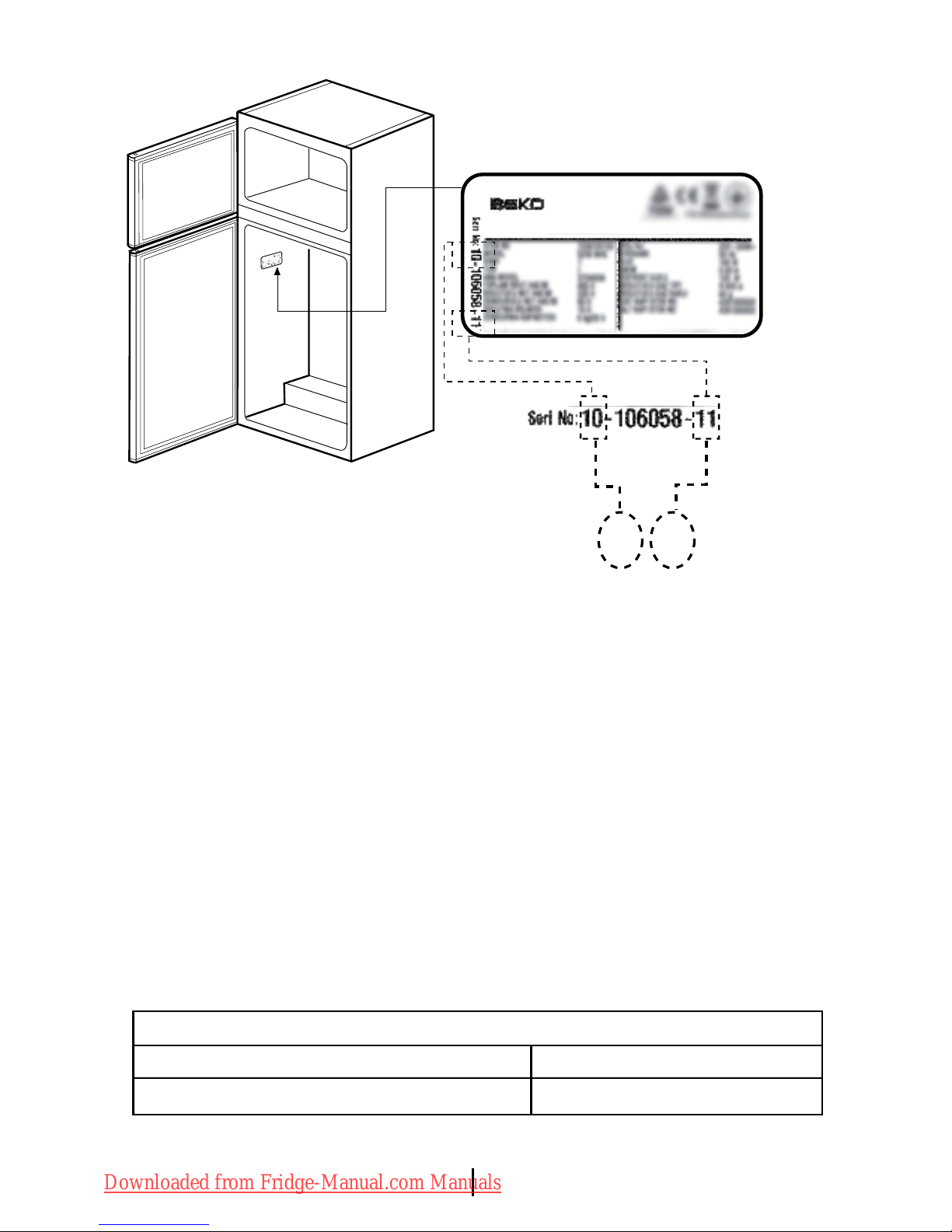

• The label that describes the technical
specification of the product is located
on the inner left part of the freezer.
• Do not hook up the freezer to
electronic energy saving systems as it
may damage the product.
• If the freezer has blue light do not
look at the blue light through optical
devices.
• If the power supply is disconnected
in manually controlled freezers please
wait for at least 5 minutes before
reconnecting the power.
• This product manual should be
passed to the next owner of the
freezer if the owner changes.
• When moving the freezer make sure
that you do not damage the power
cord. In order to prevent fire the
power cord should not be twisted.
Heavy objects should not be placed
on the power cord. When the freezer
is being plugged do not handle the
power outlet with wet hands.
• Do not plug the freezer if the electric
outlet is loose.
• Do not splash water directly on the
outer or inner parts of the freezer due
to safety.
• Do not spray inflammable materials
such as propane gas etc near freezer
due to the risk of fire and explosion.
• Do not place objects filled with water
on top of the freezer as it may result in
electric shock or fire.
Downloaded from Fridge-Manual.com Manuals

EN
7
• Do not overload the freezer with
excess food. The excess food may fall
when the door is opened resulting in
injuring you or damaging the freezer.
Do not place objects on top of the
freezer as the objects may fall when
opening or closing the freezer door.
• Materials that require certain
temperature conditions such as
vaccine, temperature sensitive
medicines, scientific materials etc
should not be kept in freezer.
• If freezer will not be operated for an
extended period of time it should be
unplugged. A problem in electrical
cable insulation may result in fire.
• The tip of the electric plug should be
cleaned regularly otherwise it may
cause fire.
• The freezer may move when the
adjustable feet is not positioned firmly
on the floor. Using the adjustable feet
you can unsure that the freezer is
positioned firmly on the floor.
• If the freezer has door handle do
not pull the freezer via door handles
when moving the product as it may
disconnect the handle from the
freezer.
• If you must operate your appliance
adjacent to another freezer or freezer,
the distance between the appliances
must be at least 8 cm. Otherwise
condensation may occur on the side
walls facing each other.
• Water mains pressure must not be
below 1 bar. Water mains pressure
must not be above 8 bars.
• Use only drinkable potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children should be supervised to
ensure that they do not play with the
appliance
HCA Warning
If your product is equipped with
a cooling system that contains
R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore the warning if your product
is equipped with a cooling system
that contains R134a.
You can see the gas used in production
of your product on the rating plate that
is located on the left inner part of it.
Never dispose the product in fire.
Downloaded from Fridge-Manual.com Manuals

EN
8
Things to be done for energy
saving
• Do not leave the doors of your freezer
open for a long time.
• Do not put hot food or drinks in your
freezer.
• Do not overload your freezer so that
the air circulation inside of it is not
prevented.
• Do not install your freezer under
direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
• Pay attention to keep your food in
closed containers.
• Maximum amount of food can be put
in your freezer’s freezer compartment
when the freezer compartment
shelf or drawer is removed.Declared
energy consumption value of your
freezer was determined when the
freezer compartment shelf or drawer
was removed and under maximum
amount of food load.There is no risk
in using a shelf or drawer according to
the shapes and sizes of the foods to
be frozen.
2010-11-xx
YYYY-MM-D D
Technical specifications of your freezer
Energy efficiency class А
Protection class
1
Downloaded from Fridge-Manual.com Manuals

EN
9
3Installation
BPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Points to be considered
when re-transporting your
freezer
1. Your freezer must be emptied and
cleaned prior to any transportation.
2. Shelves, accessories, crisper and
etc. in your freezer must be fastened
securely by adhesive tape against any
jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature and
for our national resources.
If you wish to contribute to recycling the
packaging materials, you can get further
information from the environmental
bodies or local authorities.
Before operating your
freezer
Before starting to use your freezer
check the following:
1. Is the interior of the freezer dry and
can the air circulate freely in the rear of
it?
2. Clean the interior of the freezer as
recommended in the “Maintenance
and cleaning” section.
3. Plug the freezer into the wall outlet.
When the fridge door is open the
fridge compartment interior light will
come on.
4. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
5. Front edges of the freezer may feel
warm. This is normal. These areas
are designed to be warm to avoid
condensation.
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in
compliance with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal
to your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
Downloaded from Fridge-Manual.com Manuals

EN
10
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your freezer is
produced from recyclable materials.
Disposing of your old freezer
Dispose of your old machine without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal of
your freezer.
Before disposing of your freezer, cut
out the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the freezer will be installed is
not wide enough for the freezer to
pass through, than call the authorized
service to have them remove the doors
of your freezer and pass it sideways
through the door.
1. Install your freezer to a place that
allows ease of use.
2. Keep your freezer away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your freezer in order
to achieve an efficient operation.
If the freezer is to be placed in a recess
in the wall, there must be at least 5 cm
distance with the ceiling and at least 5
cm with the wall.
If the floor is covered with a carpet,
your product must be elevated 2.5 cm
from the floor.
4. Place your freezer on an even floor
surface to prevent jolts.
5. Do not keep your freezer in ambient
temperatures under 10°C.
Downloaded from Fridge-Manual.com Manuals

EN
11
Placing the freezer under the
counter and adjusting the
legs
When you place your freezer, the
distance between the product and the
wall must be at least 10 cm, as seen in
.the figure
The air sucking channels must not
be blocked so that the performance of
your freezer does not decrease. (140
(cm2
;If your freezer is unstable
You may turn the front legs of your
freezer as seen in the figure and make
it stay balanced. The corner of the leg
lowers when the leg is turned in the
direction of the black arrow; it rises
when the leg is turned in the opposite
direction. It will be easier for you when
you get some help from someone to lift
.the unit a little during this process
10 mm
40 mm 40 mm
10 mm
Downloaded from Fridge-Manual.com Manuals

EN
12
1
2
1
2
4
3
8
7
5
6
8
7

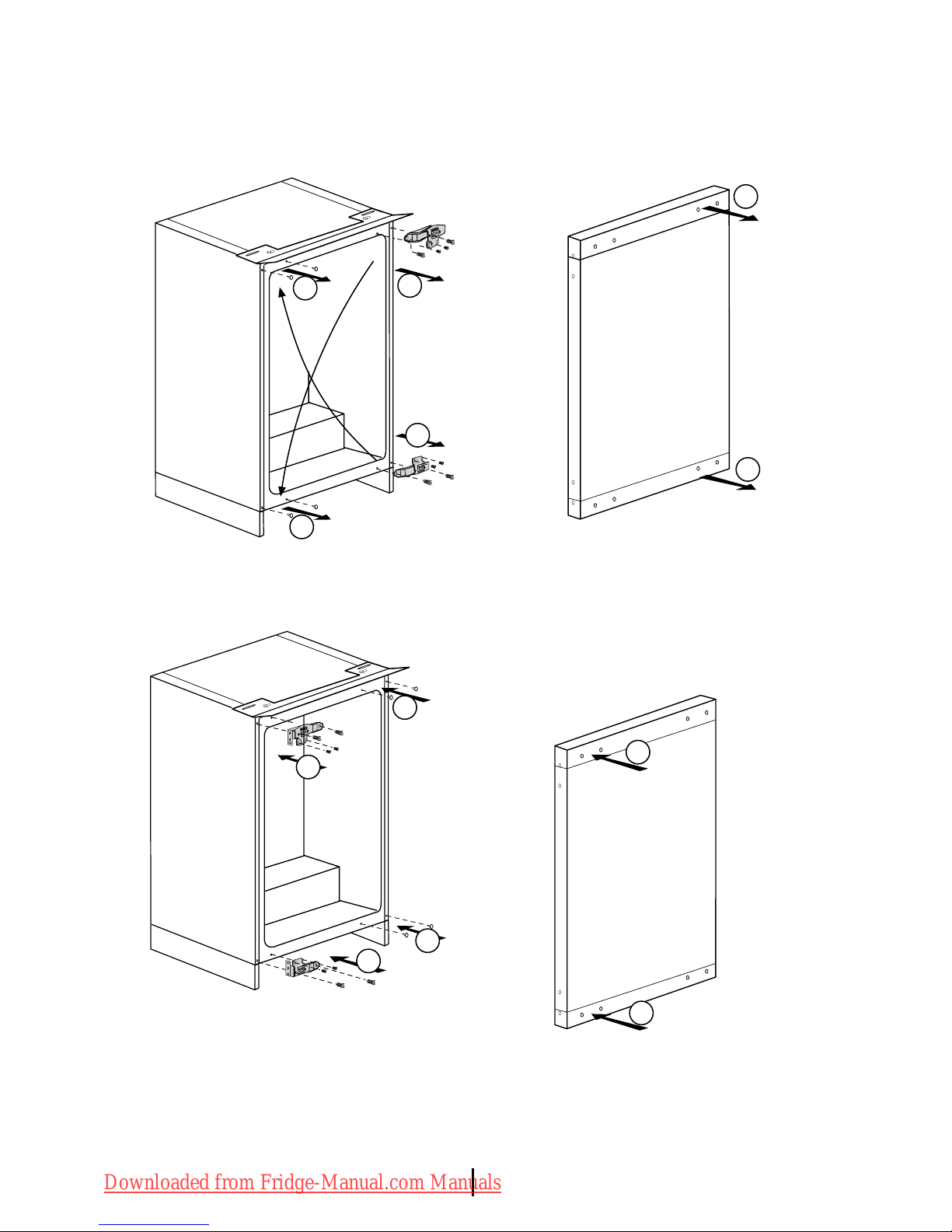

Reversing the doors
Proceed in numerical order
Downloaded from Fridge-Manual.com Manuals

EN
13
4Preparation
CYour freezer should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
CThe ambient temperature of the room
where you install your freezer should
at least be 10°C. Operating your
freezer under cooler conditions than
this is not recommended with regard
to its efficiency.
CPlease make sure that the interior of
your freezer is cleaned thoroughly.
CIf two freezers are to be installed side
by side, there should be at least 2 cm
distance between them.
CWhen you operate your freezer for the
first time, please observe the following
instructions during the initial six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your freezer. If a
power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.
Downloaded from Fridge-Manual.com Manuals

EN
14
5Using your freezer
Setting the operating
temperature

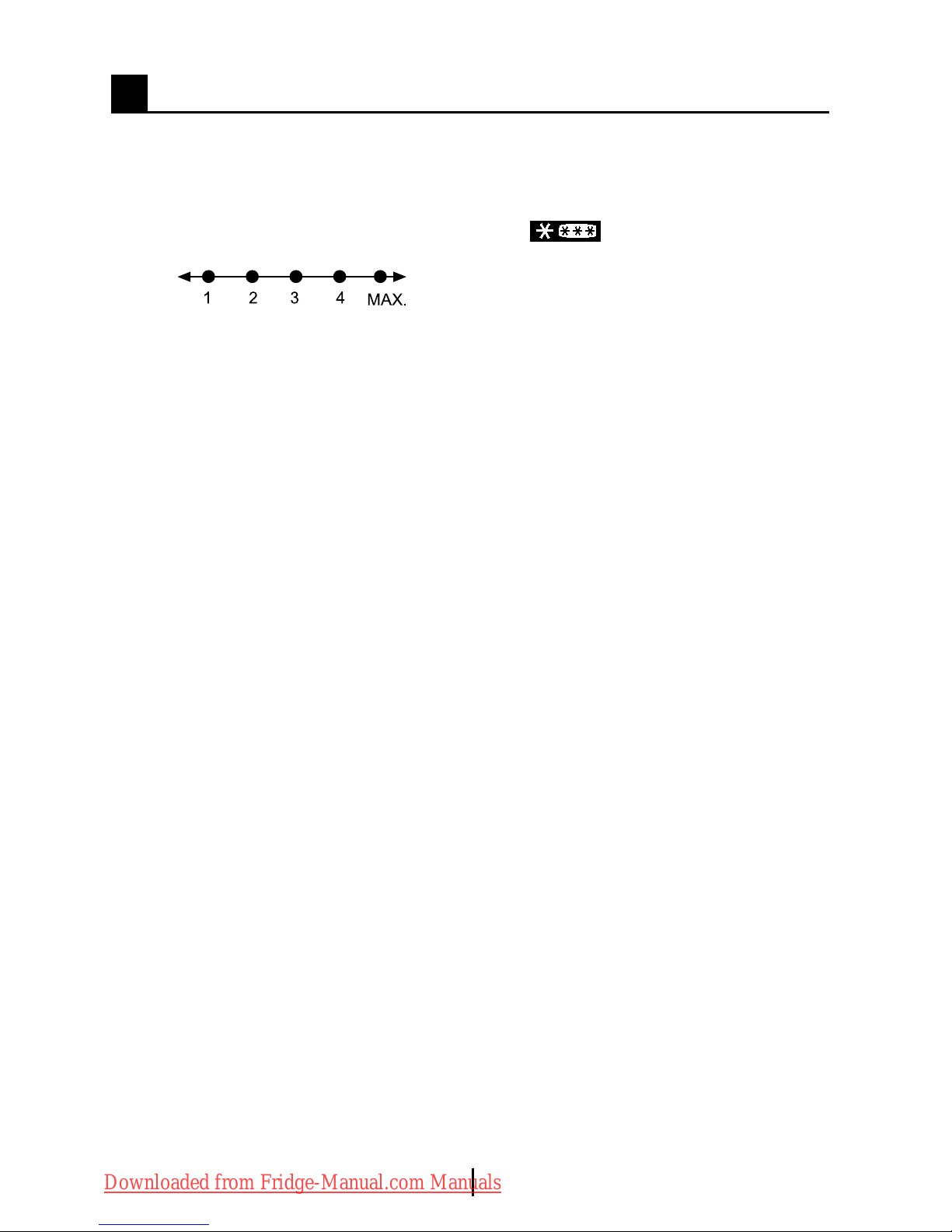

The operating temperature is regulated
by the temperature control.
Warm Cold
Please choose the setting according
to the desired temperature.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature of
your appliance should be -18 °C (0 °F).
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position 4 (or Max.).
We recommend checking the
temperature with a thermometer to
ensure that the storage compartments
are kept to the desired temperature.
Remember to take the reading
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.
Freezing
Freezing food
The freezing compartment is marked
with this symbol.
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.
AAttention
Do not freeze fizzy drinks, as the bottle
may burst when the liquid in it is frozen.
Be careful with frozen products such
as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not be
exceeded, and the temperature inside
the freezer will not rise.
AAttention
Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.
Downloaded from Fridge-Manual.com Manuals

EN
15
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.
• Frozen food can be stored up to 3
months in general in temperatures
under -18°C. Storage periods may
vary depending on the type of the
food. Storage periods of expiry dates
of such food are indicated on the food
package by their manufacturers.
• Frozen food that you have purchased
should be placed in the freezer before
they thaw.
• Frozen food may be kept in the
compartments with drawers.
To ensure that the high quality achieved
by the frozen food manufacturer and the
food retailer is maintained the following
should be remembered:
1. Put packets in the freezer as quickly
as possible after purchase.
2. Do not exceed "Use By", "Best
Before" dates on the packaging.
3. Please note that drawers, baskets,
flaps, trays are all removable.
Defrost
Increase in the thickness of the ice that
forms on the evaporator of your freezer
will decrease the cooling efficiency of it.
Therefore, you must defrost the ice
when the thickness of the ice layer
around the evaporator reaches to
approximately 5 mm. It is recommended
to defrost the ice when the freezer is
not filled too much or is empty.
Wrap the food in the freezer by a few
sheets of paper and keep them in the
coolest place possible or in another
freezer.
Turn the thermostat setting button to
“off” or unplug the power cable in order
to perform the defrosting.
Remove the drawers of your freezer
(it is not required to remove the lid of
the compartment equipped with a lid).
After some time, the water that melts
will accumulate in the pool located at
the bottom of your freezer.
Remove the accumulating water by
means of a soft sponge or etc. and dry
the pool thoroughly.
Do not forget to turn the thermostat
setting button to a position other than
the “off” in order to restart your freezer.
Operate your freezer for 2 hours while
it is empty and its doors are closed
before replacing your food into it.
Downloaded from Fridge-Manual.com Manuals

EN
16

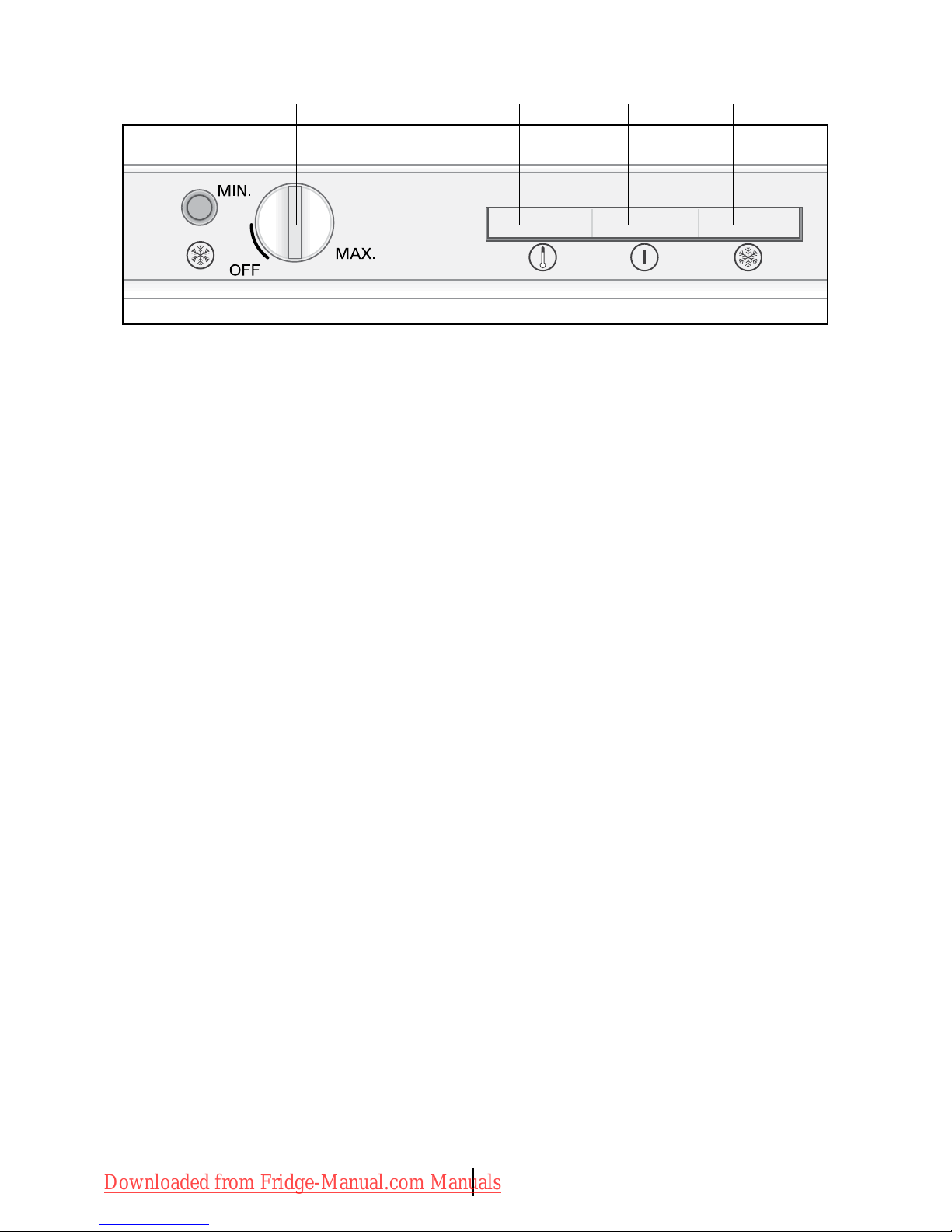

LED indicators and control
panel
LED indicators in the front section of
your freezer are intended to help you
in monitoring the operation of your
appliance.
Keep your food in the freezer in a safe
manner by monitoring and using these
LEDs and controls as explained below:
Fast Freeze Button (1): Used to
freeze the food fastly. Compressor may
not operate immediately but after some
time when the button is pressed and
this is quite normal.
Thermostat Setting Button (2):
Used to set your freezer between
minimum and maximum values.
The appliance may go to OFF position
when the knob is adjusted below MIN.
When the green indicator light is OFF,
the appliance is turned OFF also.
Once it is turned OFF (even for
defrosting), please adjust the knob
somewhere above MIN to be sure
that it is turned ON again. When the
appliance is turned ON, the green
indicator will light up.
Orange LED (3): Lights up when the
fast freeze button on the LED panel
is pressed. In this case, your freezer
operates continuously.
Press the button again when the food
you would like to fast freeze comes to
the desired temperature and the orange
LED will turn off.
Green LED (4): Lights up continuously
after plugging in your freezer.
Red LED (5): It warns you by lighting
up continuously when your freezers
start to operates, if not enough cooling
effect is obtained, when the door
remains open for a long time and when
excessive food is loaded.
If the red LED lights up continuously
when the conditions stated in the
adjacent column do not exist, then call
our Authorized Service.
1 2 5 4 3
Downloaded from Fridge-Manual.com Manuals

EN
17
6Maintenance and cleaning
A Never use gasoline, benzene or similar
substances for cleaning purposes.
BWe recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive
instrument, soap, household cleaner,
detergent and wax polish for cleaning.
CUse lukewarm water to clean the
cabinet of your freezer and wipe it dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
B Make sure that no water enters the
lamp housing and other electrical
items.
BIf your freezer is not going to be used
for a long period of time, unplug the
power cable, remove all food, clean it
and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
ATo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-cooked
meals in your freezer in unsealed
containers as they damage the plastic
surfaces of your freezer. In case of
spilling or smearing oil on the plastic
surfaces, clean and rinse the relevant
part of the surface at once with warm
water.
Downloaded from Fridge-Manual.com Manuals

EN
18
7Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The freezer does not operate.
• Is the freezer properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your freezer is connected to or the main fuse
blown out? Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL
CONTROL and FLEXI ZONE).
• Very cold ambient conditions. Frequent opening and closing of the door. Highly
humid ambient conditions. Storage of food containing liquid in open containers.
Leaving the door ajar. Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures
or plug-out plug-ins as the refrigerant pressure in the cooling system of the
freezer has not been balanced yet. Your freezer will start running approximately
after 6 minutes. Please call the service if the freezer does not startup at the end of
this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting
freezer. Defrosting cycle occurs periodically.
• Your freezer is not plugged into the socket. Make sure that the plug is properly fit
into the socket.
• Are the temperature adjustments correctly made?
• Power might be cut off.
Downloaded from Fridge-Manual.com Manuals

EN
19
The fridge is running frequently or for a long time.
• Your new product may be wider than the previous one. This is quite normal.
Large freezers operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The freezer might have been plugged in recently or might have been loaded
with food. Cooling down of the freezer completely may last for a couple of hours
longer.
• Large amounts of hot food might have been put in the freezer recently. Hot
food causes longer running of the freezer until they reach the safe storage
temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm
air that has entered into the freezer causes the freezer to run for longer periods.
Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors
are tightly closed.
• The freezer is adjusted to a very low temperature. Adjust the freezer temperature
to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. Clean or replace the seal. Damaged/broken seal causes the freezer to
run for a longer period of time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature might have been adjusted to a very low temperature.
Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature might have been adjusted to a very low temperature.
Adjust the fridge temperature to a warmer degree and check.
Downloaded from Fridge-Manual.com Manuals

EN
20
Temperature in the fridge or freezer is very high.
• The fridge temperature might have been adjusted to a very high degree.
Fridge adjustment has an effect on the temperature of the freezer. Change the
temperature of the fridge or freezer until the fridge or freezer temperature reaches
to a sufficient level.
• Doors might have been opened frequently or left ajar for a long time; open them
less frequently.
• Door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the freezer recently. Wait until
the fridge or freezer reaches the desired temperature.
• The freezer might have been plugged in recently. Cooling down of the freezer
completely takes time.
The operation noise increases when the freezer is running.
• The operating performance of the freezer may change due to the changes in the
ambient temperature. It is normal and not a fault.
Vibrations or noise.
• The floor is not even or it is weak. The freezer rocks when moved slowly. Make
sure that the floor is strong enough to carry the freezer, and level.
• The noise may be caused by the items put onto the freezer. Items on top of the
freezer should be removed.
There are noises coming from the freezer like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your
freezer. It is normal and not a fault.
There is a noise like wind blowing.
• Fans are used in order to cool the freezer. It is normal and not a fault.
Condensation on the inner walls of freezer.
• Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• Doors might have been left ajar; make sure that the doors are closed fully.
• Doors might have been opened frequently or left ajar for a long time; open them
less frequently.
Humidity occurs on the outside of the freezer or between the doors.
• There might be humidity in the air; this is quite normal in humid weather. When
the humidity is less, condensation will disappear.
Downloaded from Fridge-Manual.com Manuals
