Bel Canto CD3t User manual

CD3t
CD Transport
T A B L E O F C O N T E N T S
Safety Information ……………………………………………………………………………………2
Certifications/Standards ……………………………………………………………………………………3
Warranty ……………………………………………………………………………………4
npacking ……………………………………………………………………………………4
Power Connection ……………………………………………………………………………………4
Setup and Placement ……………………………………………………………………………………5
Design Features ……………………………………………………………………………………5
Conditioning ……………………………………………………………………………………5
Front Panel and Display ……………………………………………………………………………………6
Sleep Mode ……………………………………………………………………………………6
Remote Control ……………………………………………………………………………………7
Rear Panel Connections ……………………………………………………………………………………8
Tips for Operation ……………………………………………………………………………………8
Specifications ……………………………………………………………………………………9
Copyright © 2011 Bel Canto Design Ltd.
Bel Canto Design Limited
221 North 1
st
Street
Minneapolis, MN 55401
nited States
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of the publisher.
The content of this manual is furnished for information use only, is subject to change without notice, and should not be
construed as a commitment by Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual. Trademarks used in this publication: Bel Canto and the Bel Canto
logo are registered trademarks of Bel Canto Design Limited. CD3t is a trademark of Bel Canto Design Limited. Bel Canto
Design Limited disclaims any proprietary interest in trademarks and trade names other than its own. Printed in the nited
States.

The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude
to constitute a risk of shock to persons.
Explanation of symbols used in this manual or on the
rear/underside of the apparatus:
TO COMPLETELY DISCONNECT THIS APPARAT S
FROM THE AC MAINS, DISCONNECT THE POWER
S PPLY CORD PL G FROM THE AC RECEPTACLE.
THE MAINS PL G OF THE POWER S PPLY CORD
SHALL REMAIN READILY ACCESSIBLE.
Disconnect supply cord before changing fuse.
Refer servicing to qualified service personnel.
WARNING: TO RED CE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARAT S TO RAIN OR MOIST RE AND OBJECTS
FILLED WITH LIQ IDS, S CH AS VASES, SHO LD
NOT BE PLACED ON THIS APPARAT S.
• Read, keep and follow these instructions.
• Heed all warnings.
• Do not use the apparatus near water, ie near a
bathtub, kitchen sink, laundry tub, in a wet
basement, near a swimming pool etc.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the Manufacturer’s instructions.
Site the apparatus so that its location or position
does not interfere with its proper ventilation. For
example, the apparatus should not be situated on
a bed, sofa, rug, or similar surface that may block
the ventilation openings, or placed in a built in
installation such as a bookcase or cabinet that
may impede the flow of air through the ventilation
openings.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus that produce heat.
• This apparatus uses Class I construction and
must be connected to a mains socket with
protective earthing connection.
• Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and at the point where they exit from
the apparatus.
• nplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug has been damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has been
dropped.
• Mains plug: se the mains plug to disconnect the
apparatus from the mains supply. The mains plug
must be accessible at all times. se the mains
switch (if applicable) when the apparatus is not in
use.
• Objects and liquid entry: Do not let objects or
liquids fall into the apparatus. Do not expose the
apparatus to dripping or splashing. Do not place
a vessel containing liquid on top of the apparatus.
• No naked flame sources, such as lighted
candles, should be placed on the apparatus.
• The apparatus has been designed for use in
moderate and tropical climates
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.

Fuse replacement:
This appliance is fitted with a non-rewireable 10 amp
mains plug. The plug contains a 10 amp fuse. If the fuse
has blown it can be replaced as follows:
a) Pull out the black fuse cover/carrier.
b) Remove and dispose of the blown fuse.
c) Fit a new 10 amp BS1362 approved fuse into the carrier
and push the carrier back into the plug.
Always ensure the fuse cover is fitted. If the fuse cover is
missing do not use the plug. Contact your Bel Canto
retailer to obtain a replacement fuse cover. Fuses are for
fire protection and do not protect against electric shock.
WARNING: THIS APPLIANCE M ST BE
GRO NDED.

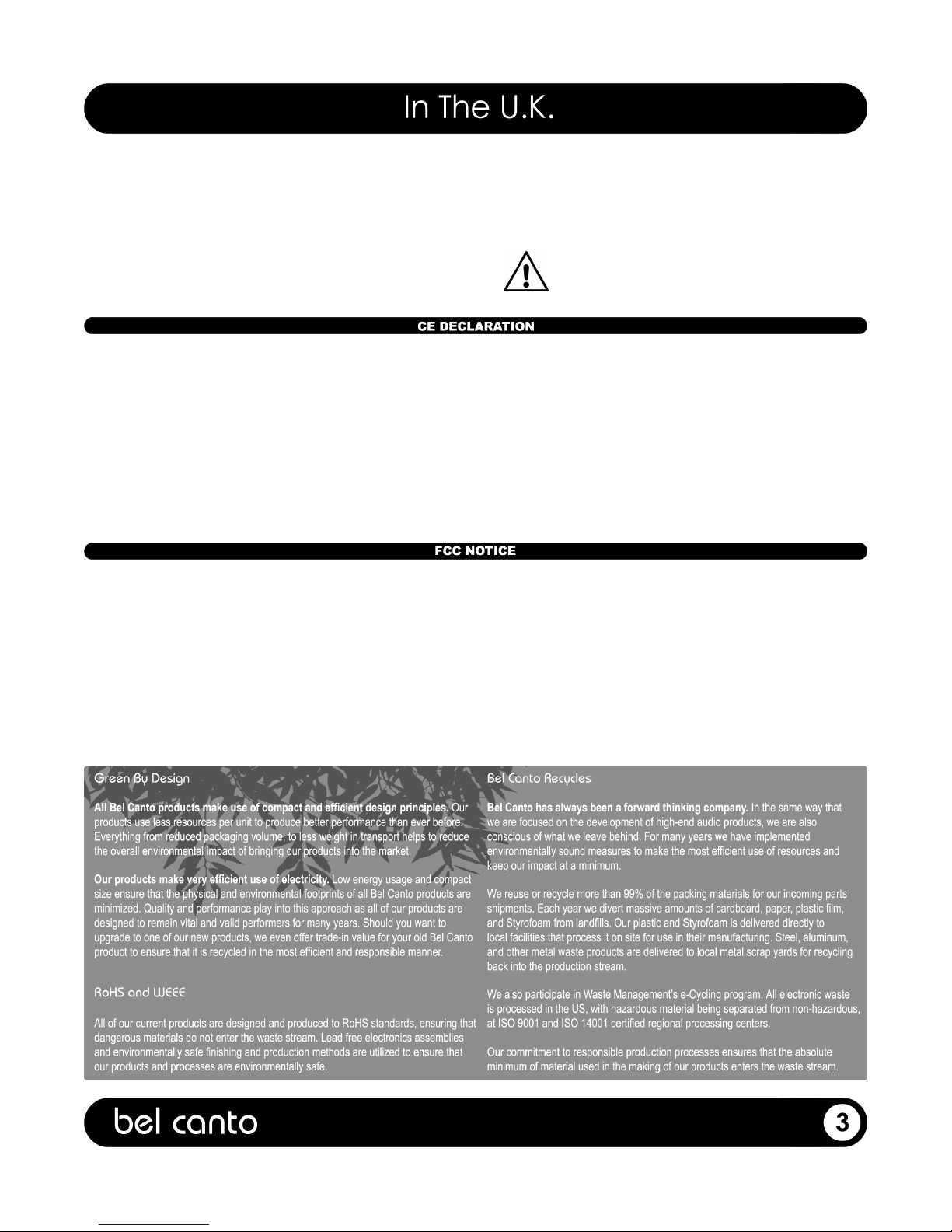

Bel Canto Design Ltd. declare that this product is in conformance
with the Low Voltage Directive 73/23/EEC and Electromagnetic
Compatibility 89/336/EEC as amended by 92/31/EEC and
93/68/EEC.
The conformity of the designated product with the provisions of
Directive number 73/23/EEC (LVD) is proved by full compliance
with the following standards:
EN60065 2002 General requirements
The conformity of the designated product with the provisions of
Directive number 89/336/EEC (EMC) is proved by full compliance
with the following standards:
EN55013 2001 Conducted emissions
EN55013 2001 Absorbed emissions
EN55020 2002 Immunity
The conformity of the designated product with the provisions of
Directive number 2005/32/EC ecodesign requirements is proved
by full compliance with the ‘off mode’ setting power of 0.0 Watts.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.

Bel Canto products are automatically covered by a 90 day factory warranty that covers all internal parts and labor.
Register online (http://www.belcantodesign.com/Belcanto_Warranty.html) within 30 days of purchase from an
authorized dealer to automatically extend your warranty for 2 years starting from the date of purchase. If you do
not have web access, please contact your dealer for assistance. pon fully completing registration, within 5
business days you will receive an email that officially validates your warranty. Your information will be used for
internal use only and will not be sold or released outside Bel Canto. Your comments and suggestions are
appreciated and help us continually improve our products and services.
The warranty is only valid to the original owner and is non-transferable. Damage caused by unauthorized
modification, abuse, or neglect of product will void your warranty. Any cost associated with return of product is
the sole responsibility of the owner. All returns require a return authorization number issued after completing the
RMA form in the support section of our website. If you have any questions, please feel free to contact us online at
[e-mail].
CD3t packaging contains the following:
1 (one) – CD3t CD Transport
1 (one) – CD3t ser’s Guide
1 (one) – Power Cord
1 (one) – Remote Control
1 (one) – BNC to female RCA connector
Carefully unpack each piece and check for shipping
damage. If there is any damage, or if anything is
missing, please contact your dealer, distributor or
Bel Canto Design.
IMPORTANT: Save all packing materials as it is
specially designed to protect the unit during
transportation or shipping. If the packing becomes
lost or damaged, please contact your dealer,
distributor or Bel Canto before attempting to
transport your unit .
The power supply on the CD3t is preset for the
proper power voltage. The power cable should have
the correct plug for your local power system. If you
believe this to not be true, please contact your
dealer immediately.
This product, like any electrical component, can be
dangerous and cause injury unless correct handling
procedures are observed and used. Before
powering this product, it is necessary to read and
follow proper setup and procedures.
WARNING!
Do not connect power
to this product yet!

Because the CD3t runs cool, it can be placed in
many system locations without compromise. We do
not recommend placing weights or other objects
directly on the CD3t. This may scratch or mar the
chassis finish.
Do not use harsh chemicals when cleaning the
outside of your CD3t se only a microfiber cloth
for dusting display panel.
The Bel Canto CD3t features the following:
• High reliability slot loading mechanism
• Low jitter architecture with crystal retiming
for AES and SPDIF output
• High speed AES and SPDIF drivers
• Efficient low noise power supply design,
3Watt typical operating power
• ltra low power Sleep mode after 1 hour of
no activity: <0.5W
• Rear Panel 3.5mm IR control input
• Sharp, bright 4 character display
The sonic performance of the CD3t will begin to stabilize after 100 hours of continuous power up.
IMPORTANT!
Make all connections before
powering your unit!

WARNING! NEVER FORCE A CD INTO THE MECHANISM!
If the mechanism does not sense and accept the CD, this indicates a fault. Forcing the CD into the
mechanism will cause damage to the mechanism that is NOT covered by the warranty.
The CD3t features six push button controls, a four
character display, and a slot-load CD mechanism on
the front panel.
pon power up, the CD3t will display the firmware
revision. If there is no disc present, two dashes will
appear on the display.
If there is a disc present, it will be ejected. The CD will
be pulled back into the slot after a few seconds.
pon inserting a disc, 4 dashes will appear on the
display. Then it will show the total time on the disc
followed by the number of tracks.
The display will then switch to play mode which shows
the track number of the current track.
If the display is flashing 8888, immediately
turn the unit off and then contact Bel
Canto Design
The buttons from left to right:
01. Track Decrement to reduce the track number
02. Track Increment to increase the track number
03. Ejects disc
04. Stop
05. Play
06. Pause
If the CD3t is not operated for 1 hour, it automatically goes into a low power sleep mode. This is indicated by a
single decimal point in the center of the display. Pressing any control will wake the unit up, clearing and initializing
any inserted CD. After approximately 20 seconds, the CD3t will be ready to play.

The CD3t Remote Control has a comprehensive
set of control features that are not available on the front
panel.
To access all CD3t control features press the button
marked CD on the remote control.
e.One DAC or Preamp functions can be controlled by
selecting DAC or PRE on the remote. The Main CD
controls will still operate in the DAC and PRE modes.
Display: Toggles the Display ON and OFF. When in OFF
mode, the Display will come on momentarily when
changing the CD3t operation. This will also display the
firmware revision.
Mute: The Mute function will punch through to any Bel
Canto unit set in Variable Output mode .
VOL+: This will punch through to any Bel Canto unit (DAC
or Preamp) in Variable Output mode. The display on your
DAC or Preamp will show the volume level while
changing. Increases the volume setting in Variable Output
mode.
VOL-: This will punch through to any Bel Canto unit (DAC
or Preamp) in Variable Output mode. The display on your
DAC or Preamp will show the volume level while
changing. Decreases the volume setting in Variable
Output mode.
.
Pause ||: Toggles the Pause mode ON and OFF. The
Mode Indicator will show the pause or play mode as
appropriate.
Stop: Indicated by a solid square and will place the CD3t
in Stop mode when pressed. The CD3t will reset to track 1
when Play is pressed.
PLAY>: Initiates playback of the displayed track.
|<<: Track Decrement to reduce the track number.
>>|: Track Increment to increase the track number.
<<: Slow playback speed in real time. Pressing twice will
reduce speed further, press Play to resume normal
playback.
>>: Increase playback speed in real time. Pressing twice
will increase speed further, press Play to resume normal
playback.
Rpt1: Repeat playback of the current track while in play
mode. The Mode Indicator changes from the bottom left
corner to the top left corner to indicate mode. Press Rpt1
to turn the repeat mode off. Stopping playback will also
turn the repeat mode off.
Rpt All: Repeat playback of the entire CD while in play
mode. The Mode Indicator changes from the bottom left
corner to a full height Mode Indicator to indicate this mode.
Press Rpt All to turn the repeat mode off. Stopping
playback will also turn the repeat mode off.
TIME: Shows the track time played while the CD is playing
or Paused. Pressing the TIME button will change the
Display back to standard mode.
Number Buttons: The 1-9 and 0 buttons are used to
directly select any track number for playback. Track 10
and above are directly selected by keying in the number. If
you select a track beyond the number of tracks on the CD
no action will result and the current track will continue
playing.
No other remote buttons are active for use with the CD3t.

IMPORTANT: The CD3t MUST be used with an external DAC
• ON/OFF switch applies power when the
switch is in the 1 position.
• Fuse Drawer with 5 amp/250V slow blow
5mm x 20mm fuse.
• IEC power cord jack: Connect the supplied
or a quality aftermarket power cord from this
jack. Note the power setting indicated on
the back of the unit before connecting the
power.
• IR In: Connect an IR extension emitter to
facilitate remote usage. It accepts a 38KHz
modulated IR input signal at up to 12V p-p
• SPDIF output accepts BNC or RCA (using
supplied adapter) connections and operates at a
16/44.1 data rate.
• AES/EB output transmits a 16/44.1 data rate
• Volume Control Punch Through: The Volume p and Down functions on the remote control will affect any Bel
Canto unit in Variable Output mode regardless of whether PRE, DAC, CD or T NER is selected. It is recommended
that only the device with volume control closest to the power amps be in Variable Output mode. Any other devices
that are capable of volume control should be in Fixed Volume mode.
• Double check all connections to and from the unit before plugging the CD3t into the power source.
• We recommend leaving the CD3t powered up at all times.

Disc Compatibility: Red Book CD, CDR, CDRW, Hybrid SACD: CD Layer
Digital Outputs
Maximum Data Rate/Bit Depth: 44.1kHz/16bit
Digital Output types: AES/EB XLR, SPDIF
AES/EB Digital Output Level: 3V p-p, 110 ohms, 44.1K samples/second
SPDIF Digital Output Level: 0.6V p-p, 75 ohms, 44.1K samples/second
Additive jitter: < 100 pS RMS
Features:
Stream nlimited Slot-load mechanism
Power draw: 4 Watts
Sleep Mode power: <0.5W
Power Requirements: Internally set for: 120 VAC 50-60 Hz or 220-240 VAC 50-60 Hz
Dimensions: 8.5” W x 12.5” D x 4.5” H (216 mm x 318 mm x 115 mm)
Weight: 12lbs. (5.5 kg)

version 1.0
