User Manual
________________
Manual
del usuario
10 FOOT OFFSET UMBRELLA
English.... Page 3
Español.... Página 23
SOMBRILLA DE 10 PIES CON SOPORTE LATERAL
For Reference Only

Contents •Índice
Getting Started .................................. 4
Pack Contents/Parts .......................... 5
Parts List ............................................ 6
Hardware List .................................... 7
Assembly Instructions ....................... 8
Warranty ............................................ 18
Para comenzar .................................. 23
Contenido del paquete/piezas ......... 24
Lista de piezas .................................. 25
Lista de herraje ................................. 26
Instrucciones de ensamblaje ............ 27
Garantía.............................................. 36
For Reference Only

For Reference Only

4
WARNING
• To prevent damage to the canopy, open the umbrella facing the
opposite direction that the wind is blowing.
• Umbrella counterweight is not included. Do not use this umbrella
without an umbrella counterweight.
• Umbrella is NOT suitable for use in conditions of rain showers or
light wind. Failure to do so may result in personal injury and/or
damage.
CAUTION
• Assemble and use umbrella on a flat surface.
• Recommend inserting the umbrella into an umbrella
counterweight (not included) to secure umbrella in an upright
position.
• Placement of the umbrella over or near a swimming pool can
cause premature fading of the canopy. This is not covered under
the warranty.
• Close the umbrella and use the canopy ties when umbrella is not
in use.
DANGER
Keep children out of the assembly area during assembly.
For Reference Only

5
Getting Started
Ensure all parts packaged in carton match the parts list.
Remove all protective materials and place parts on a non-
abrasive surface to avoid scratching. If any parts are missing
or damaged, DO NOT attempt to assemble. Please contact our
customer service center (Monday-Friday 9:00am – 5:00pm EST)
at 1-800-599-8898.
Caution
Read all the instructions before assembly. Failure to comply
with instructions may result in faulty assembly and potential
injury! Assemble product on a soft, non-abrasive surface
such as a carpet or cardboard to avoid damaging the item.
Seek assistance to assemble bulky or heavy items. After final
alignment, make sure all bolts and nuts are securely tightened
with screw covers pressed in place.
Cleaning & Maintenance
Spot clean with mild solution of soap and water. Allow to air dry.
Warning: Product must be weighed down with
counterweight such as an offset umbrella base (not
included). A retail counterweight product intended
to secure umbrellas of this type in place is highly
recommended. Total weight should be a minimum of
150lbs. in total. Using only sandbags, cinderblocks, or other
unconventional weights is not recommended.
For Reference Only

6
Pack Contents / Parts
Pack contents / parts
AUmbrella Frame
BTop Crossbar
CBoom Crossbar
DM8x20 Bolt
EWasher
FLocking Knob
GBoom Pole
HWrench
For Reference Only

7

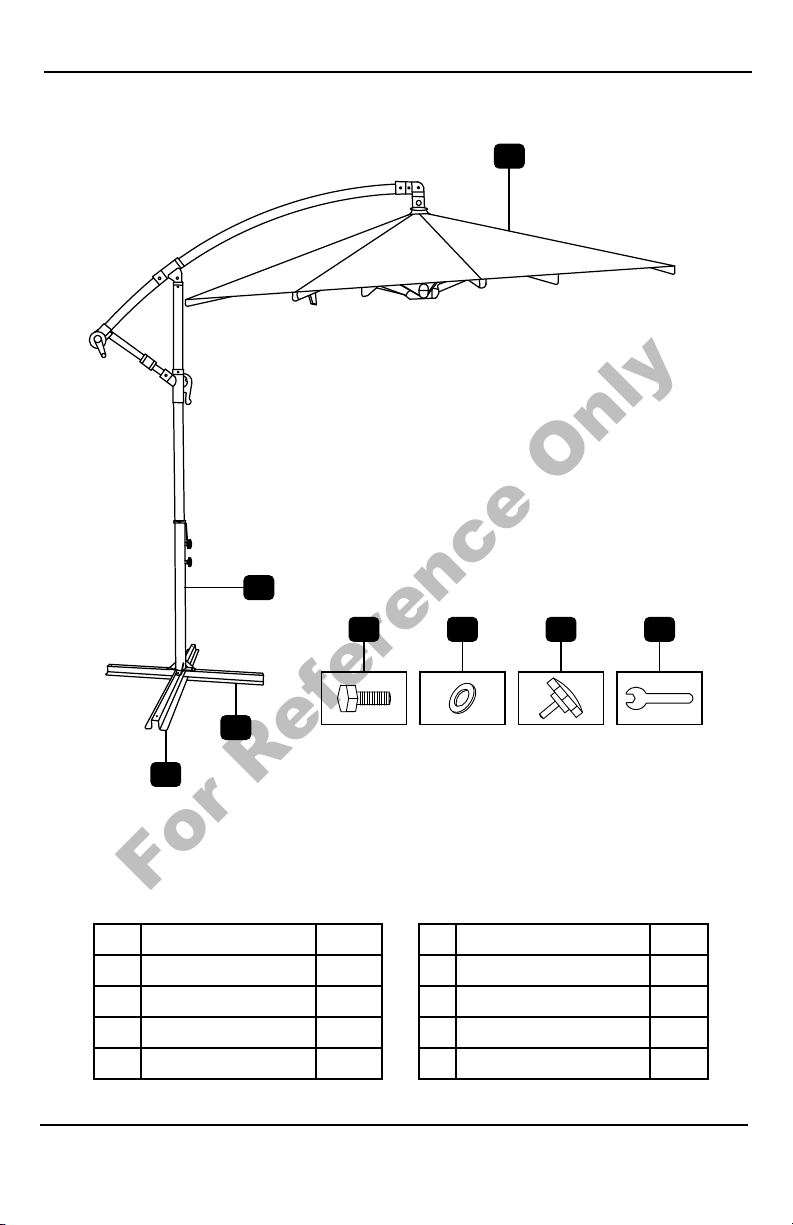

Parts List
A
G
FED
C
B
H
Descripon Qty Descripon Qty
A Umbrella Frame 1 E Washer 1
B Top Crossbar 1 F Locking Knob 1
CBoom Crossbar 4 G Boom Pole 1
D M8x20 Bolt 4 H Wrench 1
For Reference Only

8

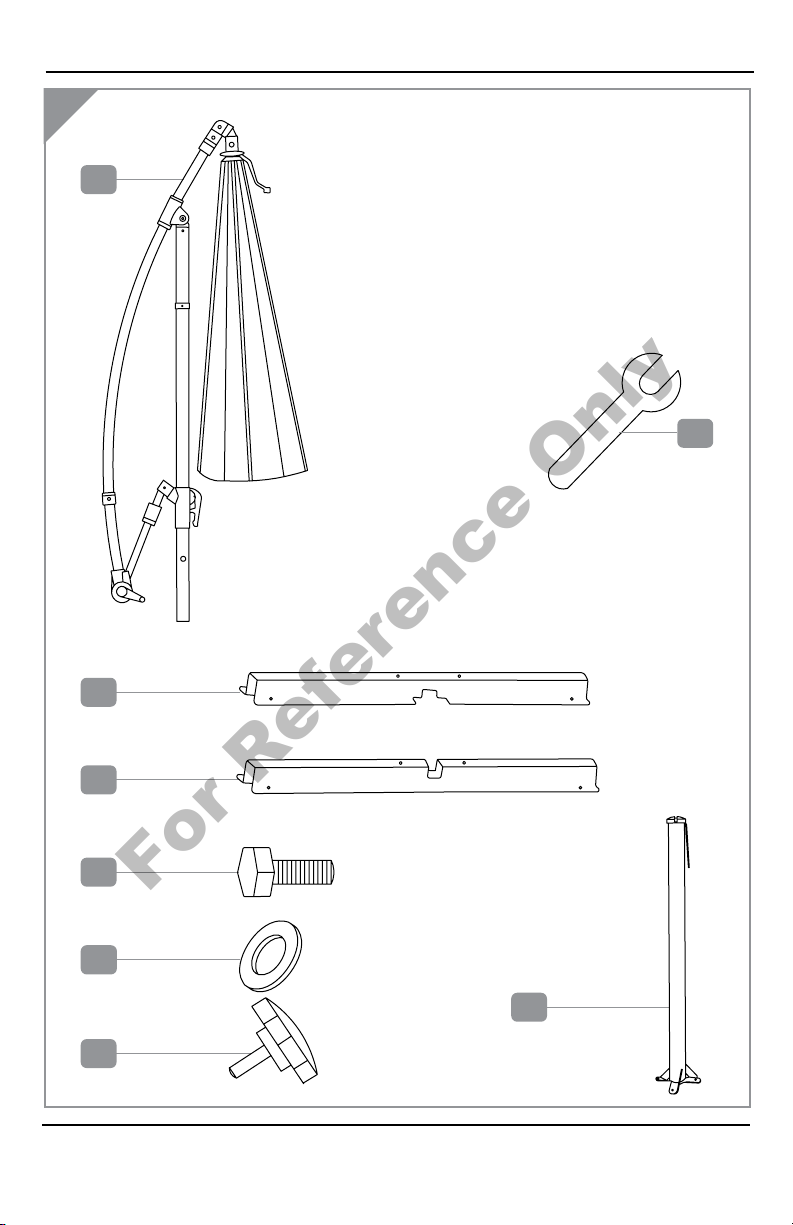

Hardware List
A
E
D
F
G
H
B
C
A
For Reference Only

9
Assembly Instructions
G
D
E
B
C

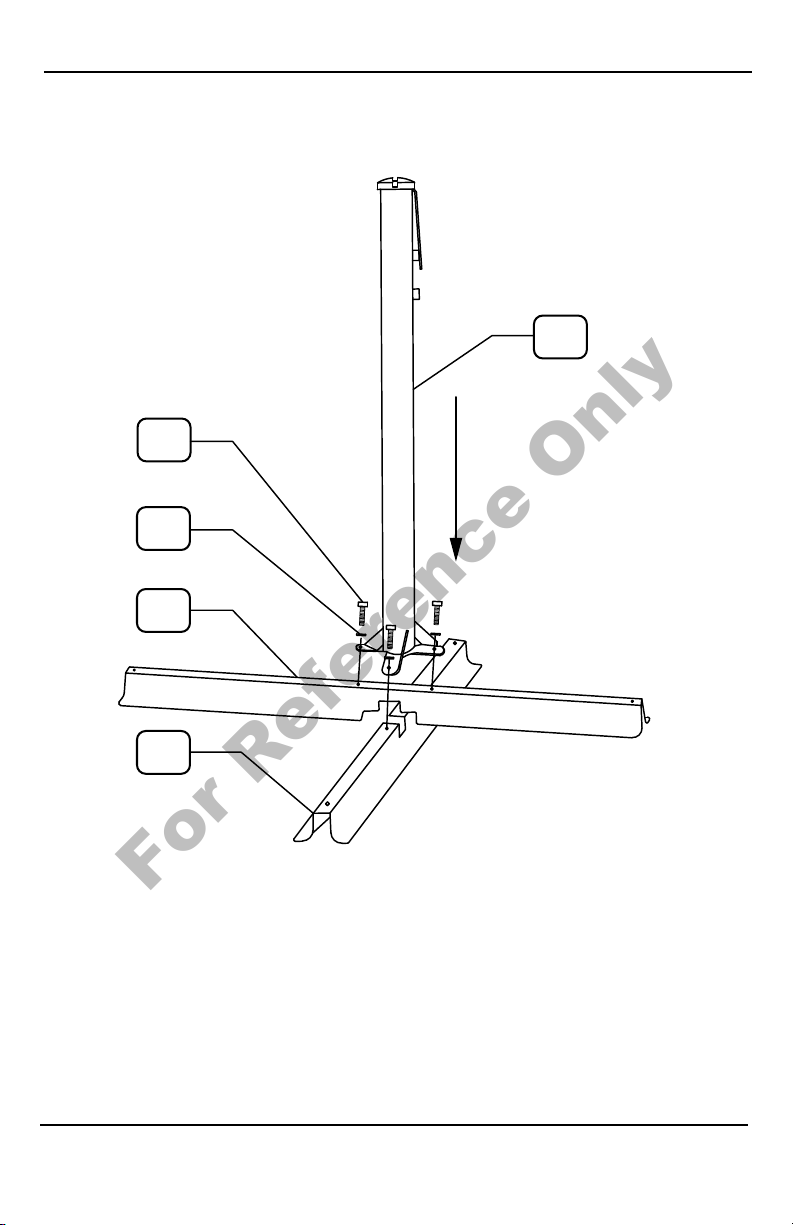

STEP 1:
Place the Top Crossbar (B) over the Bottom Crossbar (C) to form an ‘X’.
Attach the Bottom Pole (G) to the crossbars using the four M8x20 Bolts
(D) with Washers (E).
For Reference Only

10

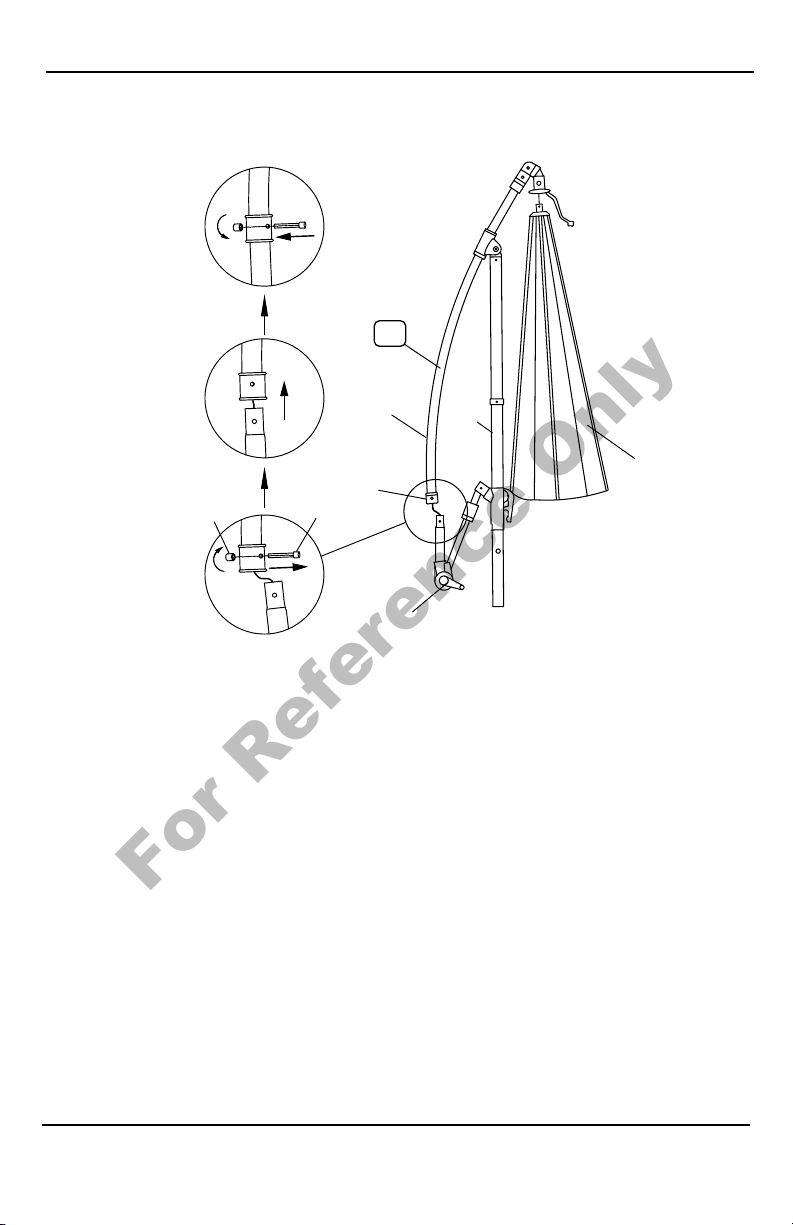

STEP 2:
Place the Umbrella Frame (A) in the correct orientation as illustrated above,
with the pole placed in between the umbrella canopy, and the canopy
arm. Turn the crank handle clockwise until the line inside the canopy arm
tightens some.
Remove the bolt and cap from the connector by unscrewing the cap
counterclockwise and pulling the bolt from the eyelet, see Fig. 1.
Insert bottom portion of the canopy arm into the upper portion, see Fig. 2.
Line up eyelet of bottom portion of the canopy arm with the eyelet found
in the center of the connector.
Insert the bolt through the lined-up eyelets so that it passes through to
the other side. Place cap back onto bolt and tighten it down by turning it
clockwise, see Fig. 3.
Assembly Instructions
A
Umbrella
Canopy
Pole
Canopy
Arm
Crank
Cap Bolt
Connector
Please familiarize yourself with the descriptions for each component
of the Umbrella Frame (A) below.
Fig. 3
Fig. 2
Fig. 1
For Reference Only

11
Assembly Instructions

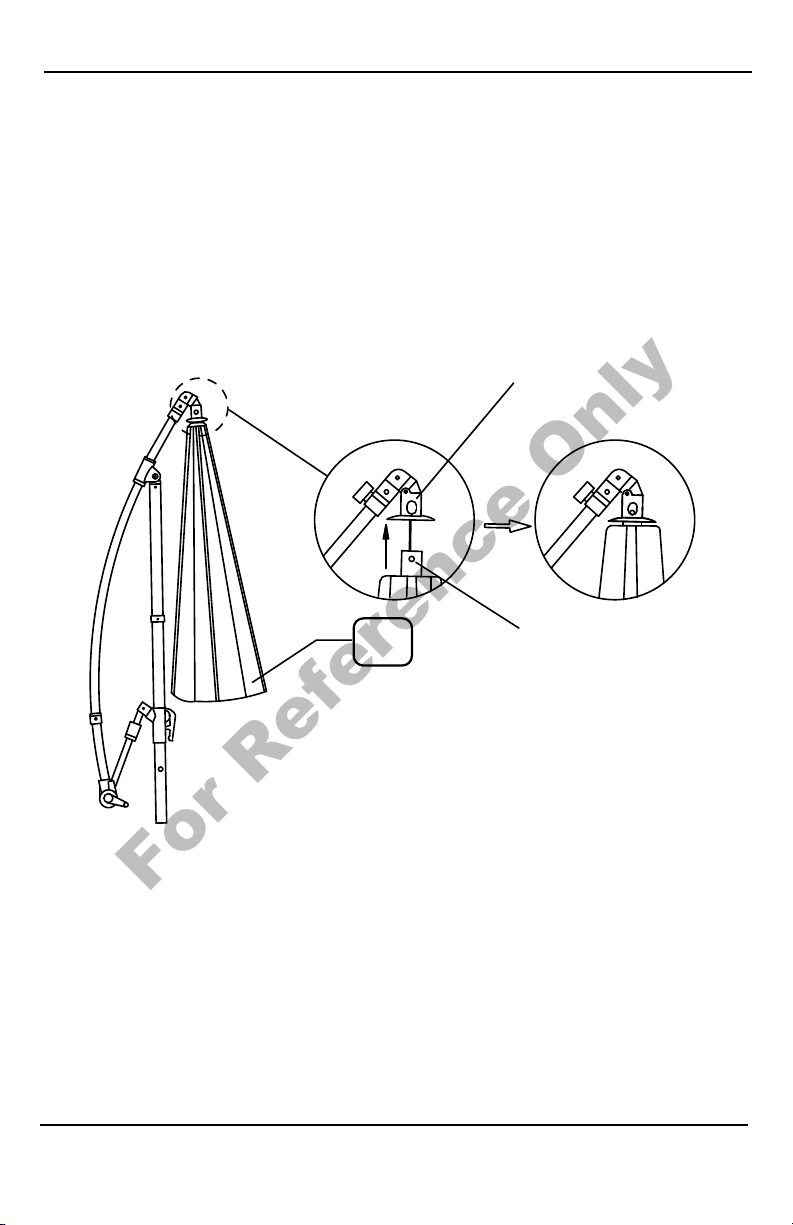

STEP 3:
Use the push pins to connect the top of the umbrella canopy to the
umbrella housing, see Fig. 4 & 5.
APush Pin
Umbrella Housing
Fig. 4 Fig. 5
For Reference Only

12
Assembly Instructions

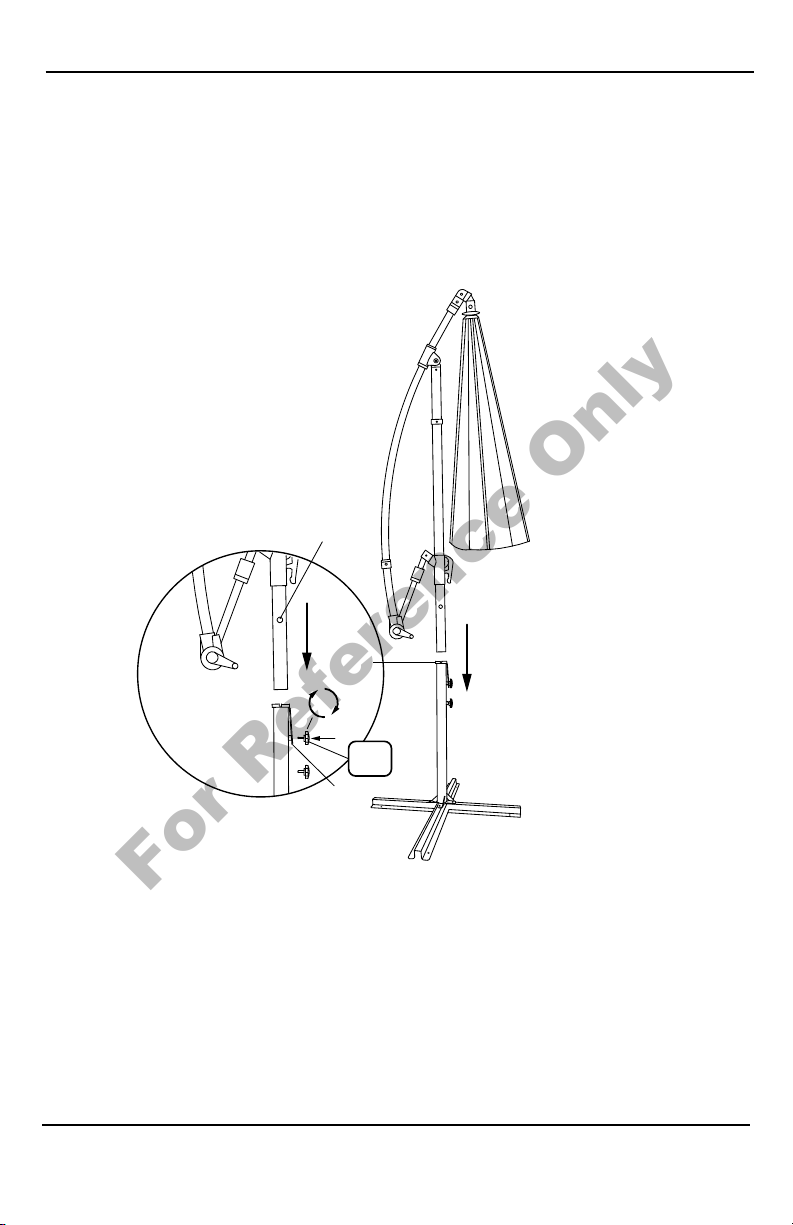

STEP 4:
Place the pole of the Umbrella Frame (A) inside of the Bottom Pole (G)
so that the prongs fit within groves at the top of this part, see Fig. 6.
Insert Locking Knob (F) through band found at the top of part G, and
into the bolt-threading of this part, see Fig. 6. Insert second Locking
Knob (F) into bolt-threading underneath band. Tighten the Locking
Knobs (F) until pressed against the pole of the Umbrella Frame (A)
enough to hold it in place, see Fig. 6. Over tightening may dent or chip
away at the protective coating of the Umbrella Frame (A).
Band
Prong
F
*Place a counterweight such as an offset umbrella base (not
included) that can be filled with water or sand, or triangular
weight bases (not included) before proceeding further. An offset
umbrella base should be able to hold 150 lbs. of sand or water,
or 4 triangular weight bases, minimum 38 lbs. each. This is the
recommended amount of weight to maintain product stability,
especially while umbrella canopy is open.
Fig. 6
For Reference Only

13

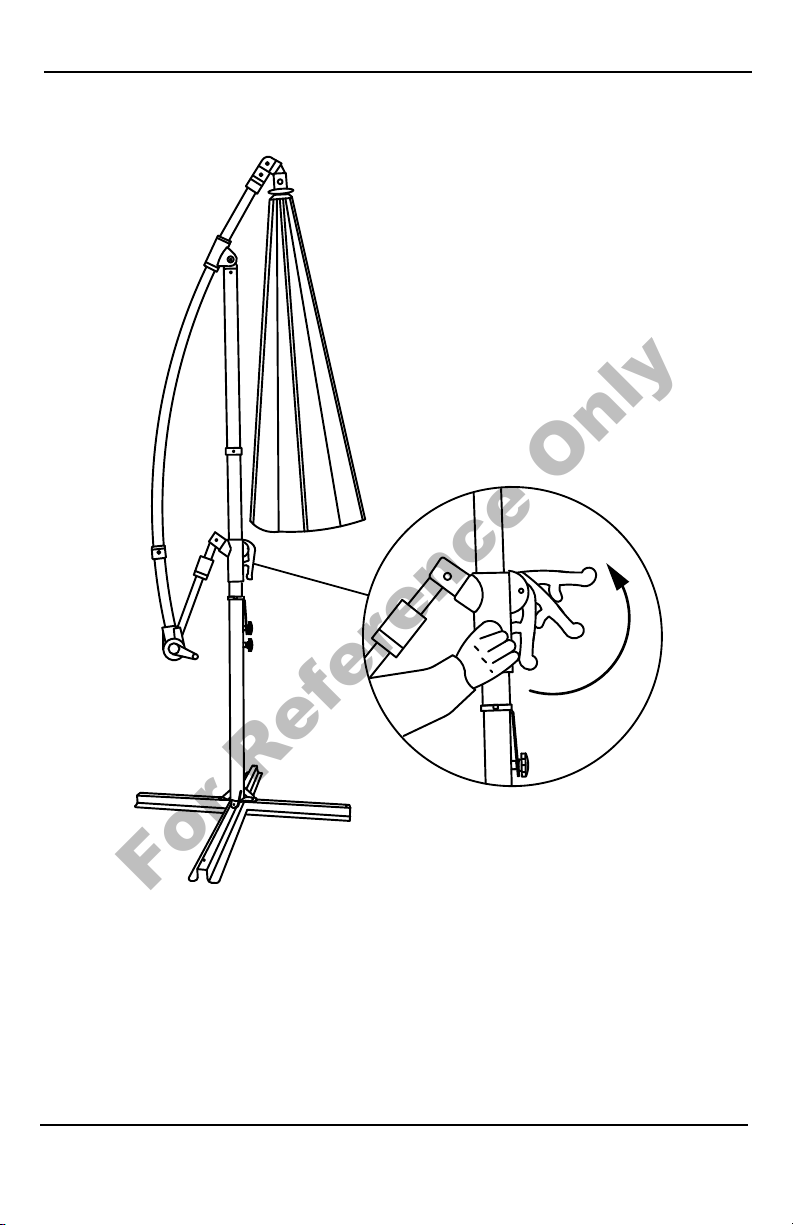

STEP 5:
Release lever on the Umbrella Frame (A) by lifting it up to unlock it, see
Fig. 7.
Assembly Instructions
unlock
Fig. 7
For Reference Only

14
Stopper
Lever
Sleeve
lock
Assembly Instructions
UP
Bracer
Extension
Arm
*Please note that the umbrella canopy is not intended to be stiff
when fully opened as is meant to have some room to sway. This is
needed so that the umbrella canopy can fold nicely against other
components of the Umbrella Frame (A) when not in use.
Fig. 8
Fig. 9
For Reference Only

15

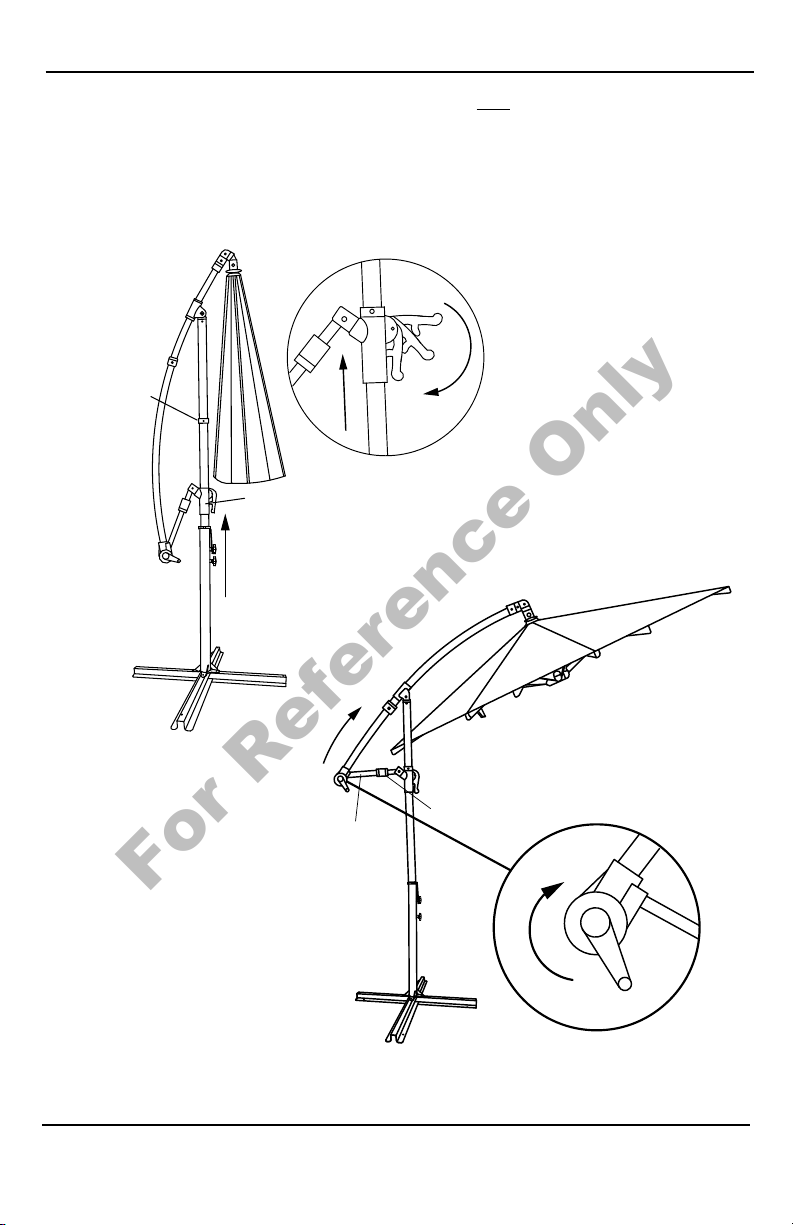

STEP 6:
Lift the lever sleeve up until you reach the stopper that prevents it
from going further up the pole, do this without extending the canopy
arm outward. Push down on the lever to lock it place, see Fig. 8.
With the lever sleeve locked in place, extend the canopy arm out
enough to begin opening the umbrella canopy. Do this without
extending the canopy arm to its connector and without securing the
extension arm in place using the bracer.
Before turning the crank clockwise to open the umbrella canopy for
the first time, please be sure to have a counterweight (not included)
in place to prevent the umbrella from tipping over. Turn the crank
clockwise to open the umbrella canopy completely, see Fig. 9. Having
the crank and its base up to your chest is normally what is needed to
give the umbrella canopy adequate space to open.
Assembly Instructions
For Reference Only

16
Assembly Instructions

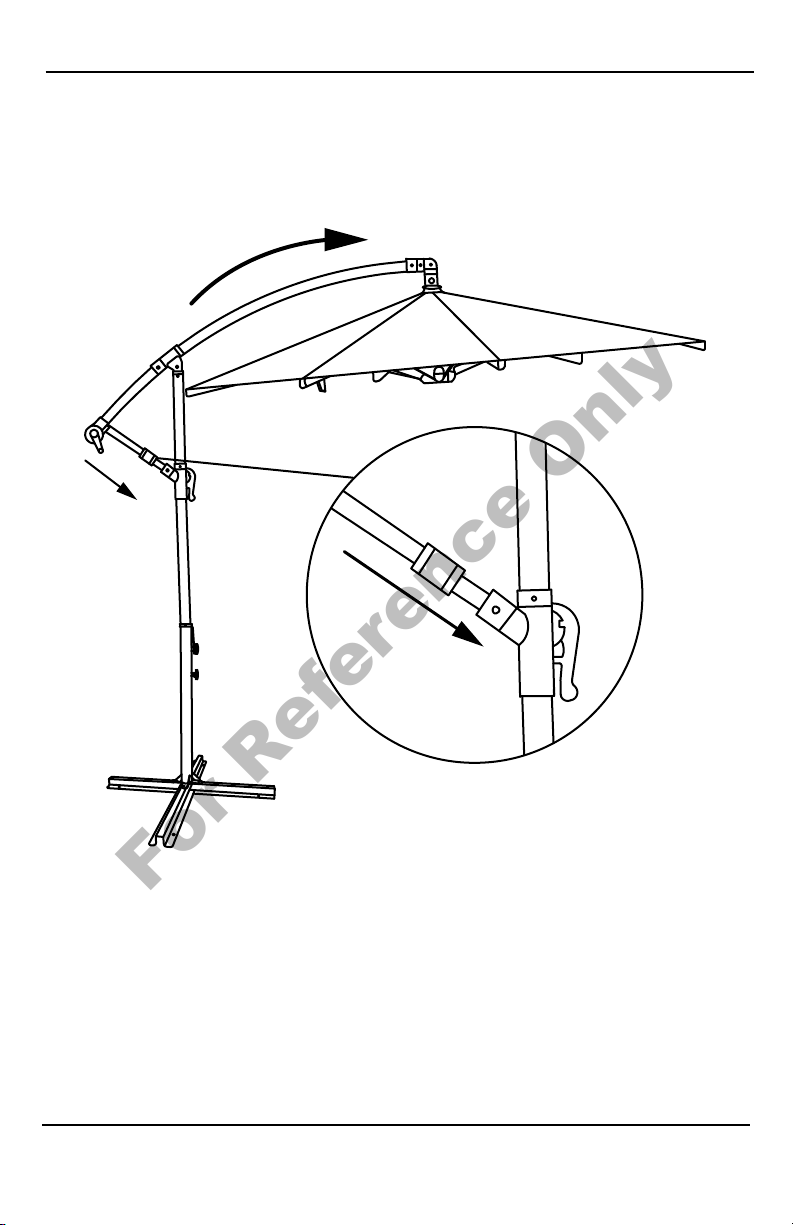

STEP 7:
Extend the canopy arm to its connector. Push the bracer against where
the lever sleeve meets the extension arm to lock the arm in place, see
Fig. 10.
Fig. 10
For Reference Only

17

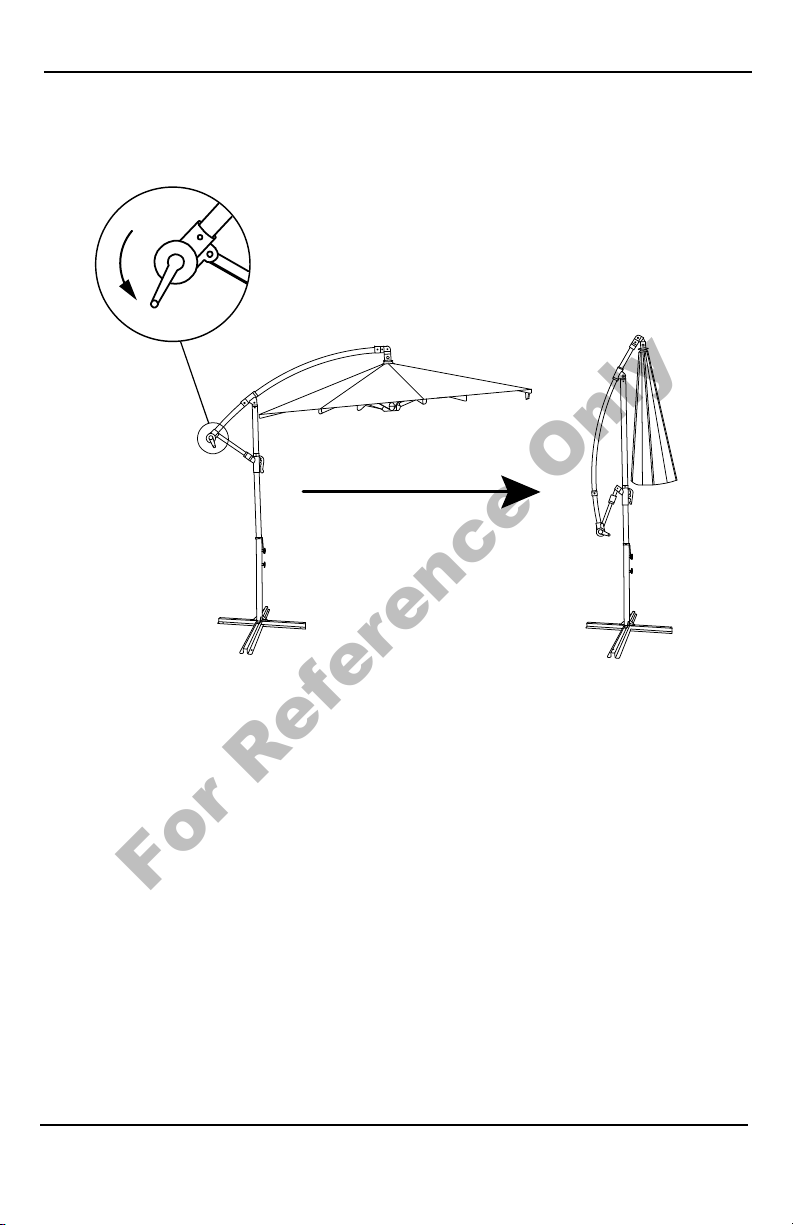

Instructions for Use
Close
How to close the umbrella
1. Lift the bracer away from lever sleeve to unlock these parts.
2. Bring crank base to chest level by pulling the canopy arm towards
you.
3. Turn the crank counterclockwise to close the umbrella canopy, see
Fig. 11.
4. Lower canopy arm to its folded position.
5. Unlock lever and lower canopy arm and lever sleeve gently.
6. Use the ties found on the umbrella canopy to tie the canopy down.
Fig. 11
For Reference Only

823043
[email protected]
1-800-599-8898
E-Mail:
Address:
Name:
Your details:
Descripon of problem:
SERVICE CENTER
PRODUCT CODE
AFTER SALES SUPPORT
WARRANTY CARD
US
10 FOOT OFFSET
UMBRELLA
23704-23
MODEL NUMBER
TDC USA, Inc.
5 Industrial Road, STE 1
Fairfield, NJ 07004-3017
United States of America
Phone lines available Monday to Friday
9am - 5pm EST.
Please contact our AFTER SALES SUPPORT by phone or e-mail when
needing assistance with your purchase.
Please retain your sales receipt which validates the 1-year Limited Warranty.
Only submit the Warranty Card when needing assistance with a faulty part.
For Reference Only

Dear Customer:
The ALDI warranty is a full warranty oering you the following benets:
Warranty period:
Costs:
Hotline:
Operang hours:
1 year* from date of purchase
6 months for movable parts and consumables under
normal and proper condions of use.
Free repair/exchange or refund.
No shipping or handling costs
1-800-599-8898
Monday - Friday, 9:00 AM - 5:00 PM EST
Please contact our service hotline by phone, email, or fax when needing assistance
with assembly or with faulty parts. This allows us to provide support in the event of
possible operator errors.
ALDI INC. FULL WARRANTY CONDITIONS
In order to make a claim under the warranty, please send us:
A copy of your sales receipt, your completed warranty card with contact
informaon provided, and an explanaon as to how we can help and what
concerns you have with any parts.
The warranty does not cover damage caused by:
• Accident or unancipated events to frame [metal parts] (e.g. wind, snow,
lighng, re).
• Deterioraon, fading, sagging, or unancipated events to canopies and
neng panels (e.g. wind, sun, rain, pets/animals).
• Improper use or transport.
• Failure to follow safety and maintenance instrucons.
• Other improper treatment or modicaon.
Aer the expiraon of the warranty period, you may have your product repaired at
your own expense. You will be noed of the repair costs in advance.
This warranty gives you specic legal rights, which may vary from state to state,
that are not intended to exceed statutory minimum requirements beyond what is
included above.
This warranty does not limit the statutory obligaon of the seller arising from any
implied warranes. The period of warranty can only be extended in accordance
with applicable law.
For Reference Only

..
ADVERTENCIA
• Para evitar daños en el toldo, abra la sombrilla en la dirección
opuesta a la que sopla el viento.
• No se incluye el contrapeso de la sombrilla. No utilice esta sombrilla
sin un contrapeso adecuado.
• La sombrilla NO es adecuada para usarse en condiciones de lluvia
o viento ligero. De hacerlo, se pueden producir lesiones personales
o daños materiales.
PRECAUCIÓN
• Realice el montaje y el desmontaje de la sombrilla sobre una
superficie plana.
• Se recomienda insertar la sombrilla en un contrapeso adecuado
(no incluido) para asegurar que mantenga su posición vertical.
• La colocación de la sombrilla sobre o cerca de una piscina puede
causar la decoloración prematura del toldo. Esto no está cubierto
por la garantía.
• Cierre la sombrilla y use los amarres del toldo cuando no esté en
uso.
PELIGRO
Mantenga a los niños alejados del área durante
el ensamblaje.
For Reference Only
