BenQ DEY21 User manual
DEY21
Android Box
User Manual
Chapter 1 Introduction
1
1.1 Product appearance

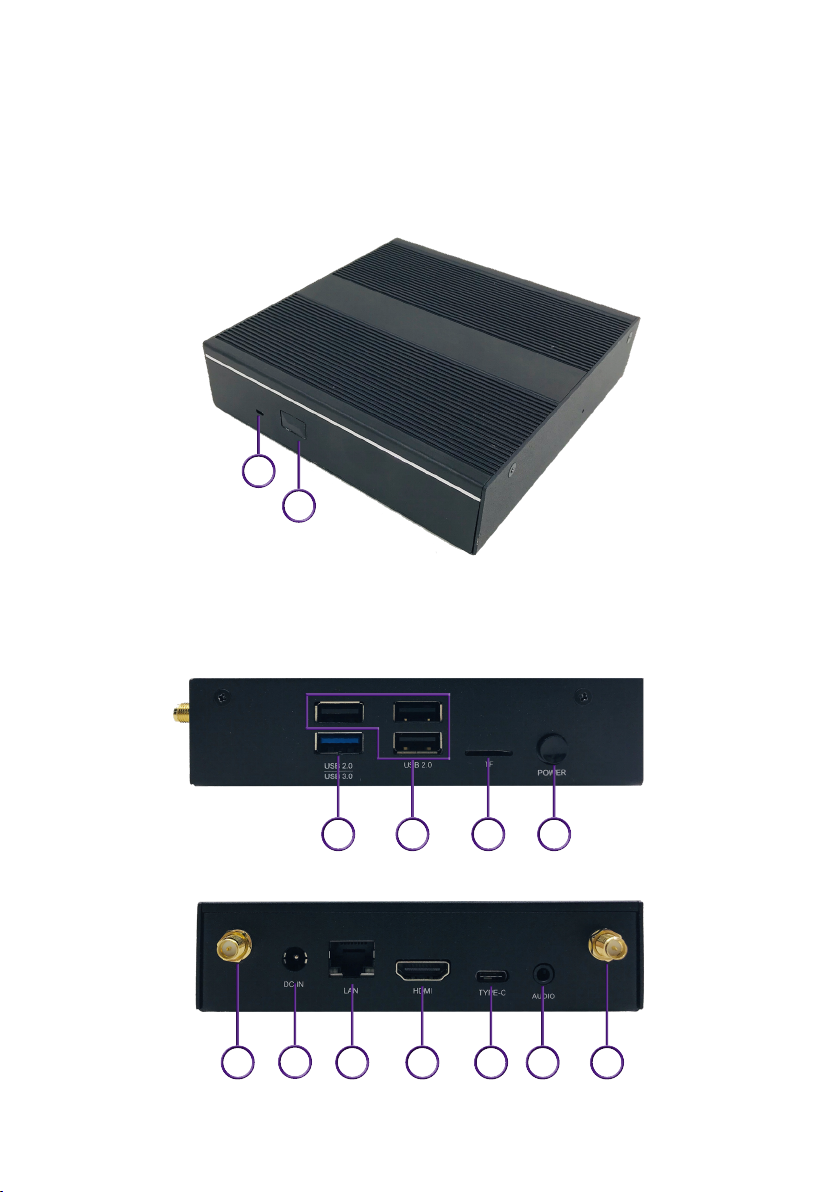

1.2 Input/output Ports
1
2
3456
8910 11 12
7 7
2
No.I/O Description
1POWER_LED This is a PWR status indicator.
2IR_LED Infrared LED.
3USB3.0 USB 3.0 connector, backwards compatibility USB 2.0/1.1.
4USB2.0 USB 2.0 connector, backwards compatibility USB 1.1.
5TF TF slot.
6POWER BUTTON Pressing the power button, the machine is turned on.
7WIFI WIFI antenna interface.
8DC IN DC power interface.
9LAN RJ-45 network connector.
10 HDMI High-definition multimedia display interface(output
4K@25Hz).
11 TYPE-C Type-c output only supports FHD, and it is a HDMI
mirrored signal only when HDMI cable is connected.
12 AUDIO Source input and output.
3
1.3 Remote control
No.Function Description
1Turns on/off the DEY21.
2Navigates the OSD menu.
Scrolls up/down/left/right when opening a web page.
3Conrms the selected item.
4Decreases or increases the volume.
5Returns to the previous page in the OSD menu or apps.
6Go back to main page.
7Opens menu when using X-Sign.
8Opens Setting .
1
2
8
5
4
3
4
6
7
Remote Control Instruction
4

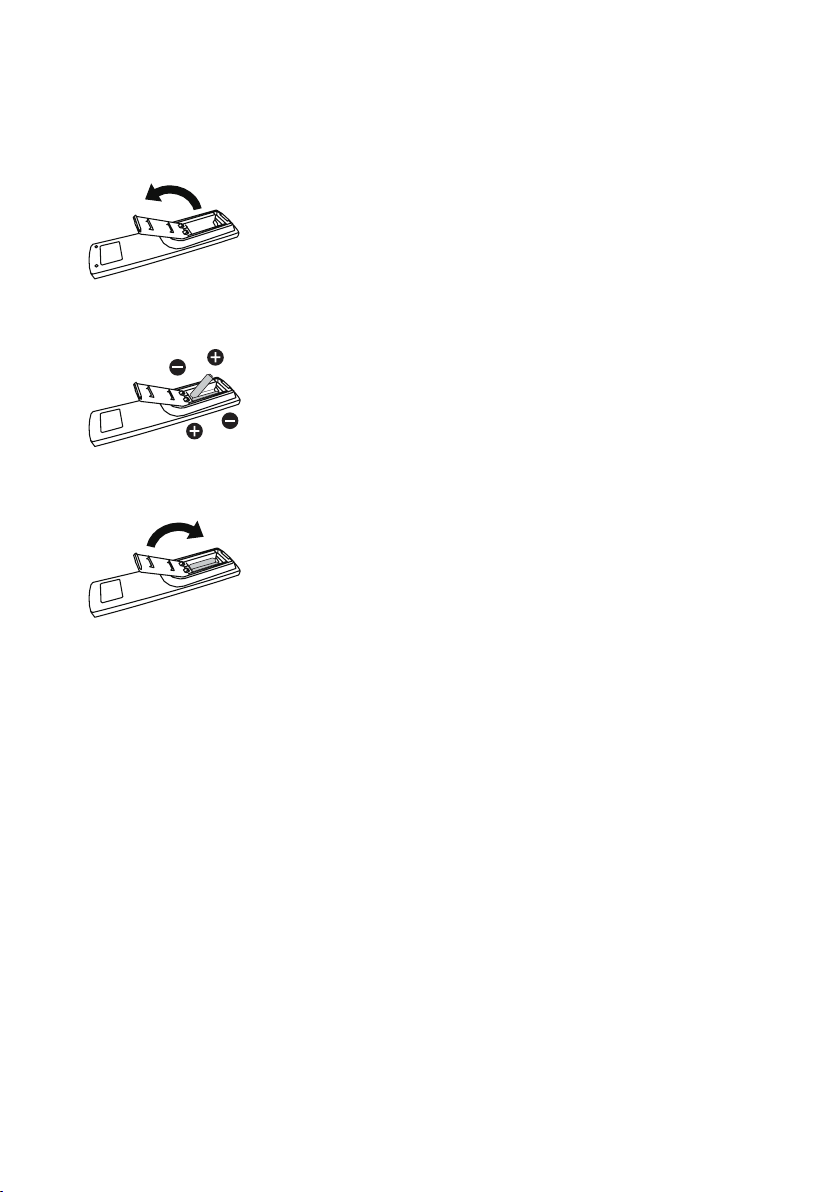

Installing remote control batteries
1.Press and ip the battery cover.
2.Insert two AAA batteries and ensure that the (+) and (-)
signs match the (+) and (-) indications on the battery slot.
3.Flip and slide the cover for locking.
5
Chapter 2 Wi setup

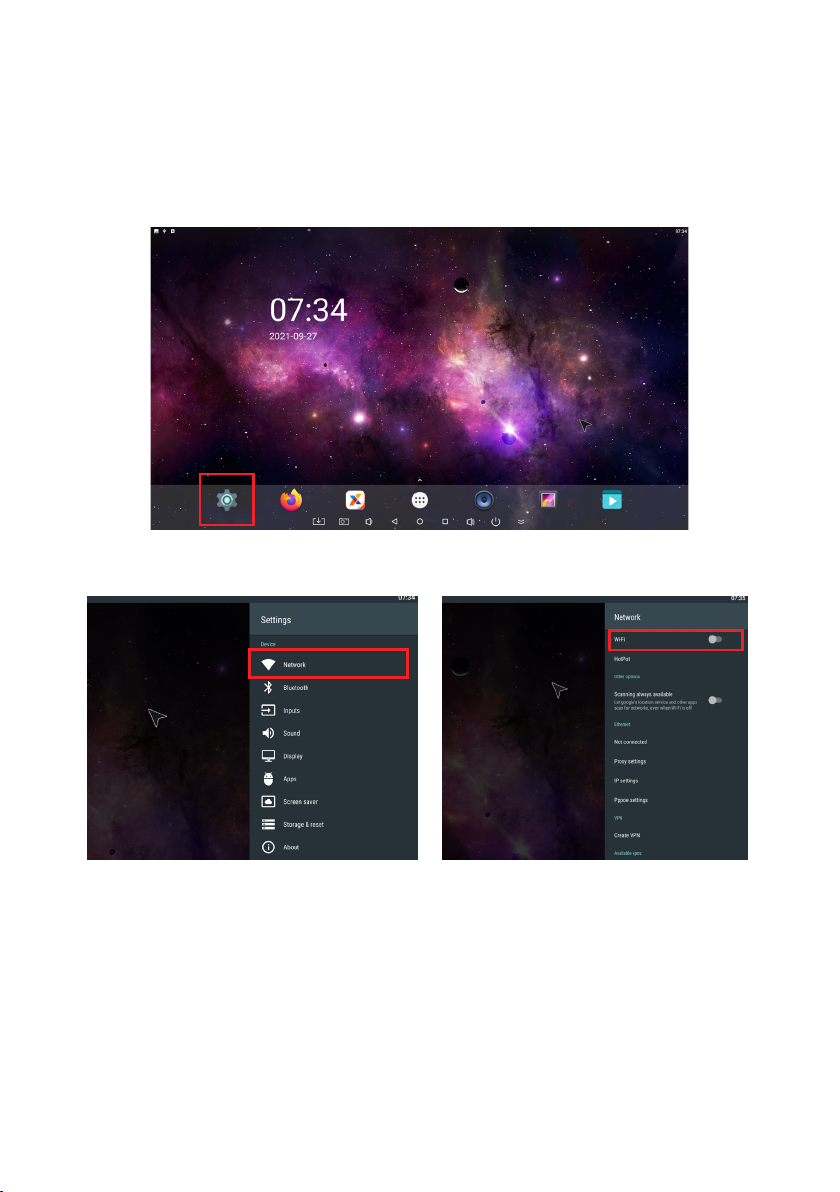

1. Setup wireless in DEY21.
2. On the main screen, select Settings.
3. Go to Network > Wi-Fi.
4. Enable Wi-Fi.The available networks will appear on the screen.
5. Select the wireless network you want to connect to.
6. Follow the on-screen instructions to input the password and connect the DEY21 to the
wireless network.
6
Chapter 3 System setting
3.1 Device
No. Menu
1 Network
2 Bluetooth
3 Inputs
4 Sound
5 Display
6 Apps
7 Screen saver
8 Storage&reset
9 About
Sound
Menu Description
System sounds Turn On/Turn Off the system
sounds.
Surround sound Set the audio output type(Auto/
Always/Never).
Volume settings Adjust the volume of the audio
output (0 to 100).
Audio device Sound output devices(Default
Output/Spdif Passthrough/HDMI
Bitstream).
7

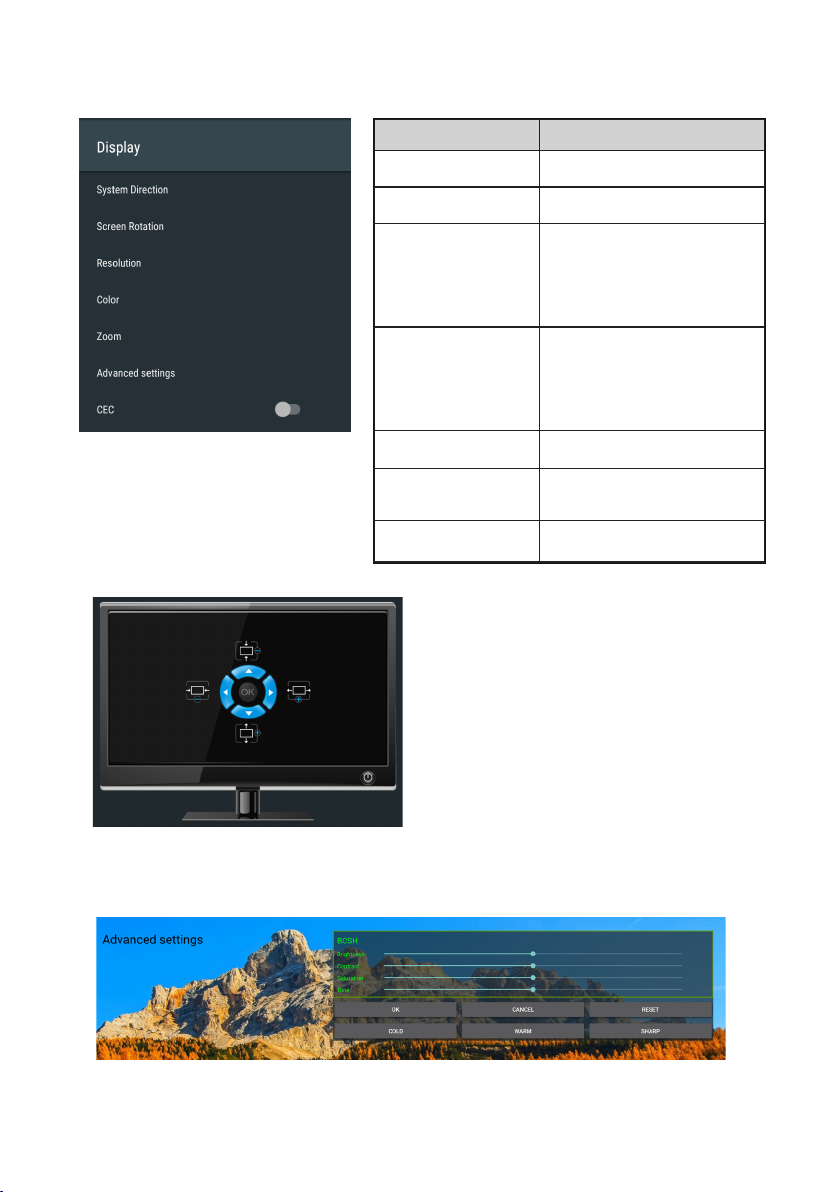

Display
Menu Description
System Direction Sets system
orientation(0/90/180/270).
Screen Rotation Sets system
orientation(0/90/180/270).
Resolution
Adjusts the resolution of the display(3
840×2160p25.00/3840×2160p24.0
0/1920×1080p60.00/1920×1080i60
.00/1920×1080p30.00/1920×1080
p24.00/1920×720p60.00/1920×48
0p59.94).
Color
Adjusts the saturation of the
display(Auto/RGB-8bit/RGB-10bit/
YCBCR444-8bit/YCBCR444-
10bit/YCBCR422-8bit/
YCBCR422-10bit/YCBCR420-
8bit/YCBCR420-10bit).
Zoom Sets the zoom level.
Advanced settings Adjusts the Brightness/Contrast/
Saturation/Tone of the display.
CEC Consumer Electronics Control.
Zoom
Advanced settings
8
Menu Description

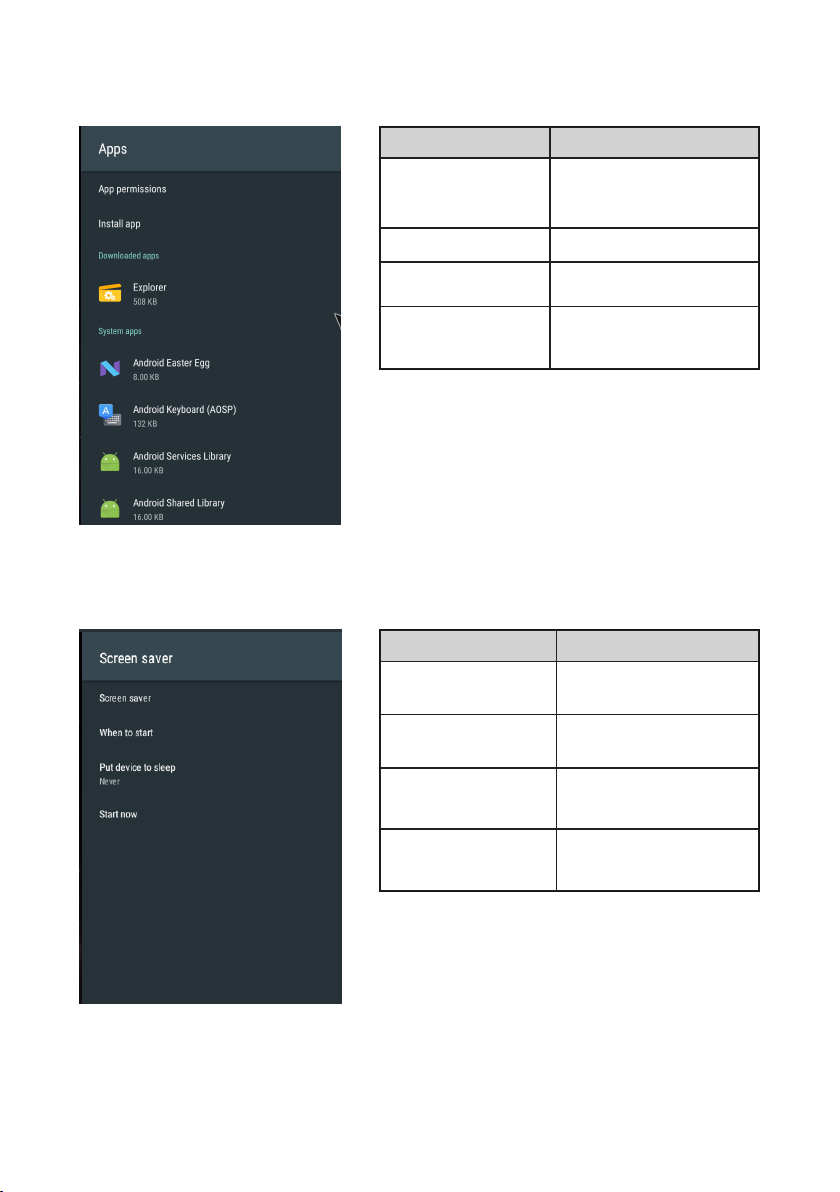

App permissions
Sets App permissions(Body
Sensors/Calendar/Camera/Contats/
Location/Microphone/Phone/SMS/
Storage).
Install app Installs new apps.
Downloaded apps Shows Downloaded apps.
System apps Shows System apps.
Apps
Screen saver
Menu Description
Screen saver Sets screen saver(Turn screen
off/Color/Photo Frame/Photo
Table).
When to start Sets start time(5 minutes/15
minutes/30 minutes/1 hour/2
hours).
Put device to sleep
Sets sleep state time(30
minutes/1 hour/3 hours/6
hours/12 hours/Never).
Start now Sets Start now.
9

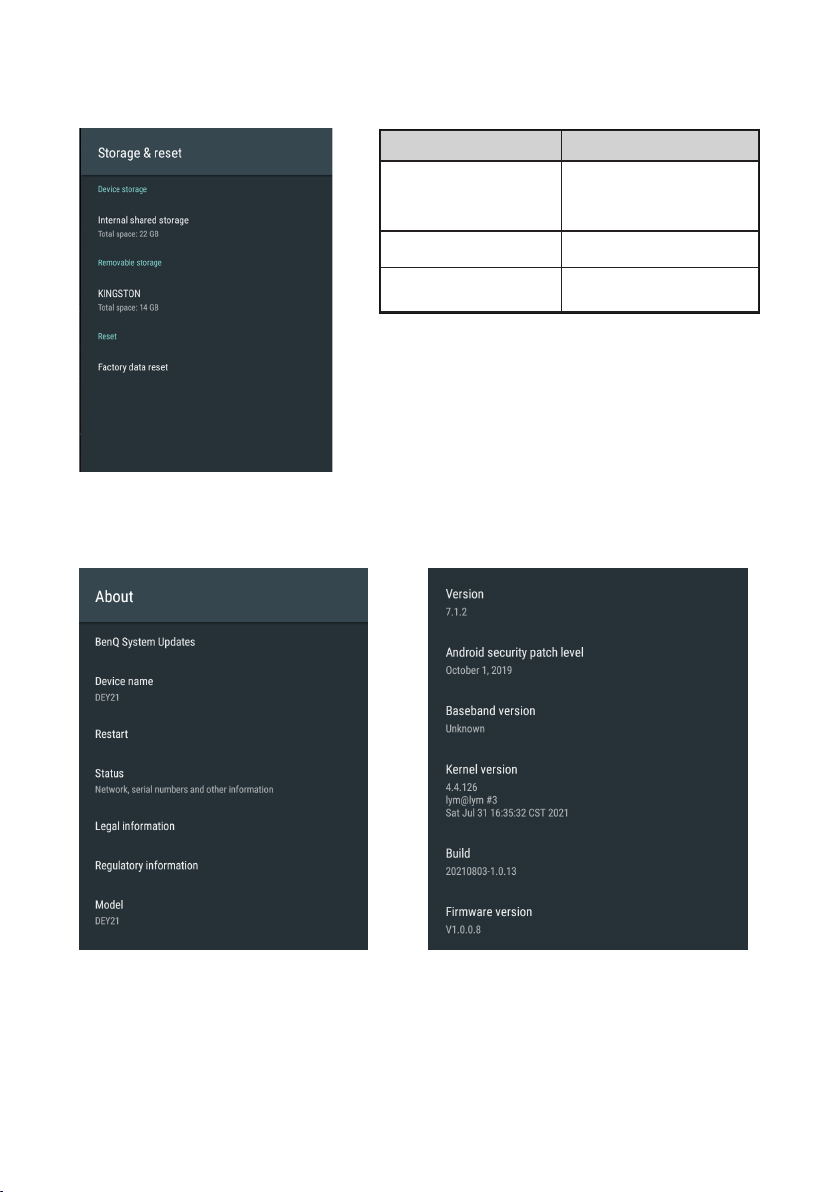

Storage & reset
About
Menu Description
Device storage
Shows internal shared storage
allocation(Apps/Photos & videos/
Audio/Downloads/Cached data/
Misc/Available).
Removable storage Shows removable storage
allocation.
Reset Factory data reset.
10

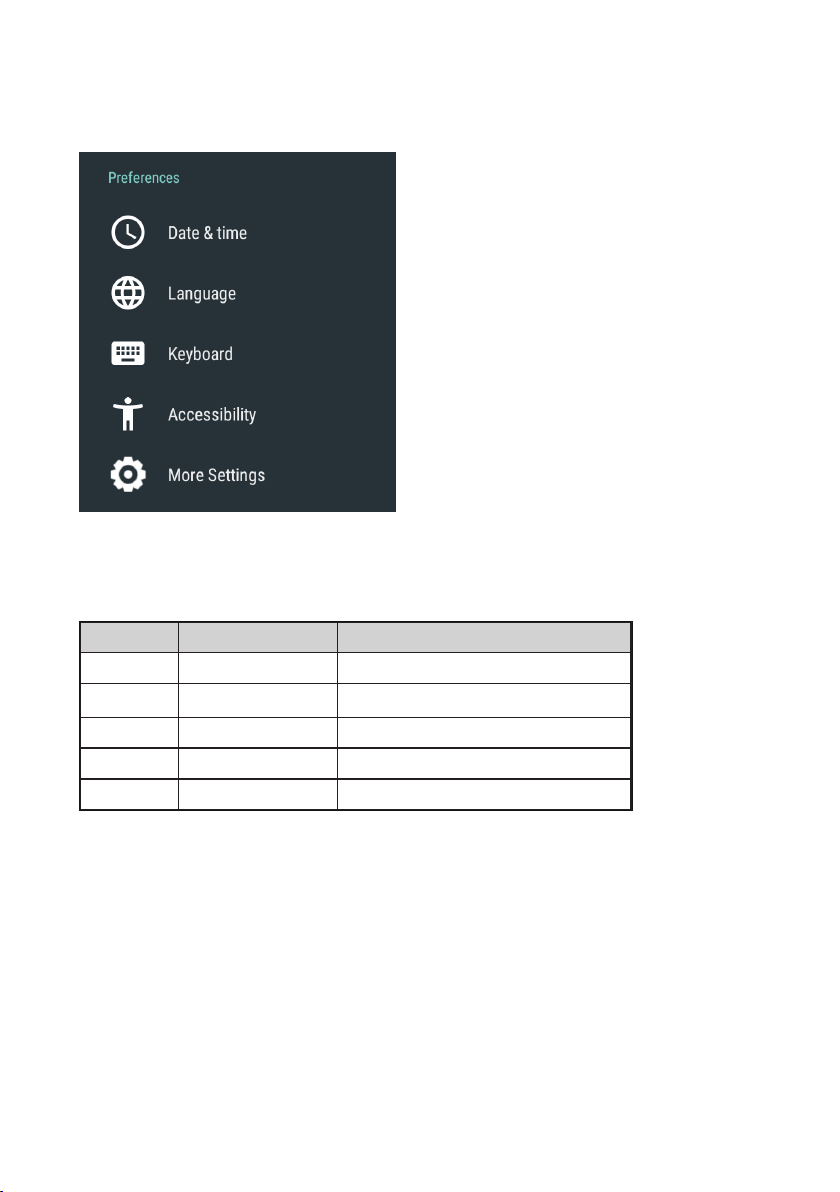

3.2 Preferences
No. Menu Description
1 Date & time Setup date / time zone
2 Language Setup language
3 Keyboard Setup keyboard
4 Accessibility Setup accessibility
5 More Settings Setup advanced setting
11
Chapter 4 App list
Application Name Description
Apklnstaller( ) Install Android APK
BenQ Suggests( ) Download available BenQ apps
Camera( ) Open external camera if connected
Downloads( ) Check downloaded le
FileExplorer( ) Check and manage les
Firefox( ) Web browser
The following apps can be accessed from the main screen:
12
Application Name Description
Gallery( ) Photo viewer
Music( ) Audio le player
Power Menu( ) Instant power selection (sleep / restart / power off)
Settings( ) System setup
Video( ) Video le player
XSign2( ) BenQ content management system
Chapter 5 Media codec
Type Format
Video
H.264/AVC, Base/Main/High/HighlO prole @ level 5.1; up to 3840x2160@ 30fps
H.265/HEVC, Main/MainlO prole @ level 5.1 High-tier; up to3840x2160@ 30fps
VP9, prole 0, up to 3840x2160@ 30fps
MPEG-1 up to 1080P @ 30fps
MPEG-2 SP@ML, MP@HL, up to 1080P @ 30fps
MPEG-4 SP@L0-3,ASP@L0-5, up to 1080P @ 30fps
VC-1, SP@ML, MP@HL,AP@L0-3, up to 1080P @ 30fps
Images BMP/PNG/JPG up to 3840x2160
13
Chapter 6 Warning
Read and understand all instructions before using this product. If damage is caused by failure
to follow the instructions, the warranty does not apply.
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the
product .
To reduce the risk of re or electric shock, keep this product away from exposed direct
sunlight, naked ames or heat, large amounts of moisture, dust, and sand.
Risk of explosion if the battery is replaced by an incorrect type;
disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery,
that can result in an explosion;
leaving a battery in an extremely high temperature surrounding environment that can result
in an explosion or the leakage of ammable liquid or gas;
a battery subjected to extremely low air pressure that may result in an explosion or the
leakage of ammable liquid or gas.
Warning
6.1 Safety Information
Caution
6.2 FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following
measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20
cm between the radiator & your body.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment. The
distance between user and products should be no less than 20 cm.
14
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
6.3 ISED statement (for Canadian users)
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
This device complies with RSS 247 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-
102 établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
CAN ICES-003(B)/NMB-003(B)
6.4 UK and CE compliance statement
Operating authorizations must exist to operate the product in the
following member states of the European Union, refer to the table below.
AT
BE
BG
HR
CY
CZ
DK
EE
FI
FR
DE
EL
HU
IS
IE
IT
LV
LI
LT
LU
MT
NO
PL
PT
RO
SK
SI
ES
SE
CH
NL
NI(UK)
UK
