Billabong Phasher User manual

*For the online guide & more lan-
guage translations please go to,
www.billabong.com/watches

1.
INDEX
Features & Functions
Buttons
Reset Procedure
Setting the Time/Day/Date
Calibrating the Compass
Setting the Screensaver
Setting the Local Tide
Setting the Spot X Tide
Operating the Timer
Setting the Chronograph
Setting the Alarms
Temperature Function
Digital Compass Function
Moon Phase Icons
Global Rules
Recommended usage
Care Procedures
International Warranty
Five Year Limited Warranty
Compass Oset List
Beach List
FAQ’s
After sales/Warranty Service
Page 02
Page 04
Page 05
Page 06
Page 08
Page 09
Page 10
Page 11
Page 13
Page 15
Page 16
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 26
Page 27
Page 28
Page 32
Page 33

2. ENGLISH
FEATURES & FUNCTIONS:
TIME
Hours, minutes, and second display in 12/24
hour format
Date, month, and day of week display in
Date-Month/Month-Date format
Two Time zones
DST feature
100 year auto calendar (01JAN2000-
31DEC2099)
Hourly chime and Key tone enabled
Scrolling “Phaser” Screensaver
TIDE
295 Pre-programmed beaches from 2010-
2035
One Spot X location per time zone
Tide alarm for hitting High/Low peak: chime
with arrow blinking
TIMER
Eight selectable timers: seven preset timers
and one custom timer
One-second resolution up to 10 hours of
count-up time
Three timer types: Countdown-Stop,
Countdown-Up and Countdown-Repeat
CHRONOGRAPH (STOP WATCH)
1/100-second resolution up to 1 hour;
one-second resolution up to 10 hours
Wave counter up to 99 waves

3.
ENGLISH
ALARM
Two daily alarms with blinking Billabong
wave logo
Selectable Time zone dependency
Three selectable chime noises
TEMPERATURE GAUGE
Displays temperature in degree Celsius or
Fahrenheit
Shows temperature in +/- 1º resolution
COMPASS
Displays 4 cardinal points
Shows the bearing in 1º resolution
MOON PHASE
Displays 8 phases
Auto-orient with North/South hemisphere
Update every 12:00am
OTHER FEATURES
3 VDC Operating Voltage
Electro-luminescent (EL) backlight
FSTN LCD Display
Five (5) button operation:
LIGHT, MODE, START, RESET, DIRECT TIDE

4. ENGLISH
Press: Turns on backlight /
Conrm & Exit setting state
Hold: Enters setting state
Press: Peek background time
zone / Starts & stops timers /
Increments the value being set
Hold: Toggles foreground time
zone / Fast increments the value
being set
Press: Toggles Key tone & Hourly
Chime / Used to reset timers /
Decrements the value being set
Hold: Toggles DST / Fast decre-
ments the value being set
Press: Direct access to TIDE
application
Hold: Toggles Compass
Press: Changes foreground
application / Moves to next
setting eld
Hold: Toggles Temperature
Gauge
BUTTONS:

5.
ENGLISH
RESET PROCEDURE:
1. Hold down the LIGHT, MODE, START and RESET
buttons for 5 seconds.
2. Watch should generate a 1 second beep to conrm.
3. Watch should turn on lamp and all LCD segments.
4. Ensure all buttons are released before continuing
further.
5. Wait for 2 seconds.
6. Watch should turn o all LCD segments.
7. Watch should display the module number for 2
seconds.
8. Watch should display the software release number
for 2 Seconds.
9. Watch should display the build number for 2
seconds.
10. Watch should turn o lamp.
11. Reset is nished watch will go to the Time of Day
application.

6. ENGLISH
SETTING THE TIME/DAY/DATE:
BANNER STATE
Banner will time out after 3 seconds.
The KEY TONE and HOURLY CHIME setting
can be toggled on/o by pressing the
RESET button.
MAIN STATE
The display shows current time, Hour,
Minutes, Seconds, and the current Day, Date,
Month and Year.
DAYLIGHT SAVINGS TIME
Hold the RESET button to toggle the DST
setting on/o. The CONFIRMATION tone will
chime when the new time has been set.
Time of Day
application icon
Hourly chime & key tone
setting indicator
Time zone T1/T2
indicator
Minutes
DST ON indicator
Hour Seconds
Day of the Week
MM.DD.YYYY or
DD.MM.YYYY
AM/PM

7.
ENGLISH
TIME ZONES
Press the START button to peek the back-
ground time zone. Hold the START button to
toggle the foreground time zone.
The KEY TONE will chime when the new time
zone has been set.
SETTING STATE FOR TIME
Hold LIGHT button to enter the SETTING STATE.
One second after the depression of the button,
the HOLD TO SET banner will display.
One second further and the CONFIRMATION
tone will sound o.
HOUR
Press the START button to increment & the
RESET buttons to decrement the hour setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Press the MODE button to go to the
next setting.
HOUR FORMAT
The hour can be displayed in 24hr (military
time) or in 12hr (AM & PM).
Press the START button or the RESET button to
change the HOUR FORMAT setting.
Press the MODE button to go to the
next setting.
MINUTE
Press the START button to increment & the
RESET buttons to decrement the minute set-
ting. (Hold the buttons for 2 seconds to speed
up the increment or decrement)
Press the MODE button to go to the
next setting.
SECONDS
Press the START button or the RESET button to
reset the seconds setting to zero.
Press the MODE button to go to the
next setting.

8. ENGLISH
YEAR
Press the START button to increment & the
RESET buttons to decrement the year setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Press the MODE button to go to the
next setting.
MONTH
Press the START button to increment & the
RESET buttons to decrement the month set-
ting. (Hold the buttons for 2 seconds to speed
up the increment or decrement)
Press the MODE button to go to the
next setting.
DATE
Press the START button to increment & the
RESET buttons to decrement the date setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Press the MODE button to go to the
next setting.
DATE FORMAT
The date can be displayed in “M-D” or
“D-M” format.
Press the START button or the RESET button to
change the DATE FORMAT setting.
Press the MODE button to go to the
next setting.
CALIBRATING THE COMPASS:
IMPORTANT: Before using the compass MUST be calibrated
for accurate readings.
Accurate calibration is best done outside and away from
strong magnetic forces and large metal objects.
You can calibrate the watch for MAGNETIC NORTH, but for
TRUE NORTH an OFFSET is required.
See the compass setting procedure on page 19.
See the compass oset list on page 27.

9.
ENGLISH
COMPASS OFFSET
The compass oset is the next setting after the
DATE FORMAT in the TIME SETTING STATE.
Press the START button or the RESET button to
change the COMPASS OFFSET.
Press the MODE button to go to the
next setting.
COMPASS CALIBRATE
The compass must be calibrated before use for
accurate readings.
Press the START button to calibrate the watch.
Your watch will instruct you to TURN.
COMPASS TURN CLOCKWISE
Take the watch o and hold it level, slowly turn
clockwise. The watch should take 1 minute
of slow rotating to complete the calibra-
tion. Or this can be manually stopped by
pressing RESET.
Press the MODE button to go to the
next setting.
SCREENSAVER
The Screensaver ON/OFF is the next setting
after the COMPASS CALIBRATE in the TIME
SETTING STATE.
The screensaver can be toggled ON/OFF by
pressing the START button or the RESET button.
Exit the setting state by pressing the
LIGHT button.
SETTING THE SCREENSAVER:
The screensaver is automatically set to OFF by default.
If you want to turn this ON you can do this in the
TIME SETTING STATE.
If ON, when the watch is inactive for 30 seconds, “PHASER”
will scroll once and will stay until a key press is done.

10. ENGLISH

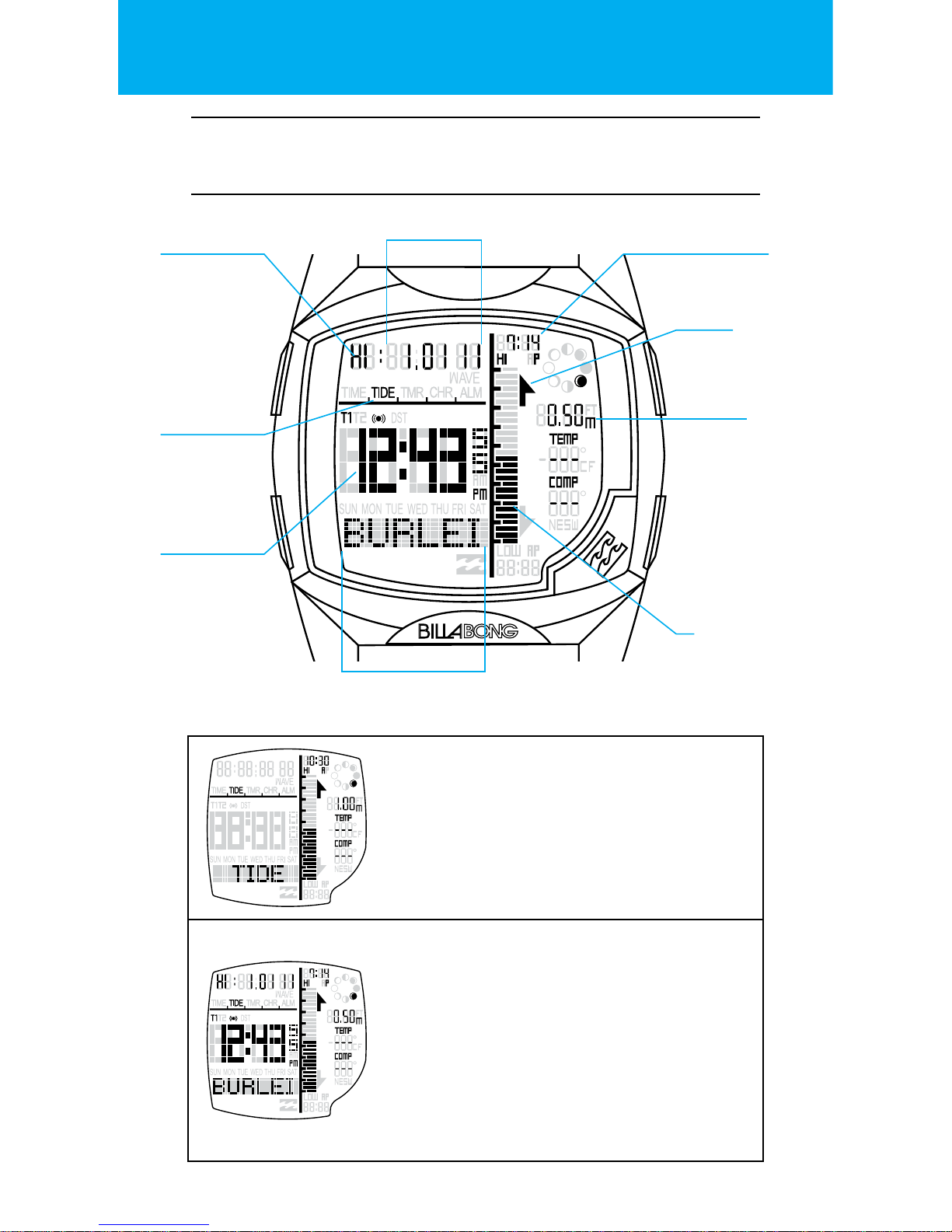

SETTING THE LOCAL TIDE:
Current Beach
name
Tide direction Approaching tide time
Tide application
icon
Approaching
tide height
Approaching tide
direction
Current time
Tide date
Tide progress
bar
BANNER STATE
Banner will time out after 3 seconds.
MAIN STATE
The display shows current time, the current
Beach name, Tide direction, Tide date,
approaching Tide time and approaching
Tide height.
Our watch has been pre-programmed with
data to include over 295 beach locations
across the globe, it will display future tide up
and until 2035.
Full list of Beach tide locations on pages 28-31.

11.
ENGLISH
SCROLL TIDE DATA
Press the START button or RESET button to
scroll up or down through the future approach-
ing tide’s data for the LOCAL BEACH.
Hold the START button or RESET button to
return to the current time’s approaching
Tide data.
SETTING STATE FOR TIDES
Hold LIGHT button to enter the SETTING STATE.
One second after the depression of the button,
the HOLD TO SET banner will display.
One second further and the CONFIRMATION
tone will sound o.
SETTING STATE FOR TIDES
Press the START button to increment &
the RESET button to decrement the Local
Country setting.
Zone name will scroll left once.
Press the MODE button to go to the
next setting.
SETTING STATE FOR TIDES
Press the START button to increment & the
RESET buttons to decrement the Local
Beach setting.
Beach name will scroll left once.
Exit the setting state by pressing the
LIGHT button.
SETTING THE SPOT X TIDE:
We have tried to t as many preset beaches as possible
(over 295) into our tide watch, unfortunately we can not
preset all beaches. So we have equipped our watch with
a Spot X averaging tide function. To set your customized
local beach you will need to nd out the next local HIGH
tide time (Tide time information can be easily found on
the internet).

12. ENGLISH

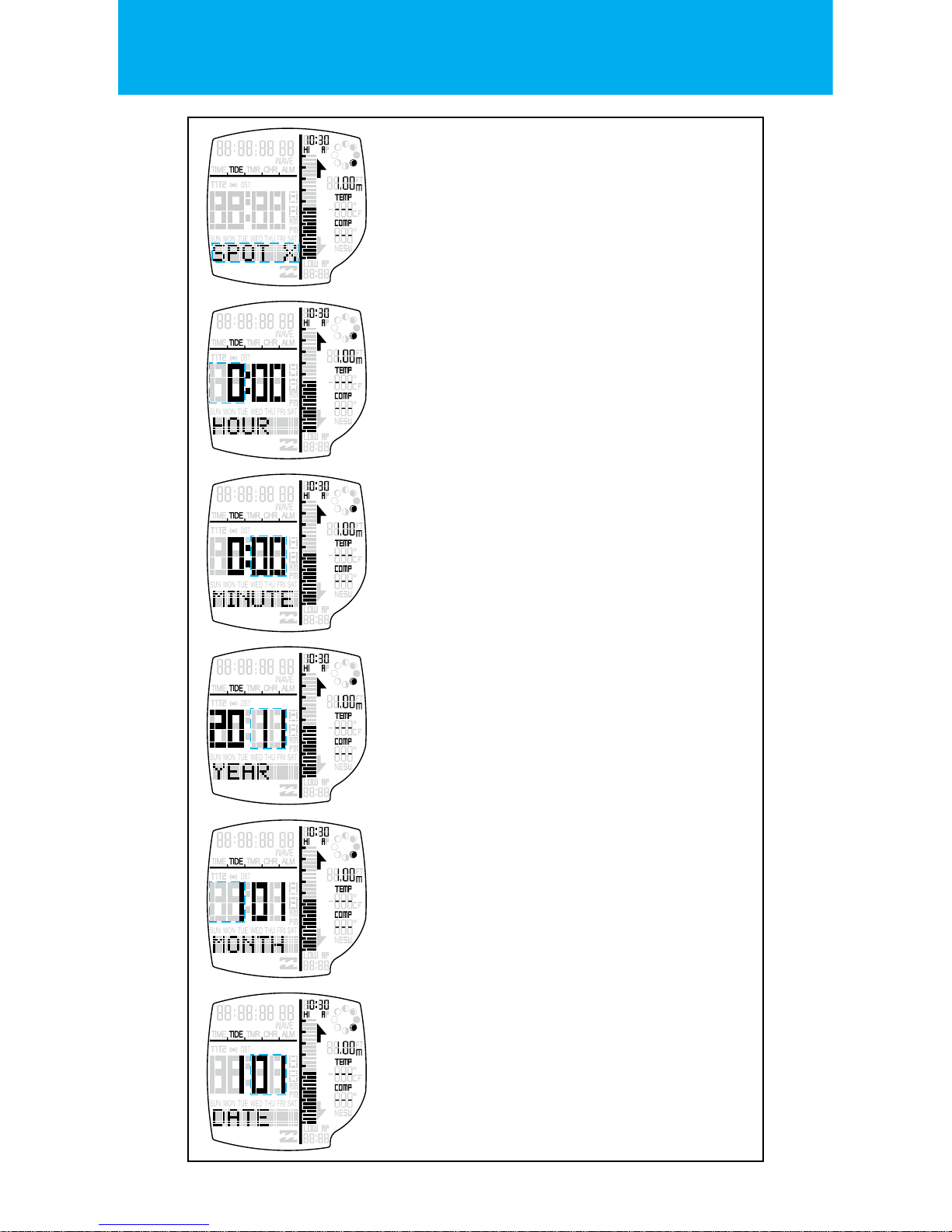

SPOT X
SPOT X is the last Local Country setting.
Once selected press the MODE button to go to
the next setting.
SPOT X HIGH TIDE HOUR
Press the START button to increment & the
RESET buttons to decrement the hour setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Press the MODE button to go to the
next setting.
SPOT X HIGH TIDE MINUTES
Press the START button to increment & the
RESET buttons to decrement the minute set-
ting. (Hold the buttons for 2 seconds to speed
up the increment or decrement)
Press the MODE button to go to the
next setting.
SPOT X HIGH TIDE YEAR
Press the START button to increment & the
RESET buttons to decrement the year setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Press the MODE button to go to the
next setting.
SPOT X HIGH TIDE MONTH
Press the START button to increment & the
RESET buttons to decrement the month set-
ting. (Hold the buttons for 2 seconds to speed
up the increment or decrement)
Press the MODE button to go to the
next setting.
SPOT X HIGH TIDE DATE
Press the START button to increment & the
RESET buttons to decrement the date setting.
(Hold the buttons for 2 seconds to speed up
the increment or decrement)
Exit the setting state by pressing the
LIGHT button.

13.
ENGLISH
OPERATING THE TIMER:
Running time
HH:MM SS
Timer applica-
tion icon
TOD Time zone
indicator
Total time
HH:MM:SS Timer index
Time of day
BANNER STATE
Banner will time out after 3 seconds.
RESET STATE
The display shows the Timers, Timer time, Timer
type, Timer index and the current Time of day.
Countdown timer can be used as a general
timer or for contest surng.
Preset 1 is the default timer.
P1 = 5 minutes.

14. ENGLISH
RUN/STOP STATE
Press the START button to START the timer.
This is the RUN state.
Press the START button to STOP the timer.
This is the STOP state.
Hold the RESET button to return to the
RESET state.
SETTING STATE FOR CUSTOMER TIMER
When in the CUSTOM timer setting.
Hold LIGHT button to enter the SETTING STATE.
One second after the depression of the button,
the HOLD TO SET banner will display.
HOUR / MINUTE / SECOND
Press the START button to increment & the
RESET buttons to decrement the hour setting.
Press the MODE button to go to the next
setting.
Press the START button to increment & the
RESET buttons to decrement the minute setting.
Press the MODE button to go to the
next setting.
Press the START button to increment & the
RESET buttons to decrement the second setting.
(Hold the buttons for 2 seconds to speed up the
increment or decrement)
Exit the setting state by pressing the
LIGHT button.
TIMER TYPE
Press the START button & the RESET buttons to
change the timer type setting.
Timer types: - CD-STOP (Countdown Stop)
- CD-UP (Countdown Up)
- CD-REPEAT (Countdown Repeat)
Press the MODE button to go to the
next setting.
NEXT TIMER
When in the RESET state, press the RESET
button.
This will load the next preset timer.
P1 = 5 minutes
P2 = 10 minutes
P3 = 15 minutes
P4 = 20 minutes
P5 = 30 minutes
P6 = 40 minutes
P7 = 60 minutes
CU = Custom

15.
ENGLISH
SETTING THE CHRONOGRAPH:
Lap time
MM’SS mm or HH:MM SS
Chronograph
application icon
TOD Time zone
indicator
Total time
MM:SS.mm or HH:MM:SS Wave counter
Time of day
BANNER STATE
Banner will time out after 3 seconds.
Stopwatch, up to 99 waves (laps).
RESET STATE
The display shows the Wave/Lap time, Total
time, Wave/Lap counter and the current
Time of day.
Chronograph can be used as a general stop
watch or for contest surng.
RUN/STOP STATE
Press the START button to START the chronograph.
This is the RUN state.
Press the START button to STOP the chronograph.
This is the STOP state.
Hold the RESET button to return to the
RESET state.

16. ENGLISH
WAVE COUNT
When in the RUN state, press the RESET button.
This will take a lap and increment the
wave counter.
The chronograph will count 99 waves/laps, and
will count up to 10 hours.
SETTING THE ALARMS:
Time of Day Alarm ON
indicator
Alarm applica-
tion icon
TOD Time zone
indicator
Alarm hour
Alarm index ON/-- (OFF)
AM/PM of Alarm
Alarm minutes
BANNER STATE
Banner will time out after 3 seconds.
2 x Alarms for each time zone.
MAIN STATE
The display shows the Alarm index, On/--(O),
Alarm time zone, Alarm hour/minutes, Alarm
ON indicator and the current Time of day.

17.
ENGLISH
TOGGLE ALARM ON/OFF
Press the START button to toggle the Alarm
ON or -- (OFF).
When the Alarm is triggered, the chosen time
zone and Alarm icon will blink and the ALARM
melody will chime.
SETTING STATE FOR ALARMS
Hold LIGHT button to enter the SETTING STATE.
One second after the depression of the button,
the HOLD TO SET banner will display.
TIME ZONE DEPENDENCY
Press the START button & the RESET buttons to
change the time zone dependency.
Press the MODE button to go to the
next setting.
ALARM CHIME
Press the START button & the RESET buttons to
change the alarm chime.
There are 3 x dierent alarm chimes to
choose from.
Exit the setting state by pressing the
LIGHT button.
NEXT ALARM
Press the RESET button to scroll through the
two daily Alarms.
There are 2 x daily Alarms you can set for each
time zone.
HOUR/MINUTE
Press the START button to increment & the
RESET buttons to decrement the hour setting.
Press the MODE button to go to the
next setting.
Press the START button to increment & the
RESET buttons to decrement the minute setting.
Press the MODE button to go to the
next setting.

18. ENGLISH
TEMPERATURE FUNCTION:
IMPORTANT: It is not recommended to press buttons
while watch is fully submerged in water. Therefore
for water temperature readings, the MODE button
should be pressed out of the water and the watch
may be fully submerged after the button is pressed.
When in any application hold the MODE button to
enter the Temperature Gauge application.
The temperature reading will be shown in any ap-
plication as long as it is not on a SETTING STATE.
To enable or disable the reading, hold the MODE
button in any application. After 30 seconds a time out
will automatically close the application to save power
consumption.
The reading will show the value in Celsius rst for 3
seconds, and then in Fahrenheit for 3 seconds. This
will continue until exiting Temperature Gauge.
Temperature
sensor Temperature
reading
