Operation Manual
-150°C Cryogenic Freezer Chest type
BFCG-150-102
Thank you for Choosing Biolab products. Please read the “Operating Instructions” and
“Warranty” before operating this unit to assure proper operation.

Index
. Preface............................................................................................................................................03
2. Features..........................................................................................................................................04
3. Precautions for Safe Operation ............................................................................................04
4. Handling considerations ..........................................................................................................
5. Precautions of using ...........................................................................................................
6. Ambient Conditions ................................................................................................................... 4
7. Installation ...................................................................................................................................... 4
8. Start-up of Appliance ................................................................................................................. 5

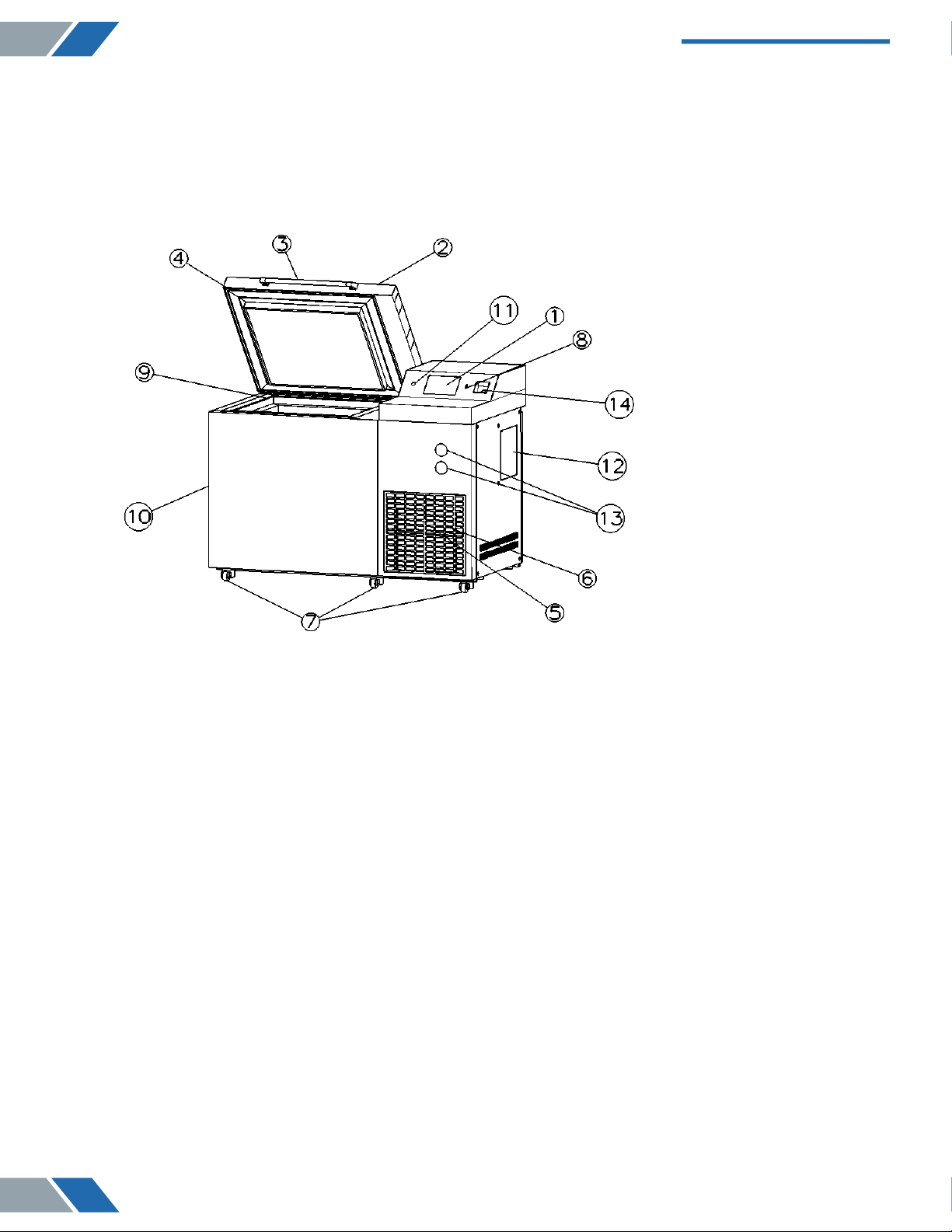

9. Components ................................................................................................................................... 7
0. System settings ........................................................................................................................... 9
. Failure Recovery ...........................................................................................................................2
2. Specification ..................................................................................................................................22
3. Performance ..................................................................................................................................23
www. iola scientific.com
2
-150°C Cryogenic Freezer Chest type BFCG-150-102

0 Preface
• Please read the Operation Manual carefully before operation for your safety.
• We do not guarantee any safety if the appliance is used for any objects other than
intended use or used by any procedures other than those mentioned in this manual.
• Please keep the Operation Manual at an approachable place.
• The contents of the manual will be subjected to change without notice due to the
improvement of performance or functions.
• Please contact the sales representative or agency of us if you have any question of this
operation manual.
• For any damage to the instrument the user is not required under this manual caused by,
or individuals not in accordance with "Safety Tips" requires in the manual caused the damage,
our company has no obligation and responsibility turbot responsible.
• Proper use of protective equipment (including clothing, gloves, goggles, etc.)
• Adopt good health habits, in strict accordance with the product instructions.
• Everyone has an obligation to be responsible for their own safety.
• Not Allowed direct contact with patients, use or affect the product and in the product
storage items.
• Products without sterilization.
• The product is used only for storage, not during use with other materials, Organization
and Technology in combination.
• Products can not be used to measure or analysis.
• Life and storage life of the products is irrelevant.
• Some models need to regularly add supplies, such as printer paper, test tubes, etc.
• This product is non-explosion-proof products.
• Non flash freeze equipment, is limited to keeping the temperature used.
• Equipment maintenance can only be used by our company or authorized agents to
complete.
• Service life: According to affect key components of the shortest life expectancy.
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
3

Caution
Failure to observe “CAUTION” signs could result in injury to
personnel and damage to the appliance and associated property
02 Features
• LCD touch screen controller, temperature range -40 ~- 50 adjustable.℃ ℃
• Multiple protection functions（Compressor start delay protection, protection for high
pressure of cooling system, protection of power phase sequence）
• Multiple alarm functions (inner temperature alarm, ambient temperature alarm, system
pressure alarm, abnormal power supply alarm)
• This product is suitable for blood station, hospital, epidemic prevention station,
university, scientific research institute, electronic chemical and other enterprise laboratory.
• This product is mainly used to store plasma, biological materials, vaccines, electronic
devices and special materials for low temperature test
• If there is inconsistency between the image and the actual product, the actual product
shall govern.
• This product is prohibited to store living creatures, flowers and other products with strict
temperature requirements.
03 Precautions for safe operation
• It is imperative that the user complies with this manual as it contains important safety
advice.
• Items and procedures are described so that you can use this appliance correctly and
safely.
• If the precautions advised are followed, this will prevent possible injury to the user and
any other person.
www. iola scientific.com
4
-150°C Cryogenic Freezer Chest type BFCG-150-102
Warning
Failure to observe “WARNING” signs could result in a hazard to
personnel possibly resulting in serious injury or death

< Mark on the Appliance>
This label is on the cover in which the electrical components of
high voltage are enclosed to prevent the electric shock The cover
should be removed by a qualified engineer or a service personnel
only
< Mark on the Appliance>
This label is marked around the hinge of the door to remind the
user to pay attention to the hand when opening and closing the
door
Prohibition
Failure to observe “Prohibition” signs otherwise it may cause
damage to the save box or endanger the personal safety of the
user
< Mark on the Appliance>
This label is marked around the rotating mechanism such as fan,
gear, etc to prevent accidental hand injury
Only qualified engineering technicians or service personnel can
remove the cover
< Mark on the Appliance>
This label is marked around the location where the combustible gas
is stored to indicate that the device may leak combustible gas
Only qualified engineering technicians or service personnel can
service this equipment Only qualified engineering technicians or
service personnel can remove the cover
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
5
< Mark on the Appliance>
This label is on the outer surface of the device to remind the user
to wear gloves to prevent frostbite when accessing the article

< Mark on the Appliance>
This label is marked around the door handle to indicate the door
handle's opening and closing direction
Warning
This appliance should only be installed by qualified engineers or service
personnel.

The appliance should be installed on the solid floor with suitable
measures to avoid overturning. 

Use a power outlet with a ground wire to prevent electric shock.



 
!

"
#

$


 %


&
%'

(
www. iola scientific.com
6
-150°C Cryogenic Freezer Chest type BFCG-150-102


&


)

!*
*
&

&


& #

+,",
%-.-.




 &





*
%

/0
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
7





1%
1
#



**
%
2


0

*34
*




*5
 
*


www. iola scientific.com
8
-150°C Cryogenic Freezer Chest type BFCG-150-102


 
5
* 
*

**

*

/
#

&

*


*
1

* 
% 
*
5


**

*
#
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
9

**#
&#

%
 


#







$1#

)

#

%
 
*

6

0


www. iola scientific.com
10
-150°C Cryogenic Freezer Chest type BFCG-150-102

*

* 
%
* 17
 8
 
 

9 

 
04 Handling considerations
• Before carrying out the unpacking, handle the forklift, use a forklift, and do not use a cart.
• If using a forklift, insert it from the bottom of the storage box and move it.
• After removing the package, the storage box must be handled and it can be pushed by
the caster caster.
• Note: The angle of inclination of the storage box must not be greater than 45° during
handling.
05 Precautions of using
• After the storage box is installed or moved for the first time, let it stand for 24 hours after
the storage box is in place, and let the compressor oil return fully before starting up.
• This product is equipped with phase sequence and phase loss protector. If the "power
error" alarm occurs when the first power is switched on, please try to check the power
condition first and then change the installation position of any two fire wires.
• Each casters at the bottom of the product has a positioning cushion. In order to prevent
the box from moving at will, after the product is in place, adjust the supporting cushion screw
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
11

disk to make the supporting cushion and the floor support.
• When the storage box is running, the surrounding of the storage box frame may become
hot. This is not a malfunction. In order to prevent condensation around the box frame, a dew-
proof tube was installed around the cabinet.
• Before putting the items into the storage box, make sure that the temperature inside the
box has dropped sufficiently, and then put the items in batches to prevent the temperature
from increasing.
• The temperature display value of the cryogenic storage box is the temperature at which
the temperature sensing probe in the storage room is displayed. Although the displayed
temperature sometimes differs from the actual temperature in the central part of the storage
tank, it will gradually approach the actual temperature.
• Use a diluted, neutral detergent to clean the equipment (undiluted detergent will damage
the plastic components. Refer to the detergent manual for the dilution method). Brushes,
acids, gasoline, soap powder, polishing powder, or hot water should not be used to clean the
storage tank because the above materials may damage the painted surface and plastic rubber
parts. Be careful not to wipe the plastic rubber parts with volatile solvents such as gasoline.
• When the battery is tested for the first time or when it is not used for a long period of
time, there may be a situation where the battery is discharged because its rechargeable
battery has been completely discharged. This does not mean that a failure has occurred. In
this case, to maintain sufficient battery capacity, it is necessary to keep the storage box
running for about 7 days.
• After the storage tank is operated for a period of time, a layer of frost will form on the
tank liner. If the frost layer is too thick, it will affect the cooling effect of the storage box and
increase the power consumption. Therefore, when the frost layer reaches about 5mm at
intervals, it should be defrosted.
• Before defrosting, please take the frozen items in the box and store it in another freezer
to prevent the temperature inside the box from rising and damage the items.
• When the storage box is not used for a long time, the power should be turned off. Turn
off the power switch and turn off the battery switch (if there is a corresponding switch).
• The speed should not be too fast every time the door is opened and closed, which may
result in the difficulty of opening the door and the tightness of the door.
• The frequency of opening the door in use should not be frequent. It is better to open the
door more than half an hour. Do not open the door more than minute each time. Before
www. iola scientific.com
12
-150°C Cryogenic Freezer Chest type BFCG-150-102

closing the door, wipe the ice water on the door seal to ensure a good sealing effect. Failure
to do so may cause the temperature in the storage tank to remain below the set temperature,
and at the same time reduce the frost on the evaporator and the inner wall of the tank.
• When an electrical fault such as a leakage or a short circuit occurs during use, immediately
disconnect the power supply.
• After installing or moving the storage box for the first time, after it is in place, it needs to
stand for 6 hours and then be powered on.
• When there are many items, please store them in batches. Each batch must not exceed
one third of the volume of the cabinet. After placing the first batch of articles, wait for the
temperature to stabilize before putting in the second batch to ensure that the temperature
inside the box is stable.
• During the use of the storage box, if the door is opened for too long, the external hot air
will enter the box, causing a high temperature alarm. This is a normal phenomenon. Please
pay attention to reducing the time and frequency of door opening and closing as much as
possible.
• In order to prolong the life of the storage box and reduce energy consumption, it is
recommended that the temperature of the storage box is set between -40°C and - 50°C.
• If the freezer does not cool after 2 to 3 hours of power-on, unplug it and contact the
customer as soon as possible.
• Clean the condenser dust every three months to ensure the normal operation of the
equipment.
• In the event of an alarm failure or other failure, please refer to the instruction manual to
clear the fault according to the prompts on the display board. If you can not eliminate the
fault by yourself, please do not disassemble it. Please contact the after-sale maintenance
personnel to help eliminate the fault.
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
13

06 Ambient Conditions
• Ambient temperature：0 -32 . And the maximum temperature is no more than 32°C. ℃ ℃
The ideal temperature is 8 to 25°C. If necessary, an air conditioning system should be used.
• Ambient humidity: Maximum relative humidity 80% for temperature up to 32 , the ℃
humidity should be less than 60% RH.
• Avoid large amounts of dust.
• Avoid mechanical swing or vibration.
• The elevation shall not exceed to 2000m.
• A gap of at least 50cm should be set aside to facilitate ventilation and heat dissipation.
There is no blocking or heat source within 00cm of the front side.
• The voltage fluctuation range shall not exceed 380V ± 0% of the rated voltage.
• Cannot be installed in a narrow and confined space. The door of the room should not be
smaller or lower than the product. At least the normal entry and exit of the product should be
ensured so as to avoid maintenance difficulties when the machine fails. The machine cannot
be repaired in time, resulting in storage of goods. The damage.
• Please check the operating voltage before use, voltage instability should consider the use
of regulator voltage regulator. To ensure that the normal input voltage is stable at 220V ~ ±
0%, the regulator power should be greater than 3kW.
• This equipment should ensure reliable grounding.
• If the power outlet is equipped with a grounding wire, check that the grounding is good
before use.
Note：
• Because the cryogenic equipment is more sensitive to the ambient temperature. If it is
installed in an environment other than the above, the machine will not operate normally.
Please use it after improving the environment.
• It is forbidden to install this equipment in an open air environment. When the storage
tank is exposed to rain, it may cause leakage or electric shock.
07 Installation
7. Remove all packing materials and packing tapes
Open the door to ventilate the appliance. If the outside panels are dirty, clean them with soft
fabric plus diluted neutral detergent. (Undiluted detergent can damage the plastic
components. For the dilution, refer to the instruction of the detergent). After the cleaning with
www. iola scientific.com
14
-150°C Cryogenic Freezer Chest type BFCG-150-102

the diluted detergent, always wipe it off with a wet cloth. Then wipe off the panels with a dry
cloth.
08 Start-up of Appliance
Follow the procedures for the test and formal operations of the appliance:
• Keep the device stand for 24 hours at least before turn on
• Switch on, if there is "abnormal power supply" alarm, the installation position of any two
fire wires shall be changed.
• Set the storage temperature as needed.
• Check the temperature in the cabinet if reached the setting temperature.
• Observation of the cabinet has normal opening and stopping for more than 24 hours,
proof of normal performance of the cabinet.
• After confirmed the above, the items can be stored in the product
Warning
• This product shall be checked and recorded by a special person every day (every 2 ~ 4
hours). In case of product failure or shutdown, the temperature inside the product will rise. If
repair is not possible within a short period of time, remove the stored items and transfer them
to a place that meets storage temperature requirements to avoid storage damage.
• Before putting the stored goods into the product, the temperature required by the stored
goods shall be confirmed in advance to conform to the temperature range of the product, so
as to avoid damage and loss of the stored goods caused by the temperature of the product
not reaching the temperature required by the goods.
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
15
Warning
/78


*:;
,

)
)
 

• Due to the refrigeration inertia, there is a certain difference between the actual display
temperature and the set temperature (the lower the set temperature, the smaller the
difference will be, and vice versa), which is a normal phenomenon.
Prohibition
• In order to preserve the equipment, it is strictly prohibited to put too many items that are
relatively too hot at one time, otherwise the compressor will not stop for a long time and the
temperature will not drop, and it is easy to burn down the compressor.
• Do not use any mechanical tools or other means to speed up the defrosting process
without the manufacturer's approval.
• Do not damage the refrigeration circuit.
• Do not use electrical appliances in products without the manufacturer's permission.
Operation after power failure
• The product has the function of remembering the set value. After power off, the product
will continue to operate according to the set parameters before power off.
www. iola scientific.com
16
-150°C Cryogenic Freezer Chest type BFCG-150-102

09 Components
Spin Button ：Spin to right-ON, Spin to left-OFF,(no Standby state).If the machine stops for
a long time, please turn off the switch at the power supply。
2 LCD Touch Screen: display all information, change set parameter
3 Current Temp: the actual temperature inside the cabinet.
4. Set Temp: When the screen is unlocked, click here to change the setting temperature.
5.Condenser Temp: actual ambient temperature.
6 Screen lock: Lock the screen and unlock the screen. Password is required to unlock the
screen. Under the locked state, " 5 alarm buzzer switch" can be operated. Other parameters
can be checked but cannot be changed.
7.Emergency stop switch: In case of emergency stop, press it to disconnect the power supply.
The reset and power on can be put on after clockwise rotation.
8.Alarm signs: "Abnormal temperature in the cabinet", "abnormal condensation temperature",
"excessive system pressure", "power supply error" respectively. When the corresponding alarm
occurs, the corresponding area will turn red and there will be buzzer alarm.
9.Download: Data can be exported through USB port.
0.Temperature curve button: You can check the temperature curve after the last power on.
. Set Button: Enter the system parameter setting interface. (Engineer mode, not
recommended to enter and change, password required)
2. Alarm Records: Check all alarm information, including power off and on.
3. Back button: used when setting by manufacturer.
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
17

4. Running time display: the total time of this power on.
5.Buzzer Off: Temporarily shut off the buzzer when alarming.
6 USB port: It can be connected to a U disk for data export.
7.Run/Stop: A run or stop operation can be performed.
Control panel: to display temperature setting and operation status.
2. Outer door: the hinge of the door can only hover at the maximum opening, and cannot
hover during the opening process.
3. Handle: Always hold the handle when opening and closing the outside door.
4. Door seals: Tightly seal the door and prevent leakage of cold air. Please keep it clean.
5. Inlet grille: Do not plug this opening to maintain normal cooling performance.
6. Condenser strainer (behind the grid) : This strainer prevents dust accumulation on the
condenser. Dust - filled filters may cause refrigeration equipment damage. The filter should be
cleaned once a month.
7. Casters: The height of the box can be adjusted by casters. Keep the device in a horizontal
state during installation. And make sure the rubber blocks inside the casters are in close
contact with the ground.
8.USB data interface: Temperature data can be read on a U disk.
9. Inner door panel: This panel can be removed for cleaning or defrosting. See "Daily
Maintenance" on page 5.
0. Test hole (on the left side of the cabinet) : can be used to pass the test cable and sensor, or
the nozzle leading to the cabinet by auxiliary cooling device.
. Spin Button :spin to right - ON,spin to left-OFF (no standby state), for daily shutdown.
www. iola scientific.com
18
-150°C Cryogenic Freezer Chest type BFCG-150-102

2. Electric control box: do not open it without authorization. It must be opened by qualified
engineers or professional maintenance personnel.
3. High and low pressure meter: display the high and low pressure value of the unit system.
4. Emergency stop switch: In case of emergency stop, press it to disconnect the power
supply.
0 Routine Maintenance
15.1Clean the Cabinet
• Please clean the cabinet once a month. Periodical cleaning keeps the appliance looking
new.
• Use a dry cloth to wipe off small amounts of dirt on the outside and inside of the
appliance and all accessories, If the appliance is dirty, clean it with a diluted neutral dish
washing detergent. (Undiluted detergent can damage the plastic components. For the
dilution, refer to the instruction of the detergent.)After the cleaning with the diluted
detergent, always wipe it off with a wet cloth. Then wipe off the cabinet or accessories with a
dry cloth.
• Never pour water onto or into the appliance. Doing so can damage the electric insulation
and cause failure.
• The compressor and other mechanical parts are completely sealed and the appliance
requires absolutely no lubrication.
The fan is installed behind the compressor, so please be very careful when insert the hand in
this part.
-150°C Cryogenic Freezer Chest type BFCG-150-102
www. iola scientific.com
19
Warning
&3)


"
9


15.2Clean condenser filter
Filter replacement instructions, Please following the steps to clean the filter：
a. As shown in the picture, pull out the flip
b. Get out of the filter net
c. Clean the strainer with water and dry it
d. Put the filter back in place and install the flip.
e. Check if the alarm has been canceled if the condenser temperature alarm occurs before
Note: Do not touch the condenser directly when cleaning the filter. The hot surface may be
damaged.
15.3Defrosting
The frost is built at the upper portion of the appliance and inner door. The excessive frost
possibly make some gap between the cabinet and door gasket, which may cause poor
cooling. Remove the frost on the inner door with a scraper enclosed with the appliance.
Defrost the cabinet with following steps.
Caution: For removing the frost, do not use a tool with sharp edge such as a knife or a
screwdriver
• Please turn off the backup cooling system if have.
• Take out and transfer all the objects to another cabinets or containers which is
refrigerated by liquid carbon dioxide or dry ice.
• Turn off power switch of the freezer.
• Open the external door and internal door. Hold up the internal door and take it away.
• Keep the external door open to defrost for a moment.
• Clean the water with dry fabric from the bottom of the cabinet.
• After cleaning the cabinet and internal door, put the internal door back; please restart the
appliance according to the “Switch on the Appliance”.
• Put the objects into the thoroughly refrigerated cabinet.
• Turn on the back-up system if it is provided.
www. iola scientific.com
20
-150°C Cryogenic Freezer Chest type BFCG-150-102
