Thank you for purchasing the SoundClip-16
The SoundClip-8 is one of a range of products we offer specific to
the heritage marketplace. We are confident that we have other
products you will find useful and look forward to hearing from you
again soon.
T: [phone] | W: www.blackboxav.co.uk
1. What is the SC-16?
The SoundClip-16 is from our range of compact, stand-alone, high
quality stereo audio players. It can be used to present audio
through headphones via two 3.5mm audio jacks or 2 speakers via
wired terminal.
The SC-16 can present audio in a looping fashion or be activated via
16 buttons with one button for a single message each. It can also
work in a ‘Play all’ function upon button/PIR activation or in a ‘Next
/ Previous’ manner with a maximum of 99 tracks.
2. Supported Media Formats
The SC-16 supports audio in two formats;
.mp3
.wav

SC-16 User Manual v1.3 June 2017
5
We recommend all files be used in .mp3 format, if you have issues
playing any audio content we recommend you convert your audio
using ‘Format Factory’. This can be downloaded for free here:
http://www.pcfreetime.com/
3. In the Box
1. SoundClip-16
2. Terminal Blocks
3. Power Supply
4. Plug Adapters
5. Screwdriver, MicroSD to USB Converter, MicroSD Card

SC-16 User Manual v1.3 June 2017
6
4. Setup Instructions
Setting up your SC-16 is simple. You will need the following;
The SoundClip-16
12V DC Power Adapter
Buttons or PIR (if using button or PIR activated content, not
included)
Headphones or speakers (not included)
MicroSD Card with content on (see programming section)
Terminal blocks for buttons and speakers
Screwdriver for wiring terminal blocks

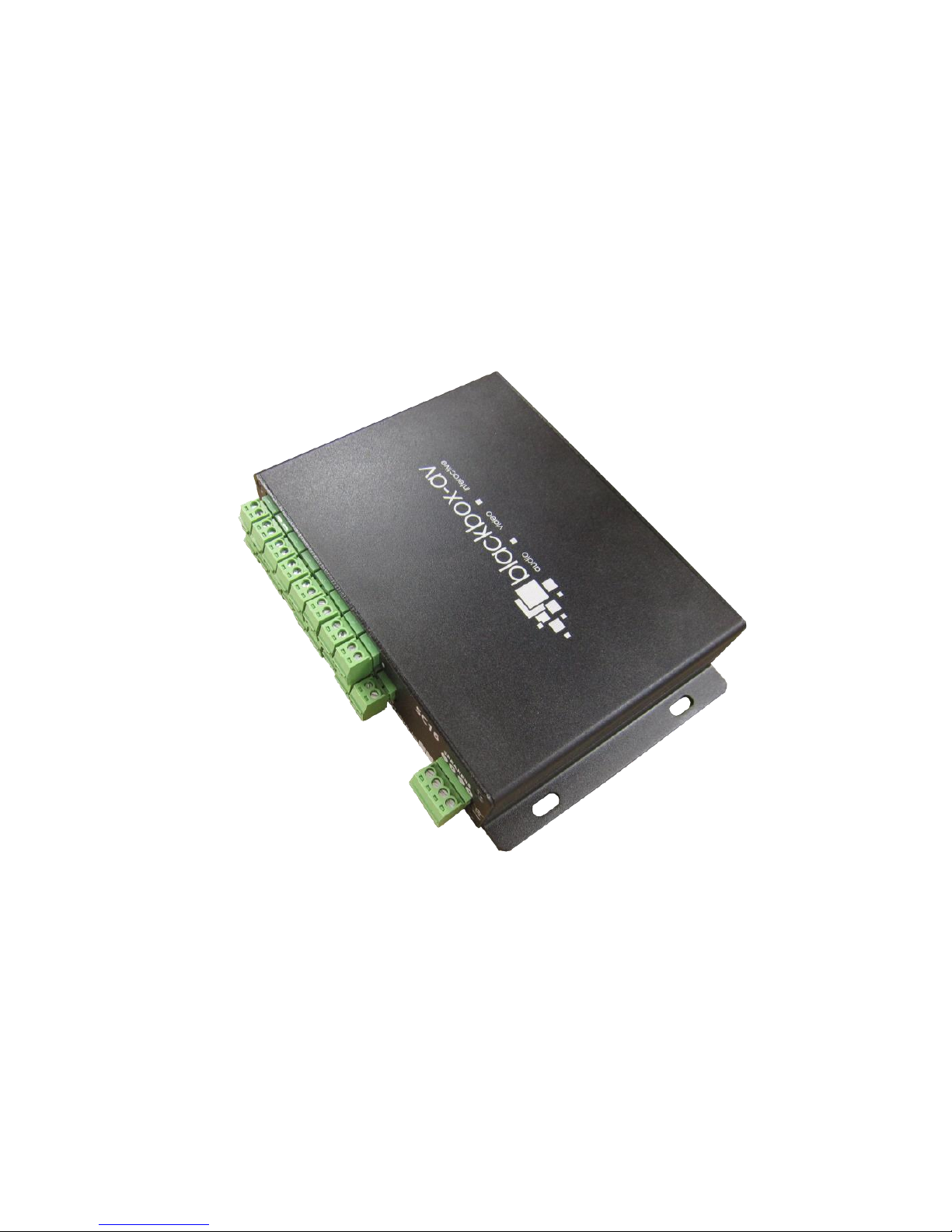

REAR VIEW

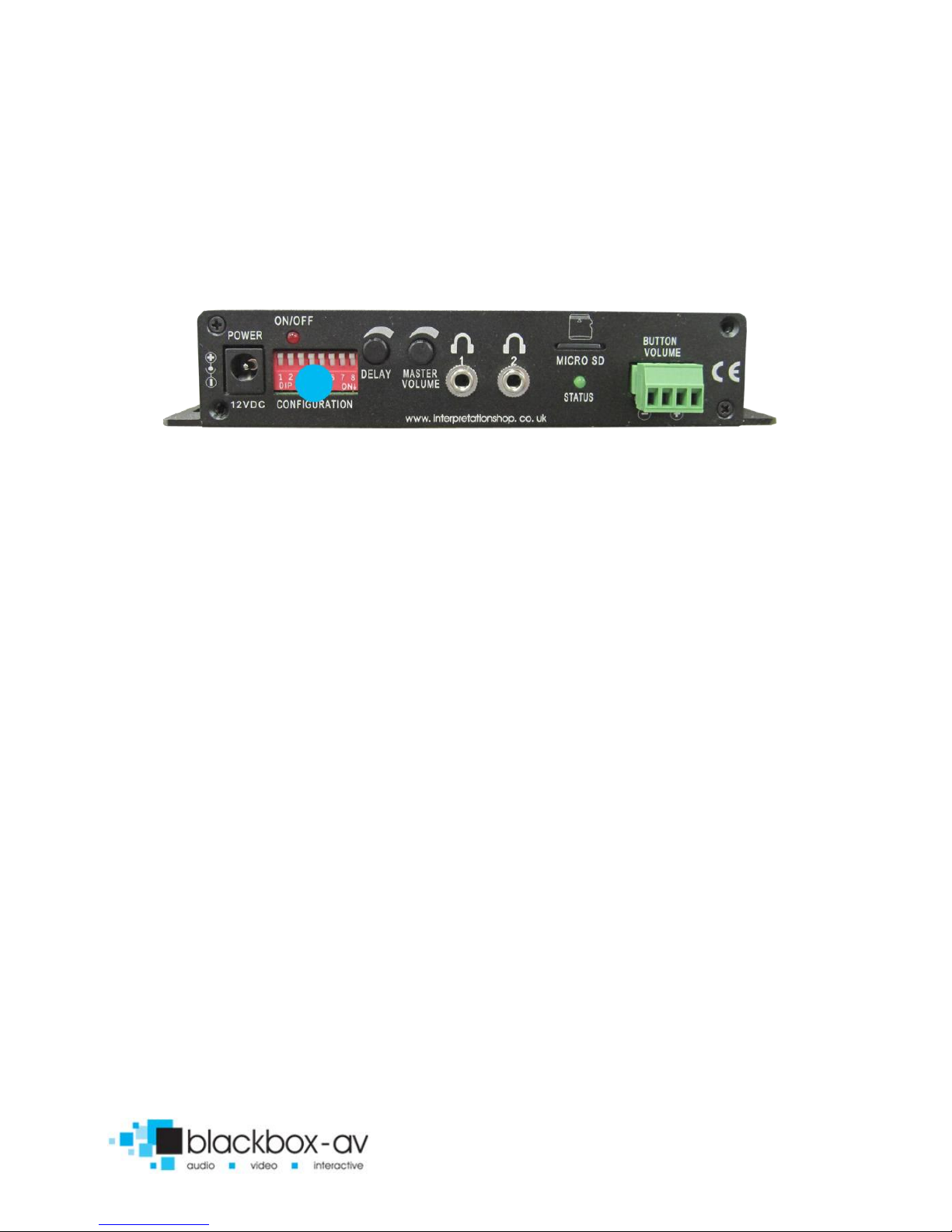

FRONT VIEW

SC-16 User Manual v1.3 June 2017
7
1. Button 1-16 input
2. 12v Supply (for PIR and Lighting)
3. Speaker L/R
4. 12v DC in
5. Configuration switches
6. Adjust delay between message plays
7. Adjust maximum volume level
8. 2 x 3.5mm headphone input
9. MicroSD Slot
10. Button input for volume control - / +
Powering Your SC16
Connect the supplied 12V DC adapter to the ‘12V DC in’ to give
power to the device.
Connecting headphones to your SC-16
The SC-16 can support up to 2 headphones with the built in 3.5mm
jack, simply connect them via the headphone 1 and 2 output.
Connecting AutoPlay headphones / device
The SC-16 can support our range of AutoPlay handsets and devices
(supplied separately) simply connect the device as explained in the
separate manual supplied with said device.
Connecting Speakers
Wire speakers to the ‘Speaker Left’ and ‘Speaker Right’ terminal
block, follow the + and - directions if appropriate, insert wires and
screw in place with provided screwdriver.
Connecting Activation Buttons

SC-16 User Manual v1.3 June 2017
8
To utilise button activation of the SC-16 you must wire buttons to
the designated terminals. Simply insert button wire ends and screw
in place using the provided screwdriver.
Connecting Volume Buttons
The SC-16 has dedicated volume terminals, allowing you to give
visitors the ability to increase or lower the volume. Connect 2
buttons to the designated terminal to do so. Simply insert button
wire ends and screw in place with the provided screwdriver.
Connecting Lighting
To add lighting (we recommend LED strip lighting) to the SC-16 you
must wire them to the designated ‘GPIO / 12v Out’ terminal. As
standard the lights will be activated when content is playing and
deactivated when content stops.
Connect PIR (SC-2 pictured)
The SC-16 can be PIR (Passive Infra-red)
activated, to add a PIR you must wire it
into the button 1 terminal with the
power connection wired into the + ‘12v
Out’ terminal (as pictured on a sc-2).
Add content to your SC-16
To add content to your SC-16 you must first add it to the supplied
MicroSD Card and insert this into the MicroSD slot: see the
‘Programming Content’ section below for more details.
Configuring the SC-16

SC-16 User Manual v1.3 June 2017
9
Deciding how the SC-16 is configured is completed using the
‘Configuration Switches’, this determines if it’s looping, button
activated or has a delay between content. See the ‘Content
Configuration’ section for more details.
5. Programming Content
Content for your SC-16 is stored on the supplied MicroSD card. To
add content you will need;
1. Audio Content in .mp3 format (supports up to 99 audio files)
2. A PC or laptop with Windows OS
3. MicroSD Card (supplied)
4. MicroSD to USB convertor (supplied)
How the content you add will be played (looping, button activated
etc.) will depend on your configuration choices, find out more on
this in the following ’Content Configuration’ section.
The name of your audio files when added to the MicroSD card will
determine the order in which they play.
Note: The SC-16 supports up to 99 files, these must be named 001,
002, 003 etc. The order in which files play is determined by their
name, the first file must always be named 001, the second 002 and
so on.

SC-16 User Manual v1.3 June 2017
10
Properly named files can be added to the MicroSD card in bulk (i.e
you can drag multiple files across onto the card as long as they are
properly named).
Step1
Prepare your audio files for transfer, we recommend you use .mp3
files however .wav files are also supported. Rename them ‘001,
002, 003’ etc. depending on the order you want them played.
Step2
Insert the MicroSD card into the MicroSD - USB convertor, and
connect to your PC.
Step3
Transfer all of your content onto the SD card.

SC-16 User Manual v1.3 June 2017
11
Step4
Insert MicroSD card into the SC-16, test files play as planned. How
files are activated is determined by how the dip switches are
configured. See following section.
6. Content Configuration
Content is added to the SC-16 via MicroSD card, how this content is
played is set via the dip switches located on the front of the device.
Using a screwdriver click these switches into either a Down or Up
position to turn On or Off.
Dip Switch Settings: Down = On, Up = Off
1 - Interruptible Playback
When switch 1 is in the Down (on) position the SC-16 is set to
uninterruptible this means when a file starts to play it will finish no
matter if an additional input is activated. When in the Up (off)
position files can be interrupted.
2 - Looping Playback

SC-16 User Manual v1.3 June 2017
12
When switch 2 is in the Down (on) position the SC-16 will be in
looping mode. All content on the MicroSD card will play in a
sequential manner from power up and then begin again from the
start. The ‘Delay’ control will specify how long the unit waits before
beginning a new loop.
3 - Play All
When switch 3 is in the Down (on) position the SC-16 will be in ‘Play
All’ mode, this means when triggered via button or PIR it plays
through all audio files once. When in this mode the SC-16 is
uninterruptible even with switch 1 set to Up (off).
4 - Next / Previous
When switch 4 is in the Down (on) position the SC-16 is in ‘Next /
Previous’ mode. This means users can navigate through all files on
the MicroSD card by pressing button 1 for next and button 2 for
previous.
When powered on in this mode the SC-16 will always start on audio
file 1, it will then remain on the last file it played.
5 - AutoPlay/Auto Retract Mode
If using the SoundClip with an AutoPlay Handset or AutoRetractor
with AutoPlay you will need to place dipswitch 5 into the Down (on)
position.
When in this position file 001 will play automatically upon pick up.
Add a button to button 2 to allow users to move to the next track (if
one exists). When in AutoPlay mode button 2 operates as ‘Next
Track’.

SC-16 User Manual v1.3 June 2017
13
When powered on in this mode the SC-8 will start on audio file 1, it
will then remain on the last file played until it resets to file 1 - this is
specified by the delay timer setting (5-60sec).
Note: If the delay timer is set to 0, the track will not reset.
6 - LCD & Button Pad Activation
Put in the down (on) position to place the SC-16 in compatibility
mode for the LCD display and Button Pad add-on (sold separately).
7 - Delay Range
The delay control allows you to determine how long between the
end of an audio file a new file can be activated. When switch 7 is in
the Up (off ) position, the control ranges from 0 - 60 seconds.
When switch 7 is in the Down (on) position, the delay control will
range from 0 - 4 minutes.
8 - Currently Unassigned on this Model
This will put the SC-8L into programming mode for the lighting
controller. However in the SC-2/8/16 the lighting simply turns on
when audio is being played and off when audio ends.
16 Button Mode
When all switches are in the Up (off ) Position, the SC-16 is in 16
button mode as standard, this means Button 1 plays file 1, and
Button 2 plays file 2 etc.
With switch 1 in the Up (off ) position files are interruptible, put
switch 1 in the Down (on) position to make playback
uninterruptible.
Sequential PIR mode

SC-16 User Manual v1.3 June 2017
14
When switches 1 and 4 are in the Down (on) position the SC-16 will
be in Sequential PIR mode, this means it will activate one audio
track at a time via PIR sensor - moving onto the next audio track in
sequence after each activation.
This allows you to activate track 001 then 002 then 003 etc. one at a
time.
7. Delay and Master Volume Control
Two controls on the front of the device allow you to alter the Delay
timer and Master Volume.
Delay
The delay control allows you to specify how long between playing
content the unit must wait before more content can play. This is
mainly used in conjunction with a PIR input, establishing how long
between activation the unit must wait to play more content.
However it can also be used with all other modes if desired.
Switch 7 when Off (up) makes the delay control range from 0-60
seconds, when On (down) it ranges from 0-4 minutes.
Master Volume
The SC-16 has dedicated volume inputs to allow users volume
control. The Master Volume dictates the maximum volume
available to them.
When powered up the SC-16 is set to around half the Master
Volume level, this allows users to reach the maximum volume
through the use of dedicated button controls.

SC-16 User Manual v1.3 June 2017
15
Bear this in mind when setting the Master Volume, we recommend
you set the volume to maximum through button controls before
deciding what the maximum volume you require is.
8. Status LED
Red - On/Off
The red LED will be lit when unit is powered on, and off when unit is
powered down.
Green - Status
The Green LED will be lit when content is being played and blink
on/off in 1 second intervals when unit is in ‘Delay Mode’ to indicate
this.

SC-16 User Manual v1.3 June 2017
16
Update Notes:
V1.1 - Minor formatting changes
V1.2 - AutoPlay Support
Added autoplay support functionality
Button 2 becomes next track in ‘AutoPlay’ Mode
Delay timer sets when to revert to track 001 in above
modes
V1.3 - AutoPlay Instructions
Added instructions for AutoPlay range
