Vinyl Styl SW-196B-REC User manual

MODEL: SW-196B-REC
3-Speed Stereo Turntable
With Built-in Speakers and USB Record Function

WARNINGS
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
To reduce the risk of electric shock, do not open the cabinet. No user serviceable parts are inside.Refer servicing to
qualified personnel.
Caution: Do not expose this appliance to dripping or splashing liquids. Do not put objects filled with liquid, such as
vases on or nearthe appliance.
Caution: To turn this appliance off completely, the POWER cord must be unplugged from the wall outlet. The power
cord must be easily accessible at all times.
THE LIGHTNING FLASH WITH
ARROWHEAD SYMBOL, WITHIN
AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF
NON-INSULATED "DANGEROUS
VOLTAGE" WITHIN THE
PRODUCT'S ENCLOSURE THAT
MAY BE OF SUFFICIENT
MAGNITUDE TO CONSTITUTE
A RISK OF ELECTRIC SHOCK
TO PERSONS.
CAUTION
DO NOT OPEN
WARNING:TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE FRONT OR
REAR COVER. NO USER
SERVICEABLE PARTS ARE
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION POINT
WITHIN AN EQUILATERAL
TRIANGLE ISINTENDED TO
ALERT THE USER TO THE
PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN
THE LITERATURE
ACCOMPANYING THE
APPLIANCE.
FCC WARNINGS
WARNING: Changes or modifications to this unit not expressly approved in this manual could void the
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
na.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance withthe manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and/or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the POWER cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only withthe cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as POWER-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
S3125A

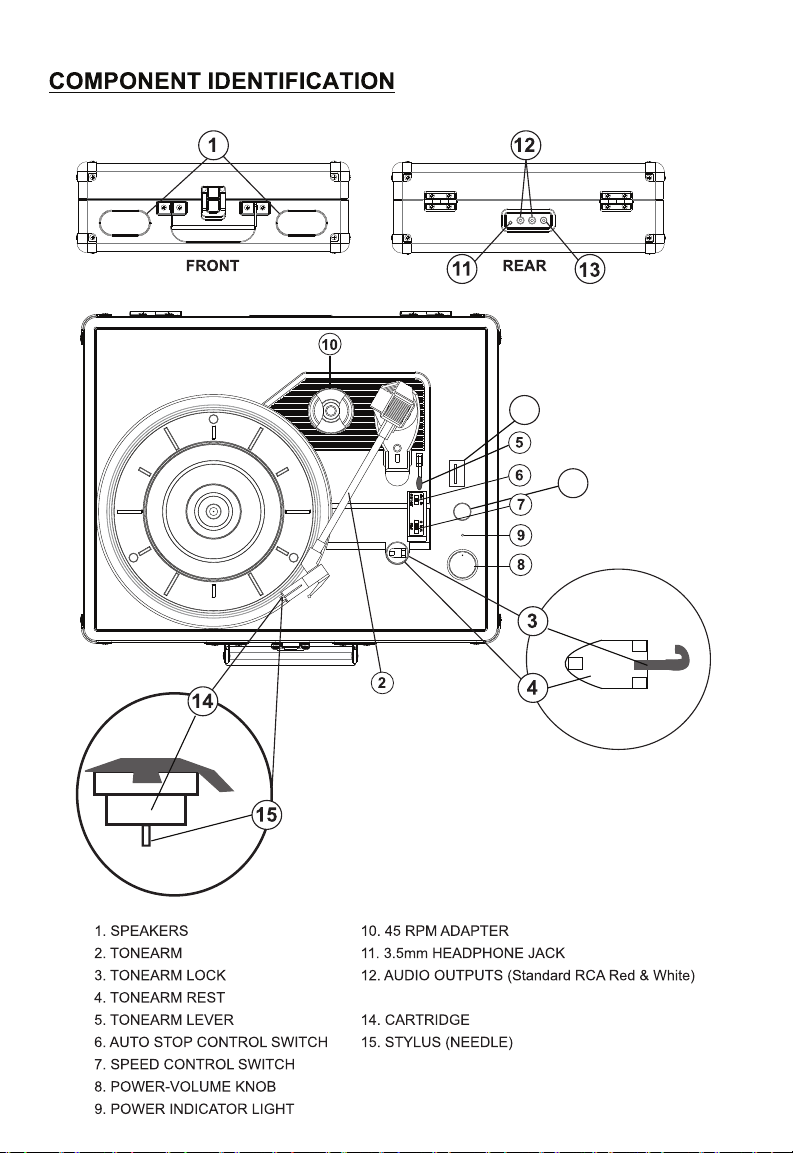

13. AC 100-240V, 50/60HZ to DC 5V, 0.5A INPUT
16. USB RECORD JACK
17. USB REC. BUTTON
16
17

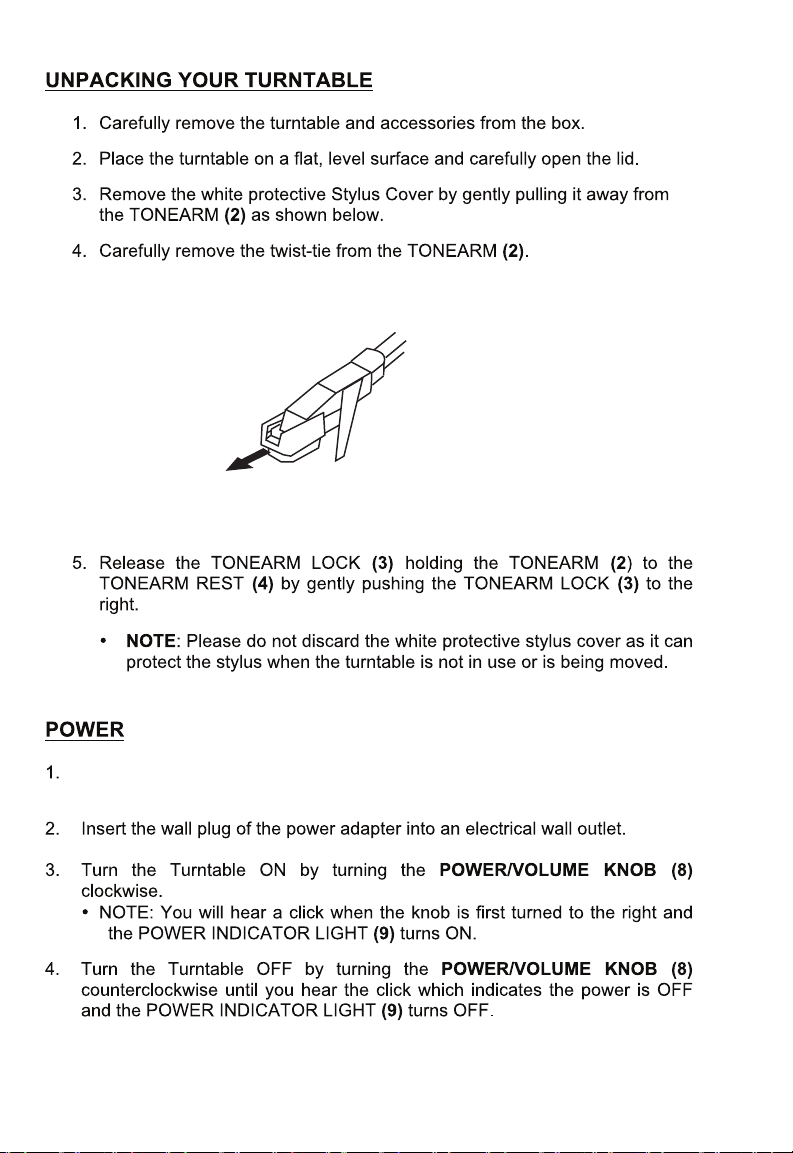

Plug the supplied AC 100-240V, 50/60HZ to DC 5V, 0.5A power adapter into the AC
100-240V, 50/60HZ to DC 5V, 0.5A INPUT (13) located on the rear of the turntable.

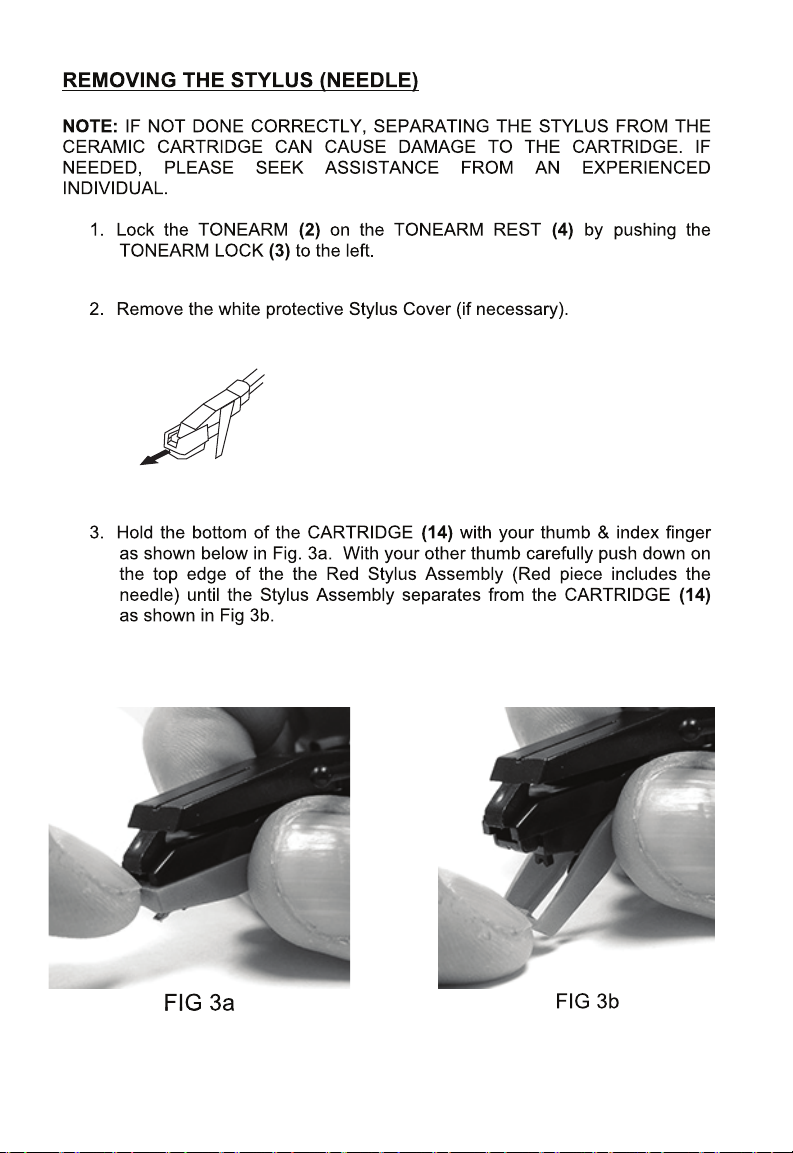

Under normal use a STYLUS (15) should last for about 480-600 hours of record
play. It is recommended the STYLUS (15) be replaced as soon as you notice
a deterioration of the sound quality.
Use of a worn out STYLUS (15) may damage records.
Playing 78 RPM records will cause the STYLUS (15) to wear out much faster
than 33⅓or 45 RPM records.

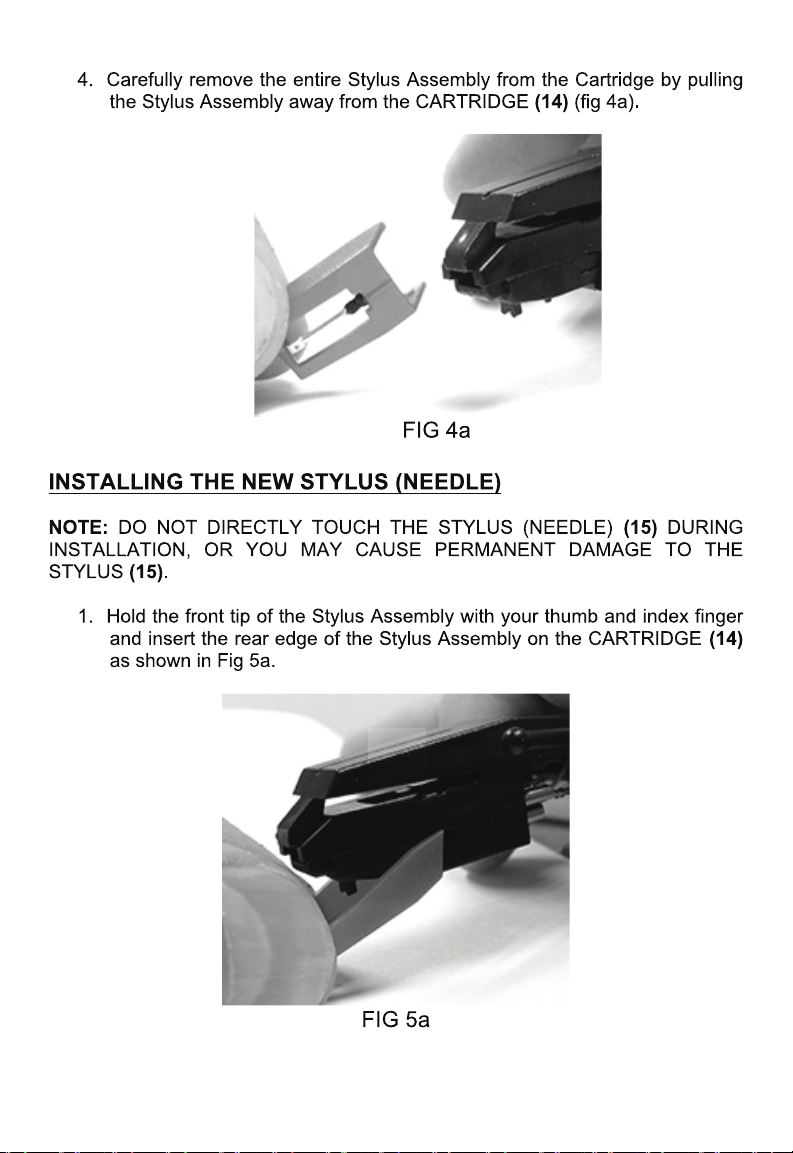

A replacement STYLUS (15) can be purchased by going to
www.VinylStyl.com

Make sure the AC 100-240V, 50/60HZ to DC 5V, 0.5A power adapter is
securely connected to the AC 100-240V, 50/60HZ to DC 5V, 0.5A INPUT (13)
on the rear of the turntable as well as the wall outlet.
