Blagdon minipond 700 User manual

minipond
700
/
900
/
1600
www.pondaquariumproblemsolver.co.uk/blagdon
water movement
pond pump
for fountains

minipond
700
/
900
/
1600
water movement
pond pump
for fountains

Congratulations on buying a Blagdon Minipond
Fountain and Water Feature Pump. Minipond pumps
are high quality pumps manufactured with advanced
technology, to run pond fountains and water features.
The powerful motors are easy to maintain having a
single moving part impeller system featuring highly
wear-resistant ceramic shaft design.
IMPORTANT
Please attach proof of purchase to this manual
and file in a safe place.
1

2
Getting to know your Minipond pump
Parts descriptions / spares codes - with exploded diagram
Technical specifications
Pump performance / flow chart
Installation
Electrical installation
Installing pump in pond
Maintenance and cleaning
Cleaning
Step by step guides
Routine maintenance
Monthly maintenance
Annual maintenance
Winter storage
Troubleshooting
Troubleshooting and maximise performance
Faults - problem procedure
Consumer advice contact details
Returning faulty pumps
Guarantee
3
3-4
5
5
6
6
7
8
8
8-10
8-9
9-10
10
10
11
11
12
12
12
13
CONTENTS



GETTING TO KNOW YOUR MINIPOND PUMP
3


MINIPOND 700
No. Minipond 700 Part Description Spare Code
1. Pump motor unit N/A
2. Pump outlet N/A
3. Impeller complete 1017800
4. Impeller cover N/A
5. Pre-filter foam 1017862
6. Pre-filter cage N/A
7. Fountain extension pipe 1052306
8. Ball joint 1052306
9. Fountain feature flow control 1/2inch N/A
10. 1/2inch threaded hose adaptor N/A
11. Water bell N/A
12. Daisy super N/A
13. Daisy N/A
2
345
6
1
7
8
9
10
11
12 13

GETTING TO KNOW YOUR MINIPOND PUMP
MINIPOND 900/1600
No. Minipond 900/1600 Part Description Spare Code
1. Pump motor unit N/A
2. Pump outlet N/A
3. Impellor complete (900) 1017817
Impellor complete (1600) 1055697
4. Impellor cover (900) 1017695
Impellor cover (1600) N/A
5. Pre-filter foam 1017879
6. Pre-filter cage 1017695
7. Fountain extension pipe 1052306
8. Ball joint 1052306
9. Fountain feature flow control 1/2inch 1017763
10. 3/4inch threaded hose adaptor 1017763
11. Water bell 1017763
12. Daisy super 1017763
13. Daisy 1017763
4
Parts 9 to 12 are supplied as one package.


7
8
9
10
11
12 13
600 series
900 series
600 series
900 series
2
3
4 5
6
1



Pump performance / flow chart
Technical Specification and Performance
GETTING TO KNOW YOUR MINIPOND PUMP
MINIPOND 700 900 1600
Lift Flow rates lph Flow rates lph Flow rates lph
2.0 metres - 100 lph
1.5 metres - 400 lph 400 lph
1.0 metres 300 lph 550 lph 890 lph
0.5 metres 520 lph 800 lph 1309 lph
0.0 metres 700 lph 872 lph 1600 lph
Flow is given as optimum rate
5
MINIPOND 700 900 1600
Cable Fitted 10 metres 10 metres 10 metres
Voltage 230V 230V 230V
Hertz 50Hz 50Hz 50Hz
Watts 10 18 24
Safety Rating IP68 IP68 IP68
Maximum Depth 1.25 metre 2 metres 2 metres
Maximum Lift 1.25 metre / 4’1” 2 metres / 6’6” 1.8 metres / 5’11”

Electrical installation
The power supply must meet the specifications on the product.
The pump is intended to be used with either a weather-proof
cable connector or permanently connected to the fixed wiring
in the main system other than by means of a plug and socket.
The cores in the supply cable are coloured in accordance with the following code:
Brown = Live, Blue = Neutral, Green/Yellow = Earth.
The electric cable is permanently connected and sealed in the motor body.
If the supply cable is damaged the pump must not be used.
Do not use the supply cable to lift the pump as this may cause damage.
WARNING - THIS PUMP MUST BE EARTHED
A Residual Current Device (RCD), also know as the Residual
Current Circuit Breaker (RCCB), with a tripping current not
exceeding 30mA must be installed in the supply circuit.
A means of disconnection from the supply having a contact separation
of at least 3mm in all poles must be incorporated in the fixed wiring.
INSTALLATION
For permanent installations to the mains supply, it is necessary to conform to the regulations
of the local electricity authority and this would include the use of a metal or plastic conduit
to protect the cable.
Attention has been drawn to the fact that special rules may exist concerning the installation
of your pond pump (i.e. local building regulations).
These pumps must not be used in swimming pools, or areas where people are in contact
with the water.
Always disconnect the mains electricity supply whilst the equipment is being installed,
repaired, maintained or handled. Consult a qualified electrician if in any doubt about
wiring this product to the main supply.
Warning - The Minipond pump is provided with a thermal
cut out that temporarily switches off the pump in case of
overheating and the pump may automatically restart.
6

Locating your Minipond
The Minipond pump should be located on a firm and level base in the pond/water feature
in a depth of at least 10cm, but no more than 1.25m (700) 2m (900/1600).
It is advisable to keep the pump off the bottom of the pond to avoid silt entering the pump
causing excessive wear and increasing pre-filter cleaning.
Fountain
Make sure there is ample cable from mains supply. Place pump in desired location. Add
Fountain extension pipes so fountain head is above surface of the pond. Fountain height
can now be adjusted, see ‘Adjusting fountain display’ diagram below. See "Getting to
know your Minipond" for parts and descriptions.
Tip: Ensure that any fountain or feature fitted does not empty water out of pond/water feature.
Water Feature
Install as Fountain but remove pre-filter foam (if fitted) from cage. Depending on water
feature to be supplied, your Minipond can be used with the flow control and the ½” hose
fitting or ¾” hose fitting (not supplied with 700 model) which can be screwed directly
into pump body. Hose clips should be used to secure hose. Foam free cage will lower
the need for monthly maintenance and not hinder its performance for when running
a water feature.
Tip: The larger ¾" hose will give maximum performance when fitted to the
Minipond 900/1600.
INSTALLATION
600/900 series
BELL FOUNTAIN
Adjust bell by
moving head
higher for
small bell
and lower
for a wider
bell shape.
ADJUSTING THE FOUNTAIN DISPLAY
1. Adjust height by push fitting 5cm long
extension pipes onto ball joint until desired
height has been achieved.
2. Adjust flow by turning clockwise to
increase flow, anti-clockwise to
reduce flow.
3. Adjust ball joint to enable the extensions to
be moved compensating for an uneven
pond floor.
7
∆
_
1
2
3

Warning - Failure to carry out routine maintenance leaving the
pump under reduced or no flow conditions for long periods
(i.e. blocked pre-filter) will result in a shorter pump life and
will invalidate the guarantee.
Blagdon Minipond 700, 900 and 1600 are centrifugal pumps with a magnetic
impeller movement driven by a watertight synchronous motor. They require minimum
cleaning, only periodic cleaning of the pre-filter and impeller is necessary.
Cleaner
The use of a descaler product will give improved performance and pump life by removing
built up lime scale and waste. Use before dismantling for easier and cleaner handling.
Routine Maintenance
Carry out routine maintenance when pump flow is visibly reduced.
1. Switch off electricity.
2. Remove pump from pond (do not use the cable to lift the pump).
3. Follow steps 1 and 2.
MAINTENANCE & CLEANING
STEP 1: MINIPOND 700 (ROUTINE)
Firmly pull pre-filter cage from pump motor.
STEP 2: MINIPOND 700 (ROUTINE)
Remove pre-filter foam, and wash thoroughly in
fresh water.
A blocked foam will reduce the pump flow rate.
3
4
5
600 series
3
4
5
600 series
8

MAINTENANCE & CLEANING
STEP 3: MINIPOND 700 (MONTHLY)
Remove impeller
cover by turning
anti-clockwise
to release lock.
Then pull firmly
away from
pump motor.
STEP 4: MINIPOND 700 (MONTHLY)
3
4
5
600 series
3
4
5
600 series
STEP 2: MINIPOND 900/1600 (ROUTINE)
Remove pre-filter foam, and wash thoroughly
in fresh water. A blocked foam will reduce
the pump flow rate.
STEP 1: MINIPOND 900/1600 (ROUTINE)
Firmly pull pre-filter cage from pump motor.
Monthly Maintenance
Following as for Routine Maintenance (steps 1 and 2) and then
steps 3 and 4 (3 and 4 - 900/1600 model).
1
2
3
4
5
600 series
1
2
3
4
5
600 series
Remove impeller from
pump motor. Wash
parts with fresh water
carefully.
9

Annual Maintenance
Once a year you should service your pump by using a descaler product, (this may need
to be done more frequently in hard water areas).
Dismantle pump and examine all parts for wear or damage, replacing any parts that show
obvious wear and/or damage. (See getting to know your pump for parts/description and
replacement parts codes.) Particular care should be taken to examine the cable entry point
and the cable; if there is any sign of damage the pump should be discarded.
Winter Storage
The pump can be run in the pond during the winter but care should be taken to ensure that
it is fully immersed and cannot freeze solid. If the pump is not used during the winter, follow
annual maintenance procedure and store frost-free in the house or garage until spring.
MAINTENANCE & CLEANING
STEP 3: MINIPOND 900/1600 (MONTHLY)
Remove impeller
cover by turning
anti-clockwise
to release lock.
Then pull firmly
away from
pump motor.
STEP 4: MINIPOND 900/1600 (MONTHLY)
900 series
1
2
3
4
5
6
900 series
1
2
3
4
5
6
Remove impeller from
pump motor. Wash
parts with fresh water
carefully.
10

Problem
Low flow from pump
1. Follow routine cleaning procedure if no improvement.
2. Follow monthly cleaning procedure.
3. Ensure pipe work is not blocked, leaking or is laid so that it gets crushed
or kinked.
4. Keep the height that water is to be pumped from the water surface (called
Head) to a minimum. The higher the head the lower the flow rate and the
more wear on the pump.
5. Use the largest diameter, smoothest bore pond hose over the shortest
distance and keep hose fittings to a minimum. This removes frictional loss
of flow and so increases pump flow rates.

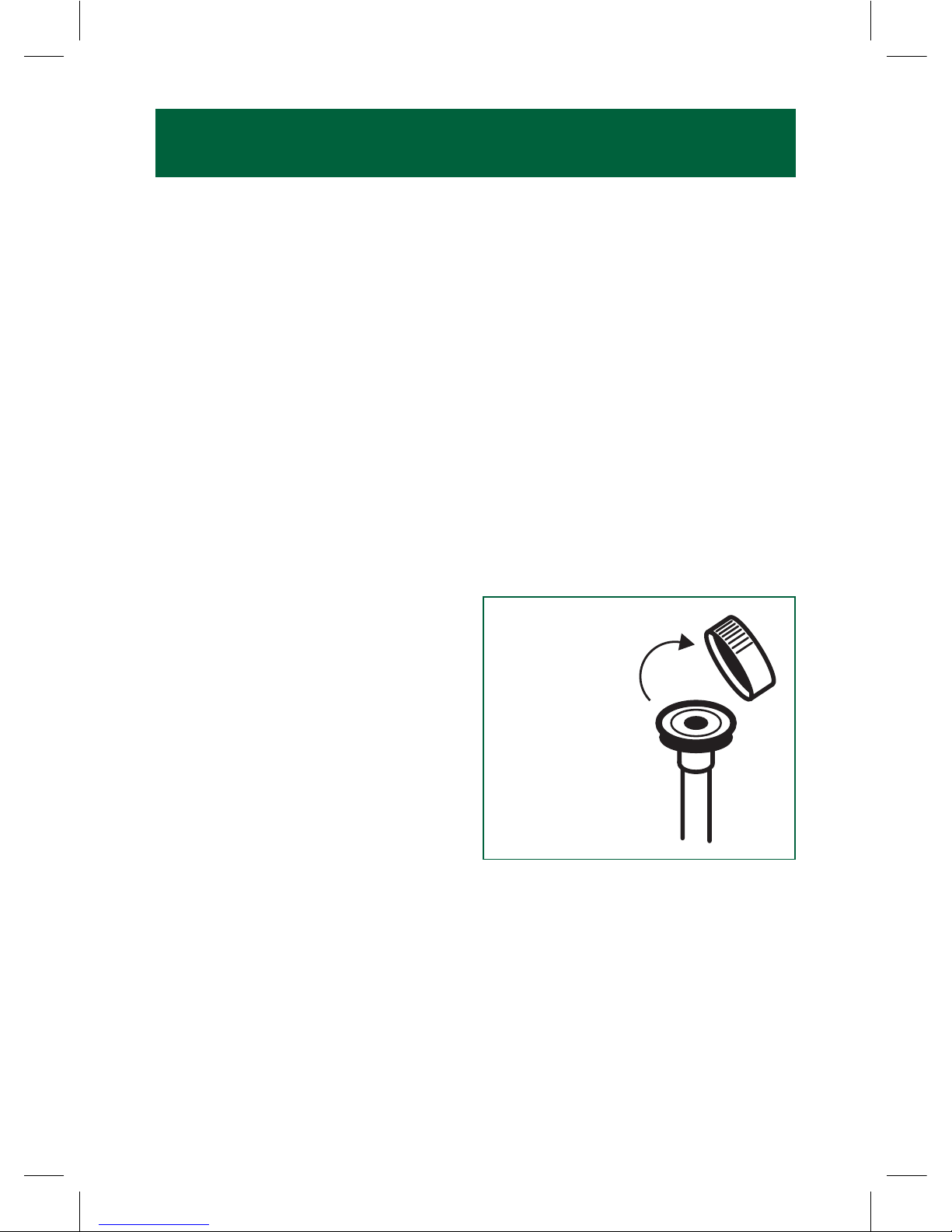

Poor Fountain performance
• Reduced height.
• Jets blocked.
Clean flow adjuster and fountain
head. Wash under a tap or hose.
A descaler product should be used
to remove lime scale build-up/waste
(see diagram) for improved results.
No flow from pump
1. Check power supply is on.
2. Check fuse and wiring (SEE ELECTRICAL INSTALLATION).
3. Follow low flow procedure as above.
If none of the above works contact Interpet (Blagdon) Consumer Advice Department (See
Faults problem procedure Page 12).
TROUBLESHOOTING
600/900 series
DAISY
To clean, remove
head and rinse.
Or in hard water
areas, use a
descaler product.
11

12
FAULTS - PROBLEMS PROCEDURE
Before returning your Minipond pump to your dealer or contacting our Consumer Advice
Department, please carry out the following steps.
This will solve most problems quickly and easily.
1. Ensure electrical procedure has been followed fully. Check fuse and any
cable connectors/switch boxes.
NOTE: If the pump has overheated the thermal overload will temporarily
switch off the pump.
2. (a) Follow routine maintenance and check pump. (b) Follow monthly
maintenance and check pump. (c) Follow troubleshooting guide.
(d) Follow annual maintenance guide.
3. Return pump to point of purchase for inspection and advice (You may
need proof of purchase).
Consumer Advice contact details
Interpet (Blagdon) Consumer Advice Department
Vincent Lane, Dorking, Surrey RH4 3YX
Fax: [phone]
E-mail: customer[email protected]
www.pondaquariumproblemsolver.co.uk/blagdon
IMPORTANT
You can help protect the environment. Please remember to respect the local
regulations: hand in non-working electrical equipment to an appropriate waste
disposal centre.

This product is guaranteed against defects in material and workmanship for 3 years from
the date of purchase, under normal usage. The guarantee DOES NOT APPLY in case
of improper use, negligence, lack of maintenance or accidental damage either to the
pump or to the impeller or impeller shaft. If the pump fails due to a manufacturing fault
within this period it will be either repaired or replaced free of charge. Liability is limited
to replacement of the faulty product only, no other costs will be reimbursed.
This guarantee is not transferable and does not affect your statutory rights. This guarantee
does not confer any rights other than those expressly set out above. Excludes the sponge
pre-filter, which should be replaced every six months and the impeller, which may require
replacing annually. If any parts need replacing, spares are available from your retailer.
GUARANTEE

minipond
700
/
900
/
1600
Established over 50 years ago, Blagdon are
committed to producing a comprehensive range
of high quality and easy to use water gardening
equipment. We have an on-going programme
of research and development that ensures
excellent product performance and value for
money for our customers. Our products are
brought together with half a century of expertise
and knowledge so you can be assured of a
successful and creative water garden.
Interpet, Vincent Lane,
Dorking, Surrey, RH4 3YX
www.pondaquariumproblemsolver.co.uk/blagdon
Leaflet Code: 03/10/16
DESIGN
INNOVATIVE
