Blanco BM32CX User manual

Instruction Manual for
Convection Microwave
BM32CX

Dear Customer,
Thank you for buying a BLANCO microwave.
Before we continue telling you about this oven, we cordially invite you to
become part of the Blanco family by subscribing online. Please visit our
website where you can easily register for product/cooking demonstrations,
and request Blanco’s gourmet recipes. Go to www.blanco-australia.com and
fill in the subscription details in the contact us/showrooms section.
You will find that the clean lines and modern look of your Blanco microwave
blends in perfectly with your kitchen décor. It is easy to use and performs to a
high standard.
Blanco also makes a range of products that will enhance your kitchen such as
ovens, cooktops, rangehoods, dishwashers, microwaves, sinks and taps. There
are models to complement your new Blanco microwave.
Of course, we make every effort to ensure that our products meet all your
requirements, and our Customer Relations department is at your disposal, to
answer all your questions and to listen to all your suggestions.
Please complete the warranty card and keep your receipt as proof of
purchase. Retain all documents relating to the purchase of this product.
Blanco is committed to providing increasingly efficient products that are easy to
use.

Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.

2
TABLE OF CONTENTS
1\ PRECAUTIONS………………………………………………………………3
2\ SAFETY INSTRUCTIONS ………………………………………………….4
- WARNING ………………………………………………………………….4 - 5
- TO REDUCE THE RISK OF INJURY TO PERSONS……………………..6
- UTENSILS.............................................................................................7 -8
3\ SETTING UP YOUR OVEN………………………………………………....8
4\TURNTABLE INSTALLATIONS…………..…………………...………….....9
5\ INSTALLATION AND CONNECTION……………………………….….....9
- INSTALLATION INSTRUCTIONS………….…………………………….…10
- INSTALLING THE MICROWAVE ………….……………………………….11
6\ OPERATION INSTRUCTIONS……………………………………............15
7\ TROUBLE SHOOTING………………………………………………….....22

3
1 .PREC A UTIONS
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
Specifications
Model:
BM32CX
Rated Voltage:
240V~50Hz
Rated Input Power(Microwave):
1550W
Rated Output Power(Microwave):
1000W
Rated Input Power(Grill):
1100W
Rated Input Power(Convection):
2300W
Oven Capacity:
32L
Turntable Diameter:
315mm
External Dimensions(LxDxH):
595 480 388 mm
Net Weight:
Approx. 22.1kg

4
2\SA FETY INSTRUCTIONS
WA RNING
Toreducetherisk offire, electric shock,injury topersons or exposure to excessive microwave oven
energy when usingyourappliance, followbasicprecautions, includingthefollowing:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children.
4. Keep the appliance and its cord out of
reach of children .
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONSTOAVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use . Keep cord away from
heated surface, and do not cover any
vents on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.

5
23.
Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children shall be kept away unless
continuously supervised.
32. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
33. The microwave oven must be operated with the decorative door open.(for ovens with a
decorative door.)
34.surface of a storage cabinet can get hot.
READ
CAREFUL LY ANDKEEPFOR FUTURE
REFERENCE

6
To Reduce the Risk of Injury to Persons
Grounding Installation
DA NGER
Electric Shock Hazard
Touching some of the internal components
cancause serious personal injury or death.
Donotdisassemble thisappliance.
WA RNING
Electric Shock Hazard
Improper useof thegrounding can result in
electric shock. Do notplug into anoutletuntil
appliance is properly installed andgrounded.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
CL EA NING
Besuretounplug the appliance from the
power supply.
1. Clean thecavityoftheoven after using
withaslightly dampcloth.
2. Clean theaccessories intheusual way
insoapy water.
3. Thedoorframe andseal and
neighbouring parts must becleaned
carefully with adamp cloth when they
aredirty.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.

7
UTENSIL S See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person to
carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish
Dinnerware
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

8
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause arcing and could cause a fire in the oven.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
3\SETTING UP YOUR OVEN

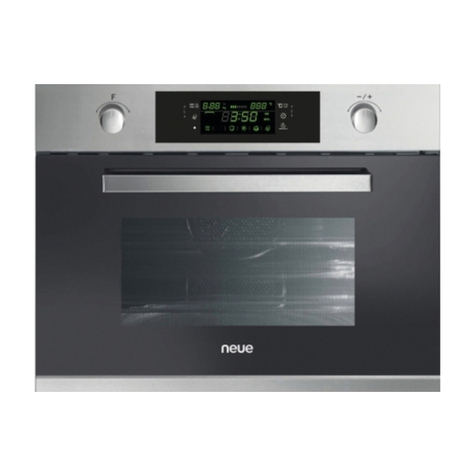

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
A
Turntable ring assembly 1
Instruction Manual 1
F
G
Grill Rack( Only be used in grill/convection
function and be placed on the glass tray )
E D C B
A)
Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

9
4\TURNTABLE INSTALLATION
Hub (underside)
Glass tray
Turntable shaft
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. Ifglasstray or turntable ring assemblycracks or
breaks, contact your nearest authorized service
center.
Turntable ring assembly
5\INSTALLATION AND CONNECTION
1.This
appliance is only intended for domestic use.
2.This oven is intended for built-in use only.It is not intended for counter-top use or for
use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm
deep and 85cm off the floor).
5.The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must only be replaced by a
qualified electrician.If the plug is no longer to accessible following installation,an
all-pole disconnecting device must be present on the installation side with a contact
gap of at lease 3mm.
8.Adapters,multi-way strips and extension leads must not be used. Overloading can
result in a risk of fire.
The accessible surface
may be hot during
operation.

10
Installation Instructions
Please Read the Manual Carefully Before Installation
SCREW
TRIM-KIT PLASTIC
COVER
Please Note
Electrical connection
The oven is fitted with a plug and must be only connected to a properly installed earthed
socket. In accordance with the appropriate regulations, the socket must only be installed and
the connectingcable must only be replacedby a qualified electrician.
If the plug is no longer accessiblefollowinginstallationand all-poleisolatingswitch must
be present on the installationside with a contact gap of at least 3mm.

11
Installing The Microwave
It is advisable to physically measure the actual product dimensions before cutting out
for installation.
Recommended Dimensions: Outside (exterior) 388H x 595W x 480Dmm
Cavity (interior) 230H x 340W x 350Dmm
Cut- out (proud mount) 380H x 560W x 550Dmm
To Build In This Unit To A Cabinet
The built-in cabinet shall not have a rear wall behind the appliance.
Please measure the actual product before cutting out for
installation. The dimensions provided below are for proudmount cut
outs. Please note that the 2/3 mm may be required to be added on
to the below details.
Do not cover ventilation slots and air intake points.
600
560
+8
min
550
380
+3
(80)
(80)

12
To Underbench This Unit
Please see the following diagrams and the ventilation requirements when
under benching this unit. Please note that if these instructions are not followed
the warranty will be null and void.

13

14
1. Do not trap or kink the power
cord.
Make sure that the oven is installed in the center of the cabinet.
Trim-kit plastic cover
Screw
Installation Hole
2. Open the door; fix the oven to the cabinet with SCREW at the
INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER
to the INSTALLATION HOLE.

15
6\OPERATION INSTRUCTION
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
1.Clock Setting
1) In waiting state, press " KITCHEN TIMER/CLOCK" twice, "00:00" displays.
Hour figures flash.
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " KITCHEN TIMER/CLOCK ", the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " KITCHEN TIMER/CLOCK " to finish clock setting. ":" will flash.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", it will
exit the setting state.
2. Microwave Cooking
1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICROWAVE/GRILL /COMBI./CONVE." for times or turn " " to select the
microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10"... will display
in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Once
Twice
Thrice
4 times
5 times
Microwave Power
100%
80%
50%
30%
10%

16
3. Combination Cooking
1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the
combination function. Stop turning when "C-1","C-2","C-3","C-4" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
Note: Combinationinstructions
Instructions
Display
Microwave
Grill
Convection
1
C-1
2
C-2
3
C-3
4
C-4
4. Convection cooking(With preheating function)
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 140 degrees to 230 degrees.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.

17
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
5. Convection Cooking(Without pre-heating function)
1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.
2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the
convection function. When convection temperature displays, it indicates convection function.
The temperature can be chosen from 140 degrees to 230 degrees.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.

18
6.Multi-Stage Cooking
Two stages can be maximumly set. If one stages is defrosting, it should be put in the first
stage. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu and preheating cannot be set as one of the multi-stage.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "WEIGHT /TIME DEFROST " twice, the screen will display "dEF2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press" MICROWAVE/GRILL/COMBI./CONVE." once;
4) Turn " " to choose 80% microwave power till "P80" display;
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
7. KITCHEN TIMER
1) In waiting state, press " KITCHEN TIMER/CLOCK " once, "00:00" displays.
2) Turn " " to adjust the timer. The MAX.time is 95 minutes.
3) Press " START/+30SEC./CONFIRM " to confirm.
Note: 1) The kitchen time is differ from 24-hour system, the Kitchen Timer is a timer.
2) During kitchen timer, anny program cannot be set. The timer can be stop by
pressing "STOP/CLEAR".
