Blaze BLZ-GRIDDLE-LP/NG User manual

Blaze Outdoor Products Instructional Book
Page | 1
Version 1.0
USE & CARE GUIDE
GAS GRIDDLE BLZ-GRIDDLE-LP/NG
ATTENTION:
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THECONSUMER.
CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE
INSTALLING
OR OPERATING.
- CONTACT INFORMATION -
Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA
70805USA
Phone: 866-976-9510 email:
CustomerService@BlazeGrills.com
BLAZEGRILLS.COM
DANGER - IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) If a gas odor persists, Keep away from your
appliance and contact your gas supplier or fire
department immediately.
WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance
2) A LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.

Blaze Outdoor Products Instructional Book
Page | 2
Version 1.0
Table of Contents
I. Safety and InstallationWarnings 4-7
II. Location ofAppliance 7-9
i. Electrical Safety and InstallationWarnings 10
III. Gas Safety and InstallationWarnings 11-12
IV. Gas Leaks 12
i. Checking for Gas Leaks 13-14
ii. Unpacking Unit 15
V. Gas Connections 16
i. Natural Gas Requirements 16
ii. Liquid Propane Gas and Tank Requirements 16-17
iii. Transporting and Storing LP Gas 17-18
VI. Installing the Appliance in a Island 19-22
i. Outdoor Kitchen Ventilation (20-21)
ii. Building Specifications + Instruction 23
iii. Installation Diagrams 24
VII. First Time Operation 25
i. Lighting theAppliance 25
ii. Manually Lighting theAppliance 26-27
iii. Flame Adjustment 27

Blaze Outdoor Products Instructional Book
Page | 3
Version 1.0
VIII.Cleaning yourAppliance 28-29
IX. WarrantyRegistration 30
X. Parts 31-32
XI. Product Serial Number 33
XII. Blaze Product Registration 34

Blaze Outdoor Products Instructional Book
Page | 4
Version 1.0
IMPORTANT SAFETY INFORMATION –Blaze Griddle
Please read this manual carefully and before using your BLAZE GRIDDLE to ensure proper operation,
installation, servicing and to reduce the risk of fire, burn hazard and or other injury. This manual
should be retained for your information
NOTE:
Improper installation and service or maintenance may cause property damage, injury or death.
Do not operate this appliance without having read this manual
All gas installations and gas conversions must be performed by a qualified technician or authorized service
agent.
NOTE: This appliance is not intended for commercial use.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately
call your gas supplier or your fire department.
General Safety and Installation
Warnings
Safe operation of the BLAZE GRIDDLE depends upon its proper installation. Only a qualified professional
installer and service technician must perform adjustments and service of the griddle. Proper location and
proper use is essential to insure safe and continued trouble-free operation. Any non-approved alterations
made to the appliance will void the product’s warranty.
NOTE: The manufacturer cannot be held responsible for damage or injury caused by improper use ofthis
appliance.

Blaze Outdoor Products Instructional Book
Page | 5
Version 1.0
When using your Blaze appliance, please read and follow these basicprecautions:
To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before
installing/operating
your appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury orproperty
damage. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing
this equipment.
EXPLOSION HAZARD
Do not use the appliance as storage area for flammable materials. Keep area clear and free fromcombustible
materials, gasoline, and other flammable vapors and liquids. Failure to do so can result in death, explosion, orfire.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gasfitter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance. This
applies to permanently installed natural gas and propane installations. This does not apply to propane
portable installations using a 20 pound tank.
APPLIANCE
INSTALLATION
This gas appliance must be installed in accordance with all local codes.
If
installation
is
planned
in
an
area
with
no
local
codes,
the
gas
appliance
must
be
installed
in
accord
with
the
National
Fuel
Gas
Code
ANSI
Z223.1
and
storage
and
handling
of
liquefied
petroleum
gases,
ANSI/NFPA
58
or
CSA
B149.1
natural
gas
and
propane
installation
code.
CALIFORNIA
PROPOSITION
65
WARNING
The
burning
of
gas
cooking
fuel
generates
some
by-products
which
are
on
the
list
of
substances
which
are
known
by
the
State
of
California
to
cause
cancer
or
reproductive
harm.
California
law
requires
businesses
to
warn
customers
of
potential
exposure
to
such
substances.
To
minimize
exposure
to
these
substances,
always
operate
the
unit
according
to
the
use
and
care
manual,
ensuring
you
provide
good
ventilation
when
cooking.

Blaze Outdoor Products Instructional Book
Page | 6
Version 1.0
Have an ABC Fire Extinguisher accessible at all times. Never attempt to extinguish a grease fire
with water or other liquids.
IMPORTANT: Consult the AHJ (Authority Having Jurisdiction) or local contractor of any uncertainty.
This unit is for outdoor useonly!
Do not operate in a building, garage or any other enclosed areas. This could result in carbon monoxide buildup
which
could result in injury or death.
For proper operation, burners must be aligned with the valve orifice and seated in the bracket slot. This is
accomplished by first placing the burner tube shutter hole securely over the valve orifice and ensuring the male post
on the griddle chassis rests in the opening in the rear of the burner. Failure to do so could result in a fire and injury.
BEWARE OF SPIDERS
CAUTION: BURNER TUBES MUST BE INSPECTED AND CLEANED BEFORE EACH USE.
S
piders and small insects occasionally spin webs or make nests in the burner tubes. These webs can lead to a gas flow obstruction, which
c
ould result in a fire in and around the burner tubes. This type of fire is known as “FLASH-BACK” and can cause serious damage to your
app
liance and create an unsafe operating condition for the user. Although an obstructed burner tube not the only cause “FLASH-BACK”
it
is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary.

Blaze Outdoor Products Instructional Book
Page | 7
Version 1.0
Do not attempt to heat unopened containers on the griddle as pressure may build up and
cause the container to explode.
Never use charcoal or any other solid fuel in the griddle.
Never cook without the drip pan in place.
Never operate this griddle while under the influence of alcohol or drugs.
Never place your fingers inside the observation openings in the griddle plate during
removal or replacement of the griddle plate as they could be pinched. Never place your
fingers inside the observation openings in the griddle at any time as injury could occur.
Location of Appliance
Most importantly, this is an outdoor appliance. Ensure your appliance is positioned safely awayfrom
anything that can catch fire. Under no circumstance is this appliance to be used indoors. Thisincludes
garages or any other enclosed area. This outdoor cooking gas appliance is not approved to be installed in
or on any recreational vehicles and /or boats. Blaze Griddles are for single family/residential use only.
When determining a suitable location take into account concerns such as exposure to wind, proximity to
traffic paths and keeping any gas supply lines as short as possible.
Do not store combustiblematerials,
gasoline or flammable liquids or vapors around the appliance.
This BLAZE GRIDDLE must be located outdoors only.As with any gas appliance, harmful carbon
FOR YOUR SAFETY
NOTE: Check with City and Fire department for Local Building Codes. APermit may be
required for outdoor kitchen construction.

Blaze Outdoor Products Instructional Book
Page | 8
Version 1.0
monoxide is produced during the combustion process that should not be allowed to accumulate in a
confined space. Please note since hot air rises above the BLAZE GRIDDLE while in operation, covered
locations should be avoided. Do not locate the BLAZE GRIDDLE where an overhang or awning may
cover it.
DO NOT obstruct the flow of combustion and ventilation air to this appliance
Keep any electrical supply cords and the fuel supply hoses away from any heated surfaces and/or sharp and
aggressive edges.
NON-COMBUSTIBLE ENCLOSURE: The BLAZE GRIDDLE must be installed in a NON-COMBUSTIBLE
ENCLOSURE ONLY.The determination of whether a location is combustible or non-combustible
construction is made by the local fire marshal, building inspector or the local safety authority having
jurisdiction.
Clearance from Combustibles: Ensure your appliance remains at a distance of at least 14” from sides
& 16” from back from any
adjacent
combustible material such as wood, gyprock, paper and plants. The
outdoor kitchen structure itself should be constructed completely out of non-combustible materials. This
outdoor cooking gas appliance shall not be located under overhead construction.
Adequate Ventilation: Ensure there is adequate ventilation for both the appliance and
island cavity.
This is required not only for proper combustion, but also to prevent gas build up. While the amount of
venting required varies on a case by case basis, consult with your local licensed professional and local
code for adequate venting requirements. Keep the ventilation openings of the enclosure free and clear
from any debris.
Firm Level Surface: Use your appliance only on a firm level surface. This appliance is not designedfor
recreational vehicles, and should not be installed on a boat or marine craft.
Protection from Weather: Keep the appliance protected from adverse weather, including rain andwinds.
Wind, particularly coming into the rear of the griddle, can affect the exhaust from escaping from
the griddle. This can back up the heat behind the control panel potentially creating a gas leak,
damage to the product, and injury.
Maintenance Access: When your appliance is installed, you should be able to access the gassupply
line including the gas piping or hose, gas regulator, gas cylinder and any shut off valves. Allow clear
access to the entire gas supply hose andregulator.
Partial Enclosures: Many backyards have areas that are partially closed off, such as balconies and
pergolas. In some cases, it is hard to decide whether these partially enclosed areas should beclassified
as indoor areas, particularly in terms of permanent (non-closable) ventilation. Consult the AHJ(Authority
Having Jurisdiction) or local contractor of any uncertainty. This outdoor cooking gas appliance shall not
be located under overhead construction.

Blaze Outdoor Products Instructional Book
Page | 9
Version 1.0
Please read all instructions before installing or operating your gas appliance to prevent injuryand
appliance
damage.
All gas appliances will get hot during use. Use extreme caution when operating the appliance.
Do not touch hot surfaces. Always use the handle to open or close theappliance.
Close supervision is necessary when this or any appliance is used near children. Keep children away
from the appliance during operation and until the appliance has cooled off.
Do not store any LP cylinder or tank not connected for use with the appliance, in the area ofthis
appliance or any other appliance. Never store an LP cylinder or tank indoors, or within the reachof
children.
Never test the appliance for gas leaks using a lighted match or any other open flame; see leak test
procedures using soap/water solutions – see section on Leak Testing.
The use of accessories, regulators, or components not recommended by the appliancemanufacturer
may cause injuries and will void warranty.
Never light the appliance with the lid on and be certain that the burners are positioned andseated
over the
gas valves and on the burner support.
Never lean over the cooking surface when lighting or operating the appliance.
Use cooking utensils with wood handles and insulated oven mitts when operating the appliance.
Do not store anything in the appliance. Make sure food is not forgotten in the appliance; forgotten items
could melt or catch fire when the appliance is turned on.
To prevent injuries, do not use accessories that are not recommended by the manufacturer.
Never use the appliance in windy conditions. If located in a consistently windy area (oceanfront,
mountaintop, etc.) a wind break will be required. Winds blowing into or across the rear exhaust can
cause
poor performance and / or cause the control panel to get dangerouslyhot.
Always remove the appliance lid carefully, using only the handle - the lid may be hot.
Children should not be left alone or unattended in an area where any appliance is in use. They should
never be allowed to touch, sit or stand on any part of the appliance.
Do not store items of interest to children in cabinets above the appliance or in the appliance. Children
climbing on the appliance to reach these items could be seriously injured.
Wear proper clothing when operating this appliance. Loose-fitting or hanging garments should never be
worn while using the appliance.
Do not leave the appliance unattended while in use.
Do not use water on grease fires! A violent steam explosion may result. Instead, smother the fire with a
multipurpose ABC extinguisher.
Never place your fingers inside the observation openings in the griddle plate during
removal or replacement of the griddle plate as they could be pinched. Never place your
fingers inside the observation openings in the griddle at any time as injury could occur.

Blaze Outdoor Products Instructional Book
Page | 10
Version 1.0
Electrical Safety and Installation Warnings
Extension cords may be used if:
The marked electrical rating of the cord set or extension cord should be at least as great as theelectrical
rating of the appliance
Care is exercised in their use
The cord should be arranged so that it will not touch hot surfaces, sharp edges or drape overthe
countertop or tabletop (where it can be pulled or tripped over unintentionally).
Outdoor extension cords should be used with products suited for outdoor use. They are surface marked with
suffix letters "W" or "W-A" and with a tag stating "Suitable for Use with Outdoor Appliances".
To protect against electrical shock, the power cord and plug should be kept dry and off of theground.
Do
not clean this product with water spray; do not spray cleaners into the lamp socketarea.
Gasoline, lighter fluid or other flammable liquids and vapors should never be stored in the area of this appliance
or any other appliance.
Before installation or service, disconnect the power supply to the work area by removing the fuse, "tripping"the
circuit breaker, or unplugging theunit.
Keep any electrical supply cord and fuel supply hose away from any heated surfaces, sharp edges and
dripping
grease.
Be certain your appliance is properly installed and grounded by a qualified technician in accordancewith
applicable codes. To guarantee the electrical safety of this appliance, continuity must exist between the
appliance and an effective grounding system. It is imperative that this basic safety requirement be met.The
manufacturer cannot be held responsible for damages caused by the lack or inadequacy of an effective
grounding system.
Do not operate any appliance with a damaged power cord or power plug, and do not operate any appliance
after
the appliance malfunctions or has been damaged in any manner. If this should occur, return the appliance
to the
nearest authorized service facility for examination, repair oradjustment.
Be certain your appliance is properly installed and grounded by a qualified technician in accordance with
applicable codes. Toguarantee the electrical safety of an appliance, continuity must exist between the
appliance
and an effective grounding system. It is imperative that this basic safety requirement be met. The
manufacturer cannot be held responsible for damages caused by the lack or inadequacy of an effective
grounding system.
This appliance conforms to all uniform electrical safety codes and electrical grounding regulations. Install
unit
according to I.A.W. local codes or with National Electrical Code ANSI/NFPA 70 or CSA C22.1 in their
absence.

Blaze Outdoor Products Instructional Book
Page | 11
Version 1.0
Gas Safety and Installation Warnings
•
All gas connections should be made by a Professional qualified technician and in accordance with local
codes and ordinances. The installation must conform with local codes or, in the absence of
local codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1,
Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code.
•
Always check the Rating Plate to make sure the gas supply you are hooking up to is the gas type
the
appliance is manufactured for.
•
Check the rating label on the left hand outside of the unit.
•
Do not twist the gas supply hose.
•
Before each use, visually inspect the gas supply hose for cracks, cuts or excessive wear. Replace
the
hose if necessary. Check for gas leaks before each use.
•
Gas Specifications: Be sure that the gas supplied to the appliance conforms to the model you
purchased. A Natural Gas appliance requires natural gas to operate; an LP appliance requires liquid
propane gas to operate.
•
Never connect the appliance to an unregulated gas supply line. Appliances operated without aregulator
are
unsafe and will not be serviced until installed properly and safely. Unsafe operation without agas
regulator
will void the warranty of the appliance.
•
Appliances operated with NG (natural gas) gas must be installed with the NG regulator supplied withthe
unit and set to 4.0" water column pressure.
•
Appliances operated with LP (liquid propane) gas must be installed with an LP regulator set to 11"water
column pressure.
•
Please contact your dealer and use a licensed contractor or installer to convert your appliance tothe
different gas type.
•
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY
HOT SURFACE, SHARP OR ROUGH EDGES OF THE GRIDDLE OR OUTDOOR KITCHEN
CONSTRUCTION. DO NOT KINK THE GAS LINE WHEN INSTALLING.

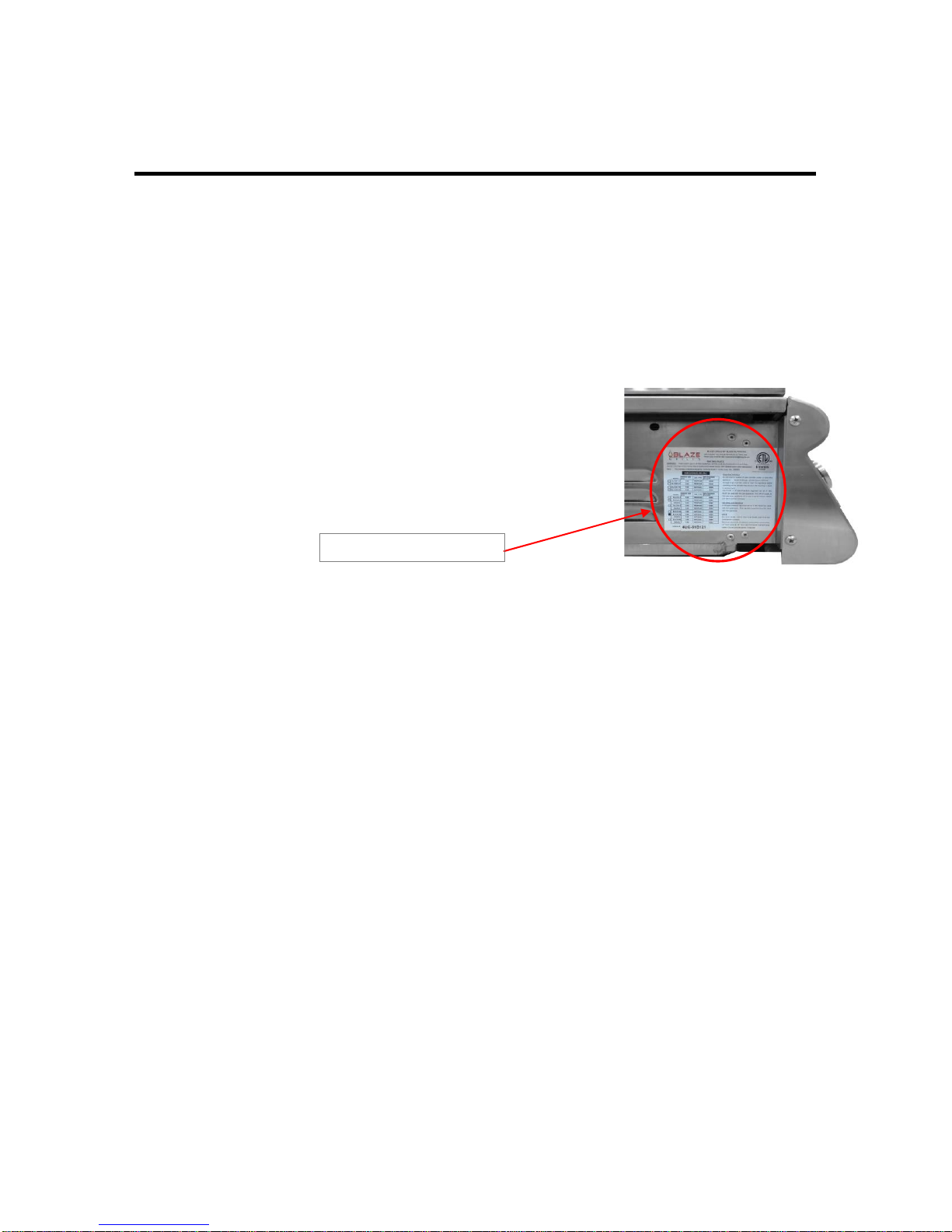

RATING PLATE LOCATION

Blaze Outdoor Products Instructional Book
Page | 12
Version 1.0
The self-contained LP system appliance is design certified to be used with a standard 20 lb., 12 1/4"diameter;
18"
high cylinder with right handed connection threads and this is the maximum size LP tank to be used.The
cylinder
must be marked in accordance with the latest U.S. Department of Transportation specifications forLP
gas cylinders.
(DOT. CFR49 or National Standards of Canada CAN/CSA-B359 Cylinders, Spheres and Tubes for
the
Transportation of Dangerous Goods) a Propane Tank with an OPD) Overfill Prevention Device) must beused
at all
times.
IMPORTANT: Never connect the appliance to an unregulated gassupply.
The installation of this appliance must conform with local codes or in the absence of local codes, to the national
fuel
gas code, ANSI Z223.1a-1998. Installation in Canada must be in accordance with the standard CAN/CGA-
B149.2,
Propane InstallationCode.
A licensed contractor or local gas company representative must perform all natural gas connections.
Ensure that the service supplying the appliance is fitted with a shut off valve conveniently positioned near the
appliance and giving ease of access.
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during
any
pressure testing of that system.
GAS LEAK WARNINGS
Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure – ONLY USE A
PROFESSIONAL.
NEVER USE THE GRIDDLE WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS
INCLUDING ALL OF THE VALVES, FITTINGS, LINES ETC. (ANY GAS CONNECTION SHOULD BE
CHECKED)
WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
DO NOT SMOKE WHILE PERFORMING THE LEAK TEST. Any Open Flame will Ignite the gas.
To prevent fire or explosion hazard, Perform leak test outdoors only.
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before
each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator
and hose assemblies specified by BLAZE OUTDOOR PRODUCTS.

Blaze Outdoor Products Instructional Book
Page | 13
Version 1.0
Checking for Gas Leaks
Perform a leak test before each use. In
addition, whenever the gas cylinder is connected to the regulator or
whenever any part of the gas system is
disconnected or replaced, perform a leak test.
As a safety precaution, remember to always leak test your appliance outdoors in a well-ventilated area. Never
smoke or permit sources of ignition in the area while doing a leak test. Do not use a flame, such as a lighted
match to test for leaks. Use a solution of soapywater.
Prepare a leak testing solution of soapy water by mixing in a spray bottle one part liquid soap to one
part
water.
Make sure all the control knobs are in the OFF position .
Turn on the gas
o
On Natural Gas systems, turn the main feed valve to the appliance.
o
On LP systems, turn the cylinder valve knob counter clockwise one turn to open.
Apply the leak-testing solution by spraying it on joints of the gas delivery system. This includes all
valves, pipe connections, joints, lines and every point from the gas source to the burners.
Blowing bubbles in the soap solution and/or there is a faint gas smell (Typically Gas has an Egg Smell)
indicates that a leak is present. Do not attempt to ignite the griddle.
Turn all control knobs back to the full OFF position.
Stop a leak by tightening the loose joint and/or resealing with thread sealant or Teflon tape, removing
sealant or
tape in the event of a flared connection or by replacing the faulty part with a replacement part
recommended by the manufacturer. Do not attempt to repair the cylinder valve if it is damaged. The
cylinder must be discarded to a proper LP tank location and then replaced.
If you are unable to stop a leak turn all control knobs back to the full OFF position, shut off thegas
supply to the appliance and release pressure in the hose and manifold by pushing in and turning any
of
the control valves one quarter turn counter-clockwise.
On LP systems, remove the cylinder from the appliance.
Call an authorized gas appliance service technician or an LP gas dealer.
Do not use the appliance until the leak is corrected.

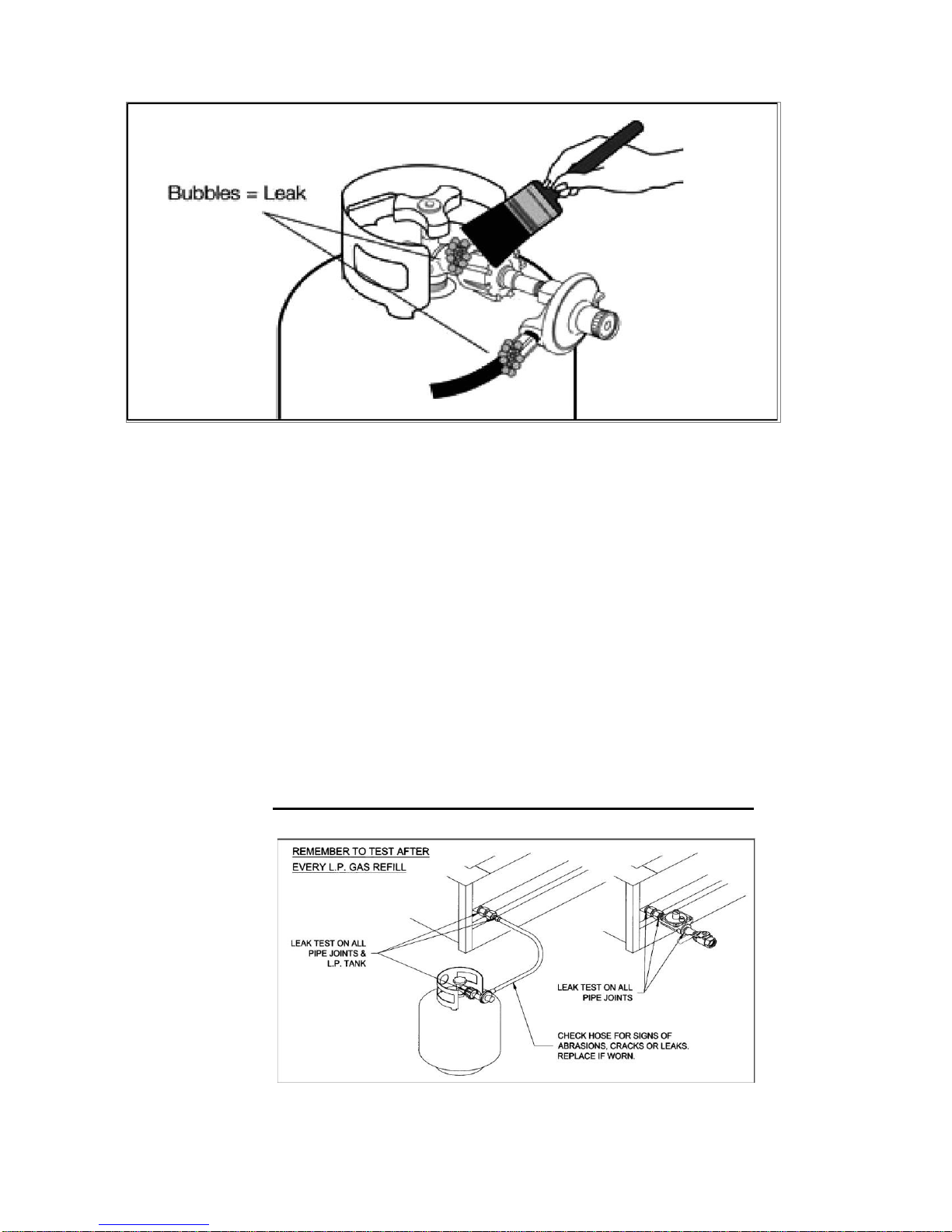

The below diagram is intended to show what a leaking connection would look like. These two locations
are not the only points to check nor the only potential areas for a gas leak to be present.

Blaze Outdoor Products Instructional Book
Page | 14
Version 1.0
Leak Testing
All gas piping and connections must be tested for leaks after installation or service along with before each
use. This includes all valves, pipe connections, joints, lines and every point from the gas
source to the burners.
All leaks must be corrected
immediately. Remember-before exchanging an empty bottle for a new one; make
sure all control valves are in
the “off” position. This can create a low flow of gas through the griddle. This would
require the tank to be disconnected from the regulator, and then reconnected to reset the regulator.
Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints. Bubbles forming
indicate gas leak.
The following diagram is for informational purposes only. These locations are not the only points to
check nor the only potential areas for a gas leak to be present. Ensure the leak test includes all
valves, pipe connections, joints, lines and every point from the gas source to the burners.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.

Blaze Outdoor Products Instructional Book
Page | 15
Version 1.0
UNPACKINGUNIT:
Product Inspection:A final inspection of your product occurs at the factory to ensure a quality product is
packaged. Please re-check for possible shipping damage immediately after unpacking your griddle. If the appliance is
found to have some damage, contact your dealer immediately as often the shipping carrier will have a timeframe to
report damage. Please also save the packaging material the product came with as that is at times inspected by the
shipping carrier.
Caution: Do not leave the unit under the sun with the protective film on for a long period of time as it will make
the film difficult to remove and/or leave markings on the materials which are not covered by the warranty.
Never place your fingers inside the observation openings in the griddle plate during
removal or replacement of the griddle plate as they could be pinched. Never place your
fingers inside the observation openings in the griddle at any time as injury could occur.
Your Blaze Series Appliance comes pre-assembled and requires very little setup. We do however;recommend
the use of professional help during the installation of your unit as improper installation may affect your warranty.
Remove the unit from the box along with all accessories and check that no damage has occurred to the unitor
any parts. Remove all packaging materials, labels and protective plastic film before you start cooking.
Burners: Check the burner tubes and remove any obstructions that may be in the ports or holes. Usingcold
water
and a brush will be sufficient. Make sure all foreign particles are removed from the burner beforeuse.
Make sure
the air shutter on the burners is slightly opened (to about 1/8" for NG and 1/4" forLP). When finished ensure that
the burners are aligned with the valve orifice and seated in the bracket slot. This is accomplished by first
placing the burner tube shutter hole securely over the valve orifice and ensuring the male post on the griddle
chassis rests in the corresponding slot in the rear of the burner. Failure to do so could result in a fire and injury.
Never place your fingers inside the observation openings in the griddle plate during
removal or replacement of the griddle plate as they could be pinched. Never place your
fingers inside the observation openings in the griddle at any time as injury could occur.

Version 1.0
Blaze Outdoor Products Instructional Book
Page | 16
Gas Connections
Natural Gas Requirements
Connect a suitable natural gas flex connector to the griddle regulator located on the rear right corner of
the
appliance. It is recommended to use a flex connector with a minimum of a ½” diameter orlarger.
Sealing all non-flared fittings with thread sealant or Teflon tape.
Ensure the flex connector is protected from sharp edges, heat, aggressive surfaces, and kinking.
Check the appliance controls to ensure all control valves are in the full OFF position.
Turn on the main gas supply and check all connections for leaks using soapy water as described inthe
leak testing procedure section.
The regulator used must be set for 4” water column and is for use with Natural gas only. Note: Most low
pressure regulators have a directional arrow indicating the direction in which the gas must travel.
Ensure the arrow is pointing in the direction of the griddle.
An installer supplied gas shutoff valve must be installed in an accessible place.
Liquid Propane (LP) Gas and Tank Requirements
If your BLAZE GRIDDLE is for Liquid Propane application, a L.P regulator set for 11” WC must be used
and is for use with L.P. gas only.
The regulator and hose supplied must be used with a 20 lb. L.P. cylinder.
A collar to protect the cylinder threads on the customer supplied tank.
An arrangement for gas vapor withdrawal.
A safety relief device having direct communication with the vapor space of thecylinder.
A method of mounting.
The gas supply must be turned off at the LP Gas supply cylinder and the LP Gas supply cylinder must be
disconnected from the regulator when this outdoor cooking gas appliance is not in use.
Always sit the cylinder in an upright position so that the cylinder valve is at the top. This will ensure proper
vapor withdrawal.
The cylinder should not be stored in a building, garage, or any other enclosed area. It should be stored
outdoors in a protected, cool, and dry location out of reach of children.
Never store any spare or extra gas cylinder(s) around or in the outdoor kitchen containing the BLAZE
GRIDDLE or any other open flame, heat-producing appliance(s) or heat source.

Version 1.0
Blaze Outdoor Products Instructional Book
Page | 17
Turn control knobs and cylinder valve to the OFF position. Unscrew valve.
Remove cylinder and have it filled at your local qualified propane dealer.
Once filled, carefully connect the valve and make sure it is secure and not leaking.
With the control knobs in the OFF position, turn on the cylinder valve.
If you smell gas or hear a hiss of gas escaping from the tank, get away from the tank and do not attemptto
correct the problem yourself. Call the Fire Departmentimmediately.
If your appliance has no leak at the cylinder, then re-check for loose connections and retest for leaks using the
method detailed in the following pages with soapysolution.
Do not subject your LP gas cylinder to excessive heat, and always store the cylinder in an uprightposition.
Never store your LP cylinders indoors.
Make sure that when attaching components, all connections are secured and fully tightened to preventleakage.
Always check for leaks before every use.
If one is not already available, it is required that an ON-OFF shutoff valve be installed at the gas supply
source, and
that the gas supply be turned off when either Natural Gas or LP Gas appliances are not inuse.
Transporting and Storing LPGas
Transport only one cylinder at a time. Ensure the cylinder is secured in an upright position with the controlvalve
turned off and the dust cap in place. Store cylinders outdoors and out of the reach of children. Do notstore
cylinders in a building, garage, or any other enclosedarea.

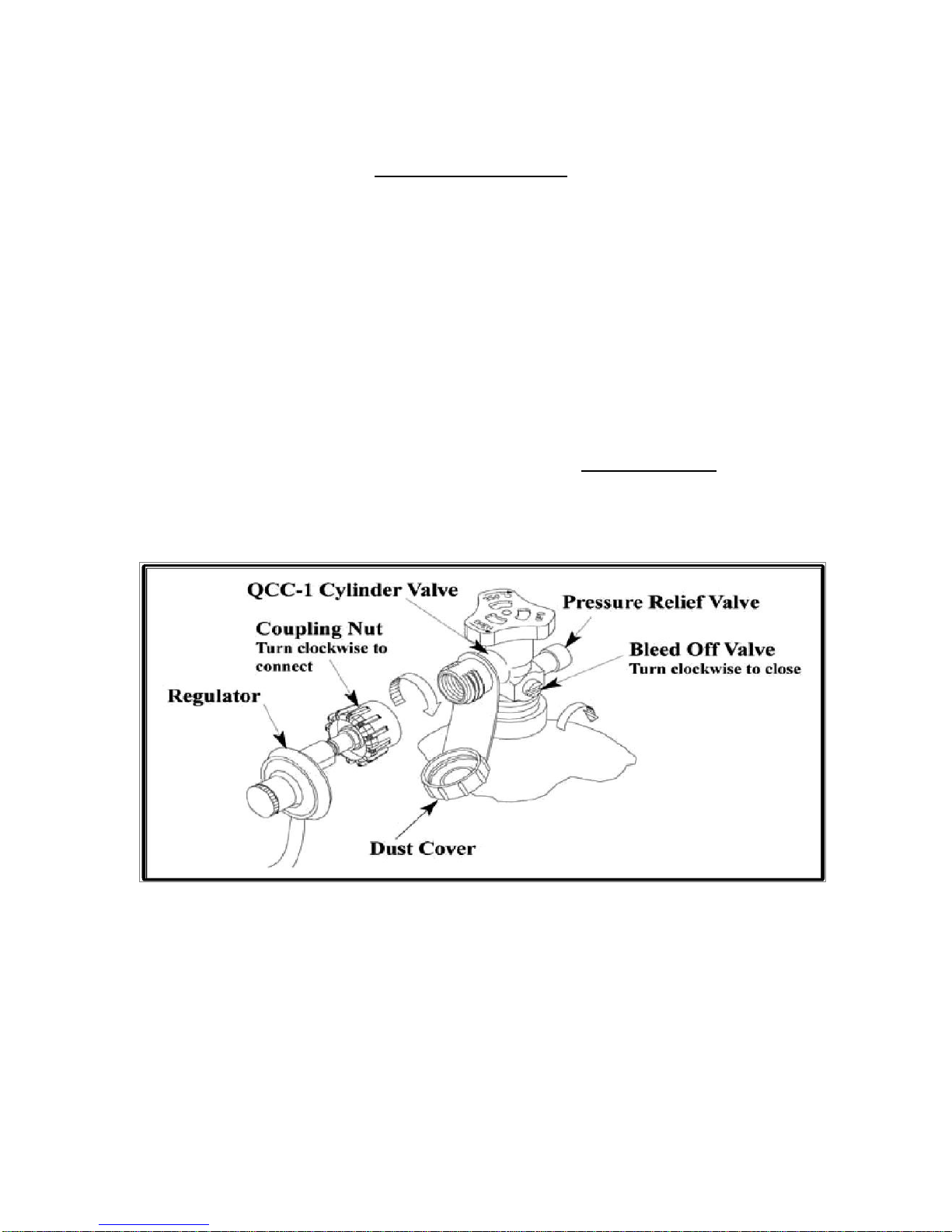

Procedure for LP Gas Cylinder Connection (20 lbs)
1. Turn the “Hand Wheel” on cylinder clockwise until it stops to ensure the Cylinder Valve is fully
closed.
2. Turn all of the burner knobs to the OFF
Filling and Refilling LP Gas Cylinders:

Version 1.0
Blaze Outdoor Products Instructional Book
Page | 18
position.
3. Connect the 3/8” Flare end of the hose to the 3/8” Flare end of the brass coupling on the unit
using a 3/4” open wrench. Do not apply pipe sealant. (These are flared fittings). Note: remember
the rubber line on the hose and regulator must be protected from sharp edges, hot surfaces,
aggressive building materials that could cut, melt, or damage the line. A separate approved gas
line might be needed to go between the hose and regulator and the grill to position the rubber line
in a safe location.
4. Connect the regulator to the LP cylinder. Only hand-tighten the regulator.
5. Check for leaks using a soapy water solution by spraying on all connections, including all of
the valves, fittings, lines etc. (any and all gas connections have the ability leak and therefore it is
critical to check for leaks before each use)
6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position.
7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops.
8. Disconnect the regulator from the LP cylinder after use.

Version 1.0
Blaze Outdoor Products Instructional Book
Page | 19
Installing the Appliance in an Island
You will need a second person to help you avoid damaging the appliance or your appliance island.
Ensure all clearances to combustibles are maintained. See page 23
The island must be made out of non-combustible material. In the event it is combustible, the use ofan
insulation jacket is REQUIRED.
Protection from Weather: Keep the appliance protected from
adverse weather, including rain and wind. Wind, particularly coming
into the rear of the griddle, can affect the exhaust from escaping
from the griddle. This can back up the heat behind the control panel
potentially creating a gas leak, damage to the product, and injury. A
wind block behind the griddle may be necessary.
NOTE: Check with City and Fire department for Local Building Codes. APermit
may be required for outdoor kitchen construction.

Version 1.0
Blaze Outdoor Products Instructional Book
Page | 20
Outdoor Kitchen Ventilation
WARNING
Failure to adequately vent your outdoor
kitchen cavity could result in an explosion
or fire.
When building a gas griddle into an outdoor kitchen, it is necessary to provide adequate ventilation for
the island cavity underneath. This is necessary for not only proper combustion, but also to prevent a
buildup of gas. While the amount of venting required for your island will vary due to the variety of
differing local codes, inner framework and design of an outdoor kitchen, the amount of gas products
installed and their locations, etc, all built in griddle islands should be ventilated in some way. Your local
contractor and/or your local code authority can determine adequate ventilation for each installation.
Stainless Steel vent panels are available from your dealer to cover the island venting.
The following information is important to consider when adhering to your local code requirements.
LP/Propane Gas: LP gas is heavier than air and will settle to the lowest levels of the outdoor kitchen. It
is imperative to provide adequate cross ventilation for the areas where gas can accumulate at these
lower levels of the island cavity. Should the Propane cylinder be located in the outdoor kitchen itself, a
plenum wall is required to separate the gas source from the other areas of the outdoor kitchen (picture
shown in owner’s manual), and both the cabinets containing the gas appliances and the gas tank should
be ventilated appropriately. If a plenum wall is undesirable, Blaze offers a Propane tank drawer as an
alternative.
Table of contents
Other Blaze Griddle manuals
Popular Griddle manuals by other brands

BREEO
BREEO SearPlate user guide

Bartscher
Bartscher FTG92MC1 Installation, operating and maintenance instructions

Holstein
Holstein HH-0910601 manual

Ikon
Ikon IMG12 Installation & operation manual

Star
Star 824M Installation and operating instructions

Star Manufacturing
Star Manufacturing Star-Max 624TSPD Specification sheet
