Blue Seal Evolution EP514 User manual

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 1
Service Manual
Electric Dedicated Griddle
EP514 / EP516 / EP518
Electric Dedicated Griddle Range
EP506 / EP56

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 2
ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY
QUALIFIED PERSONS ONLY.
WARNING:
MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS.
IMPORTANT:

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 3
This manual is designed to take a more in depth look at the Blue Seal Electric dedicated griddles and
ranges for the purpose of making the units more understandable to service people.
There are settings explained in this manual that should never require to be adjusted, but for completeness
and those special cases where these settings are required to change, this manual gives a full explanation
as to how, and what effects will result.
Section Page Number
1. Specifications ............................................................................................ 1
2. Installation ..................................................................................................
3. Operation.....................................................................................................
4. Cleaning / Maintenance ..............................................................................
5. Trouble-shooting Guide...............................................................................
5.1 Trouble-shooting Chart
5.2 Fault Diagnosis
6. Service Procedures......................................................................................
6.1 Access
6.2 Replacement
6.3 Adjustment / Calibration
7. Accessories ..................................................................................................
8. Exploded Parts Diagrams ............................................................................
8.1 EP514 600mm Griddle
8.2 EP516 900mm Griddle
8.3 EP518 1200mm Griddle
8.4 Base Options
9. Service Contacts ..........................................................................................
Contents

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 4

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 1
1
Specifications
Model Numbers Covered in this Specification
External Dimensions

Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 2
1
Specifications
Gas Supply (Non-UK Models)

2
Installation
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 3

2
Installation
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 4

2
Installation
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 5

3
Operation
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 6
NOTE: A full user’s operation manual is supplied with the product and can be used for further referencing
of installation, operation and service.
3.1 Description of controls

4
Cleaning / Maintenance
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 7

5
Trouble-shooting
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 8
Fault Possible Cause Remedy
ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY
QUALIFIED PERSONS ONLY.
WARNING:
5.1 Trouble-shooting chart

5
Trouble-shooting
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 9

5
Trouble-shooting
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 10
5.2 Fault Diagnosis
5.2.1

6
Service Procedures
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 11
Section Page Number
6.1 Access ......................................................................................................15
6.1.1 Control Panel............................................................................................................15
6.2 Replacement............................................................................................15
6.2.1 Thermocouple ..........................................................................................................15
6.2.2 Pilot Injector.............................................................................................................15
6.2.3 Pilot Burner..............................................................................................................16
6.2.4 Burners....................................................................................................................16
6.2.5 Main Injectors ..........................................................................................................16
6.2.6 Gas Control Valve .....................................................................................................16
6.3 Adjustment / Calibration.........................................................................17
6.3.1 Gas Control Re-greasing............................................................................................17
6.3.2 Low Fire Rate Adjustment..........................................................................................17
ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY
QUALIFIED PERSONS ONLY.
ENSURE GAS SUPPLY IS SWITCHED OFF BEFORE SERVICING
ALWAYS CHECK / TEST FOR GAS LEAKS AFTER SERVICE REPAIRS ON THE GAS
SYSTEM
WARNING:

6
Service Procedures
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 12
1)
6.1.1 Control panel
6.1 Access
Figure 6.1.1
6.2 Replacement
6.2.1

7
Accessories
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 13

8
Exploded Parts Diagrams
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 14

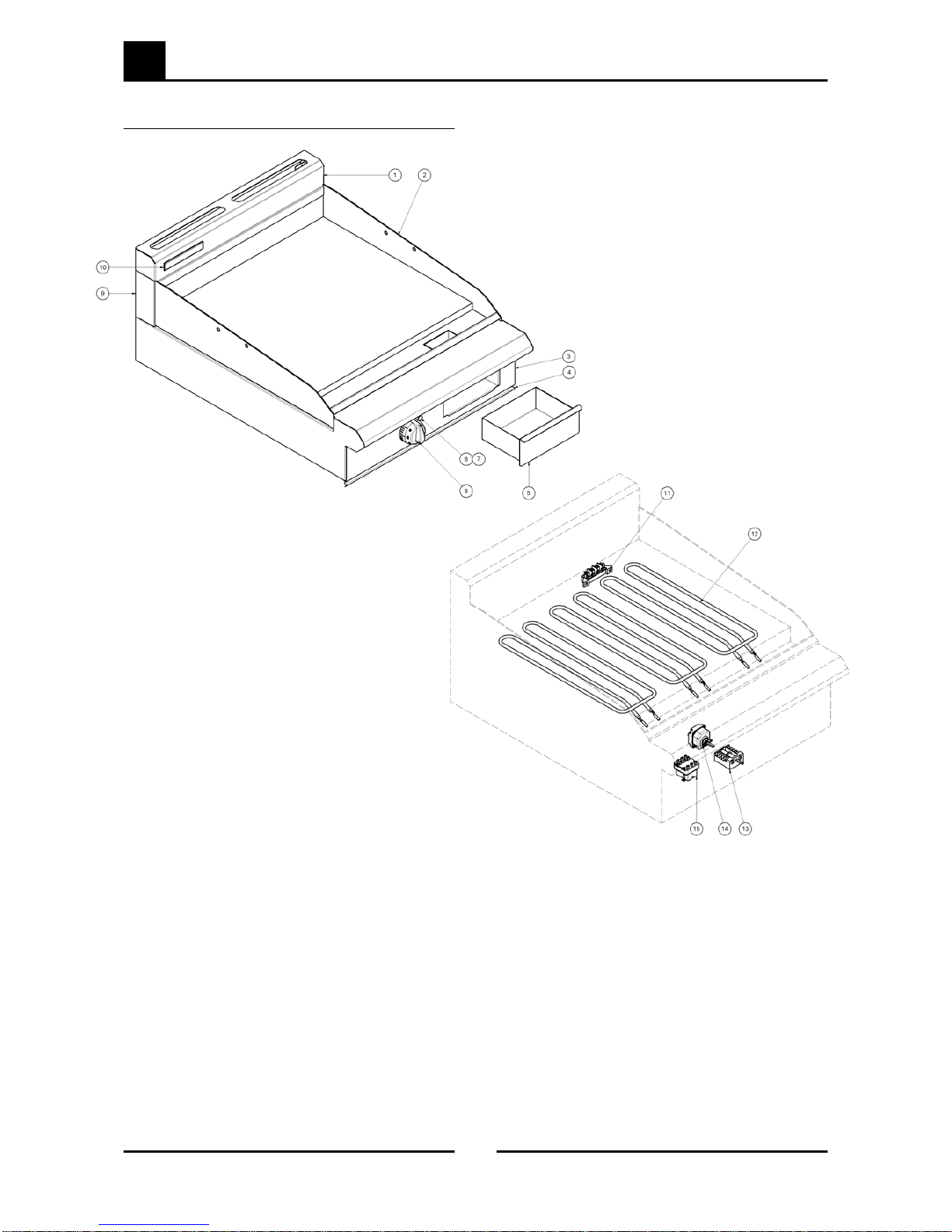

8.1 EP514 600mm Griddle
Item Part No Description
1 228923 SPLASHBACK FRONT WA BSEAL
2 229212 GRIDDLE E 600x20
3 229257 CONTROL PANEL EP514
4 227584 FRONT TRIM BSEAL
5 228400 GREASE DRAWER WA
6 227963 NEON ORANGE
7 228922 NEON CLEAR
8 227392 KNOB BSEAL 6MM 320-50°C
9 228173 SPLASHBACK ENDS
10 227960 BLUE SEAL BADGE
11 229021 TERMINAL BLOCK
12 229213 ELEMENT 2400W
13 229145 SWITCH EGO 42-04400-008
14 229146 THERMOSTAT 55-34054-060
15 229353 OVERTEMP THERMOSTAT 360DEG C
229266 GRIDDLE E 600x20 CHROMED 300mm RIBBED RH
229267 GRIDDLE E 600x20 CHROMED
229268 GRIDDLE E 600x20 CHROMED 600mm RIBBED

8
Exploded Parts Diagrams
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 15
8.2 EP516 900mm Griddle
Item Part No Description
1 228924 SPLASHBACK 900 BSEAL WA
2 229248 GRIDDLE E 900x20
3 229258 CONTROL PANEL EP516
4 227580 FRONT TRIM BSEAL
5 227963 NEON ORANGE
6 228922 NEON CLEAR
7 227392 KNOB BSEAL 6MM 320-50°C
8 228400 GREASE DRAWER WA
9 228173 SPLASHBACK ENDS
10 227960 BLUE SEAL BADGE
11 229021 TERMINAL BLOCK
12 229245 ELEMENT 2000W
13 229145 SWITCH EGO 42-04400-008
14 229146 THERMOSTAT 55-34054-060
15 229353 OVERTEMP THERMOSTAT 360DEG C
229270 GRIDDLE E 900x20 CHROMED
229271 GRIDDLE E 900x20 CHROMED 300mm RIBBED RH

8
Exploded Parts Diagrams
Revision 1/ © Moffat Ltd, January 2007
Blue Seal Evolution Series Electric Dedicated Griddle / Ranges 16
Item Part No Description
1 228181 SPLASHBACK FRONT WA WLDF
2 229279 GRIDDLE E 1200x20
3 228202 CONTROL PANEL ELECTRIC
4 227588 FRONT TRIM WLDF
5 227963 NEON ORANGE
6 227962 NEON GREEN
7 227399 KNOB WLDF 6MM 300-50°C
8 228400 GREASE DRAWER WA
9 228173 SPLASHBACK ENDS
10 227618 WALDORF BADGE
11 229021 TERMINAL BLOCK
12 229245 ELEMENT 2000W
13 229145 SWITCH EGO 42-04400-008
14 229146 THERMOSTAT 55-34054-060
15 229353 OVERTEMP THERMOSTAT 360DEG C
229281 GRIDDLE E 1200x20 CHROMED
229282 GRIDDLE E 1200x20 CHROMED 400mm RIBBED RH
8.3 EP518 1200mm Griddle
