Bluebird FLO Speed 6BS User manual

FLO Speed 6BS / 7BS
FLO Speed 6HO / 7HO
FLO Pro Speed 6HO / 7 HO
FLO Speed 6LC / 7LC
USE AND MAINTENANCE MANUAL
Translation of Original instructions
Rev. 1.0
ENGLISH

FLO 6 - FLO 7 Pag. 3 di 34
Manuale uso e manutenzione Rev. 1.0
TABLE OF CONTENTS
1 PURPOSE AND CONTENT OF THE MANUAL ...................................................................... 4
1.1 Symbols ...........................................................................................................................................4
1.2 Purpose of the manual..................................................................................................................... 4
1.3 Storing the manual ........................................................................................................................... 5
1.4 Readership.......................................................................................................................................5
2 GENERAL INFORMATION ....................................................................................................... 6
2.1 Manufacturer'sidenticationdata ....................................................................................................6
2.2 Limits of liability ................................................................................................................................ 6
2.3 After-sales service............................................................................................................................ 6
3 GUARD ....................................................................................................................................... 7
3.1 Intended use .................................................................................................................................... 7
3.2 Improper use .................................................................................................................................... 7
3.3 Inappropriate use and contraindications .......................................................................................... 8
3.4 General instructions ......................................................................................................................... 9
3.5 Meaning of the symbols used ........................................................................................................10
4 MACHINE PREPARATION ..................................................................................................... 11
4.1 Packaging contents........................................................................................................................ 11
4.2 Preparing the machine for use ....................................................................................................... 11

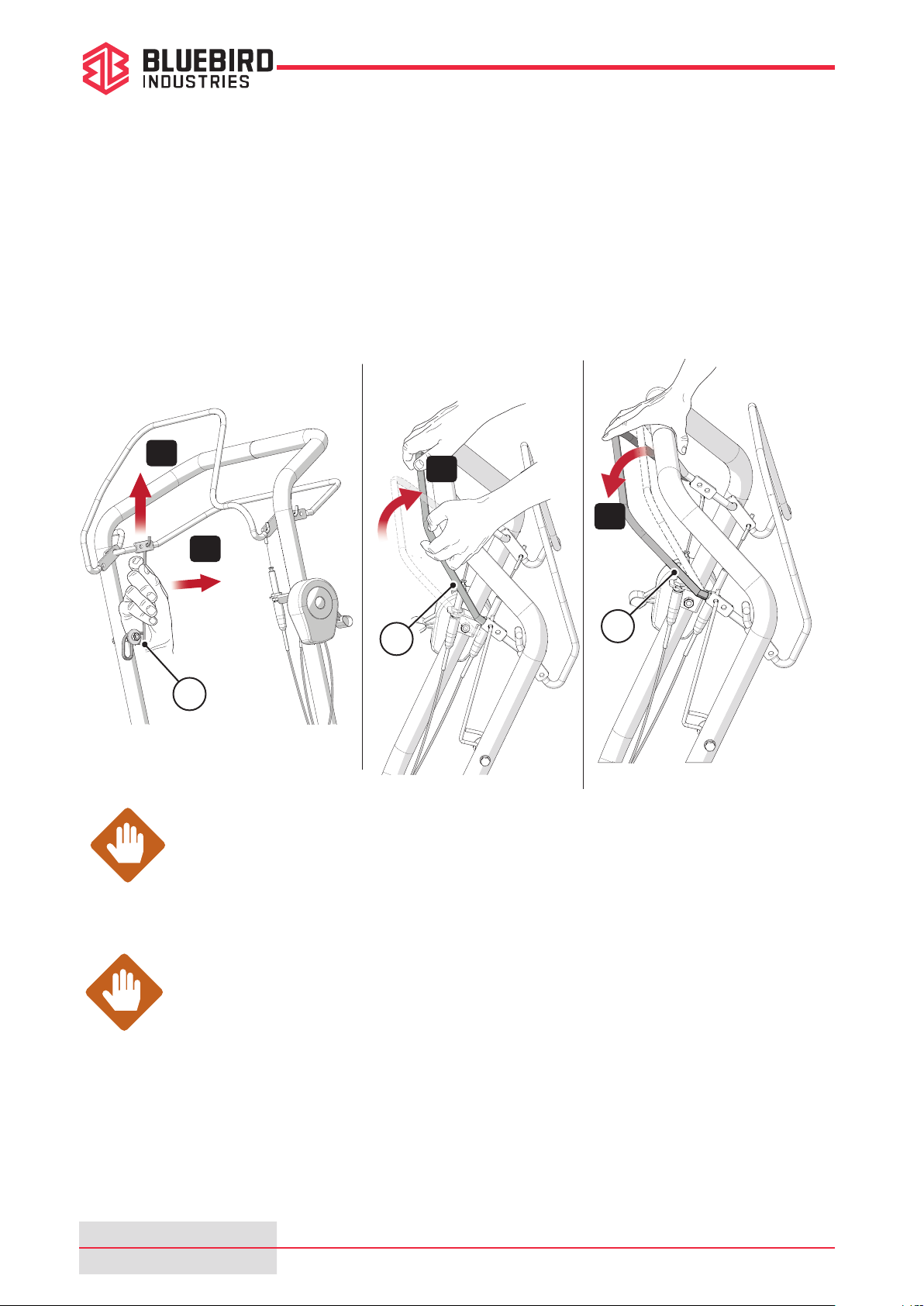

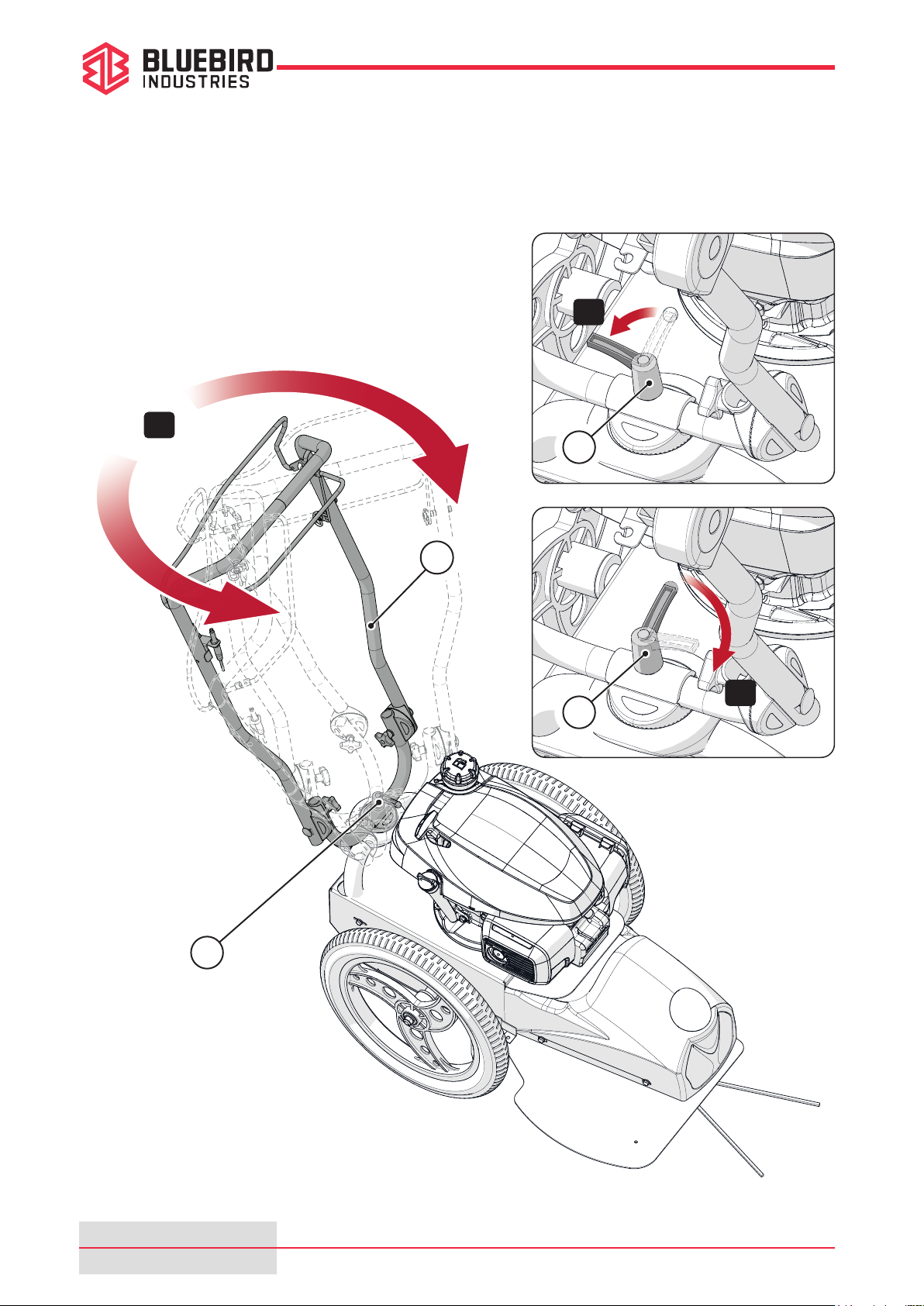

4.2.1 Opening the handlebar ............................................................................................................. 11
5 CONTROLS OPERATION....................................................................................................... 15
5.1 Starting and stopping the engine. ..................................................................................................15
5.2 Cutting device operation ................................................................................................................16
5.3 Self-propelling operation ................................................................................................................ 17
6 MAINTENANCE AND ADJUSTMENTS................................................................................. 18
6.1 Technical assistance for the engine ............................................................................................... 18
6.2 Lubrication and greasing................................................................................................................18
6.2.1 Engine oil .................................................................................................................................. 18
6.2.2 Reduction gear.......................................................................................................................... 18
6.2.3 Transmission chain ................................................................................................................... 18
6.3 Adjustments ...................................................................................................................................19

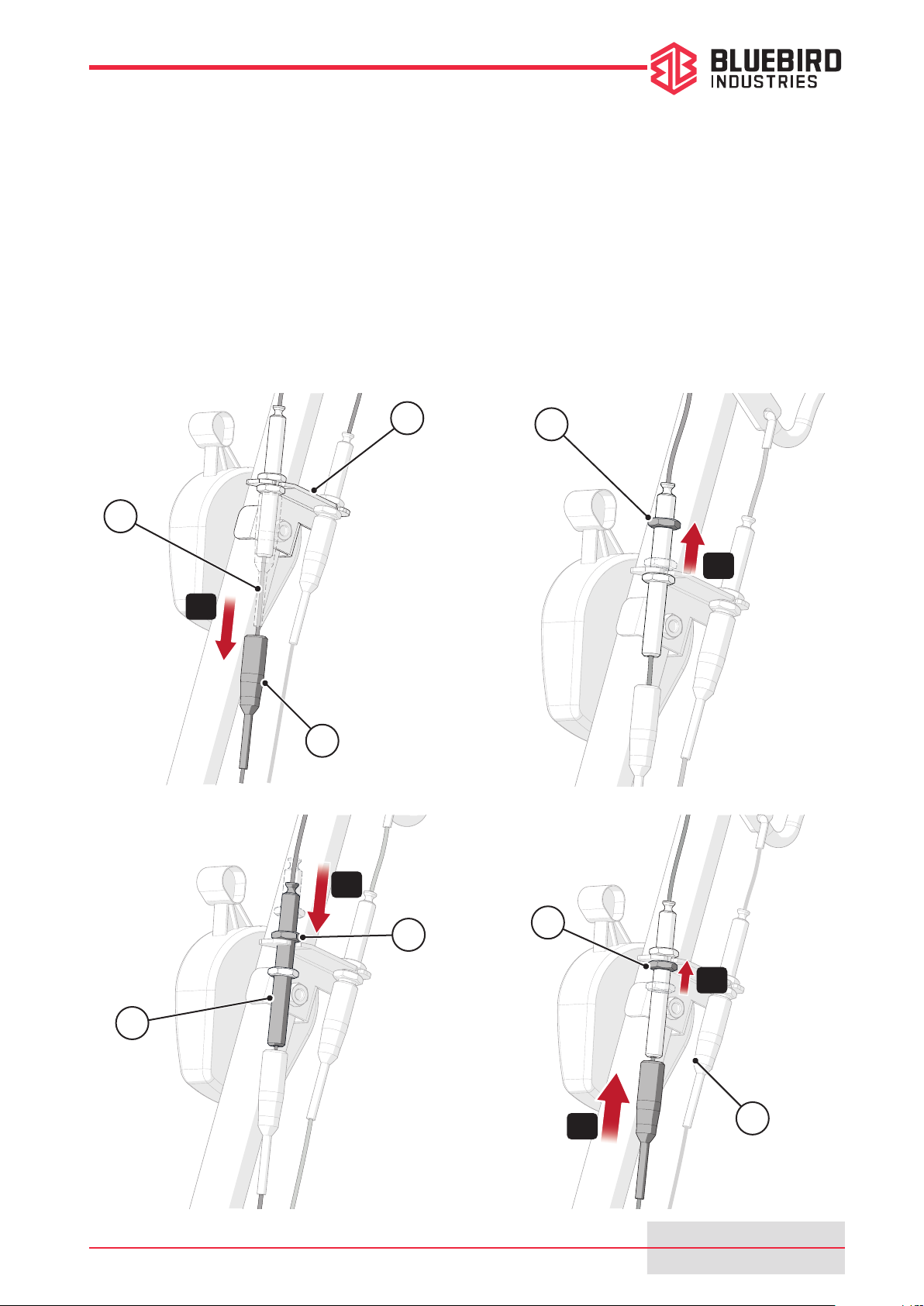

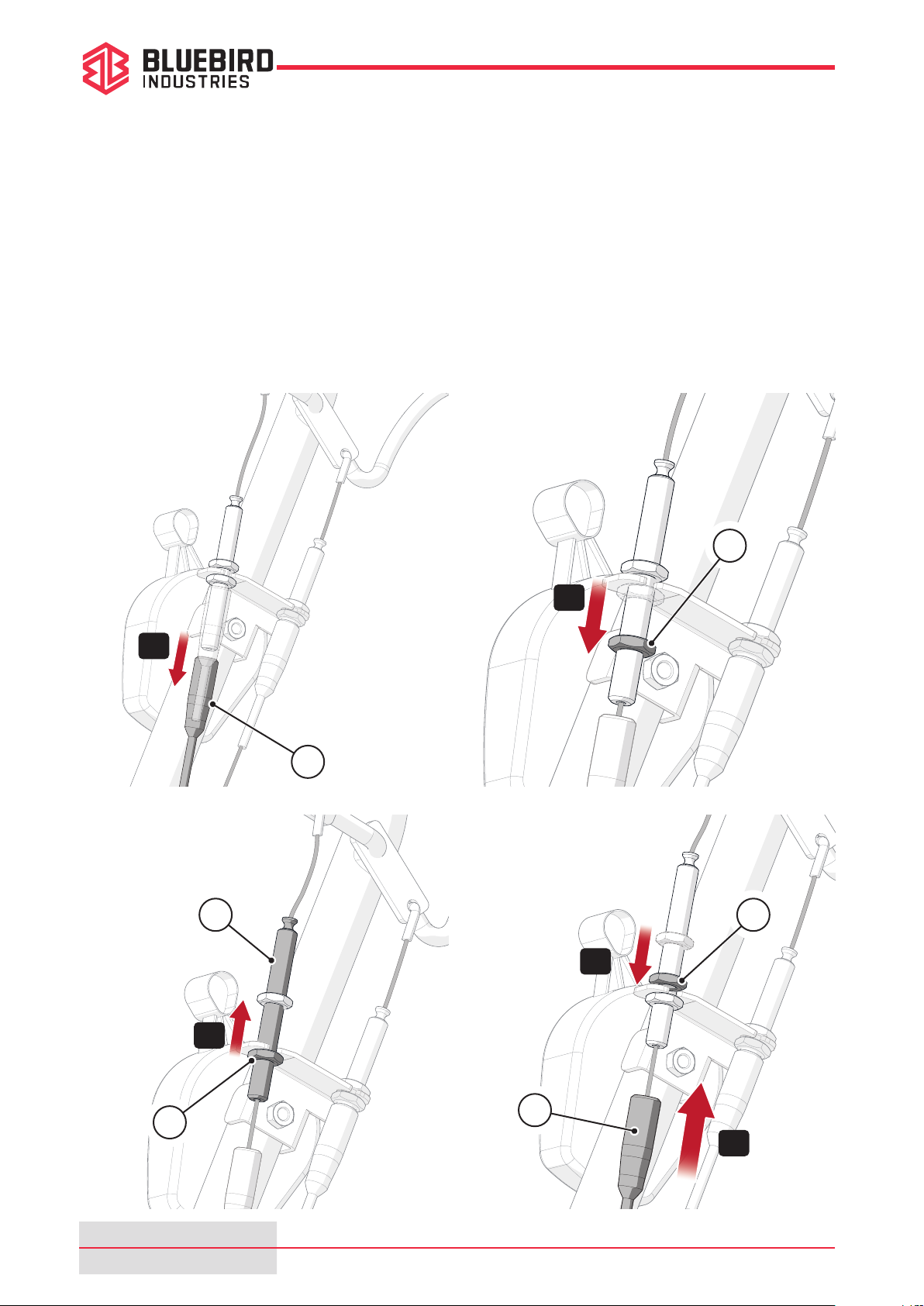

6.3.1 To increase cable tension ......................................................................................................... 19
6.3.2 To slacken the cable tension..................................................................................................... 20
6.3.3 Cutting device coupling control transmission............................................................................ 21
6.3.4 Feed coupling control transmission .......................................................................................... 21
6.3.5 Cutting belt centre distance adjustment.................................................................................... 22
6.3.6 Blade brake shoe ...................................................................................................................... 23
7 TRANSPORT AND STORAGE............................................................................................... 24
7.1 Transport........................................................................................................................................24
7.2 Storage...........................................................................................................................................24
8 CUTTING DEVICES................................................................................................................. 25
8.1 Line cutting device .........................................................................................................................25
8.1.1 Dissembling .............................................................................................................................. 26
8.1.2 Assembling ............................................................................................................................... 27
8.1.3 Replacing the cutting elements (Nylon line).............................................................................. 28
8.2 Blade cutting device ....................................................................................................................... 29
8.2.1 Blade device assembling. ......................................................................................................... 30
9 WARRANTY ............................................................................................................................. 34
Use and maintenance manual

PURPOSE AND CONTENT OF THE MANUAL
Pag. 4 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
1 PURPOSE AND CONTENT OF THE MANUAL
1.1 Symbols
To ensure the safety of persons and property, this manual uses symbols to draw attention
to particularly dangerous situations, warnings and important information for using the
brushcutter (hereinafter the "machine") correctly:
DANGER
Hazard that may lead to injury, even fatal.
Accident prevention regulations for the operator.
Pay the utmost attention to any text indicated by this symbol.
CAUTION
Possibility of causing damage to the machine and/or its components or for
communicating important information to the operator.
Be careful.
WARNING
Warning or note about key functions or useful information regarding the operation
being carried out.
1.2 Purpose of the manual
This operating manual, together with the engine operating manual, is an integral part of the
machine and was written with the aim of providing all the information necessary to/for:
• Make operators aware of safety issues.
• The correct and safe use of the machine.
• Enable operators to become familiar with the operation and limits of the machine.
• Carry out routine maintenance safety.
WARNING
Carefully read this manual and follow the instructions in it before using, checking
or performing any work on or with the machine.
PleasecontacttheManufacturerifyouhavedi󰀩cultiesinunderstandingthismanual.
The Manufacturer reserves the right to make changes to this manual without prior notice, as
long as this does not constitute a safety risk.
Images and drawings provided by way of example only.
Use and maintenance manual

PURPOSE AND CONTENT OF THE MANUAL
FLO 6 - FLO 7 Pag. 5 di 34
Manuale uso e manutenzione Rev. 1.0
1.3 Storing the manual
The manual should be kept carefully and close to the machine, away from liquids and anything
elsethatcoulda󰀨ectitsreadability,andshouldbereadilyaccessibleatanytime.
The manual and Declaration of conformity are integral parts of the machine and must therefore
accompany it for its entire service life.
Do not remove, tear out or modify the contents of this document.
In case the manual is lost or illegible request a copy to the Manufacturer.
1.4 Readership
The purpose of this manual is to provide the information required for the correct use of the
machine.
This manual is intended for personnel in charge of carrying out the following operations:
• use;
• adjustments;
• cleaning;
• routine maintenance.
Use and maintenance manual

GENERAL INFORMATION
Pag. 6 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
2 GENERAL INFORMATION
2.1 Manufacturer's identication data
BLUE BIRD INDUSTRIES
Via Due Camini, 19
36010-Zanè (Vi) - Italy
Phone: [phone]
Fax: [phone]
Website: www.bluebirdind.com/
e-mail: [email protected]
2.2 Limits of liability
The manufacturer shall not be liable for injuries or damage to property caused by:
• the improper use of the machine;
• failure to comply with some or all of the instructions provided;
• use that does not comply with current regulations;
• use that does not comply with national safety and accident prevention regulations;
• tampering with even a single part of the machine;
• carryingoutunauthorisedmodicationsorworkonthemachine;
• the lack of or inadequate preventive maintenance;
• the use of non-original spare parts.
2.3 After-sales service
If problems and/or doubts arise during machine use and for any spare parts orders, refer to
the retailer or the manufacturer's sales department, providing the following data:
• serial number
• model
• version
• year of construction
• engine model installed
WARNING
These data can be found on the purchase documents or on the special labels
placed on the machine.
Use and maintenance manual

SAFETY
FLO 6 - FLO 7 Pag. 7 di 34
Manuale uso e manutenzione Rev. 1.0
3 SAFETY
WARNING
Carefully read this manual and follow the instructions in it before using, checking
or performing any work on or with the machine.
DANGER
If the cutting tools are not in position and appropriately secured, they may cause
SERIOUS DAMAGE TO PEOPLE AND PROPERTY.
The manufacturer accepts no responsibility if the instructions provided in this manual are not
followed.
3.1 Intended use
The machine has been designed to cut grass and small shrubs in agricultural or forest
environment, driven by a single competent operator. Consequently, its use in di󰀨erent
conditionsorfordi󰀨erentpurposesfromthoseindicatedshouldbeconsideredincorrect.
Themachinecanworkonlyintheslopeconditionsspeciedbytheenginemanufacturerand
with the operator always able to govern it with a good safety margin, for themselves and for
those around them.
The protections have been designed taking into consideration, in particular, the complete
safety of the operator who, in the normal driving condition, cannot be reached by direct
projection of stones or other objects hurled from the rotating system.
Therefore the operator must always remain in the normal driving position, behind the machine,
withbothhandsplacedrmlyonthehandles.
3.2 Improper use
Improper use means the incorrect use of the machine that does not result in potential
accidents, but may cause serious damage to the machine itself.
Modifying or adjusting the machine in order to obtain a level of performance that is higher or
di󰀨erenttothatprovidedbythemanufacturerisconsideredIMPROPERUSEandtherefore
the manufacturer declines all liability for injury to persons or damage to property; the machine
warranty will be considered void.
Use and maintenance manual

SAFETY
Pag. 8 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
3.3 Inappropriate use and contraindications
CAUTION
The machine must be used for the purposes intended by the manufacturer.
It is PROHIBITED to use the machine in the following cases:
• withoutthespeciedguardsand/orwiththesafetydevicesdisabled,faultyormissing;
• setting it up in a way that is not compliant with the instructions in this manual;
• inexplosiveatmospheresorinplaceswherethereisarehazard;
• processing materials other than those intended by the manufacturer;
• dangerous situations or device malfunctions;
• improper use of the machine or use by untrained personnel;
• use contrary to the relevant regulations;
• if there are defects in the fuel supply system of the engine;
• if maintenance has not been carried out;
• aftermodicationsornon-authorizedinterventions;
• failure to comply with some or all of the instructions provided;
• usewithmaterialsandtoolsdi󰀨erentfromthoseintendedbythemanufacturer.
Use and maintenance manual

SAFETY
FLO 6 - FLO 7 Pag. 9 di 34
Manuale uso e manutenzione Rev. 1.0
3.4 General instructions
CAUTION
Read the manual carefully and make sure you have understood all the instructions
and recommendations given in this manual before starting to use the machine.
Keep this manual carefully and refer to it whenever necessary.
• Useclose-ttingoveralls(avoidloosettingshirtsorlooseclothing).
• Do not wear jewellery, rings, ties, scarves or anything else that might get caught in
branches or the moving parts of the machine.
• Tie up your hair so that it is above shoulder length.
• Wear closed work shoes or boots with non-slip soles that ensure stability (never use the
machinebarefootorwearingip-opsorlowopenshoes).
• Wear a protective helmet whenever there is a risk of contact with falling objects during
pruning operations or when cutting undergrowth at eye level. ALWAYS wear a visor and/
oranti-foggogglesfore󰀨ectivefaceandeyeprotection.
• Protectyourhearingbywearingearmu󰀨sorearplugs.
• Always wear work gloves that protect against light impact and cuts when handling blades,
knives, and/or sharp parts.
• Never allow the machine to be used by children or people who have not read these
operating instructions. Local laws may restrict its use according to the operator’s age.
• Do not use the machine when there are people, especially children, or pets nearby.
• Remember that the owner or user of the machine is responsible for accidents and damage
to others or to their property.
• Always wear earphones and goggles when using the machine.
• When using the machine, always wear strong shoes and long trousers.
• Never use it with bare feet or wearing open sandals.
• Before use carefully inspect the work area removing all the objects that may be hurled
from the shrub cutter.
• DANGER–thefuelishighlyinammableStorethefuelinspeciccontainers.
• Only carry out fuelling operations outdoors and do not smoke during these operations.
• Top up the fuel before starting the engine. Never remove the fuel tank cap when the
engine is running or hot.
• In the event of fuel leaks, do not start the engine. Move the machine away from the area
involved and wait until the spilled fuel has evaporated, preventing its contact with sparks,
freeamesoranyotherpossibletriggeringagent.
• Replace the fuel tank and container caps correctly.
• Substitute the silencer when damaged.
• Before use, always check that the cutting device and the individual cutting elements are
not damaged or worn. To maintain balancing, substitute these parts whenever they are
worn or damaged.
Use and maintenance manual

SAFETY
Pag. 10 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
3.5 Meaning of the symbols used
Warning, danger, caution
Read the product documentation and safety instructions in this manual.
Wear eye protection devices when using the product.
Wear hearing protection devices when using the product.
Wear a protective helmet when using the product.
Wear protective footwear.
Wear protective gloves.
SHARP ELEMENTS!
Keep your hands or feet away from moving parts and always keep away
from the cutting element, which will continue to rotate even after the engine
hasbeenswitchedo󰀨.
Payattentiontoyingobjects.
Warning: hurling of foreign bodies. Remain at a safe distance of at least 15 m.
Warning: disconnect the spark plug and read the operating manual before
beginning maintenance or repair operations.
Riskofreorexplosion.
Use and maintenance manual

MACHINE PREPARATION
FLO 6 - FLO 7 Pag. 11 di 34
Manuale uso e manutenzione Rev. 1.0

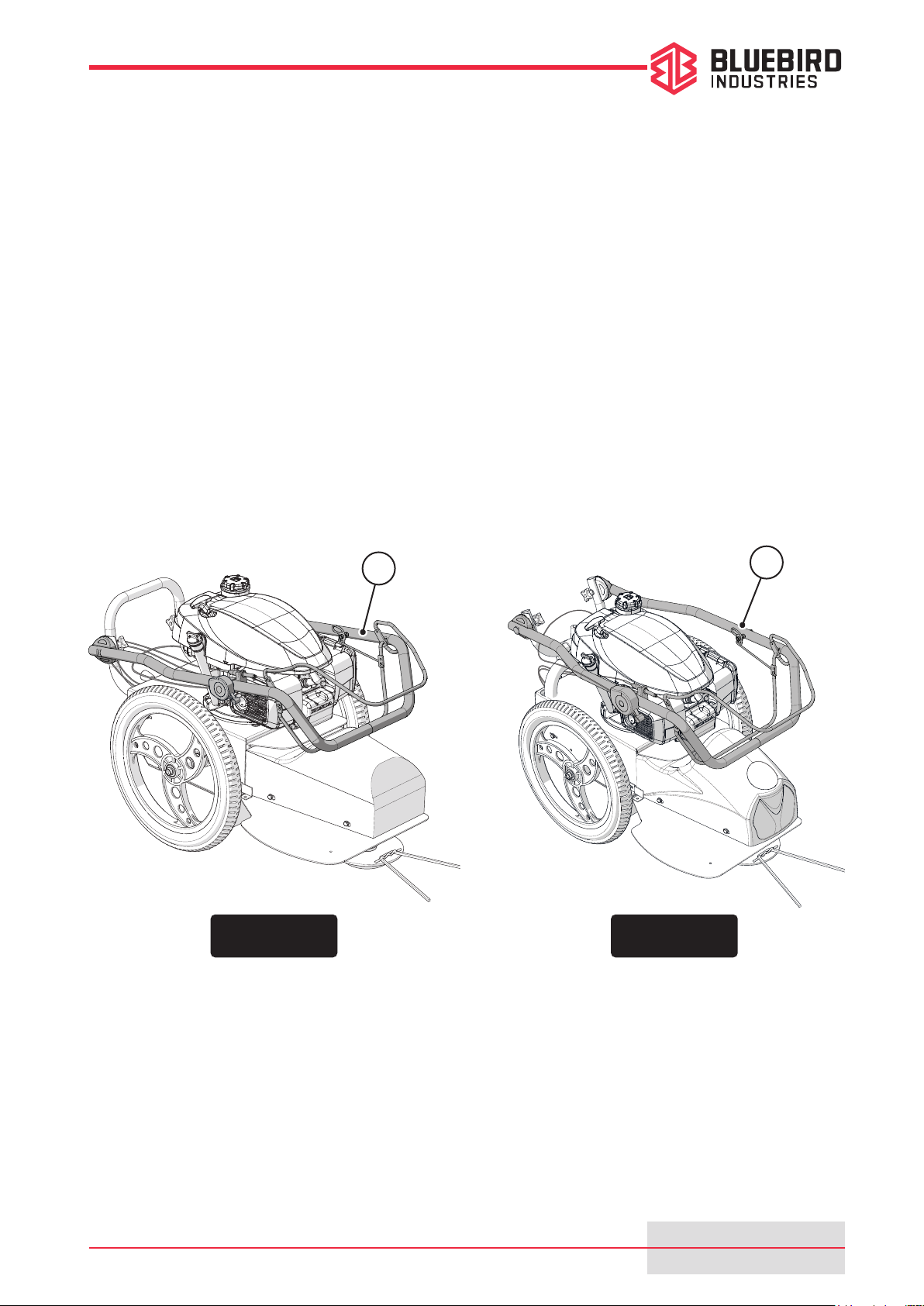

FLO 6 FLO 7
4 MACHINE PREPARATION
4.1 Packaging contents
The machine is delivered already assembled and does not require an assembly of the
components.
For space reasons, the handlebar is folded.
The packaging contents are as follows:
• the machine body;
• the tool bag;
• the use and maintenance manuals.
4.2 Preparing the machine for use
4.2.1 Opening the handlebar
The packaged machine comes with the handlebar (1) completely closed to reduce the overall
volume.
Use and maintenance manual
11

MACHINE PREPARATION
Pag. 12 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
To open the handlebar (1) in FLO 6 models:
1. loosen (A) the two side knobs (2) until the handlebar (1) is free to rotate.
2. Adjust (B) the handlebar (1) inclination as required.
3. Tighten (C) the two side knobs (2) to secure the handlebar (1) once the optimal working
position has been found.
Use and maintenance manual
1
2
2
2
2
B
B
A
C

MACHINE PREPARATION
FLO 6 - FLO 7 Pag. 13 di 34
Manuale uso e manutenzione Rev. 1.0
To open the handlebar (1) in FLO 7 models:
1. loosen (A) the two side knobs (2) until the handlebar (1) is free to rotate.
2. Adjust (B) the handlebar (1) inclination as required.
3. Tighten (C) the two side knobs (2) to secure the handlebar (1) once the optimal working
position has been found.
Use and maintenance manual
1
1
1
2
2
A
B
BC

MACHINE PREPARATION
Pag. 14 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
4. Loosen (D) the handlebar fastening lever (3) .
5. Adjust (E) the horizontal rotation of the handlebar (1) as required .
6. Tighten (F) the lever (3) once the optimal horizontal position has been found.
Use and maintenance manual
3
3
3
1
D
E
F

CONTROLS OPERATION
FLO 6 - FLO 7 Pag. 15 di 34
Manuale uso e manutenzione Rev. 1.0
S
T
O
P
M
I
N
S
T
A
R
T
M
A
X
S
T
O
P
M
I
N
S
T
A
R
T
M
A
X
5 CONTROLS OPERATION
5.1 Starting and stopping the engine.
Starting:
1. Move the gas control lever (1) to the “START-MAX” (A) position.
2. Press the fuel primer bulb on the engine carburettor (refer to the engine manual) and pull
the starter cord (2) until the machine starts.
WARNING
If the engine does not start, or in case of other problems relating to the engine,
please refer to the engine manual to identify the cause.
Stopping:
1. Move the gas control lever (1) to the “MIN-STOP” (B) position.
START STOP
Use and maintenance manual
1
1 1
2
A
B

CONTROLS OPERATION
Pag. 16 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
5.2 Cutting device operation
To activate the cutting device:
1. Lift (A) and move (B) the safety hook (2) of the cutting device to deactivate it.
2. Pull the cutting device control lever (3) towards you (C).
To deactivate the cutting device:
1. Release (D) the cutting device control lever.
CAUTION
Never remove the safety hook. Its function is to force the operator to operate the
cutting device using two hands, avoiding accidental operation (such as in the
case of a fall). If this command is removed, the machine would no longer comply
with applicable safety regulations, representing a source of danger for both the
operator and bystanders.
CAUTION
The safety brake stops the cutting device in a few seconds, but it is not
instantaneous. Therefore, once the cutting device control lever has been released,
the operator must not leave the driving position until the disc is perfectly still.
Use and maintenance manual
2
33
B
AC
D

CONTROLS OPERATION
FLO 6 - FLO 7 Pag. 17 di 34
Manuale uso e manutenzione Rev. 1.0
5.3 Self-propelling operation
To activate the automatic forward motion of the machine:
1. Select the desired speed and the gear by pushing the speed knob (4) on the rear of the
machine. When you push or pull the speed knob (A) you can set the gear to:
1- slow speed,
2- intermediate speed,
3- fast speed.
2. Push (B) the forward motion control lever (5) forwards, towards the handlebar (the wheels
will start moving the machine).
Release the forward motion control lever to stop the automatic forward motion of the machine.
CAUTION
Use particular caution on uneven ground. To make the machine manoeuvrable,
it is equipped with a “free wheel” system. This means that the wheel is free to
turn when pushed at a speed greater than the traction speed. The traction can
therefore not be used as a brake when working on uneven surfaces.
Use and maintenance manual
4
5
A
B

MAINTENANCE AND ADJUSTMENTS
Pag. 18 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
6 MAINTENANCE AND ADJUSTMENTS
Inthischapteraredescribedinspectionsoroperationswhichmayneedspecictechnicalskill
and adequate equipment. It is preferable that these operations are carried out by the retailer
orbyaqualiedassistancecentre.
CAUTION
Before starting these operations, switch o󰀨 the engine if running, disconnect the
spark plug and, in the case of machines with electric start or automatic starting
devices, remove the starting keys or any similar device.
CAUTION
Carry out the described operations wearing protective gloves and using suitable
equipment.
6.1 Technical assistance for the engine
All requests for technical assistance (including requests under warranty), should be submitted
directly to an authorized service centre:
• Briggs & Stratton (www.rama.it)
• Honda (www.honda-engines-eu.com)
6.2 Lubrication and greasing
6.2.1 Engine oil
Before each use check the level of the engine oil and, if necessary, top it up. For these
operations refer to the operating and maintenance manual of the engine.
6.2.2 Reduction gear
It does not need topping up.
6.2.3 Transmission chain
Clean and lubricate the transmission chain with gas oil or other suitable detergent when long
idlingperiodsareforeseen.Forinammablematerialstakeallthenecessaryprecautions.
Use and maintenance manual

MAINTENANCE AND ADJUSTMENTS
FLO 6 - FLO 7 Pag. 19 di 34
Manuale uso e manutenzione Rev. 1.0
6.3 Adjustments
The cables are adjusted by moving the adjuster on the thrust plate of the handlebar, to
lengthen or shorten the cable, thus stretching or slackening the transmission.
6.3.1 To increase cable tension
1. Remove (A) the protective cap (3).
2. Slackeno󰀨(B) the nut (4) bringing it to the desired position.
3. Push (C) the adjuster (5) downwards, until the nut (4) rests on the thrust plate.
4. Tighten (D) the nut (6) against the thrust plate.
5. Reinsert (E) the protective cap (3).
Use and maintenance manual
1
3
3
4
2
4
5
6
A
B
C
D
E

MAINTENANCE AND ADJUSTMENTS
Pag. 20 di 34 FLO 6 - FLO 7
Rev. 1.0 Manuale uso e manutenzione
6.3.2 To slacken the cable tension
1. Remove (A) the protective cap (3).
2. Slackeno󰀨(B) the nut (6) bringing it to the desired position.
3. Push (C) the adjuster (5) upwards, until the nut (6) rests on the thrust plate.
4. Tighten (D) the nut (4) against the thrust plate.
5. Reinsert (E) the protective cap (3).
Use and maintenance manual
3
3
6
4
6
5
A
B
C
D
E
