Blumax BT-ET07 User manual

BLUETOOTH HEADSET
V2.0 + EDR Version
User Manual
DeEn
Model NO.: BT-ET07

- 2 -

- 3 -
Contents En
1. Introduction...................................................................................................5
Bluetooth headset technology.............................................................................................5
2. Charging and Basic Operation ..............................................................6
Headset BT-ET07 Structure Sketch...............................................................................6
Chargers and Batteries...............................................................................................................7
Charging and the Using Time of Headset.................................................................7
Turning on & off the headset................................................................................................9
Pairing the Headset with a Compatible Device ..............................................10
Disconnecting the Headset......................................................................................................11
Reconnecting the Headset .....................................................................................................11
3. Basic Use......................................................................................................12
Wearing the Headset...................................................................................................................12
Adjusting the Headset Ear hook.......................................................................................12
Adjusting the Headset Volume...........................................................................................13
Call Handling.........................................................................................................................................13
Using the Headset with Several Phones.................................................................14
Troubleshooting ..............................................................................................................................15
4. Battery Information.................................................................................. 16
5. Terms Interpretation.................................................................................17
6. Appendix...................................................................................................... 18
Appendix 1: Headset Standard Accessories....................................................18
Appendix 2: Specification .....................................................................................................19
Appendix 3: Indicator LED status ................................................................................20
Appendix 4: Operation Statement ................................................................................21

- 4 -

- 5 -
1. Introduction
Bluetooth Headset BT-ET07 can be used with any phones that support Bluetooth
wireless technology. This allows you the freedom to make and receive calls while on
any time and any where. Read this user manual carefully before using the head-
set. Read also the user manual for your phone, which provides important safety
and maintenance information. Keep the headset away from children. For the user
manual, all rights reserved to manufacturer.
Bluetooth headset technology
Bluetooth wireless technology allows you to connect compatible communication
devices without cables. Bluetooth connection does not require that the phone and
the headset be in line of sight, but both devices should be within 10 meters (30 feet)
of each other. Connections may be subject to interference from obstructions, such
as walls, or other electronic devices. The headset is compliant with the Bluetooth
Specification 2.0 + EDR version supporting the following profiles: Headset Profile
V1.2 and Hands-free Profile V1.0.Check with the manufacturers of other devices
to determine their compatibility with this device. There may be restrictions on using
Bluetooth technology in some location. Check with your local authorities or service
provider.
*Bluetooth is a registered trademark of Bluetooth SIG,Inc.

- 6 -
2. Charging and Basic Operation

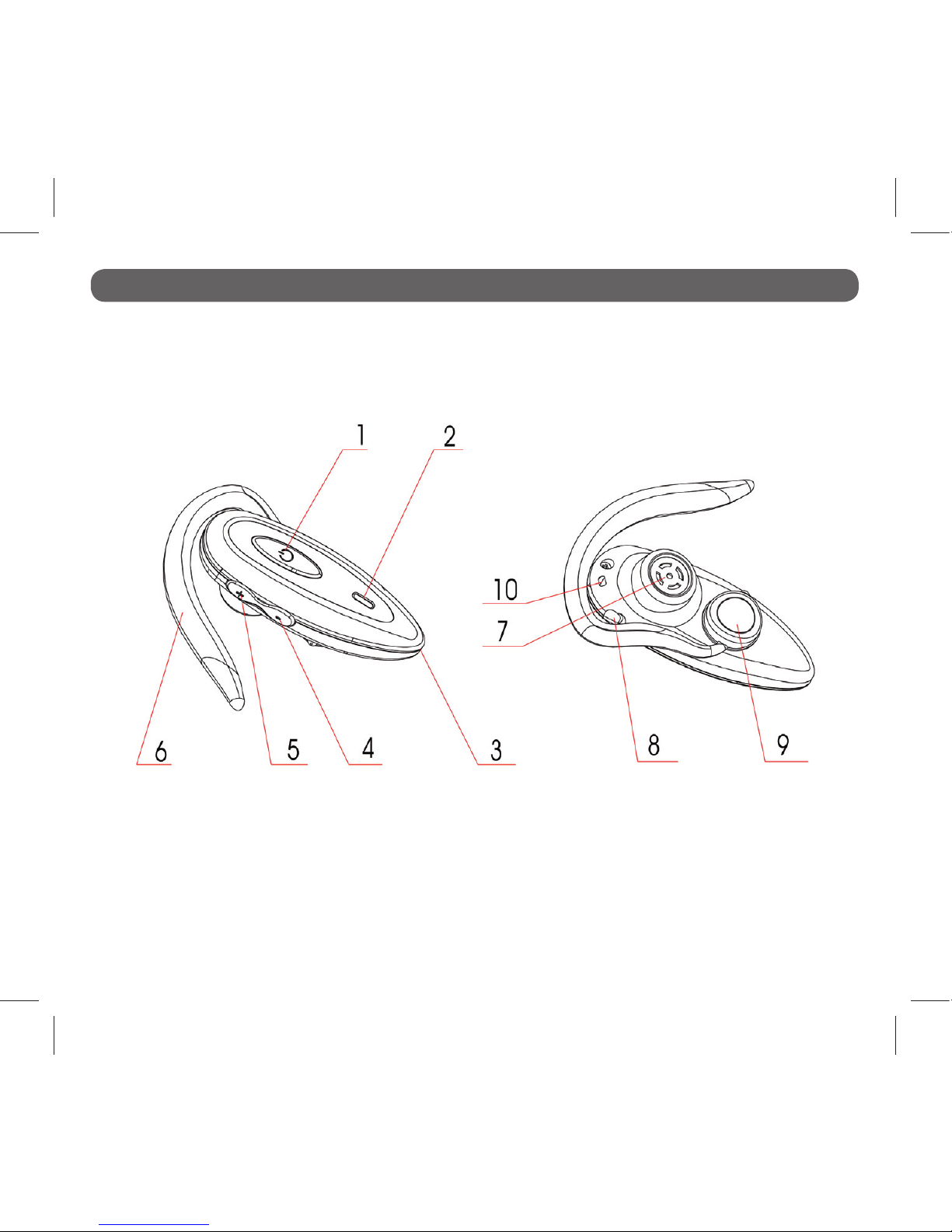

Headset BT-ET07 Structure Sketch
The headset contains the following parts:
1- Multifunction Button (MFB) 6- Ear Hook
2- LED Indicator 7- Speaker
3- Microphone 8- Charger socket
4- Volume down key (VL-) 9- Rotation axes
5- Volume up key (VL+) 10- Lanyard Hole

- 7 -
Before you can start to use the headset, you must charge the battery, and pair the
headset with a compatible phone.
Note: Parts of the headset are magnetic. Metallic materials may be attracted to the
headset. Do not place credit cards or other magnetic storage media near the head-
set, because information stored on them may be erased.
Chargers and Batteries
Check the model number of any charger before using it with this device.
Warning: Use only batteries and chargers approved by the manufacturer for use
with this particular enhancement. The use of any other types may invalidate any
approval or warranty, any may be dangerous. For availability of approval enhance-
ments, please check with your dealer. When you disconnect the power cord of any
enhancement, grasp and pull the plug, not the cord.
Charging and the Using Time of Headset
The headset has an internal, non-removable, rechargeable battery. Do not attempt
to remove the battery from the device, as you may damage the device.
Connect the charger cable to the headset, as below picture.

- 8 -
Note:Tomakesurethebatteriestobefullychargeddrastically,pleasecontinuetocharge
about one and half an hour after the red indicator light turned off. So It takes about four
and half an hour for fully charging when the battery is running out off power completely.
Disconnect the charger from the wall outlet or the accessory power outlet and the
headset after charging. When you disconnect the power cord of the charger, grasp
and pull the plug, not the cord.
The longest continued standby time after the headset is fully charged:
Connect the charger to a wall outlet or the car charger
(options) to the accessory power outlet of your car. The
red indicator light turns on during charging.(If you do
not use the headset for long periods, causing the bat-
tery out of power completely,the red LED will not light,
it’s normal).The red LED will turn off automatically or
appear to flash after being fully charged. The charging
time is for about 2-3 hours based on different models.
Model The longest standby time
BT-ET07 280 hours
Model The longest talking time
BT-ET07 11 hours
The longest continued standby time after the headset is fully charged:

- 9 -
However, the talking and standbz times maz varz when used with different mobile
phones, products that use a Bluetooth connection, usage settings, usage styles, and
environments. When the battery is running out of power, the headset beeps, and the
red indicator light flashes every 2 seconds .Then please charge the battery asap.
Note: If charging the headset when it is on, the headset will automatically turn off
when start charging. The headset can be turned on for using while in charging status.
Turning on & off the headset
1. To turn on the headset, please press the Multifunction Button (MFB) about 2 sec-
onds, until the headset beeps and the blue LED starts to flash for continued 4 times
and red LED flashes 2 times(some headsets’red LED will not flash,it is also normal).
2. The blue LED will flash every 2 or 5 seconds after turning on(before paired).
3. To turn off, please press the Multifunction Button ( MFB) about 5 seconds, until
the headset beeps, and the red LED flashes for continued 4 times.

- 10 -
Pairing the Headset with a Compatible Device
1. Turning on your phone and the headset.
2. Activate the Bluetooth function on the phone. (See the user guide of your phone
for instructions).
3. Press and hold the Multifunktion key for 2 sec. until the blue and red indicator
lights flashes in turn. When you release the key, the headset is ready to be paired.
Note: If the headset paired already, you should cut the current connection, then it
can pair again.
4. Set the phone to search for Bluetooth devices. (See the user guide of your
phone for instructions).
5. Select the headset BT-ET07 from the phone list of found devices.
6. Enter the pass key 0000 to pair and connect the headset to your phone. For
some phones you may need to make the connection separately after pairing
(See the user guide of your phone for details). You only need to pair the
headset with your phone for one time. When the headset is connected to the
phone and ready for use, the headset beeps, and the blue indicator light flashes
every 10 seconds(some flash every 5 seconds). The headset model appears in
the phone menu where you can view the current paired Bluetooth devices.
Note: If the headset can not connect any compliant mobiles or other devices suc-
cessfully within 20 minutes after it turns on, the headset will turn off automatically.

- 11 -
Disconnecting the Headset
To disconnect the paired headset from your phone (for example, to connect the
phone or headset to another Bluetooth device), turn off the headset, or disconnect
the headset from the Bluetooth menu of your phone. You do not need to delete the
paired headset from the phone in order to disconnect it.
Reconnecting the Headset
To reconnect the paired headset to your phone:
The status of paired headset and phone Reconnecting methods
The paired phone turns on, headset turns off Turn on the headset, it will con-
nect with phone automatically
The paired headset turns on, phone turns off Turn on the phone, press the
headset MFB button, it will con-
nect automatically or connect
from phone’s Bluetooth menu.
If cutting the connection from phone’s
Bluetooth menu, but headset is still on
Both paired headset and phone are on, but
out of connection
Connect from phone’s Bluetooth
menu

- 12 -
3. Basic Use

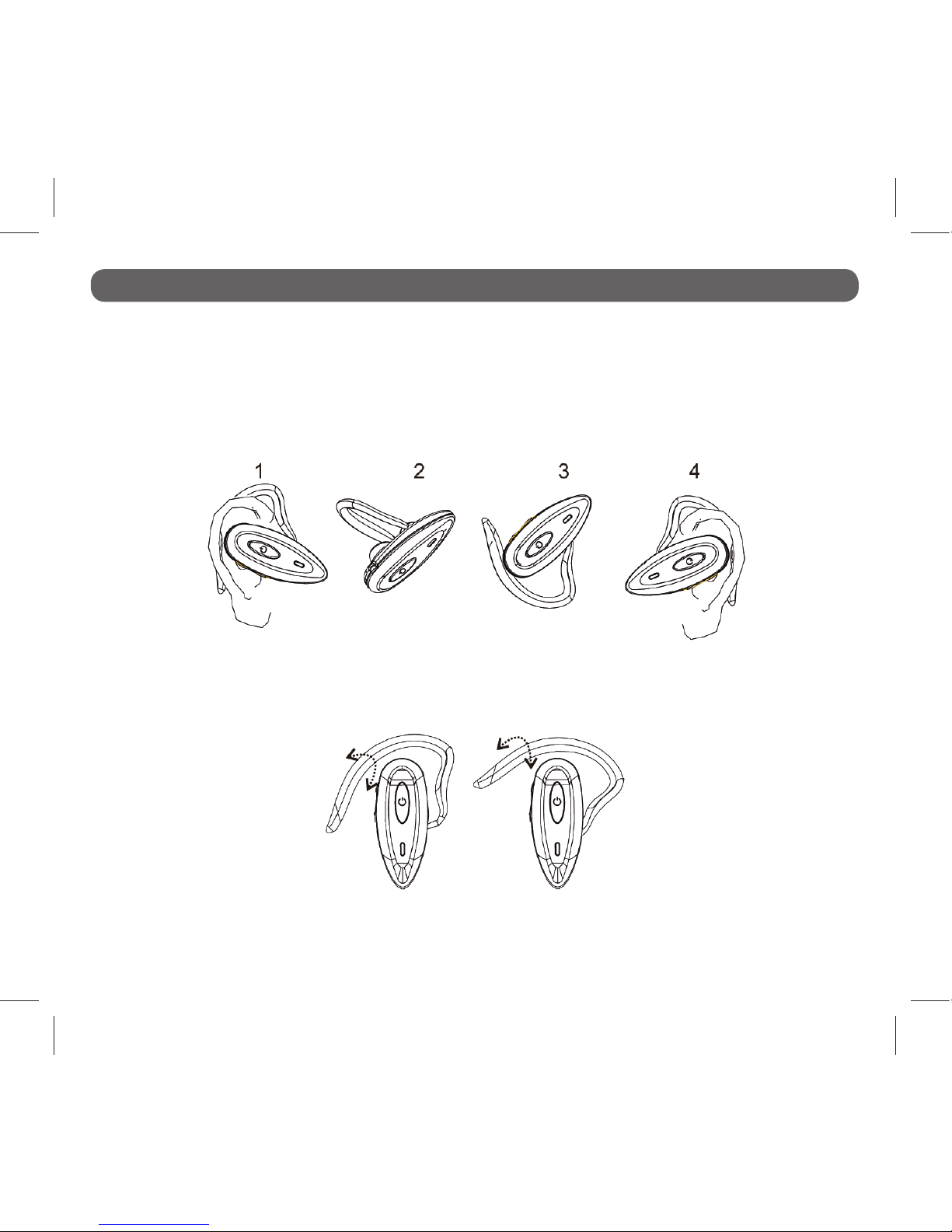

Wearing the Headset
The headset is ready to wear on the right ear ( Pic. 1). If you want to use it on the left
ear, please softly lift up the earhook ( Pic 2 ) and rotate it ( Pic. 3), and push it back to
the suitable place , then wear to your ear( Pic. 4).
Adjusting the Headset Ear hook
The ear hook can be adjusted to suit the different ear size and make you feel com-
fortable.
Warning: Make sure not to distort the ear hook always for a long time with large ex-
tent while adjusting the hook, otherwise may damage the ear hook.

- 13 -
Adjusting the Headset Volume
Press the VL+key to increase or the VL-key to decrease the volume.
Note: There are 15 volume levels available for adjusting to high or low, moreover high
volume and low volume can be identified by different tone. Whenever it reaches the
maxi / mini volume, you will hear two beeps.
Call Handling
To Make a Call
To make a call, dial the number with your phone, and press the answer key on your
phone. If your phone supports redialing function, please press the VL+ key of the
headset for 3 seconds, until it beeps then release the VL+key. If your phone supports
voice dialing function, press the VL-key of the headset until it beeps, then please
release the VL-key. And operate as described in the user guide of your phone.
To Answer a Call
To answer a call, press the headset MFB or the answer key on your phone. If the
automatic answer function is set on in your phone, the phone automatically answers
the incoming call after one ring. If you do not want to answer a call, press the headset
MFB for 3 seconds until it beeps.
To End a Call
To end the current active call, press the headset MFB or press the ending key on
your phone.

- 14 -
To Mute or Cancel Mute of Microphone
To mute the microphone during a call, press the headset MFB and VL+key simultane-
ously until it beeps. Repeating this operation can cancel the mute function.
Transferring a Call
To transfer the call from the headset to a compatible phone, press the headset MFB
and VL- key for 3 seconds simultaneously until it beeps. Or use the related function
in your phone.
Using the Headset with Several Phones
You can pair the headset with 8 phones, but connect only one phone at a time. If the
headset is switched on within 10 meters (30 feet) among several paired phones, the
headset tries to connect the last used phone. If the headset can not connect the last
used phone, you should set connection from the last used phone or other phones’
Bluetooth menu. If the headset still could not connect any phones within 20 minutes,
it will turn off automatically.
Resetting the Headset
Under following status you have to reset the headset:
• Headset still does not work afer being fully charged.
• Headset software needs reset.
Plug the charger to the headset and charge it for seconds to restart (Normally such
situation seldom happens).

- 15 -
Troubleshooting
If you can’t connect the headset to your phone, do as following:
• Ensure the headset is charged, turned on and paired and connect to your phone.
• Ensure the Bluetooth function is active on your phone. Check the headset iswithin
10 meters (30 feet) from your phone and there are no obstructions between the head-
set and the phone, such as walls or other electronic devices.
If you don’t use headset for long time, or maintain the battery well, thus will make the
battery invalid. If so, please contact supplier.
Note: If headset disconnects with phone due to the weak signal (Distance between
headset and phone is out of 10 meters), the paired headset will connect with the
phone automatically within 20 minutes in the available distance.

- 16 -
This headset is powered by rechargeable battery. The new battery can achieve
the best function only after two or three times fully charged and discharged cycles.
But it eventually will be invalid after being charged and discharged for hundreds of
times.You only can charge the battery with our designated headset charger.
Unplug the charger from the electrical plug and the device when you don’t use it. Do
not leave a fully charged battery to a charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will loose its power over time.
Note: Please charge the battery every three months if you don’t use the headset for
a long time.
Use the battery only for its intended purpose. Never use any damaged charger or
battery!
Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Please always
try to keep the battery between 15 ºC and 25 ºC (59 ºF and 77 ºF). A Device with a
hot or cold battery may not work temporarily, even when the battery is fully charged.
The battery performance will be particularly limited when the temperature is below
freezing. Do not dispose the batteries into a fire as they may explode. Batteries
may also explode if damaged. Dispose the battery according to the local regula-
tions. Please recycle the battery when possible. Do not dispose the battery as the
household waste.
4. Battery Information

- 17 -
5. Terms Interpretation
Pairing: Verify between the two devices (Bluetooth headset and mobile phone)
Connect: The two devices build up connection for communication after been ap-
proved by each other.
Note: Normally, only need to make paring between the two devices once, but con-
nection will not only once (Unless only one device connect with the headset, then it
can connect to that device automatically); Unsuccessful pairing not stand for avail-
able communication, only successful connection can make communication. BT-ET07
stands for the name of the headset mentioned in this manual ,the name will be
showed on the discovered devices list of the mobile phone when making pairing.

- 18 -
6. Appendix
Appendix 1: Headset Standard Accessories
Model No. Accessories Image Qty Remark
BT-ET07 Standard
Bluetooth
Headset 1 set
ear Hook 1 pc
Charger 1pc Subject to the
item used

- 19 -
Appendix 2: Specification
Model No. BT-ET07
Solution CSR
Main Chip BlueCore4-Audio ROM
Bluetooth Version V2.0 + EDR
Frequency 2.4GHz~2.4835GHz ISM Band
Input Power 45mW
RF Output Power 0dBm
Data Transfer Rate 2Mbps ~ 3Mbps
Headset Passkey 0000
Operation Range Up to 10 Meters(30 feet)
Supply Current 5mA~20mA
Battery 3.6V rechargeable Li-polymer battery
Voltage DC 5.0V~6.5V
Operating Temperature -10°C~+45°C
Dimension (L)59mm,(W)24mm,(H)11mm
Weight 13g
Charging Time 2 hours and 45 minutes
Talking Time Up to 11hours
Standby Time 280 hours

- 20 -
Appendix 3: Indicator LED status
LED Status Note
Blue
Flashing continued 4 times and red
LED flashing 2 times (The red LED
is not flashing for some headsets, it’s
normal)
Turning on mode
Flashing 1 time for every 2 seconds
(or for every 5 seconds for some
headsets)
Standby mode before pairing
Flashing 1 time for every 10 seconds
(or for every 5 seconds for some
headsets)
Standby after successful
pairing
Flashing continued 2 times for every
8 seconds
Data transferring mode or on
a call
Red
Flashing continued 4 times rapidly Turning off mode
Keeping on Lighting Charging Status
Flashing (not in charging status) Indicating low battery
Red
&
Blue
Flashing in turn rapidly Pairing mode (last for about 5
minutes)
All indicator LED off
Finishing charging or charg-
ing the headset which ran
out of the battery power or
headset turned off
