BMW M2 CS RACING 2020 Release note

BMWM2CSRACING2020.
DRIVERMANUAL.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
PREFACE.
Page 2
This manual is intended to give you the safe operation of the racing vehicle and the opportunity to look
up data, setting values and operating instructions for the vehicle and to facilitate the maintenance and
repair of the vehicle.
The technical details given in this manual are subject to further technical developments and may differ
between the description and the vehicle.
In particular, the two different technical versions of the vehicles for Motorsport and for Clubsport are to
be observed.
BMW recommends that you familiarize yourself with the manual before setting
up and using the vehicle.
For reasons of readability, the manual refrains from using gender-specific
formulations. Insofar as personal names are given only in masculine form, they
refer to male, female and diverse persons in the same way.
Information, Repair Manuals and Special Tools for the vehicle, which are not expressly mentioned in this
manual, refers to the series production of your BMW M4 CS and can be obtained from your BMW dealer.
To avoid damage to components due to corrosion and electrical faults, it is recommended not to use high
pressure washers or car wash sites.
We wish you many motorsport successes with your BMW M2 CS Racing.
CONTACT.
BMW M Motorsport
Customer Racing
Email: [email protected]

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023 Page 3
DISCLAIMER.
Competition Vehicle BMW M2 CS Racing.
The vehicle has been specially developed and designed for participation in competitions supervised by
sporting authorities (circuit races) on FIA-tested, permanent or temporary, closed tracks with solid
surfaces (asphalt, concrete, etc.) and preparatory tests. It is therefore not recommended to operate the
vehicle outside such tracks/events.
BMW M Motorsport assumes no responsibility for compliance with the respective valid motor racing
regulations and sporting codes.
Illustrations, descriptions and diagrams are used solely to supplement the text.
BMW M Motorsport assumes no liability for the completeness and conformity of the contents with the
respective installations or vehicle states.
By continually optimizing our products, there are regular updates to this manual and technical
information. Please note that only the current version of the manual is valid.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023 Page 4
Important Notes:
BMW M Motorsport Customer Racing Vehicles.
Your BMW M Motorsport Customer Racing Vehicle has been designed for motorsport use and therefore
significantly differs from road legal production vehicles. These Important Notes provide you with essential
information regarding the safety and security of your vehicle, recommended usage scenarios and vehicle
characteristics.
Safety and security
Not for use on public roads
•The vehicle is not approved for use on public roads and does not comply with the locally
applicable road approval regulations.
•The vehicle has been designed for specific motorsport usage scenarios only, please see below
“Usage scenarios” for further details.
Driving characteristics and driver skills
•Driving characteristics of the vehicle significantly differ from road legal production vehicles. BMW
recommends special race training, ideally a racing license, for drivers and continuous training and
education during the whole holding and usage period of the vehicle. Otherwise the driver and third
parties can be exposed to significant risks.
•BMW recommends to register with BMW M Motorsport (https://specials.bmw-
motorsport.com/kundensport/) in order to receive vehicle specific safety-related information.
Observance of applicable law
•The operation of the vehicle, as well as all work on the vehicle, might be subject to special legal
requirements, in particular concerning safety and security, under the (locally) applicable law.
•Such requirements may especially derive from guidelines and regulations of the local (traffic or
sporting) authorities, health protection regulations, accident protection regulations and environmental
protection regulations.
•The assessment and observance of such guidelines and regulations as well as any other applicable legal
provisions is your exclusive responsibility.
IMPORTANT NOTES.
Repair and maintenance instructions
•BMW recommends that all repair, maintenance and adjustment work is carried out by official BMW M
Motorsport dealers or equally qualified professional mechanics. Any attempt to carry out repair, maintenance
or adjustment work without appropriate training, tools and equipment may result in serious injuries
(including death) to yourself or others. In addition, vehicle damage or malfunctions of the vehicle can occur.
•The (functional) safety and security of the vehicle is only ensured if the instructions in the manual are strictly
followed. It is your responsibility to read and understand the information in the manual. If you have any
questions about the content of the manual, please contact your BMW M Motorsport dealer or send an e-mail
to: technical-supp[email protected].
•The vehicle design is geared towards lightweight construction. As a result the vehicle has a reduced durability
compared to road legal production vehicles. For this reason, it is your responsibility to strictly follow the
vehicle manual instructions regarding handling, service and maintenance intervals of the vehicle and running
times of the components.
Safety equipment
•The vehicle is equipped with built-in safety equipment such as safety roll cage, fire extinguishing equipment,
safety belts, safety tank and certified racing seat in order to protect the driver. Some of these safety devices
have a limited durability and must be checked regularly and replaced if necessary (see user manual for further
details).
•After an accident and/or potential damage to the installed safety equipment such as the safety roll cage, fire
extinguishing equipment, safety belts, safety tank and certified racing seat, the vehicle must be checked for
damage by a recognized technical scrutineer, a BMW M Motorsport dealer or an equally qualified
professional mechanic and may only be reused after repair and release by the person performing the check
and repair.
•In order for the safety equipment in the vehicle to be fully effective, BMW recommends that the driver also
wears up-to-date (FIA) certified safety equipment, consisting of helmet, shoes, gloves, head and neck support
(HANS) system and fireproof racing suit and underwear.
•In addition to the above mentioned safety equipment, there are various components of the vehicle (see user
manual) which must be in fully functioning condition for safe operation of the vehicle. Components must be
checked for damage after accidents and atypical driving manoeuvres and, if necessary, be serviced or
replaced.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023 Page 5
Roll cage –special requirements
•The roll cage is firmly welded into the body. Any modifications to the roll cage will likely result in non-
registration or disqualification of the vehicle.
•In the event of an accident, the roll cage must be inspected and approved by a technical scrutineer or an
independent expert. A damaged roll cage will result in reduced occupant protection.
•BMW recommends replacing a damaged cage with a new one. Cage repairs should only be carried out by a
certified cage manufacturer. Please pay particular attention to the cage certificate including instructions,
which are enclosed with the vehicle.
Usage scenarios
The vehicle has been designed for certain racing and clubsport events, see below “Racing events” and “Clubsport
events”. BMW does not recommend the operation of the vehicle outside the mentioned events. BMW especially
does not recommend to use the vehicle for events listed below under “Events for which the vehicle has not been
designed”.
•Racing events
The vehicle has been designed to be used at certain racing events that
(i) are supervised by a sporting authority; and
(ii) take place on a permanent or temporary closed circuit track with solid surfaces (asphalt,
concrete, etc.) that complies with the standards of the FIA or equivalent standards of
local motorsport authorities;
and for necessary preparatory tests for such events.
Such racing events / preparatory tests include:
o Circuit racing
o Slalom with more than 1000 m track length
o Racing slalom
o Performance test
o Regularity / consistency test
•Clubsport events
The vehicle has been designed to be used at certain clubsport events that
(i) require all participating vehicles to provide appropriate security features, especially safety equipment
such as circuit breakers, fire extinguishers, safety roll cage and marked towing devices;
(ii) take place on a permanent or temporary closed circuit track with solid surfaces (asphalt, concrete, etc.)
that complies with the standards of the FIA or equivalent standards of local motorsport authorities.
Such Clubsport events include (characterization following the definition of the German motorsports authority
“Deutscher Motor Sport Bund e.V.”):
o Registered events
Approval by the supporting associations / other motor sport associations / other members of the national
sporting authority. The registered events are carried out according to the regulations of the respective
sponsoring association / member organization. The national sporting authority will establish minimum
safety requirements for such events and, where necessary, develop guidelines for technical regulations.
o Grassroot Racing
License-free grassroot racing events are governed by private operating agencies of the national sporting
authority / other motorsport associations or other members.
o Trackdays
Driving events organized by different organizers with different event regulations (rules) on closed race
tracks where it is allowed to participate with non-road legal vehicles. Participants drive on their own, with
an instructor or behind an instructor’s vehicle (guided laps) on the race track.
•Events for which the vehicle has not been designed
The vehicle has not been designed for other (racing) events such as:
o Rally
o Hill climb
o Drift events
o Drag racing / acceleration race
o Rallycross / autocross
or similar events.
BMW does not recommend usage of the vehicle in such events.
IMPORTANT NOTES.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023 Page 6
Vehicle characteristics
As described in the chapter “Safety and Security”, the vehicle deviates significantly from road legal production
vehicles. The below described characteristics of the vehicle may occur due to the specific purpose of use of the
vehicle and its corresponding design, but do not constitute a defect:
•Corrosion
To optimize performance and weight, corrosion protection measures are not fully applied. This can result in
corrosion damage to body components, paintwork, chassis and drivetrain components. For this reason it is
strongly recommended to store the vehicle in a dry place. Should moisture penetrate into the vehicle, it is
recommended to remove the moisture immediately.
•Brakes
The brake system is one of the most heavily stressed components in motorsport vehicles. Explicit reference
is made to the instructions in the vehicle manual for handling of the brake system, in particular the run-in
instructions must be respected. Non-compliance can result in significantly increased wear and tear and/or
damage to the brake system. Due to the performance design of the brake system, acoustic abnormalities,
such as brake squeal, are not considered a defect.
•Vehicle battery
The specific electric motorsport components significantly increase the quiescent current level. If the vehicle
is not used for a longer period of time, it is recommended to disconnect the vehicle from the power supply
via the main battery switch. In case of shorter interruptions, it is recommended to charge the battery via an
external power supply.
•Vehicle glazing
To optimize performance and weight, Makrolon ®plastic car windows are used to some extent. These may
show optical distortions due to their nature. They are also less scratch-resistant than conventional glass car
windows.
IMPORTANT NOTES.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
The warning notes and safety instructions are classified by the respective signal word (Danger, Warning, Caution, Notice) beside the warning
symbol:
Page 7
WARNING-ANDSAFETYNOTES.
DANGER
WARNING
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
For Health and Safety at Maintenance or Repair Work the safety instructions should be followed:
Protective clothing should be worn.
CAUTION
NOTICE
NOTICE indicates special attention which, if not respected, can lead to property damage.
Acc. ANSI Z535:
To prevent injury and adversely affecting the operational and road safety of the vehicle, or damage to the vehicle as a result of improper work, read these warnings and
safety instructions carefully and observe them fully.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
CHANGELOG.
Page 8
No. Chapter Page No. Chapter Page
Version 2.
1
1.2.
Specifications. 13 -16
2
2.10.
Odometer / Backlight. 34
3
2.11. Dash
page driver. 35/36
4
2.12. Dash
page mechanic. 37
5
4.6.
BOP Power sticks. 53
6
5.3. Engine Oil /
- Filter. 58
7
6.5.2. Setup at
delivery. 81
8
6.5.3. Optional.
82/83
9
A. Start / Warm Up
Procedure. 89/90
The following chapters and pages have been modified from previous versions:

fdsdfdfdf
BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
TABLEOFCONTENT.
Page 9
1. At a glance. 11
1.1. Dimensions. 12
1.2. Specifications. 13
1.3. Operating temperatures. 17
1.4. Chassis- / CAGE- / vin number. 18
2. Operation. 19
2.1. Steering wheel. 20
2.2. Selector lever. 22
2.3. Parking Lock / Recovery. 23
2.4. Switch box / switches. 24
2.5. Engine start / stop. 26
2.6. DSC/FDS. 27
2.7. AIM Dashbord. 28
2.8. AIM Table of alarms. 30
2.9. Alarm reset. 32
2.10. Odometer /Backlight. 33
2.11. Dash page driver. 35
2.12. Dash page mechanic. 37
2.13. Adjustment driver position. 38
2.14. Fire extinguisher. 39
2.15. Air jack system. 40
3. Interior. 41
3.1. Driver seat. 42
3.2. Passenger seat. 43
3.3. Safety net. 44
3.3.1. Triangle net. 44
3.3.2. Window net. 45
4. Engine. 46
4.1. General. 47
4.2. Running times. 48
4.3. Engine compartment. 49
4.4. Oil level. 50
4.5. Engine cooling. 51
4.5.1. Check. 51
4.6. BOP power sticks. 53
5. Fuel & Fluids. 54
5.1. Fuel compatibility. 55
5.2. Fuel supply. 56
5.2.1. Refueling. 56
5.2.2. Fuel Drain. 57
5.3. Engine Oil / - Filter. 58
5.4. Coolant. 59
5.5. Double clutch transmission (DKG). 60
5.6. Final drive. 61

fdsdfdfdf
BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023 Page 10
TABLEOFCONTENT.
6. Suspension. 62
6.1. Springs / Anti Roll Bar. 63
6.1.1. Specification. 63
6.2. Shock absorber. 64
6.2.1. Front damper. 64
6.2.2. Rear damper. 66
6.3. Rims & Tyres. 68
6.3.1. Rims / wheel nuts. 68
6.3.2. Tyres. 69
6.4. Steering. 70
6.4.1. EPS. 70
6.5. Setup. 71
6.5.1. General. 71
6.5.2. At delivery. 80
6.5.3. Option. 82
6.5.4. Tyres. 85
6.5.5. Headlights. 87
Appendices. 88
A. Start / Warm Up Procedure. 89
B. Registration Customer Portal. 91

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
Page 11

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.1. DIMENSIONS.
Page 12
1385 mm (variable)
2693 mm
4461 mm
1990 mm
1568 mm (FA) 1608 mm (RA)
Dimensions: (Subject to changes!)

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.2. SPECIFICATIONS.
Page 13
Type. S55 B30 Inline 6-Cylinder, 4-Valves. S55 B30 Inline 6-Cylinder, 4-Valves.
Technology. M TwinPower Turbotechnology, Direct-Injection,
Valvetronic.
M TwinPower Turbotechnology, Direct-Injection,
Valvetronic.
Displacement. 2,979 ccm. 2,979 ccm.
Power. Power level approx. 365 hp (270 kW).
Powerstick system for power control.
Power level approx. 450 hp (330 kW).
Powerstick system for power control.
ECU. Production Engine ECU (DME) with adapted Motorsport
electronics.
Production Engine ECU (DME) with adapted Motorsport
electronics.
Exhaust-System. Motorsport specific exhaust system with race catalyzers. Motorsport specific exhaust system with race catalyzers.
Engine:
Gear Box. 7-Speed double-clutch gear box with Motorsport-Software. 7-Speed double-clutch gear box with Motorsport-Software.
Differential. Limited slip differential (Drexler), separate cooling. Limited slip differential (Drexler), separate cooling.
Transmission. Prop shaft with damping elements. Motorracing
driveshafts.
Propshaft with damping elements. Motorracing
driveshafts.
Drivetrain:
Version. 365 HP Version. 450 HP Version.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.2. SPECIFICATIONS.
Page 14
Suspension
Joints. Motorsport-specific. Motorsport-specific.
Anti-Roll-Bar. 2-way adjustable Anti-Roll-Bar, front and rear axle. 2-way adjustable Anti-Roll-Bar, front and rear axle.
Shocks. 1-way shock absorber (ZF) front and rear axle. 1-way shock absorber (ZF) front and rear axle.
Springs. Different Main Spring Rate choices for front- and rear axle
available.
Different Main Spring Rate choices for front- and rear axle
available.
Suspension:
Front. 6-Piston Caliper (Alcon).
Diameter Brake Discs: 380 mm.
6-Piston Caliper (Alcon).
Diameter Brake Discs: 390 mm.
Rear. 4-Piston Caliper (BMW).
Diameter Brake Discs: 380 mm.
4-Piston Caliper (Alcon).
Diameter Brake Discs: 355 mm.
Specification. Brake discs and pads optionally sprint or long-distance
package.
Brake discs and pads optionally sprint or long-distance
package.
Brakes:
Version. 365 HP Version. 450 HP Version.
Dimensions. 10.5“ x 18 Motorsport Rim with 27/65-18 Motorsport
tyres.
10.5“ x 18 Motorsport Rim with 27/65-18 Motorsport
tyres.
Wheels:

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.2. SPECIFICATIONS.
Page 15
Dimensions. According this manual. According this manual.
Safety. DMSB-certified Safety-Rollcage (acc. FIA rules). FIA Fire
extinguisher system.
DMSB-certified Safety-Rollcage (acc. FIA rules). FIA Fire
extinguisher system.
Material. Steel body with aluminum- and CFK mounted parts. Steel body with aluminum- and CFK mounted parts.
Jacking. Air jack system. Air jack system.
Aerodynamic. Front splitter analogous M2 CS, Rear Wing. Front splitter analogous M2 CS, Rear Wing.
Bodywork:
Type. FT3-Safety Tank. Capacity: approx. 84 L
(Option: 120 L for endurance racing).
FT3-Safety Tank. Capacity: approx. 84 L
(Option: 120 L for endurance racing).
Tank:
Version. 365 HP Version. 450 HP Version.
Stability Control. BMW M Motorsport-specific configured (DSC/ABS). BMW M Motorsport-specific configured (DSC/ABS).
Assistant Systems:

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.2. SPECIFICATIONS.
Page 16
Comfort. 1-zone air condition. 1-zone air condition.
Seat.
Safety seat (SABELT) „FIA 8855-1999 approved“ with
lateral head restraint, XL-version.
Option: M- & L-version
Safety seat (Recaro) „FIA 8862-
2009 approved“ with lateral
head restraint, one size fits all version.
Pedals. Series pedals with motorsport-specific footrest. Series pedals with motorsport-specific footrest.
Steering. Steering wheel (dimmable) with controls, adjustable in
height and length. Quick release.
Steering wheel (dimmable) with controls, adjustable in
height and length. Quick release.
Restraint-
System.
Seat belt with six fixing points according FIA 8853-2016
(Schroth).
Seat belt with six fixing points according FIA 8853-2016
(Schroth).
Instruments. AIM MXG 1.2 Motorsport Dash Logger with color display. AIM MXG 1.2 Motorsport Dash Logger with color display.
Switches. Illuminated switch panel (dimmable). Illuminated switch panel (dimmable).
Car Loom. Motorsport-Car-Loom with free connectors (e.g.
Reglement-specific Datalogging).
Motorsport-Car-Loom with free connectors (e.g.
Reglement-specific Datalogging).
Cockpit:
Version. 365 HP Version. 450 HP Version.

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.3. OPERATINGTEMPERATURES.
Page 17
Temperatures: Min Max Normal Operation Step 1 Step 2
Engine
Oil 60°C 137°C Ø 120°C 140°C 145°C ***
Coolant
60°C 116°C Ø 105°C 117°C 120°C ***
Gearbox
Oil 20°C 129°C Ø 115°C 130°C 135°C ***
Clutch*
20°C 139°C -- 140°C 160°C ***
Differential
20°C 144°C Ø120°C -- 145°C
*) The clutch temperature is monitored in the gearbox, gearbox temperature warning can refer to the sump or clutch temperature.
**) Observe temperatures on the dash and accordingly adjust the driving style to reduce the temperature (e.g. no slipstream and early upshift).
***) Torque reduction may happen.
Alarm **

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
1. ATAGLANCE.
1.4. CHASSIS-/CAGE-/VINNUMBER.
Page 18

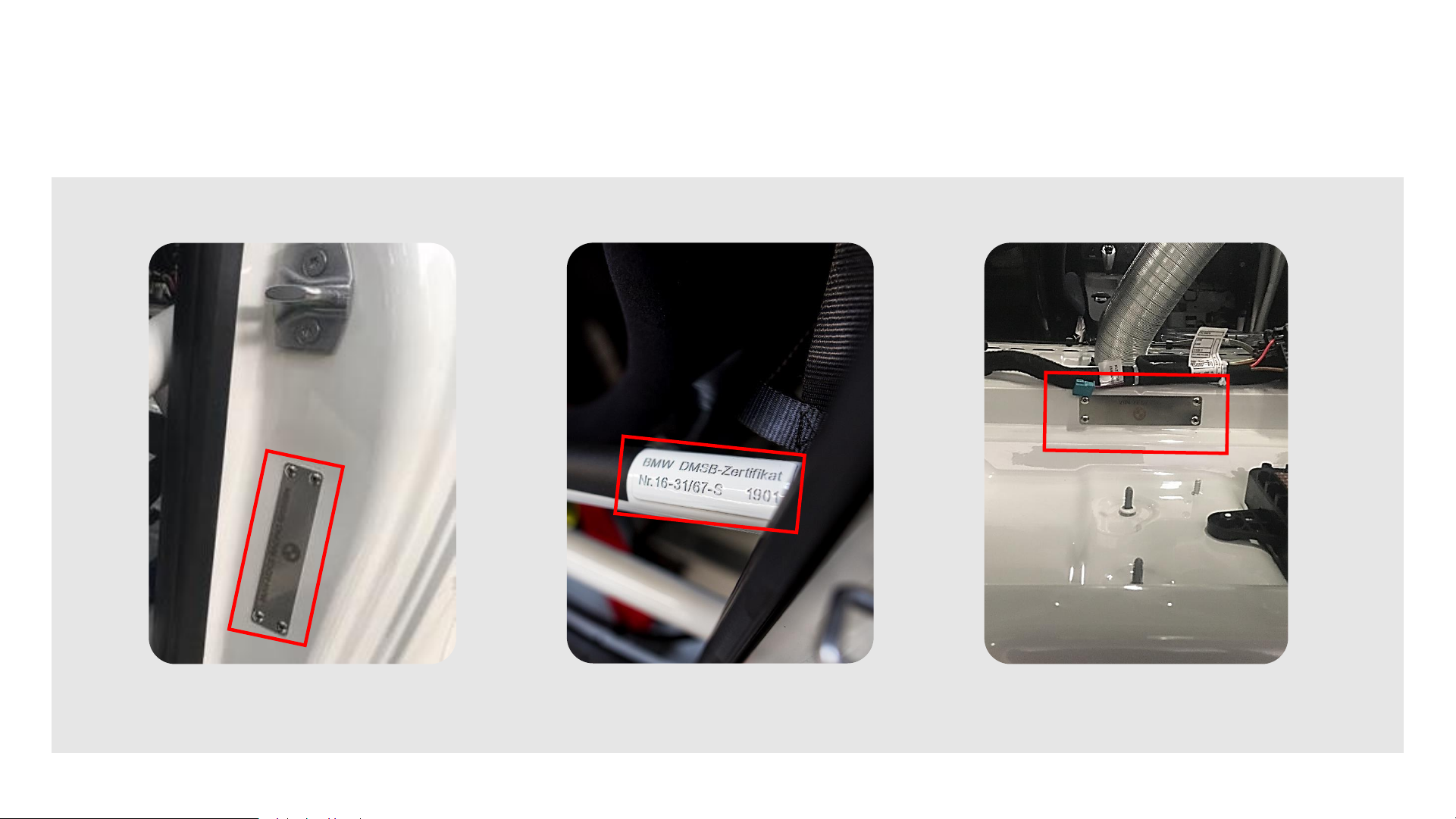

The Cage-No. (e.g. 16-31/67-S) and the Chassis-No.
(e.g. 1901) are located on the driver side near the B-
pillar on the cage tube.
The VIN-No. (7 digits) is located on the rear
crossbar in the boot.
The Chassis-No. (e.g. 1901) is located at the B-
Pillar on the driver side entry.

fdsdfdfdf
BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
2. OPERATION.
Page 19

BMW M2 CS RACING 2020 I DRIVER MANUAL I BMW M MOTORSPORT I V02 I AUGUST 2023
PSL: Pressing PSL activates the Pit Speed limiter. The Limiter can be operated in any driving dynamics mode. The limiter target speed can be selected via the SEPP mode. There are two different PSL limits that can be
set in the SEPP mode via the DSC switch (Limit 1 - low) / FDS switch (Limit 2 - high). Push the selected switch up or down to increase/decrease the PSL limit. In the Dash, the respective limit is displayed in SEPP mode
under OIL (Limit 1) and WAT (Limit 2). Only the limiter is active, which is in the catch-speed limit, when the PSL button is pressed. For example: If limiter 1 is set to 60 km/h and Limiter 2 is set to 120 km/h, Limiter 1 is
active at a speed up to 90 km/h. Limiter 2 is active from 90 km/h.
[Catch-Speed Limit Switch Point = ((PSL 2 - PSL 1) /2) + Limit 1] Limit 1 active < Catch-Speed Limit Switch Point < Limit 2 active.
2. OPERATION.

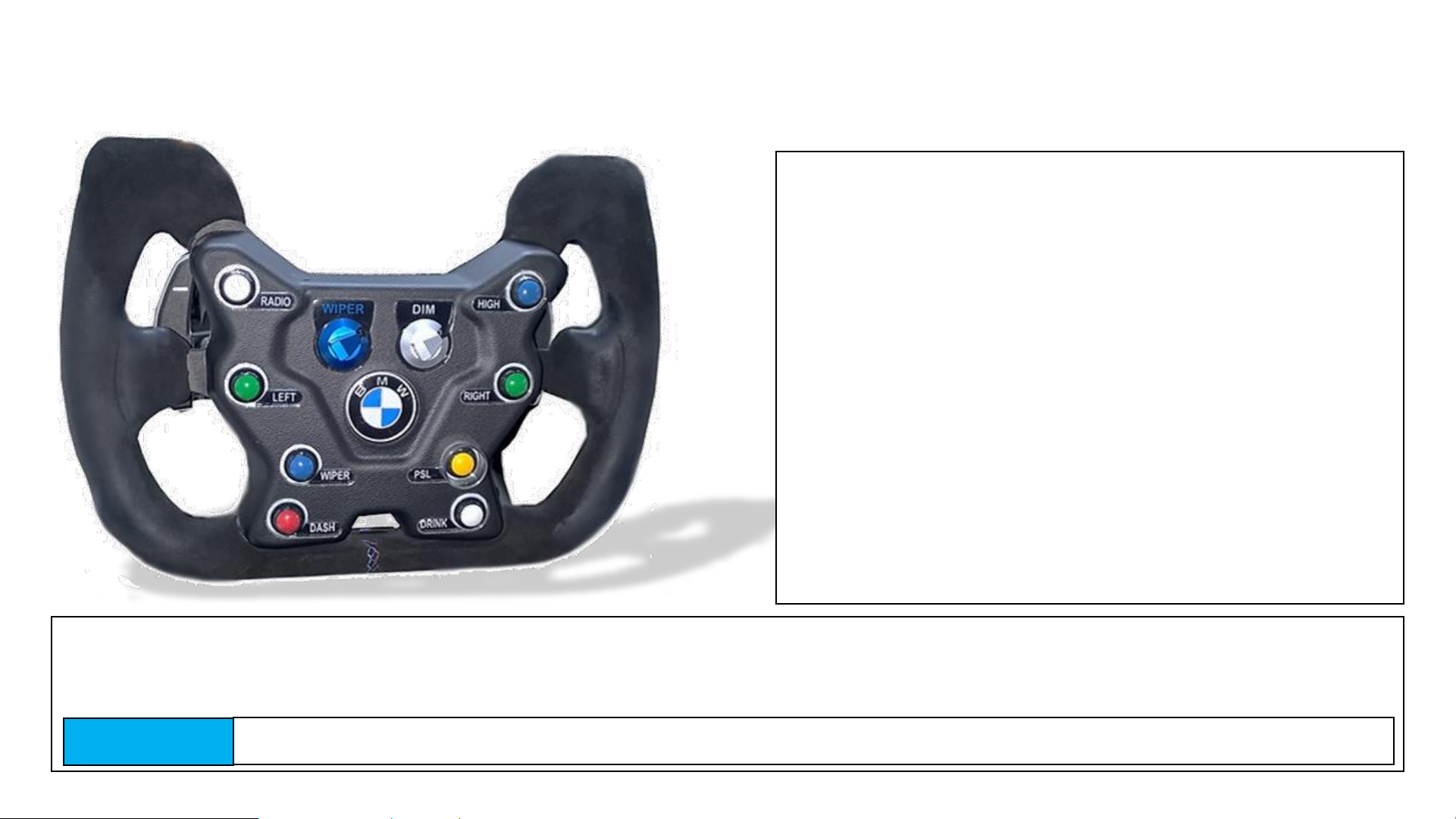

2.1. STEERINGWHEEL.
Page 20
RADIO: Transmission.
▪Push to Talk.
LEFT: Indicator left.
▪Press: On/Off.
WIPER: Wash / Wipe function.
▪Press: Windscreen washing + wiping.
WIPER: Wiper function.
▪Pos. 1: Interval wiping.
▪Pos. 2: Normal wiping.
▪Pos. 3: Quick wiping.
DASH: Display.
▪Press: Dash page change.
DIM: Illuminated Switch Panel (Dimming).
▪Pos. 1 –5: 1-Bright, 5-Dark.
▪Pos. 6: Illumination OFF.
HIGH: Head Light.
▪Short Press: High beam flashing.
▪Long Press: High beam On/Off.
RIGHT: Indicator right.
▪Press: On/Off.
DRINK: Triggers the drink bottle pump.
PSL: Pit Lane Speed Limiter.
▪see below.
NOTICE
The Pit Speed Limiter only limits the engine torque and does not make any active brake interventions. At settling initial control or approaching the selected limit with large wheel slip on
the rear axle or on a part of the track with a steep incline may cause a brief exceed of the selected limit.
(Button)
(Rotary switch)
