Welcome
Welcome to your new Aston Martin Vantage.
This Owner’s Handbook has been designed to explain the
vehicle’s operation and to make the control of its systems easy to
understand and operate. All new owners are recommended to
read the Owner’s Handbook prior to driving. This Owner’s
Handbook forms part of the essential vehicle equipment for
homologation purposes and must stay with the vehicle at all
times.
Warnings, Cautions and Notes
The following Warnings, Cautions and Notes are used within this
Owner’s Guide to call your attention to specific types of
information.
Warning: Provided to show procedures which must be
followed precisely to help avoid the risk of personal injury.
Caution: Provided to show procedures which must be
followed precisely to reduce the possibility of damage to your
vehicle.
Provided to show procedures which will help to avoid
difficulties in the operation of your vehicle.
Airbag Warning Labels
Warning: Extreme Hazard: NEVER use a rearward facing
child restraint on a seat protected by an ACTIVE AIRBAG in
front of it. DEATH or SERIOUS INJURY to the Child can
occur.
Warning labels are located on both sides of the passenger sun
visor and on the passenger end of the instrument panel.
MY63-19A321-AA.book Page 2 Monday, June 22, 2020 10:37 AM

Component Location
All directions for locating components are described as viewed
from the driver’s seat, i.e. the fuel filler flap shown on this
diagram will be described as ‘located at the rear right side of the
vehicle’.
Vehicle Identification
The Vehicle Identification Number (VIN) is shown in the left side
bottom corner of the windscreen.
The VIN plate can also be found in the passenger side door shut
panel and laser etched onto the right side footwell.
To view the VIN etched into the floor panel, lift the carpet up
from the front, and then lift the sound deadening material.
MY63-19A321-AA.book Page 3 Monday, June 22, 2020 10:37 AM

Data Recording
This vehicle is equipped with a Event Data Recorder (EDR)
system. Electronic modules in this vehicle are able to record
detailed data, such as:
• The use of restraint systems, including seat belts by the driver
and passengers.
• Information about the performance of various systems and
modules in the vehicle.
• Information related to engine, throttle, steering, brake or
other system status.
Any of these systems can include information on how the driver
operates the vehicle, measuring vehicle speed, steering input,
brake and throttle application. This information may be stored
under regular operation, in a crash or in a near crash event.
This information can be read and used by:
• Aston Martin
• Service and repair facilities
• Law enforcement or government agencies
• Others who may assert a right or obtain your consent to know
such information.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have the special equipment, can read the information if they
have access to the vehicle or the EDR.
eCall/GLONASS
In an emergency event, this vehicle transmits data that meets the
112eCall / iGOST Glonass standards. The information sent will
be:
•Vehicletype
• Activation type
• Vehicle Identification Number (VIN)
• Vehicle propulsion storage type
•Timestamp
• Latitude and longtitude position
• Vehicle direction
MY63-19A321-AA.book Page 4 Monday, June 22, 2020 10:37 AM

Reporting Safety Defects
If you believe that your vehicle has a safety defect which could
cause a crash or could cause injury or death, you should
immediately inform your Aston Martin Dealer or the Aston
Martin Client Services at the address shown.
Aston Martin Lagonda Limited
Client Services
Banbury Road
Gaydon
Warwick
CV35 0DB
England
Telephone:
[phone]
Driving Safety
• Always wear your seat belt.
• Never drive under the influence of alcohol or drugs.
• Always obey all speed and traffic laws and regulations. Never
drive faster than the posted speed limit or than conditions
allow.
•Be particularly careful driving on slippery or wet surfaces.
• This vehicle is a high performance vehicle and has handling
characteristics you may not be accustomed to. Familiarise
yourself with the vehicle and always drive prudently, being
aware of your own limitations and the limitations of the
vehicle. As with other vehicles of this type, failure to operate
the vehicle correctly can result in accident and injury.
• Follow the maintenance schedule approved in this guide.
• Never allow the vehicle to be driven by inexperienced
drivers.
Make sure that you are wearing appropriate footwear to
efficiently operate the control pedals. Make sure that pedal
movement is not restricted by floor mats or other objects trapped
beneath pedals.
MY63-19A321-AA.book Page 5 Monday, June 22, 2020 10:37 AM

Aston Martin Owners' Club (AMOC)
An invitation to join the Aston Martin Owners' Club
The sporting spirit of the 1930s exists today in one of the world’s
most exclusive car clubs. Enthusiasts in nearly 60 countries are
united by an interest in iconic cars with an enviable pedigree.
Enjoy the company of like-minded owners in a wide range of
activities: social evenings, weekends away or motoring tours.
Something more competitive? AMOC Concours are a benchmark
for connoisseurs of fine motorcars. A need for speed? We
organise track days, sprints and hill climbs as well as circuit racing
in venues such as Silverstone, Goodwood and Lime Rock in the
USA.
Aston Martin Owners' Club
Drayton St. Leonard
Wallingford
Oxfordshire
England
OX10 7BG
[phone]
E-Mail: [email protected]
Website: www.amoc.org
MY63-19A321-AA.book Page 2 Monday, June 22, 2020 10:37 AM

Aston Martin Heritage Trust
The Aston Martin Heritage Trust is an educational charity
dedicated to the preservation, promotion and enhancement of
over 100 years of history of Aston Martin. Its world class
collection comprising the automotive museum, substantial
archive and collection of historical artefacts is housed in the
magnificently restored Grade II* listed barn in Oxfordshire which
it shares with the Owners' Club. As a member of the Owners’
Club you become a member and supporter of the Trust, so please
log on to our web site for more information, or better still pay us
a visit and see the collection for yourself.
Aston Martin Heritage Trust
Drayton St. Leonard
Wallingford
Oxfordshire
England
OX10 7BG
Telephone: [phone]
E-Mail: [email protected]
Website: www.amht.org.uk
MY63-19A321-AA.book Page 3 Monday, June 22, 2020 10:37 AM

Quick Start............................................................................. 1
Vehicle Security ..................................................................... 2
Before Driving........................................................................ 3
Controls ................................................................................. 4
Driving................................................................................... 5
Climate Control...................................................................... 6
Phone System ........................................................................ 7
Media Systems ....................................................................... 8
Satellite Navigation ................................................................ 9
Vehicle Settings.................................................................... 10
Convertible Roof.................................................................. 11
Maintenance and Technical Data ......................................... 12
Service...................................................................................A
Aston Martin Warranty ........................................................... B
Aston Martin Assistance..........................................................C
Alphabetical Index ................................................................ D
Every effort has been made to make sure that the information
provided in this Owner’s Handbook is accurate and up-to-date.
However, neither the manufacturer or the Dealer, by whom this
Owner’s Handbook is supplied, will in any circumstances be held
responsible for any inaccuracy or the consequences thereof.
Software instructions in this handbook are correct at time of print.
However, these may be subject to change due to ongoing
software updates during the vehicle’s lifetime. Contact your
Aston Martin Dealer for further information.
© Copyright Aston Martin Lagonda Limited, 2020. All Rights
Reserved. This publication is provided with your vehicle for your
personal, private and non-commercial use. No part of this
publication may be reproduced, stored in a retrieval system or
transmitted, in any form, electronic, mechanical, photocopying,
recording or other means without prior written permission from
Aston Martin Lagonda Limited.
The manufacturer reserves the right to vary specifications without
notice in accordance with its policy of continual product
improvement.
MY63-19A321-AA.book Page 4 Monday, June 22, 2020 10:37 AM

Produced by the Technical Publications Department
Aston Martin Lagonda Limited
Banbury Road
Gaydon
Warwick
CV35 0DB
England
Telephone:
[phone]
Issue 1: May 2020
Part Number: MY63-19A321-AA
Barcodes conform to AML specification AMES000043
MY63-19A321-AA.book Page 5 Monday, June 22, 2020 10:37 AM

MY63-19A321-AA.book Page 6 Monday, June 22, 2020 10:37 AM

Quick Start
Vehicle Key ......................................................................... 1.2
Driving Position................................................................... 1.3
Vehicle Controls .................................................................. 1.6
Infotainment ..................................................................... 1.11
MY63-19A321-AA.book Page 1 Monday, June 22, 2020 10:37 AM

1.2 Quick Start
Vehicle Key
What Do The Buttons On The Key Do?
(Refer to ’Vehicle Key’, page 2.2)
[1] LOCK: Press to lock the vehicle and arm the security
system.
[2] UNLOCK: Press to unlock either the driver's door or
the vehicle.
[3] TAILGATE OPEN: Press and hold to release the tailgate
catch.
Global Close
Press and hold to unlock all vehicle doors and open all
windows.
Press and hold to lock all doors and close all windows.
Keyless Entry
To unlock the vehicle, fully push the front edge of the door
handle. If the system recognises a valid key signal, the door will
unlock and open.
To lock the vehicle, close all the vehicle doors and press the rear
edge of the door handle to activate the lock switch.
MY63-19A321-AA.book Page 2 Monday, June 22, 2020 10:37 AM

Quick Start 1.3
Driving Position

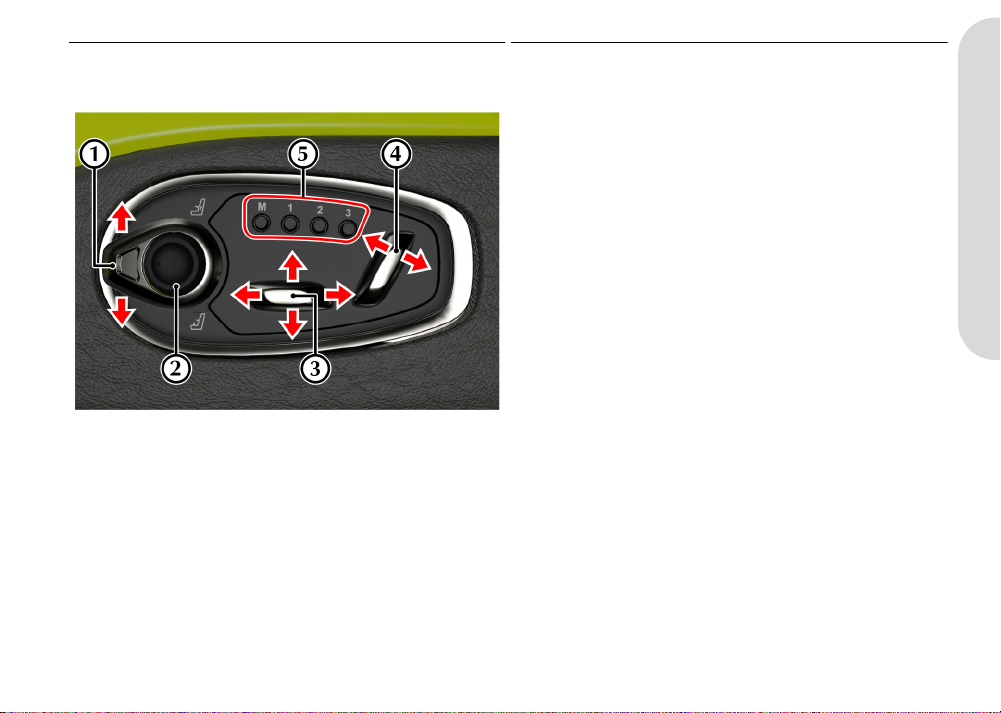

How Do I Adjust The Seat?
(Refer to ’Seat Adjustment’, page 3.2)
[1] BOLSTER/LUMBAR ADJUSTMENT SELECTOR SWITCH
(OPTIONAL): Press the switch up to select lumbar adjustment.
Press down to select bolster adjustment.
[2] BOLSTER/LUMBAR ADJUSTMENT: Use the directional pad
to adjust the position of the lumbar or bolster support.
[3] SEAT POSITION ADJUST: Seat forward/backward and height
adjust. Raise front to tilt base of seat.
[4] SEAT BACKREST ADJUST: Seat back angle adjust.
[5] MEMORY SEAT POSITIONS: Use to select or store memory
positions for the seat, steering column and door mirror positions .
MY63-19A321-AA.book Page 3 Monday, June 22, 2020 10:37 AM

1.4 Quick Start
What Do The Door Switches Do?
[A] DOOR MIRROR SELECTOR: Press to select left or right door
mirror (Refer to ’Exterior Mirrors’, page 3.6).
[B] DOOR MIRROR ADJUSTMENT: Use the direction pad to
adjust the mirror position.
[C] WINDOW SWITCH: Press or pull to operate the driver or
passenger windows (Refer to ’Windows’, page 3.4).
[D] TAILGATE: Press and hold to release the tailgate catch.
MY63-19A321-AA.book Page 4 Monday, June 22, 2020 10:37 AM

Quick Start 1.5
How Do I Adjust The Steering Column?
(Refer to ’Setting a Memory Position’, page 3.8)
Push the lever down or up to adjust the steering column angle.
Pull the lever towards you to bring the steering wheel closer and
away to move the steering wheel back.
How Do I Use The Memory Positions?
(Refer to ’How Do I Use The Memory Positions?’, page 1.5).
Setting a Position
Adjust the seat, steering column and the door rear view mirrors
to the desired position. Push the memory button (M), then press
the required memory channel (1, 2 or 3) to save the positions. A
chime is heard and a message will show in the message centre to
confirm. By repeating these steps and pressing an unused button,
a second and third driving position can be saved in the memory.
Recalling a Memory Position
Once in the seat press and hold button 1, 2 or 3 (depending on
which saved channel is required) until all movement is stopped.
The seat will move to the saved position.
Seat and steering wheel movement will be interrupted if the
memory channel button is released. Exterior mirror movement
will continue. Press and hold the memory channel button to
complete seat and steering wheel movement.
MY63-19A321-AA.book Page 5 Monday, June 22, 2020 10:37 AM

1.6 Quick Start
Vehicle Controls
What Do The Lower Switches Do?
[1] HAZARD WARNING SWITCH: Press to set the hazard
warning lamps on or off.
[2] PARK DISTANCE CONTROL: Press to set the Park Distance
Control (PDC) sensors to on or off.
[3] REVERSE CAMERA: Operates the camera system.
[4] RADIO: Open the radio menu.
[5] MEDIA: Opens the media menu.
[6] PASSENGER AIRBAG STATUS: Indicator to show if the
passenger airbag is active.
[7] VOLUME CONTROL: Use the roller dial to adjust the audio
volume. Press to turn audio on or off.
[8] SOS: Press and hold to operate the eCall system (Refer to
’Emergency Call System’, page 5.42)
[9] ELECTRONIC STABILITY PROGRAM: Press to set the
Electronic Stability Program (ESP).
[10] STOP/START: Press to turn the Eco stop/start system on or
off.
[11] NAV: Press to open the navigation menu.
[12] TEL: Press to open the phone system.
MY63-19A321-AA.book Page 6 Monday, June 22, 2020 10:37 AM

Quick Start 1.7
What Does The Control Dial Do?
[1] CONTROL DIAL:
Use to navigate through menus in the infotainment system. Press
down to confirm a selection (referred to as ENTER throughout this
handbook).
[2] TOUCH PAD:
Touch sensitive pad which can be used to navigate menus in the
infotainment system. Press down to confirm a selection. The
touch pad can also be used for handwriting recognition (Refer to
’Touch Pad’, page 4.7).
[3] FAVOURITE:
Press to view items on your favourites list. Press and hold
to add the current menu item to the favourite list.
[4] QUICK ACCESS MENU:
Press to access the quick access menu.
[5] BACK:
Press to go back a level in the menu.
MY63-19A321-AA.book Page 7 Monday, June 22, 2020 10:37 AM

1.8 Quick Start
What Are The Steering Wheel Controls?
Switches
[1] ADAPTIVE DAMPING:
Press to cycle adaptive damping modes (Refer to ’Adaptive
Damping’, page 5.19).
[2] START VOICE CONTROL:
Press to start voice control (Refer to ’Voice Control’, page
4.14).
[3] MENU HOME:
Press to open the instrument cluster menu (Refer to
’Instrument Cluster Menu’, page 4.11).
[4] DRIVE MODE:
Press to cycle between drive modes (Refer to ’Drive
Modes’, page 5.12).
[5] MENU SCROLL:
Roll the menu scroll wheel up or down to navigate the instrument
cluster menu. Press the scroll wheel button to select an item in
the menu (referred to in this handbook as OK).
MY63-19A321-AA.book Page 8 Monday, June 22, 2020 10:37 AM

Quick Start 1.9
[6] CALL:
Press to answer an incoming call (Refer to ’Calls’, page
7.5).
[7] MENU BACK:
Press to take the instrument cluster menu back one level.
[8] HORN:
Push to sound the vehicle horn.
[9] END VOICE CONTROL:
End voice control.
[10] END CALL:
Press to end a call or reject an incoming call.
[11] VOLUME DIAL:
Roll the volume scroll wheel up or down to increase or decrease
volume for the audio system, or volume during a phone call.
Press the scroll wheel button to set sound to ON or OFF.
Transmission Paddles
(Automatic Transmission only)
Pull back on either paddle to enter Touchtronic mode (Refer to
’Touchtronic Controls’, page 5.7).
[1] : Downshift Paddle
[2] : Upshift Paddle
Neutral is selected by pulling back both paddles together and
releasing or by pressing (N) Neutral on the centre stack.
P (Park) and R (Reverse) are selected with the PRND buttons.
MY63-19A321-AA.book Page 9 Monday, June 22, 2020 10:37 AM

1.10 Quick Start
What Do The Stalks Control?
Indicators and Headlamp Beam
Main Beam
Push the stalk for main beam headlamps. Pull the stalk back to
the initial position to return to dipped beam headlamps.
Flash Headlamps
Pull the stalk to flash the main beam headlamps.
Direction Indicators
Press up to briefly indicate a right turn and down for a left turn.
Press until the switch latches to hold the selected indicator on.
Wiper Controls
Rotate the wipe speed selector (A) to select a wipe speed.
[1] : Windscreen wipers OFF
[2] : Intermittent wipe (low rain sensor sensitivity)
[3] : Intermittent wipe (high rain sensor sensitivity)
[4] : Continuous wipe (slow)
[5] : Continuous wipe (fast)
[6] : Press for single wipe. Press and hold to operate the front
windscreen washers.
MY63-19A321-AA.book Page 10 Monday, June 22, 2020 10:37 AM
