210 Sprinter Models Owner’s Manual
Including
LimitedWarranty Information

WARNINGS & CAUTIONS
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055
WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures which could result in an accident or bodily injury.
The manual also contains CAUTIONS against procedures
which could result in damage to your vehicle.
If you do not read the entire manual you may miss important
information.Observe allWarnings & Cautions.

WARNINGS & CAUTIONS
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055
WARNINGS:
SEAT BELTS:
Only forward facing seats equipped with factory installed seat belts are to be occupied while the vehicle is in
motion.All passengers must be seated in these seats only,with the seat belts fastened while the vehicle is in
motion.
TV:
The flat screenTV should not be stored inside the Roadtrek in temperatures below -4°F,(-20°C) to reduce the
chance of damage from the cold. The operating temperature of the monitor is recommended between 50°F
and 104°F,(10°C and 40°C) with a humidity range of 10% to 80%,non condensing.
If your vehicle is equipped with an optional flat screenTV,theTV must be off and in the stored position
during travel.
PROPANE:
Propane tanks shall not be placed or stored inside your vehicle.Propane tanks are equipped with safety
devices which relieve excessive pressure by discharging gas to the atmosphere.
To reduce the danger of fire or explosion do not store gasoline or other flammable liquids inside your vehicle.
Ensure you purchase propane from a reputable propane facility.Contaminated propane is a common cause
of system failure.
Do not refuel the propane tank to more than 80% of its capacity.
The propane tank valve must be closed and ALL PILOT LIGHTS,APPLIANCES,ANDTHEIR IGNITERS,
(see Operating Instructions) SHALL BETURNED OFF during refueling of motor fuel tank and/or the propane
tank.Only qualified personnel should refuel your propane tank.
APPLIANCES:
It is not safe to use cooking appliances for space heating purposes due to the danger of asphyxiation.
The propane stove needs fresh air for its safe operation.
Portable fuel burning equipment,including wood or charcoal grills and stoves,should not be used inside
your vehicle.Use of this type of equipment inside your vehicle may cause fire or asphyxiation.
PROPANE LEAK DETECTOR:
Do not block air circulation in the area where the Propane Leak Detector is located.
Battery disconnect switch must be in the“ON”position for the propane detector to function.
CARBON MONOXIDE LEAK DETECTOR:
Do not block air circulation in the area where the carbon monoxide leak detector is located.
Battery disconnect switch must be in the“ON”position for the Carbon Monoxide Leak Detector to function.

WARNINGS & CAUTIONS
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055
110VOLT ELECTRICAL SERVICING:
Prior to servicing the 110 volt Galley GFCI & Audio/Video cabinet interior receptacles,unplug the output lead
from the power inverter.
EXTERIOR ACCESS DOORS:
Ensure power cord and city water line are disconnected and in their stored positions before vehicle is put in
motion.
CAUTIONS:
CLOVERLEAF DININGTABLE:
Cloverleaf dining table is heavy,bend knees while lifting.
EXTRA COUNTER SPACE:
Make sure the stove is off and has cooled prior to lowering the stove cover.
TV:
When the vehicle is in motion it is recommended that theTV be“OFF”and in the stored position.
The flat screenTV,(optionTF) should not be stored inside the Roadtrek in temperatures below -4°F,(-20°C).
The operating temperature of the monitor is recommended between 50°F & 104°F,(10°C – 40°C) with a humidity
range of 10%-80%,non condensing.
To remove theT/V,remove the four mounting bolts on the back of theT/V mounting bracket and remove the
RCA cables,power supply cable and antenna cable.
AUXILIARY BATTERY:
Battery acid can burn skin and clothing.Protective eye wear and gloves should be worn when handling batteries.
REPLACINGTHE AUXILIARY BATTERY:
Ensure that the inverter is disconnected prior to disconnecting the auxiliary battery.
GENERATOR:
When launching a boat using your Roadtrek,it is important to know that the generator MUST NOTbe
submerged in water.
WASTEWATER STORAGE AND DUMPING SYSTEM:
Ensure that both the black and gray water gate valves are closed,(inward position) before using the waste water
system.
Under moderate subfreezing conditions,antifreeze is required in the exterior fresh water tank,black and gray
waste water tanks.Antifreeze should be used at a 50% water and 50% antifreeze ratio.
THEWARNINGS AND CAUTIONS INTHE QUICK REFERENCE ARE AN OVERVIEW AND THERE
ARE MORE NOTES AND INSTRUCTIONS WITHINTHIS MANUAL.

CUSTOMERSERVICE PROCEDURES
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055
OBTAINING MOTORHOME SERVICE
The solution to all your Roadtrek concerns starts with your Roadtrek Dealer
Roadtrek Dealer
The dealership should always be given the
opportunity to resolve your concerns prior to
contacting Home & Park Motorhomes
Roadtrek Dealer Dodge/Chrysler Dealer
Contact ServiceWriter
at Roadtrek Dealership
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
If situation is
not resolved
Contact Service Manager
at Roadtrek Dealership
Contact Dealer Principal
at Roadtrek Dealership
Contact
Home & Park Motorhomes Contact Home & Park Motorhomes
Advise the Service Department
that you have a
Dodge SprinterVan
that requires service.
Note: Usingtheword“Motorhome”maycause
thedealertoshy awayfromservice.
Mostautomotivedealershavetheservice
capabilitiesto handlethe1ton van.
Contact ServiceWriter
Contact Service Manager
Contact Chassis
Customer Service Department
for assistance.
Customer Service will issue a file for your records.
Contact Dealer Principal

TABLE OF CONTENTS
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055BB--11
Introduction __________________________________________________________________________________________________ A-1

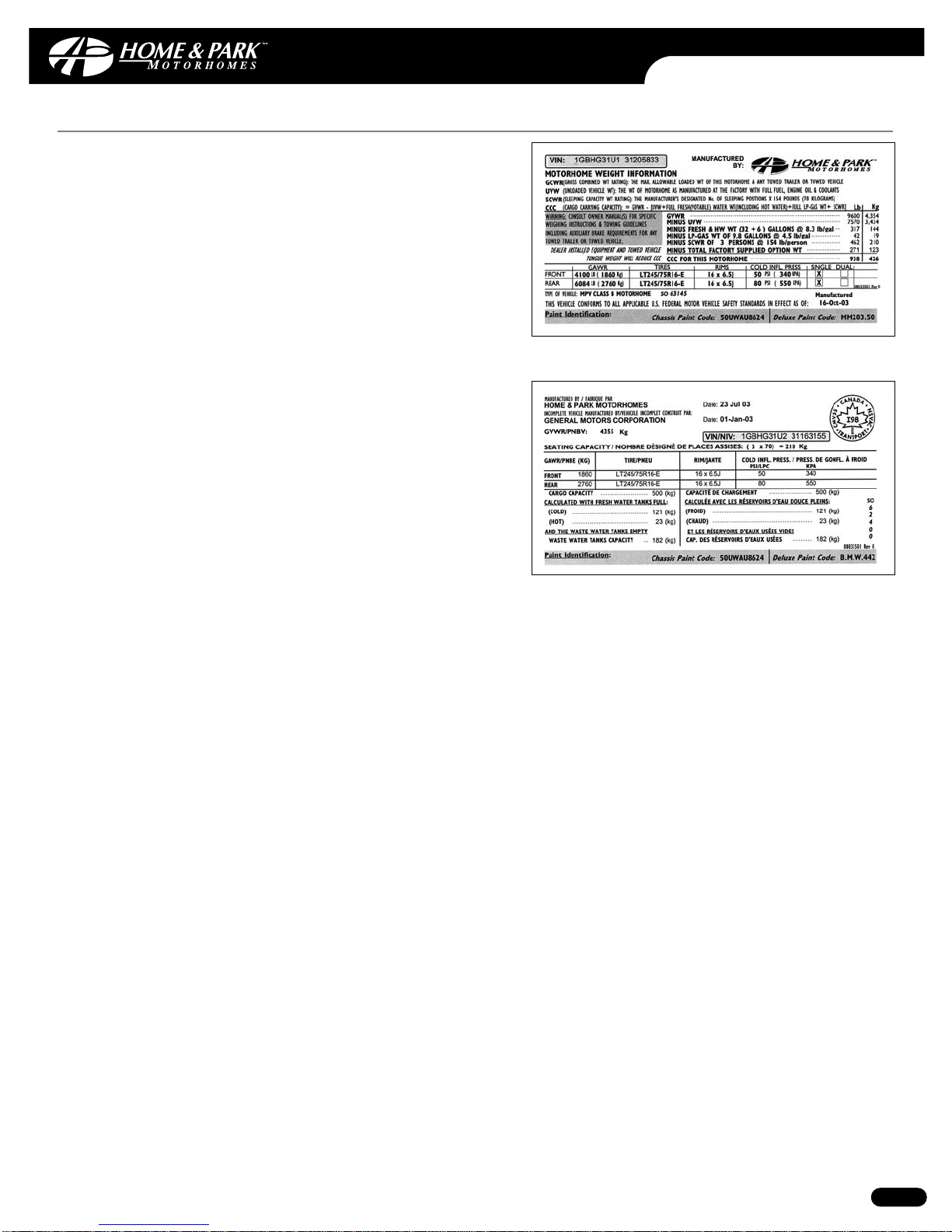

Weight Ratings________________________________________________________________________________________________ A-2
Specifications,(Automotive/Motorhome) ________________________________________________________________________A-3
Appliance Log ________________________________________________________________________________________________A-4
Manufacturer Contact Information ______________________________________________________________________________A-5
Daily Living __________________________________________________________________________________________________ B-1
Captain’s Seats ________________________________________________________________________________________________ B-1
Seat Belt Usage ________________________________________________________________________________________________ B-1
Cloverleaf DiningTable __________________________________________________________________________________________ B-2
DinetteTable __________________________________________________________________________________________________ B-3
SSlleeeeppiinnggFFaacciilliittiieess______________________________________________________________________________________________ B-4
RearTwin Beds ________________________________________________________________________________________ B-4
Rear King Bed __________________________________________________________________________________________ B-5
Front Lounge Seats______________________________________________________________________________________ B-6
WWaasshhrroooommaannddSShhoowweerrAArreeaa______________________________________________________________________________________ B-7
Front and RearWashroom Doors __________________________________________________________________________B-7
Washroom Exhaust Fan __________________________________________________________________________________B-7
WWaasshhrroooommFFaacciilliittiieess____________________________________________________________________________________________ B-8
Toilet ________________________________________________________________________________________________ B-8
Permanent Bathroom Shower ____________________________________________________________________________ B-8
Extra Counter Space ____________________________________________________________________________________________ B-9
TV __________________________________________________________________________________________________________ B-9
EExxtteerriioorrAAcccceesss
sDDoooorrss__________________________________________________________________________________________ B-10
Driver Side Access Doors ________________________________________________________________________________ B-10
Propane Access Door __________________________________________________________________________________ B-11
Rear Storage Area______________________________________________________________________________________ B-11
Auxiliary Battery ______________________________________________________________________________________________ B-12
Replacing the Auxiliary Battery __________________________________________________________________________________B-12
SpareTire Storage ____________________________________________________________________________________________ B-13
Caution Note,(Mineralling) ______________________________________________________________________________________B-13
Signal Selection Switch__________________________________________________________________________________________B-14
Audio/Video Cabinet __________________________________________________________________________________________B-14
RSA Elevation Diagram__________________________________________________________________________________________B-15
RSA Floorplan ________________________________________________________________________________________________B-16
Electrical System ______________________________________________________________________________________________ E-1
Inverter ______________________________________________________________________________________________________E-1
10V Inverter/Charger Shut Down __________________________________________________________________________________E-1
Inverter/Charger Start up After Automatic Safety Shut Down____________________________________________________________E-1
Dry Camping Battery Conservation ________________________________________________________________________________E-1
Receptacle Functionality__________________________________________________________________________________________E-1
12V DC/110V AC Inverter/Charger/Distribution Panel ________________________________________________________________ E-2
External Electrical Source Connection ______________________________________________________________________________ E-2
Generator ____________________________________________________________________________________________________ E-2
Monitor Panel__________________________________________________________________________________________________ E-3
Auxiliary Battery and Battery Separator ____________________________________________________________________________ E-4
Automotive Battery ____________________________________________________________________________________________ E-4
Interior Cab Light ______________________________________________________________________________________________ E-4
Range Hood Exhaust Fan ________________________________________________________________________________________ E-4
Water Heater __________________________________________________________________________________________________E-4
Rear Storage Light ______________________________________________________________________________________________E-4
Electrical System Legend ________________________________________________________________________________________ E-5
Electrical Distribution/Fuse Panel __________________________________________________________________________________E-6
Electrical System Schematic ______________________________________________________________________________________ E-7
Propane & Safety System ______________________________________________________________________________________ F-1
PropaneTank __________________________________________________________________________________________________ F-1
Appliances ____________________________________________________________________________________________________ F-1
Refueling Procedures____________________________________________________________________________________________ F-2
Regulator ____________________________________________________________________________________________________ F-2
Propane Leak Detector __________________________________________________________________________________________ F-2
Carbon Monoxide Leak Detector __________________________________________________________________________________ F-2
Smoke Detector ________________________________________________________________________________________________ F-3
Propan System Diagram__________________________________________________________________________________________F-4

TABLE OF CONTENTS
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055BB--11
Water Systems ________________________________________________________________________________________________ G-1
Water Heater Bypass System______________________________________________________________________________________ G-1
FreshWaterTank Drain __________________________________________________________________________________________ G-1
To De-Winterize ________________________________________________________________________________________________ G-1
FreshWaterTanks ______________________________________________________________________________________________ G-2
Filling the Fresh WaterTank ______________________________________________________________________________ G-2
CityWater Connection __________________________________________________________________________________ G-3
WasteWater Storage and Dumping System ________________________________________________________________________ G-4
WasteWaterTank Preparation ____________________________________________________________________________________G-4
WasteWaterTank Dumping ______________________________________________________________________________________ G-5
WasteWaterTank Flushing ______________________________________________________________________________________ G-6
Outside Shower ________________________________________________________________________________________________ G-6
PotableWater System Draining __________________________________________________________________________________ G-6
PotableWater System Sanitizing __________________________________________________________________________________ G-7
Water SystemWinterizing ________________________________________________________________________________________G-7
WaterTank/System Location Diagram ______________________________________________________________________________G-8
WaterTankTop Down Diagram ____________________________________________________________________________________G-9
WaterTanks Bottom Up Diagram ________________________________________________________________________________G-10
Tire Fundamentals ____________________________________________________________________________________________ H-1
UTQGS Information____________________________________________________________________________________________ H-2
Owner Maintenance ____________________________________________________________________________________________ I-1
ExteriorWashing ________________________________________________________________________________________________ I-1
Other Maintenance______________________________________________________________________________________________ I-1
Winter Storage__________________________________________________________________________________________________ I-1
InsideYourVehicle ______________________________________________________________________________________ I-1
OutsideYourVehicle ____________________________________________________________________________________ I-1
Spring Start-Up ________________________________________________________________________________________________ I-2
Tires __________________________________________________________________________________________________________ I-2
Cargo Carrying Capacity__________________________________________________________________________________________ I-2
Owner Maintenance Checks ______________________________________________________________________________________ I-2
WhenYou Stop for Fuel __________________________________________________________________________________ I-2
At Least Monthly ________________________________________________________________________________________ I-2
At Least Once EveryThree Months __________________________________________________________________________ I-2
At LeastTwice AYear ____________________________________________________________________________________ I-3
At Least Once AYear ____________________________________________________________________________________ I-3
Auxiliary Battery ________________________________________________________________________________________________ I-3
AluminumWheel Maintenance ____________________________________________________________________________________ I-4
LimitedWarranty Information __________________________________________________________________________________ J-1
LimitedWarranty Definitions ______________________________________________________________________________________ J-1
Home & Park LimitedWarranty Registration__________________________________________________________________________ J-1
AutomotiveWarranty - DaimlerChrysler (Dodge Sprinter Chassis) ____________________________________________________ J-1 - J-2
Automotive Customer Service & Roadside Assistance Numbers__________________________________________________________ J-2
ApplianceWarranty ____________________________________________________________________________________________ J-2
Home & Park Limited MotorhomeWarranty______________________________________________________________________ J-3 - J-4
Customer Assistance __________________________________________________________________________________________ K-1
Reporting Safety Defects,(U.S.Only)________________________________________________________________________________ K-1
Roadtrek Ambassador Potential Customer Referral Program for Roadtrek Owners __________________________________________ K-1
Roadtrek Club International ______________________________________________________________________________________ K-2
Address,Phone & Facsimile Numbers,and E-mail ____________________________________________________________________ K-2
Website ______________________________________________________________________________________________________K-2
Roadtrek International Chapter FMCA / A Roadtrek Owners’Club Membership Forms __________________________________ L-1
CChhaannggeeooffOOwwnneerrNNaammeeoorrAAddddrreessssForm______________________________________________________________________ M-1 - M-2
Potential Customer Referral Card __________________________________________________________________________ M-3 - M-4

INTRODUCTION
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055AA--11
AWORDTO ROADTREK OWNERS...
This manual has been prepared to acquaint you with the operation,maintenance and warranties of your new
Roadtrek MotorhomeVan.Your vehicle has been designed,engineered and manufactured to provide you with
the utmost in pleasure,dependability and quality.It is important that you read the contents of this manual,
that of the Dodge chassis and those of other components,and follow the instructions and recommendations
contained in each to help assure the most enjoyable and trouble free operation of your vehicle.
We would like to take this opportunity to thank you for selecting a Roadtrek product,and assure you of our
continuing commitment to your recreational vehicle pleasure,safety and satisfaction.
INTRODUCTION
This manual has been written to provide you with the information required to properly operate and maintain your
new Roadtrek.After reading this manual,be sure to keep it in your vehicle as a reference.Your Roadtrek dealer will
be glad to answer any further questions about the operation of your vehicle.
IMPORTANT
Every reasonable precaution has been undertaken in the preparation of this manual resulting in the utmost
accuracy possible at the time of publication.However,due to the continuing improvement and refinement of our
products and normal changes in information and procedures,Home & Park shall assume no responsibility
whatsoever for errors or omissions in the manual’s contents.
Further,Home & Park shall not be held liable or assume any obligations or responsibilities whatsoever for any loss,
damage or injury directly or indirectly caused by,arising or resulting from,or as a consequence of the use or
nonuse of the information contained herein or the operation or non-operation of any items mentioned herein.And
finally,Home & Park shall be indemnified and saved harmless from all losses,expenses,claims and demands
whatsoever.

INTRODUCTION
DDooccNNoo::21906540-RSAD RReevv::00 CCooppyyrriigghhtt©©HHaannmmaarrMMoottoorrCCoorrppoorraattiioonn22000055A-2
Weight Ratings
GrossVehicleWeight Rating,(GVWR): is the maximum
permissible weight of this vehicle when fully loaded.It
includes all weight at the vehicle axle(s).
UnloadedVehicleWeight,(UVW):is the weight of this
motorhome as manufactured at the factory.It includes all
weight at the vehicle axle(s).If applicable,it also includes full
generator fluids,including fuel,engine oil and coolants.
Cargo Carrying Capacity,(CCC): is equal to GVWR minus
each of the following:UVW,full fresh,(potable) water weight,
(including water heater),and full propane weight and SCWR.
Gross CombinedWeight Rating,(GCWR):means the
maximum allowable loaded weight of this motorhome and
any towed trailer or towed vehicle.
Canadian Models - Seating CapacityWeight Rating,(SCWR)
US Models - Sleeping CapacityWeight Rating,(SCWR):
is the manufacturer’s designated number of sleeping
positions multiplied by 154 pounds,(70 kilograms).
Gross AxleWeight Rating,(GAWR): is the value specified as
the load carrying capacity of a single axle system,as
measured at the tire-ground interfaces.
Towing Guidelines:Consult Chevrolet Owners Manual(s) for
specific weighing instructions and towing guidelines,
including auxiliary brake requirements for any towed trailer
or towed vehicle.
Weighing Procedure:Prior to weighing each unit,the fuel
tank must be full,as well as the fresh water tank.All tires must
be of equal pressure,and any snow must be removed.
Note:the weighing must be done on level ground!
Equipment:2 Portable Scales,(including electrical power source),2 wooden ramps,lift and pressure gauge.
Alternate: D.O.T.approved customer scales.
Note:Wooden ramps must be equal to or less than 1/8”of the height of the scales being used.
Procedure:
1) Fill Fuel Tank.
2) Fill FreshWaterTank.
3) Measure all tire pressures and equalize if necessary.
4) Place wooden ramps below rear wheels,(using lift or driving onto ramps for levelling vehicle;N/A if
commercial scales used).
5) Place scales under front wheels.
6) Record scale readings.
7) Repeat for rear wheels.
Sample of CanadianWeight label:
Sample of USWeight label:
