BODEGA SS-P238WD User manual

UPRIGHT DISPLAY COOLER
BRAND: BODEGA
MODEL: SS-P238WD

SAFETY PRECAUTIONS ...........................................................................................................................................3
INSTALLATION ............................................................................................................................................................9

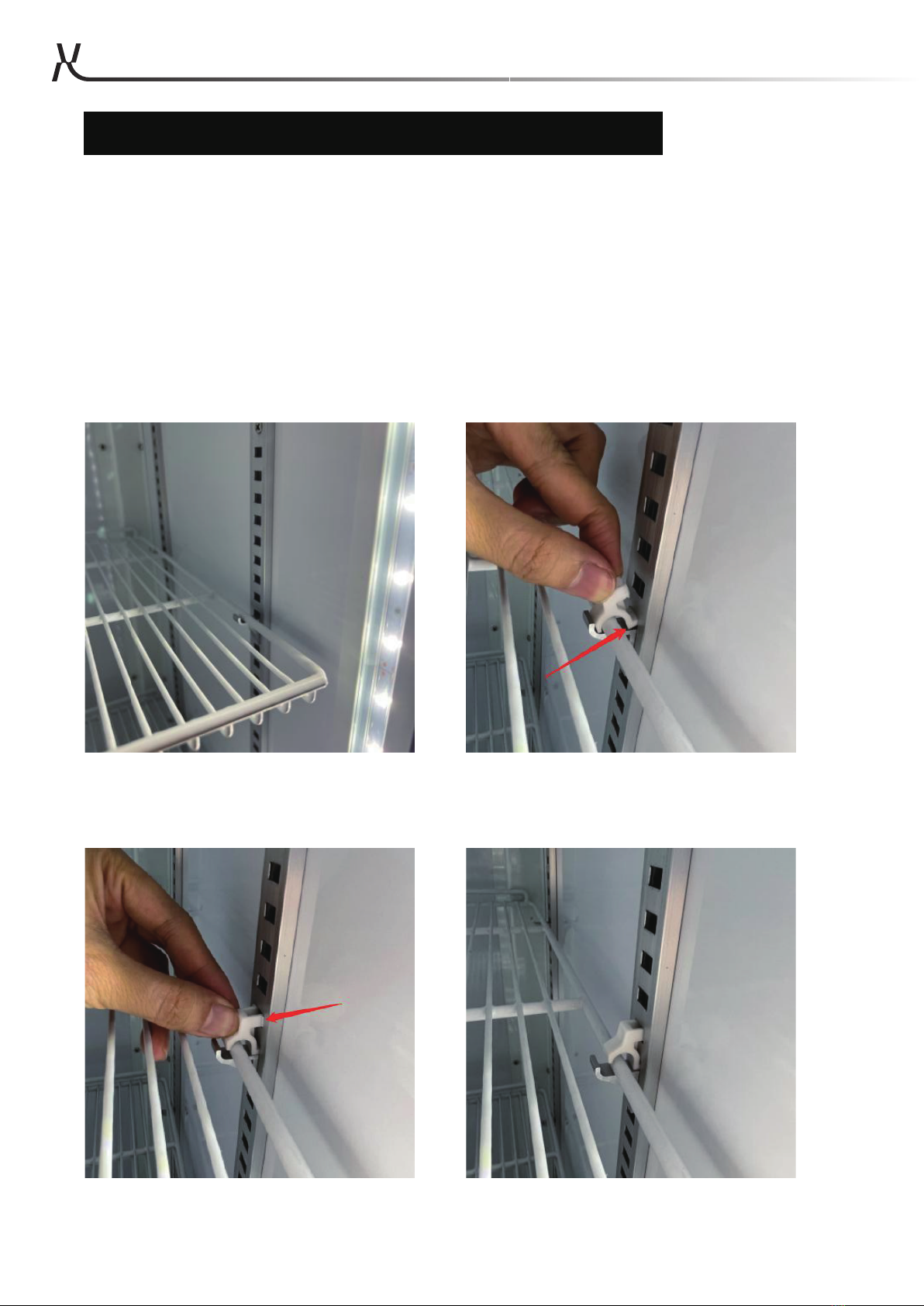

INSTALL AND ADJUSTABLE SHELF ...................................................................................................................15
OPERATION ................................................................................................................................................................17
MAINTENANCE & CLEANING ................................................................................................................................19
TROUBLE SHOOTING ..............................................................................................................................................21
PROCEDURES OF REPLACING PARTS .............................................................................................................22
WARRANTY ................................................................................................................................................................ 23
1

UPRIGHT DISPLAY COOLER
2

SAFETY PRECAUTIONS
This manual contains the product’s basic knowledge, use instruction, fault diagnosis and basic trouble
shooting methods. In order to better understand and use this product, please take good care of this
manual and read it carefully.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to
minimize risks that could cause serious damage and injury. These safety precautions are divided into
WARNINGS and CAUTIONS. Cases where improper handing of the unit could lead to death or serious
injury are listed under the "WARNING" heading. However, the cases listed under the "CAUTION" heading
could also lead to serious results, to ensure the safety, adhere strictly to both types of safety precautions.
Refrigerant Safety & Warning Information
CAUTION! Keep all ventilation openings clear of obstruction in the appliance enclosure or in the
structure housing the appliance.
DANGER! Risk of fire or explosion, Flammable refrigerant used, Do not damage the refrigerant
circuit.Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
DANGER! Risk of fire or explosion, Flammable refrigerant used, consult repair manual/owner’s
guide before attempting to service this product. All safety precautions must be followed. Dispose of
properly in accordance with local and federal regulations. Follow all safety precautions.
CAUTION! Do not store any explosive substance such as aerosol cans with a flammable
propellant into this appliance.
Basic Safety & Warning
Take care during operation, maintenance or repairs to avoid cuts or pinching from any part /component
of the cabinet.
Ensure the unit is properly installed and located in accordance with the Installation Instructions before
use.
This appliance is not intended for use by persons(Including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
DO NOT allow children to play with the appliance or climb, stand, or hang on the unit’s shelves to
3

prevent damage to the refrigerator and personal injury.
The appliance shall be disconnected from its power source during cleaning or maintenance and when
replacing parts.
When the cooler will be not be used for a long time, disconnect the power and clean it. Please examine
the circuit before reuse..
DO NOT store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or any other
appliance.
DO NOT store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
Strong base, strong acid, organic solvent and corrosive goods or those are easy to pollute to food are
prohibited storing in the cooler, otherwise, it can cause corrosive problem or accident.
DO NOT use other electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
The LED light must not be replaced directly by the user! If the light is damaged, please contact the
customer service for assistance.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to
flame.
When positioning the appliance, ensure the supply cord is not trapped or damaged.
Make sure the power cable does not come in contact with sharp or hot objects and keep away
from open fire.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from
the manufacturer or its service agent.
ATTENTION! As long as the power plug is in the electrical socket the appliance is connected to the
electric grid.
Before you scrap the appliance, please take off the doors to prevent children trapped.
DANGER! RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past.
4

NOTE:
Text set off by the exclamation mark contains information that should be strictly adhered to.
After reading the instruction manual, store it an easily accessible place where the user(s) of this product
can easily find it.
Precautions for Installation
The symbol is a warning and indicates the refrigerant and insulation blowing gas are
flammable.
Warning - Risk of fire / flammable materials.
Warning - Do not store explosive substances such as aerosol cans with a flammable propellant
in the unit.
Warning - Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance
Warning - The refrigerant and insulation blowing gas are flammable. When disposing of the
appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
WARNING
Improper handling of the unit could lead to death or serious injury.
CAUTION Improper handling of the unit could lead to serious results depending on
the circumstances.
Installation should be performed only by the dealer or a qualified expert. Attempting to
install the unit yourself could result in water leakage, refrigerant leakage, electrical
shock, or fire.
5

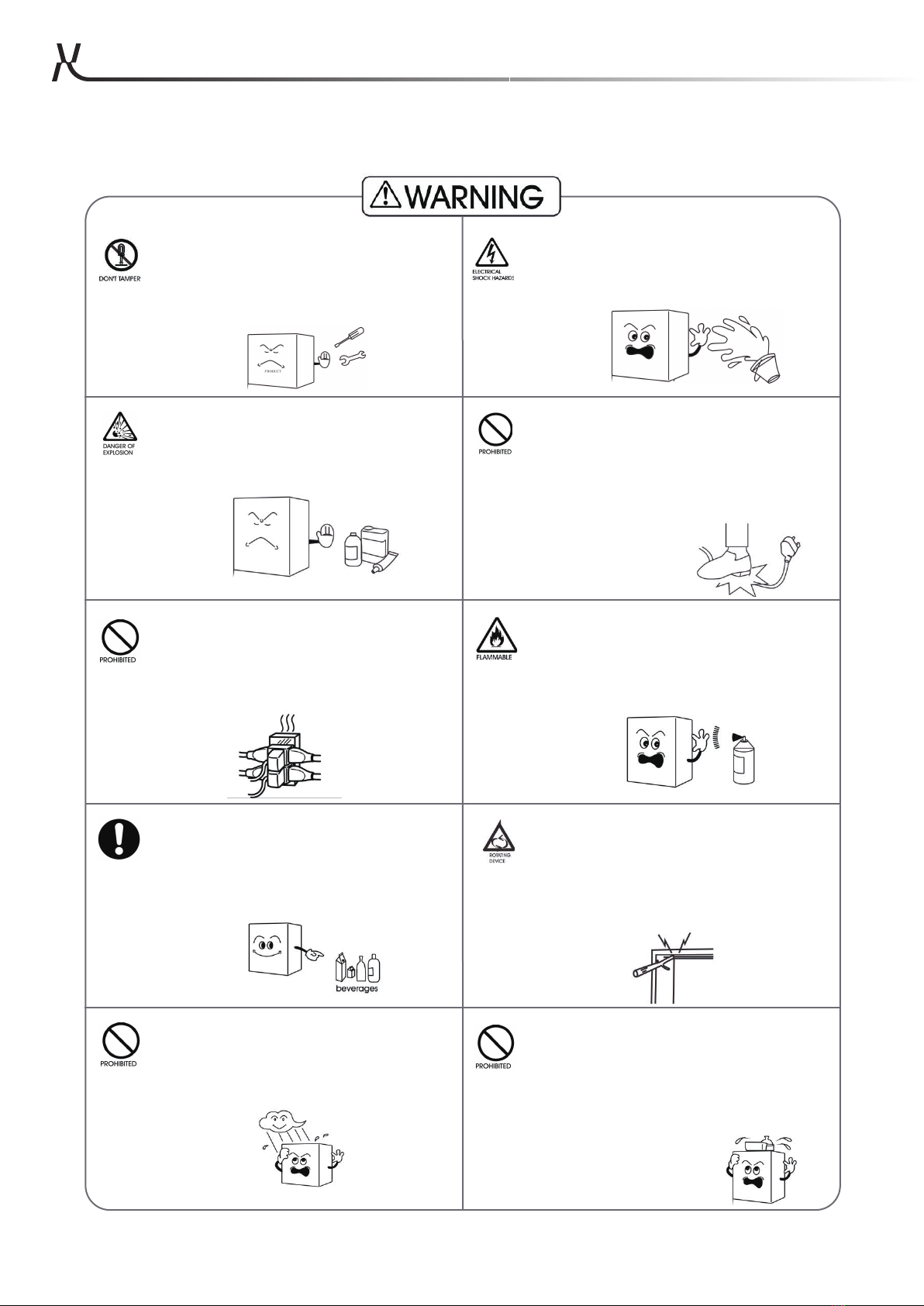

Precautions for Use
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform these
yourself could result in a fire, malfunction,
and injury.
Never splash water directly onto the
product or wash with water as short-
circuit and electrical leakage could result.
Do not damage, modify, excessively
bend, strain, twist or bundle up the power
cord. Also, placing heavy objects the
power cord or squeezing it in a tight place
could damage it, possible resulting in
electrical shock or fire.
Never use flammable spray cans or
leave flammable substances near the
unit. Sparks from electrical switches
could result in explosion and fire.
The cooler is intended for storage and
display of beverages for sale. Do not
use for other purpose than intended as
this could adversely affect items placed
in the unit.
Use a dedicated wall outlet. Do not use
extension cords or convenience
receptacles as this could result in
electrical shock, overheating and a fire.
Never put flammable or volatile
substances into the unit as explosion
and fire could result.
Never attempt to insert fingers, sticks, etc.
Into the cold air suction outlet as a
circulation fan is rotating at high speed
inside the outlet. Injury, electrical shock
and improper operation could result.
Never place heavy objects or items
containing water on top of the unit.
Objects could fall down and cause injury
and spilled water could deteriorate the
insulation of electrical components and
result in electrical leakage.
For indoor use only. Using the unit in a
location exposed to rain could result in
electrical leakage and electrical shock.
6

Install the unit in a location where the
floor is sturdy enough to support the load
of the unit. If the floor is not sturdy
enough or installation is incorrectly
performed, the unit could tip over and
falling shelves and products could cause
personal injury.
If you find gas leakage,please don't touch
the appliance. Turn it off and open the
doors and windows for ventilation.Gas
leakage could cause explosion, fire, and
fire injury.
Store the unit in a location where it is not
exposed to rain, Using a unit that has
been exposed to rain could result in
electrical leakage and electrical shock.
Leave disassembly and disposal of the
unit to qualified experts.

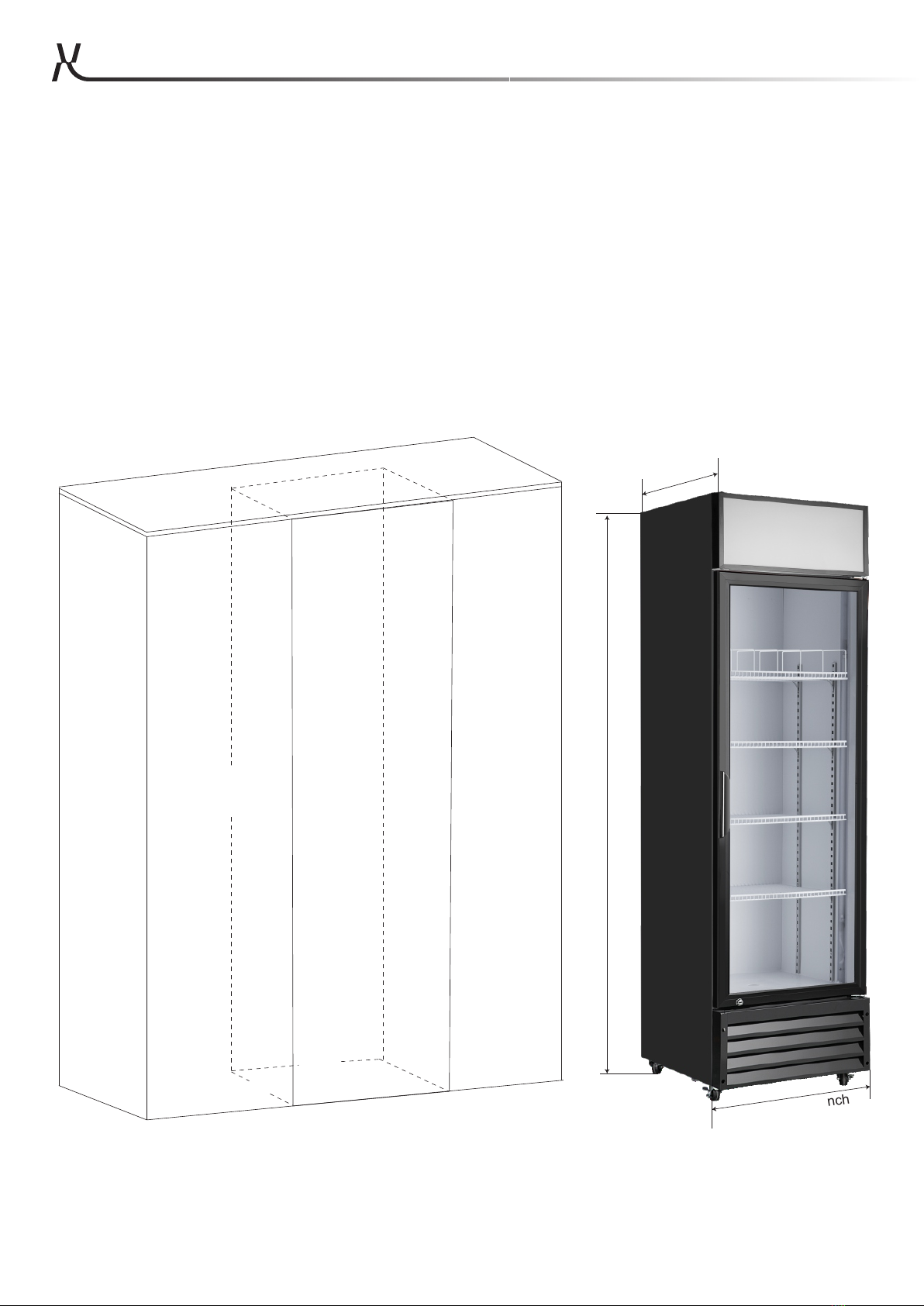

WELL VENTILATED PLACE
Please make sure there Is more than 10cm
space between UPRIGHT COOLER and the
wall. If there Is no space, cooling capacity can
drop down.
Never hang from the door or climb onto
the unit. The unit could tip over or fall and
cause material damage or injury.
Keep away from hot air sources. Cooling
performance is reduced if the unit is
placed near heat sources such as hot
plates and stoves and if it is exposed to
direct sunlight.
If installation in a damp location is
unavoidable, also install an electrical
leakage circuit breaker. If no electrical
leakage circuit breaker is installed,
electrical shock could result.
Should the unit need temporary storage,
make sure not to store the unit in a
location where children play and take
precautions so that the door cannot be
completely closed. This will minimize the
risk that a child becomes trapped inside
the compartment.
Disconnect the power cord plug from the
wall outlet before moving the unit and
make sure that the power cord is not
damaged during transport. A damaged
power cord could result in electrical
7

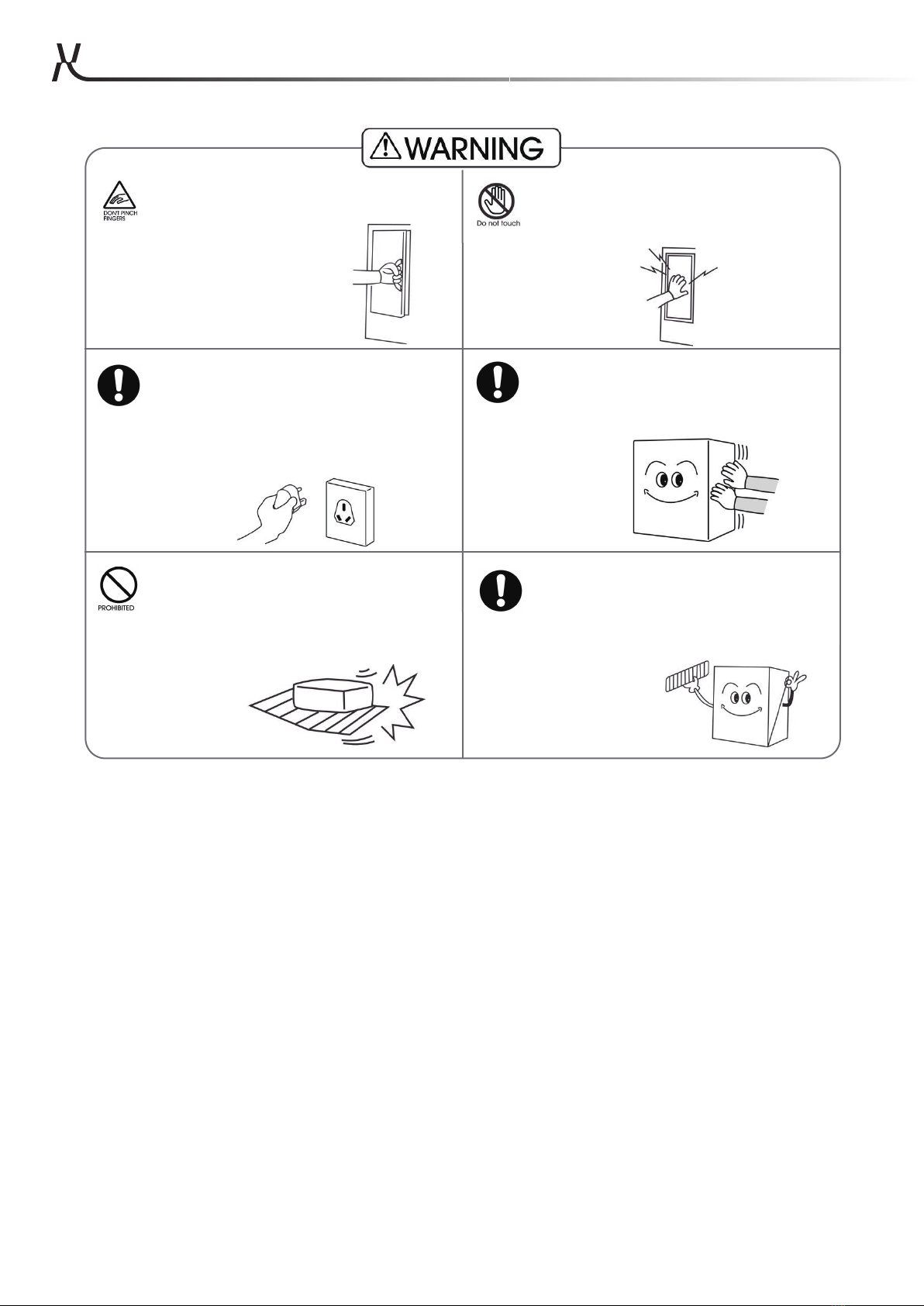

Grasp the handle when closing the door.
Holding at other positions could result in
pinched fingers and injury.
When disconnecting the power cord plug
from the wall outlet, hold at the plug main
body close to the outlet. Pulling the cord
could cause wire breakage, possibly
resulting in overheating and fire.
Make sure that the unit does not tip over
or fall when it is moved. A falling unit
could cause serious injury.
Do not push hand against or apply
excessive force to glass surfaces as the
glass could break and cause injury.
Do not throw items onto the shelves and
do not place items totaling more than 25
kg on each shelf. The shelf could fall
down, possibly causing injury.

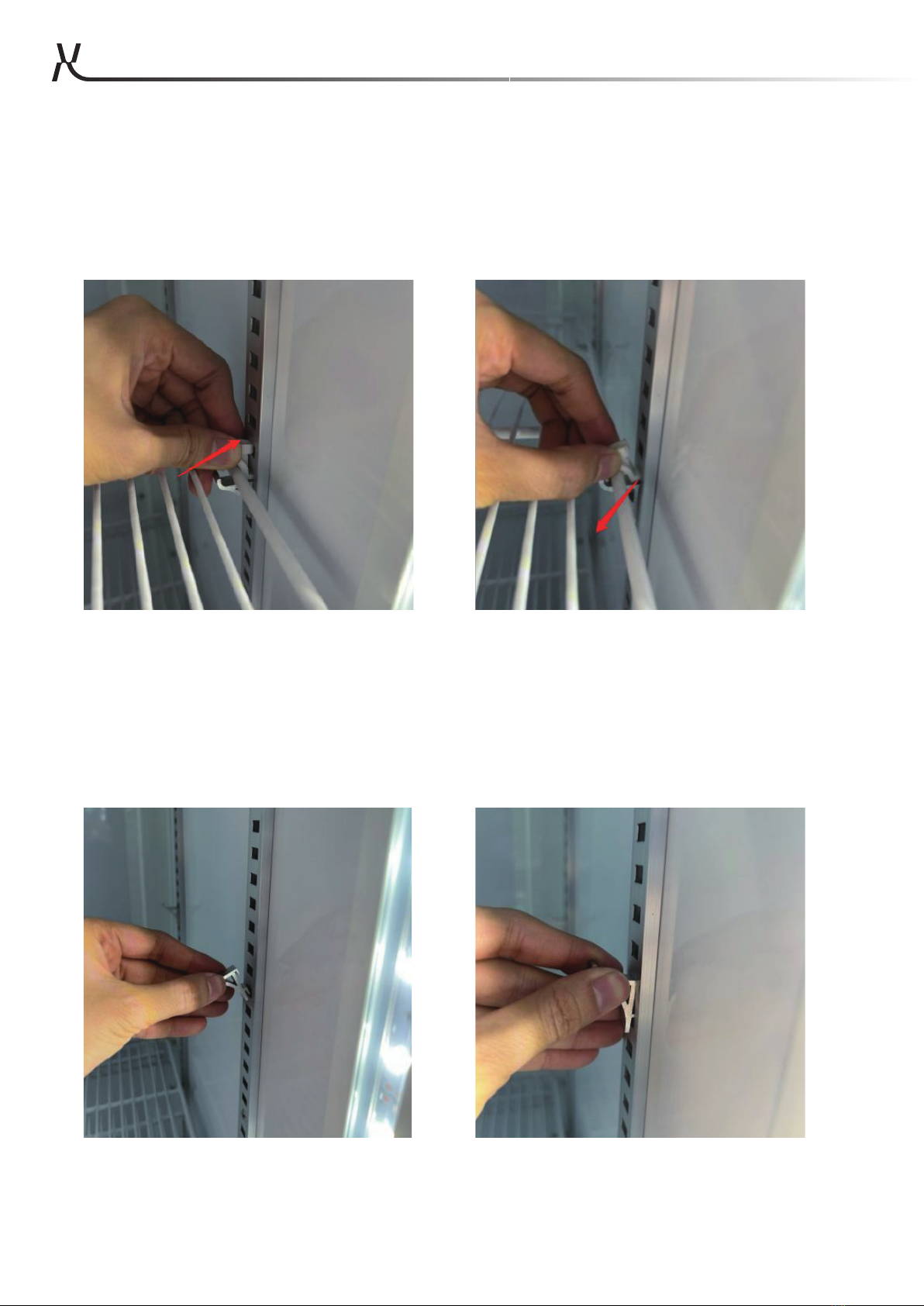

Be sure to attach and secure shelves
correctly. An improperly attached shelf
could fall down and cause injury.
8

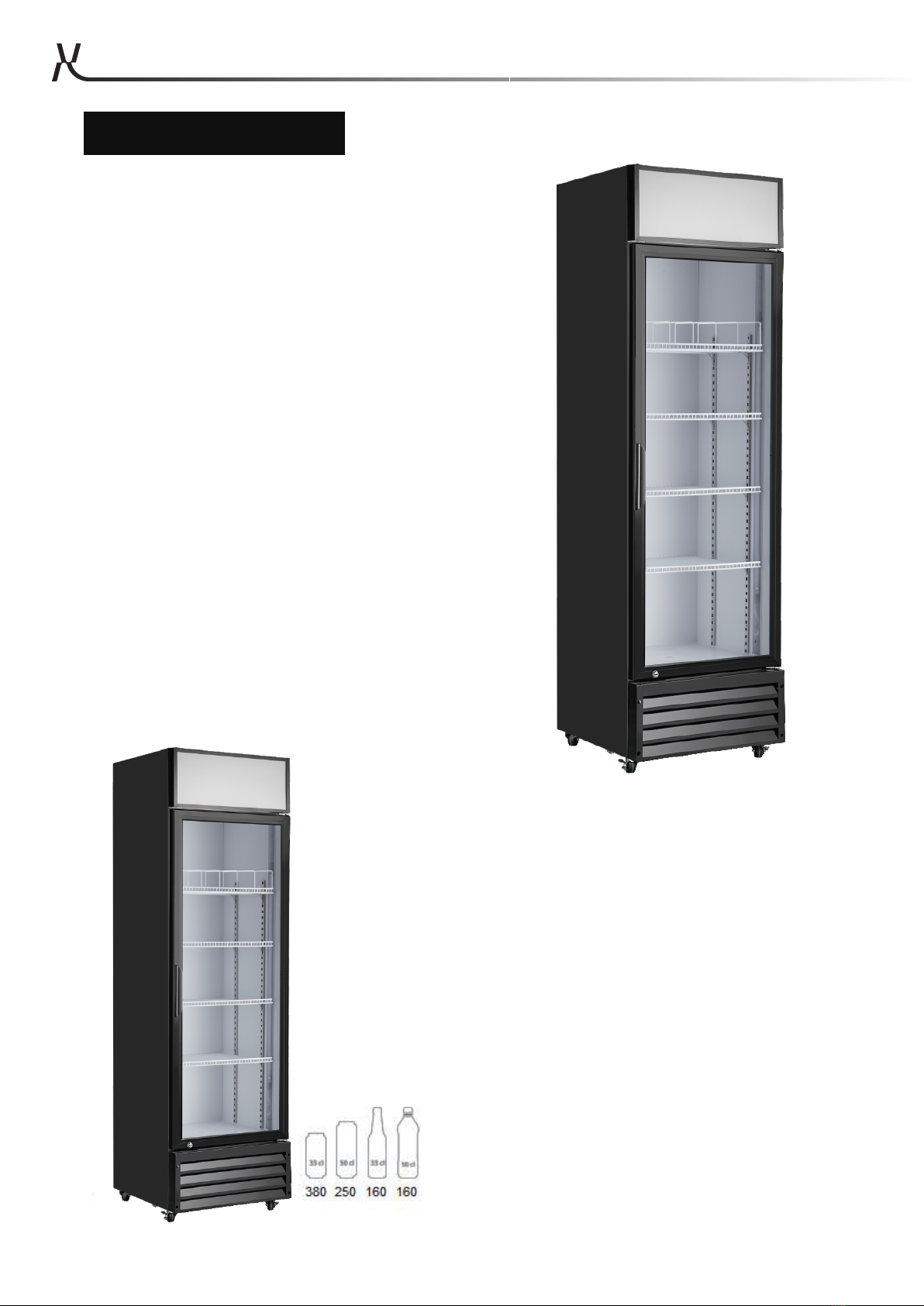

INTRODUCTION
Product Features:
R0DEnvironmental Refrigerant
Adjustable Shelves
Double-layer Glass Door with Low-E
Interior Light & Illuminated Canopy
4 Strong Castors (front 2 with brake)
 Low temperature range: 34°F - 50°F
The Merchandising Refrigerators are essential for
the display and sale of packaged goods. This
makes them invaluable for a variety of commercial
businesses, including convenience stores, offices,
supermarkets, restaurant, bar, hotel and any other
place where grab-and-go food and beverage
options are readily available.
The Display Coolers are attractive, eye-catching
display refrigerators and designed to store, cool
and display bottled or canned beverages. Since
each cooler is fitted with a glass doors, customers
can easily see their contents, which helps increase
impulse sales, Plus, with bright lighting and an
illuminated advertising panel on top where you can
advertise brands, sales, and more. You ’ll also
appreciate that a majority of our fridges with glass
doors come with casters, so you can easily move
them to keep the floor clean.
9

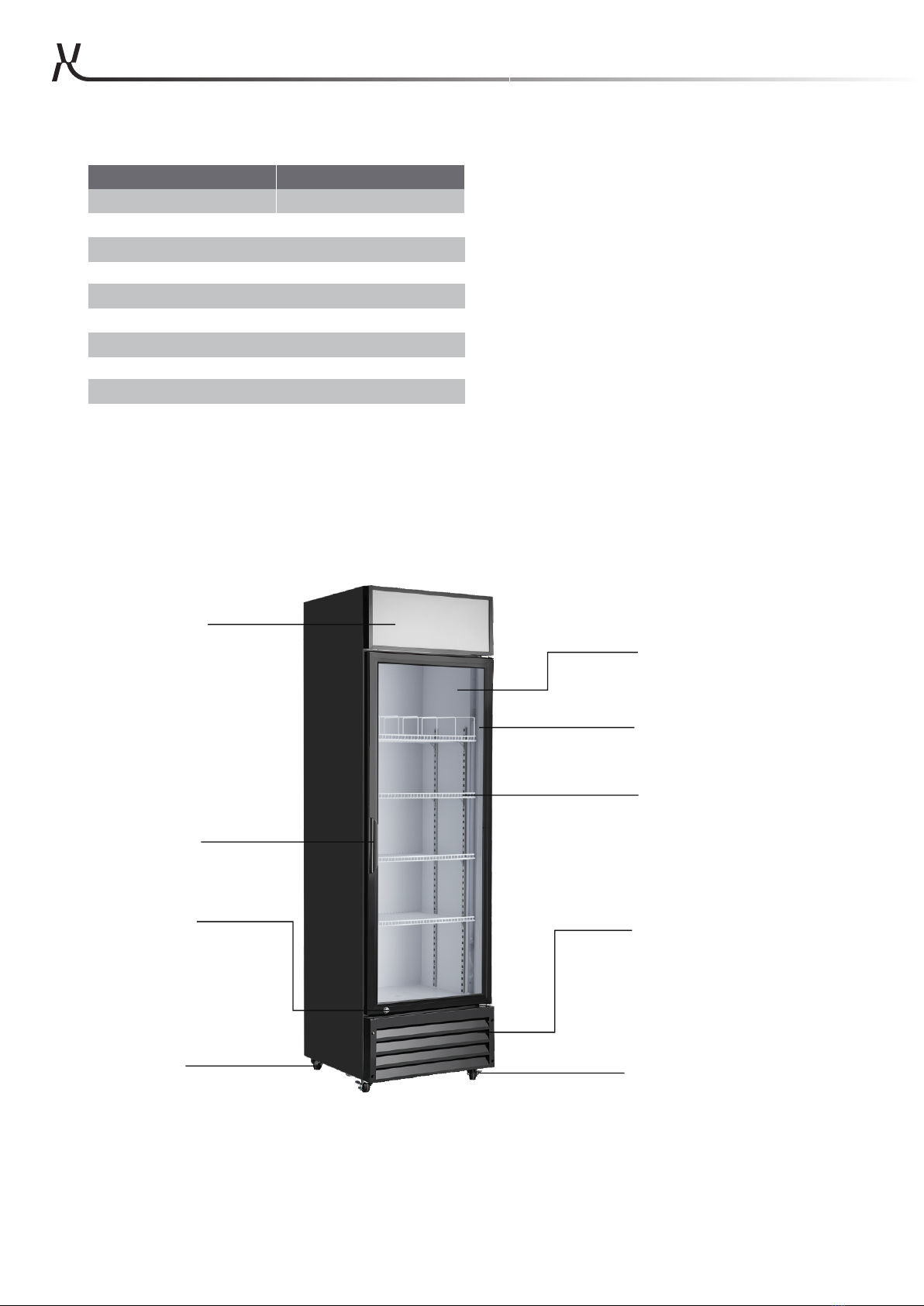

Technical Specifications
Details of Product
Model
RATED VOLTAGE
RATED FREQUENCY
Dimensions(L*W*H)
TOTAL CAPACITY
RATED INPUT POWER
D
RATED CURRENT
HIGH PRESSURE
D
LOW PRESSURE
REFRIGERANT
D
ENERGY CONSUMPTION
NET WEIGHT 125lbs
SS-P238WD
115V~
60Hz
D
7.95 ft³
165W
D
1.7A
320Psig
D
130Psig
R600a(0.10Ibs)
D
1.36kWh/24h
10
10
Casters with Brake
Casters
Front Grill Panel
Door Lock
Adjustable Shelf
Handle
Inner Light
Lamp Box
Glass Door

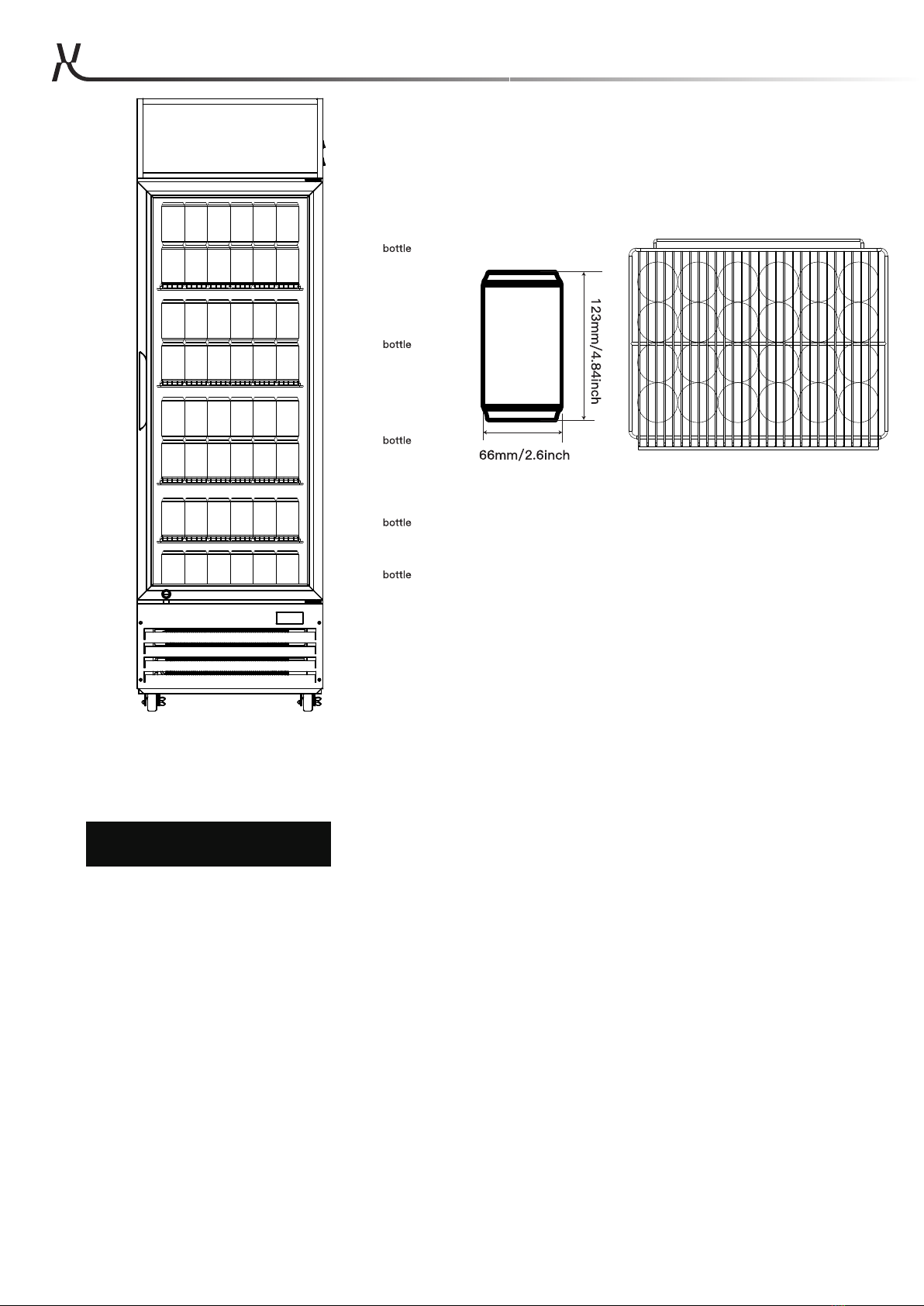

This model can store about standard bottles.
11
425mm/16.7inch
345mm/13.6inch
11
30
30
30
30
63mm/2.48inch
230mm/9.06inch
120

This model can store about standard bottles.
TIP:
You can change the height of the shelf according to your needs.
This will reduce the stated bottle capacity.
Guides to Choose Location
1. The unit is for indoor application only. Outdoor use may cause decreased efficiency and a damage to
the unit.
2. Due to the fact that the unit has a glass door, its performance is highly influenced by environmental
conditions. To minimize the effects on the unit’s performance, the following are recommended:
The appliance must be positioned on a flat and stable surface. If the surface is uneven, the unit may
be noisy. The unit may malfunction if the surface is uneven.
The unit is not exposed to direct sunlight, or is not to be placed near any kind of heat source such as
a cooker, oven or radiator. Place the refrigerator in the coolest and best ventilated part of the room.
The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/
or windows.
INSTALLATION
12
192
48
48
48
24
24
12

When positioning the appliance, maintain a distance of 10 cm (4 inches) between the appliance and
walls or other objects for ventilation and ease of use.
Keep all ventilation openings in the appliance enclosure or in the structure clear of obstruction.
In order to reduce fire hazard, the installation of this appliance must be carried out only by a suitably
qualified person.
Position the appliance in such a way that the plug is accessible at all times.
Openings & Plan Views
13
1779mm
70.0inch
537mm/21.1inch
1769mm/69.6inch
547mm
21.5inch
13
525mm/20.7inch
535mm
21.1inch

Electrical Safety
Be sure to follow the National Electrical Code, as well as local codes and ordinances, when installing
the receptacle.
Before your new unit is connected to a power supply, check the incoming voltage. Please refer to the
electrical requirements on the unit’s nameplate.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negatively affect the performance of the unit.
Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
NEVER unplug your refrigerator/freezer by pulling on the power cord. Always grip the plug firmly and
pull straight from the outlet.
Plug the power plug into a grounded and compatible socket.

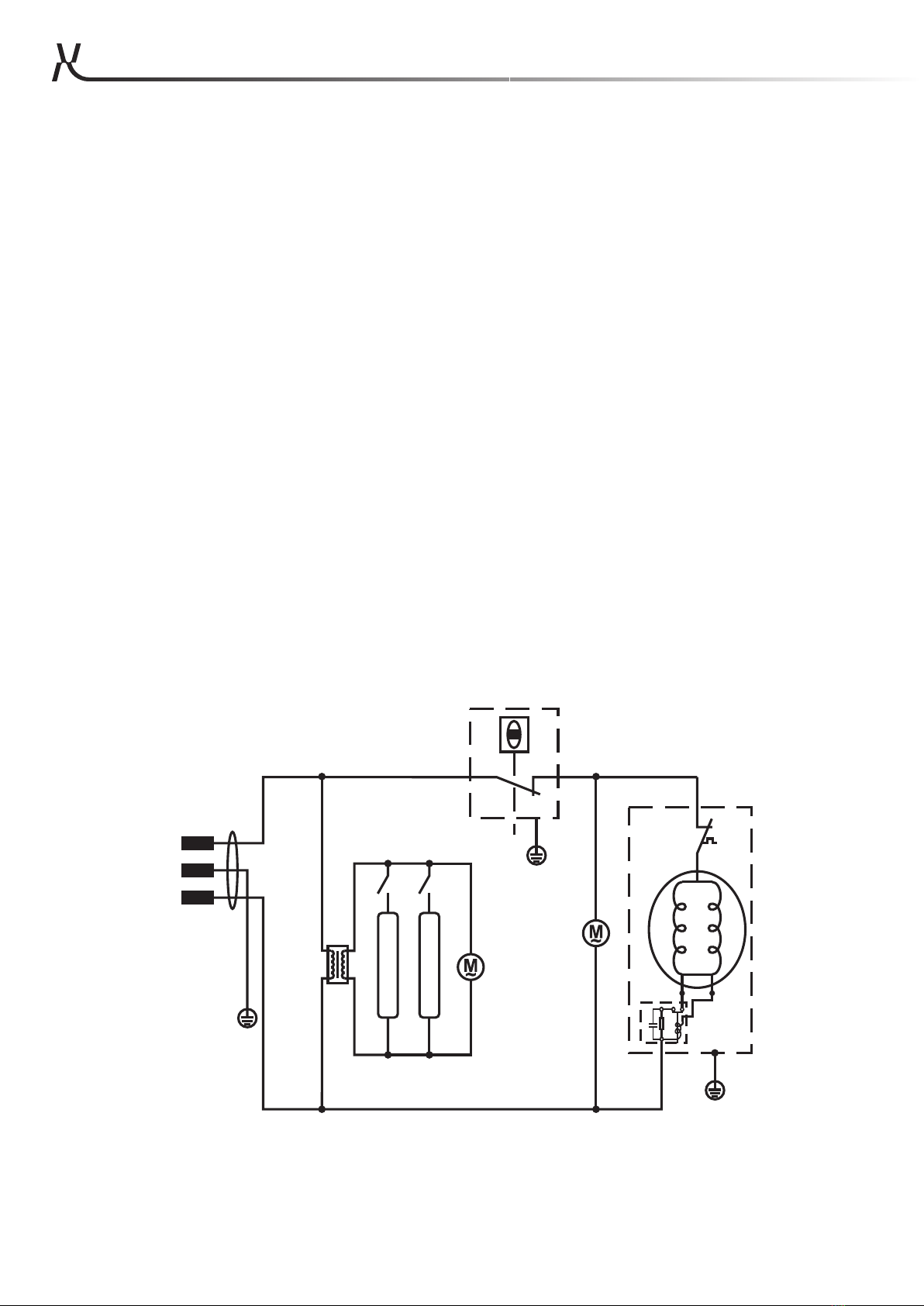

Electronic Diagram
Compressor
Over load
Protector
C
S M
RELAY
STARTUP
WH
BK
FAN MOTOR
BK
WH
LED Light Bar
MAX 2W
DC 12V
GN
BK
WH
GN
L
E
N
GND
CR
Temperature controller
L C
H
GN
LED Light Bar
MAX 4W
FAN MOTOR
14

INSTALL AND ADJUSTABLE SHELF
Shelf height adjustment.
The shelf height can be adjusted.
Arrange the shelves in accordance with the dimensions of the items to be placed in the cooler.
How to Install the Fixer of Shelf
Step 1 Put on the shelf. Step 2 Insert the bottom of a fixer to the hole
for the height that you need.
Step 3 Insert the top of the fixer to the hole
above step 2
Step 4 Finished
15

How to Discharge the Fixer of Shelf
Step 1 When discharge the fixer, push the fixer
to one side and let another side gets away
from the hole
Step 2 Take the other side off the hole
How to Install the K-Type Fixer of Shelf
Step 1 Take out k-clip and align with hole. Step 2 Insert the 2 side into hole at the same time.
16

OPERATION
Before Use
Remove shipping package, tape, etc, and leave doors open to ventilate for a while.
The unit is cleaned before shipment. However, clean the compartment interior using warm water then
dry it with a soft-cloth after delivery, for the glass parts only use specific products, avoiding the use of
water which can leave on the glass residues.
Allow the unit to run for about 1 hour to cool before placing items in the cooler.
Ensure all shelves are sitting level and properly secured before loading products.
To ensure the refrigerant and oil in the cooling system has precipitated properly, keep the appliance in
the upright position for several hours before switching it on. If the appliance was tilted horizontally prior
to or during delivery, keep it upright for at least 48 hours before switching it on.
Wait 5 minutes or more before re-starting. Restarting the unit immediately after it has been turned off
may cause fuses to blow and activate the circuit-breaker, the compressor may be overloaded, and/or
other damage may occur.

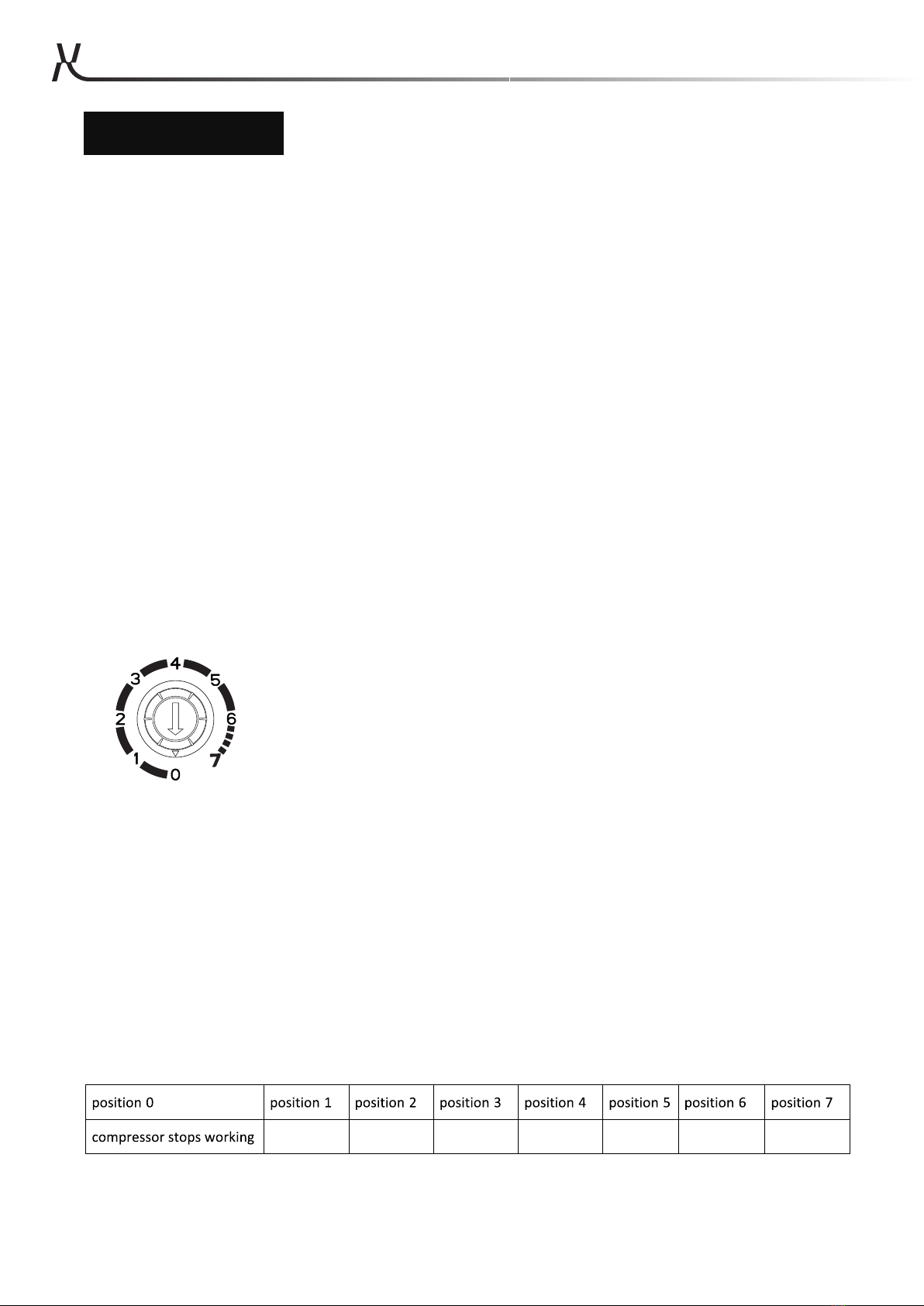

Temperature Adjustment
1. The thermostat could be adjusted the temperature inside the cabinet.
2. Turn the knob in clockwise.
3. The position 3 or 4 is suitable.
4. The position 0, the compressor stops working all the time.
5. To save energy, the door should not be frequently opened or left open for a long time.
6. The surface and the inside of the refrigerator should be dry and clean. Long term
moisture wilcause the refrigerator rust slowly. (There will be some stains on the surface).
7. Periodical clean is suggested for your reference. Generally, 30-45 days once is best.
When cleaning, it is best to wipe the inside and the surface of the refrigerator with the
soft cloth in neutrasoapsuds or detergent.
Caution: To ensure safety, the power plug must ne pulled out before cleaning.
17
49.2°F±35.6°F 47.3°F±35.6°F 45.5°F±35.6°F 45.5°F±34.7°F 41.9°F±35.6°F 38.3°F±35.6°F 34.7°F±35.6°F

NOTE: This machine has an internal temperature differential that works as a protection for the
compressor. The way the differential works is that at whatever temperature the unit will be set at, the
compressor will work and cool the cabinet down until it reaches the chosen set point then it will shut
itself up. It will allow a differential of 4 degrees before starting its operation back.
The reason is to protect the compressor from doing short cycles (on / off) repetitively. Doing so can
burn out the compressor, the same as flickering a light switch very fast, it will burn the light bulb. The
compressor works exactly the same so it should be considered when adjusting the set point.
Drain Tray
Defrosting is performed automatically and drain water is collected in the drain tray.
Water in the drain tray is evaporated automatically, In humid environments, there will be a large amount
of water in the drain tray, so please throw away drain water once a day.
Placing Items in the Showcase
This showcase employs a forced circulation of cold air system. If circulation of cold air is obstructed, the
items will not be adequately refrigerated.
Pay attention to the following points:
Do not let items obstruct the cold air inlet and suction outlet.
Place items so that they do not protrude from the shelves. The gap between the shelves and the door is
used for circulation of cold air.
Place items evenly on all shelves.
This equipment is intended for the storage and display of non-potentially-hazardous bottled or canned
products only.
18

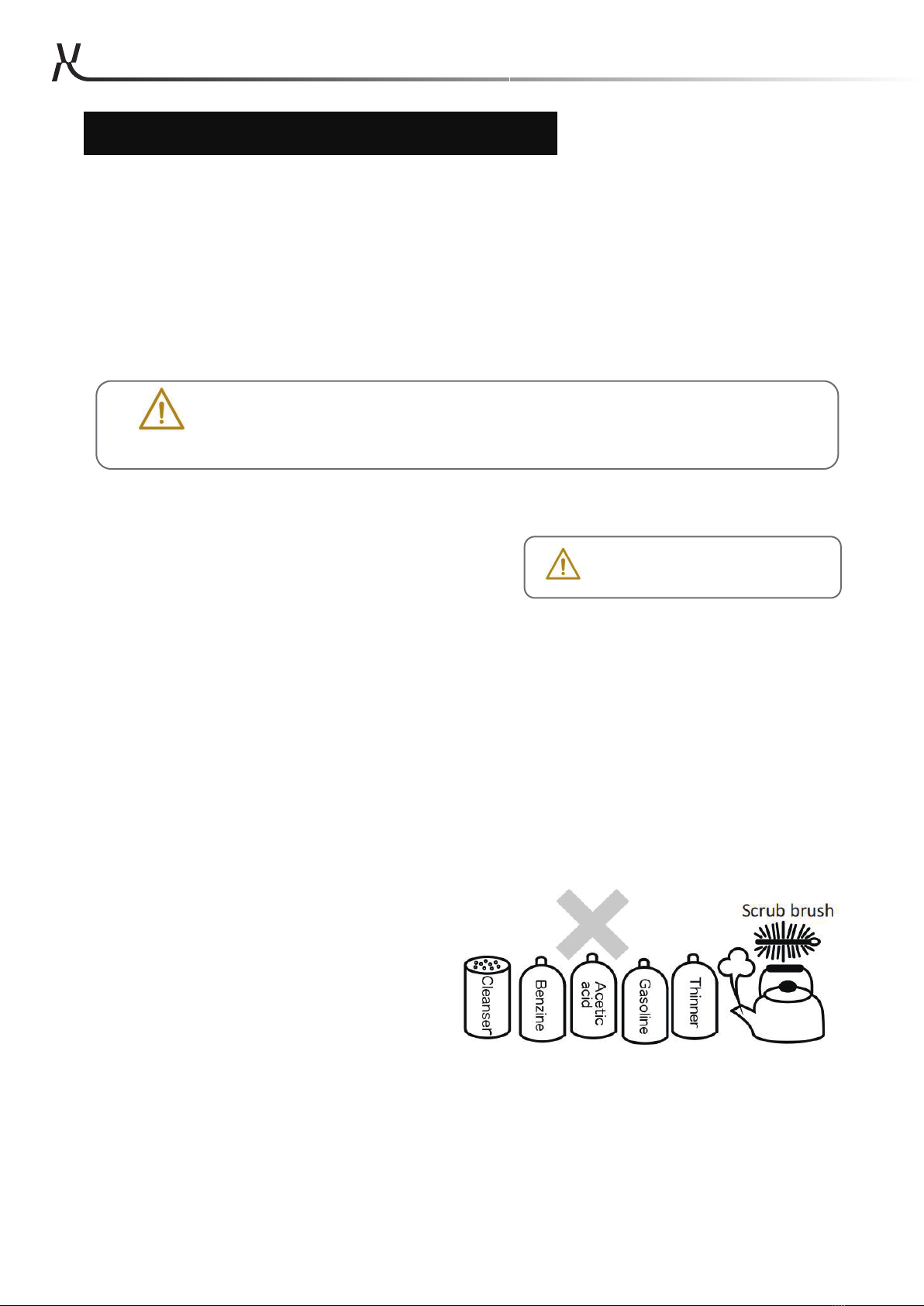

MAINTENANCE & CLEANING
The smooth operation and life of the equipment are mainly determined by correct and regular
maintenance. It is much easier to clean on a regular basis than to have to remove stains once they
have built up.
Cleaning
Cleaning the Refrigerator Surface
Cleaning the inside of the refrigerator
When cleaning the cabinet interior, use a soft and dry cloth.
If very soiled, wipe with a cloth that has been moistened with a detergent.
Dry with a soft cloth.
Wash door gaskets on a regular basis. Simply remove the door gasket from the frame of the door, soak
it in warm water and soap for thirty (30) minutes, then dry with soft cloth and install.
NOTE: Check door gaskets for proper seal after they are replaced.
To prevent any electrical shock hazards or injury by rotating circulation fan,
always disconnect the power cord plug from the wall outlet before cleaning.
WARNING
Do not use abrasive detergents!
Clean the refrigerator with mild detergent and then dry it
with a soft cloth.
NOTE: ATTENTION! Never hose down the appliance or immerse it in water or any other liquid,
instead wipe the exterior with a damp cloth. Short-circuit and electrical shock could result.
ATTENTION! Never use aggressive cleaning agents or abrasives. Do not use solvents or
petrol based cleaning agents. Some cleaning agents may leave harmful residues or cause
damage to the appliance. Use a food
safe detergent instead.
ATTENTION! Do not use any scourer
and sharp or pointed objects during
cleaning, this may cause damage to
the appliance.
19
