boplan FLEX IMPACT FLIP 120 User manual

INSTALLATION SHEET
For more information, please visit www.boplan.com
Rev: 22 March 2022 11:33 am
Reference PL1210-...

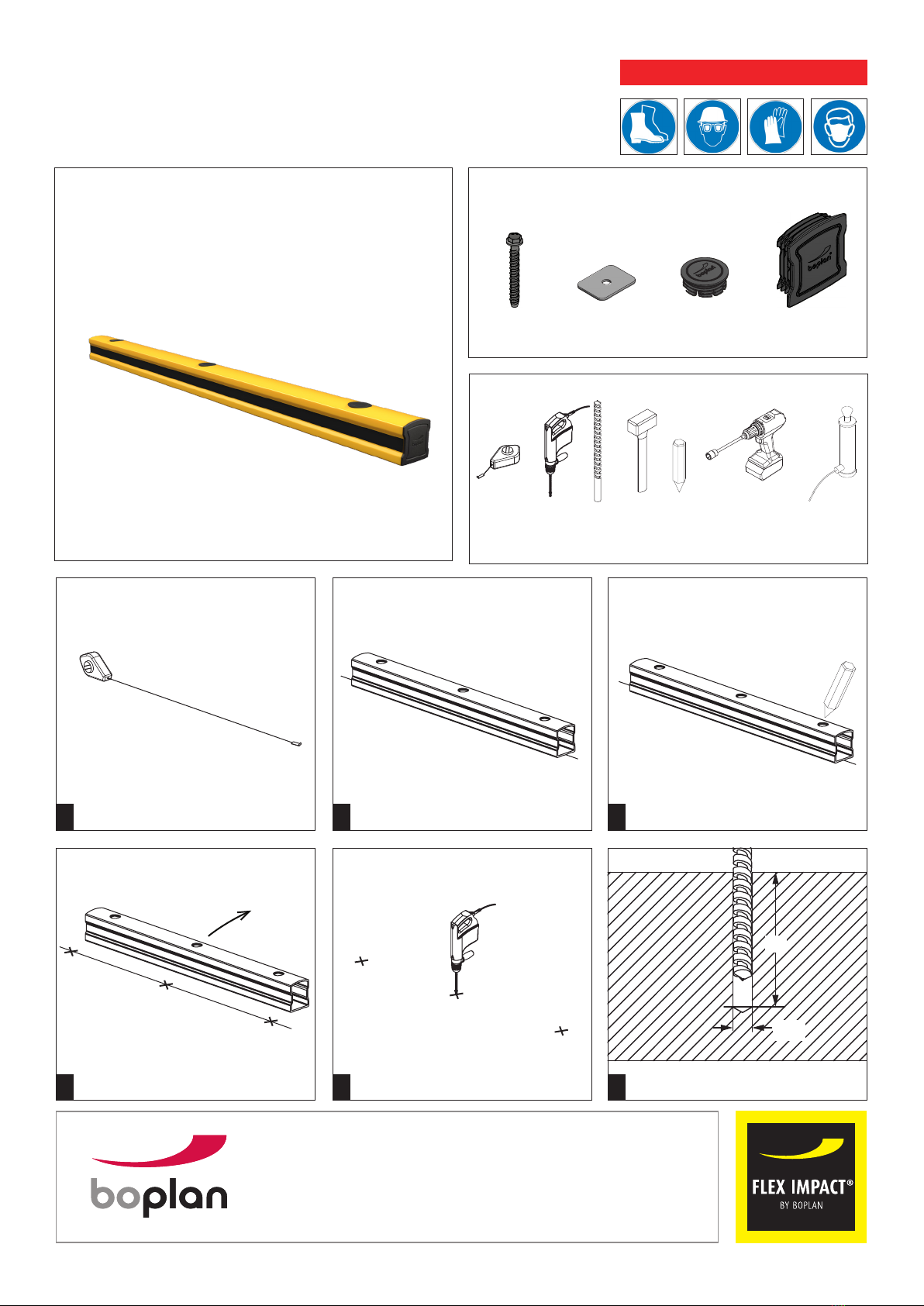

FLIP 120
For more information, please visit www.boplan.com
Rev: 22 March 2022 11:33 am
1
4
2
5
3
6
Mark location
Move prole
Place outer prole in place
Drill all holes
Mark holes
Drill detail (diam. 10 x 95 mm)
Required Tools
65
6
95
ø10
Ø 10 mm
Chalk
line
Impact Wrench
>500 Nm
+ Extension Part
+ Socket SW15
(Preferably magnetic)
Concrete screw
(ø12.5x100mm)
Washer
(60x80x4mm)
Flex
Cap
End Cap

For more information, please visit www.boplan.com
Rev: 22 March 2022 11:33 am
7
9
11
8
10
12
Remove dust
Place a washer trough each hole and position correctly
Mount ex caps
Place the prole back in place and align the holes
Position the screws and tighten with impact wrench.
Torque = 80 Nm
Mount end caps

INSTALLATION SHEET
For more information, please visit www.boplan.com
Rev: 24 March 2022 4:21 pm
Reference PL1810-...
FLIP 180
For more information, please visit www.boplan.com
Rev: 24 March 2022 4:21 pm
1
4
2
5
3
6
Mark location
Move prole
Place outer prole in place
Drill all holes
Mark holes
Drill detail (diam. 14 x 130mm)
Required Tools
65
6
Ø14
130
Ø 14 mm
Chalk
line
Impact Wrench
>500 Nm
+ Extension Part
+ Socket SW19
(Preferably magnetic)
Concrete screw
(ø17x135mm)
Washer
(55x80x4mm)
Flex
Cap
End Cap

For more information, please visit www.boplan.com
Rev: 24 March 2022 4:21 pm
7
9
11
8
10
12
Remove dust
Place a washer trough each hole and position correctly
Mount ex caps
Place the prole back in place and align the holes
Position the screws and tighten with impact wrench
Torque = 100 Nm
Mount end caps

INSTALLATION SHEET
For more information, please visit www.boplan.com
Rev: 22 March 2022 11:52 am
Reference PL2010-...
FLIP 200
For more information, please visit www.boplan.com
Rev: 22 March 2022 11:52 am
1
4
2
5
3
6
Mark location
Move prole
Place outer prole in place
Drill all holes
Mark holes
Drill detail (diam. 14 x 130mm)
Required Tools
65
6
Ø14
130
Ø 14 mm
Chalk
line
Impact Wrench
>500 Nm
+ Extension Part
+ Socket SW19
(Preferably magnetic)
Concrete screw
(ø17x135mm)
Washer
(55x80x4mm)
Flex
Cap
End Cap

For more information, please visit www.boplan.com
Rev: 22 March 2022 11:52 am
7
9
11
8
10
12
Remove dust
Place a washer trough each hole and position correctly
Mount ex caps
Place the prole back in place and align the holes
Position the screws and tighten with impact wrench;
Torque = 100 Nm
Mount end caps

INSTALLATION SHEET
For more information, please visit www.boplan.com
Rev: 27 April 2022 9:47 am
Reference PL2020-...
FLIP 200 FORCE
For more information, please visit www.boplan.com
Rev: 27 April 2022 9:47 am
1
4
2
5
3
6
Mark location
Move prole
Position prole in place
Drill all holes
Mark holes
Drill detail (diam. 14 x 120mm)
Required Tools
65
6
Ø14
Ø 14 mm
Chalk
line
Impact Wrench
>500 Nm
+ Extension Part
+ Socket SW19
(Preferably magnetic)
Concrete screw
(ø17x135mm)
Washer
(55x88x4mm)
Flex
Cap
End Cap
120

For more information, please visit www.boplan.com
Rev: 27 April 2022 9:47 am
7
9
Remove dust
Place a washer trough each hole and position correctly
8Place the prole back in place and align the holes
11 12 Mount ex caps Mount end caps
10
Position the screws and tighten with impact wrench;
Torque = 100 Nm
