Viking RVER3301 User manual

Installation
3 Series
Freestanding 30” Electric Self-Clean Range
RVER3301 / CRVER3301

2
Table of Contents
Warnings & Important Safety Instructions _________________________________________________3
Dimensions __________________________________________________________________________6
Specifications ________________________________________________________________________7
Clearance Dimensions (Proximity to Cabinets)______________________________________________8
Clearance Dimensions (Wood/Composite Overlay) __________________________________________9
Electrical Requirements ______________________________________________________________10
General Information__________________________________________________________________12
Installation _________________________________________________________________________13
Backguard Installation _________________________________________________________13
Door Removal _______________________________________________________________13
Leg Installation_______________________________________________________________14
Electrical Connection (3-wire) ___________________________________________________15
Electrical Connection (4-wire) ___________________________________________________17
Leveling/Adjustments/Alignment________________________________________________19
Anti-tip Device Installation _____________________________________________________20
Wall Mount Anti-tip Installation _________________________________________________20
Floor Mount Anti-tip Installation_________________________________________________21
Final Installation______________________________________________________________22
Door Replacement____________________________________________________________23
Final Preparation ____________________________________________________________________24
Performance Checklist ________________________________________________________________24
Service & Registration ________________________________________________________________25

IMPORTANT
3
• Before beginning, please read these
instructions completely and carefully.
• DO NOT remove permanently affixed labels,
warnings, or plates from product. This may void
the warranty.
• All local and national codes and ordinances
must be observed. Installation must conform
with local codes or in the absence of codes, the
National Fuel Gas Code ANSIZ223.1/NFPA-54 –
latest edition.
• The installer must leave these instructions with
the consumer who should retain for local
inspector’s use and for future reference.
In Canada: Installation must be in accordance
with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by
the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsafe practices
which WILL result in severe personal
injury or death
DANGER
Hazards or unsafe practices
which COULD result in severe personal
injury or death
Hazards or unsafe practices which
COULD result in minor personal injury or
property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
–Read and Follow!

4
IMPORTANT–Read and Follow!
CAUTION
To prevent possible damage to cabinets
and cabinet finishes, use only materials
and finishes that will not discolor or
delaminate and will withstand
temperatures up to 194°F (90°C). Heat
resistant adhesive must be used if the
product is to be installed in laminated
cabinetry. Check with your builder or
cabinet supplier to make sure that the
materials meet these requirements.
A GFI
shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local
ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to any
significant sources of water or moisture.
• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not installed
properly or do not meet the requirements below.
If the use of a GFI is required , it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible

5
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe
personal injury; this appliance
requires two or more personnel while
handling and moving. Possible use of
appliance moving devices is recommended.
WARNING
TIPPING HAZARD
• THIS RANGE CAN TIP.
• A CHILD OR ADULT CAN
TIP THE RANGE AND BE
KILLED.
• FAILURE TO INSTALL THE
ANTI-TIP DEVICE CAN
RESULT IN DEATH OR
SERIOUS BURNS TO
CHILDREN OR ADULTS.
• IF THE RANGE IS MOVED THEN THE
ANTI-TIP DEVICE MUST BE
RE-ENGAGED.
WARNING
TIPPING HAZARD
To reduce the risk of the
appliance tipping, it must be
secured by a properly installed
anti-tip bracket(s). To make
sure the bracket has been
installed properly, look behind
the range with a flashlight to
verify proper installation
engaged in the rear top left corner of the
range or under the range to verify that a floor
hook and bracket have been installed.

Dimensions
6
29-7/8”
(75.9 cm)
35-7/8”
(91.1 cm) min.
to
37”
(94.0 cm) max.
1”
(2.54 cm)
RVER/CRVER
35-7/8”
(91.1 cm) min.
to
37”
(94 cm) max.
25-3/4” (65.4 cm)
45” (114.3 cm)
19-1/4”
(48.9 cm)
24” (61.0 cm)
25” (63.5 cm)
29” (73.7 cm)
6”
(15.2 cm)
25” (63.5 cm)
27-1/8” (68.9 cm)
1” (2.54 cm)
Note: Unit shown with standard island trim

Specifications
7
Electric 30” Range
Description
RVER/CRVER
Overall width 29-7/8” (75.9 cm)
Overall height To top of glass frame 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max.
Legs adjust 1-1/8” (2.9 cm)
Overall depth from rear To end of side panel—25” (63.5 cm)
To front of door—25-3/4” (65.4 cm)
To front of control panel—27-1/8” (68.9 cm)
To end of knobs—29” (73.7 cm)
Additions to base
height
To top of island trim—add 1” (2.5 cm)
To top of backguard—add 6” (15.2 cm)
To top of high-shelf—add 18-3/16” (46.2 cm)
Electrical
requirements
240-208 VAC 60 Hz electrical connection box on product, connect with locally supplied 3-
wire, flexible cord or “pigtail” rated 40 amp. 125-250 VAC minimum. Cord must be agency
approved for use with household electric ranges.
Maximum wattage/amp
usage
240V—15,200 watts/63.3 amps
208V—11,400 watts/54.8 amps
Surface element rating
Left front
Left rear
Center
Right front
Right rear
2,000 watts
1,200 watts
3,200 watts
1,200 watts
2,000 watts
Oven interior width 25-5/16” (64.6 cm)
Oven interior height 16-1/2” (41.9 cm)
Oven interior depth AHAM 16-13/16” (42.7 cm) Overall—19-1/2” (49.5 cm)
Oven volume Total oven capacity—4.7 cu. ft.
Measure to AHAM standards 4.1 cu. ft.
Approximate
shipping weight 426 lbs. (193.2 kg)
Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certified by CSA. Clearances
to non-combustible materials must be approved by the authority having jurisdiction.
Minimum clearances from adjacent combustible construction
• Cooking surface and below, i.e., 36” (91.4 cm) and below
o Sides—0”
• Above cooking surface, i.e. above 36" (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6”(15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm) above
cooking surface.
o Wall cabinets directly above product must be minimum 36” (91.4 cm) for open top burners above cooking surface.
o Rear—0” with backguard or highshelf; 0” with island trim and noncombustible rear wall; 6” (15.2 cm) with island trim and
combustible rear wall.

42” min.
(106.7 cm)
13” max.
(
33.0 cm)
6” min.
(15.2 cm)
18” min.
(45.7 cm)
3/8”
(0.95 cm)
36”
(
91.4 cm)
29-7/8”
(75.9 cm)
A
Range
Width
“A”
Dimension
30” 30” (76.2 cm)
Clearance Dimensions (Proximity to Cabinets)
8
• This range may be installed directly adjacent to
existing 36” (91.4 cm) high base cabinets.
IMPORTANT: The side trim MUST be
3/8” (.95 cm) above the adjacent base cabinet
countertop. This can be accomplished by
raising the unit using
the adjustment spindles on the legs.
• The range CANNOT be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces
above 36” (91.4 cm) high. There must be a
minimum of 6” (15.2 cm) side clearance from
the range to such combustible surfaces above
the 36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side clearance to
combustible vertical surfaces above
36” (91.4 cm), the maximum wall cabinet
depth must be 13” (33.0 cm) and wall
cabinets within this 6” (15.2 cm) side
clearance must be 18” (45.7 cm) above the
36” (91.4 cm) high countertop.
• Wall cabinets above the range must be a
minimum of 42” (106.7 cm) above the range
cooking surface for the full width
of the range. This minimum height
requirement does not apply if a range hood is
installed over the cooking surface.
Note: If a range hood is installed, wall cabinets above the range
have a different minimum clearance height.
CAUTION
BURN HAZARD
To avoid risk of personal injury;
the use of cabinets for storage
above the appliance may result
in a potential burn hazard. Combustible
items may ignite, metallic items may
become hot and cause burns. If cabinet
storage is used, the risk can be reduced
by installing a rangehood that projects
horizontally a minimum 5" (12.7 cm) beyond
the bottom of cabinets.
CAUTION
To prevent possible damage to cabinets
and cabinet finishes, use only materials
and finishes that will not discolor or
delaminate and will withstand temperatures
up to 194°F (90°C). Heat and moisture
resistant adhesive must be used if the
product is to be installed in laminated
cabinetry. Check with your builder or
cabinet supplier to make sure that the
materials meet these requirements.

Clearance Dimensions (Wood/Composite Overlay)
9

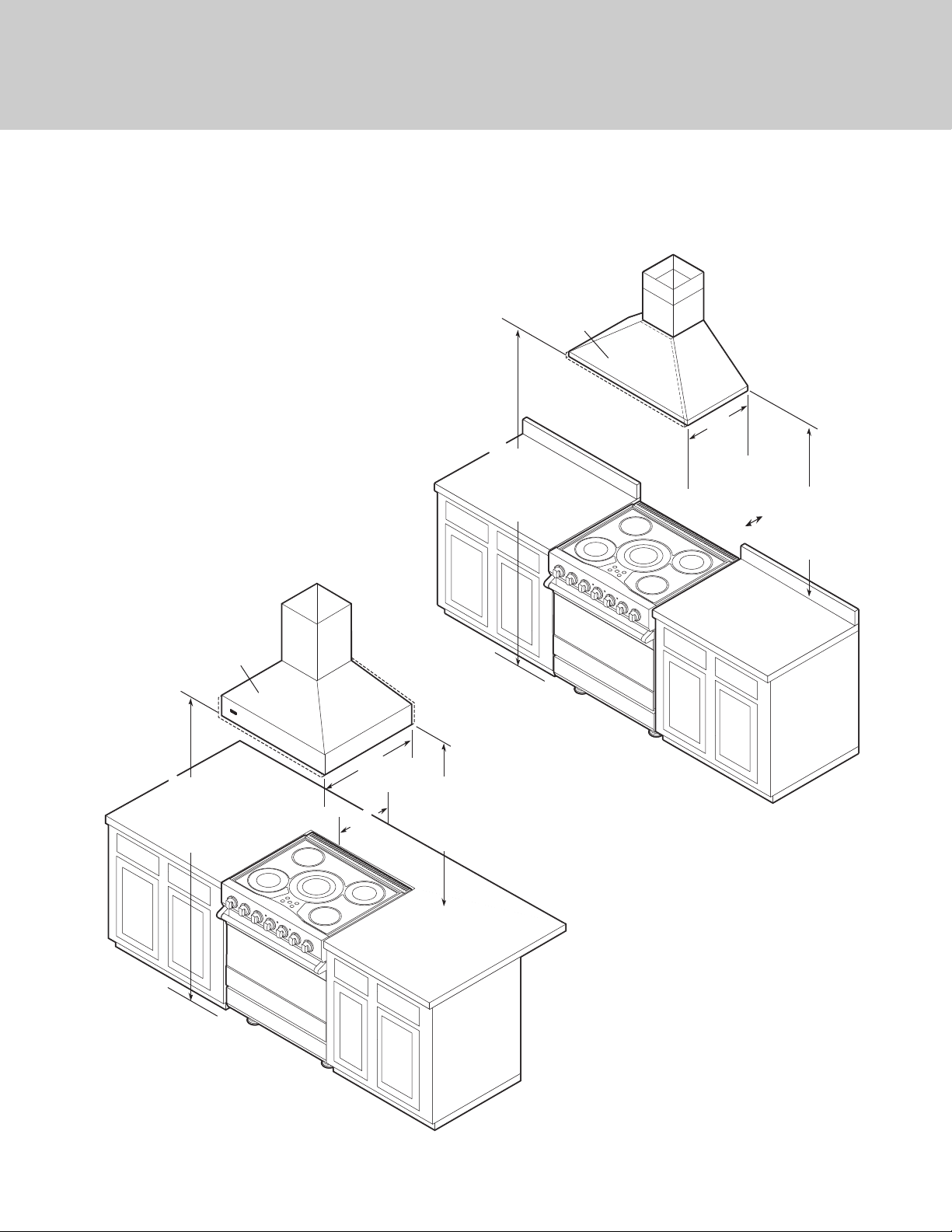

The bottom of a standard hood should be 30”
(76.2 cm) min. to 36” (91.4 cm) max. above the
countertop. This would typically result in the
bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the floor.
Refer to the range hood installation instructions
for additional information. These dimensions
provide for safe and efficient operation of the
hood.
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
24”
(61.0 cm)
or
27”
(38.6 cm)
30”
(76.2 cm)
6”
(15.2 cm)
Wood/Composite
Overlay
Wood/Composite
Overlay
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
0”
(
0 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
Wall Installation
Island Installation
Note: This range ships standard with an island
trim. There is a 6” (15.2 cm) min. with island
trim and combustible rear wall. 0” with island
trim and non-combustible rear wall.
Note: Minimum clearance for back wall is 0”
with backguard or high-shelf.
Note: Clearances from non-combustible
materials are not part of the ANSI Z21.1 scope
and are not certified by CSA. Clearances to non-
combustible materials must be approved by the
authority having jurisdiction.

Electrical Requirements
10
Electrical Requirements
This product is manufactured with the neutral
terminal connected to the cabinet. Use a 3-wire,
agency approved, power supply kit with closed
loop terminals rated per the National Electrical
Code,
ANSI/NFPA-70 – latest edition (See Rating chart
below). If local codes prohibit grounding
through the neutral, use a 4-wire, agency
approved, power supply kit with closed loop
terminals rated per the National Electrical Code,
ANSI/NFPA-70 – latest edition (See Rating chart
below).
RATING* Specified Rating of Power Supply
Cord Kit and Circuit Protection
120/240 Volts 120/208 Volts Amps
12.5 – 16.5 KW 9.2 – 12.5 KW 50
16.5 – 17.5 KW 12.5 – 13.5 KW 60
*The National Electric Code calculation for
Electrical Load is less than the Total Connected
Electrical Load listed on the model/serial rating
plate.
A GFI shall be used if required by NFPA-70
(National Electric Code), federal/state/local laws,
or local ordinances.
• The required use of a GFI is normally related to
the location of a receptacle with respect to any
significant sources of water or moisture.
Viking Range, LLC will NOT warranty any
problems resulting from GFI outlets which are
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid the risk of electrical
shock, personal injury or death;
verify electrical power is turned off at the
breaker box until the range is installed
and ready to operate, installation by an
authorized installer only.
not installed properly or do not meet the
requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or
portable type NOT recommended)
• Used with permanent wiring only (temporary
or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles,
switches or loads in the circuit)
• Connected to a standard breaker of
appropriate size (GFI breaker of the same size
NOT recommended)
• Rated for Class A (5 mA +/- 1 mA trip current)
as per UL 943 standard
• In good condition and free from any
loose-fitting gaskets (if applicable in outdoor
situations)
• Protected from moisture (water, steam, high
humidity) as much as reasonably possible

11
Electrical Requirements
Electric access area
6”
(15.2 cm)
6”
(15.2 cm)
333”
(7.6 cm)
3-1/2”
(8.9 cm)
3”
(7.6 cm)
REAR VIEWSIDE VIEW

12
General Information
READ AND FOLLOW ALL WARNING AND
CAUTION INFORMATION WHEN
INSTALLING THIS APPLIANCE.
• All openings in the wall behind the appliance
and in the floor under the appliance must be
sealed.
• DO NOT obstruct the flow of combustion and
ventilation air.
Moving, Handling, and Unpacking
Remove and discard all packing materials,
including cardboard and tape on the outside and
inside of the range.
Range – DO NOT discard the anti-tip metal
brackets (2) supplied with the range. These are
the anti-tip devices and one must be installed
with the unit.
Type 1 is a wall mount device
which can be used for all
installation applications.
Type 2 is a floor mount device
which can be used for all
applications other than when
the range is installed on a
concrete sub-floor.
Important – The range MUST
be installed with one of the
anti-tip devices.
Refer to “Anti-tip Device
Installation”
section.
Some stainless steel parts may have a plastic
protective wrap which must be peeled off. The
interior should be washed thoroughly with hot,
soapy water to remove film residues and any
dust or debris before being used, then rinsed
and wiped dry. Solutions stronger than soap
and water are rarely needed.
CAUTION
Avoid any damage to oven vents. The vents
need to be unobstructed and open to provide
proper airflow for optimal oven performance.
CAUTION
The cooling fan should be operating when
the unit is in operation. If you notice the
cooling fan is not operating or you observe
unusual or excessive noise coming from the
cooling fan, contact a Viking Authorized
Service Center before continuing operation.
Failure to do so can result in damage to the
oven or surrounding cabinets.

13
CAUTION
To avoid risk of personal injury or product
damages, DO NOT use the handle or
oven door to lift the oven. Remove door
before installation to ensure that it is not
used to lift the unit. DO NOT lift or carry
the door by the handle.
Removing the door must be done by your
dealer, or a qualified licensed plumber.
Door Removal
1
Open door completely.
Fold latches back until locked in place.
2
Gently close until latches stop door
3
Lift door up and out.
Installation

14
1
1
1
2
3
2 2
Legs are packed in styrofoam top pack.
Note: Legs should be installed near to where
appliance is to be used, as they are
not secure for long transit.
Note: It is strongly recommended
that a pallet or lift jack be used rather than tilting.
Raise unit about a foot. Unscrew temporary legs from
couplings .
4
Lower range gently to keep any undue strain from
legs and internal mounting hardware.
3
Screw legs into couplings on all
four corners.
Leg Installation

15
2
1
1
Remove access door.
Electrical Connection (3-wire)
3
2
1
2
Remove supply cord strain relief
bracket and three supply cord mounting screws
on terminal block.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame of the unit
may or may not be permitted through
your local codes. If ground to the frame is
not permitted then a 4-conductor power
cord must be used.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
3
Feed supply cord up through hole in bottom
of range back.
Note: If you have a 4-wire connection, see following section for
4-wire connection instructions.
See Electrical Requirements information.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured to
the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.

16
1
2
4
1
3
5
Attach line #1 (black) and line #2 (red)
leads to outside terminal. Attach neutral wire (white)
to center terminal on the terminal block.
1
1
Eyelet ConnectionBare Wire Connection
To make a bare wire connection, use holes on the left side
of the terminal block. To connect eyelet style wires, use
holes on right side of terminal.
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain
relief bracket over supply cord.
1
2
6
Reattach access door.
Electrical Connection (3-wire) (cont.)

17
2
1
1
3
2
1
2

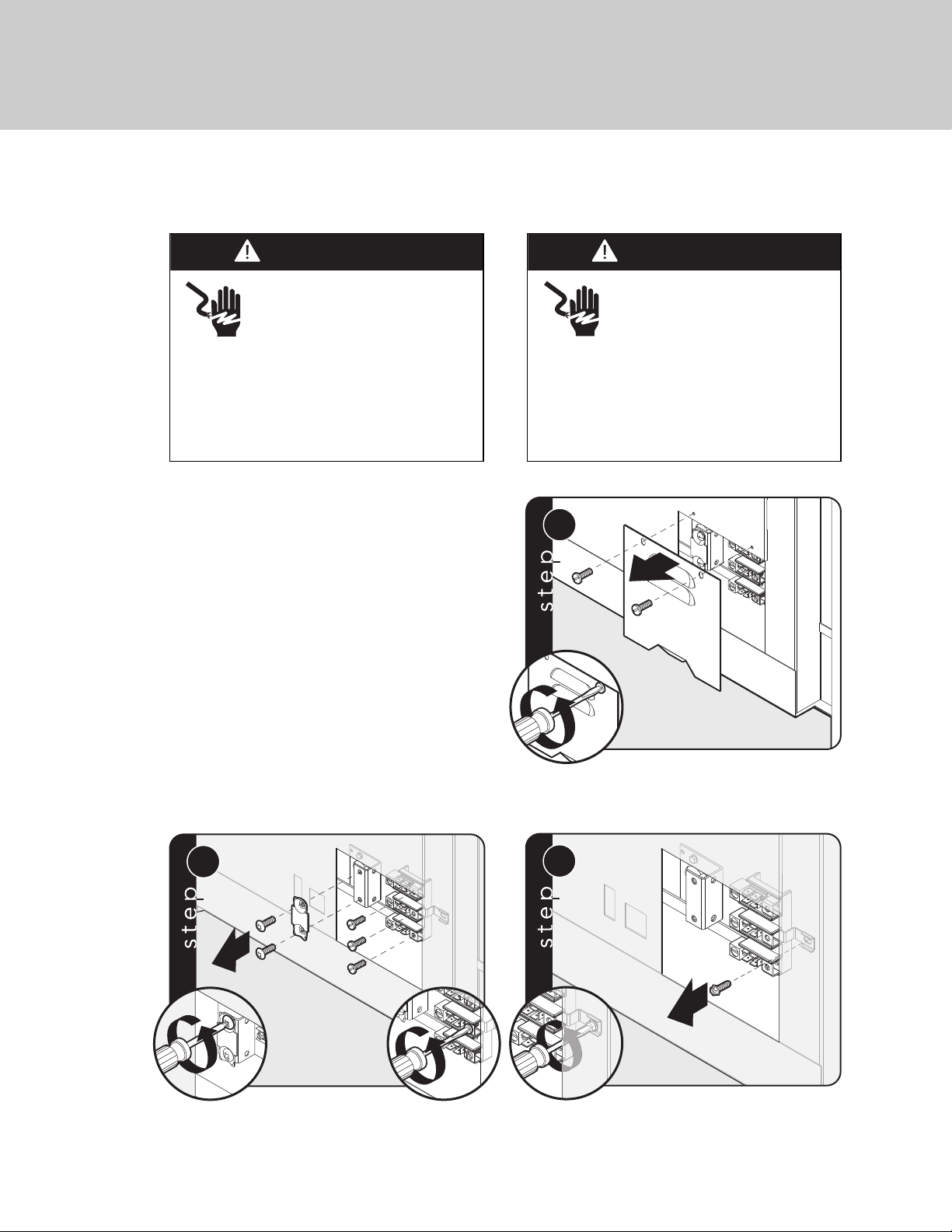

Remove access door.
Remove supply cord strain relief
bracket and three supply cord mounting screws
on the terminal block.
Electrical Connection (4-wire)
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame of the unit
may or may not be permitted through
your local codes. If ground to the frame is
not permitted then a 4-conductor power
cord must be used.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
2
1
3
Remove grounding screw. Cut-off
and discard ground strap.
See Electrical Requirements information.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured
to the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.

18
4
Feed supply cord up through hole in bottom
of range back.
1
2
5
1
2
6
Attach ground wire (green)
with ground screw that was removed.
Attach line #1 (black) and line #2 (red)
leads to outside terminal. Attach neutral wire (white)
to center terminal on terminal block.
1
3
7
1
2
8
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain
relief bracket over supply cord.
Reattach access door.
1
1
Eyelet ConnectionBare Wire Connection
To make a bare wire connection, use holes on the left side
of the terminal block. To connect eyelet style wires, use
holes on right side of terminal.
Electrical Connection (4-wire) (cont.)

19
1
2

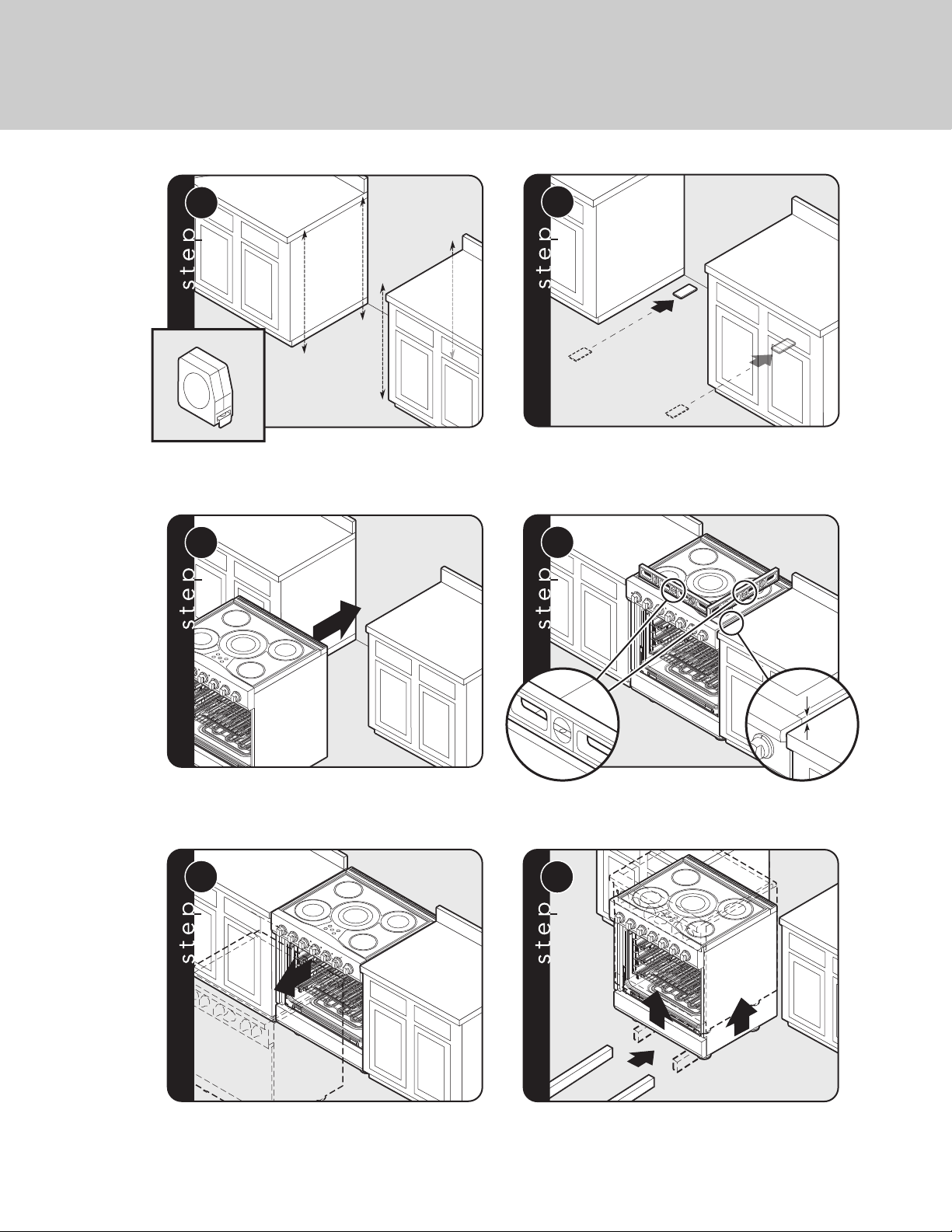

Measure the four corners in cutout area to
verify if flooring is level.
For uneven or sloped floors, level unit with
metal shims only, as the adjustment required may exceed
the thread available in the leg.
3
3/8”3/8”
(0.95 cm)(0.95 cm)
3/8”
(0.95 cm)
4
Move unit into opening.
Leveling/Adjustments/Alignment
5
Check that unit is level side to
side and front to back. Side trim of the high corner must be
3/8” (0.95 cm) above countertop.
If leveling is required, move unit out of opening.
6
1
2
1
Lift unit and prop on wood blocks.

20
7
Set the high corner of range so that the top of side trim is
3/8” (0.95 cm) above countertop. Level range to high corner.
Anti-tip Device Installation
WARNING
TIPPING HAZARD
• THIS RANGE CAN TIP.
• A CHILD OR ADULT CAN TIP
THE RANGE AND BE KILLED.
• FAILURE TO INSTALL THE
ANTI-TIP DEVICE CAN
RESULT IN DEATH OR
SERIOUS BURNS TO
CHILDREN OR ADULTS.
• IF THE RANGE IS MOVED THEN THE
ANTI-TIP DEVICE MUST BE
RE-ENGAGED.
WARNING
TIPPING HAZARD
To reduce the risk of the
appliance tipping, it must be
secured by a properly installed
anti-tip bracket(s). To make sure
the bracket has been installed
properly, look behind the range
with a flashlight to verify proper
installation engaged in the rear
top left corner of the range or under the range
to verify that a floor hook and bracket have
been installed.
Leveling/Adjustments/Alignment (cont.)
