Bosch Rotak 37-36 LI Ergo User manual

Robert Bosch GmbH
Power Tools Division
70764 Leinfelden-Echterdingen
GERMANY
www.bosch-garden.com
F 016 L81 158 (2014.12) O / 20 XXX
Rotak
37-36 LI Ergo | 43 LI-2 Ergoflex
37 LI Ergoflex | 43 LI Ergoflex | 410 LI Ergoflex
en Original instructions
OBJ_DOKU-36087-005.fm Page 1 Tuesday, December 16, 2014 9:46 AM

2| English
F 016 L81 158 | (16.12.14) Bosch Power Tools
English
Safety Notes
Warning! Read these instructions
carefully, be familiar with the con-
trols and the proper use of the ma-
chine. Please keep the instructions
safe for later use!

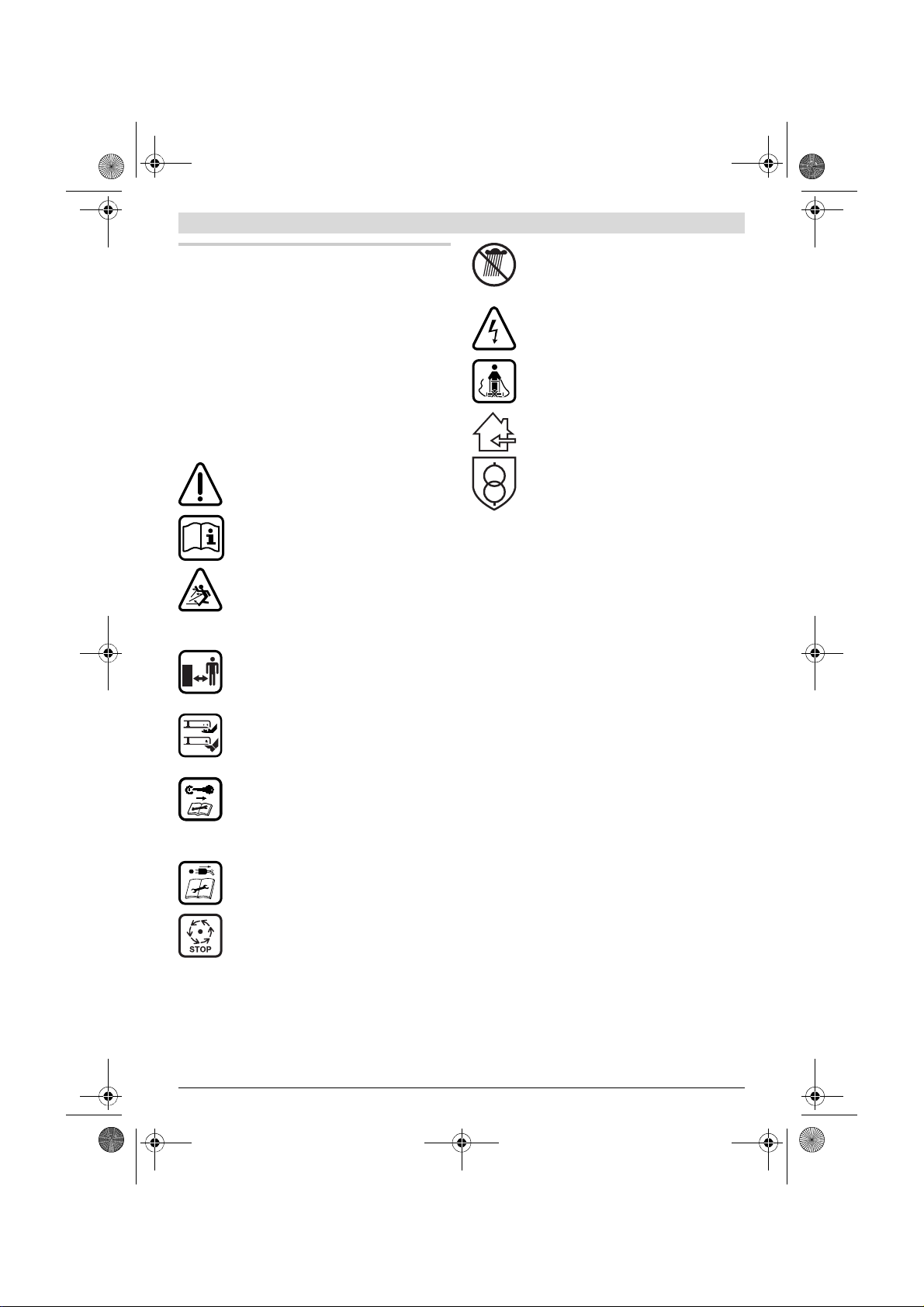

Explanation of symbols on the ma-
chine
General hazard safety alert.
Read instruction manual.
Pay attention that bystanders
are not injured through foreign
objects thrown from the ma-
chine.
Warning: Keep a safe distance
from the machine when operat-
ing.
Caution: Do not touch rotating
blades.Sharpblade(s).Beware
of severing toes or fingers.
Switch off and remove isolator
key before adjusting, cleaning
and before leaving the product
unattended for any period.
Not applicable.
Wait until all machine compo-
nents have completely stopped
before touching them. The
blades continue to rotate after the ma-
chine is switched off, a rotating blade
can cause injury.
Do not use the machine in the
rain or leave it outdoors when it
is raining.
Beware electric shock hazard.
Not applicable.
Only use the battery charger in-
doors.
Battery charger contains a safe-
ty transformer.
Operation
Never allow children or people unfa-
miliar with these instructions to use
the machine. Local regulations may
restrict the age of the operator.
When not in use store the machine
out of reach of children.
This machine is not intended for use
by persons (including children) with
reduced physical, sensoryor mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruc-
tion concerning use of the machine
by a person responsible for their
safety.
Children should be supervised to
ensure that they do not play with the
machine.
Never mow while people, especially
children, or pets are nearby.
The operator or user is responsible
for accidents or hazards occurring
to other people or their property.
OBJ_BUCH-2015-006.book Page 2 Tuesday, December 16, 2014 9:46 AM

English | 3
Bosch Power Tools F 016 L81 158 | (16.12.14)
Do not operate the machine when
barefoot or wearing open sandals,
always wear substantial footwear
and long trousers.
Thoroughly inspect the area where
the machine is to be used and re-
moveallstones, sticks, wires, bones
and other foreign objects.
Before using, always visually in-
spect to see that the blades, blade
bolts and cutter assembly are not
worn or damaged. Replace worn or
damaged blades and bolts in sets to
preserve balance.
Mow only in daylight or in good arti-
ficial light.
Avoid mowing in bad weather condi-
tions especially when there is a risk
of lightning.
Avoid operating the machine in wet
grass, where feasible.
Walk, never run.
Never operate the appliance with
defective guards or shields, or with-
out safety devices, for example de-
flectors and/or grass catchers in
place.
Always wear ear protection.
Working on banks can be danger-
ous.
– Do not mow on excessively steep
slopes.
– Always be sure of your footing on
slopes or wet grass.
– Mow across the face of slopes –
never up and down.
– Exercise extreme caution when
changing direction on slopes.
Use extreme caution when stepping
back or pulling the machine towards
you.
Never mow by pulling the mower to-
wards you.
Stop the blades if the machine has
to be tilted for transportation when
crossing surfaces other than grass
and when transporting the machine
to and from the area to be mowed.
Do not tilt the machine when start-
ing or switching on the motor, ex-
cept if the machine has to be tilted
for starting in long grass. In this
case, do not tilt it more than abso-
lutely necessary and tilt only the
part which is away from the opera-
tor. Always ensure that both hands
are in the operating position before
returning the machine to the
ground.
Switch on the motor according to
the instructions with feet well away
from rotating parts.
Do not put hands or feet near or un-
der rotating parts.
Always stand clear of the discharge
zone when operating the machine.
Never pick up or carry the machine
while the motor is running.
Do not modify this product. Unau-
thorized modifications may impair
the safety of your product and may
result in increased noise and vibra-
tion.
Regularly inspect the supply cable
and any extension cables. Do not
connect damaged cables to the sup-
ply or touch a damaged cable before
it is disconnected from the supply.
OBJ_BUCH-2015-006.book Page 3 Tuesday, December 16, 2014 9:46 AM

4| English
F 016 L81 158 | (16.12.14) Bosch Power Tools
A damaged cable can lead to con-
tact with live parts. Beware electric
shock hazard.
Leaf Collect
The leaf collect blade has been de-
signed to allow you to pick up autumn
leaves from your lawn. In order for this
functionality to work within optimal pa-
rameters, please note the following:
– only collect leaves with the machine
set at 70 mm cutting hight
– collect leaves from your lawn only
– before collecting leaves inspect the
area where the machine is to be used
and keep people, pets, glass struc-
tures and cars away from use
Remove the isolator key:
– Whenever you leave the machine.
– before clearing a blockage,
– before checking, cleaning or working
on the machine,
– after striking a foreign object. Inspect
the machine for damage and make re-
pairs as necessary,
– if the machine starts to vibrate abnor-
mally (check immediately).
Maintenance
Always wear gardening gloves
when handling or working near
the sharp blades.
Keep all nuts, bolts and screws tight
to be sure that the machine is in safe
working condition.
Check the grass catcher frequently
for wear or deterioration.
Examine the machine and replace
worn or damaged parts for safety.
Ensure replacement cutting means
of the right type are used.
Ensure replacement parts fitted are
Bosch approved.
Before storage ensure machine is
clean and free from debries, if nec-
essary clean with a soft, dry brush.
Recommendations for Optimal Han-
dling of the Battery
Ensure the switch is in the off po-
sition before inserting battery
pack. Insertingthe battery packinto
machines that have the switch on
can cause accidents.
Keep the battery charger away
from rain or moisture. Penetration
of water in the battery charger in-
creases the risk of an electric shock.
Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type
of battery pack may create a risk of
fire when used with another battery
pack.
Do not charge other batteries. The
battery charger is suitable only for
chargingBoschlithium-ionbatteries
within the listed voltage range. Oth-
erwise there is danger of fire and ex-
plosion.
Keep the battery charger clean.
Contamination can lead to danger of
an electric shock.
Before each use, check the battery
charger, cable and plug. If damage
is detected, do not use the battery
charger. Never open the battery
charger yourself. Have repairs per-
formed only by a qualified techni-
cian and only using original spare
parts. Damaged battery chargers,
cables and plugs increase the risk of
an electric shock.
OBJ_BUCH-2015-006.book Page 4 Tuesday, December 16, 2014 9:46 AM

English | 5
Bosch Power Tools F 016 L81 158 | (16.12.14)
Do not operate the battery charg-
er on easily inflammable surfaces
(e. g., paper, textiles, etc.) or sur-
roundings. The heating of the bat-
tery charger during the charging
process can pose a fire hazard.
Use only Bosch battery packs in-
tended specifically for the ma-
chine. Use of any other battery
packs may create a risk of injury and
fire.
When battery pack is not in use,
keep it away from other metal ob-
jects like paper clips, coins, keys,
nails, screws, or other small metal
objects that can make a connec-
tionfromone terminal to another.
Shorting the battery terminals to-
gether may cause burns or a fire.
Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact acciden-
tally occurs, flush with water. If
liquid contacts eyes, additionally
seek medical help. Liquid ejected
from the battery may cause irrita-
tions or burns.
Do not open the battery. Danger of
short-circuiting.
Protect the battery against heat,
e. g., against continuous intense
sunlight, fire, water, and mois-
ture. Danger of explosion.
Do not short-circuit the battery.
There is danger of explosion.
In case of damage and improper
use of the battery, vapours may
be emitted. Ventilate the area and
seek medical help in case of com-
plaints. The vapours can irritate the
respiratory system.
Protect the battery against moisture
and water.
Store the battery only within a tem-
perature range between –20 °C
and 50 °C. As an example, do not
leave the battery in the car in sum-
mer.
Occasionally clean the venting slots
of the battery using a soft, clean and
dry brush.
Before storage ensure machine is
clean and free from debries, if nec-
essary clean with a soft, dry brush.
Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the garden product in a better
and safer manner.
Intended Use
The garden product is intended for domestic lawnmowing.
Symbol Meaning
Movement direction
Reaction direction
Wear protective gloves
Weight
Switching On
Switching Off
Permitted action
Prohibited action
Accessories/Spare Parts
OBJ_BUCH-2015-006.book Page 5 Tuesday, December 16, 2014 9:46 AM

6| English
F 016 L81 158 | (16.12.14) Bosch Power Tools
Technical Data
Noise/Vibration Information
Cordless Lawnmower Rotak 37-36 LI Ergo/
Rotak 37 LI Ergoflex
Rotak 43 LI-2 Ergoflex/
Rotak 43 LI Ergoflex/
Rotak 410 LI Ergoflex
Article number 3 600 HA4 4.. 3 600 HA4 5..
Blade width cm 37 43
Height of cut mm 20–70 20–70
Grassbox, capacity l40 50
Weight according to EPTA-Procedure 01/2003 kg 13.2 13.9
Serial number see type plate on the garden product
Battery Li-Ion Li-Ion
Article number F 016 800 346 F 016 800 346
Rated voltage V= 36 36
Capacity Ah 4 4
Charging period (battery discharged)* min 140 140
Charging period (battery discharged)** min 95 95
Number of battery cells 20 20
Battery Charger AL 3620 CV
Professional
AL 3620 CV
Professional
Article number EU
UK
AU
SK
2 607 225 657
2 607 225 659
2 607 225 661
2 607 225 667
2 607 225 657
2 607 225 659
2 607 225 661
2 607 225 667
Charging current A2.0 2.0
Allowable charging temperature range °C 0 – 45 0–45
Weight according to EPTA-Procedure 01/2003 kg 0.6 0.6
Protection class /II /II
Battery Charger AL 3640 CV
Professional
AL 3640 CV
Professional
Article number EU
UK
AU
SK
2 607 225 099
2 607 225 101
2 607 225 103
2 607 225 111
2 607 225 099
2 607 225 101
2 607 225 103
2 607 225 111
Charging current A4.0 4.0
Allowable charging temperature range °C 0 – 45 0–45
Weight according to EPTA-Procedure 01/2003 kg 1.0 1.0
Protection class /II /II
*with AL 3620 CV Professional charger
**with AL 3640 CV Professional charger
Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.
Sound emission values determined according to EN 60335-2-77. 3 600 ... HA4 4.. HA4 5..
Typically the A-weighted noise levels of the product are:
Sound pressure level
Sound power level
Uncertainty K
Wear hearing protection!
dB(A)
dB(A)
dB
75
89
=1.0
76
90
=1.0
Vibration total values (triax vector sum) determined according to EN 60335:
Vibration emission value ah
Uncertainty K
m/s2
m/s2
<2.5
=1.5
<2.5
=1.5
OBJ_BUCH-2015-006.book Page 6 Tuesday, December 16, 2014 9:46 AM

English | 7
Bosch Power Tools F 016 L81 158 | (16.12.14)
Declaration of Conformity
Equipment category: 32
Notified body:
SRL, Sudbury, England, Nr. 1088
Technical file (2006/42/EC, 2000/14/EC) at:
Bosch Lawn and Garden Ltd., PT-LG/ENS23,
Stowmarket, Suffolk IP14 1EY, England
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
04.09.2014
Mounting and Operation
Starting
For Your Safety
Warning! Switch off, remove the isolator key and the
battery before adjusting, cleaning or if cable is cut,
damaged or entangled.
The blades continue to rotate for a few seconds after
the machine is switched off.
Caution – do not touch the rotating blade.
Battery Charging
Do not use other battery chargers. The supplied battery
charger is designed for the Lithium-Ion battery in your gar-
den product.
Observe the mains voltage! The voltage of the power
supply must correspond with the data given on the name-
plate of the battery charger. Battery chargers marked with
230 V can also be operated with 220 V.
The battery is equipped with temperature monitoring that al-
lows charging only in the temperature range between 0 °C
and 45 °C. In this manner, a high battery service life is
achieved.
Note: The battery supplied is partially charged.To ensure full
capacity of the battery, completely charge the battery in the
battery charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.
The “Electronic Cell Protection (ECP)” protects the lithium-
ion battery against deep discharging. When the battery is run
down or discharged, the garden product is shut off by means
of a protective circuit: The blade no longer moves.
Do not continue to press the On/Off
switch after the garden product has
been automatically switched off. The battery can be dam-
aged.
Charging Procedure
The charging procedure starts as soon as the mains plug of
the battery charger is plugged into the socket outlet and the
battery is inserted into the charging compartment .
Due to the intelligent charging method, the charging condi-
tion of the battery is automatically detected and the battery is
charged with the optimum charging current, depending on
battery temperature and voltage.
This gives longer life to the battery and always leaves it fully
charged when kept in the charger for storage.
Rapid-charging Procedure
3 600 ... HA4 4.. HA4 5..
We declare under our sole responsibility that the product described under “Technical data” is
in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU,
2006/42/EC, 2000/14/EC including their amendments and complies with the following
standards: EN 60335-1, EN 60335-2-77.
2000/14/EC: Guaranteed sound power level:
Conformity assessment procedure according to Annex VI.
dB(A) 89 90
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Action Figure Page

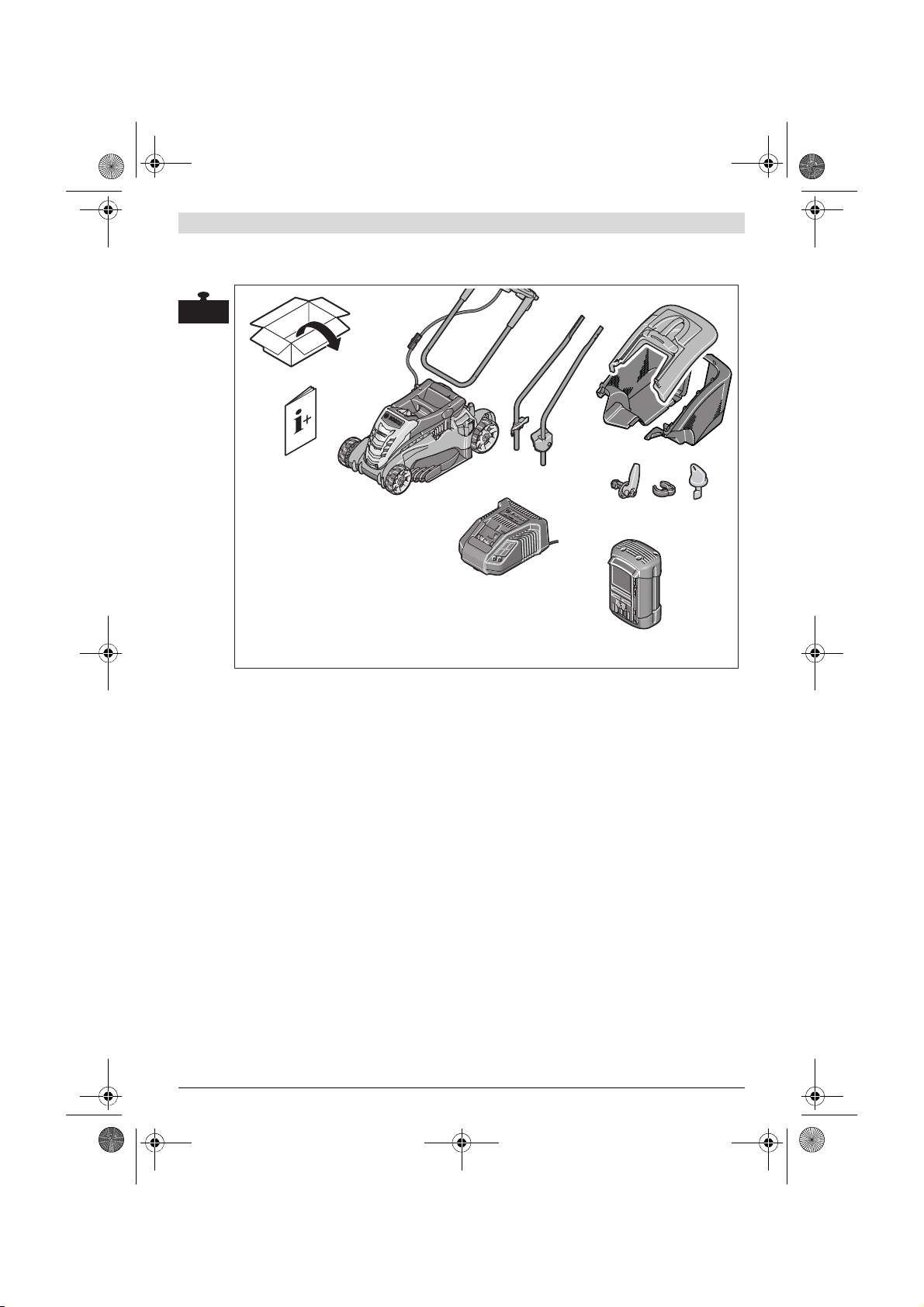

Delivery Scope 112-13
Handle Assembly 214
Snap together the Grassbox
Grassbox fitting/removing
3
14-15

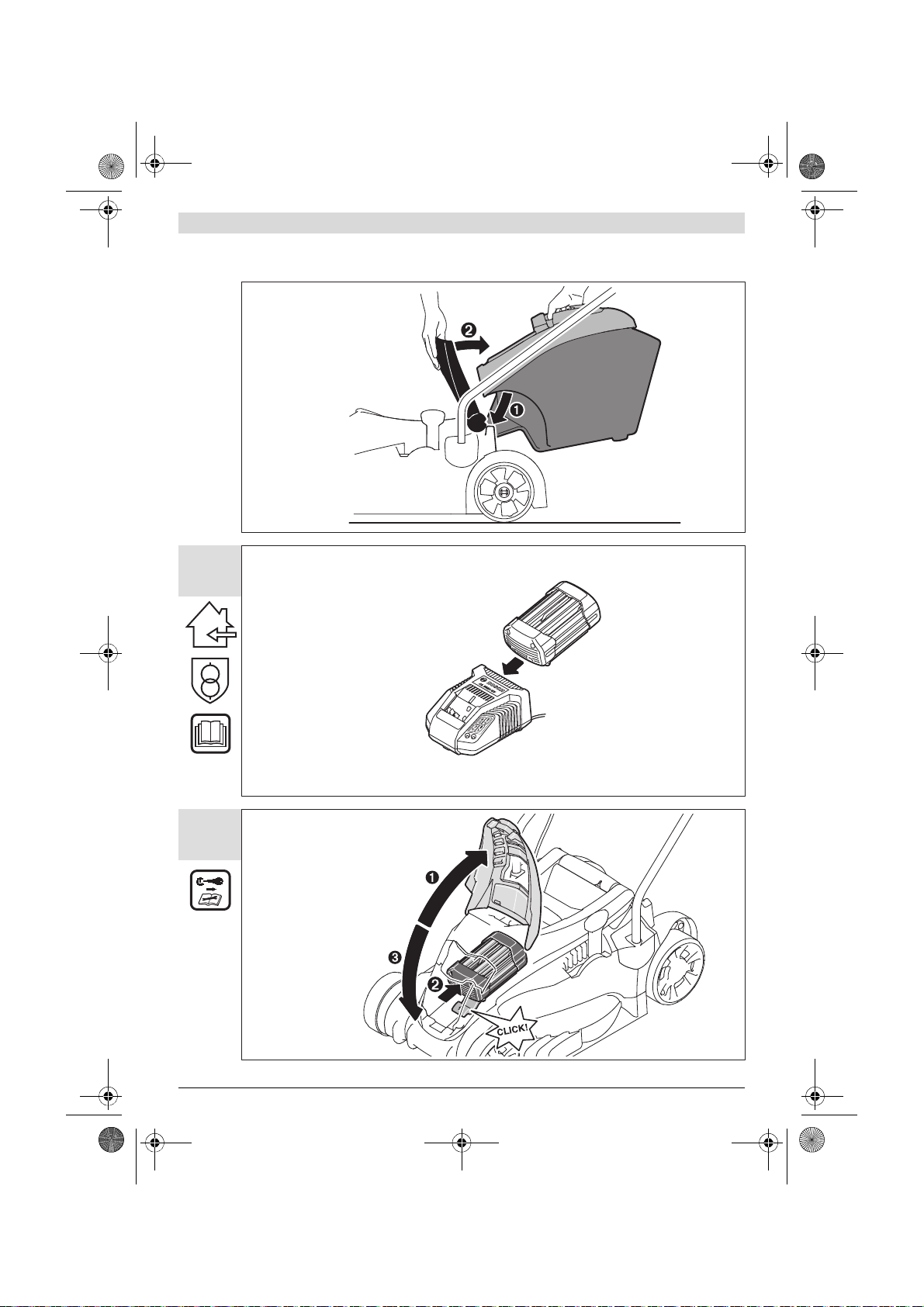

Battery Charging 415
Inserting the Battery 515
Insert Isolator Key and fit in the Stor-
age Position
6
16

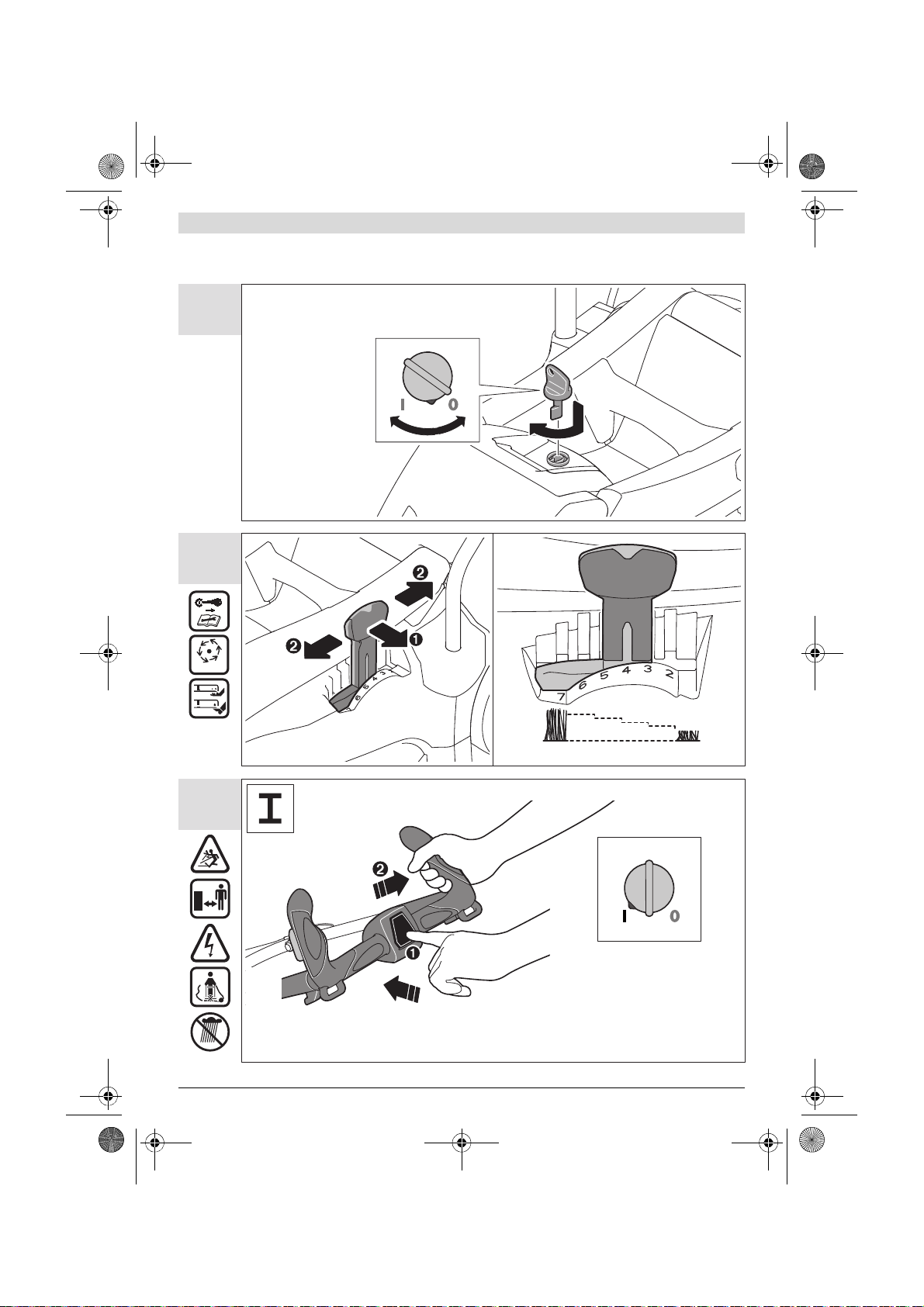

Adjusting the Cutting Height 716
Starting 816-17
Working Advice 917
Stopping, Remove the isolator key 10 17-18
Removing the Battery 11 18
Blade Maintenance 12 18
Selecting Accessories 13 19
AL 3640 CV
Professional
AL 3620 CV
Professional
OBJ_BUCH-2015-006.book Page 7 Tuesday, December 16, 2014 9:46 AM

8| English
F 016 L81 158 | (16.12.14) Bosch Power Tools
The rapid-charging procedure is indicated by flashing of the
green charge control LED .
Indication element of the battery:
During the charging procedure, the three green LEDs light up
one after the other and briefly go out. The battery is fully
charged when the three green LEDs light up continuously. The
three LEDs go out again approx. 5 minutes after the battery
has been fully charged.
Note:The rapid-charging procedure is only possible when the
battery temperature is within the allowable charging temper-
ature range, see section “Technical Data”.
Battery Charged
Continuous lighting of the green charge control LED sig-
nals that the battery is fully charged.
Additionally, a signal tone sounds for approx. 2 seconds,
which acoustically indicates that the battery is fully charged.
Afterwards, the battery can be removed for immediate use.
With no battery inserted, continuous lighting of the green
charge control LED indicates that the mains plug is plugged
into the socket and that the battery charger is ready for oper-
ation.
Battery Temperature below 0 °C or above 45 °C
Continuous lighting of the red LED indicates that the bat-
tery temperature is not within the rapid-charging temperature
range of 0 °C – 45 °C. As soon as the allowable temperature
range is reached, the battery charger automatically switches
to rapid charging.
When the battery is not within the allowable temperature
range, the red battery LED lights up when inserting the bat-
tery into the battery charger.
No charging procedure possible
If a different malfunction of the charging procedure is pre-
sent, this will be indicated through flashing of the red charge
control LED .
The charging procedure cannot be started and the battery
cannot be charged (see section “Troubleshooting”).
Charging Advice
With continuous or several repetitive charging cycles without
interruption, the charger can warm up. This is not meaningful
and does not indicate a technical defect of the battery charg-
er.
A significantly reduced working period after charging indi-
cates that the battery is used and must be replaced.
Observe the notes for disposal.
Battery Cooling (Active Air Cooling)
The fan control integrated in the battery charger controls the
temperature of the inserted battery. When the battery tem-
perature is above 30 °C, a fan cools down the battery to the
optimal charging temperature. The switched-on fan produces
a fan noise.
The battery temperature is within the optimal charging tem-
perature range when the fan is not running. Another reason
for a non working fan might be that it is defective. In this case,
the charging time of the battery might be extended.
Working Advice
Battery Charge-control Indication
The battery is equipped with a charge-control indicator
which indicates its charge condition. The charge-control indi-
cator consists of 3 green LEDs.
Press the button to actuate the charge-control indicator . Af-
ter approx. 5 seconds, the charge-control indicator goes out
automatically.
The charge condition can also be checked when the battery is
removed.
When no LED lights up after actuating the button , the battery
is defective and must be replaced.
For safety reasons, the charge condition of the battery can
only be checked when the garden product is at a standstill.
During the charging procedure, the three green LEDs light up
one after the other and briefly go out. The battery is fully
charged when the three green LEDs light up continuously. The
three LEDs go out again approx. 5 minutes after the battery
has been fully charged.
AL 3640 CV
Professional
AL 3620 CV
Professional
AL 3640 CV
Professional
AL 3620 CV
Professional
AL 3640 CV
Professional
AL 3620 CV
Professional
LED Indicators Battery Capacity
Continuous lighting of 3 green LEDs ≥ 2/3
Continuous lighting of 2 green LEDs ≥ 1/3
Continuous lighting of 1 green LED ≤ 1/3
Flashing of 1 green LED Reserve
OBJ_BUCH-2015-006.book Page 8 Tuesday, December 16, 2014 9:46 AM

English | 9
Bosch Power Tools F 016 L81 158 | (16.12.14)
Temperature Control Indicator
The red LED signals that the battery or the electronics of the
garden product (with battery inserted) are not within the op-
timum temperature range. When this occurs the garden prod-
uct will not operate or not at full capacity.
Temperature Control of the Battery
The red LED flashes when you press the button or the On/Off
switch (with battery inserted): The battery is outside of the
permitted operating temperature range.
The battery switches off at a temperature above 70 °C until
the optimum temperature range is reached again.
Temperature Control of the Garden Product Elec-
tronics
The red LED lights up continuously when pressing the
On/Off switch : The temperature of the garden product elec-
tronics is below 5 °C or above 75 °C.
At a temperature above 90 °C, the electronics of the garden
product switch off until the temperature is within the allowa-
ble temperature range again.

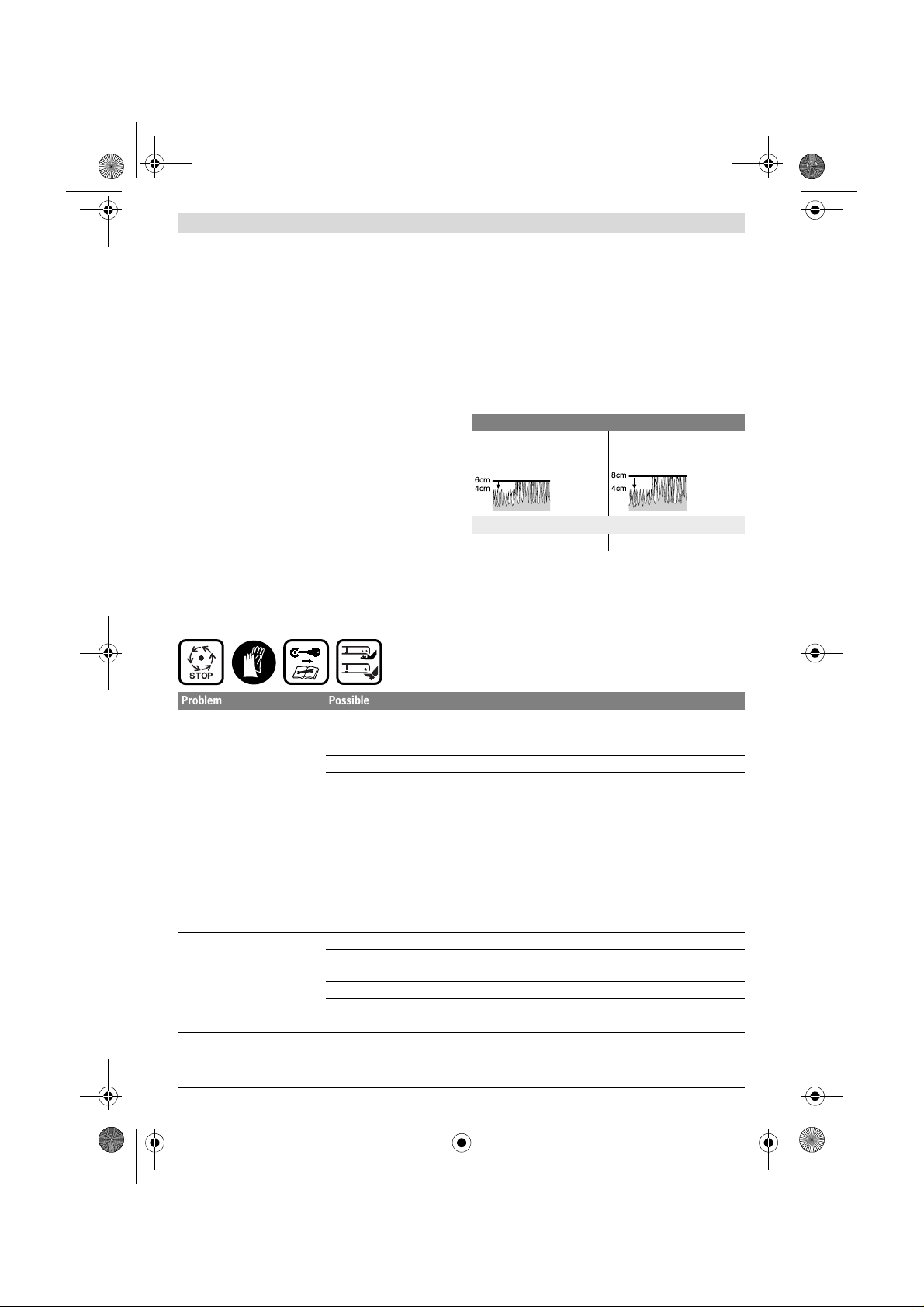

Area of Cut (Battery Duration)
The area of cut (battery duration) depends on lawn condi-
tions, grass density, mositure content, grass length and
height of cut.
Switching the machine on and off frequently during cutting
will also reduce the area of cut (battery duration).
To improvethe area of cut (battery duration) it is recommend-
ed to cut more frequently, raise the cutting height and walk at
a normal pace.
The example below shows impact of conditions against run
time, when using the machine with two batteries.
To increase the run time an additional battery or higher capac-
ity battery (Ah) can be purchased from an authorised custom-
er service agent for Bosch garden products.
Troubleshooting
Cutting Conditions
Very light, dry grass Light, dry grass
Area of cut
up to 450 m2up to 225 m2
6cm
4cm
8cm
4cm
STOP
Problem Possible Cause Corrective Action
Machine fails to operate Possible clogging Remove the isolator key:
Check underneath the garden product and clear out as nec-
essary (always wear protective gloves)
Battery not fully charged Battery Charging
Battery not inserted (properly) Inserting the battery
Grass too long Increase height of cut and tilt garden product to reduce
starting load
Motor protector has activated Allow motor to cool and increase height of cut
Battery too hot/cold Allow to cool/warm
Isolator key not inserted correct-
ly/fully
Fit correctly
There is a short delay in the mo-
tor starting after engaging the
On/Off switch
Hold On/Off switch for 1 – 3 s to start motor
Motor starts and stops immedi-
ately
Battery not fully charged Battery Charging
Isolator key not inserted correct-
ly/fully
Fit correctly
Battery not inserted (properly) Inserting the battery
Battery too hot/cold Allow to cool/warm
Increase height of cut
OBJ_BUCH-2015-006.book Page 9 Tuesday, December 16, 2014 9:46 AM

10 | English
F 016 L81 158 | (16.12.14) Bosch Power Tools
Maintenance and Service
Battery Maintenance
Warning! Switch off, remove the isolator key, battery
and grassbox before adjusting or cleaning.
Always wear gardening gloves when handling or work-
ing near the sharp blades.
Use the following procedures to enable optimum usage of the
battery:
– Protect the battery against moisture and water.
– Store the battery only within a temperature range between
–20 °C and 50 °C. As an example, do not leave the battery
in the car in summer.
– Do not leave the battery in the product in direct sunlight.
– The ideal storage condition for the battery is 5 °C.
– Occasionally clean the venting slots of the battery using a
soft, clean and dry brush.
A significantly reduced working period after charging indi-
cates that the battery is used and must be replaced.
After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always
include the 10-digit article number given on the type plate of
the garden product.
Machine functions
intermittently
Internal wiring of machine dam-
aged
Contact Service Agent
Motor protector has activated Allow motor to cool and increase height of cut
Machine leaves ragged finish
and/or
Motor labours
Height of cut too low Increase height of cut
Cutting blade blunt Replace the blade
Possible clogging Check underneath the garden product and clear out as nec-
essary (always wear protective gloves)
Blade fitted upside down Refit blade correctly
Area of cut (battery duration)
not large enough
Height of cut too low Increase height of cut and walk slower
Grass too high Increase height of cut and walk slower
Grass wet or damp Wait until grass is dry and walk slower
Grass is dense Increase height of cut, walk slower and cut more frequently
An additional battery can be pur-
chased from an authorised cus-
tomer service agent for Bosch
garden products
Contact Service Agent
Cutting blade not rotating while
garden product switched on
Cutting blade obstructed Switch off garden product
Clear obstruction (always wear protective gloves)
Blade nut/bolt loose Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise Blade nut/bolt loose Tighten blade nut/bolt (17 Nm)
Cutting blade damaged Replace the blade
No charging procedure possible Battery contacts contaminated Clean the battery contacts (e.g. by inserting and removing
the battery several times) or replace the battery
The battery is defective, due to a
disconnection in the battery (in-
dividual cells)
Replace the battery
The charge control LEDs and re-
spectively, do not light up after
inserting the mains plug into the
socket
Mains plug of battery charger not
plugged in (properly)
Insert mains plug (fully) into the socket outlet
Socket outlet, mains cable or
battery charger defective
Check the mains voltage and if necessary, have the battery
charger checked by an authorized customer service station
for Bosch power tools
Problem Possible Cause Corrective Action
OBJ_BUCH-2015-006.book Page 10 Tuesday, December 16, 2014 9:46 AM

English | 11
Bosch Power Tools F 016 L81 158 | (16.12.14)
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: [phone]
E-Mail: [email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: [phone]
Fax: [phone]
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: [phone]
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: [phone]
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: [phone]
Fax: [phone]
E-Mail: rbsa-hq.pt[email protected]
Transport
The contained lithium-ion batteries are subjectto the Danger-
ous Goods Legislation requirements. The user can transport
the batteries by road without further requirements.
When being transported by third parties (e.g.: air transport or
forwarding agency), special requirements on packaging and
labelling must be observed. For preparation of the item being
shipped, consulting an expert for hazardous material is re-
quired.
Dispatch batteries only when the housing is undamaged.
Tape or mask off open contacts and pack up the battery in
such a manner that it cannot move around in the packaging.
Please also observe possibly more detailed national regula-
tions.
Disposal
Do not dispose of garden products, battery chargers and bat-
teries/rechargeable batteries into household waste!
Only for EC countries:
According to the European law
2012/19/EU, electrical and electronic
equipments that are no longer usable, and
according to the European law 2006/66/EC,
defective or used battery packs/batteries,
must be collected separately and disposed
of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned
at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: [phone]
E-Mail: boschse[email protected]
Battery packs/batteries:
Li-Ion:
Please observe the instructions in section
“Transport”.
Subject to change without notice.
OBJ_BUCH-2015-006.book Page 11 Tuesday, December 16, 2014 9:46 AM

F 016 L81 158 | (16.12.14) Bosch Power Tools
12 |
1
13,2 kg
13,9 gk
2x 2x1x
1x 1x
1x 1x
2x 2x1x
1x
1x
4 Ah
2x
Rotak 37-36 LI Ergo, Rotak 37 LI Ergoflex
Rotak 43 LI-2 Ergoflex
1x
4 Ah
OBJ_BUCH-2015-006.book Page 12 Tuesday, December 16, 2014 9:46 AM

| 13
Bosch Power Tools F 016 L81 158 | (16.12.14)
13,9 gk
1x 1x
2x 2x1x
1x
4 Ah
1x
Rotak 43 LI Ergoflex/Rotak 410 LI Ergoflex
OBJ_BUCH-2015-006.book Page 13 Tuesday, December 16, 2014 9:46 AM

F 016 L81 158 | (16.12.14) Bosch Power Tools
14 |
3
2
Rotak 37-36 LI Ergo/
Rotak 37 LI Ergoflex Rotak 43 LI-2 Ergoflex/Rotak 43 LI Ergoflex/
Rotak 410 LI Ergoflex
OBJ_BUCH-2015-006.book Page 14 Tuesday, December 16, 2014 9:46 AM

| 15
Bosch Power Tools F 016 L81 158 | (16.12.14)
4
5
OBJ_BUCH-2015-006.book Page 15 Tuesday, December 16, 2014 9:46 AM

F 016 L81 158 | (16.12.14) Bosch Power Tools
16 |
STOP
6
8
7
70 mm 20 mm
OBJ_BUCH-2015-006.book Page 16 Tuesday, December 16, 2014 9:46 AM

| 17
Bosch Power Tools F 016 L81 158 | (16.12.14)
9
10
F 016 800 305
F 016 800 304
OBJ_BUCH-2015-006.book Page 17 Tuesday, December 16, 2014 9:46 AM

F 016 L81 158 | (16.12.14) Bosch Power Tools
18 |
STOP
12
11
Rotak 37-36 LI Ergo/
Rotak 37 LI Ergoflex
Rotak 43 LI-2 Ergoflex/
Rotak 43 LI Ergoflex/
Rotak 410 LI Ergoflex
OBJ_BUCH-2015-006.book Page 18 Tuesday, December 16, 2014 9:46 AM

| 19
Bosch Power Tools F 016 L81 158 | (16.12.14)
13
F 016 800 369
F 016 800 277
Rotak 37-36 LI Ergo/
Rotak 37 LI Ergoflex
2 607 225 657 (EU)
2 607 225 659 (UK)
2 607 225 661 (AU)
2 607 225 667 (SK)
2 607 225 099 (EU)
2 607 225 101 (UK)
2 607 225 103 (AU)
2 607 225 111 (SK)
(4 Ah) F 016 800 346
F 016 800 305
F 016 800 304
Rotak 37-36 LI Ergo/
Rotak 37 LI Ergoflex
Rotak 43 LI-2 Ergoflex/
Rotak 43 LI Ergoflex/
Rotak 410 LI Ergoflex
Rotak 43 LI-2 Ergoflex/
Rotak 43 LI Ergoflex/
Rotak 410 LI Ergoflex
OBJ_BUCH-2015-006.book Page 19 Tuesday, December 16, 2014 9:46 AM
