Bose FreeSpace E4 Series II User manual

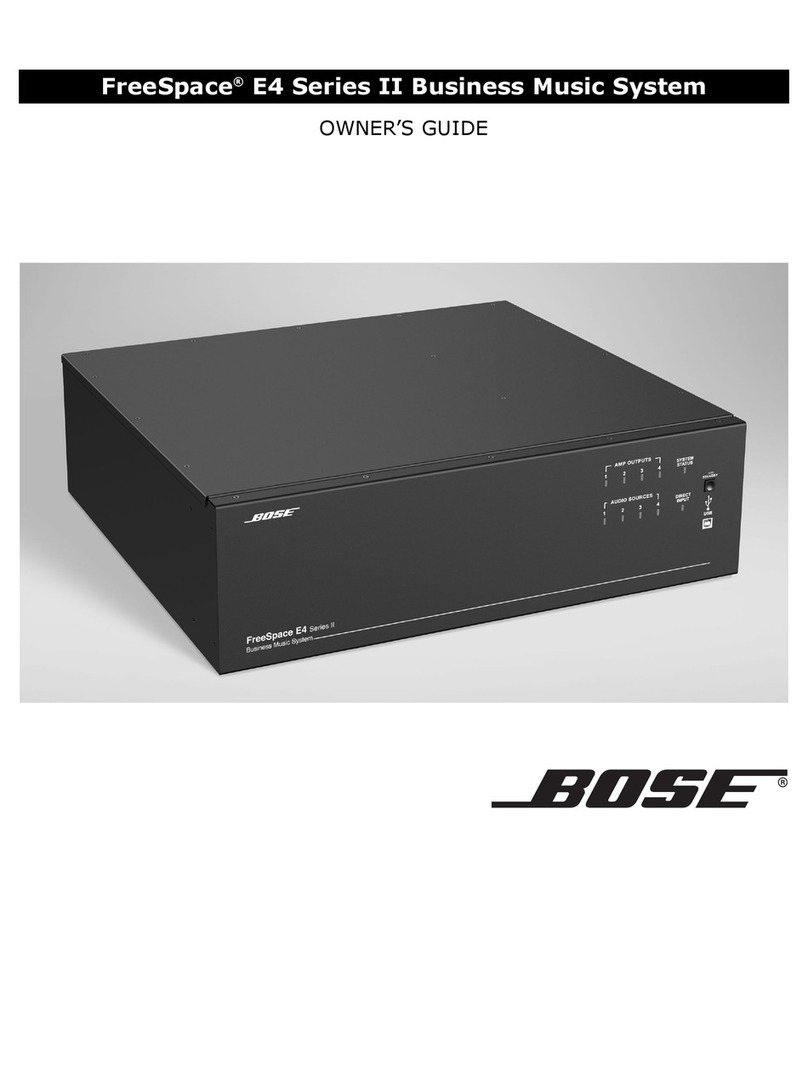

FreeSpace®E4 Series II Business Music System
OWNER’S GUIDE

11 of 80
Contents
1.0 E4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.1 The Bose®FreeSpace®E4 Series II business
music system . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2 E4 system accessories . . . . . . . . . . . . . . . . . . . 13
1.3 FreeSpace Installer™ software . . . . . . . . . . . . . 14
2.0 Designing with the E4 System . . . . . . . . . . . . . . . . . 15
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Basic design steps . . . . . . . . . . . . . . . . . . . . . . 15
2.2.1 Step 1 – Determine source routing . . . . . . 15
2.2.2 Step 2 – Determine Auto Volume
requirements . . . . . . . . . . . . . . . . . . . . 15
2.2.3 Step 3 – Determine volume control
requirements . . . . . . . . . . . . . . . . . . . . 18
2.2.4 Step 4 – Determine the speaker
requirements . . . . . . . . . . . . . . . . . . . . 18
2.2.5 Step 5 – Determine the E4 requirements . 19
2.3 Auto Volume layout examples . . . . . . . . . . . . . . 20
3.0 E4 Hardware Description . . . . . . . . . . . . . . . . . . . . 23
3.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.1 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.2 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.2 Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.1 System controls . . . . . . . . . . . . . . . . . . . . 24
3.2.2 Audio source inputs . . . . . . . . . . . . . . . . . 24
3.2.3 Amplifier outputs . . . . . . . . . . . . . . . . . . . 24
3.2.4 AC power . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2 Included accessories . . . . . . . . . . . . . . . . . . . . 25
4.3 Placement guidelines . . . . . . . . . . . . . . . . . . . . 25
4.4 Shelf mounting the E4 unit . . . . . . . . . . . . . . . . 25
4.5 Rack mounting the E4 unit . . . . . . . . . . . . . . . . 26
4.6 Installing accessories . . . . . . . . . . . . . . . . . . . . 27
4.6.1 Sensing microphones . . . . . . . . . . . . . . . . 27
4.6.2 User interfaces . . . . . . . . . . . . . . . . . . . . . 27
4.7 System wiring . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.7.1 Auto volume microphone inputs . . . . . . . 29
4.7.2 Serial data communications . . . . . . . . . . . 29
4.7.3 User interface connections . . . . . . . . . . . . 29
4.7.4 Remote standby switch . . . . . . . . . . . . . . 29
4.7.5 LINE 1/LINE 2 source input . . . . . . . . . . . 30
4.7.6 AUX MIC/LINE 3 source input . . . . . . . . . 30
4.7.7 PAGE/MIC/LINE 4 source input . . . . . . . . 31
4.7.8 DIRECT IN/CONTROL source input . . . . . 31
4.7.9 Amplifier ZONE OUT outputs . . . . . . . . . . 32
4.7.10 Output voltage setting (70/100V) . . . . . . 32
4.7.11 ZONE 4 LINE OUT output . . . . . . . . . . . 33
4.8 AC power connections . . . . . . . . . . . . . . . . . . . 33
5.0 Using FreeSpace®Installer™ Software . . . . . . . . . . 34
5.1 Installing the software . . . . . . . . . . . . . . . . . . . . 34
5.2 Connecting to the E4 system . . . . . . . . . . . . . . 34
5.2.1 No hardware detected . . . . . . . . . . . . . . . 36
5.2.2 Incompatible microcontroller code . . . . . 36
5.2.3 Sample design files . . . . . . . . . . . . . . . . . 36
5.3 The Installer™ software user interface . . . . . . . 37
5.4 Set Up Hardware mode . . . . . . . . . . . . . . . . . . 39
5.5 Set Up Schedule mode . . . . . . . . . . . . . . . . . . . 40
5.5.1 Setting the clock . . . . . . . . . . . . . . . . . . . 41
5.5.2 Adding events . . . . . . . . . . . . . . . . . . . . . 41
5.5.3 Viewing and changing event settings . . . 42
5.5.4 Removing events from the list . . . . . . . . . 42
5.6 Service Hardware mode . . . . . . . . . . . . . . . . . . 43
6.0 E4 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.2 Connecting your PC to an E4 system . . . . . . . . 44
6.3 System setup procedure . . . . . . . . . . . . . . . . . 45
6.3.1 Output gain . . . . . . . . . . . . . . . . . . . . . . . 45
6.3.2 Zone setup . . . . . . . . . . . . . . . . . . . . . . . . 46
6.3.3 Input gain . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.3.4 Source assign . . . . . . . . . . . . . . . . . . . . . 49
6.3.5 Source EQ . . . . . . . . . . . . . . . . . . . . . . . . 50
6.3.6 Page set up . . . . . . . . . . . . . . . . . . . . . . . 50
6.3.7 Zone EQ . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.3.8 Dynamic EQ . . . . . . . . . . . . . . . . . . . . . . . 53
6.3.9 Auto Volume . . . . . . . . . . . . . . . . . . . . . . . 53
7.0 User Interface Operation . . . . . . . . . . . . . . . . . . . . . 59
7.1 Enabling keypad operation . . . . . . . . . . . . . . . . 59
7.2 Turning the system on . . . . . . . . . . . . . . . . . . . 59
7.3 Standard user interface operation . . . . . . . . . . 59
7.4 Auto Volume user interface operation . . . . . . . 60
7.5 Multi-zone paging user interface operation . . . 61
8.0 E4 System Troubleshooting . . . . . . . . . . . . . . . . . . 62
8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8.2 E4 hardware indicators . . . . . . . . . . . . . . . . . . . 62
8.2.1 Normal operation . . . . . . . . . . . . . . . . . . . 62
8.2.2 System fault . . . . . . . . . . . . . . . . . . . . . . . 62
8.2.3 Amplifier fault . . . . . . . . . . . . . . . . . . . . . . 63
8.2.4 Input clipping . . . . . . . . . . . . . . . . . . . . . . 64
8.2.5 Direct input is active . . . . . . . . . . . . . . . . 64
8.2.6 No STANDBY and SYSTEM indicators . . 64
8.3 FreeSpace®E4 system Error Log . . . . . . . . . . . 65
8.3.1 Contents of the Error Log . . . . . . . . . . . . 65
8.3.2 Hardware configuration . . . . . . . . . . . . . . 65
8.3.3 Power-on self-test results . . . . . . . . . . . . 65
8.3.4 Amplifier alarms . . . . . . . . . . . . . . . . . . . . 66
8.3.5 Solving faults reported in the Error Log . . 67

12 of 80
Contents
8.4 Common problems . . . . . . . . . . . . . . . . . . . . . . 68
8.4.1 Communications port error . . . . . . . . . . . 68
8.4.2 No audio in zone . . . . . . . . . . . . . . . . . . . . 68
8.4.3 User interface keypads do not
operate correctly . . . . . . . . . . . . . . . . . 69
8.4.4 Bad sound in a zone . . . . . . . . . . . . . . . . . 69
8.4.5 Auto Volume does not calibrate . . . . . . . . 70
8.5 Customer support . . . . . . . . . . . . . . . . . . . . . . . 70
8.5.1 Technical assistance . . . . . . . . . . . . . . . . 70
8.5.2 Reporting software bugs and issues . . . . 70
9.0 Restoring E4 Microcontroller Code . . . . . . . . . . . . . 72
10.0 Technical Specifications . . . . . . . . . . . . . . . . . . . . 74
10.1 Power amplifier . . . . . . . . . . . . . . . . . . . . . . . . 74
10.2 Digital signal processing . . . . . . . . . . . . . . . . . 74
10.3 Front panel indicators and control
connections . . . . . . . . . . . . . . . . . . . . . . . . . . 74
10.4 Rear panel inputs, outputs, and controls . . . . 74
10.5 E4 system serial data commands . . . . . . . . . . 74
10.6 FreeSpace®Installer™ Design File
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . 76

13 of 80
1.0 E4 Introduction
1.1 The Bose®FreeSpace®E4 Series II
business music system
The Bose FreeSpace E4 Series II system is an integrated four-
channel digital signal processor and 400-watt power amplifier for
70/100V business music applications.
The E4 system has a total of four source inputs, including two
Line In, one Mic/Line and one Mic/Page/Line, to provide the
inputs needed for most business music installations. The system
also has a direct input which can override the sources playing on
all four output channels.
The E4 system has four amplifier output channels which can be
configured for different zones. A Music on Hold output is also
provided for simple integration into a phone system.
In a single chassis, it provides all of the processing and control
features required for one-to-four zone business music applica-
tions. These features include:
•Auto Volume: When used with the optional FreeSpace system
Auto Volume Sense Mic, E4 system electronics dynamically
control the program level in each zone so your customers can
always hear it, regardless of the background noise.
•Scheduling: Allows you to program the E4 system electronics
for automated on/off control, source changes, and volume
changes according to time of day or day of week.
•Multi-Zone Paging: Allows you to initiate a page from a single
keypad to one or more of the zones being powered by the
same E4 system.
•Opti-voice®Paging: Provides a smooth transition between
music and page signals.
•Opti-source®Input Leveling: Monitors the input level of up to
four sources and continually makes adjustments to maintain a
consistent volume level between different sources.
•Dynamic Equalization: Maintains tonal balance at all listening
levels.
•Room Equalization: Provides easy adjustment of tonal bal-
ance in each zone.
•Signal Routing: Meets the demands of most four-zone sys-
tems, allowing for an input source to be routed to any of the
four amplifier outputs.
•Serial Data Interface: RS-232 serial port for easy interfacing
to your PC
•Remote On/Off Input: Accepts a remote STANDBY switch
The integrated 400-watt power amplifier features a patented
power-sharing technology which dynamically allocates power to
each output.
For example, if you have a two-zone system that requires 5 watts
in Zone 1 and 395 watts in Zone 2, the FreeSpace E4 system
electronics distributes the power based on those needs.
The E4 also includes an easy-to-replace memory module, which
holds the system configuration settings and design file uploaded
by the FreeSpace Installer™ software (see page 14).
1.2 E4 system accessories
Optional Bose accessories for the E4 system are available.
•FreeSpace E4 System User Interface Kit (U.S.) (PC029856)
A wall-mountable keypad that fits into a standard U.S. single-
gang junction box. It provides buttons for volume up/down
control, 1-3 source selection, and mute.
•FreeSpace E4 System User Interface Kit (Euro) (PC029857)
A wall-mountable keypad that fits into a standard Euro single-
gang junction box. It provides buttons for volume up/down
control, 1-3 source selection, and mute.
•FreeSpace®E4 System Auto Volume Interface Kit (U.S.)
(PC030101)
A wall-mountable keypad that fits into a standard U.S. single-
gang junction box. It provides buttons for volume up/down
control, 1-3 source selection, and Auto Volume on/off.
•FreeSpace E4 System Auto Volume Interface Kit (Euro)
(PC030102)
A wall-mountable keypad that fits into a standard Euro single-
gang junction box. It provides buttons for volume up/down
control, 1-3 source selection, and Auto Volume on/off.
•FreeSpace E4 System Auto Volume Mic Kit (U.S.)
(PC029859)
One sensing microphone that can be mounted as is or in a
standard U.S. single-gang junction box.
•FreeSpace E4 System Auto Volume Mic Kit (Euro)
(PC029860)
One sensing microphone that can be mounted as is or in a
standard Euro single-gang junction box.
•FreeSpace E4 System Accessory Kit (U.S.) (PC030105)
Supplemental rear panel mating connectors and non-skid feet.
•FreeSpace E4 System Rack Mount Kit (PC029858)
One pair of rack ears.
• FreeSpace E4 System Page Interface Kit (U.S.) (PC030103)
A wall-mountable keypad that fits into a standard U.S. single-
gang junction box. It provides buttons for 1-4 page zone selec-
tion, all page zones selection and initiate page.
• FreeSpace E4 System Page Interface Kit (Euro) (PC030104)
A wall-mountable keypad that fits into a standard Euro single-
gang junction box. It provides buttons for 1-4 page zone selec-
tion, all page zones selection and initiate page.

14 of 80
1.0 E4 Introduction
1.3 FreeSpace Installer™ software
Bose®FreeSpace Installer software is included with every E4 sys-
tem. The Installer software allows you to configure hardware
devices such as the E4 system. The Installer software is designed
for use on a PC that is connected to the E4 system through a
serial data interface.
The Installer software requires a computer system with the fol-
lowing minimum requirements:
• 400 MHz Pentium®-based PC
• 256 MB of RAM
• 50 MB of available hard-drive space
• RS-232 serial port
• 800 x 600 display
• 4x CD-ROM drive
•MicrosoftWindows
®98, Windows®98SE, Windows®NT,
Windows®2000, Windows®XP

15 of 80
2.0 Designing with the E4 System
2.1 Introduction
This section describes the basic steps for designing an E4 sys-
tem and includes an example. It is assumed that a complete
loudspeaker design and layout has already been created.
2.2 Basic design steps
There are five basic steps in designing an E4 system.
2.2.1 Step 1 – Determine source routing
Decide which sources will be played in each area. Create a
“source map” such as the following one that shows which
sources will be played in each major area of the facility.
2.2.2 Step 2 – Determine Auto Volume
requirements
Identify which areas will use Auto Volume. Each Auto Volume
zone must use one Auto Volume user interface and one Bose®
sensing microphone to control the volume. A 70/100V volume
control cannot be used.
When using Auto Volume, remember that you will be adjusting
the volume of an overall area. Imagine that you have a dining area
and a bar adjacent to one another. If the sensing microphone is
placed above the bar, the music may become too loud in the din-
ing area. Likewise, if you place the sensing microphone above
the dining area, the music may never be heard in the bar.
Guidelines for establishing Auto Volume zones
Speaker mounting height and the overall quality of the back-
ground noise is used to determine the Auto Volume zoning
requirements. Uniform background noise is found in an area
where no part of the area is louder or quieter than any other. A
room with non-uniform background noise would seem louder in
some areas (people talking, machinery running, etc.) and quieter
in others.
Mounting guidelines for sensing microphones
• The sensing microphone must be mounted at the same height
as the loudspeakers or higher. A sensing microphone must
never be mounted lower than the speaker height.
• In all cases, there must be 6 ft (1.8 m), minimum, between the
loudspeaker and the sensing microphone. This is so that the
microphone does not receive signals only from a loudspeaker.
• There must be 35 ft (10.7 m), minimum, between the sensing
microphones of two adjacent Auto Volume zones.
• Avoid placing the microphone near unique noise sources like
HVAC equipment, dishwashers, motors, etc.
Separating the microphones as much as possible for two zones
is the best practice. Consider the previous example of the dining
area and a bar adjacent to one another. If each of these areas
uses Auto Volume, it is possible to create a situation in the dining
area where the music is too loud simply because the microphone
Source 1 Source 2 Source 3 Source 4
Area 1 ●●
Area 2 ●● ●
Area 3 ●●
Area 4 ●
Area 5 ●
Speaker
height is…
Background noise
is uniform
Background noise
is non-uniform
>25 ft (7.6 m) Not recommended
12-25 ft
(3.7-7.6 m) One Auto Volume zone for every
3600 ft2 (324 m2)
One Auto Volume
zone for every
1800 ft2 (162 m2)
<12 ft (3.7 m) One Auto Volume
zone for every
1800 ft2 (162 m2)
One Auto Volume
zone for every
900 ft2 (81 m2)

16 of 80
2.0 Designing with the E4 System
The following are examples of correct and incorrect sensing
microphone placements:
Installer’s Note: In applications where ceiling height is less
than 12 feet (3.6 m), the microphone should be wall mounted.
Mic
Correct placement Incorrect placement
Correct placement Incorrect placement
Ceiling Flush
Wall Surface
Sensing
microphone
Sensing
microphone
Sensing
microphone Sensing
microphone

17 of 80
2.0 Designing with the E4 System
When mounting sensing microphones, always maintain a dis-
tance of 6 feet (1.8 m) minimum between the microphone and the
speaker.
Mic
6'
6'
Mic
Mic
6'
6'
Ceiling Flush Wall Surface
Ceiling Surface
Sensing
microphone
≥6 ft
(1.8 m)
Sensing
microphone
Sensing
microphone
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)
≥6 ft
(1.8 m)

18 of 80
2.0 Designing with the E4 System
2.2.3 Step 3 – Determine volume
control requirements
Decide which areas will have volume controls. Create a control
map, such as the following, showing the types of controls that
will be used, and the areas in which they will be installed.
Standard and Auto Volume interfaces are available for use with
the E4 hardware. Each offers control over source selection and
volume. The Standard interface contains a Mute button, and the
Auto Volume interface contains an Auto Volume on/off button. If
you have identified an area that uses Auto Volume, you must use
an Auto Volume interface to control this zone.
It is also possible to use 70/100V volume controls between the
amplifier output and the speaker. If you plan to use 70/100V con-
trols, be aware that they cannot be used in zones where either
Auto Volume or Dynamic EQ is used. Auto Volume and Dynamic
EQ monitor the amplifier output and make adjustments accord-
ingly. Using a 70/100V volume control would cause these func-
tions to operate improperly.
When determining the placement or physical location of the con-
trols, first think about how the control is used. If the control is
very rarely used or it requires a secure location, it should be
placed with the equipment. If the control is for an area that
requires frequent adjustments, then it is best to place the control
in the area being controlled.
2.2.4 Step 4 – Determine the speaker
requirements
Determine the speaker coverage required for the design. Con-
sider the following points as you do this:
• Each Auto Volume function requires a separate zone. Each
Auto Volume zone requires the dedicated use of one E4 output
channel.
• Each type of actively equalized speaker requires the dedicated
use of one E4 output channel. If you are designing a system
that uses actively equalized speakers, such as the 102®F
speaker, Model 32, Model 32SE, or Model 8, you must dedi-
cate one E4 output channel for each speaker type.
Create a speaker map, such as the following, and match the
speaker models to areas (Speaker Qty x Tap = Zone Power
required):
Auto
Volume
Interface
1
Auto
Volume
Interface
2
70/100V
Volume
Control
1
70/100V
Volume
Control
2
Area 1 ●
Area 2 ●
Area 3 ●
Area 4 ●
Area 5 ●
Model
32SE
FreeSpace
3-I
Speaker
Qty Tap
Area
Power
Area 1 ●250100
Area 2 ●5840
Area 3 ●15050
Area 4 ●3412
Area 5 ●6848

19 of 80
2.0 Designing with the E4 System
2.2.5 Step 5 – Determine the E4
requirements
Once you have identified the areas that use Auto Volume and
unique loudspeakers, you can combine different areas based on
the types of sources and controls they are using.
Now we can take a look at how the maps we created can help us
determine the quantity of E4s we will need.
Total System Power = 250W
By combining the maps you can easily combine sources, speaker types, and control types. The information placed
in this table suggests that Area 1 and Area 3 need to be grouped separately because they are Auto Volume zones
requiring separate E4 system outputs. Area 2 uses one standard volume control requiring one E4 output channel.
Areas 4 and 5 share a common volume control and can be combined on a third E4 output channel. Since only four
outputs are required and the total combined power requirement is less than 400W, only one E4 unit would be
needed for this system.
Sources Controls Loudspeakers
1234AV1AV2VC1VC2M32SEFS3TotalWE4Ch.
Area 1 ● ● ● ● 100 1
Area 2 ● ● ● ● ● 40 2
Area 3 ●● ● ●50 3
Area 4 ● ● ● 12 4
Area 5 ● ● ● 48 4

20 of 80
2.0 Designing with the E4 System
2.3 Auto Volume layout examples
Large, open retail space with single music
source
FreeSpace®Acoustimass module
Model 16 (pendant mounted)
Sensing microphone

21 of 80
2.0 Designing with the E4 System
Hair salon (Small space with specific noise)
FreeSpace®3 system
Sensing microphone

22 of 80
2.0 Designing with the E4 System
Hotel lobby
22 ft
(6.7 m)
40 ft
(12.2 m)
Model 16
(flush mounted)
Sensing microphone

77 of 78
Bose®Product Sales Conditions
Limited Warranty Policy
and
Conditions of Sale
Bose Corporation
The Mountain
Framingham, MA 01701
What is covered:
All parts defective in material and workmanship. This limited
warranty for the Bose Freespace®E4 system (“system”) covers
the functionality of the system for its normal, intended use as
specified in the Owner’s Guide and does not cover a malfunction
that has resulted from improper or unreasonable use or mainte-
nance, accident, excess moisture, improper packing,
lightning, power surges, or unauthorized tampering, alteration or
modification while not under the control of Bose. Bose systems
are not designed to be used in every environment, so please
review your Owner’s Guide.
WHERE PERMITTED, THE PROVISIONS OF THIS LIMITED
WARRANTY ARE IN LIEU OF ANY OTHER WRITTEN
WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN OR
ORAL, INCLUDING ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
For how long:
In countries where the duration of the warranty is not determined
by statute, the Bose Limited Warranty lasts five years from the
purchase date. For countries where minimum warranty terms are
determined by statute, the warranty term is the longer of the
statutory period or the term listed above.
What we will do:
We will repair or replace any defective parts within a reasonable
period of time and free of charge.
How you can obtain warranty service:
1. You can ship the system to either a Bose Service Agency or to
Bose directly with a proof of purchase from an authorized dealer.
Please:
A. Properly and carefully pack the product for shipping. If you
need a carton for shipping, contact Bose for a new carton.
B. Label and ship the product to the appropriate Bose
location.
C. Please contact Bose to get a return reference number.
Place this number prominently on the outside of the carton.
2. You can return the system with proof of purchase from an
authorized dealer to a Bose Service Agency or directly to
Bose. Proof of purchase is not required where it is excluded
by statute.
Other Rights:
EXCLUSIVE REMEDY:
THIS LIMITED WARRANTY IS FULLY TRANSFERABLE
PROVIDED THAT THE CURRENT OWNER FURNISHES THE
ORIGINAL PROOF OF PURCHASE FROM AN AUTHORIZED
BOSE DEALER. THE MAXIMUM LIABILITY OF BOSE SHALL
NOT EXCEED THE ACTUAL PURCHASE PRICE PAID BY YOU
FOR THE PRODUCT. IN NO EVENT SHALL BOSE BE LIABLE
FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES. SOME PLACES DO NOT ALLOW LIMITATIONS ON
THE EXCLUSION OR LIMITATION OF RELIEF, SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES OF
THE LIMITATION OF LIABILITY TO SPECIFIED AMOUNTS, SO
THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO YOU.
OTHER CONDITIONS:
FOR YOUR BENEFIT, WE RECOMMEND THAT YOU RECORD
YOUR SERIAL NUMBERS(S), FOUND ON THE PRODUCT(S),
AND OTHER PURCHASE INFORMATION, AND KEEP IT WITH
YOUR PERSONAL RECORDS ALONG WITH PROOF OF
PURCHASE. IF NECESSARY, THIS INFORMATION WILL
ALLOW US TO BETTER SERVE YOUR NEEDS.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC RIGHTS
SUBJECT TO SPECIFIED CONDITIONS. YOU MAY ALSO HAVE
OTHER LEGAL RIGHTS WHICH APPLY TO THE PRODUCT
YOU HAVE ACQUIRED. THESE LEGAL RIGHTS VARY FROM
STATE TO STATE OR COUNTRY TO COUNTRY. SOME PLACES
DO NOT ALLOW THE EXCLUSION, RESTRICTION OR MODIFI-
CATION OF CERTAIN IMPLIED RIGHTS OR THEIR EFFECT. IN
THOSE SITUATIONS THIS LIMITED WARRANTY WILL ONLY
APPLY TO THE EXTENT THAT THE APPLICABLE LAW ALLOWS.
OTHER LAWS PROVIDE YOU WITH A STATUTORY CLAIM
AGAINST THE SELLER.
The laws of your state or country may provide you with legal
claims against the seller or manufacturer of this product. The
Limited Warranty does not affect those rights.
Remedies:
The provisions of this limited warranty are in lieu of any other
warranties or conditions, except those provided by law. This
Limited Warranty does not affect any legal rights provided to you
by law and does not preclude any legal remedy you may have
under the law.
This Limited Warranty is fully transferable provided that the
current owner furnishes the original proof of purchase from an
authorized Bose dealer.
This Limited Warranty is void if the label bearing the serial
number has been removed or defaced.

©2004 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
279145 AM Rev.00 CCM-000922
78
