Bostitch S13A1 Manual

BOSTITCH
INSTALLATIONADJUSTMENT and MAINTENANCE MANUAL
MODELS
S13A1, S13B2,S13C AND S13E
S25A1, S25B2 AND S25C
METALSTITCHERS % CROWN-NO. 18 WIRE
WARNING:
NEVER OPERATEMACHINEWITHWIREFEEDING ANDNO MATERIAL ABOVE
CLINCHER.SERIOUSDAMAGE MAY RESULT.
EXCESSIVE AMOUNT OF LUBRICANT MAY BLEEDCAUSINGDAMAGE TO WORK
BEING STITCHED.
IN OPERATING A STITCHER, BE CAREFUL NOTTO DRIVE ONE STITCH OVER
ANOTHER, AS THIS MAY BREAK THE DRIVER TIPS.
DO NOT OPERATE THE STITCHERWITH WIRE FEED ONBUT WITHOUT MATERIAL
BETWEEN DRIVER AND CLINCHER.
IFA PIECE OF WIRE GETSCAUGHT INTHE GRIPPER OR FORMER OR SHOE,STOP
THE MACHINE AND REMOVE CAREFULLYBEFOREATTEMPTING TO STITCHAGAIN.
1. INTRODUCTION
A wirestitcher,like any othermachine, will give
satisfactory results toits owneronly if properly
installed, regularly lubricated, intelligentlyadjusted,
and carefullymaintained.Movingpartswillwear in
time and requirereplacement,whileothers may
break through accident. Trained service menare
available butnot always tobehadata moment's
notice, anda knowledgeof thefunctionsof themore
importantparts ofa stitcher is thereforemost
desirable for everypersonresponsible forits
operation, in order to knowwhat todoin case of
trouble.
We have,therefore,gatheredtogether the com-
bined experience ofour engineers and service men
and haveattempted to present the information ina
manner that will make it quicklyavailable and readily
understood.
We wouldurge,however, inany case of serious
difficultythat you notify our nearestsalesoffice,
sendingsamples ofthe defectivework and describ-
ingthe trouble in detail, soasto obtain the benefit of
theirexperience in arriving atthe propersolution. Be
sure to report the serialnumber and model ofthe
machinewhencorresponding in regard to equip-
ment, so that itmaybe identifiedquickly.
2. INSTALLATION
(See charts and parts lists for locations and
names of parts referred to.)
Any machine canbe seriouslydamagedduring its
installation ifitisnot properly setup; therefore, we
recommendcloseadherence tothe following
procedure:
(a) After uncrating machine, examinecarefully
for any breakage in transit. If such be found, donot
attempt torun machine but report at once tothe
sellingagent. Ifour service manis present, lethim
examine machine and thenreport tothe manufac-
turer.
(b)See thatmotor is free to revolve when large
pulley or flywheel is turned by hand. If tight, clutch is
perhaps engaged, in whichcaseshaft will turn also.
Turningpulley or flywheel one revolution will
release clutch.
(c) Examinenameplate on motor andsee that its
specifications arethe same as those ofthe power to
be used. If not, donot attempt to operate the
machine.
(d) Place the machine ona level floor, using
shims underbase if necessary to prevent any
movement or rocking.
(e) Lowerclincher to at least 2" below the stitcher
head, by means of adjustingsleeve on posttype
stitcher, orclincherbracketadjustingscrewon head
mountedclincherbracketstitcher or clincher arm
adjustingscrew or bolt onarm typestitcher.
(f) Be sure that the machine isoiledthoroughlyat
all pointsbeforeoperating.
Run a little oilon coil of wire, which helps to
lubricate wirefeedtubes and also the formers and
driver, which are tight-fittingwhennew. Tiea piece
of clothtemporarilyaround the wireabove thetop
end OT tne upperwire Teed tube to remove dirt and
excess oiland thuspreventsoiling the work.
(g) Connectmotorcord to poweroutlet and start
motor. See that it runsfreely,without undue noise,

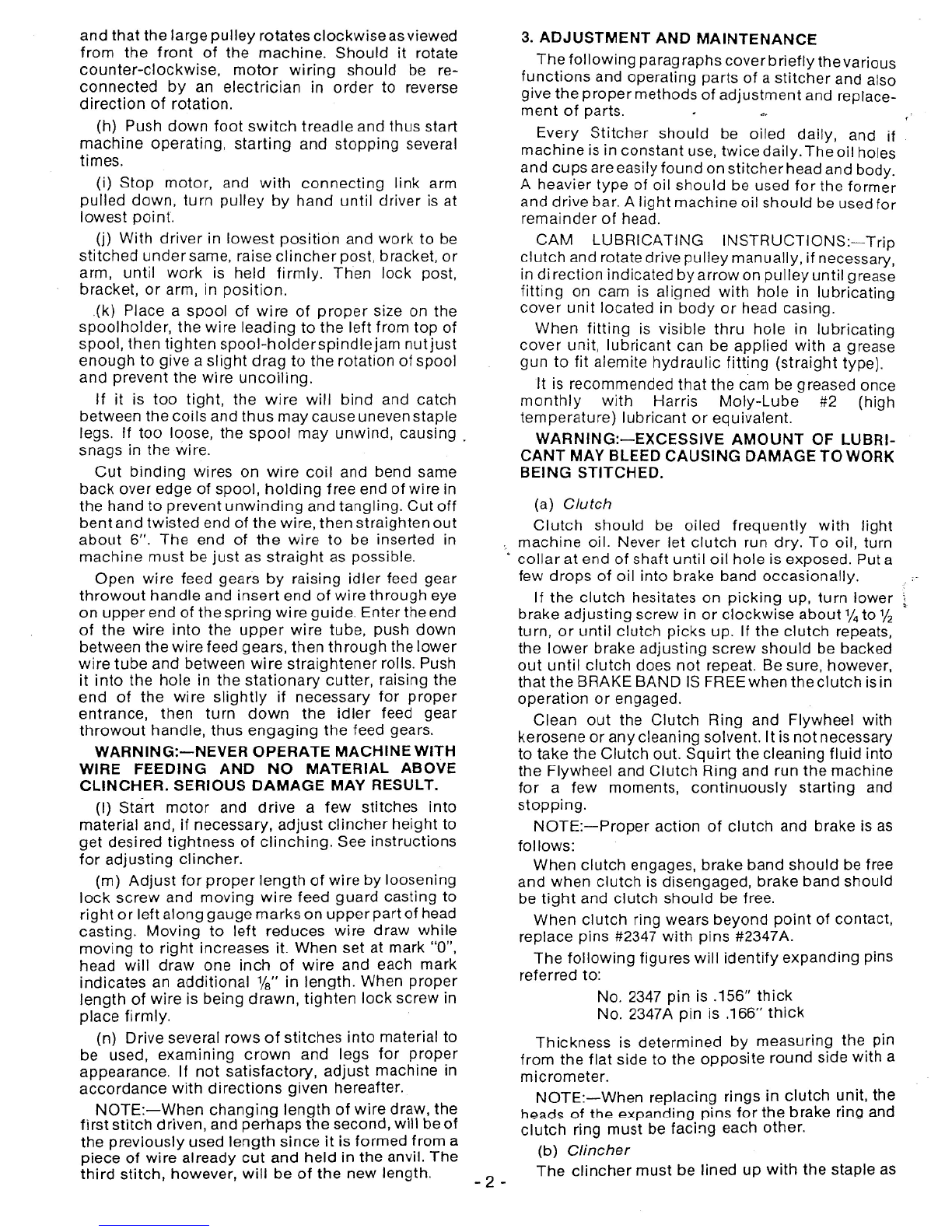

and that the largepulley rotates clockwiseasviewed
from the front ofthe machine.Should it rotate
counter-clockwise,motor wiring should bere-
connected byan electrician in order to reverse
direction of rotation.
(h) Pushdownfootswitchtreadle and thusstart
machineoperating,starting and stoppingseveral
times.
(i) Stopmotor, and with connectinglink arm
pulleddown,turnpulley by handuntil driver isat
lowest point.
(j) Withdriver in lowestposition and work tobe
stitched undersame,raiseclincherpost,bracket, or
arm, untilwork is heldfirmly.Thenlockpost,
bracket, or arm, in position.
.(k) Place a spool of wire of proper size onthe
spoolholder, the wireleading tothe left from topof
spool,thentighten spool-holderspindlejam nut just
enough to give a slightdrag tothe rotation of spool
and prevent the wire uncoiling.
If itistoo tight, the wire will bind and catch
between the coils and thus may causeuneven staple
legs. Iftoo loose, the spool may unwind,causing
snags inthe wire.
Cut binding wires on wire coil and bendsame
back overedge of spool, holding free endof wire in
the hand to preventunwinding and tangling. Cutoff
bent and twisted endofthe wire,thenstraighten out
about 6".Theendofthe wire tobe inserted in
machinemust be just as straight as possible.
Openwirefeedgears by raisingidlerfeedgear
throwouthandle and insert endof wirethrough eye
on upper endofthe spring wire guide.Enter the end
of the wireinto the upper wiretube,pushdown
between the wirefeedgears,thenthrough the lower
wiretube and between wire straightener rolls.Push
it into the hole inthe stationarycutter,raising the
endofthe wireslightly if necessary for proper
entrance, thenturn down the idlerfeedgear
throwouthandle,thusengaging the feedgears.
WARNING:—NEVER OPERATEMACHINEWITH
WIRE FEEDING ANDNO MATERIAL ABOVE
CLINCHER.SERIOUSDAMAGE MAY RESULT.
(I) Startmotor and drive a few stitchesinto
materialand, if necessary,adjustclincherheight to
get desiredtightness of clinching. See instructions
for adjustingclincher.
(m) Adjust for properlength of wire by loosening
lockscrew and movingwirefeedguardcasting to
rightor left alonggaugemarks on upper part of head
casting.Moving to leftreduceswiredrawwhile
moving to rightincreases it. When setat mark"0",
head will draw one inch of wire and eachmark
indicates an additional
1/8"
in length.Whenproper
length of wire is beingdrawn,tightenlockscrew in
placefirmly.
(n) Driveseveralrows of stitchesintomaterial to
be used,examiningcrown and legs for proper
appearance. Ifnot satisfactory,adjustmachine in
accordancewithdirectionsgivenhereafter.
NOTE:—When changinglength of wiredraw, the
firststitch driven, and perhaps the second, will beof
the previouslyused length since itis formedfrom a
piece of wirealready cutand held inthe anvil. The
third stitch, however, will beofthenew length.
-2-
3. ADJUSTMENT AND MAINTENANCE
The followingparagraphscoverbriefly the various
functions and operatingparts ofa stitcher and also
give the propermethods of adjustment and replace-
ment of parts.
Every Stitchershould be oileddaily, andif
machine isin constantuse, twicedaily.Theoil holes
and cups are easilyfound on stitcherhead and body.
A heaviertype ofoil should be used forthe former
and drivebar. A lightmachine oil should be usedfor
remainder of head.
CAM LUBRICATING INSTRUCTIONS:-Trip
clutch and rotatedrivepulleymanually, if necessary,
in direction indicated by arrow on pulley until grease
fitting oncamis alignedwithhole in lubricating
cover unitlocated in body or headcasing.
Whenfitting is visible thru hole in lubricating
cover unit, lubricant canbe appliedwith a grease
guntofit alemitehydraulicfitting(straighttype).
Itis recommendedthat thecambe greasedonce
monthlywithHarris Moly-Lube #2 (high
temperature) lubricant or equivalent.
WARNING:—EXCESSIVE AMOUNT OF LUBRI-
CANT MAY BLEEDCAUSINGDAMAGE TO WORK
BEING STITCHED.
(a) Clutch
Clutchshould be oiledfrequentlywithlight
machineoil.Never let clutch run dry. To oil,turn
collar atendof shaft until oil hole is exposed. Puta
few drops ofoil intobrakebandoccasionally.
If the clutch hesitates on picking up, turnlower \
brake adjustingscrew inor clockwiseabout
1/4
to V2
turn, or untilclutchpicks up.Ifthe clutchrepeats,
the lowerbrakeadjustingscrewshould be backed
out untilclutchdoes not repeat. Be sure,however,
that the BRAKEBAND IS FREEwhen the clutch isin
operation or engaged.
Clean outthe ClutchRing and Flywheelwith
kerosene orany cleaningsolvent. Itisnot necessary
to take the Clutchout.Squirt the cleaningfluidinto
the Flywheel and ClutchRing andrunthe machine
fora few moments,continuouslystarting and
stopping.
NOTE:—Proper action of clutch and brake isas
follows:
Whenclutchengages,brakebandshould be free
and whenclutch is disengaged,brakebandshould
be tight and clutchshould be free.
Whenclutchringwearsbeyond point of contact,
replacepins #2347 withpins#2347A.

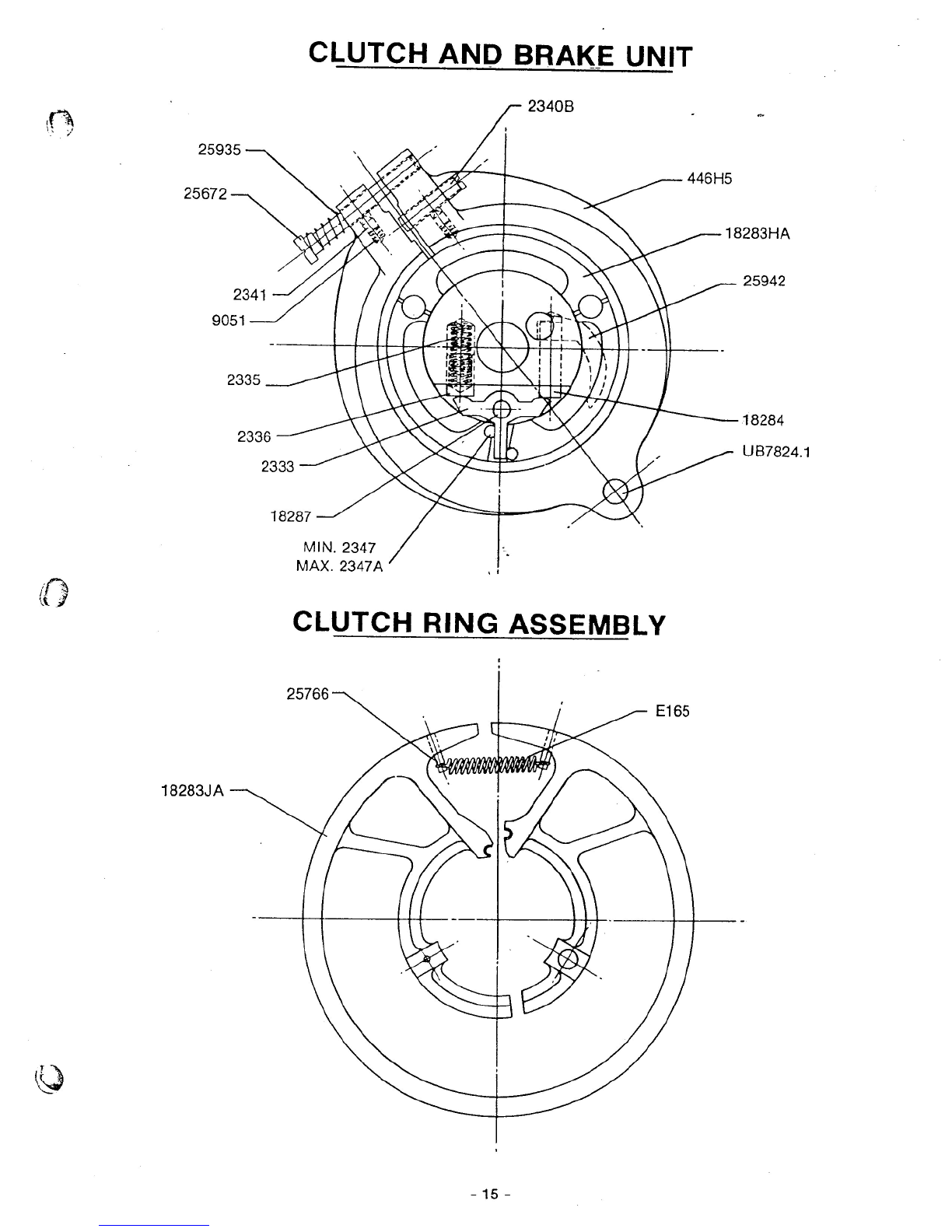

The followingfigureswillidentifyexpandingpins
referred to:
No. 2347 pinis .156"thick
No. 2347A pinis .166"thick
Thickness is determined by measuring thepin
from the flat side tothe oppositeroundsidewith a
micrometer.
NOTE:—When replacingrings in clutch unit, the
heads ofthe expanding pins forthe brakering and
clutchringmust be facingeachother.

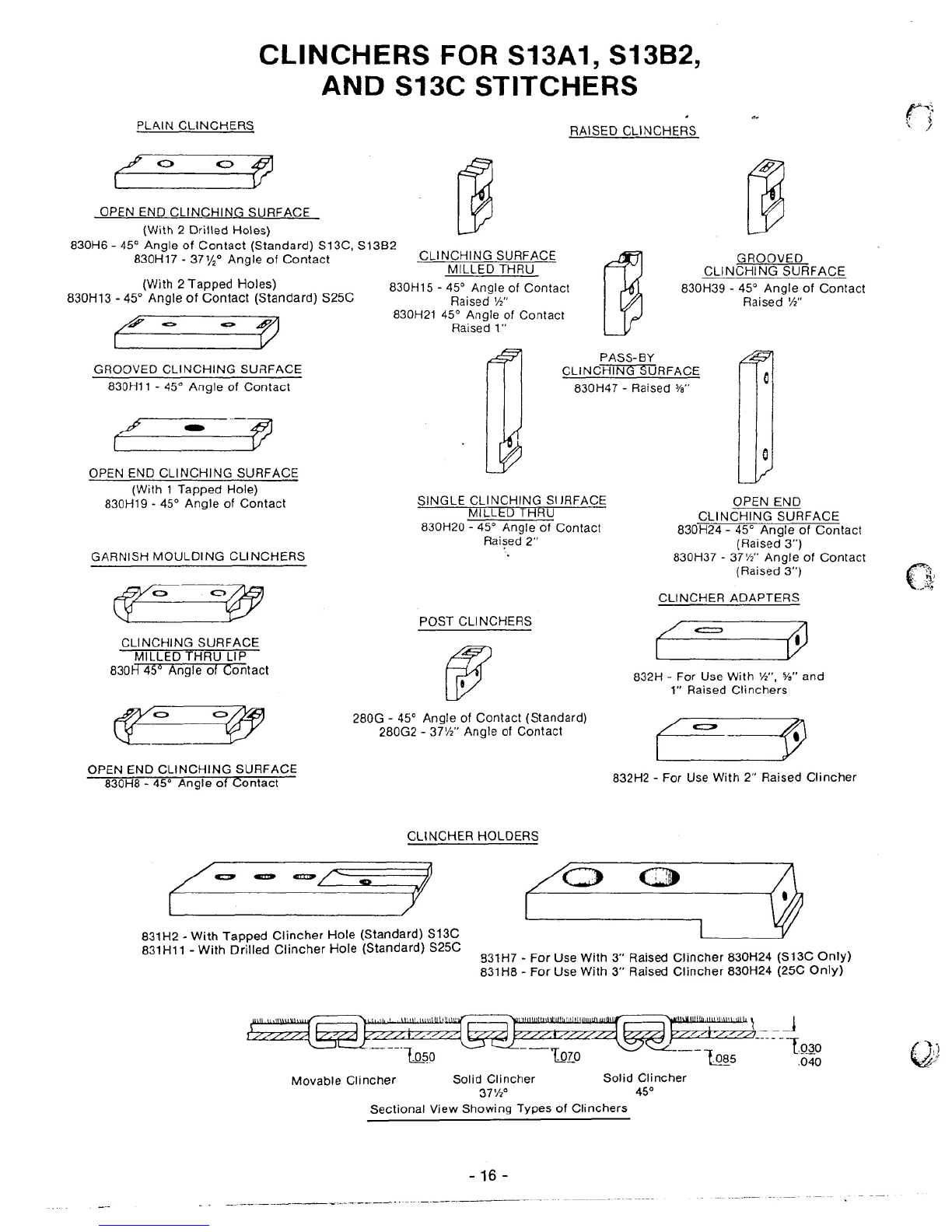

(b) Clincher
The clinchermust be lined up with the staple as

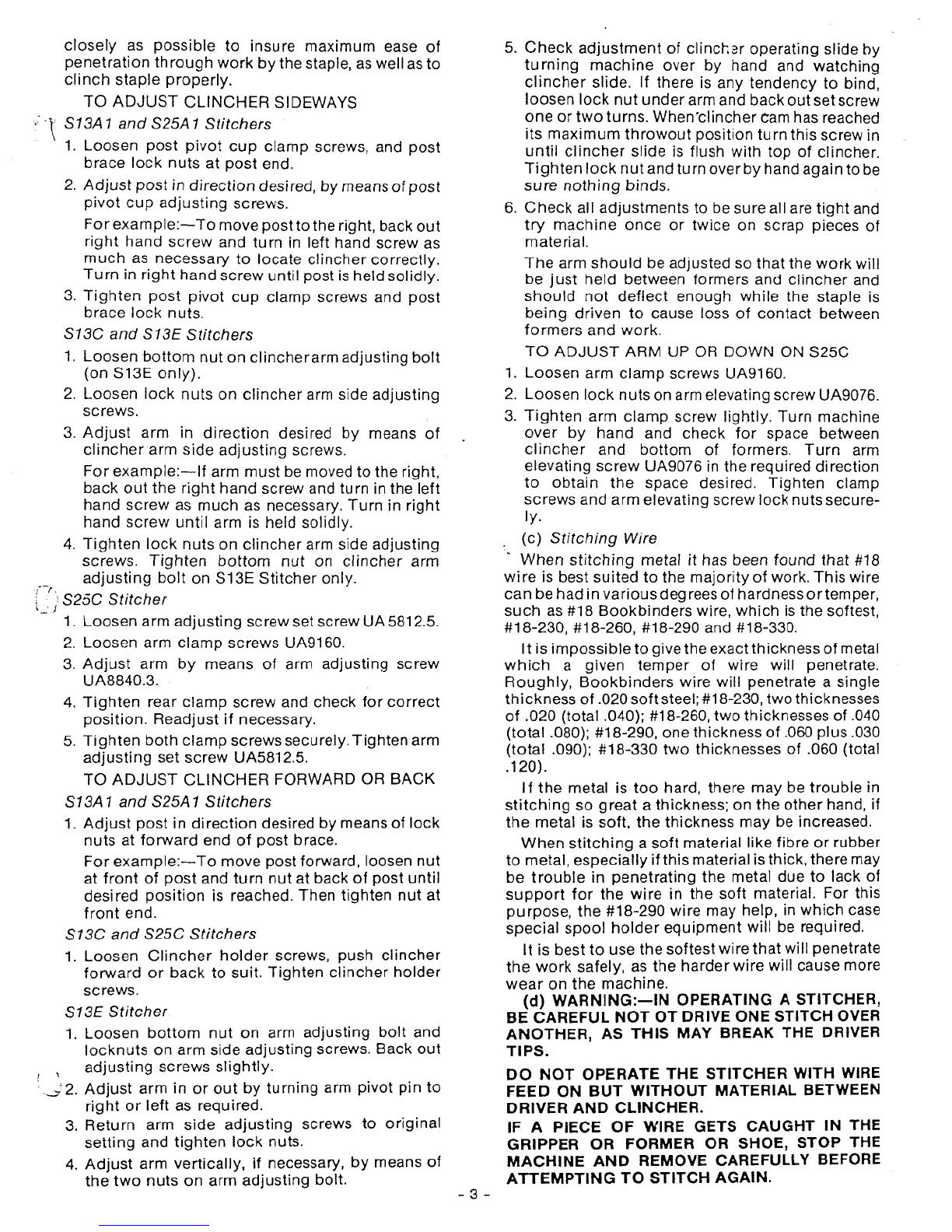

closely as possible to insuremaximum ease of
penetrationthroughwork bythe staple, as well as to
clinchstapleproperly.
TO ADJUSTCLINCHER SIDEWAYS
•' V S13A1 and S25A1 Stitchers
1. Loosenpostpivot cup clamp screws, and post
bracelocknuts at postend.
2. Adjust post in direction desired, by means of post
pivot cup adjustingscrews.
For example:—To movepost tothe right,back out
righthandscrew and turn in left handscrew as
much as necessary to locateclinchercorrectly.
Turn in righthandscrewuntilpost is heldsolidly.
3. Tightenpostpivot cup clamp screws and post
bracelocknuts.
S73C and S13E Stitchers
1. Loosenbottom nuton clincherarmadjustingbolt
(on S13E only).
2. Loosenlocknuts on clincher arm sideadjusting
screws.
3. Adjust armin directiondesired by means of
clincher arm sideadjusting screws.
For example:—If arm must be moved tothe right,
back outthe right hand screw and turn inthe left
handscrew as much as necessary.Turn in right
handscrew until armis heldsolidly.
4. Tightenlocknuts on clincher arm sideadjusting
screws. Tighten bottom nuton clincher arm
adjustingbolt on S13EStitcheronly.
I ' ! S25C Stitcher
V_- j
1. Loosen arm adjustingscrew set screw UA 5812.5.
2. Loosen arm clampscrews UA9160.
3. Adjust armby means ofarm adjustingscrew
UA8840.3.
4. Tightenrearclampscrew and check for correct
position.Readjust if necessary.
5. Tighten both clampscrews securely.Tighten arm
adjusting set screw UA5812.5.
TO ADJUSTCLINCHERFORWARD OR BACK
S13A1 and S25A1 Stitchers
1. Adjustpost in directiondesired by means of lock
nuts at forward endof postbrace.
For example:—-To movepostforward,loosen nut
at front of post and turn nutat back of post until
desiredposition is reached.Thentighten nutat
frontend.
S73C and S25C Stitchers
1. LoosenClincherholderscrews,pushclincher
forward or back to suit.Tightenclincherholder
screws.
S13E Stitcher
1. Loosenbottom nutonarm adjustingbolt and
locknuts onarm sideadjustingscrews.Back out
adjustingscrews slightly.
_? 2. Adjust arminoroutby turning arm pivot pinto
right or left as required.
3. Return arm sideadjustingscrews to original
setting and tighten locknuts.
4. Adjust arm vertically, if necessary, by means of
thetwo nuts onarm adjustingbolt.
5. Checkadjustment of clincher operatingslide by
turning machineover by hand and watching
clincherslide. If there isany tendency to bind,
loosenlock nut under armand back out set screw
oneortwo turns.When'clincher camhas reached
its maximum throwout positionturnthisscrew in
until clincherslide is flushwith topof clincher.
Tightenlock nutand turn over by handagain tobe
sure nothing binds.
6. Check all adjustments tobe sure allare tight and
try machineonce or twice on scrap pieces of
material.
Thearm should be adjusted so that the workwill
be justheldbetweenformers and clincher and
should not deflectenoughwhile the staple is
being driven to causeloss of contactbetween
formers and work.
TO ADJUST ARMUPOR DOWN ON S25C
1. Loosen arm clampscrews UA9160.
2. Loosenlocknuts onarm elevating screw UA9076.
3. Tighten arm clampscrewlightly.Turnmachine
over by hand and check for space between
clincher and bottom of formers. Turn arm
elevating screwUA9076 inthe requireddirection
to obtain the spacedesired.Tightenclamp
screws andarm elevatingscrewlocknutssecure-
iy.
(c) Stitching Wire
When stitching metal ithas beenfound that #18
wire is bestsuited tothe majority of work.This wire
canbehadin various degrees of hardness or temper,
such as#18 Bookbinderswire,which isthe softest,
#18-230,#18-260,#18-290 and #18-330.
It is impossibletogivethe exact thickness of metal
which a giventemper of wirewillpenetrate.
Roughly,Bookbinderswirewillpenetrate a single
thickness of .020softsteel; #18-230, two thicknesses
of .020(total .040); #18-260, two thicknesses of .040
(total.080);#18-290, one thickness of .060plus.030
(total .090);#18-330 two thicknesses of .060(total
.120).
If the metal istoo hard,there maybe trouble in
stitching so great a thickness; onthe otherhand, if
the metal is soft, the thickness maybe increased.
Whenstitching a softmateriallikefibre or rubber
to metal, especially if thismaterial is thick,there may
be trouble in penetrating the metal dueto lack of
support forthe wire inthe softmaterial. For this
purpose, the #18-290wire may help, in which case
special spool holder equipmentwill be required.
Itis best tousethe softestwirethatwillpenetrate
the worksafely, asthe harderwirewillcausemore
wear onthe machine.
(d) WARNING:—IN OPERATING A STITCHER,
BE CAREFUL NOTOT DRIVE ONE STITCH OVER
ANOTHER, AS THIS MAY BREAK THE DRIVER
TIPS.
DONOT OPERATE THE STITCHERWITH WIRE
FEED ONBUT WITHOUTMATERIALBETWEEN
DRIVER AND CLINCHER.
IFA PIECE OF WIREGETSCAUGHT INTHE
GRIPPER OR FORMER OR SHOE,STOP THE
MACHINE AND REMOVECAREFULLYBEFORE
ATTEMPTING TO STITCH AGAIN.
-3-

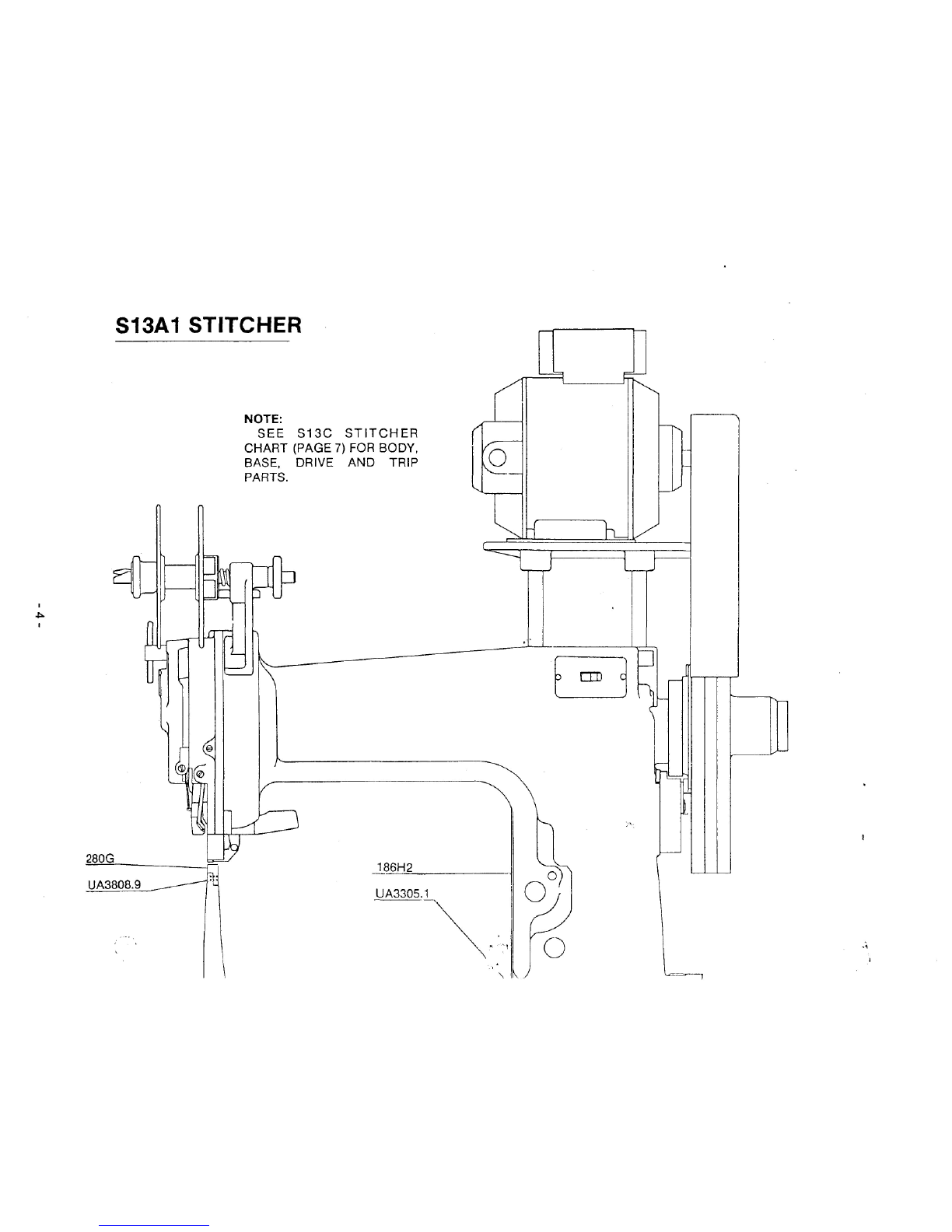

S13A1 STITCHER
NOTE:
SEE S13CSTITCHER
CHART(PAGE 7)FOR BODY,
BASE, DRIVE AND TRIP
PARTS.
fl

Ul
I

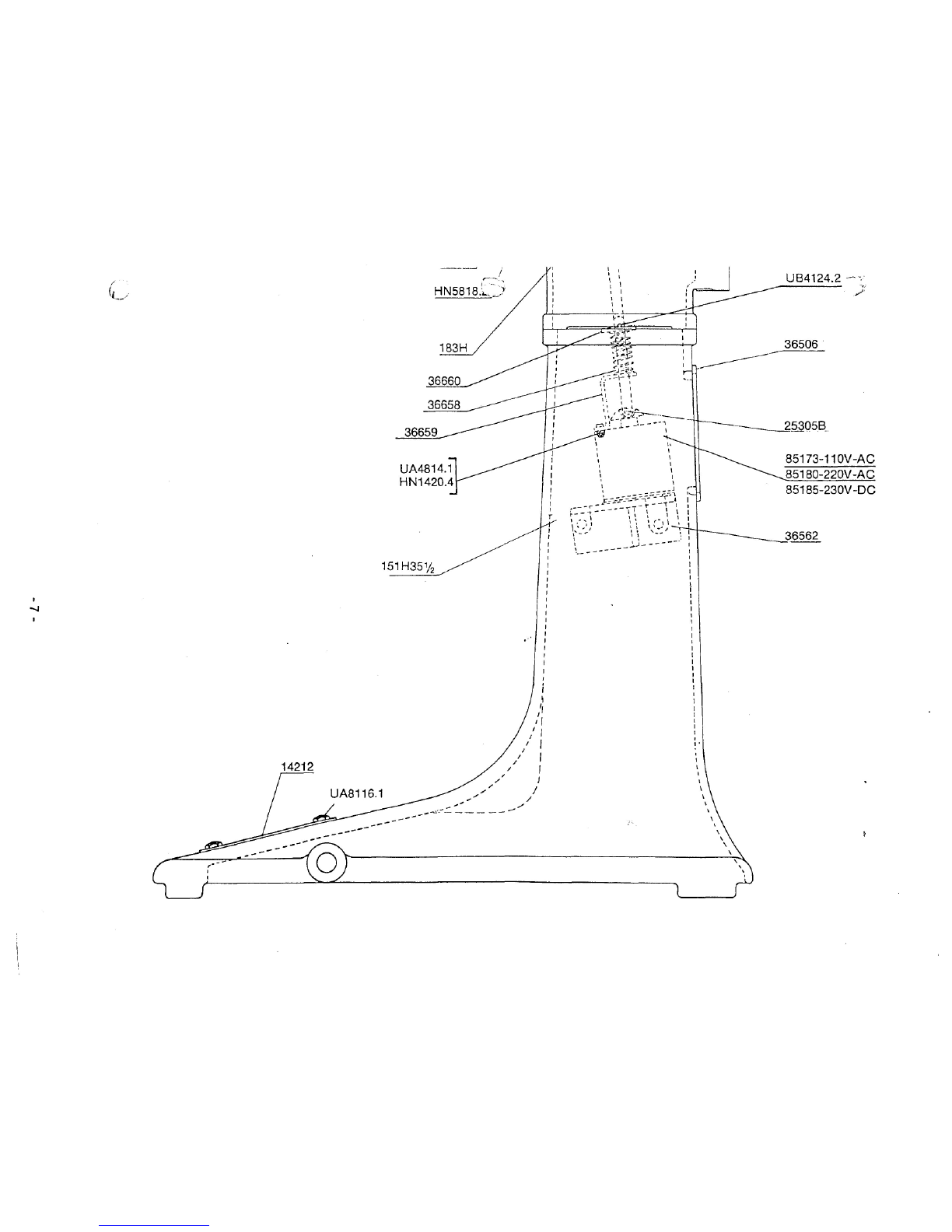

SI3C STITCHER
192-38
UA6116-1
830H6
831H2

/ \ ,
'
11
1 ,
I I — -—-"
t^-" — ""^
i ^^^^£ i
i ^f**^ *^- •v^** t
i
--'
_-— -
^ —
UB4124.2
36506

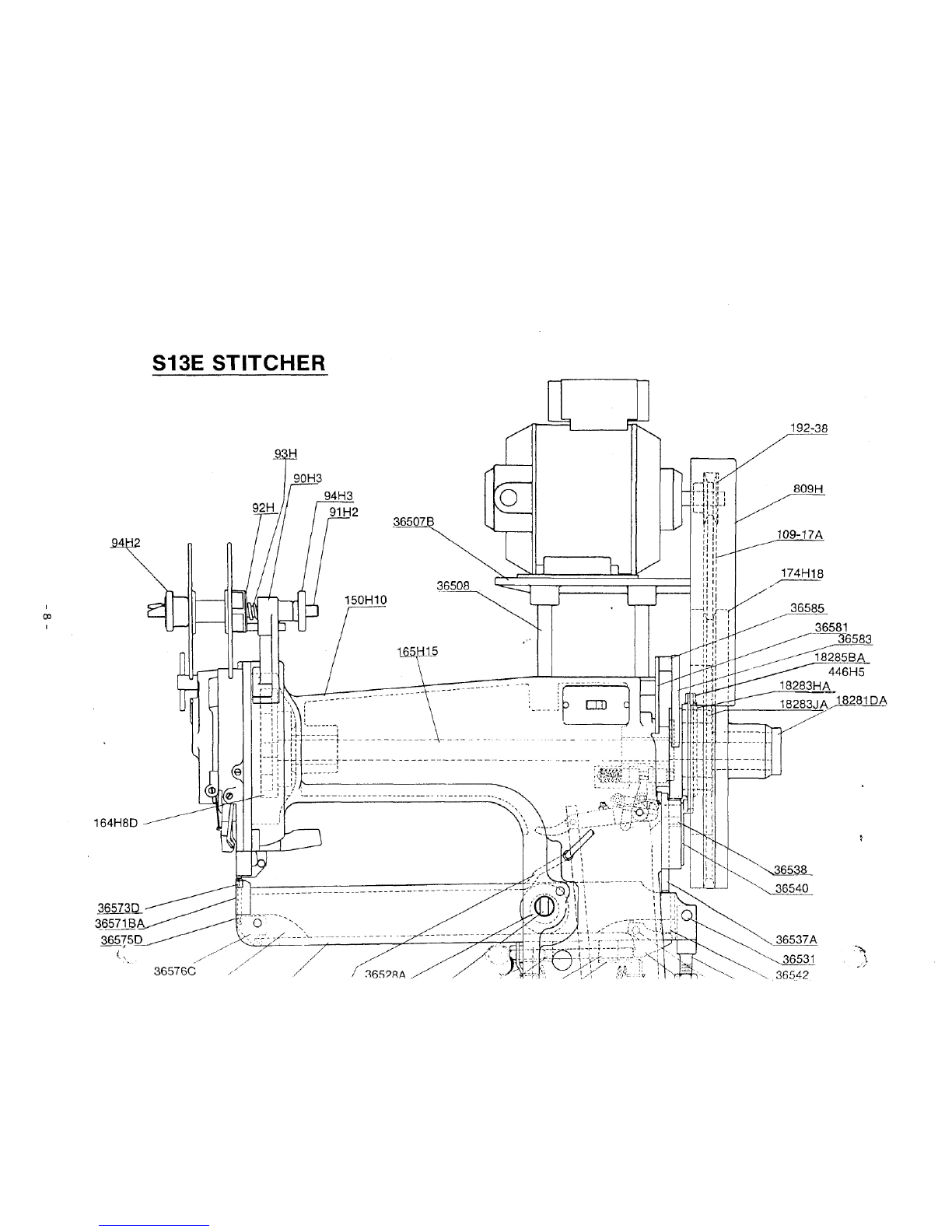

S13E STITCHER
oo
i
192-38
36583
18285BA
446H5
18283HA
365730^
36571BA
36575D
18283JA/1S281DA
36576C

36523A
36551BA
CO
\_36544_
36543B
UB4124.2
85173-11OV-AC
85180-220V-AC
85185-230V-DC
36557
36546B
36547B

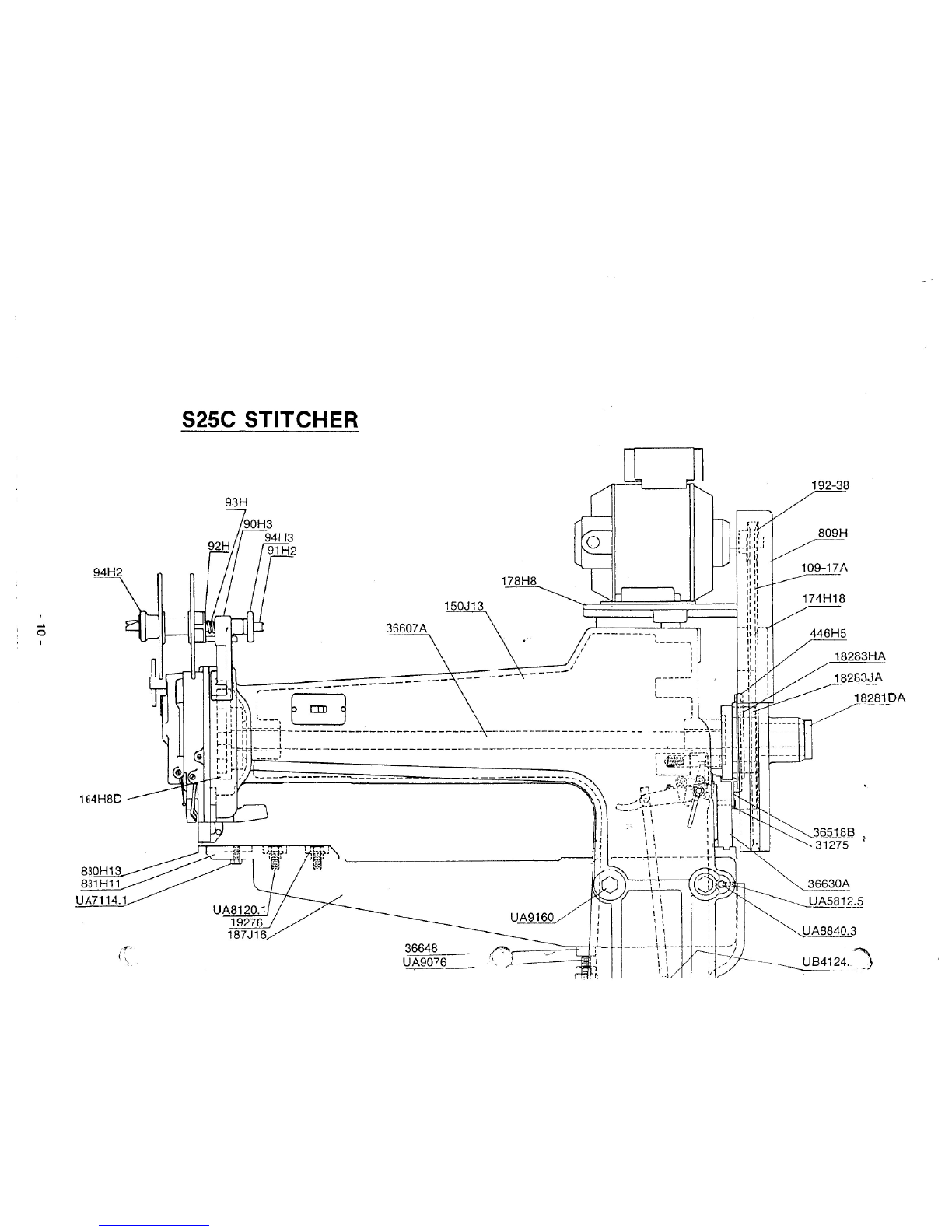

S25C STITCHER
192-38
93 H
18283JA
18281 DA
830H13
831H11
UA7114.1
UA5812.5
UA8840J3
UB4124. J

(L
seer;
36658
FOR PARTSSPECIAL TO
S25A1 & S25B2 STITCHERS
SEE LIST IN REAR OF BOOK
85173-11OV-AC
85180-220V-AC
85185-230V-DC

S13B2 STITCHER
NOTE:
SEE S13C STITCHER
CHART(PAGE 7)FOR
BODY, BASE,DRIVE AND
TRIP PARTS
UA6824.3
HN3816.2
50H15
821H -TOP CLINCHER
MOUNTING (AS SHOWN)
821H2- BOTTOM CLINCHER
MOUNTING
SB825
_BG1_114
824H SPACER

•\

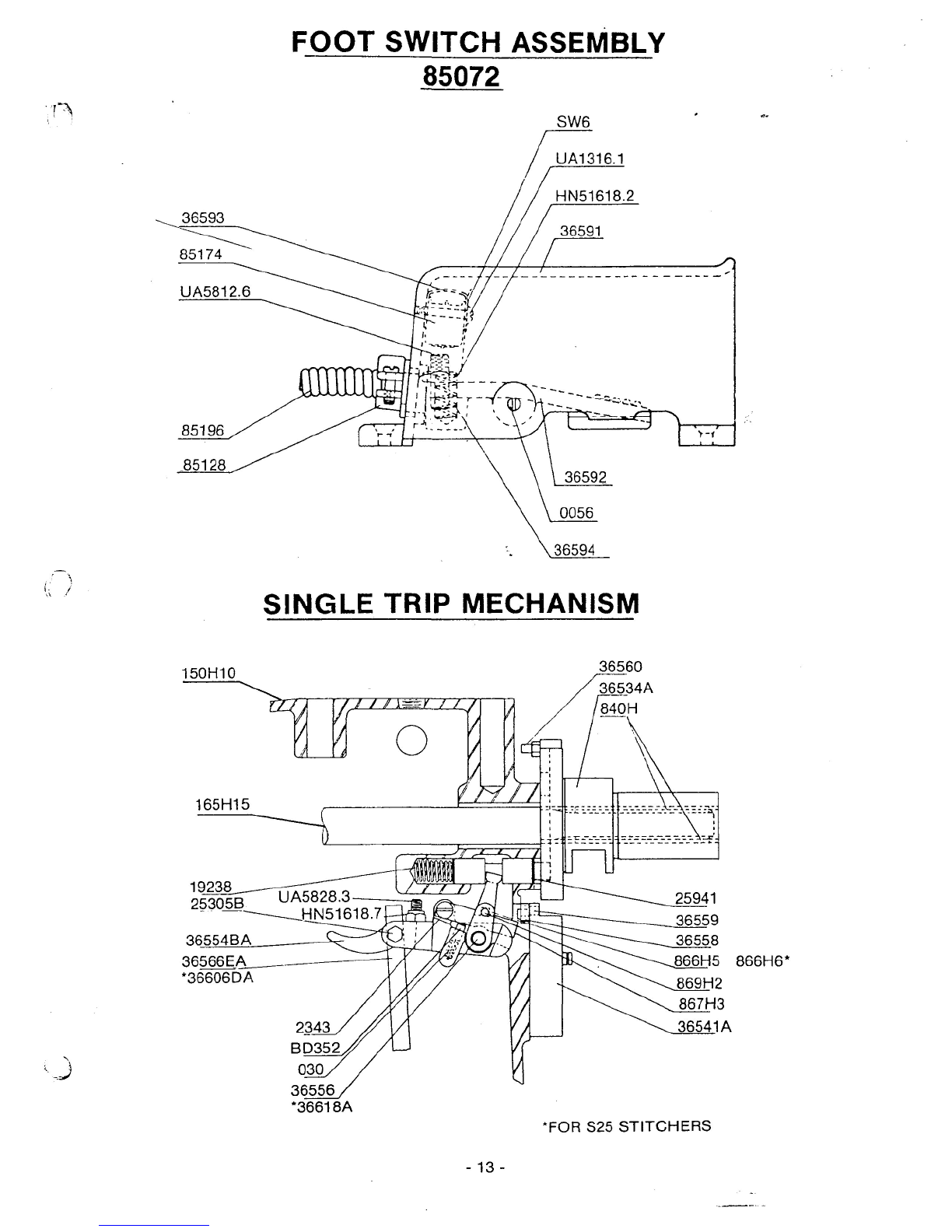

FOOTSWITCH ASSEMBLY
85072
SINGLE TRIPMECHANISM
150H10
J— «.
/
I
1
/
/I
o
si.
/
/
/
/
/
/
36560
36534A
840H
165H15
19238
253Q5B
36554BA
36566 E_A
*36606DA
*FOR S25 STITCHERS
-13-

INSTRUCTIONS FORUSEOF
JAM RELEASING WRENCH
INSERTPINS IN WRENCHBSA37 INTO TWO HOLES IN DRIVE
PULLEYWASHER18281DA AND TURN INTHE DIRECTION
SHOWN ON SKETCH
WRENCH
DRIVE PULLEY
WASHER
18281 DA
- 14-

CLUTCH AND BRAKE UNIT
2340B
0
2336
2333
18287
MIN. 2347
MAX. 2347A
446H5
CLUTCH RING ASSEMBLY
18283HA
25942
18284
UB7824.1
25766
E165
18283JA
-15-

CLINCHERS FOR S13A1, S13B2,
AND S13CSTITCHERS
PLAIN CLINCHERS
RAISED CLINCHERS
o
OPEN END CLINCHINGSURFACE
(With 2 Drilled Holes)
830H6 - 45° Angle of Contact(Standard)S13C,S13B2
830H17 - 37y2° Angle of Contact
(With 2 Tapped Holes)
830H13 - 45° Angle of Contact(Standard)S25C
GROOVED CLINCHING SURFACE
830H11 - 45" Angle of Contact
OPEN END CLINCHINGSURFACE
(With 1 TappedHole)
830H19 - 45° Angle of Contact
GARNISH MOULDINGCLINCHERS
CLINCHINGSURFACE
MILLEDTHRU LIP
830H 45° Angle of Contact
CLINCHING SURFACE
MILLED THRU
OPEN END CLINCHING SURFACE
830H8 - 45° Angle of Contact
830H15 - 45° Angle of Contact
Raised Vi"
830H21 45° Angle of Contact
Raised 1"
GROOVED
CLINCHING SURFACE
830H39 - 45° Angle of Contact
Raised W
PASS-BY
CLINCHING SURFACE
830H47 - Raised %"
SINGLE CLINCHING SURFACE
MILLEDTHRU
830H20 - 45° Angle of Contact
Raised 2"
POST CLINCHERS
OPEN END
CLINCHINGSURFACE
830H24 - 45° Angle of Contact
(Raised 3")
830H37 - 37'/2" Angle of Contact
(Raised 3")
CLINCHERADAPTERS
832H - ForUse With V4", %" and
1" Raised Clinchers
280G - 45° Angle of Contact(Standard)
280G2 - 37 W Angle of Contact
832H2 - ForUse With 2" Raised Clincher
CLINCHERHOLDERS
831H2 -With Tapped Clincher Hole (Standard)S13C
831H11 -With Drilled Clincher Hole (Standard)S25C
S31H7 - ForUse With 3" Raised Clincher 830H24(S13C Only)
831H8 - ForUse With 3" Raised Clincher 830H24(25C Only)
MovableClincherSolidClincher Solid Clincher
37 'A" 45°
Sectional View ShowingTypes of Clinchers
W'
-16-

PARTS FOR S13A1,S13B2,S13C,S13E,S25A1,
S25B2 AND S25C STITCHERS
90H3
91H2
92H
93H
94H2
94H3
148H
164H8D
174H18
446H5
809H
840H
867H3
869H2
997H
BD352
0056
030
030
1015H
2333
2336
f>340B
* ^2341
2343
2347
2349
2350
9051
18281 DA
18283HA
18283JA
18284
18285BA
18287
19238
25305B
25941
25942
31275
36506
36518B
36519
36534A
36554BA
36558
36559
36560
O36562
-^36591
36592
SpoolholderBracket36593
Spoolholder Spindle 36594
Spoolhoider Thrust Washer—Assem. 36658
SpoolholderFrictionSpring 36659
SpoolholderLock Nut 36660
SpoolholderSpindle JamNut
Drive Shaft Bushing—(Back) 85072
Drive Cam 85174
Drive Pulley — 9" Clutch85173
Brake BandAssem. (9" Clutch) 85180
Drive PulleyGuard 85185
ClutchSleeve Key 85202
Latch
Latch Contact 85847
SpoolholderLock . 86039
Latch SpringPlunger88293
Foot SwitchTreadlePivot BSA37
Latch Spring 109-17A
Pulley WasherScrewLockSpring192-38
Drive Bar Link Bushing
ClutchLever192-40
ClutchLever Spring Plunger
Brake BandAdjustingScrew 192-44
Brake BandAdjustingScrewLock
Latch PivotStudHN1420
ClutchRingExpanding Pin HN1420.4
Pulley WasherScrewHN51618.2
Pulley Washer ScrewLockHN51618.7
Brake BandAdjustingScrewLockSpring HN51624.2
Pulley Washer — Assem.LW14
Brake RingLW716
ClutchRing — Assem. 9" Clutch
ClutchPawlPlungerPW516
Brake Band — Assem. (4" Clutch) SW6
ClutchLeverPivotUA1316.1
StopPlunger Spring UA3808.9
SolenoidConnectingLink Pin UA4112.1
StopPlungerUA4814.1
ClutchPawl UA5112.1
Brake BandLink Clip UA5114.1
SolenoidCoverPlateUA5116.1
Brake BandLinkUA5804.1
Brake BandLink Stud UA5820.1
Clutch Sleeve — Assem.UA5824.1
ConnectingLink Arm UA5828.3
Single Trip LeverUA7140.1
Single Trip LeverPivotUA7816.1
Single Trip ScrewUA8832.8
SolenoidBracketUB2908.1
FootSwitchBase UB3108.2
Foot SwitchTreadle UB4124.2
MicroSwitchShield
Foot SwitchTreadle Spring
SolenoidConnecting Link Spring
SolenoidSpringBracket
SolenoidConnectingLinkSpringRetaining
Washer
Foot Switch — Assem.
MicroSwitch
Solenoid — 110 Volt — A.C.
Solenoid — 220 Volt — A.C.
Solenoid — 230 Volt — D.C.
Oiler
Drive Shaft Bushing(Front)
Circuit Breaker
Grease Fitting
Pin Wrench(Forre-settingHead)
V Belt
Motor Pulley (% Bore) for295 Stitches per
minutewith1725 R.P.M. Motor
MotorPulley (% Bore) for295 Stitches per
minutewith1425R.P.M.Motor
MotorPulley (% Bore) for295 Stitches per
minutewith1425R.P.M.Motor
Solenoid Screw Nut
SolenoidSpringBracket Nut
Switch ContactScrewLock Nut
Connecting Link Stop Nut
SolenoidConnecting Link PinNut
SolenoidScrewLockWasher
SolenoidBracketScrewLockWasher
PulleyGuardScrewWasher
MicroSwitchScrew Lock Washer
MicroSwitchScrew
SolenoidCoverPlateScrew
SolenoidScrew
SolenoidSpringBracketScrew
Pulley GuardScrew
SpoolholderBracketScrew
SpoolholderBracketScrew
Pulley WasherScrewLockSpringScrew
SingleTripLeverPivotBlockScrew —(Short)
SingleTrip Lever Pivot Block Screw— (Long)
ConnectingLink Stop Screw
Head to BodyScrew
Drive Cam Screw
MotorPlateStudScrew
SpoolholderThrustWasherCotter
SpoolholderLock Nut Stop Pin
SolenoidSpringRetaining Fin
-17-

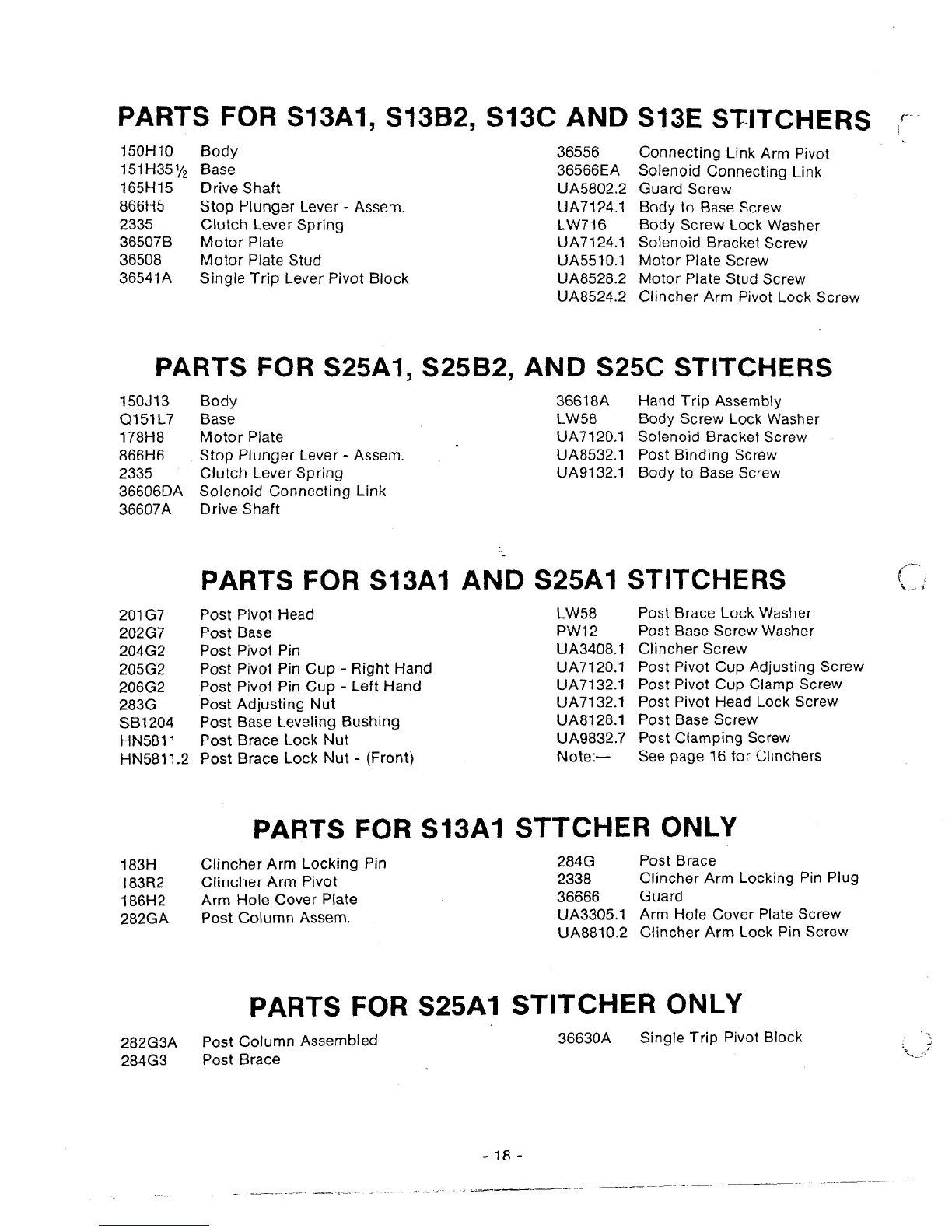

PARTS FOR S13A1,S13B2,S13C AND S13ESTITCHERS
150H10Body
151H351/2 Base
165H15DriveShaft
866H5 StopPlunger Lever - Assem.
2335 Clutch Lever Spring
36507B Motor Plate
36508 Motor PlateStud
36541A Single Trip Lever PivotBlock
36556 ConnectingLink Arm Pivot
36566EA SolenoidConnectingLink
UA5802.2 GuardScrew
UA7124.1 Body to BaseScrew
LW716 BodyScrewLockWasher
UA7124.1 SolenoidBracketScrew
UA5510.1MotorPlate Screw
UA8528.2MotorPlateStud Screw
UA8524.2 Clincher Arm Pivot Lock Screw
PARTS FOR S25A1,S25B2, AND S25CSTITCHERS
150J13Body
Q151L7Base
178H8 Motor Plate
866H6StopPlunger Lever - Assem.
2335 Clutch Lever Spring
36606DA SolenoidConnectingLink
36607A Drive Shaft
36618AHand Trip Assembly
LW58 BodyScrewLockWasher
UA7120.1SolenoidBracketScrew
UA8532.1PostBinding Screw
UA9132.1 Body to Base Screw

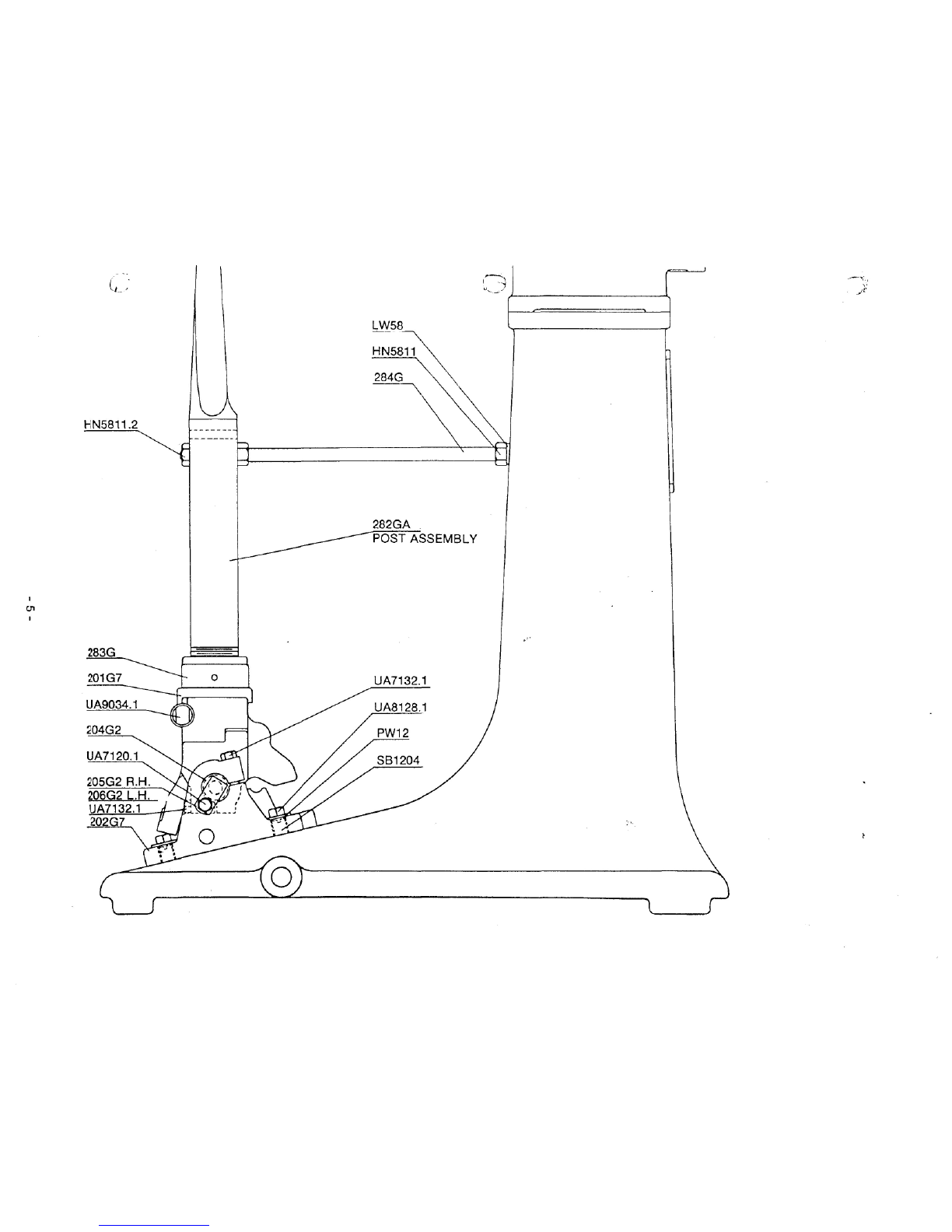

PARTS FOR S13A1 AND S25A1STITCHERS
r
201G7 PostPivotHead
202G7PostBase
204G2 PostPivot Pin
205G2 PostPivot PinCup- RightHand
206G2PostPivot PinCup- LeftHand
283GPost Adjusting Nut
SB1204PostBaseLeveling Bushing
HN5811 PostBraceLock Nut
HN5811.2 PostBraceLock Nut- (Front)
LW58PostBraceLockWasher
PW12 PostBaseScrewWasher
UA3408.1ClincherScrew
UA7120.1 Post Pivot Cup AdjustingScrew
UA7132.1 PostPivot Cup ClampScrew
UA7132.1 Post PivotHeadLock Screw
UA8128.1PostBaseScrew
UA9832.7 PostClampingScrew
Note:— See page 16for Clinchers
PARTS FOR S13A1STTCHERONLY
183HClincher Arm Locking Pin
183R2 Clincher Arm Pivot
186H2 Arm Hole CoverPlate
282GA Post Column Assem.
284G PostBrace
2338Clincher Arm Locking Pin Plug
36666Guard
UA3305.1 Arm HoleCoverPlateScrew
UA8810.2 Clincher Arm Lock Pin Screw
PARTS FOR S25A1STITCHERONLY
282G3A PostColumnAssembled
284G3PostBrace
36630A SingleTrip Pivot Block
-18-

PARTS FOR S13B2,AND S25B2 STITCHERS
129H5 Gripper SpringPivot
821H ClincherBracket - (Standard)
for Top Clincher Mounting
821H2ClincherBracket
for BottomClincher Mounting
824H ClincherBracketSpacer
BG1114ClincherBracketScrewWasher
SB825ClincherBracketScrew - (Lower)
14212 BasePlate
228-13ClincherBracketScrewWasher
HN3816.2ClincherBracketAdjustingScrew Lock Nut
HN71614 ClincherBracketScrew Nut
PW38ClincherScrewWasher
UA6116.1 ClincherScrew-ForTopClincherMounting
UA6128.1 ClincherBracketScrew
UA6824.3ClincherBracketAdjustingScrew
UA8116.1 BasePlateScrew
UA8120.1 Clincher Screw-For BottomClincher
Mounting
Note:— See page 16for Clinchers
PARTS FOR S13B2 STITCHER ONLY
183HClincher Arm Locking Pin
183R2 Clincher Arm Pivot
186H2 Arm Hole Cover Plate
2338Clincher Arm Locking Pin Plug
36666Guard
UA3305.1 Arm HoleCoverPlateScrew
UA8810.2 Clincher Arm Lock Pin Screw
PARTS FOR S25B2 STITCHER ONLY
36630A
Single Trip LeverPivotBlock
PARTS FOR S13C STITCHER ONLY
183HClincher Arm Locking Pin SB917
183R2 Clincher Arm Pivot SW916
187H27 Clincher Arm
189J2Clincher Arm AdjustingScrew UA6116.1
BG1304Clincher Holder Washer UA8116.1
2338Clincher Arm Locking Pin PlugUA8128.1
14212 BasePlate UA8516.1
36666 Guard UA8810.2
HN1213.2 Clincher Arm SideAdjustingScrew Lock Nut Note:—
HN5818.2 Clincher Arm AdjustingScrew Lock Nut
Clincher ArmSide AdjustingScrew
Clincher Arm SideAdjustingScrewLock
Washer
Clincher Screw
Base Plate Screw
ClincherHolderScrew
Clincher Armto PivotScrew
Clincher Arm Lock Pin Screw
See page 16forClinchers,ClincherHolders,
and ClincherAdaptors
PARTS FOR S25C STITCHER ONLY
WJ16 Arm
19276 Clincher Holder Washer
14212 BaseCover
36610 Arm Binding ScrewWasher(Rear)
36630A Single Trip PivotBlock
36633 Arm Binding ScrewWasher(Front)
36648 WearBlock
'UA5812.5 Arm Adjusting Set Screw
UA7H4.1 CKncfier Screw
UA8116.1 BaseCoverScrew
UA8120.1ClincherHolderScrew
UA8840.3 Arm AdjustingScrew
UA9076 Arm ElevatingScrew
UA9160 Arm ClampScrew
HN5811 Arm LocatingScrewLock
Nut
-19-

PARTS FOR S13ESTITCHERONLY
BG300 Clincher Arm AdjustingEccentricSet850200
Screw Plug85327
14212 BasePlate 85328
B512B Clincher Operating Lever Slide Pin 85329
36523A Clincher Arm HN51618
36527 Clincher Arm Pivot Pin HN51618
36528A Clincher Arm AdjustingEccentricHN1213.2
36530 Clincher Arm AdjustingBolt HN1213.2
36531 Clincher Arm Adjusting Bolt Pin
36537A Clincher Cam SlideHN1420.5
36538 Clincher Cam Slide RollHN5811
36540 Clincher Cam SlideRollRetainer PW516
36542 Clincher Cam SlidePlunger PW516
36543B Clincher Cam SlideLever SW916
36544 Clincher Operating LeverPivot
36544 Clincher Cam SlideLeverPivot UA3406.2
36546B Push Rod
36547B Push Rod Guide UA3406.2
36550C Push Rod GuideSpringPlate
36551BA ClincherOperatingSlide UA3406.2
36555 ClincherOperatingSlideSpring
36557 ClincherOperatingSlideSpringHookUA4816.1
36571BA Clincher Holder UA4828.1
36573D Clincher UA4812.1
36574 ClincherScrew UA5110.1
36575D ClincherSlideUA5112.1
36576C ClincherOperatingLeverUA5128.1
36577B ClincherSlide Tip UA5412.1
36581 Air Valve BracketUA5828.2
36583 Air Valve LeverUA8116.1
36585 Air Valve LeverPivotUA8520.1
36587 Air Tube UA8532.2
36665 GuardUA8832.3
85325 Ai r Tu be Adapto r
Air Valve
Air Petcock
Air Petcock Nipple
Air LineCoupler
Air Valve LeverPivotScrew Nut
Air Valve GuardScrew Nut
Clincher Arm SideAdjustingScrewLock Nut
ClincherOperating Slide AdjustingScrew
Lock Nut
Air Valve Screw Nut
Clincher Arm Adjusting Bolt Nut
Air Valve LeverPivotWasher
Air Valve Screw Washer
Clincher Arm SideAdjustingScrewLock
Washer
Clincher OperatingLeverPivot Retaining
Screw
ClincherCam Slide LeverPivot Retaining
Screw
Clincher Arm AdjustingBolt Pin Retaining
Screw
ClincherHolderScrew
Push Rod GuideScrew
Air Valve Screw
Air Valve GuardScrew
Air Valve BracketScrew
Air Valve LeverPivotScrew
Air Valve BracketScrew
Clincher Cam Slide Roll RetainerScrew
Base PlateScrew
Clincher Arm AdjustingEccentric Set Screw
ClincherOperating Slide AdjustingScrew
Clincher Arm AdjustingScrew
/—i
n
BOSTITCHDivision of TextronInc., East Greenwich, R.I. 02818,U.S.A.
BSA360D 5-76
LITHO IN U.S.A.
