BrightDrop Zevo 600 User manual

Zevo 600 Owner’s Manual
86530609 A
2023 Zevo 600
2023
gobrightdrop.com
C
M
Y
CM
MY
CY
CMY
K
ai166871378619_23_Brightdrop_Zevo_600_COV_en_US_86530609 A_2022NOV18.pdf 1 11/17/2022 2:36:28 PM

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/4/22
Contents
Introduction .............................. 1
Keys, Doors, and Windows . . . . . . . . . . . . . . . 6
Seats and Restraints . . . . . . . . . . . . . . . . . . . . . 25
Storage ................................. 46
Instruments and Controls . . . . . . . . . . . . . . . 50
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Infotainment System . . . . . . . . . . . . . . . . . . . . 83
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . 105
Driving and Operating . . . . . . . . . . . . . . . . . . 109
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Service and Maintenance . . . . . . . . . . . . . . . 228
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Customer Information . . . . . . . . . . . . . . . . . . 237
Reporting Safety Defects . . . . . . . . . . . . . . . 238
OnStar ................................. 240
Index. . . . . . . . . . . . . . . . . . . . . . . . . . 245
Introduction

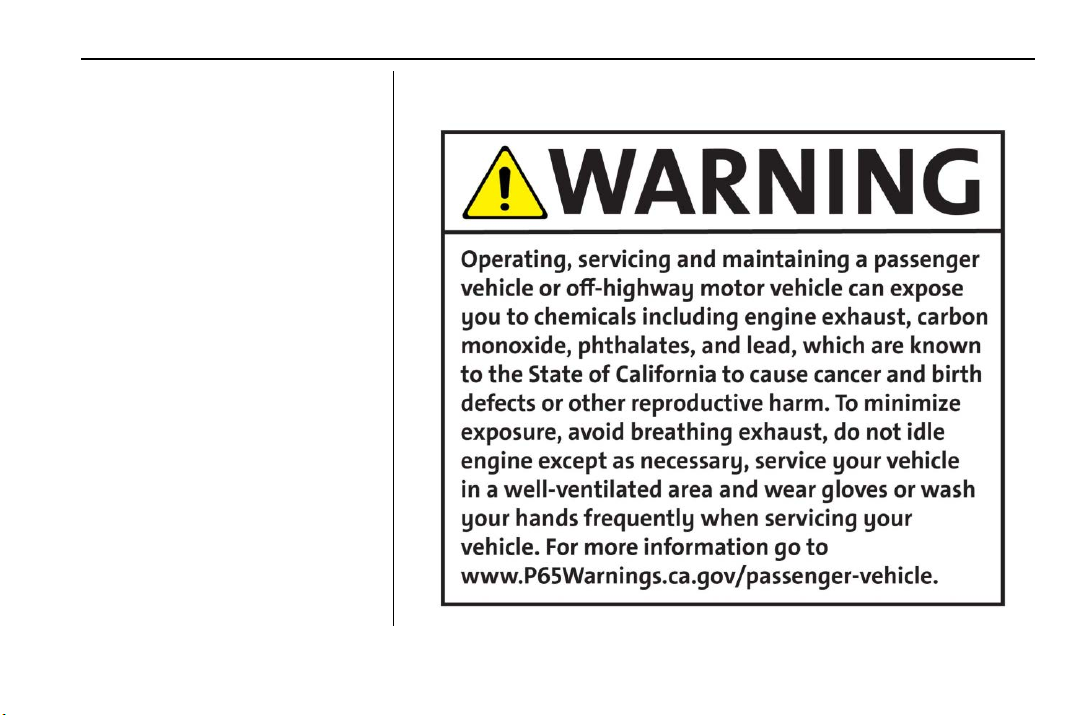

California Proposition 65 Warning
Litho in U.S.A.
Part No. 86530609 A First Printing ©2022 General Motors LLC. All Rights Reserved.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/4/22
2 Introduction
Introduction
The names, logos, emblems, slogans, vehicle
model names, and vehicle body designs
appearing in this manual including, but not
limited to, BrightDrop and EV600, are
trademarks and/or service marks of General
Motors LLC, its subsidiaries, affiliates,
or licensors.
For vehicles first sold in Canada, substitute
the name “General Motors of Canada
Company”for BrightDrop wherever it
appears in this manual.
This manual describes features that may or
may not be on the vehicle because of
optional equipment that was not purchased
on the vehicle, model variants, country
specifications, features/applications that may
not be available in your region, or changes
subsequent to the printing of this owner’s
manual, including changes in standard or
optional content.
Refer to the purchase documentation
relating to your specific vehicle to confirm
the features.
Keep this manual in the vehicle for quick
reference.
Canadian Vehicle Owners
A French language manual can be obtained
from your dealer, at www.helminc.com,
or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide
en français auprès du concessionnaire ou à
l'adresse suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Manual
To quickly locate information about the
vehicle, use the Index in the back of the
manual. It is an alphabetical list of what is
in the manual and the page number where
it can be found.
Danger, Warning, and Caution
Warning messages found on vehicle labels
and in this manual describe hazards and
what to do to avoid or reduce them.
{Danger
Danger indicates a hazard with a high
level of risk which will result in serious
injury or death.
{Warning
Warning indicates a hazard that could
result in injury or death.
Caution
Caution indicates a hazard that could
result in property or vehicle damage.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/4/22
Introduction 3
A circle with a slash through it is a safety
symbol which means “Do not,” “Do not do
this,”or “Do not let this happen.”
Symbols
The vehicle has components and labels that
use symbols instead of text. Symbols are
shown along with the text describing the
operation or information relating to a
specific component, control, message, gauge,
or indicator.
M:Shown when the owner’s manual has
additional instructions or information.
*:Shown when the service manual has
additional instructions or information.
0:Shown when there is more information
on another page — “see page.”
Vehicle Symbol Chart
Here are some additional symbols that may
be found on the vehicle and what they
mean. See the features in this manual for
information.
u:Air Conditioning System
G:Air Conditioning Refrigerant Oil
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
$:Brake System Warning Light
9:Dispose of Used Components Properly
P:Do Not Apply High Pressure Water
[:Energy Usage and Charge Mode
Selection
_:Flame/Fire Prohibited
H:Flammable
g:First Responder
[:Forward Collision Alert
R:Fuse Block Cover Lock Location
+:Fuses
_:High Voltage
j:ISOFIX/LATCH System Child Restraints
Q:Keep Fuse Block Covers Properly
Installed
|:Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7:Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
h:Risk of Electrical Fire
>:Seat Belt Reminders
Z:Service Vehicle Soon
I:Side Blind Zone Alert
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak/Electronic
Stability Control (ESC)
a:Under Pressure
k:Vehicle Ahead Indicator
]:Vehicle Ready

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/4/22
4 Introduction
Instrument Panel Overview

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/4/22
Introduction 5
1. Delivery Mode.
Lane Keep Assist (LKA) 0158.
Door Lock Button. See Power Door Locks
014.
Park Assist 0148.
Exterior Cargo Lamps 079.
Door Unlock Button. See Power Door
Locks 014.
Cargo Lamps 080.
Cab Dome Lamp. See Dome Lamps 080.
2. Cupholders 047.
3. Turn Signal Lever. See Turn and
Lane-Change Signals 079.
Exterior Lamp Controls 076.
4. Instrument Cluster 055.
5. Windshield Wiper/Washer 052.
6. Instrument Panel Storage 046.
7. 360° Camera. See Surround Vision
System 0146.
Heated Mirrors 023.
8. Light Sensor. See Automatic Headlamp
System 078.
9. Infotainment. See Introduction 083.
10. 110 Volt Power Outlet (Out of View). See
Power Outlets 054.
11. Air Vents 0107.
12. Automatic Climate Control System 0105.
Heated Front Seats 028.
13. 12 Volt Power Outlet. See Power Outlets
054.
14. USB Port 089.
15. Shift Lever. See Electric Drive Unit 0124.
16. Hazard Warning Flashers 079.
17. Power Button 0121.
18. Steering Wheel Controls 085.
19. Horn 051.
20. Steering Wheel Adjustment 051 (Out
of View).
21. Instrument Panel Illumination Control
080.
22. Cruise Control 0133.
Forward Collision Alert (FCA) System
0151.
Heated Steering Wheel 051.
23. Window Controls Switches (Out of View).
24. Mirror Adjustment Buttons.
25. Data Link Connector (DLC) (Out of View).
See Service Vehicle Soon Light (Propulsion
System Failure) 061.
26. Hood Release. See Hood 0171.
27. Instrument Panel Fuse Block 0187.
28. Electric Parking Brake 0129.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/3/22
6 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Key ............................. 7
Remote Key Operation . . . . . . . . . . . . . . . . . . . 7
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . 13
Door Locks .............................. 13
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 14
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 15
Automatic Door Locks . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 15
Doors
Sliding Door (Bulkhead Door) . . . . . . . . . . . 16
Rear Doors (Exterior) . . . . . . . . . . . . . . . . . . . . 17
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 20
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 20
Steering Column Lock . . . . . . . . . . . . . . . . . . . 21
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Immobilizer Operation . . . . . . . . . . . . . . . . . . 21
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 23
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 23
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Power Windows . . . . . . . . . . . . . . . . . . . . . . . . 23
Sun Visors .............................. 24
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
remote key is dangerous and children or
others could be seriously injured or killed.
They could operate the power windows
or other controls or make the vehicle
move. The windows will function with
the remote key in the vehicle, and
children or others could be caught in the
path of a closing window. Do not leave
children in a vehicle with a remote key.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/3/22
Keys, Doors, and Windows 7
The mechanical key inside the remote key is
used for the rear sliding door.
Press the button on the side of the remote
key, near the bottom, and pull the
mechanical key out. Never pull the
mechanical key out without pressing the
button.
The mechanical key may have a bar-coded
key tag that the dealer or qualified
locksmith can use to make new keys. store
this information in a safe place, not in the
vehicle.
See your dealer if a replacement key or
additional key is needed.
If it becomes difficult to turn a key, inspect
the key blade for debris. Periodically clean
with a brush or pick.
With an active OnStar or connected service
plan, an OnStar Advisor may remotely
unlock the vehicle. See OnStar Overview
0240.
Remote Key
See Radio Frequency Statement 0237.
If there is a decrease in the remote key
operating range:
.Check the distance. The remote key may
be too far from the vehicle.
.Check the location. Other vehicles or
objects may be blocking the signal.
.Check the remote key’s battery. See
“Battery Replacement”later in this
section.
.If the remote key is still not working
correctly, see your dealer or a qualified
technician for service.
Remote Key Operation
The Keyless Access system allows for vehicle
entry when the remote key is within 1 m
(3 ft). See “Keyless Access Operation”later
in this section.
The remote key functions may work up to
60 m (197 ft) away from the vehicle.
Other conditions can affect the performance
of the remote key. See Remote Key 07.
Q:Press to lock all doors.
If enabled, the turn signal lamps flash once
on the second press to indicate locking has
occurred. If enabled, the horn chirps when
Qis pressed again within three seconds. To
view available settings from the
infotainment screen, touch Settings >
Vehicle > Remote Lock, Unlock, Start.
Pressing Qarms the alarm system. See
Vehicle Alarm System 020.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/3/22
8 Keys, Doors, and Windows
If equipped with auto mirror folding, double
pressing and holding Qfor one second will
fold the mirrors, if enabled. To view
available settings from the infotainment
screen, touch Settings > Vehicle > Comfort
and Convenience.
K:Press once to unlock only the driver
door. If Kis pressed again within
three seconds, all remaining doors unlock.
The interior lamps may come on and stay
on for 20 seconds or until the vehicle is
turned on.
If enabled, the turn signal lamps flash twice
to indicate unlocking has occurred.
If enabled, the exterior lamps may turn on.
To view available settings from the
infotainment screen, touch Settings >
Vehicle > Remote Lock, Unlock, Start.
Pressing Kon the remote key disarms the
alarm system. See Vehicle Alarm System
020.
If equipped with auto mirror folding, double
pressing and holding Kfor one second will
unfold the mirrors, if enabled. To view
available settings from the infotainment
screen, touch Settings > Vehicle > Comfort
and Convenience.
Double press and hold Kuntil the windows
fully open, if remote window operation is
enabled. To view available settings from the
infotainment screen, touch Settings >
Vehicle > Remote Lock, Unlock, Start.
7:Press and release to initiate vehicle
locate. The turn signal lamps flash and the
horn sounds three times.
Press and hold 7for more than
three seconds to activate the panic alarm.
The turn signal lamps flash and the horn
sounds repeatedly for 30 seconds. The alarm
turns off when the vehicle is turned on or
7is pressed again. The vehicle must be off
for the panic alarm to work.
S:To remote start the vehicle, double
press Sfrom outside the vehicle using the
remote key. The vehicle cannot be started if
a remote key is left inside the vehicle. See
Remote Vehicle Start 013.
Keyless Access Operation
The Keyless Access system allows for
exterior doors and the rear sliding door to
be accessed without removing the remote
key from your pocket, purse, briefcase, etc.
The remote key must be within 1 m (3 ft) of
the rear sliding door or exterior door being
opened. If the vehicle has this feature, there
will be a button on the outside touchpads.
Keyless Access can be programmed to
unlock all doors on the first lock/unlock
press from the driver door. To view available
settings from the infotainment screen, touch
Settings > Vehicle > Remote Lock, Unlock,
Start.
Keyless Unlocking/Locking from the
Driver Door
When the doors are locked and the remote
key is within 1 m (3 ft) of the door handle,
pressing the lock/unlock button on the
driver door touchpad will unlock the driver
door. If the lock/unlock button is pressed
again within five seconds, the doors and
rear sliding door will unlock.

BrightDrop Zevo 600 Owner Manual (GMNA-Localizing-U.S./Canada-
16569273) - 2023 - CRC - 11/3/22
Keys, Doors, and Windows 9
Driver Side Shown, Passenger Side Similar
Pressing the lock/unlock button will cause
all doors to lock if any of the following
occur:
.It has been more than five seconds since
the first lock/unlock button press.
.Two lock/unlock button presses were
used to unlock all doors.
.Any vehicle door has been opened and all
doors are now closed.
Keyless Unlocking/Locking from the
Passenger Doors
When the doors are locked and the remote
key is within 1 m (3 ft) of the door handle,
pressing the lock/unlock button on a
passenger door touchpad will unlock all
doors. Pressing the lock/unlock button will
cause all doors to lock if any of the
following occur:
.The lock/unlock button was used to
unlock all doors.
.Any vehicle door has been opened and all
doors are now closed.
Disable/Enable Keyless Unlocking of Exterior
Door Handles and Rear Sliding Door
If equipped, keyless unlocking of the exterior
door handles and rear sliding door can be
disabled and enabled.
Disabling Keyless Unlocking:
With the vehicle off, press and hold Qand
Kon the remote key at the same time for
approximately three seconds. The turn signal
lamps will flash four times quickly to
indicate access is disabled. Using any
exterior handle to unlock the doors or open
the rear sliding door will cause the turn
signal lamps to flash four times quickly,
indicating access is disabled. If disabled,
disarm the alarm system before starting the
vehicle.
Enabling Keyless Unlocking:
With the vehicle off, press and hold Qand
Kon the remote key at the same time for
approximately three seconds. The turn signal
lamps will flash twice quickly to indicate
access is enabled.
To view available settings from the
infotainment screen, touch Settings >
Vehicle > Remote Lock, Unlock, Start.
Passive Locking
The Keyless Access system will lock the
vehicle several seconds after all doors are
closed, if the vehicle is off and at least one
remote key has been removed from the
interior, or none remain in the interior.
If other electronic devices interfere with the
remote key signal, the vehicle may not
detect the remote key inside the vehicle.
If passive locking is enabled, the doors may
lock with the remote key inside the vehicle.
Do not leave the remote key in an
unattended vehicle.
To view available settings from the
infotainment screen, touch Settings >
Vehicle > Remote Lock, Unlock, Start.
